5-20 Kwh Home Supply Solar Electrical Residential Commercial MPPT BMS Lithium Ion Battery Stacked Energy Storage Systems

1 / 5

5-20 Kwh Home Supply Solar Electrical Residential Commercial MPPT BMS Lithium Ion Battery Stacked Energy Storage Systems

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

AS-15KW-HYBRID

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

System Type

Home Solar Power System

Solar Inverter

Deye Hybrid Solar Inverter

Solar Panel

Mono Solar Panel

Mounting Support

Roof or Ground Support

Packaging & Delivery

Package Size

100.00cm * 55.00cm * 30.00cm

Gross Weight

35.000kg

⚙️

Product Parameters

Hybrid Storage Solar Power System (Residential)
Hybrid Inverter (KW)	3.6kw	5kw	8kw	10kw	12kw
550W Mono Solar Panel (Pcs)	6	10	14	20	24
PV Combiner Box (Set)	1	1	1	1	1
Lead Acid Gel/ AGM Battery	48V 100/200AH
DC Cable (m)	200	200	200	400	400
Inverter Brand	Deye 3.6KW	Deye 5KW	Deye 8KW	Deye 10KW	Deye 12KW

Hybrid Storage Solar Power System (Commercial)
Hybrid Inverter (KW)	30KW	50KW	100KW	120KW	150KW
550W Mono Solar Panel (Pcs)	56	96	200	240	280
Battery System	336V-438V 200Ah
DC Cable (m)	400	600	800	800	1000
Inverter Model	ATESS HPS30	ATESS HPS50	ATESS HPS100	ATESS HPS120	ATESS HPS150

☀️

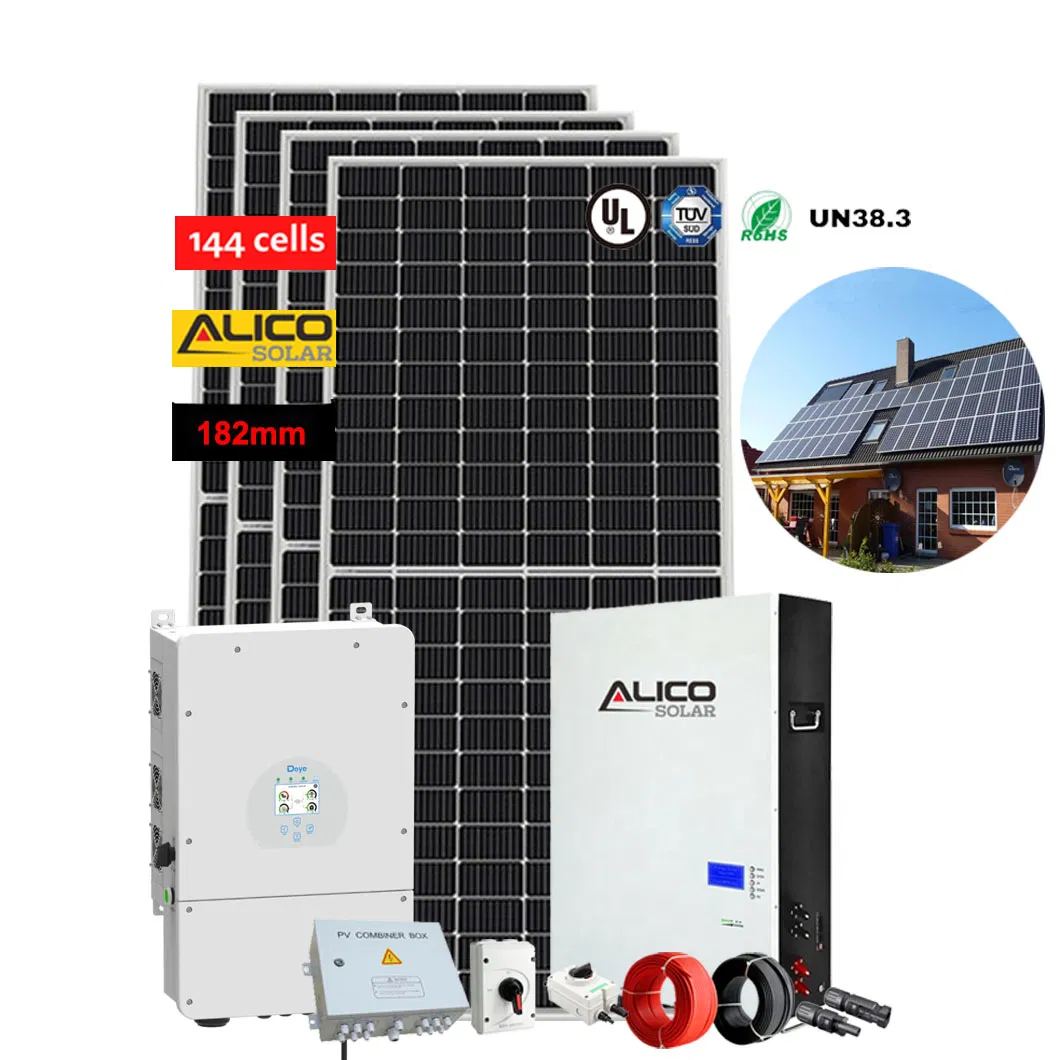

Hybrid Solar System Components

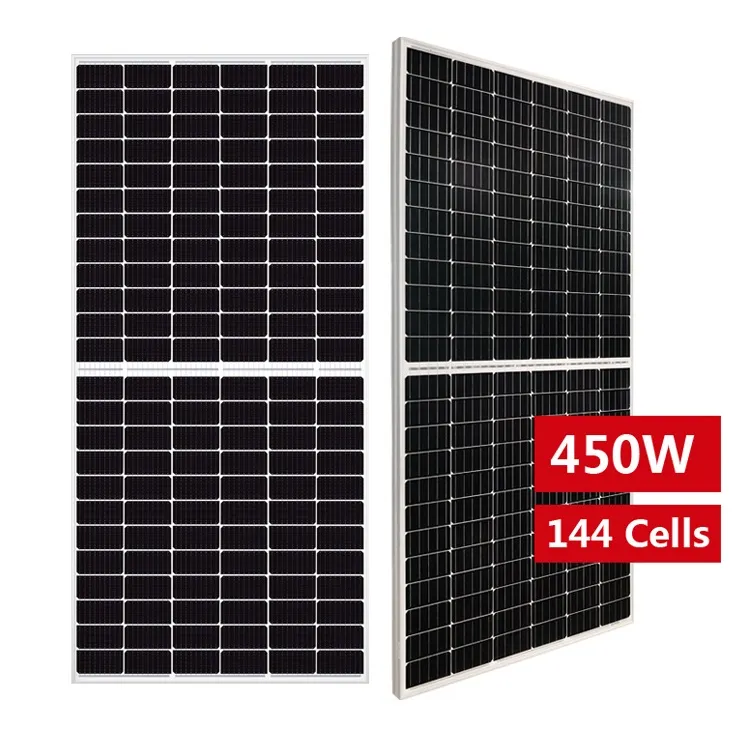

Monocrystalline Solar Panel

Model Type: ASWM6-132-455M
Peak Power: 455W
Open Circuit Voltage: 44.95V
Short Circuit Current: 12.59A
Features: High Efficiency Half Cell Solar Cell
Dimensions: 2108*1048*35mm / 24kg

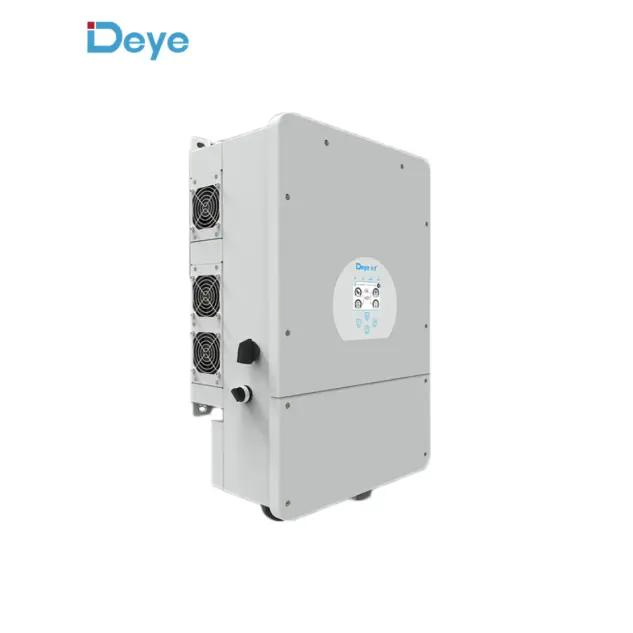

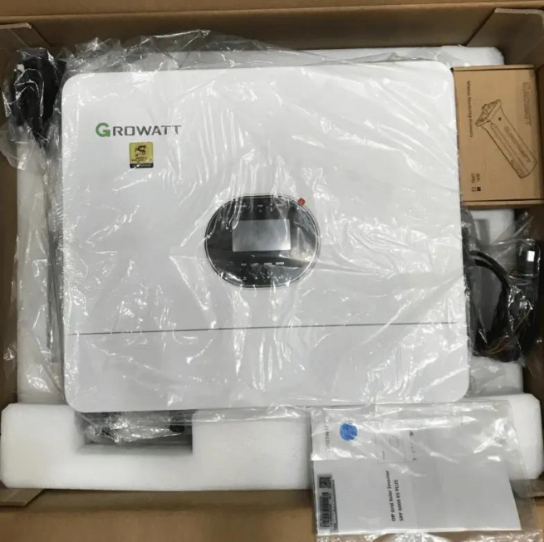

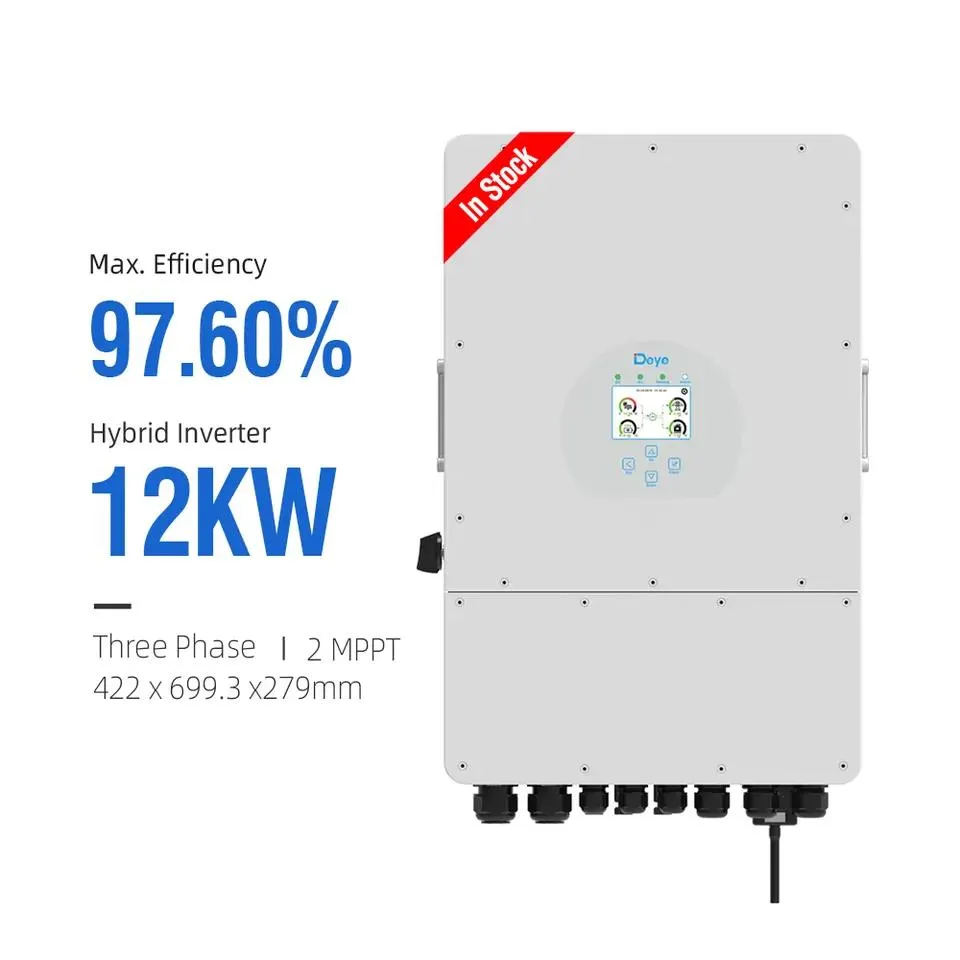

Hybrid Solar Inverter

1. All-in-one hybrid inverter design
2. Seamless on/off grid transfer
3. Programmable working modes
4. Supports remote control of DG
5. Double capacity by paralleling units

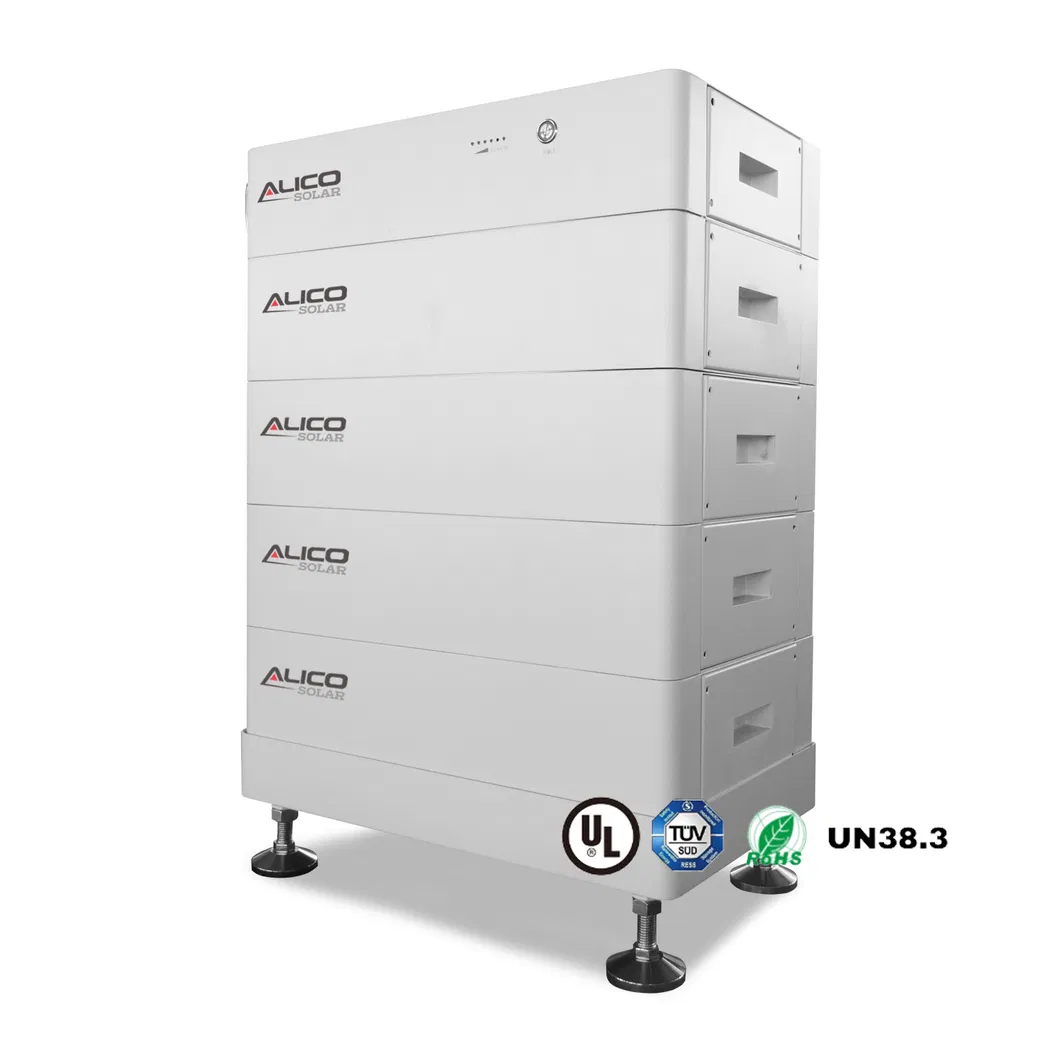

Lithium Energy Storage

1. Modular and stacked design for easy installation
2. Flexible capacity: 2.56kWh to 25.6kWh
3. Safe cobalt-free LiFePO4 battery technology
4. Operational range: -10°C to 50°C

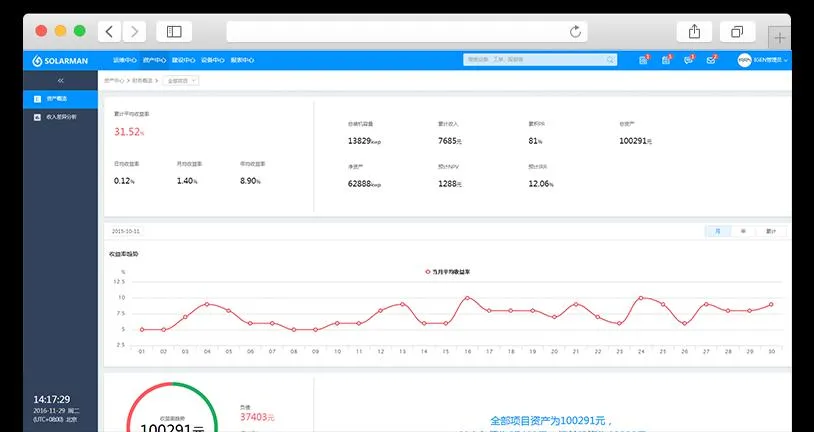

Monitoring & Accessories

Remote Monitoring: Web server access via Wi-Fi/Lan/GPRS. Apps for PC, iOS & Android.

Mounting System: AI6005 Rail & SUS304 Bolts, suitable for various roof types.

Accessories: AC/DC Cables, Switches, Breakers, and PV Combiner Boxes.

🏠

Global Project Showcases

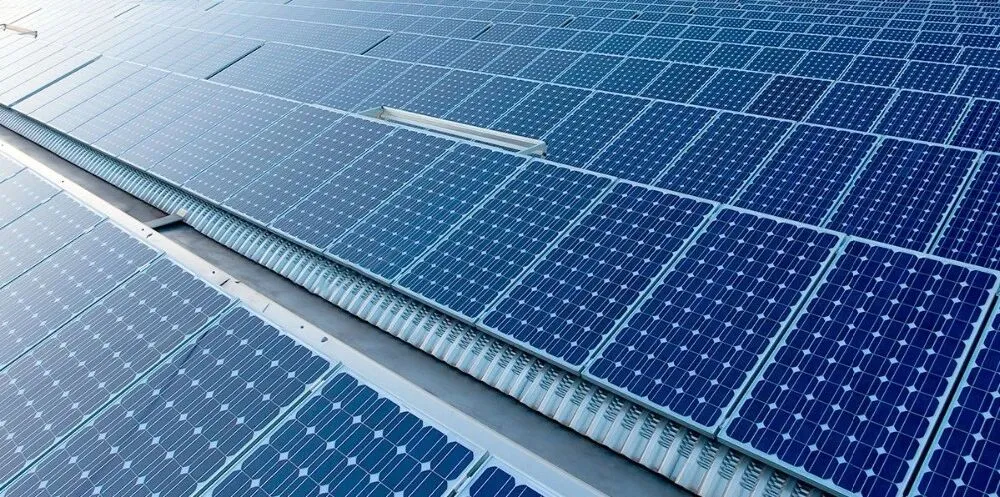

12MW Commercial Metal Roof Solar Plant

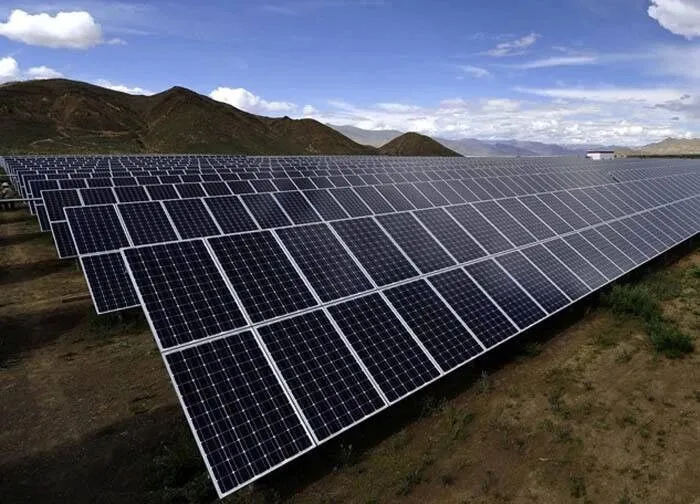

20MW Ground Solar Plant, USA

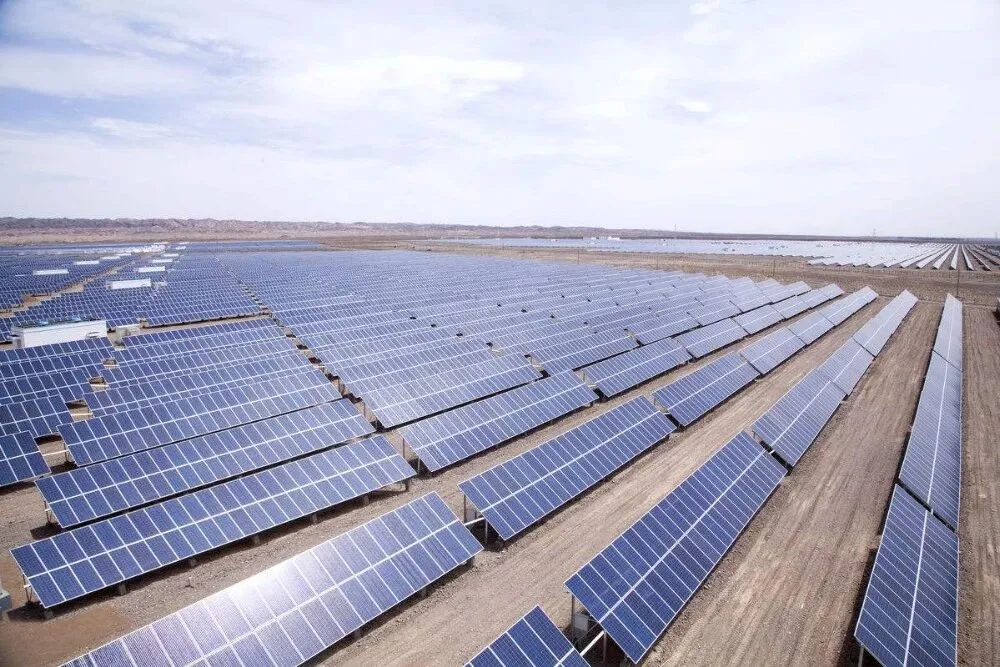

50MW Solar Plant, Brazil

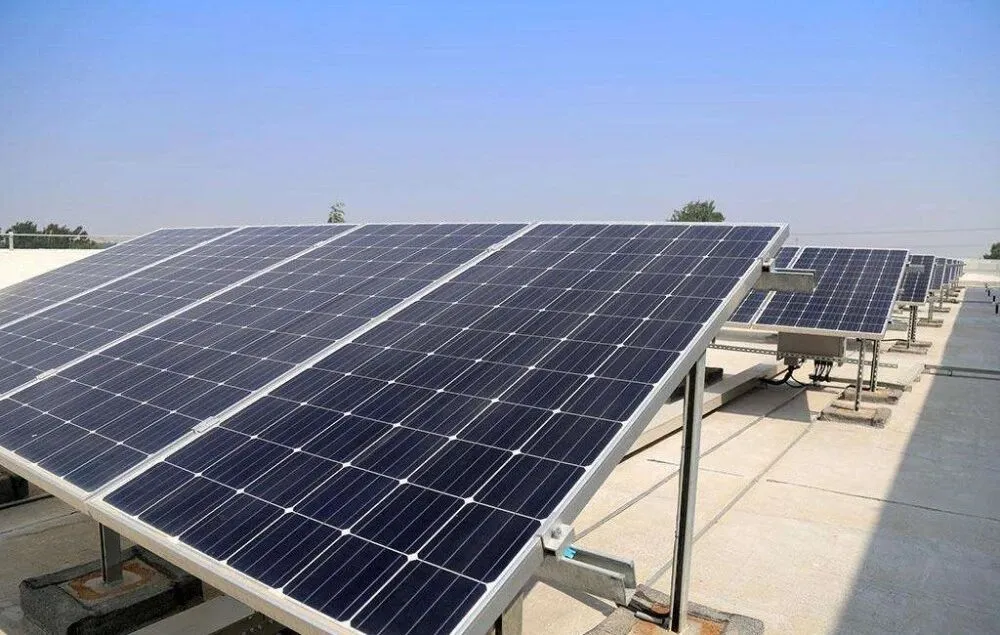

20KW Solar Plant, Mexico

❓

Frequently Asked Questions

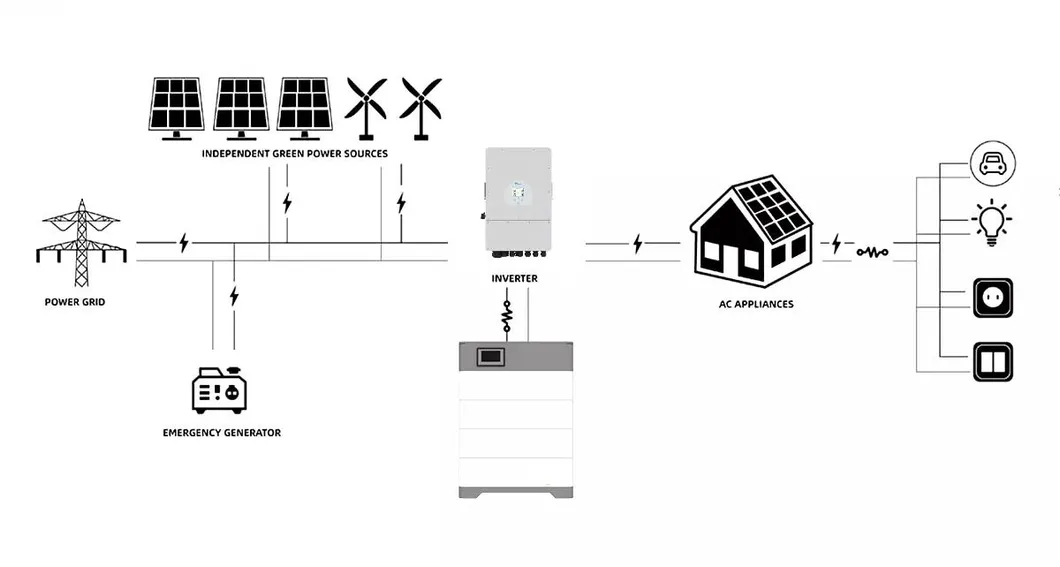

What is a Hybrid Solar System?

A hybrid solar system combines solar panels, batteries, and a connection to the utility grid. It allows you to store excess energy for use at night or during power outages while still having the grid as a backup.

How long do the Lithium batteries last?

The Lithium Iron Phosphate (LiFePO4) batteries used in our systems are designed for high durability, typically offering over 6,000 cycles and a lifespan of 10-15 years depending on usage conditions.

Can the system power my home during a grid failure?

Yes, the hybrid inverter features a seamless on/off grid transfer, ensuring that your essential appliances remain powered using battery storage during a blackout.

Is the system scalable?

Absolutely. The modular stacked design of the battery system and the parallel capability of the inverters allow you to expand your capacity as your energy needs grow.

How can I monitor the performance of my solar system?

Every system includes a data logging stick that connects via Wi-Fi, LAN, or GPRS, allowing you to track energy production and consumption through a dedicated app on your smartphone or PC.

What kind of maintenance is required?

Solar systems are generally low-maintenance. We recommend cleaning the panels periodically to remove dust and checking the mounting connections once a year to ensure optimal performance.
