Whc 150kw 200kw 220kw Hybrid off Grid Solar PV Panels Home Lighting Lithium Battery Energy Storage Balcony Power Generator Module System Photovoltaic Kit

Customization:	Available
Type:	Lithium-Ion Batteries
Usage:	Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Home

Send Inquiry

Product Description

📊 Basic Information

Model	150KW Li-229KWH Solar Power System
Nominal Voltage	384V
Discharge Rate	High Discharge Rate
Shape	Square Battery
Electrolyte	Li-ion
Installation	Packaged
Product Name	Offgrid Solar Power System Home
Solar Panel Type	Half Cell Solar Panel
Battery Type	LiFePO4 Lithium Battery
Inverter	Pure Sine Wave Inverter
Controller	MPPT Solar Charge Controller
Mounting Support	Pitched / Flat Roof / Ground
System Type	Off-Grid Solar Power System
Capacity	10000 pieces/Month

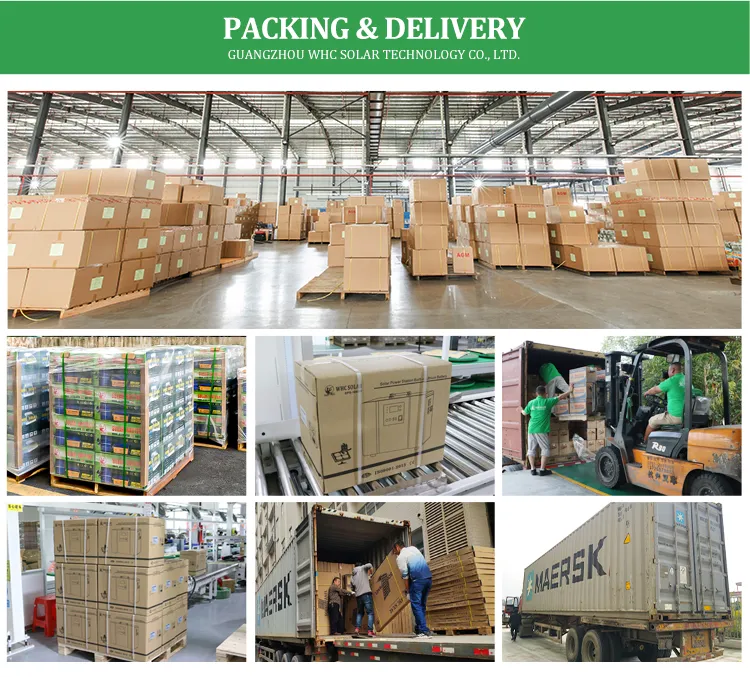

📦 Packaging & Delivery

Package Size	113.80cm * 79.50cm * 172.50cm
Gross Weight	1320.000kg

☀️ Product Description

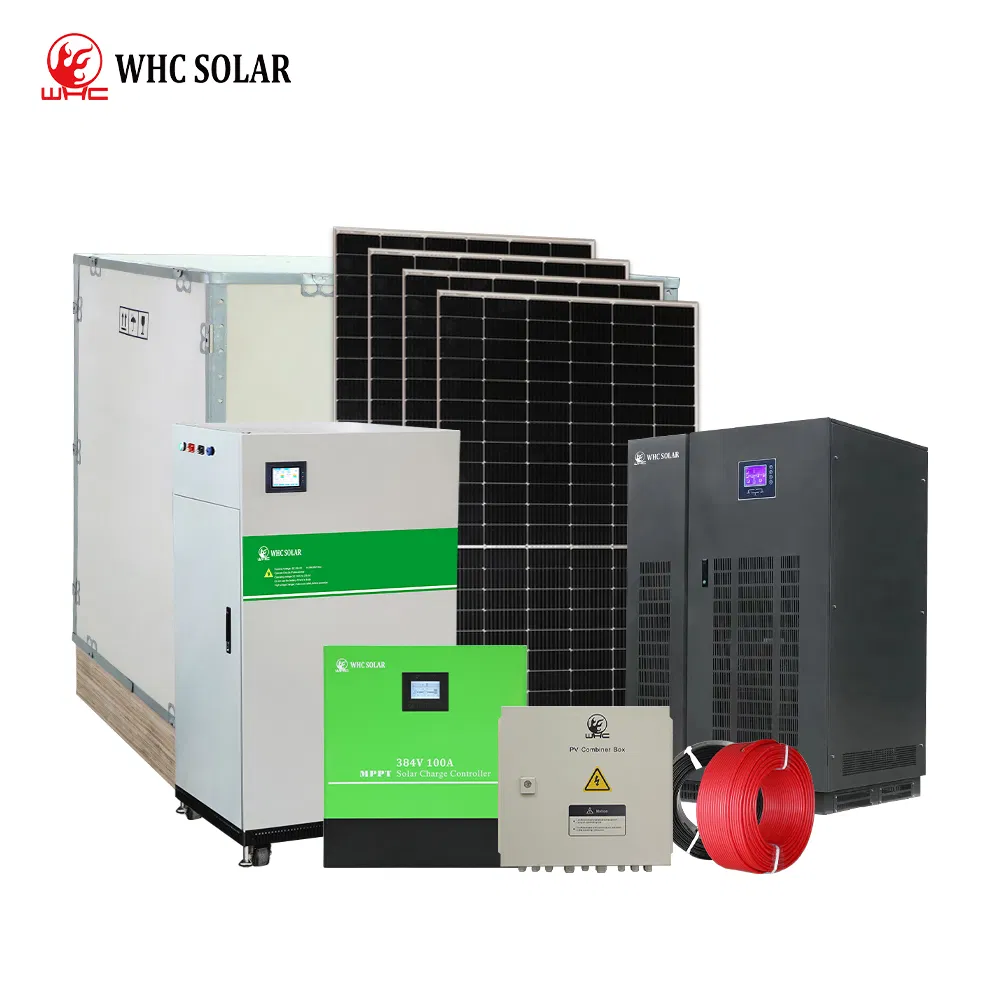

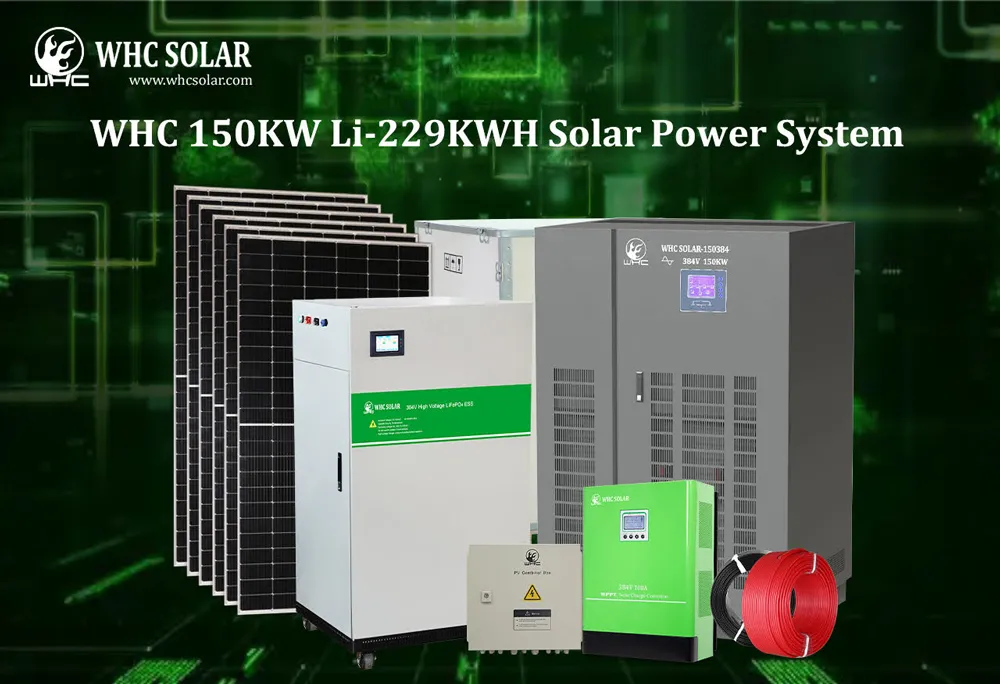

Solar System Powerwall LiFePO4 Lithium Batteries with Storage

Model: 150KW Li-229KWH

An off-grid solar system is the most cost-effective type for solar setups. It is a complete configuration including highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate battery, and standard solar accessories. This system provides continuous electricity and reduces heavy electricity bills.

🛠️ System Components

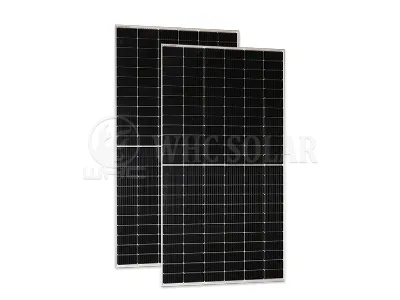

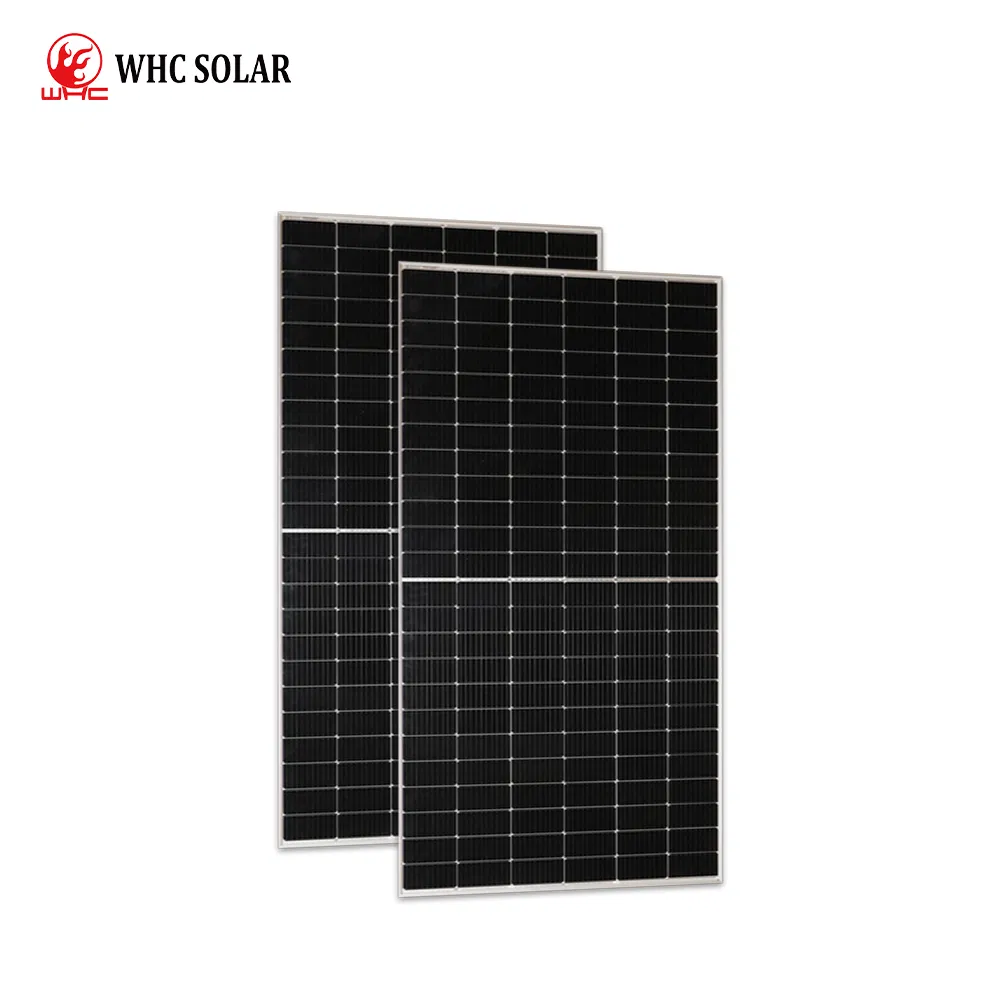

Mono Solar Panel

Model: 450M-120
Max Power Voltage: 34.67V
Max Power Current: 12.98A
Open Circuit Voltage: 41.25V
Short Circuit Current: 13.89A
Dimensions: 1909*1134*35mm

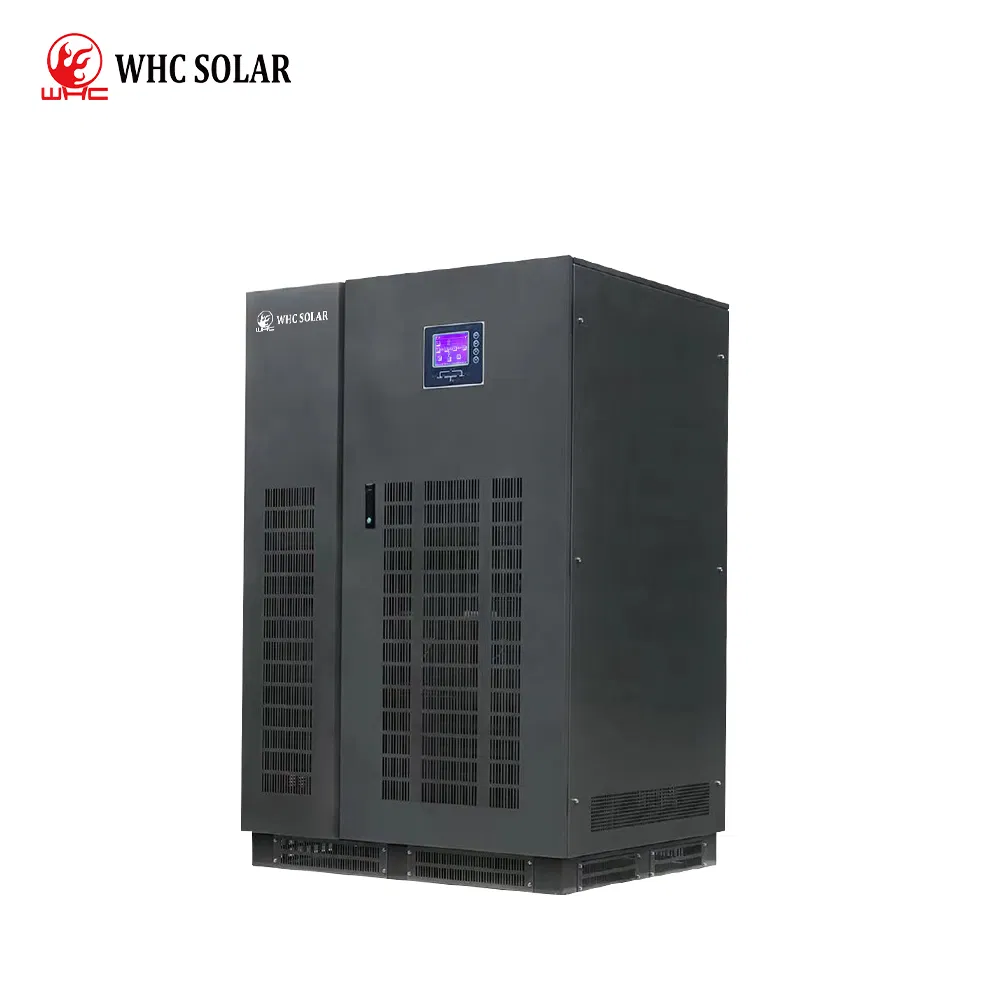

384V 150KW Inverter

Type: Low Frequency IGBT
Pure Sine Wave with Big Transformer
DC Input Voltage: 384V
AC Input Voltage: 380V/220V
AC Output Voltage: 380V/220V
Frequency: 50/60HZ

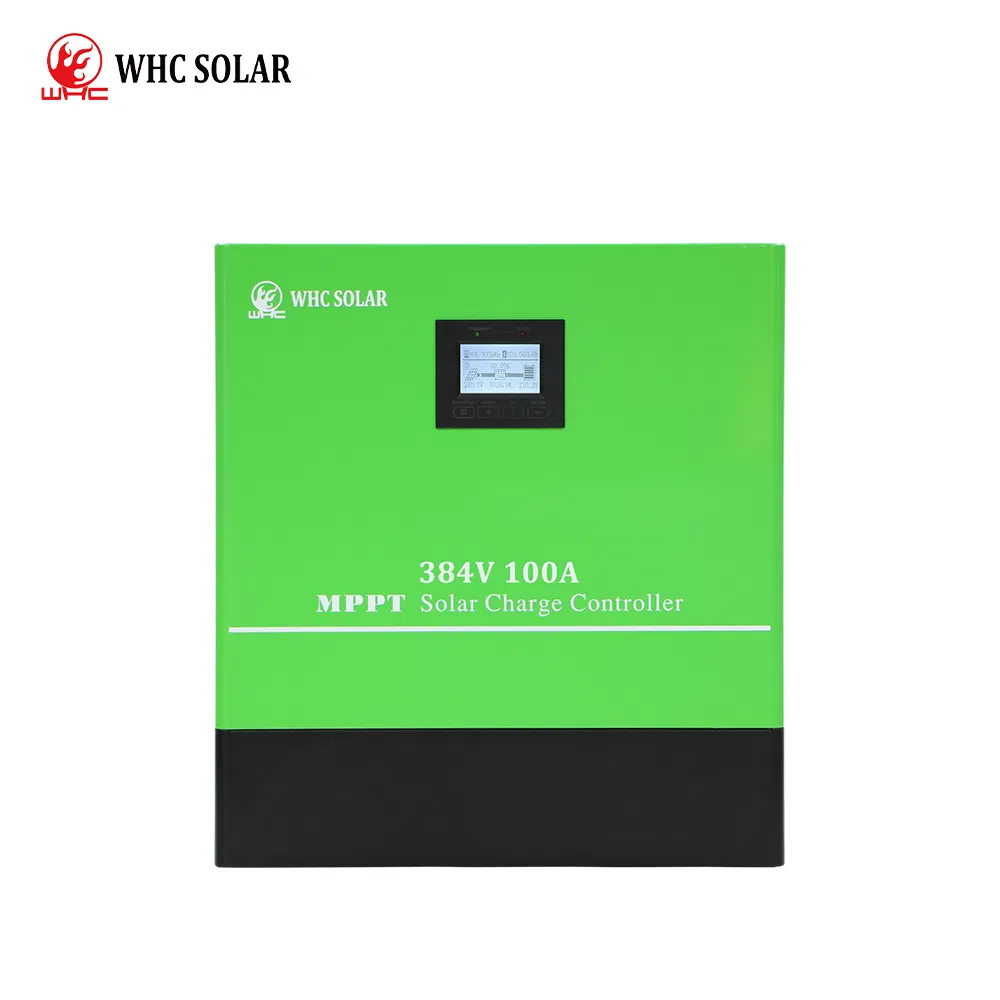

Solar Controller

Model: 384V 100A
Type: Heatsink Cooling
Max Charging Current: 100A
Max PV Open Circuit: 800V
MPPT Efficiency: 98%

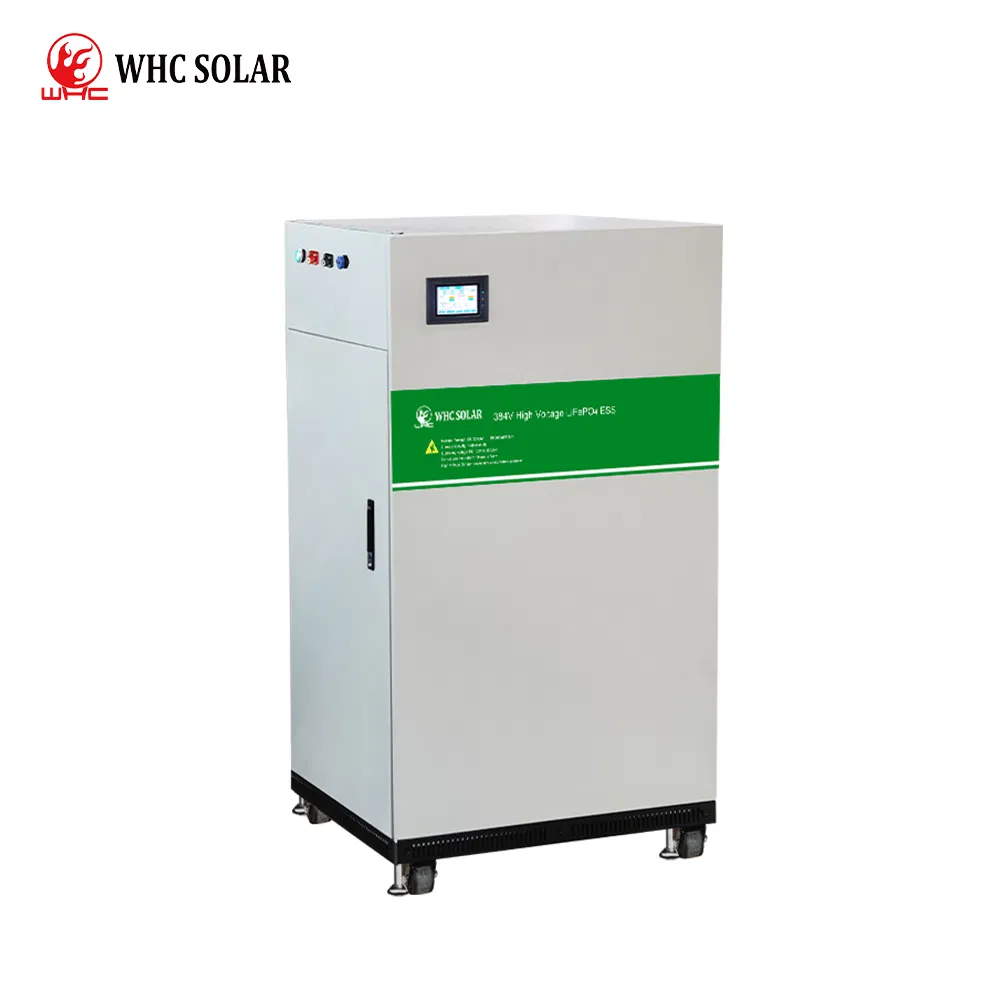

LiFePO4 Lithium Battery

Model: 384V 280Ah
Nominal Voltage: 409.6V
Capacity: 114,688Wh
Max Charging Voltage: 467.2V
Lifespan: 10 Years
BMS Max Discharging Current: 200A

🏗️ Technical Support & Installation

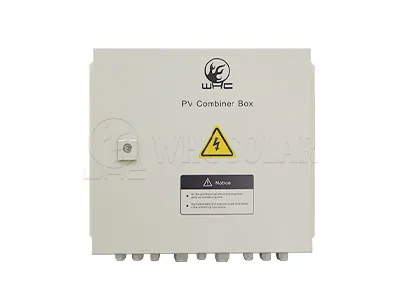

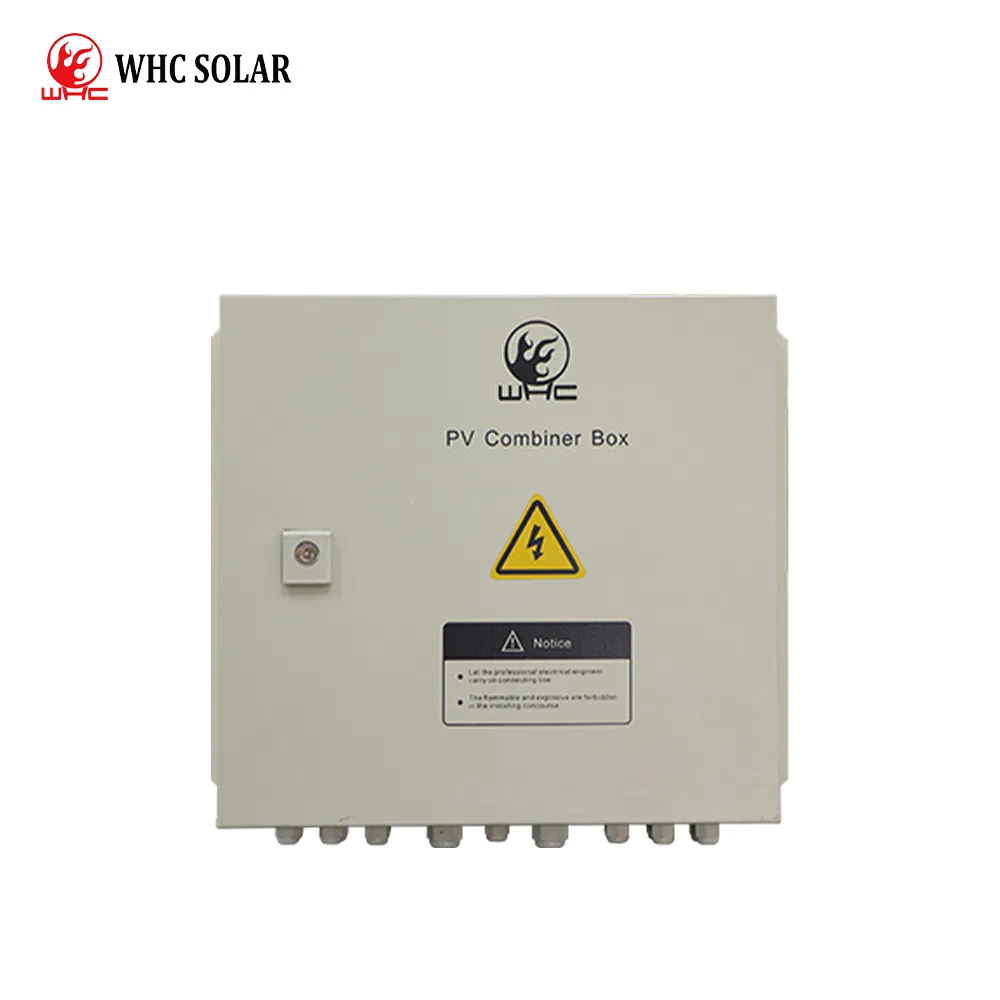

PV Combiner Box

Waterproof IP65 Rating
Max Output Voltage: 1000V
DC Output Circuit Breaker Included
Lightning Protection Integrated

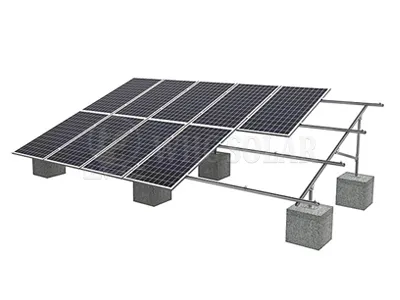

Mounting Support

Wind Load Capacity: 55m/s
Structure: Anodized Aluminum / Stainless Steel
Angle Adjustable Design

PV Accessories

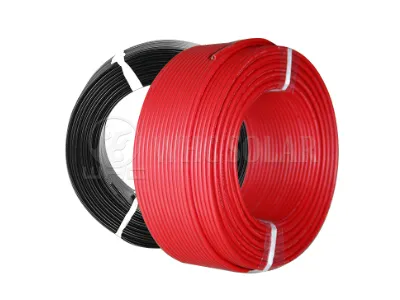

Solar Cable: 100m RVV 1x6mm² Pure Copper
Temp Rating: -40°C to 120°C (25+ Years)
MC4 Connectors: 30A / 1000VDC / IP67

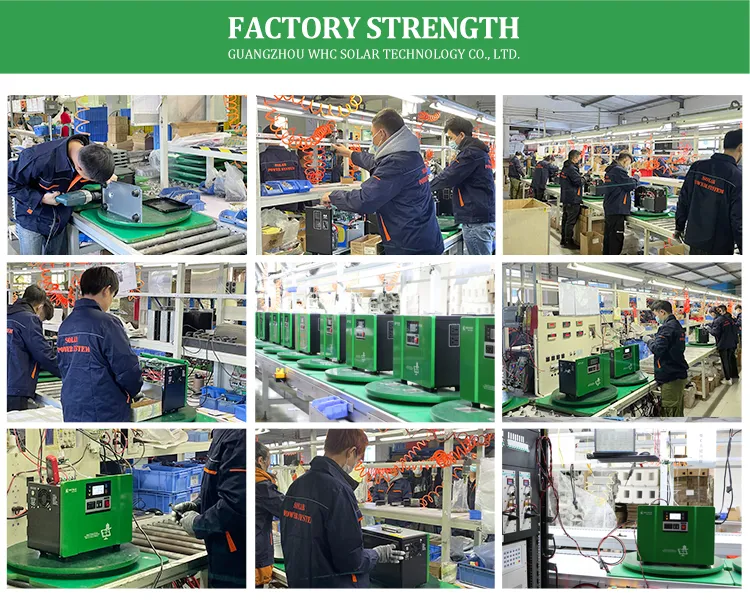

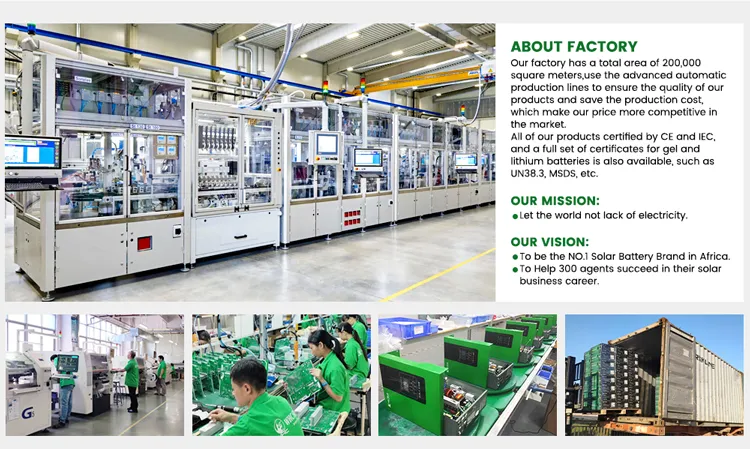

🏭 Factory & Production

❓ Frequently Asked Questions

Q1. Are you a factory or trading company? We are a professional manufacturing factory.

Q2. Can you print my logo on the product? Yes, OEM service is available. We can print your logo on the battery case or other components based on your design.

Q3. What certifications do your products have? Our products have won numerous national patents and passed CE, RoHS, and ISO9001:2008 quality management system certifications.

Q4. What is the standard delivery time? Usually 14-20 days. Delivery time may vary depending on the specific product and order quantity.

Q5. Where are your main global markets? Our primary markets include Africa, South America, the Middle East, and Western regions.

Q6. What payment methods do you accept? We accept T/T (Bank Transfer), Western Union, Money Gram, and other mutually agreeable payment methods.
