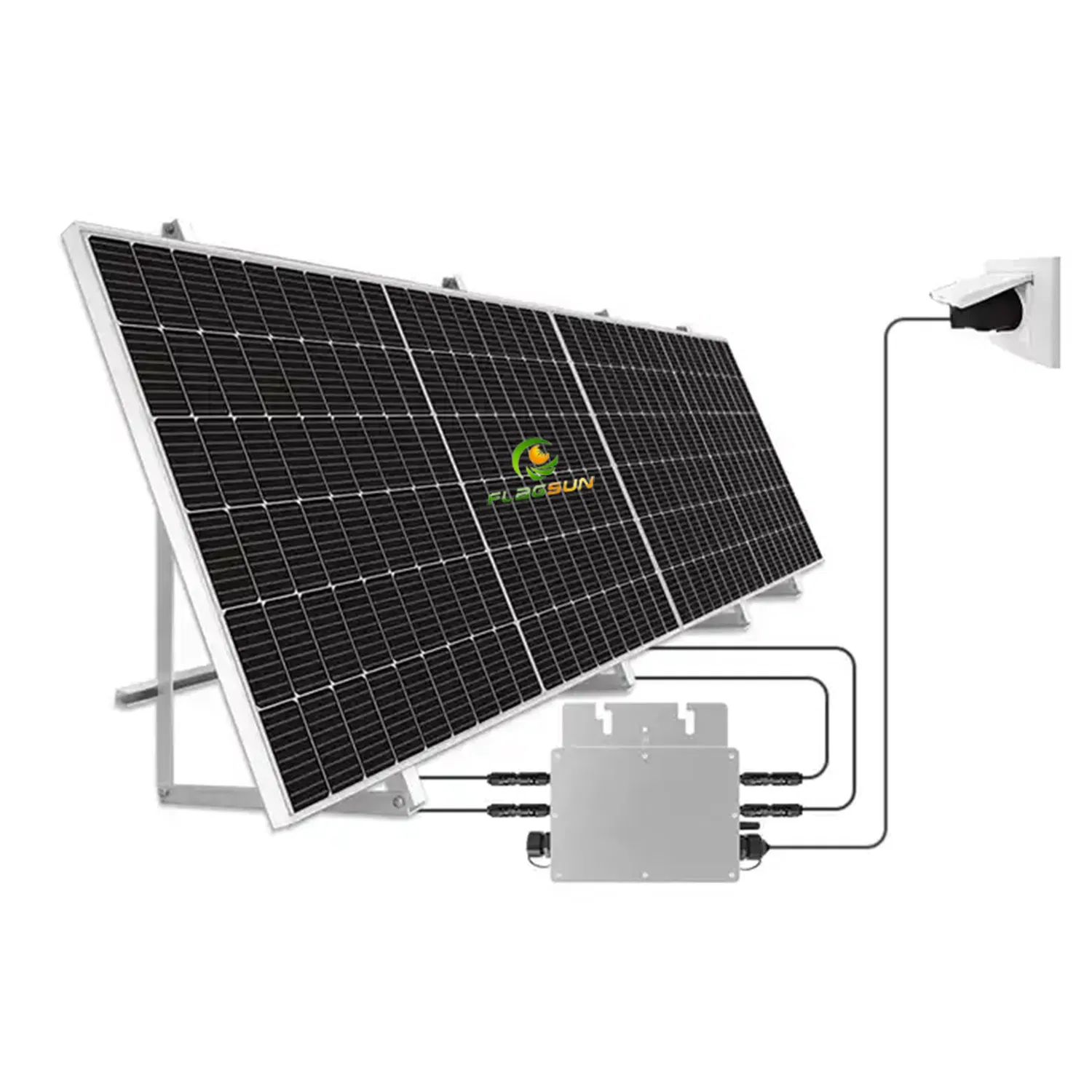

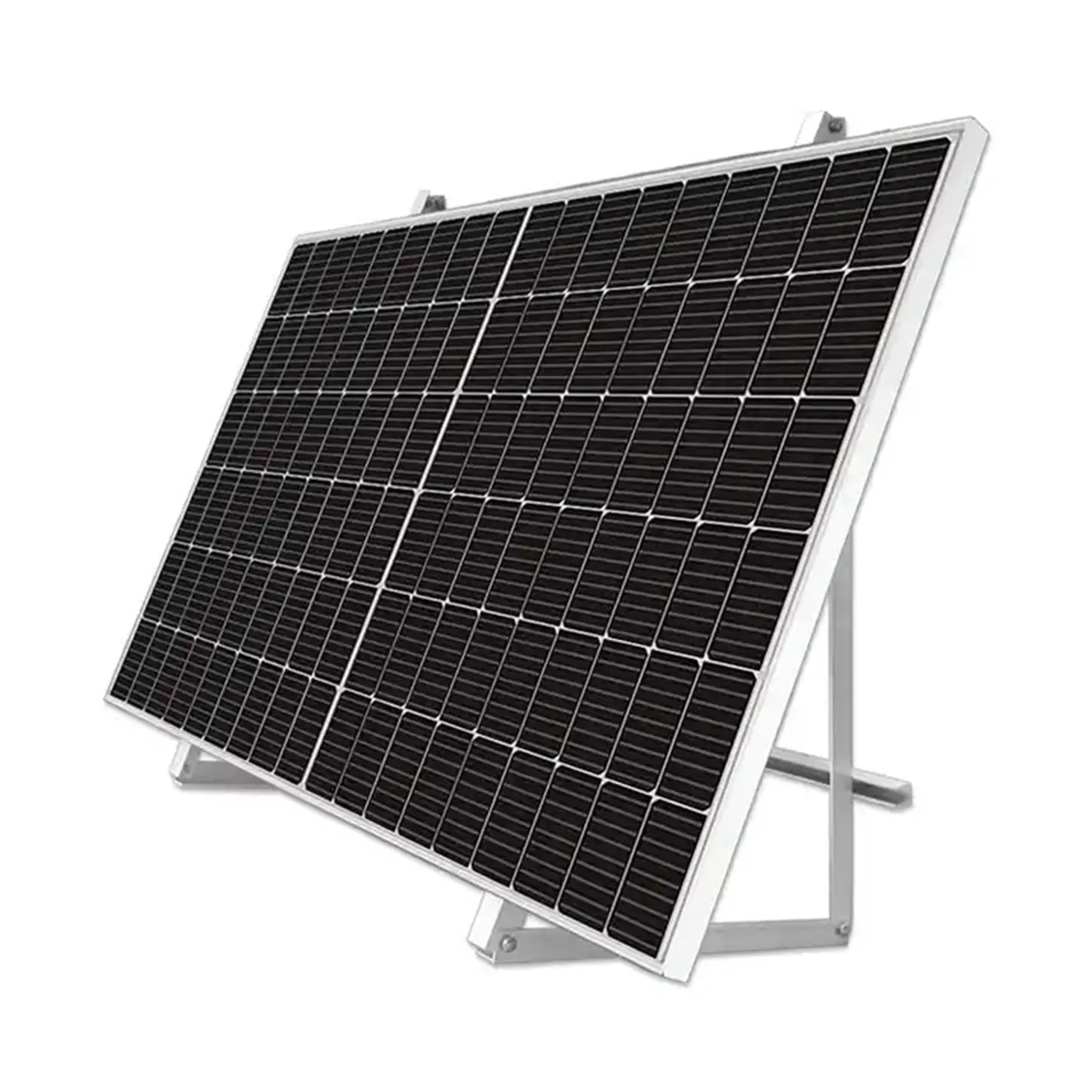

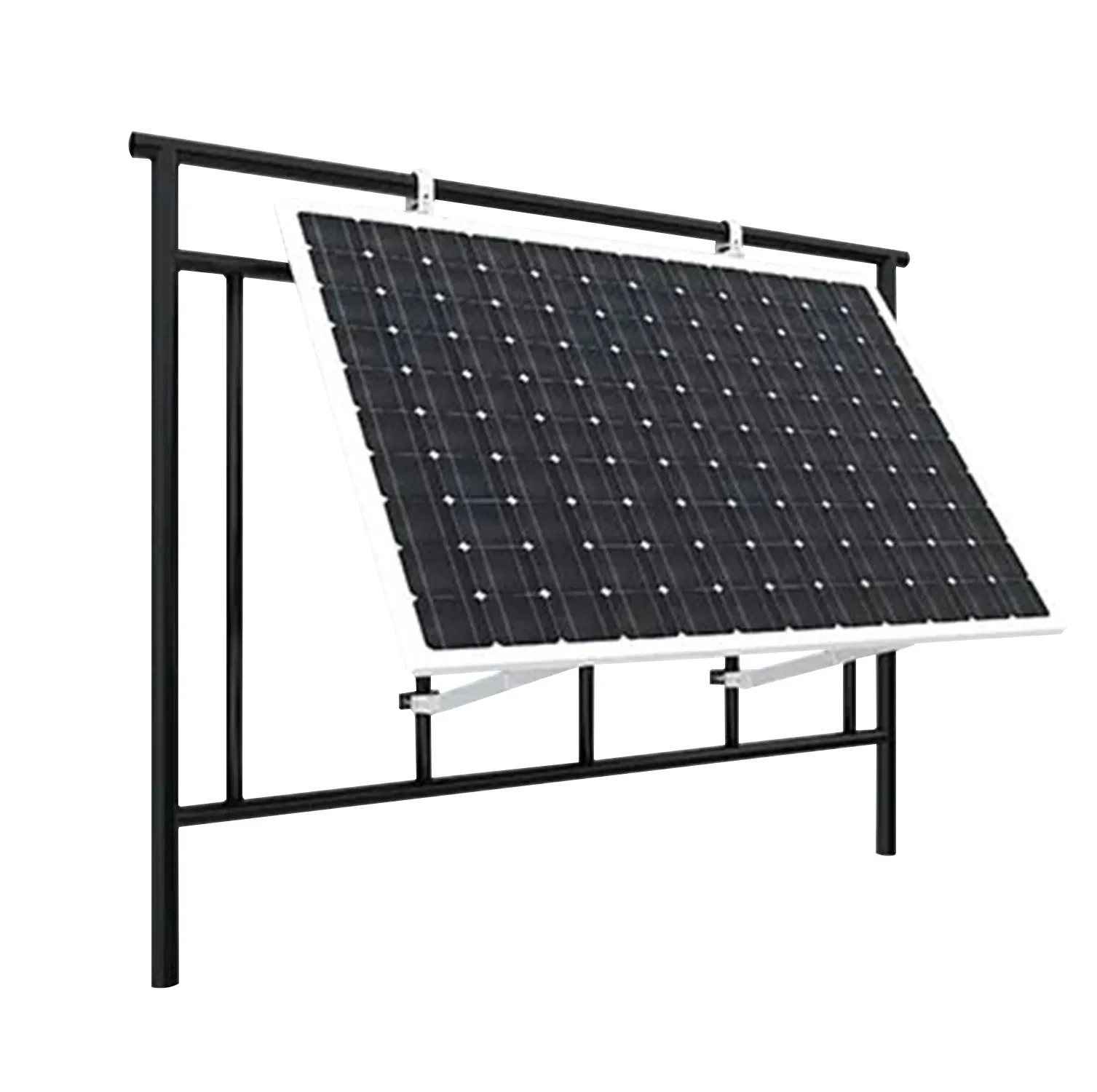

Home Mini Solar Kit Balcony Power Generator Module Photovoltaic Solar System

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
SPS-B
Certification
ISO, CB, CE
Application
Balcony
Life
25 Years
Solar Cells
Shingled Solar Cells
Frame
Anodized Aluminium Alloy
Frame Color
Aluminum or Black
HS Code
8541402000
Warranty
25 Years 80% Output
Capacity
100MW/Year
🔍 Product Description

120W Shingle Cell Mono Solar Panel

  • High efficiency mono solar cell with positive tolerance.
  • International quality management system with 100% panel power and EL test before shipment.
  • Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved.
  • Excellent low light performance and mechanical load resistance (5400Pa).
📋 Technical Specifications
Parameters FSSP-090W FSSP-100W
Type of Solar CellMono-crystalline, 156mm×156mmMono-crystalline, 156mm×156mm
Number of Cells99 pcs (156*31)99 pcs (156*31)
Size of Module1030×510×35mm1030×510×35mm
Module Weight8.0 kg8.0 kg
Maximum Power (Pm)90 W100 W
Maximum Power Voltage (Vmp)18.5 V18.6 V
Maximum Power Current (Imp)4.87 A5.21 A
Open Circuit Voltage (Voc)22.4 V22.5 V
Cell Efficiency17.10%17.90%
Operating Temperature-40°C to 85°C-40°C to 85°C
🖼️ Related Products & Process

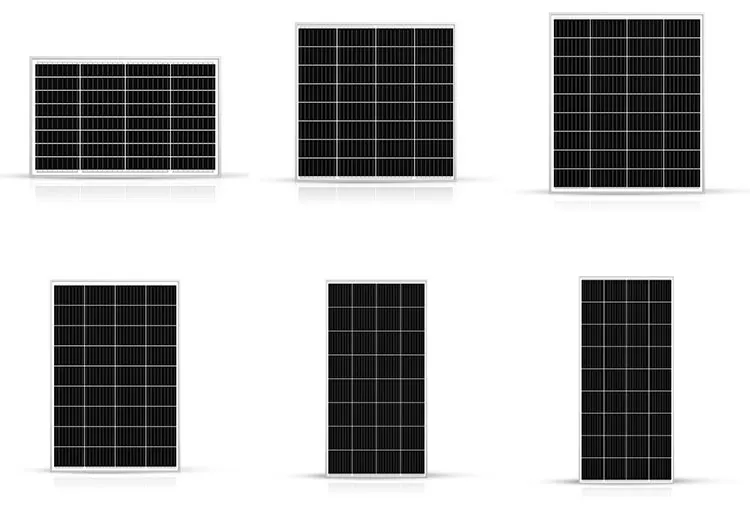

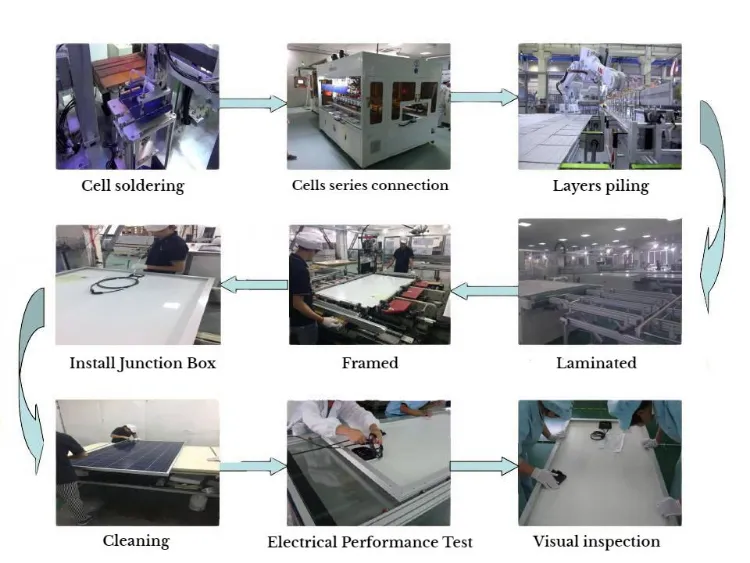

Solar Kit Balcony Manufacture Process
Certifications Packaging
💳 Payment & Shipping
Payment Methods T/T (20%-30% advance), L/C (Over $50,000), PayPal (<$1000), West Union (<$3000)
Delivery Time 7~10 days after receiving deposit
Package Size 150.00cm * 150.00cm * 100.00cm

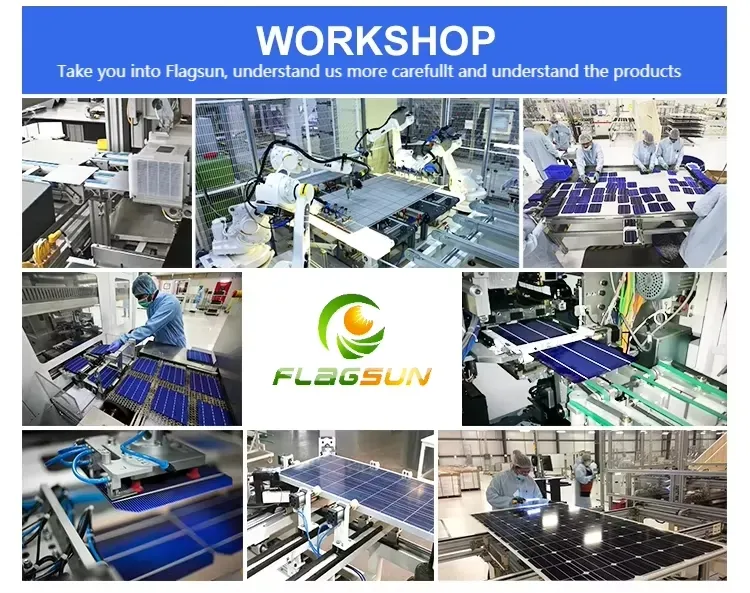

🏢 Professional Facilities
Facility 1 Facility 2 Facility 3
❓ Frequently Asked Questions
What is the lifespan of these solar panels?
The solar panels are designed for a long-term service life of up to 25 years, with a power output warranty ensuring 80% efficiency after 25 years.
What kind of solar cells are used in the SPS-B model?
This model utilizes high-efficiency Shingled Mono-crystalline solar cells, which provide better performance and reliability.
Can the cable length be customized?
Yes, while the standard configuration includes a 4mm2 PV cable, the length is fully customizable to meet specific installation requirements.
What certifications do your solar panels have?
Our products are certified by ISO, CB, and CE standards, ensuring they meet international quality and safety requirements.
Are these panels suitable for balcony installations?

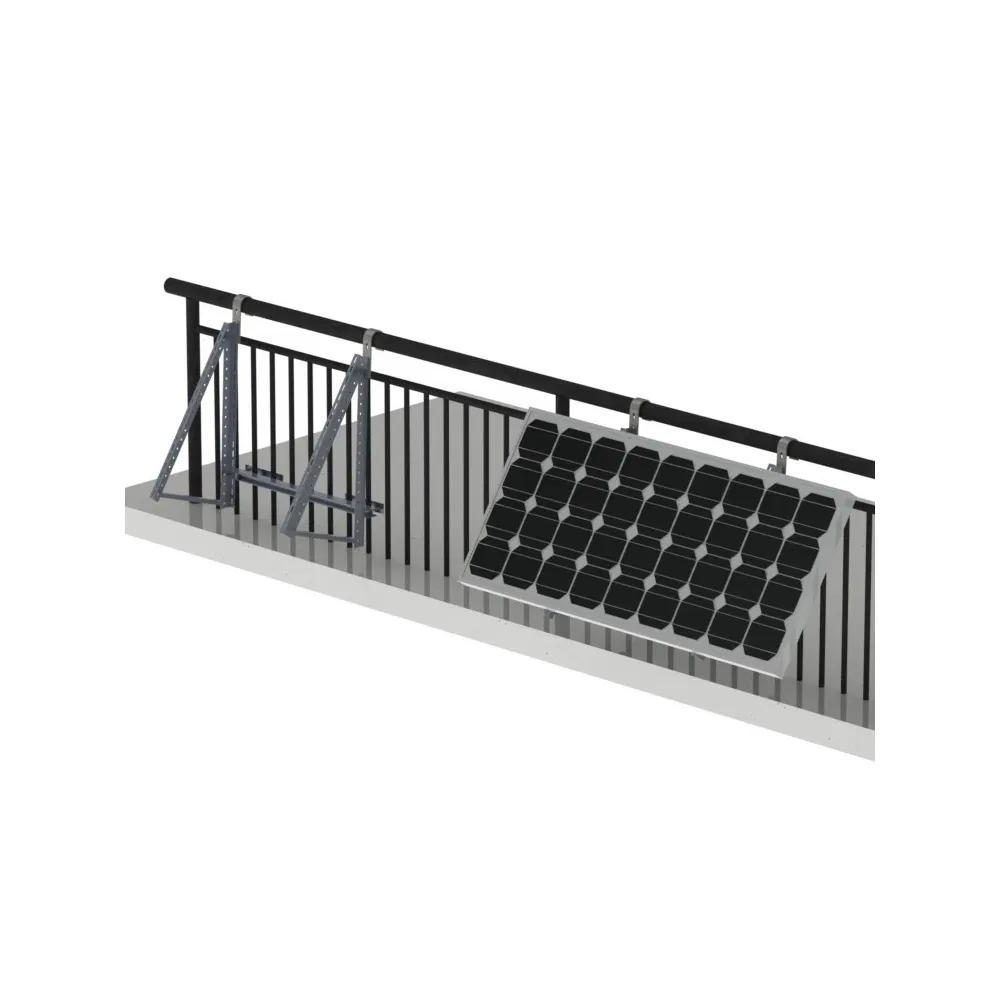

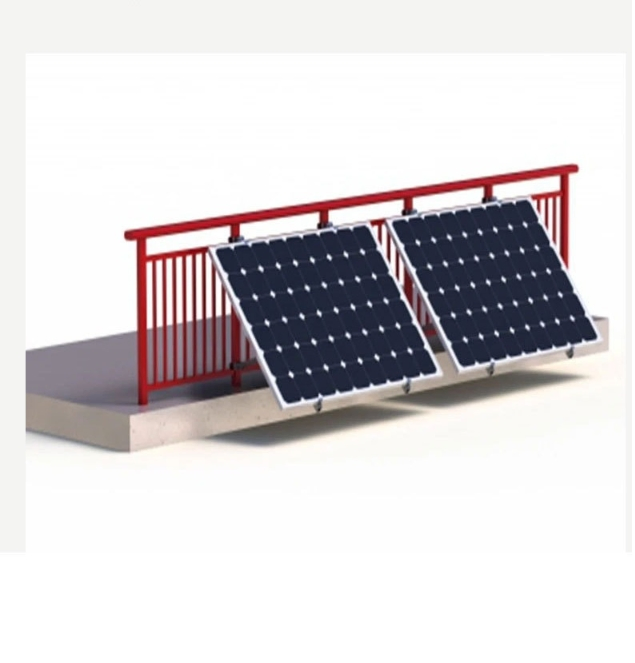

Yes, the SPS-B model is specifically designed for balcony applications, offering a compact size and durable anodized aluminium frame.
What is the typical delivery time for an order?
Generally, the delivery time is approximately 7 to 10 days after the receipt of the deposit payment.
