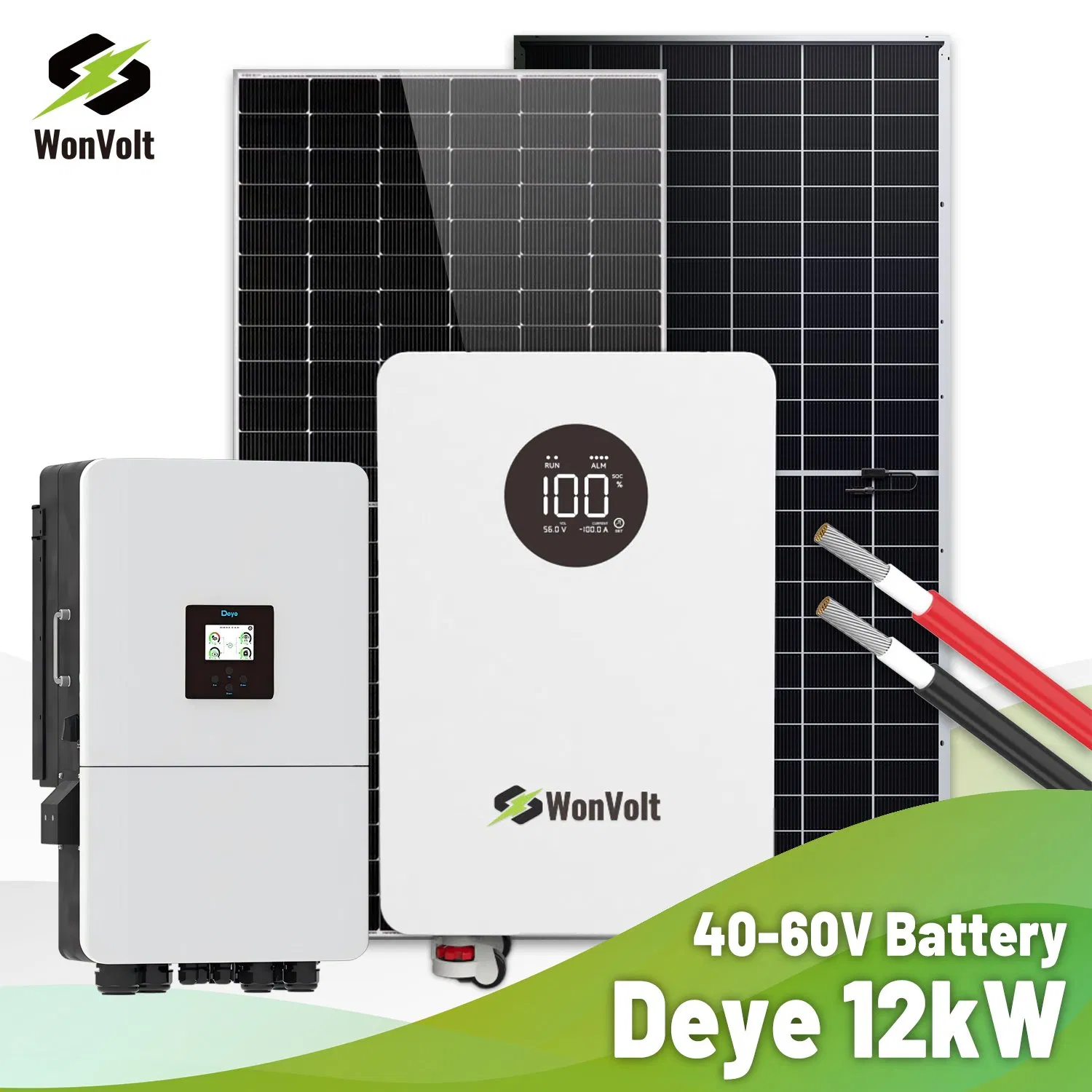

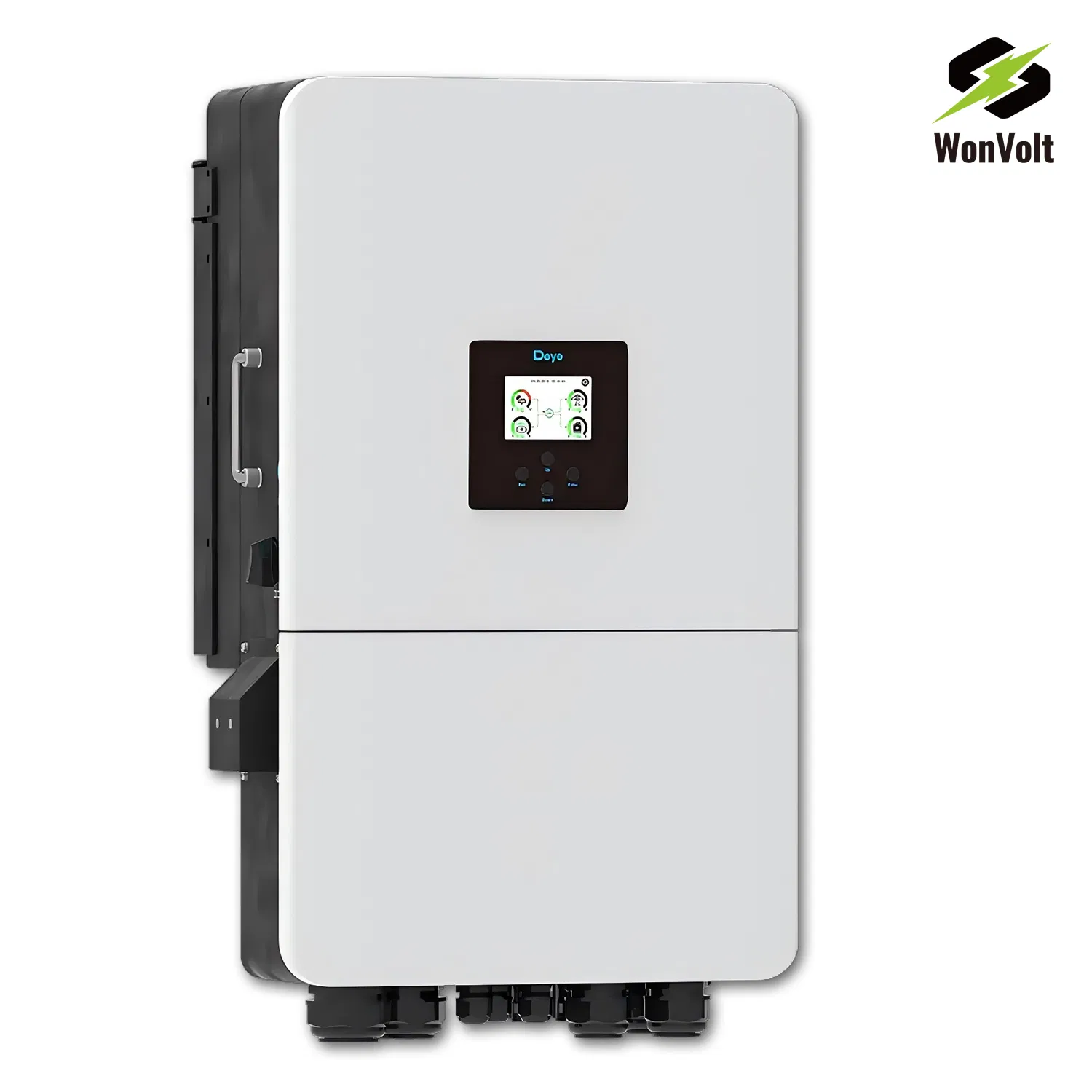

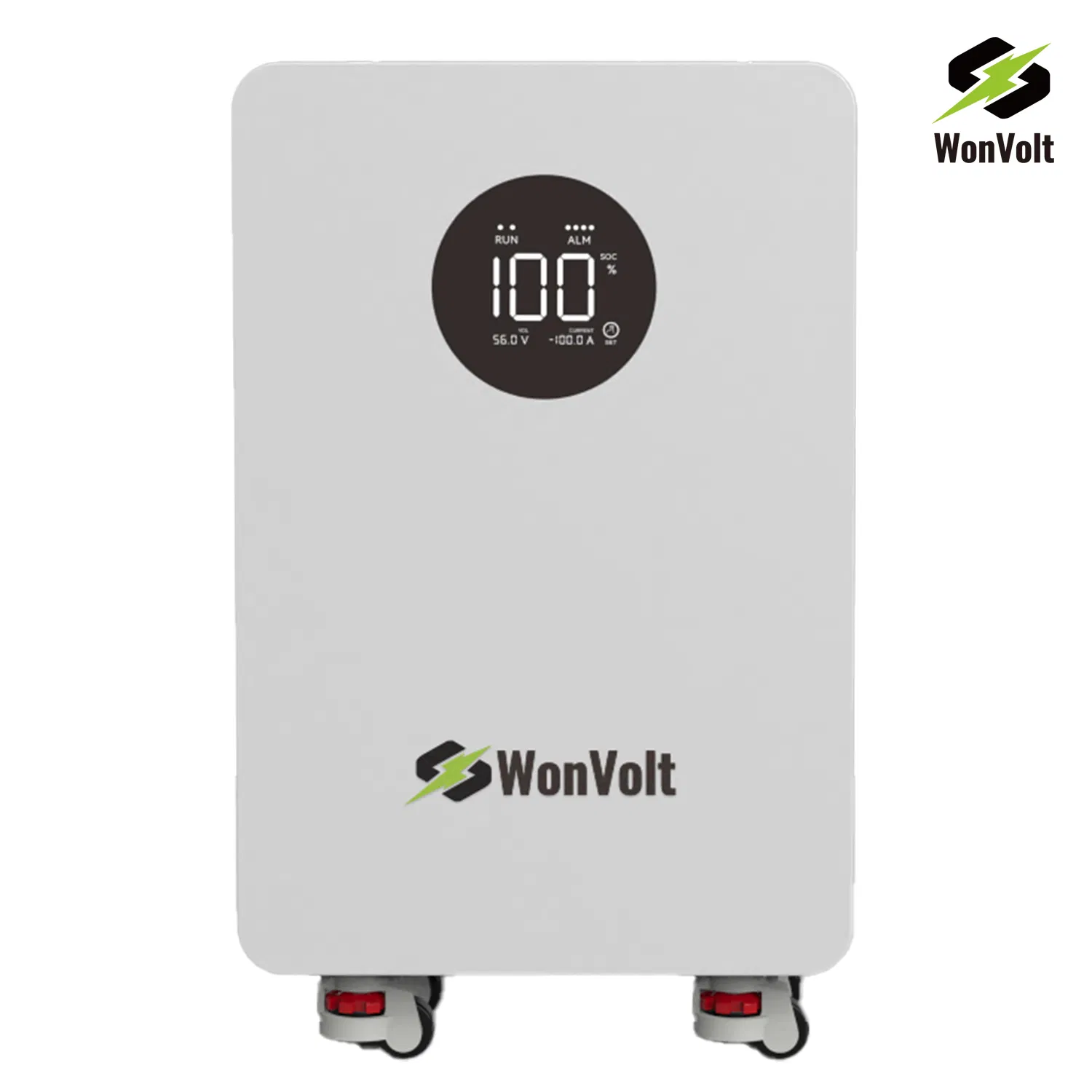

Reliable 6kw 8kw 10kw 12kw 20kw Residential PV Energy Storage System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.WV-10KW-16KWh-RT
CertificationISO, CB, CE, Un38.3 MSDS
ApplicationHome, Industrial, Commercial
Cycle Life10000 Times
Nominal Capacity10kwh / 16kwh / 15kwh
Battery TypeLiFePO4 / Lithium Battery 48V
AC Output380V/400V/415V
PV Inputs2/2 Mppts

Commercial Energy Storage System (ESS)

Residential PV Energy Storage System Overview
Energy Storage System Interface

System Configuration

Equipment Model 10KW-20KWh 12KW-20KWh 16KW-30KWh 18KW-30KWh 20KW-30KWh
Solar Panel 72KUN605-H8NS 18PCS 20PCS 28PCS 30PCS 36PCS
Solar Inverter Hybrid 3 Phase 380vac 10KW 12KW 16KW 18KW 20KW
LiFePO4 Battery Low Voltage 51.2V/48V 20kWh 20kWh 30kWh 30/45kWh 30/45kWh
PV Cable PV1-F 1*4mm2 100M 100M 200M 200M 300M
Monitoring WIFI 1PC 1PC 1PC 1PC 1PC

Product Key Features

1

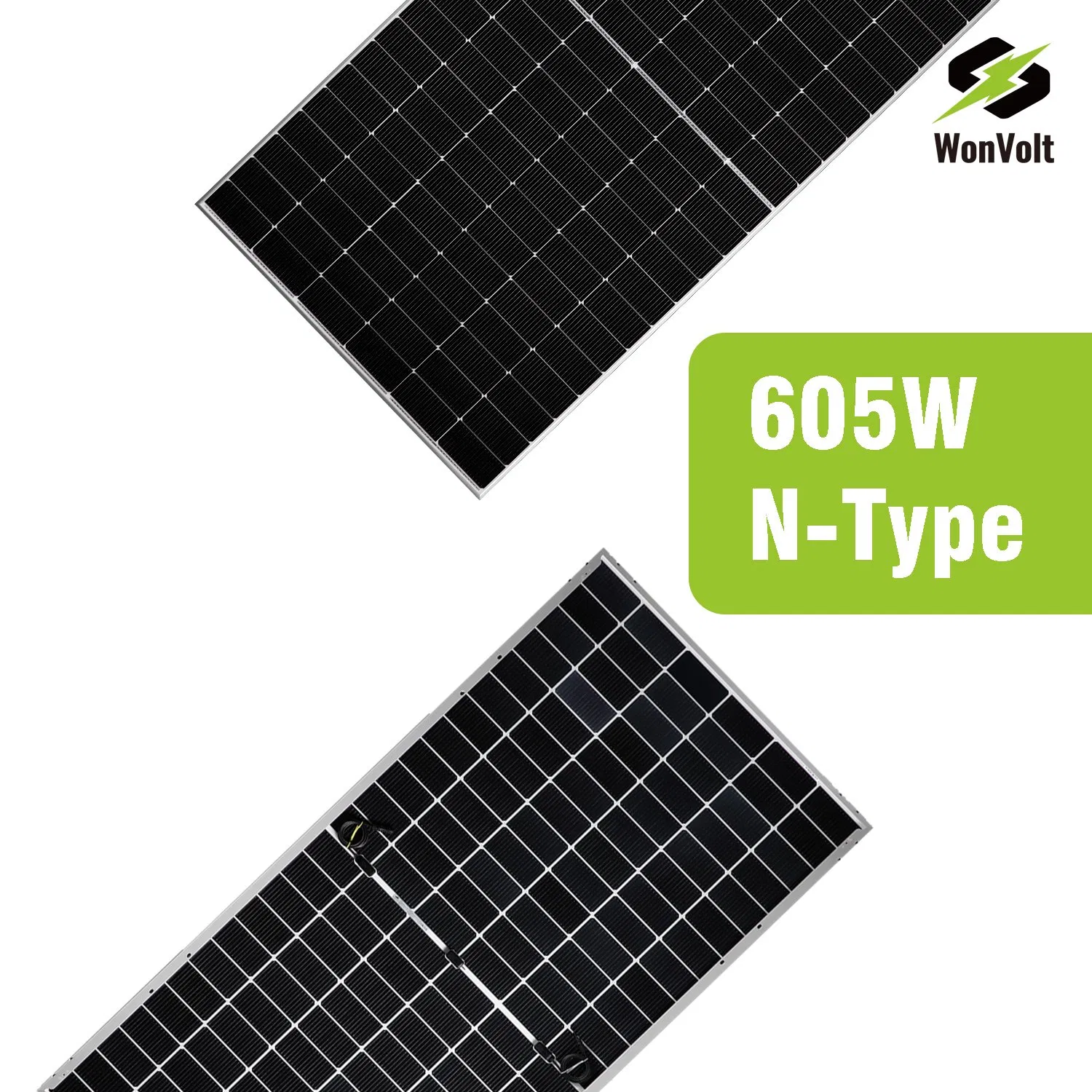

Solar Panels: N-type Monofacial or Bifacial dual glasses solar PV panels (420W-750W optional), available in black or silver frames.
2
Hybrid Inverters: Flexible storage solutions ranging from 1KW to 100MWH. Compatible with single-phase (220V-230V), split-phase (110V/220VAC), and three-phase (208V/380V/480VAC) requirements.
3
Advanced Battery Storage: High-performance lithium solutions (0.5C or 1C) with integrated BMS and optional EMS.
4
BESS Container & Outdoor Cabinets: IP65-rated outdoor integrated storage solutions (10ft, 20ft, or 40ft) with fire protection and ventilation systems.

Technical Details & Production

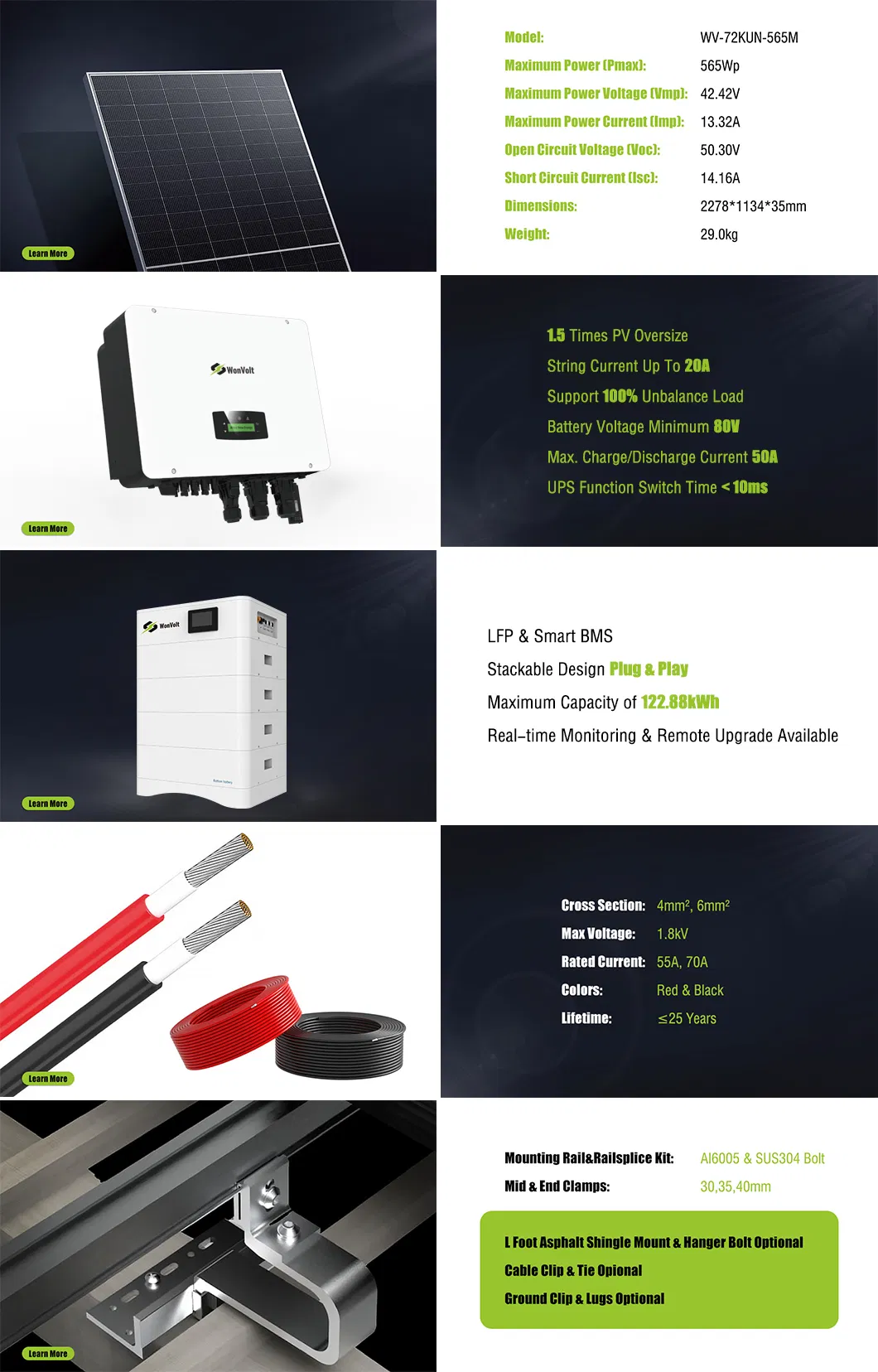

Detailed Technical Specifications
Technical Support View 1

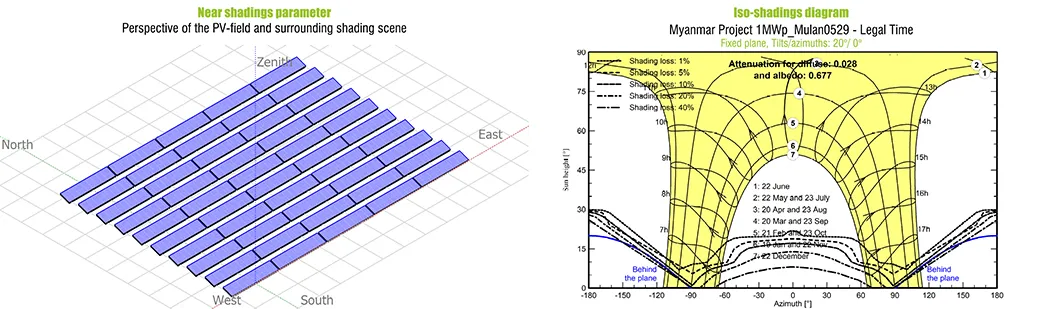

Technical Support View 2

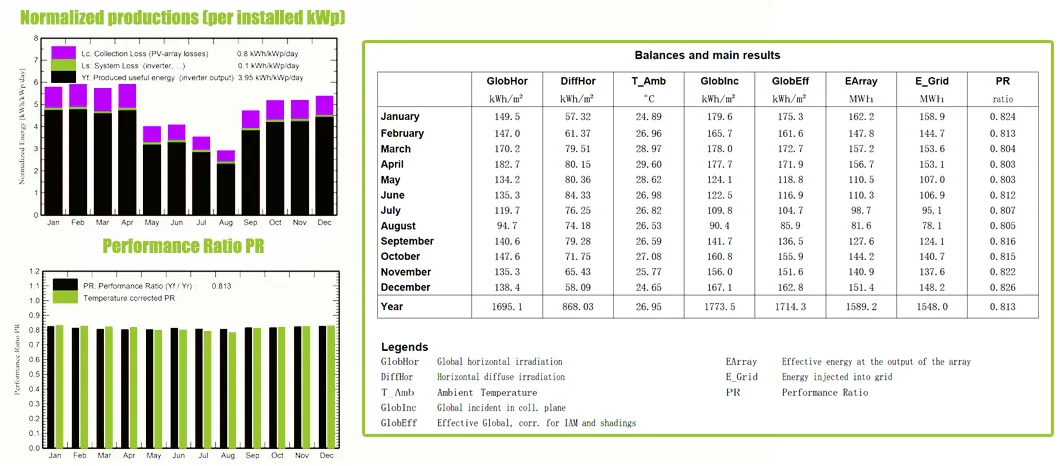

Technical Support View 3

Manufacturing Facility

Factory Production Line

Reference Projects

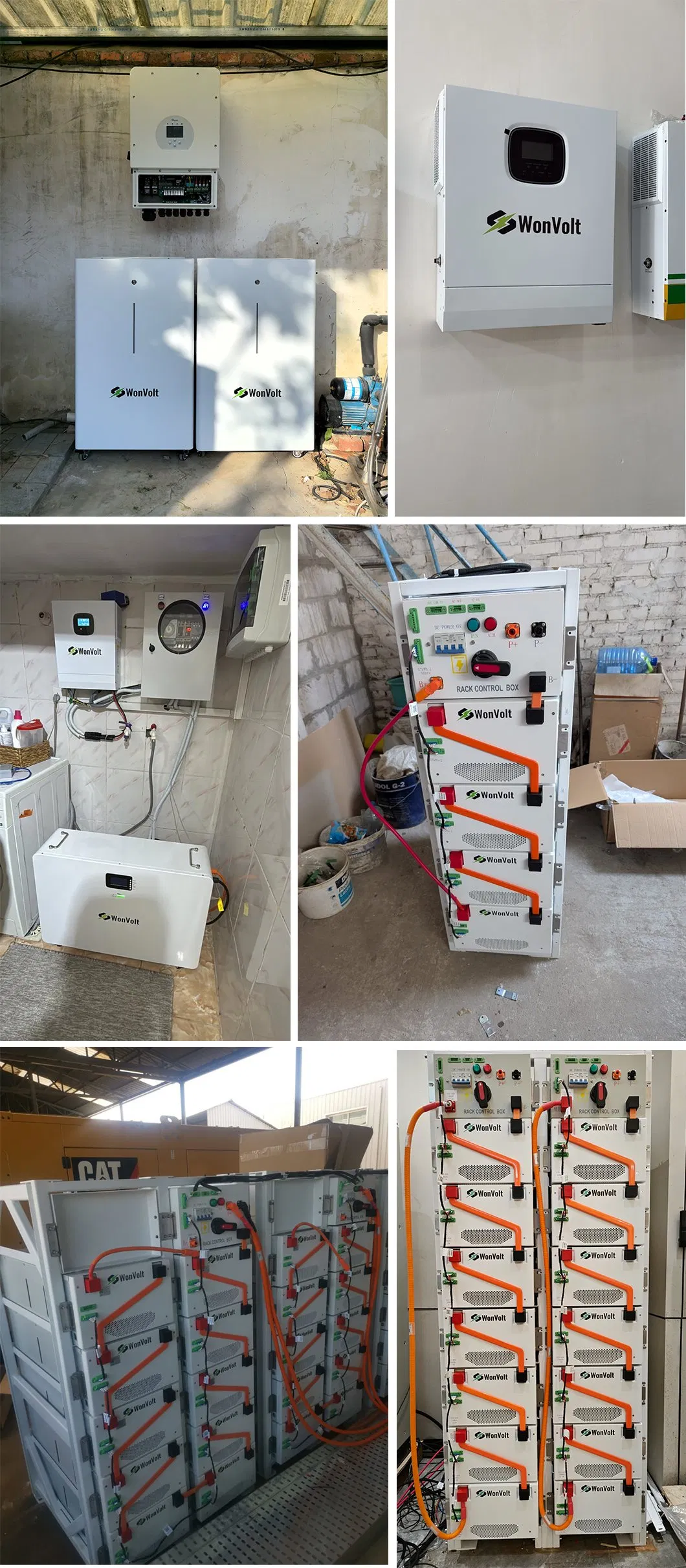

Global Solar Project Gallery

Frequently Asked Questions

What is the lifespan of the battery system?
The LiFePO4 battery system offers a high cycle life of up to 10,000 times, ensuring long-term reliability for residential and commercial use.
Is the system compatible with different grid voltages?
Yes, the system is highly customizable and supports various AC outputs including 380V, 400V, and 415V for three-phase requirements, as well as split-phase 110V/220VAC.
What certifications do these energy storage systems hold?
Our systems are fully certified with international standards including ISO, CB, CE, IEC, UN38.3, and MSDS.
Can the storage capacity be expanded?
Yes, we offer various capacity options from 10kwh to 45kwh for residential setups, and up to MWH levels for industrial containerized solutions.
What type of solar panels are recommended?
We typically utilize high-efficiency N-type Topcon solar panels (585W to 720W+) to ensure maximum energy harvest and system efficiency.
Is remote monitoring available?
Yes, every system includes a WIFI-enabled remote monitoring module, allowing users to track performance in real-time via mobile or web apps.
