| Model NO. | OLU-10000A-15 |
|---|---|
| Product Name | Energy Storage Battery System |
| Nominal Capacity | 15.36 Kwh |
| Rated Power | 10kw |
| Cycle Life | 25+/-2c,0.5c/0.5c, Eol80% >= 6000 |
| Inverter Output Voltage | 230VAC |
| Output Frequency | 50Hz/60Hz |
| Output Waveform | Sine Wave |
| Rated Battery Voltage | 51.2V |
| Max. PV Array Power | 11kw |
| Transport Package | Wooden Case |

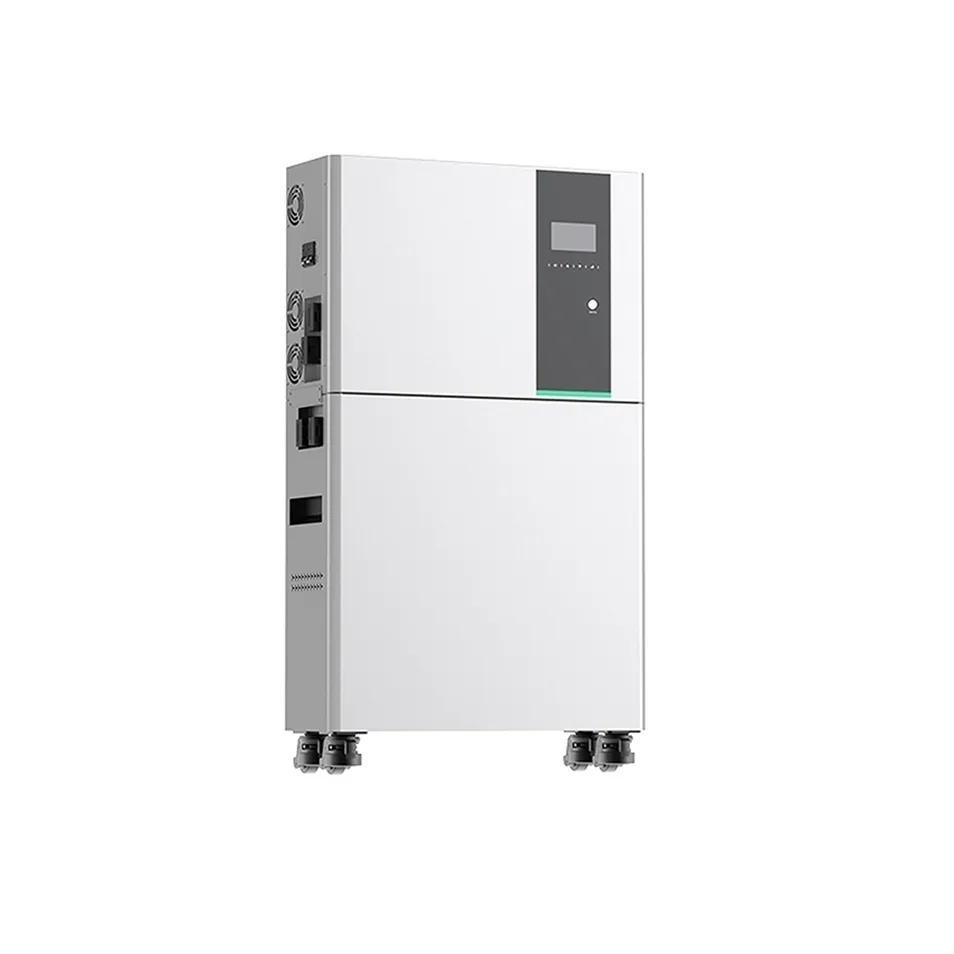

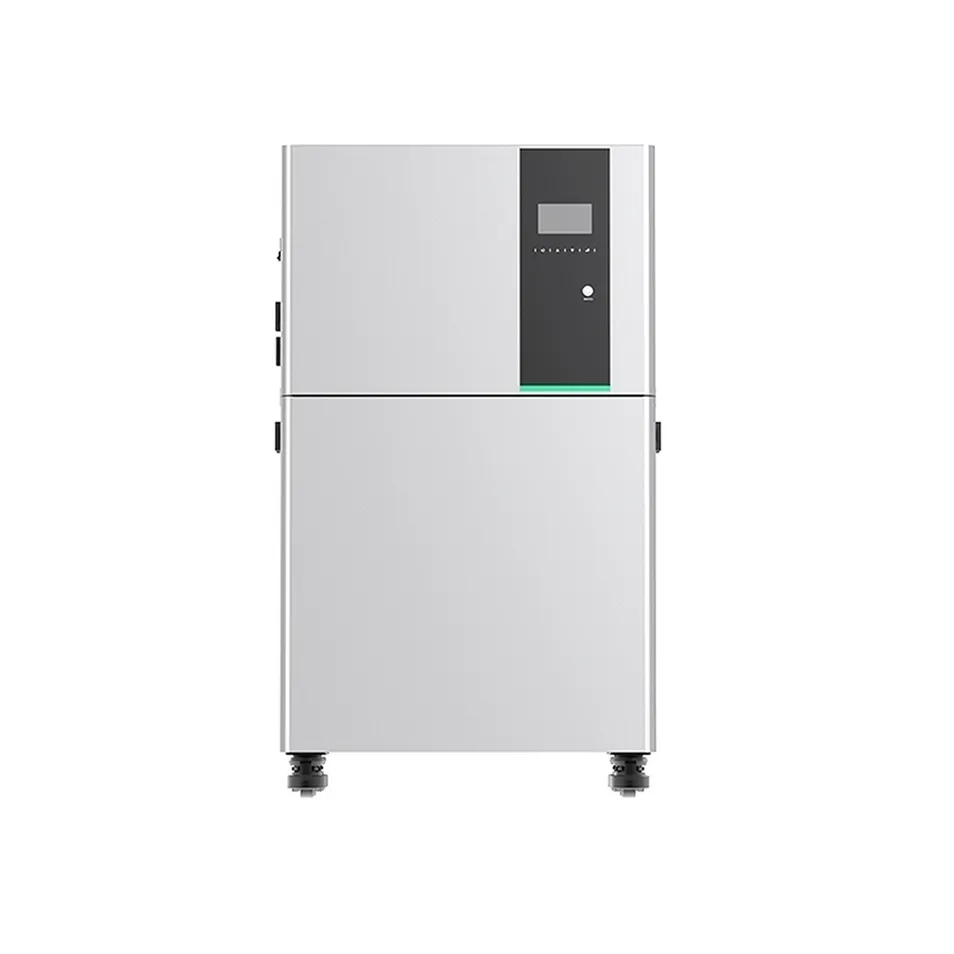

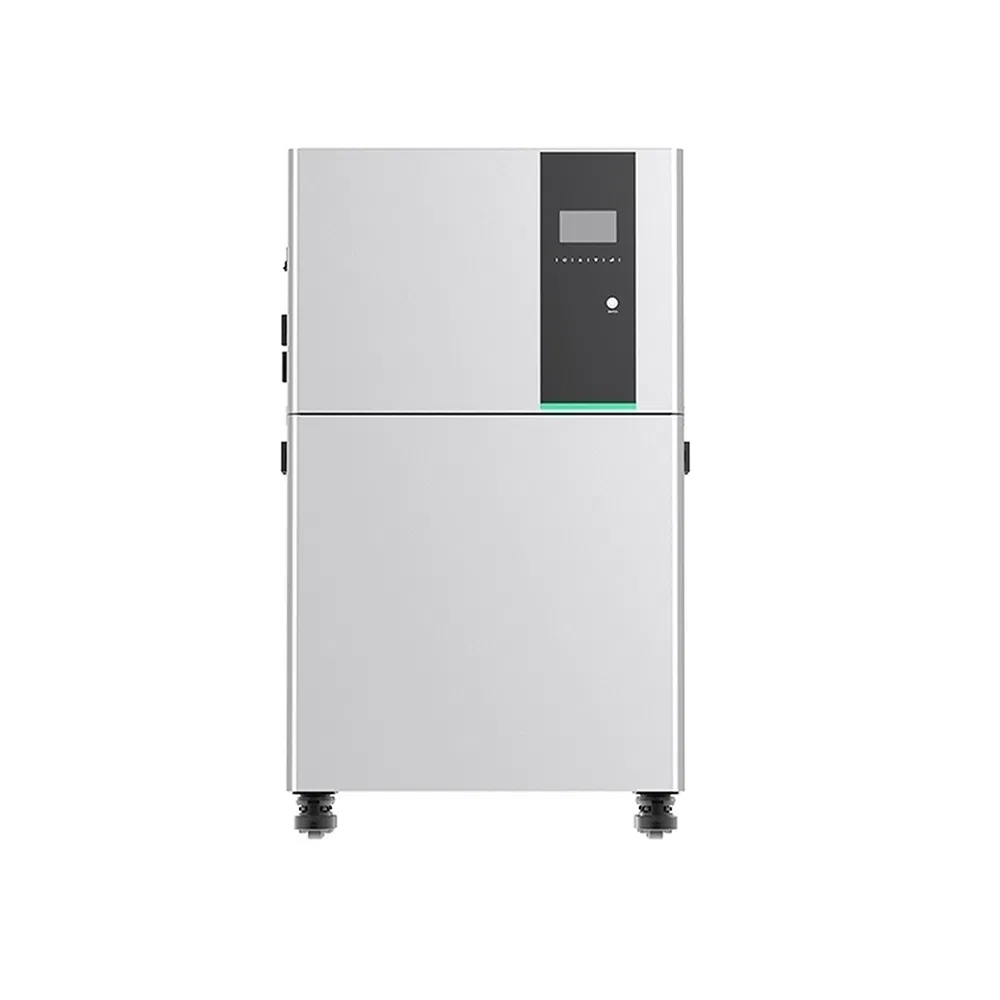

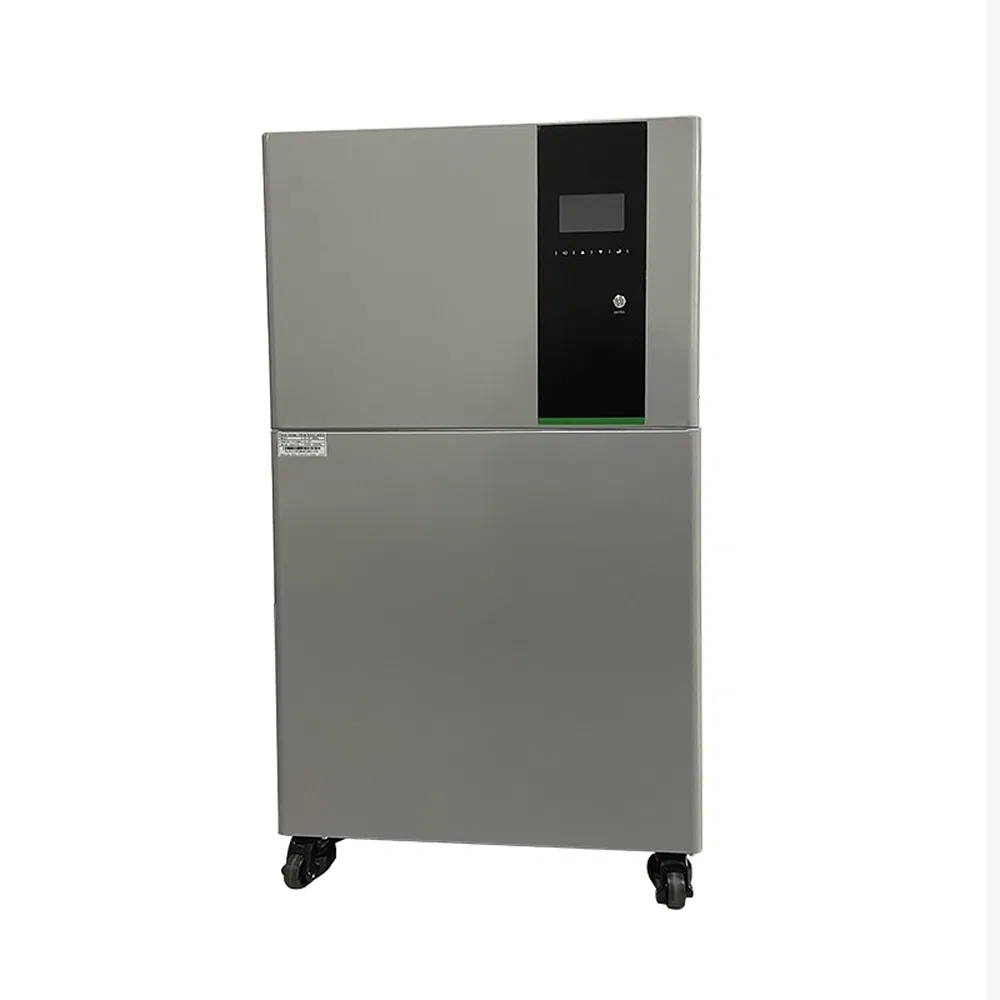

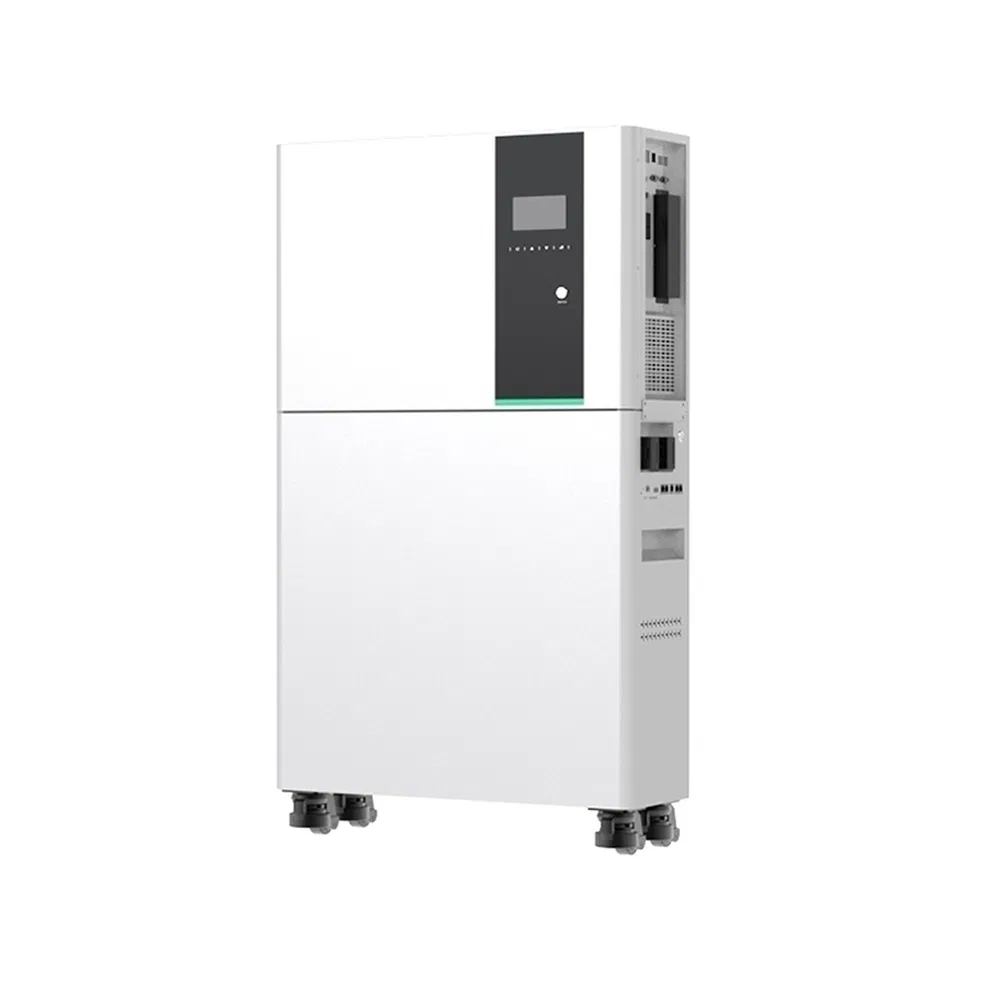

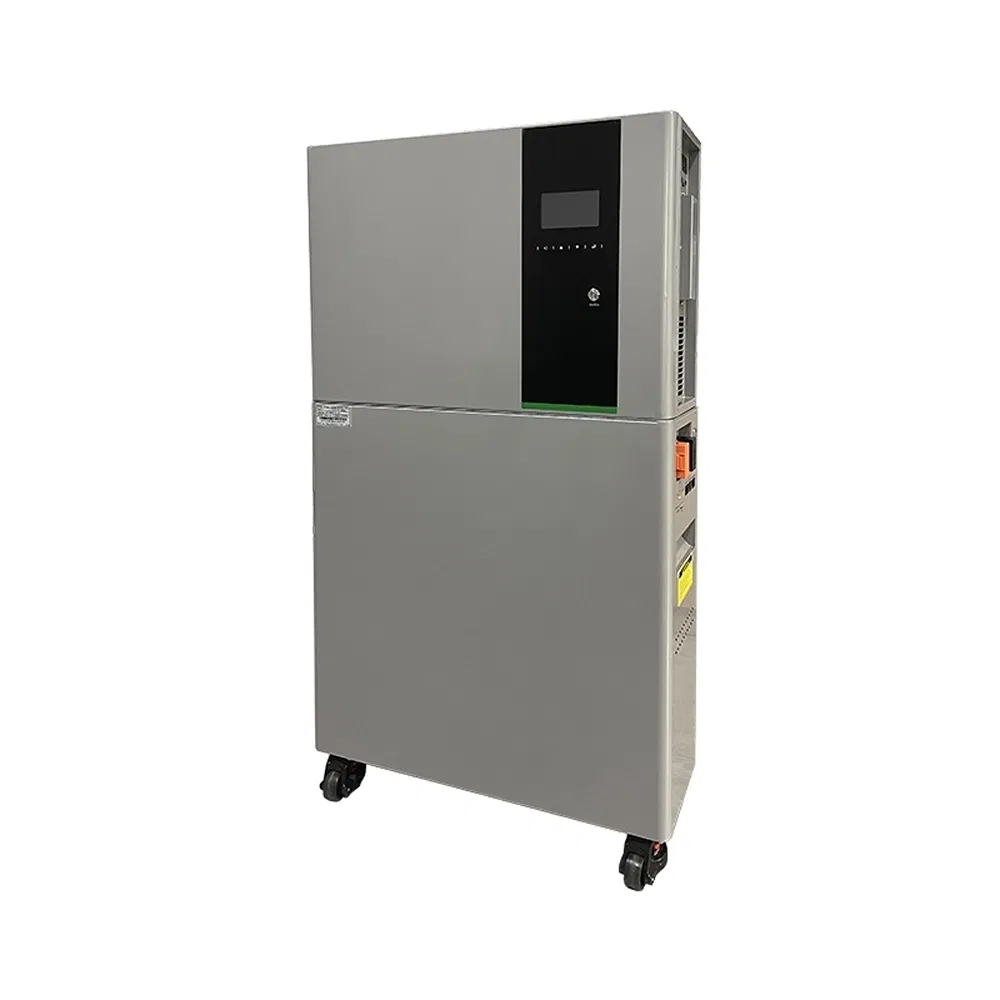

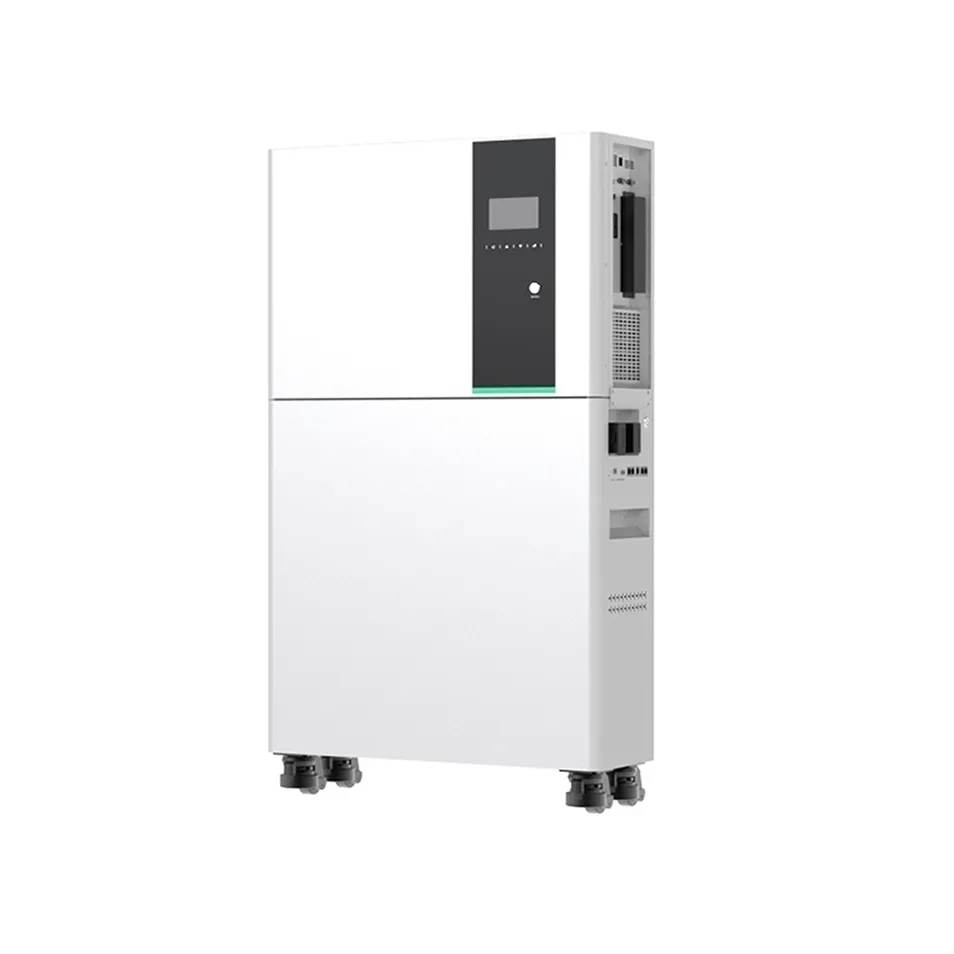

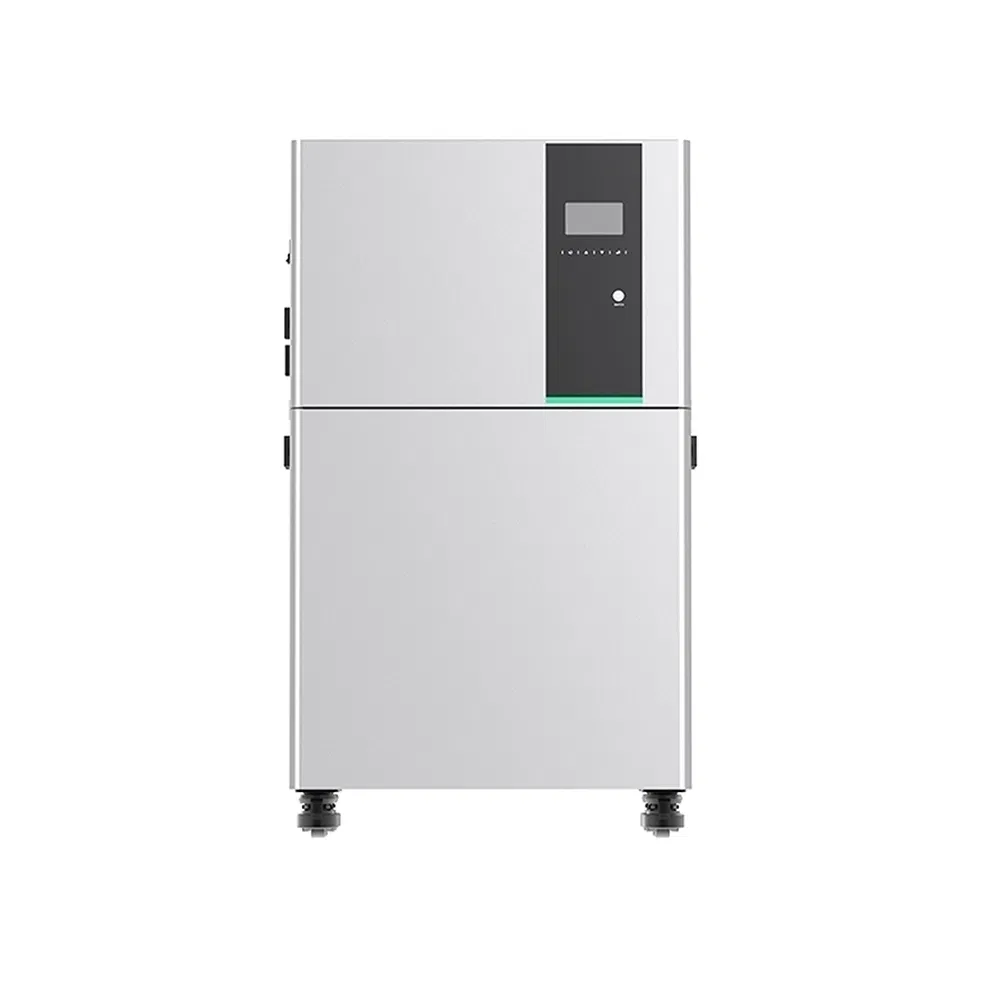

The All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
The intelligent design features advanced battery management, high efficiency performance, and compatibility with various power sources. With extended service life and smart monitoring capabilities, these integrated systems deliver energy independence and cost savings.
Combines inverter, battery, and control functions in a single unit, eliminating wiring and reducing installation time.
Designed for residential applications, providing backup power and energy independence for household consumption.
Broad input voltage range ensures seamless integration with various solar panel configurations and electrical systems.
| INVERTER PARAMETERS | |
|---|---|
| Rated Power | 10kW |
| AC Voltage Range | 90-280VAC |
| Efficiency | 93.50% |
| Transfer Time | 10ms |
| Max. PV Open Circuit Voltage | 500VDC |
| MPPT Operating Voltage | 90-450VDC |
| BATTERY PARAMETERS | |
| Rated Capacity | 15.36 kWh |
| Nominal Voltage | 51.2V |
| Max. Charge/Discharge Current | 200A @ 25℃ |

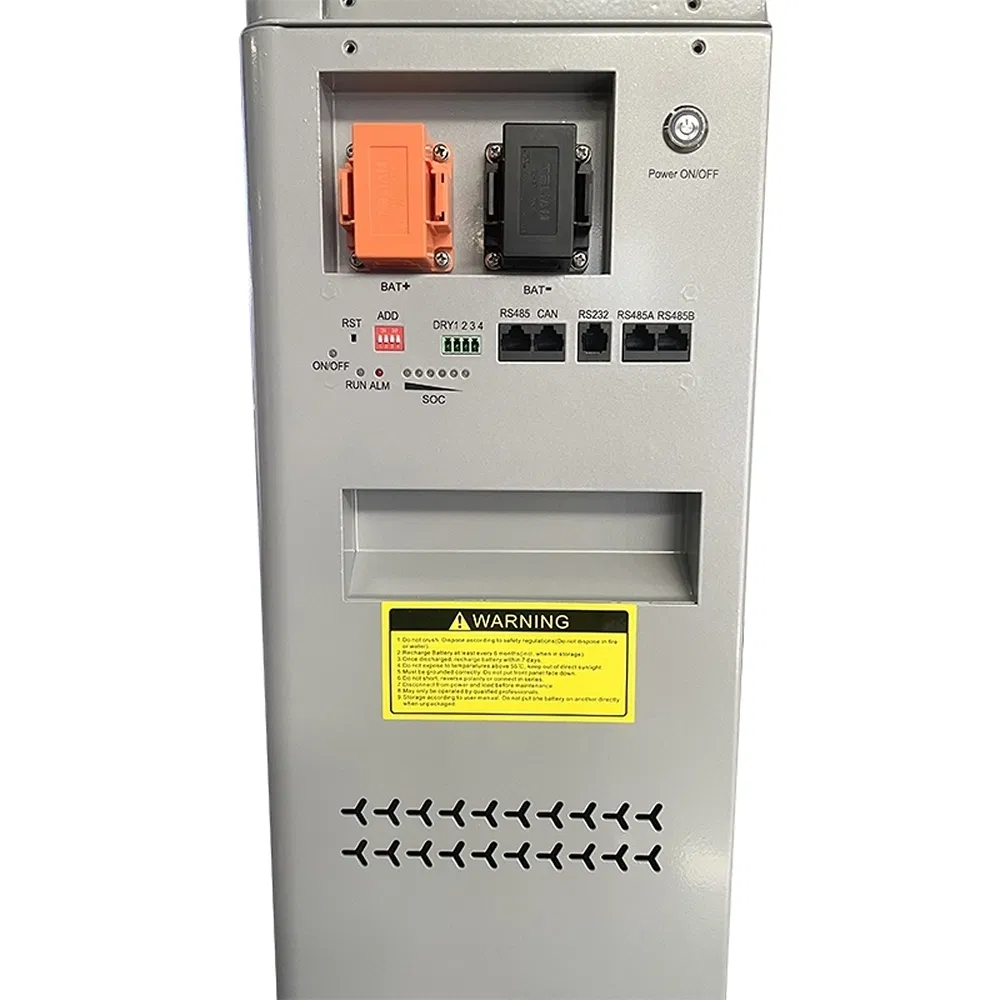

| Communication Interface | RS485/RS232/CAN |
| Working Temp Range | Charge: 0~60℃ / Discharge: -20~60℃ |
Advanced BMS provides comprehensive protection and optimization to maintain peak performance and extend lifespan.
Superior conversion efficiency and rapid switching ensure minimal energy loss for critical home applications.
