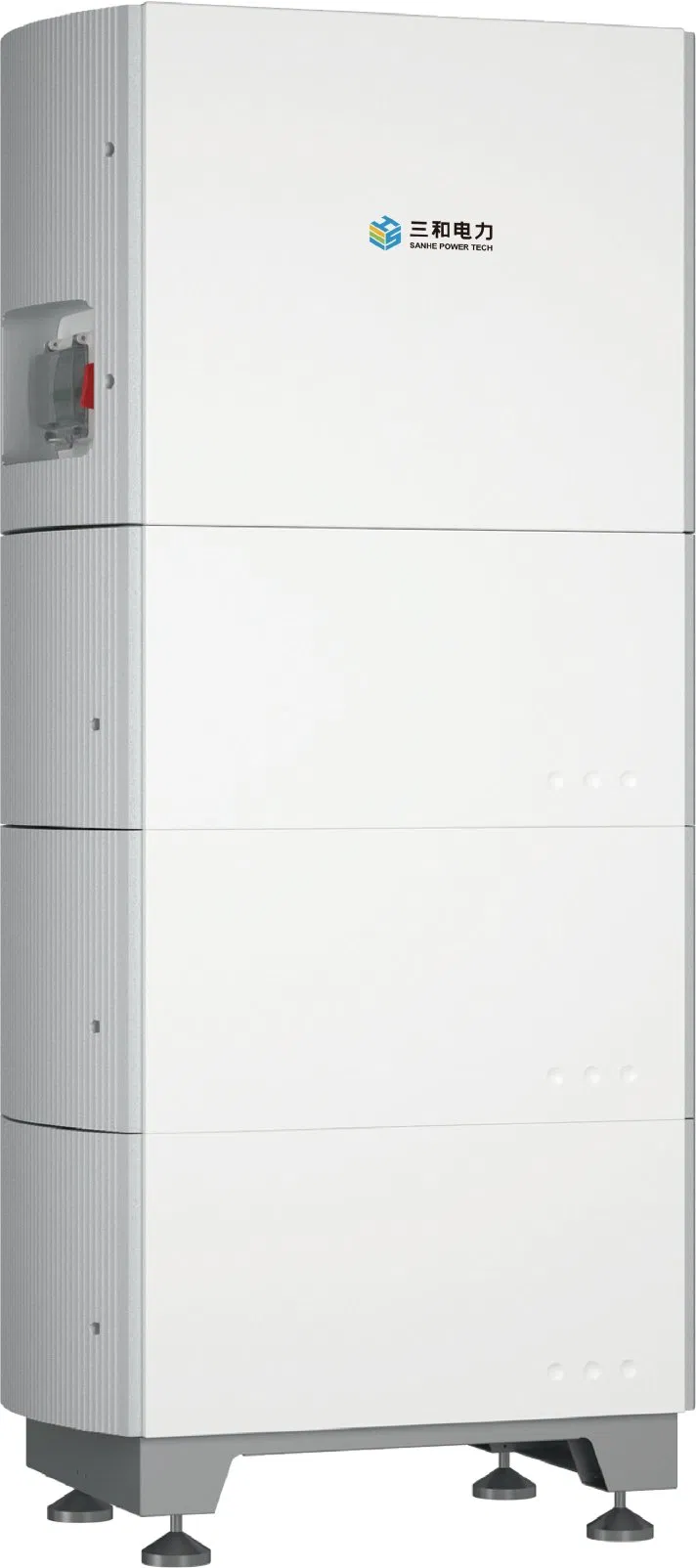

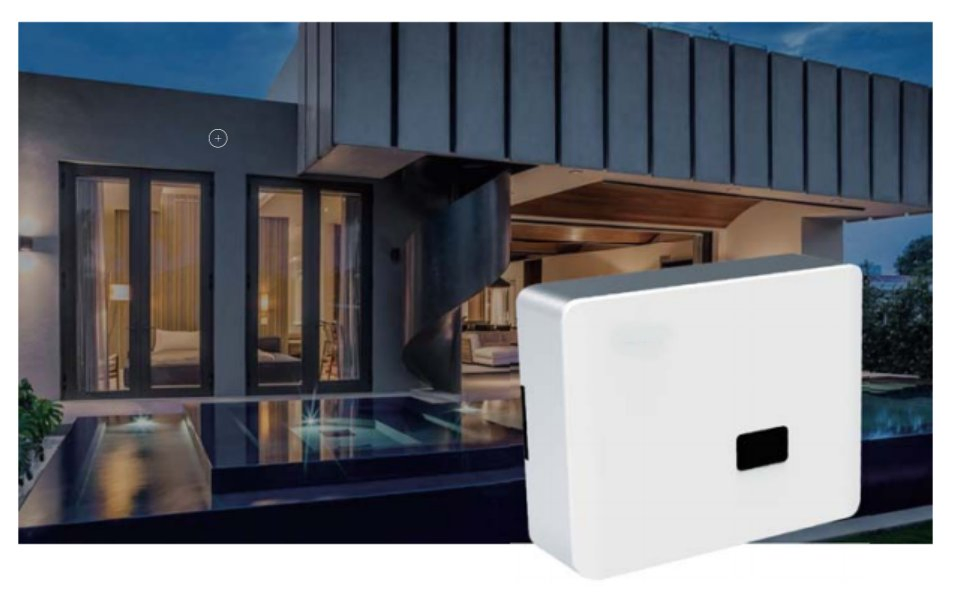

The SNPE All-In-One Residential Energy Storage Solution is a single-phase hybrid system that integrates battery, inverter, charging, discharging, and intelligent control. It is designed to store electricity converted from solar, wind, and other renewable sources for modern residential use, supporting indoor/outdoor floor-standing installation.
| MODEL | SNPE-3K-S2-X | SNPE-3.6K-S2-X | SNPE-4K-S2-X | SNPE-5K-S2-X | SNPE-6K-S2-X |
|---|---|---|---|---|---|
| Max. PV Power [Wp] | 4500 | 5400 | 6000 | 7500 | 9000 |
| Max. DC Voltage [V] | 550 | ||||
| Rated AC Power [W] | 3000 | 3680 | 4000 | 5000 | 6000 |
| Battery Type | LiFePO4 | ||||
| Max Efficiency | 97.6% | ||||
| Protection Class | IP65 | ||||
| Item | All-in-one ESS | Split ESS |
|---|---|---|
| Cost | Lower production, installation, and maintenance costs. | Cumbersome installation; higher overall price. |
| User Experience | Simple to select and operate. | Requires professional expertise to choose/use. |
| Appearance | Clean, compact, and aesthetic. | Bulky; occupies significant space. |
| Operation Modes | Solar priority, AC priority, Peak-shifting mode. | Hybrid, coupled, or off-grid management. |
Capacity: Consider your energy usage patterns and the size of your home or business to meet your specific power needs.
Technology: Options include lithium-ion, lead-acid, or flow batteries. Lithium-ion is preferred for efficiency and lifespan.
Compatibility: Ensure the system works with your existing solar panels or renewable energy sources.
Safety: Look for certified systems with thermal management and overcharge protection.
