Sunark Residential Complete Solar Energy System 10kw 20kw 30kw Solar Energy Storage System on Sale

1 / 5

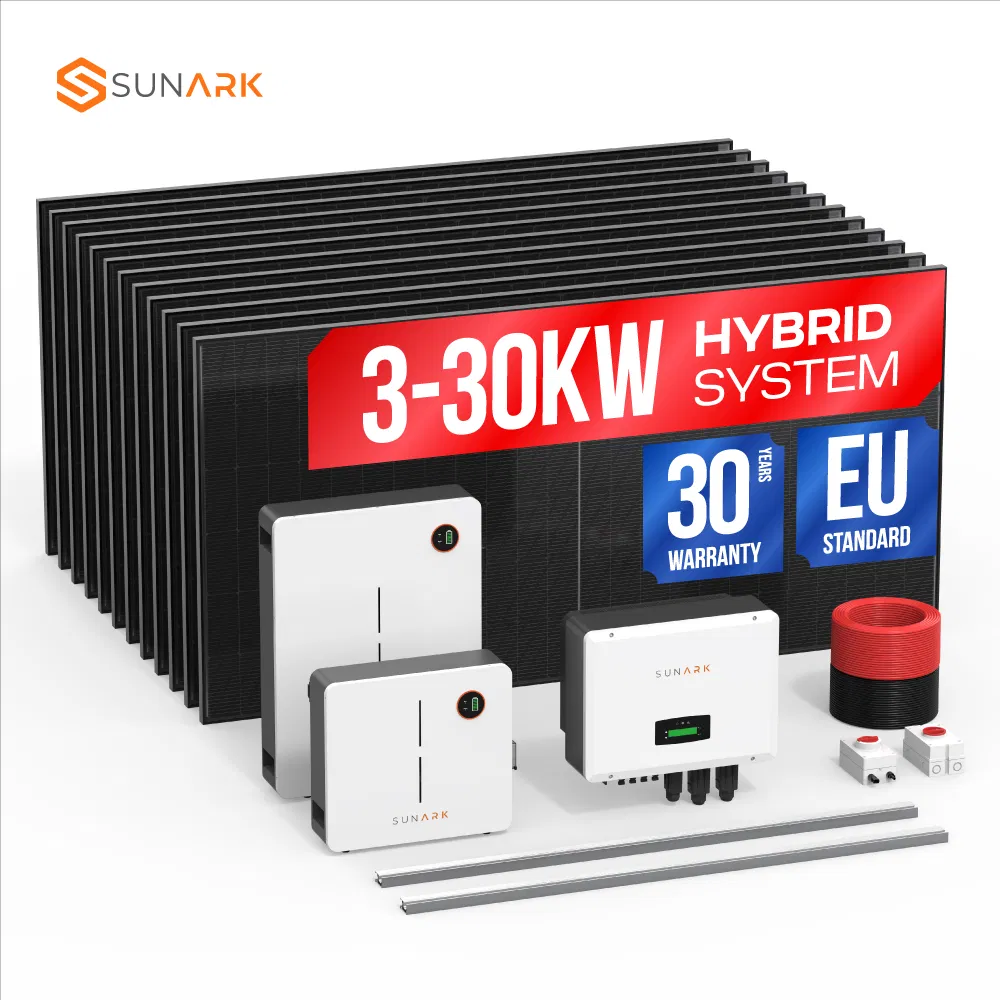

Sunark Residential Complete Solar Energy System 10kw 20kw 30kw Solar Energy Storage System on Sale

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Yeras

Send Inquiry

Product Description

Basic Information

Model NO.

SE-HY 3-30Kw

Condition

New

Certification

ISO, CB, CE, TUV

Application

Home

Specification

Normal, 3-30KW

Product Name

Residential Hybrid Solar System

Solar Panel

Monocrystalline 400-700W

Solar Inverter

Hybrid 3-30kw

Battery Type

Gel / LiFePO4 Lithium Battery

Capacity

5000 Set/Week

Product Description

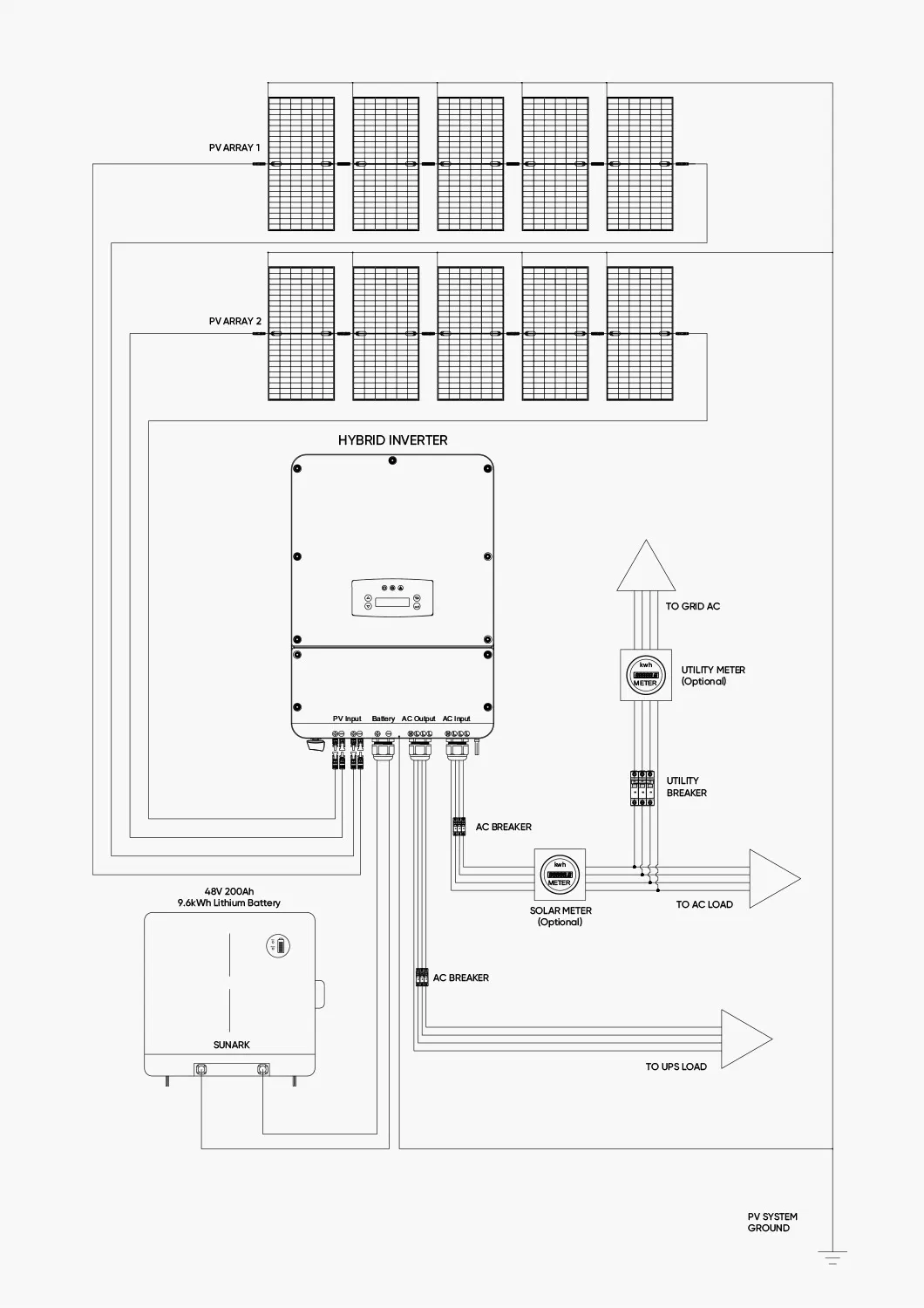

Warranty & System Operation

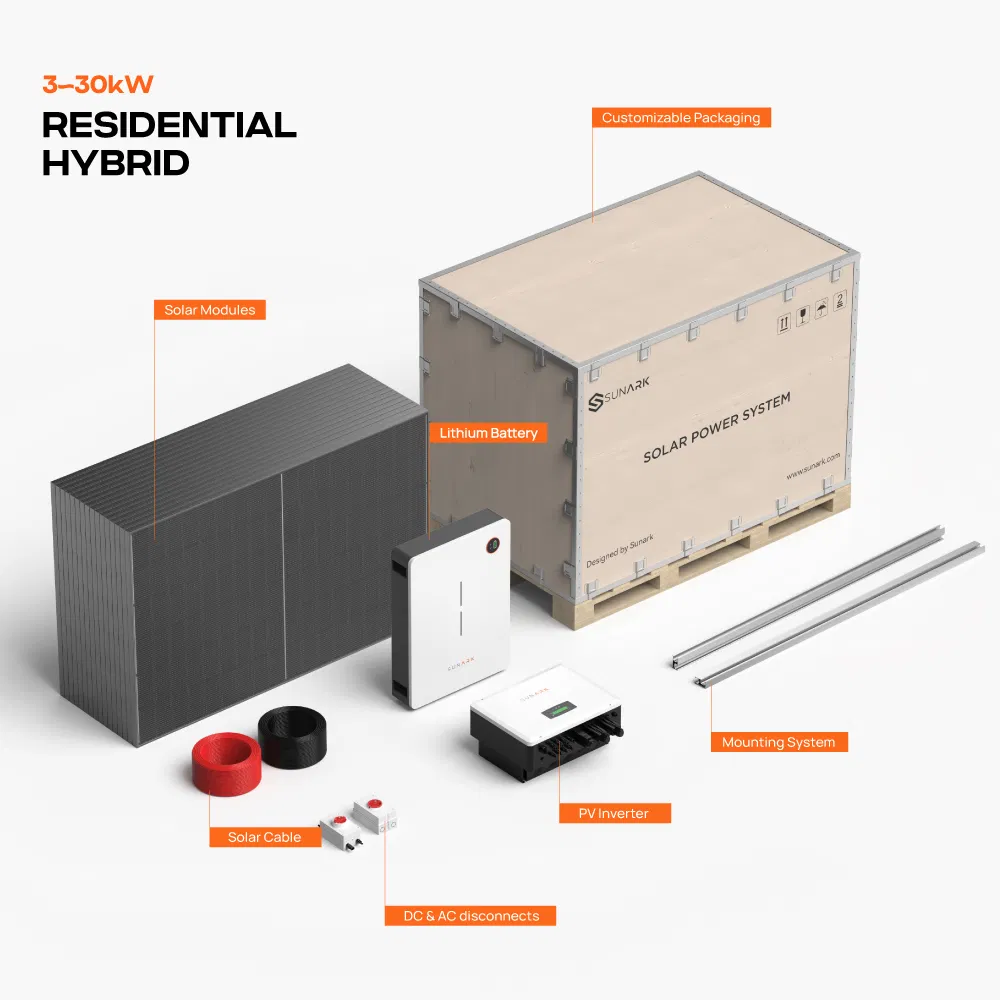

System Configuration Details

Component	SE-3KW-HY	SE-5KW-HY	SE-10KW3-HY
Half Cut Mono 550W Panels	6 pcs	10 pcs	20 pcs
Hybrid Solar Inverter	1 pc	1 pc	1 pc
Lithium Batteries 48V 200Ah	1 pc	1 pc	1 pc
PV Cable 4mm2	100m	100m	200m
Roof Mounting System	1 set	1 set	1 set

Key Components

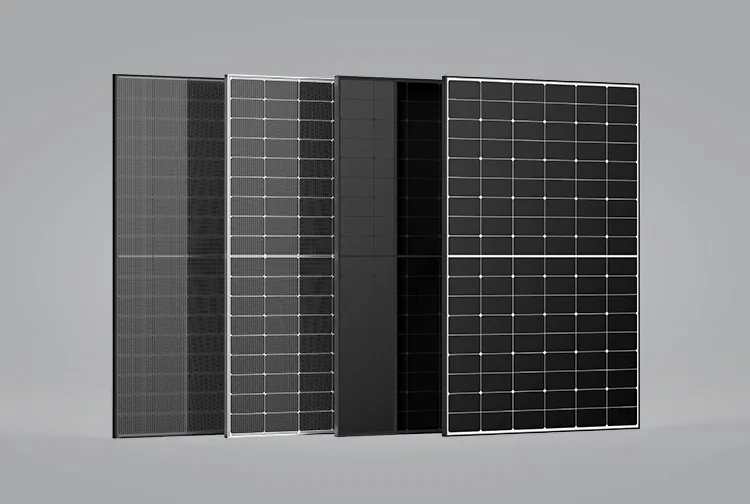

Half Cut Mono 550W Solar Panel

Peak Power: 550W
Max Power Voltage: 42.06V
Max Power Current: 12.84A
Open Circuit Voltage: 49.75V
Dimensions: 2279x1134x35mm
Weight: 26.9Kg

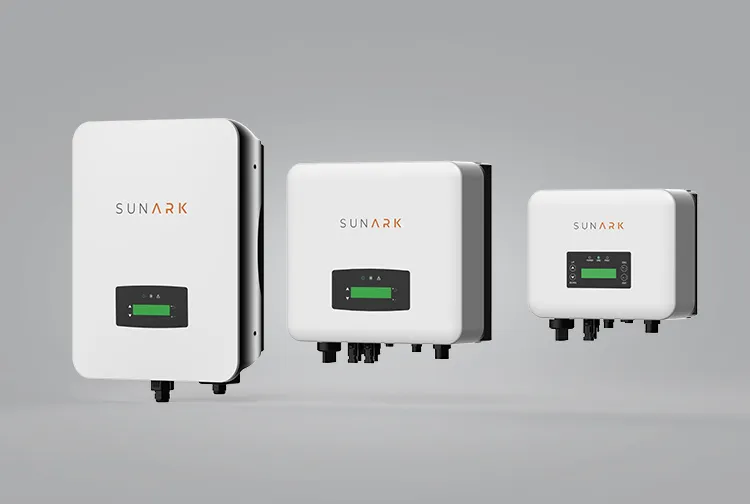

Hybrid Solar Inverter

Supports single/three phase, transformer isolation design. Max charging/discharging current of 240A. Supports up to 6pcs in parallel. Compatible with DC/AC coupling for retrofit projects.

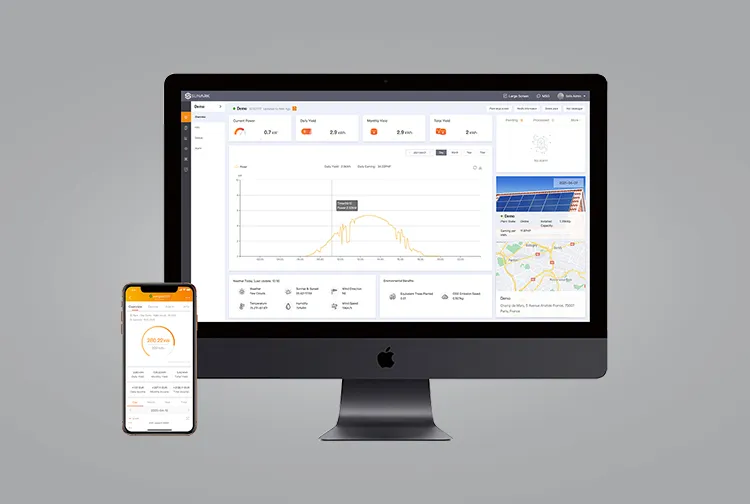

Monitoring System

One-click installation and registration. Supports full lifecycle data storage to ensure security and reliability. Safe operation with traceable logs and remote navigation.

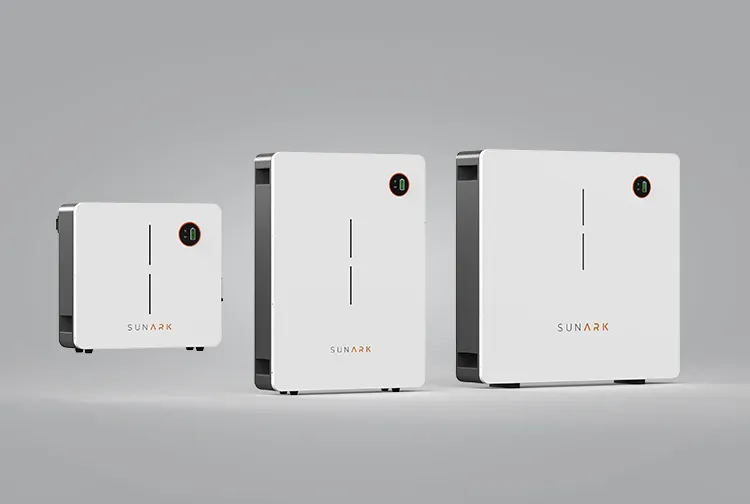

LiFePo4 Battery Bank

Design Life: 15-20 years
Cycle Life: Up to 6000+ cycles
Safety: Lithium iron phosphate cells with built-in high quality BMS. Scalable modular design for wall mount or ground stack.

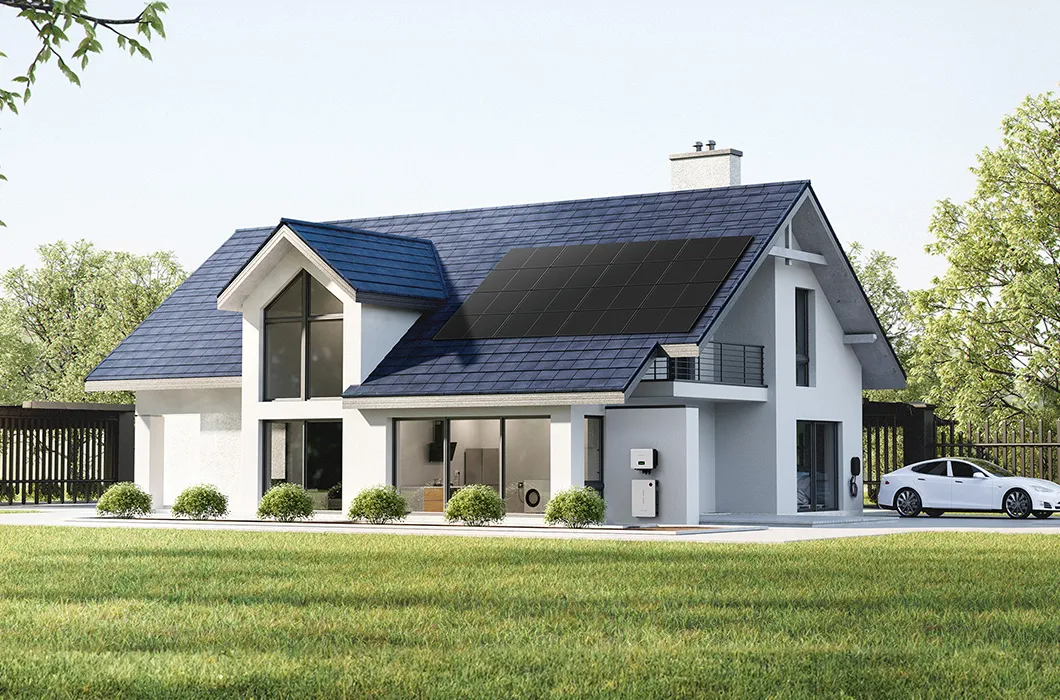

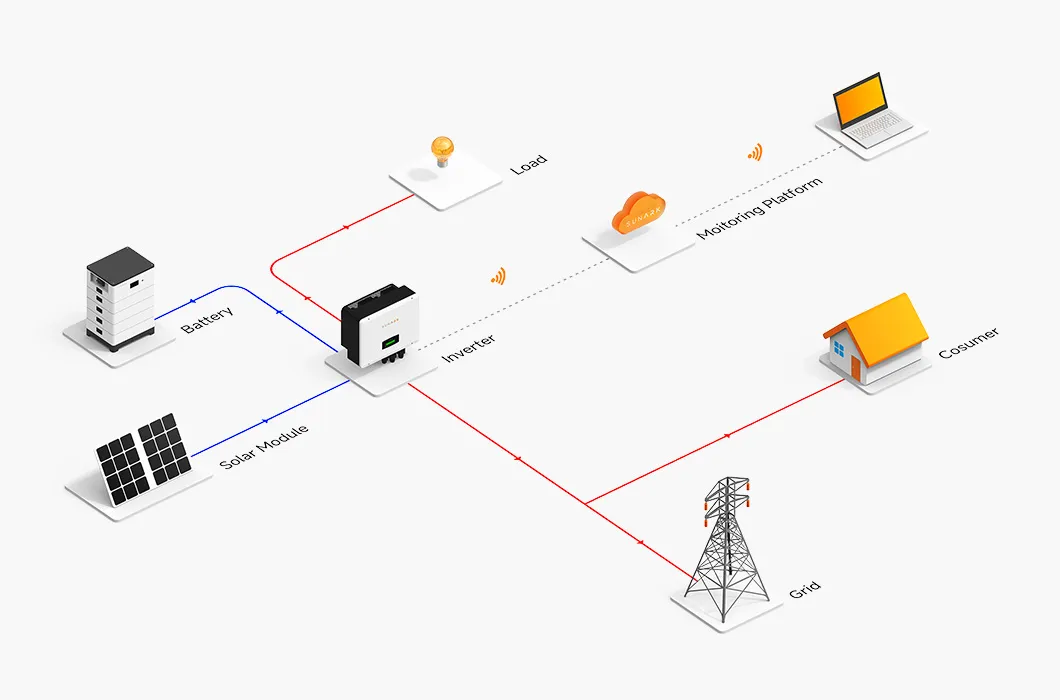

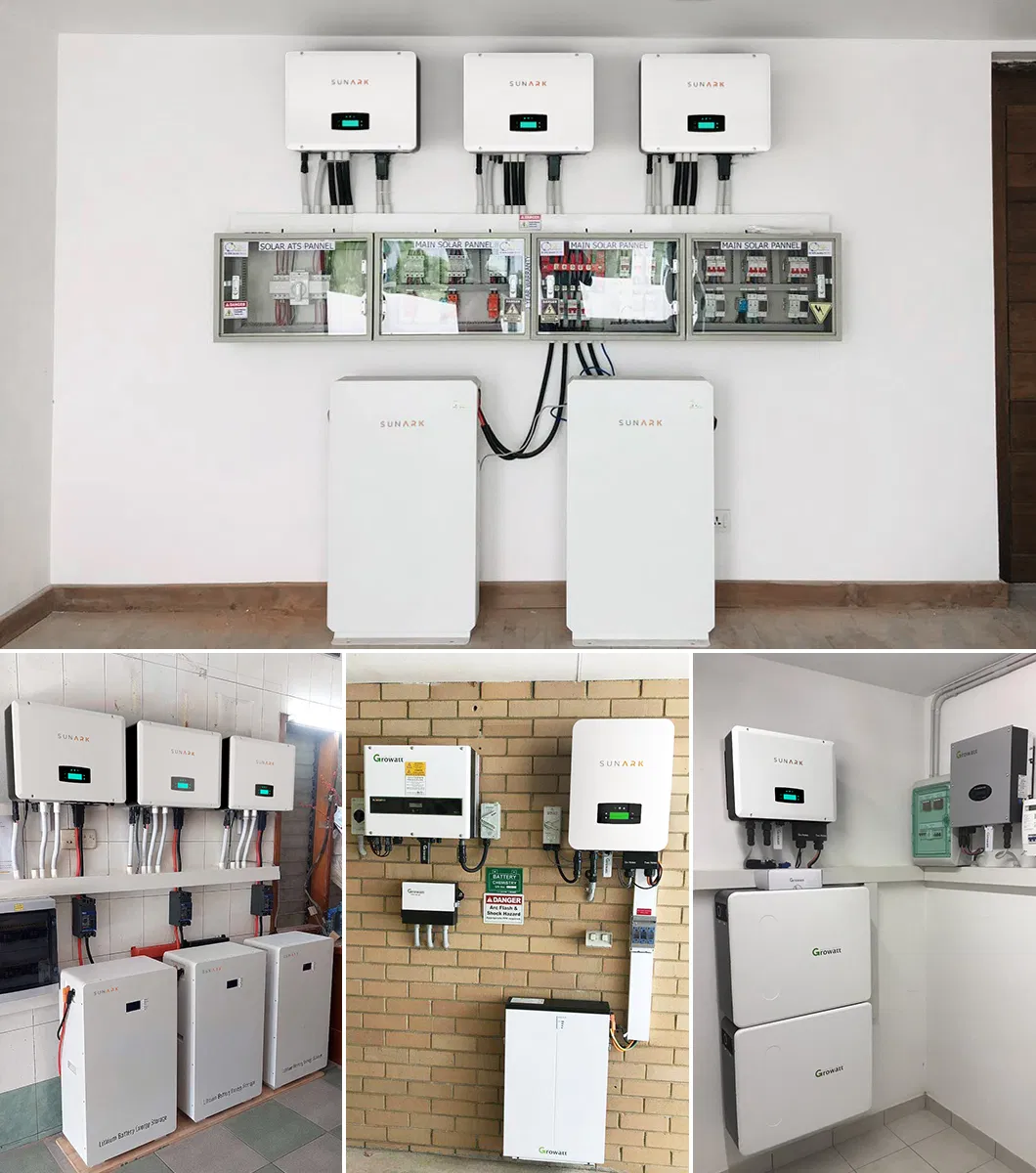

Applications & Project Cases

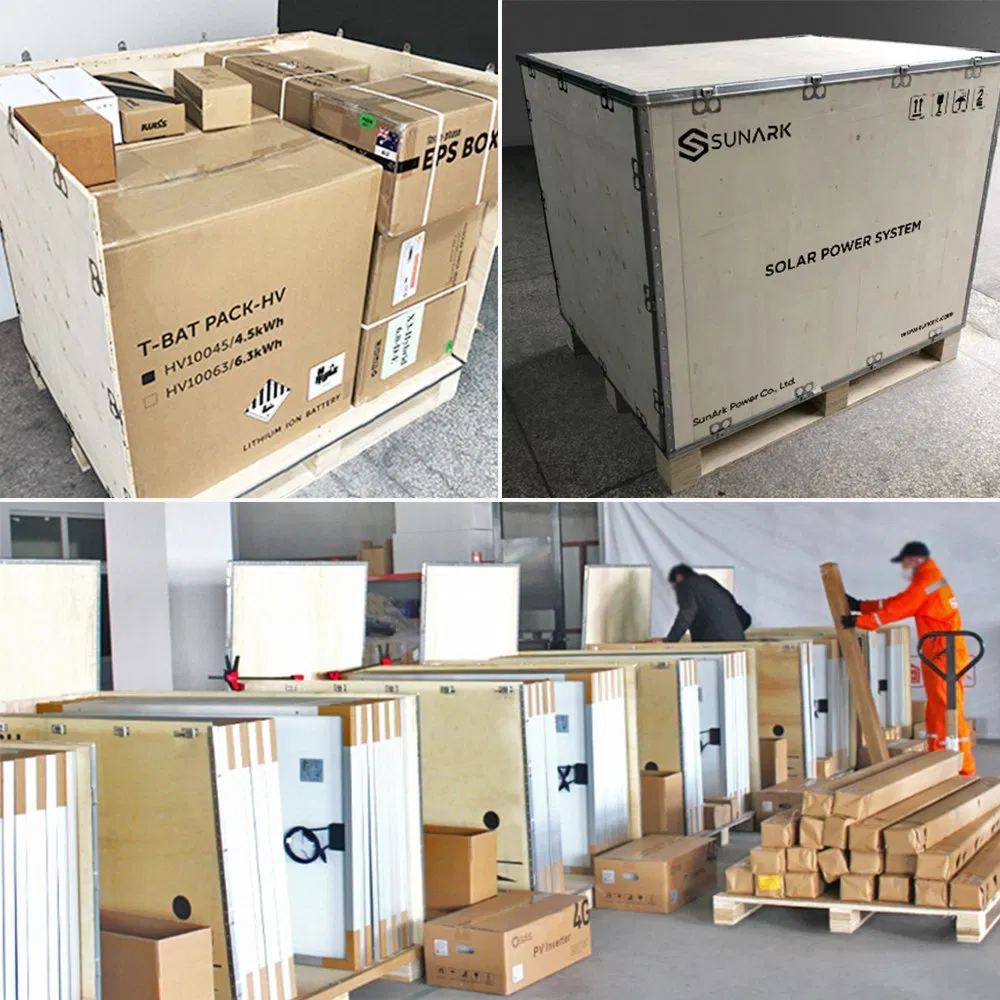

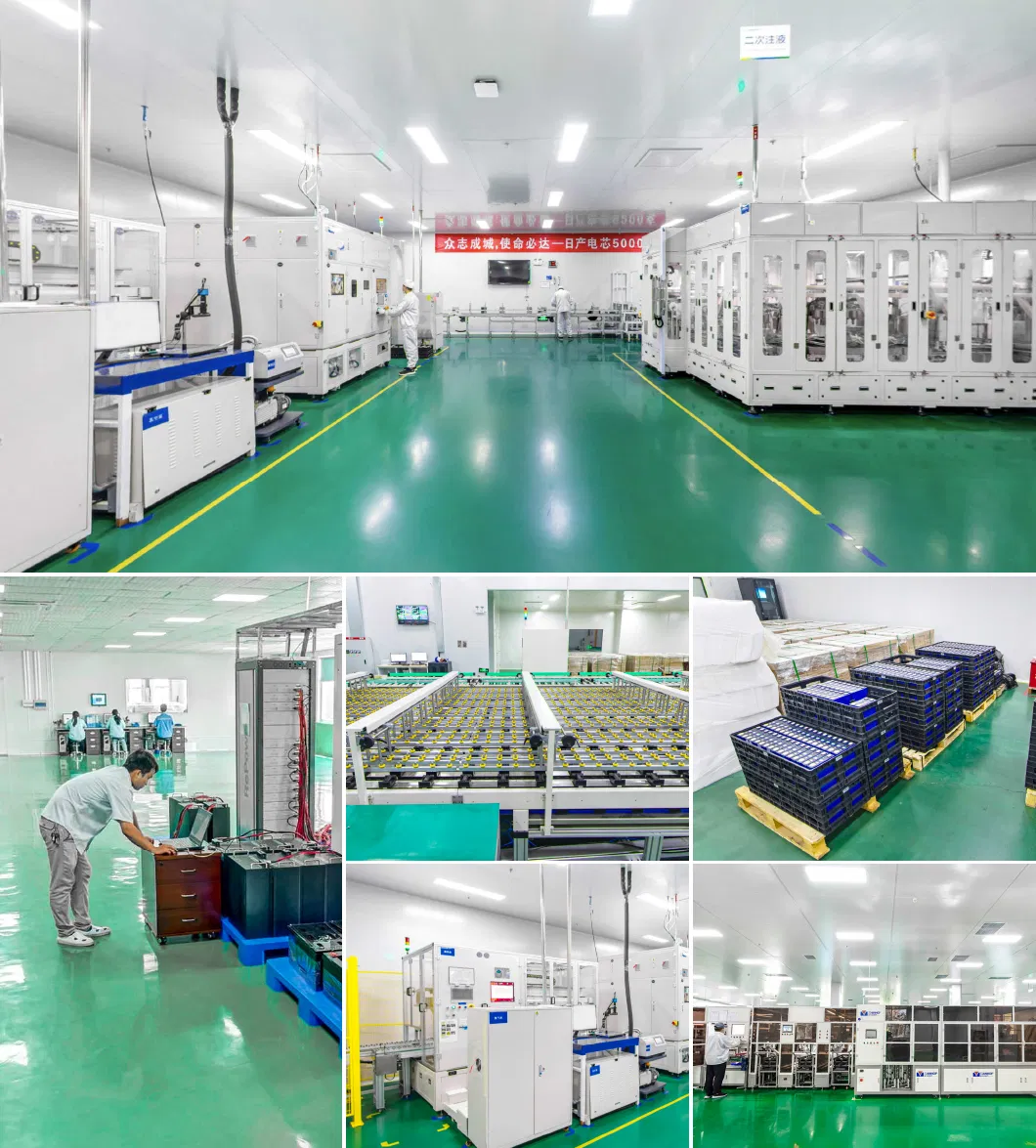

Production & Packaging

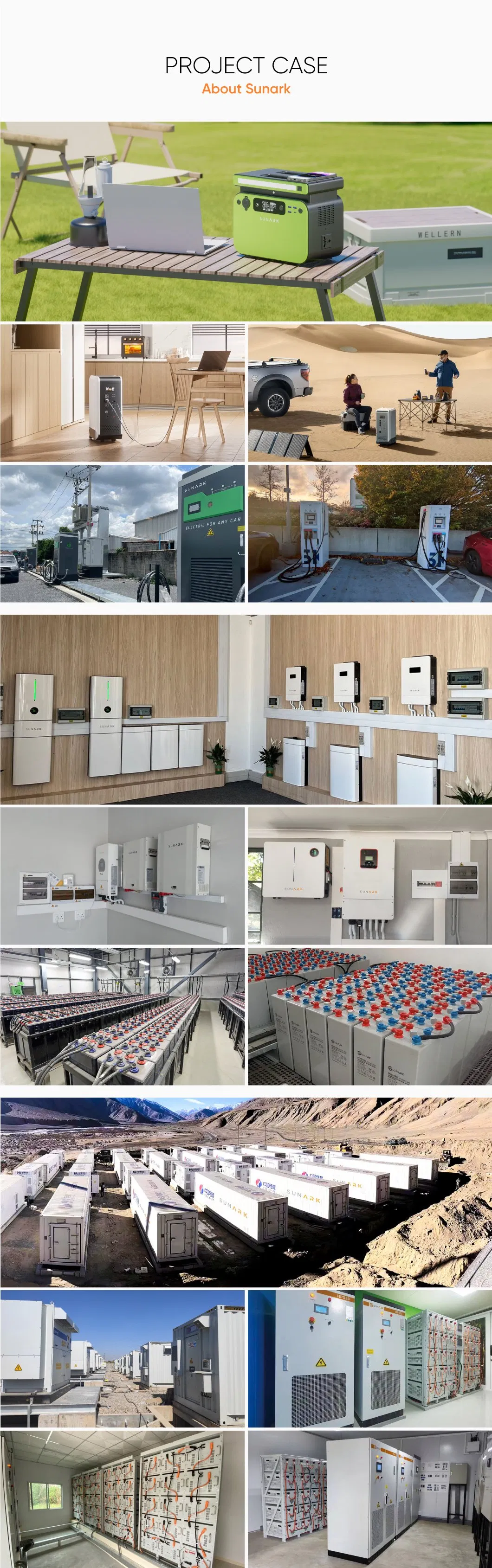

Global Project Gallery

Frequently Asked Questions

What is the lifespan of the LiFePo4 battery bank?

Our LiFePo4 batteries are designed for a 15-20 year service life with over 6000 cycles, ensuring long-term reliability for residential energy storage.

Can I monitor my solar system remotely?

Yes, our systems include a smart monitoring system that supports real-time data tracking via an app or web interface, allowing for remote diagnostics and performance analysis.

Is the system compatible with three-phase power?

Yes, our hybrid solar inverters support both single-phase and three-phase power configurations, making them suitable for various residential and small commercial needs.

What certifications do your solar products carry?

The system and its components are certified by ISO, CB, CE, and TUV, meeting international safety and quality standards.

Can I expand the battery capacity later?

Absolutely. Our battery modules feature a scalable design, allowing you to add more units to increase your storage capacity as your energy needs grow.

What kind of solar panels are included?

We provide high-efficiency Monocrystalline Half-Cut solar panels, typically ranging from 550W to 700W, to ensure maximum energy harvest even in limited space.
