Sunpal Hybrid Full Solar Power System Set 48V 5Kw 10Kw 20Kw 30Kw 40Kw Solar Pv Energy Home Battery Storage System Complete Kit

Customization:	Available
After-sales Service:	Free Warranty
Warranty:	10 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

SP3-30KW3-HY

Certification

ISO, CE, RoHS

Application

Home

Specification

Normal, 3KW-30KW

Product Name

Household Hybrid Solar Power System

Controller Type

MPPT

System Type

off-Grid Solar Photovoltaic System

Solar Panel

Mono Crystalline Perc Solar Panel

Inverter

Single Phase/Split Phase/3phase

Battery

Lead Acid/LiFePO4 Lithium Battery

Packing Size

200*130*50cm

Weight

850kg

Product Description

✓ Warranty & Performance

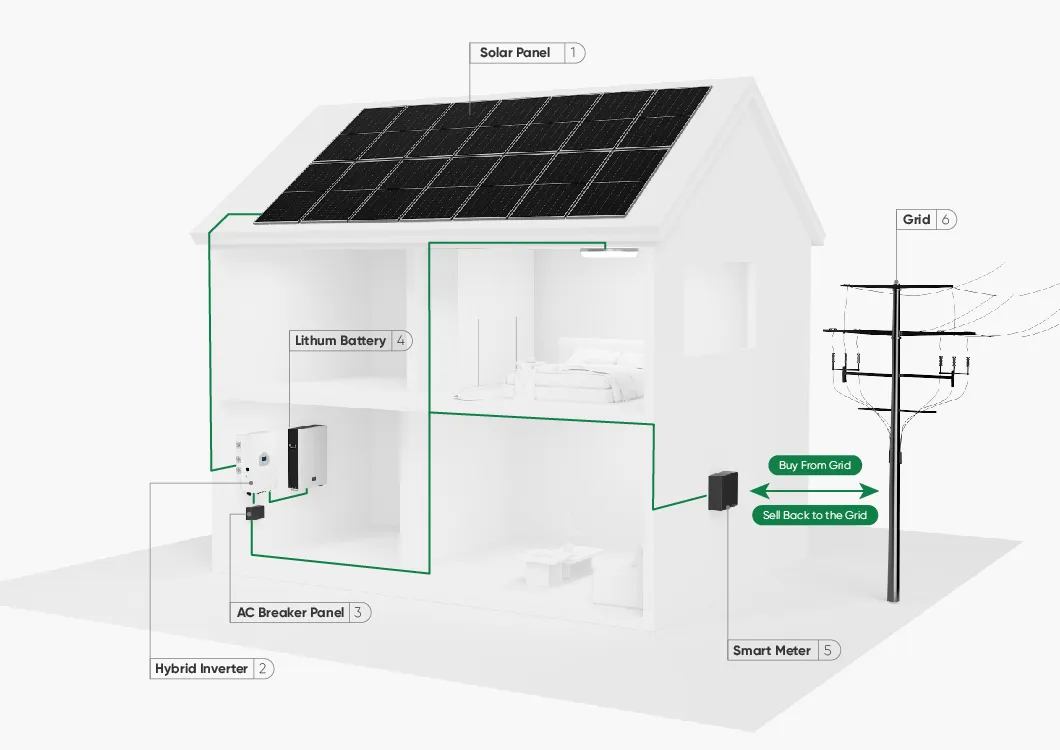

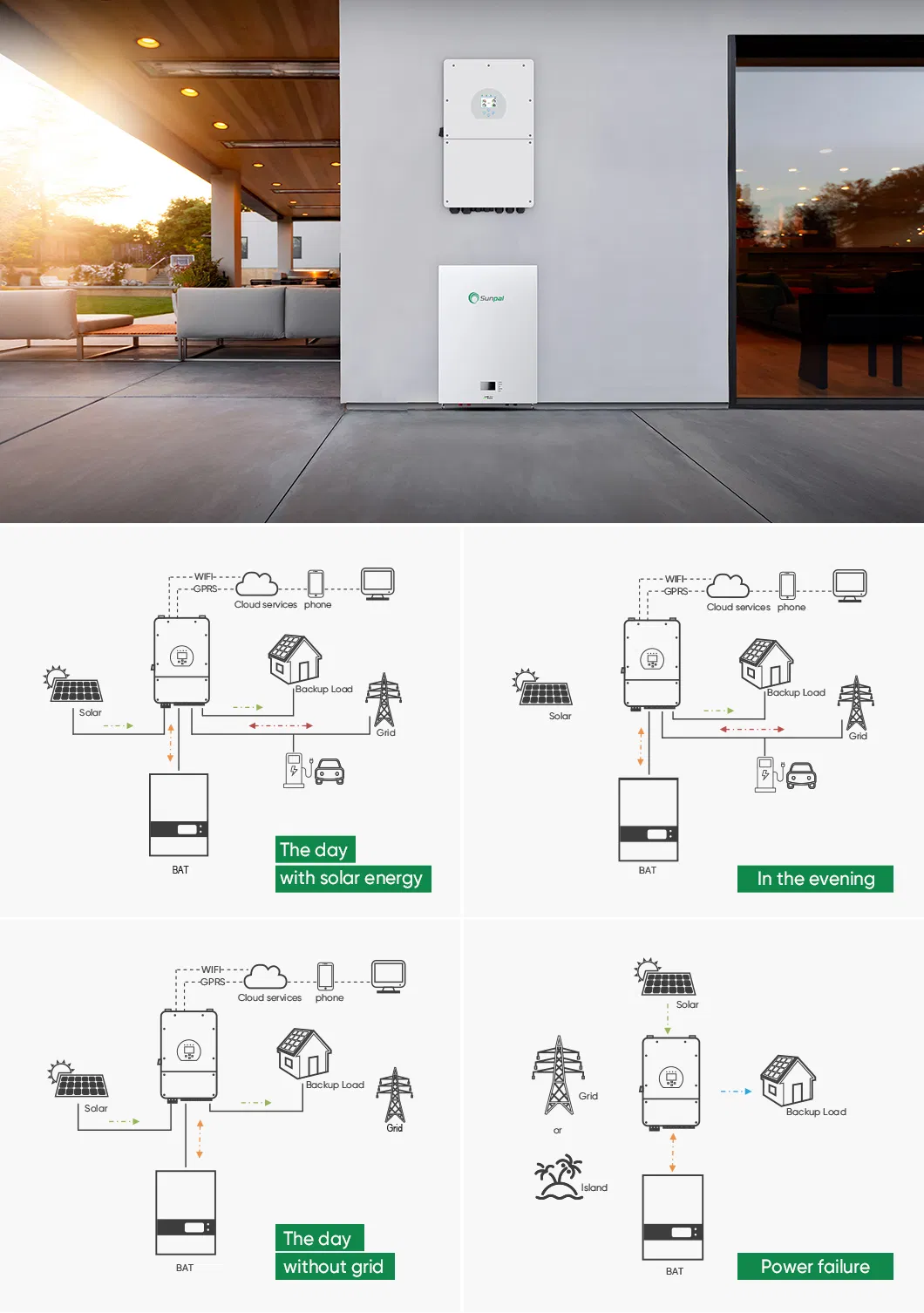

✓ How it works

System Configurations

Model	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Mono 550W Solar Panel	6 Pieces	10 Pieces	20 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect	1 Piece	1 Piece	1 Piece

Model	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Mono 550W Solar Panel	30 Pieces	40 Pieces	63 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-5K (3 Pcs)	SUN-10K (2 Pcs)	SUN-10K (3 Pcs)
LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter

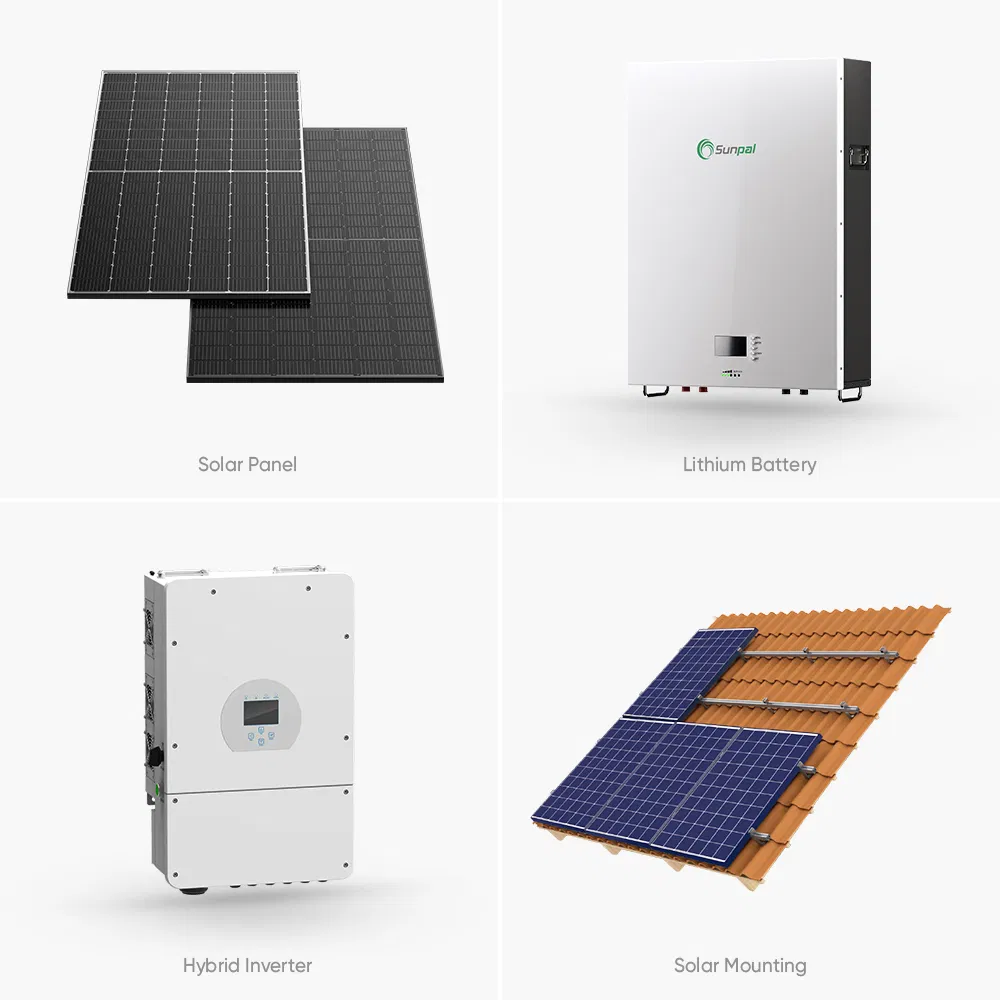

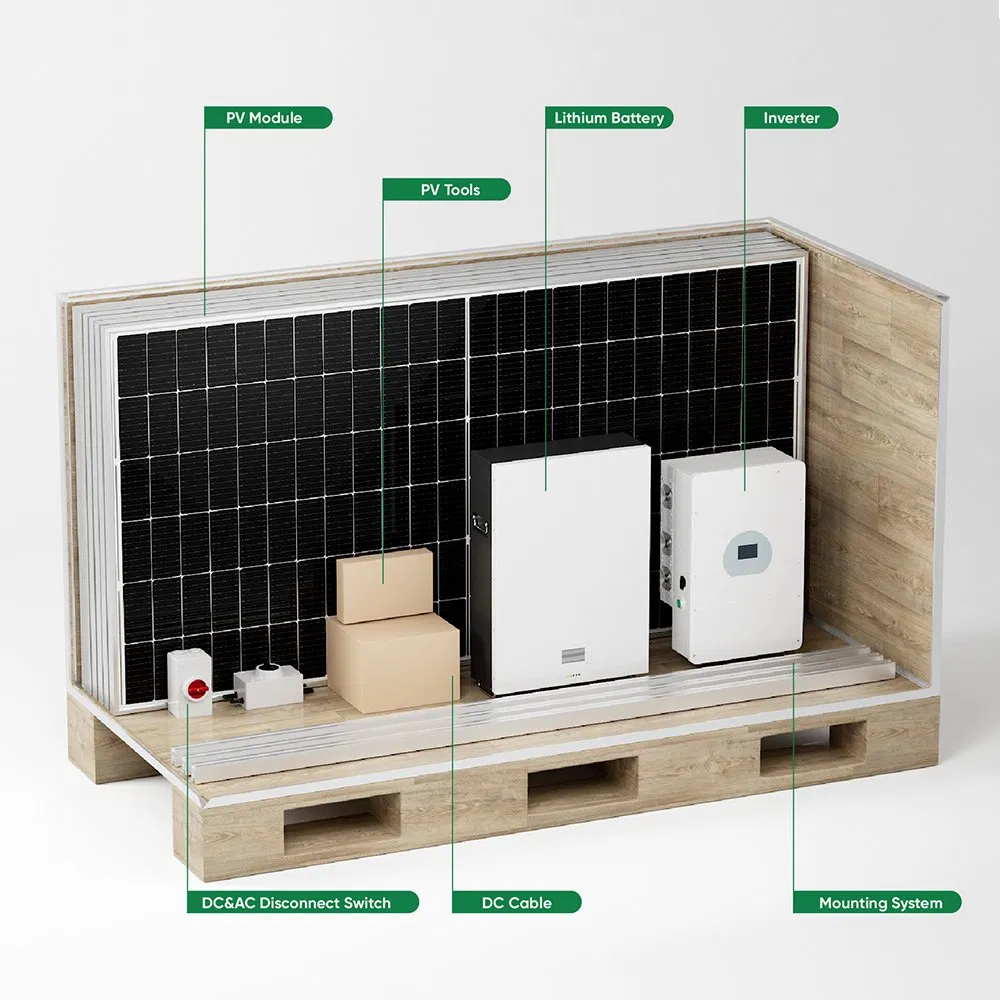

System Components

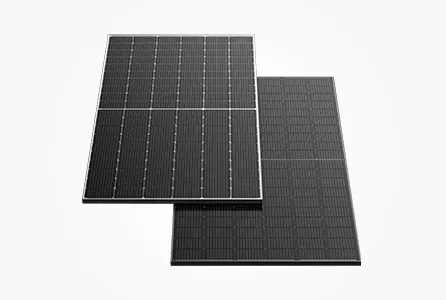

Half Cut Mono 550W Solar Panel

Peak Power: 550W | Voltage: 42.06V | Dimensions: 2279x1134x35mm | Weight: 26.9 kg

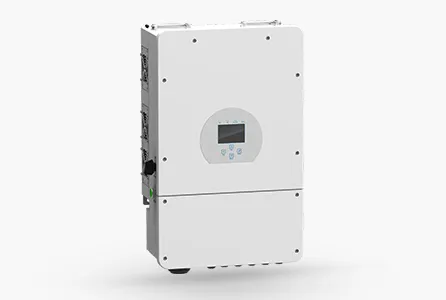

Hybrid Solar Inverter

48V low voltage battery support with transformer isolation. 6 time periods for charging/discharging. Max parallel up to 10pcs.

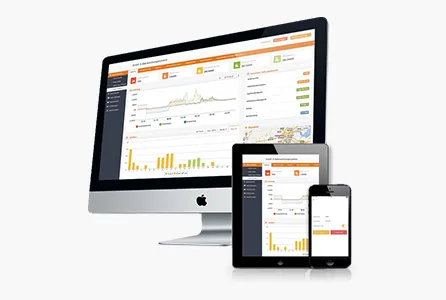

Smart Monitoring System

Supports one-click installation and registration. Safe operation with traceable logs and lifecycle data storage.

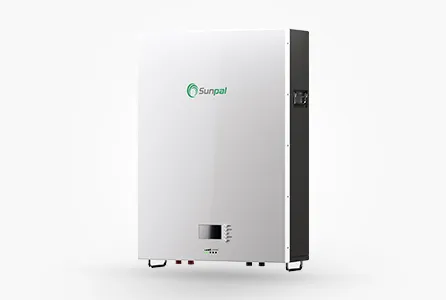

Wall Mounted LiFePo4 Battery

15-20 years design life. 6000+ cycles. Built-in high quality BMS for cell protection and household safety.

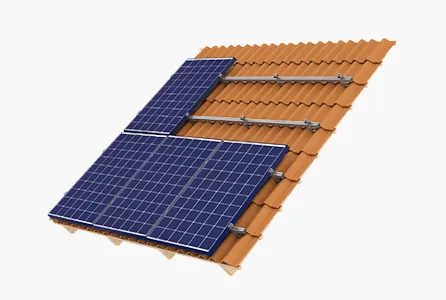

PV Mounting System

AI6005 & SUS304 Rail Kit. Includes Mid/End clamps, L-feet/Hanger bolts, and grounding clips.

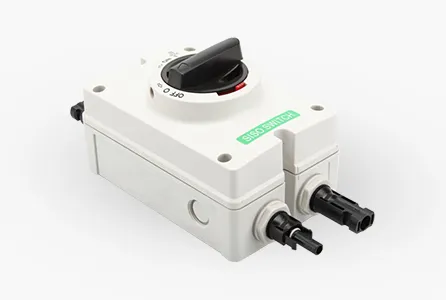

DC & AC Disconnect Switch

IP66 Rating | 1000VDC Rated | MC4 Connection | 16A-20A Rated Current.

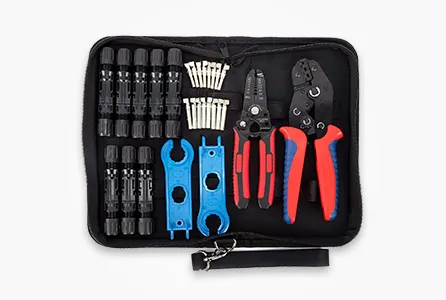

Professional PV Tools

Includes Wire Cable Cutters, Strippers, MC4 Crimpers, and Assembly/Disassembly tools.

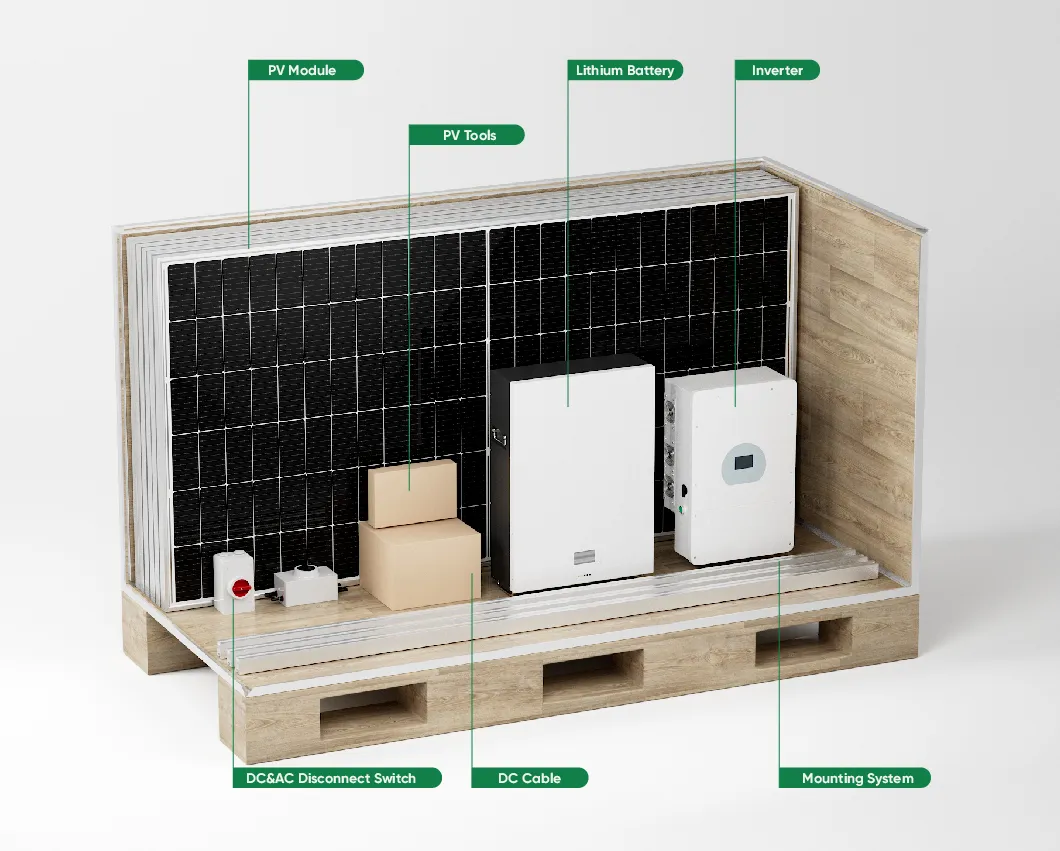

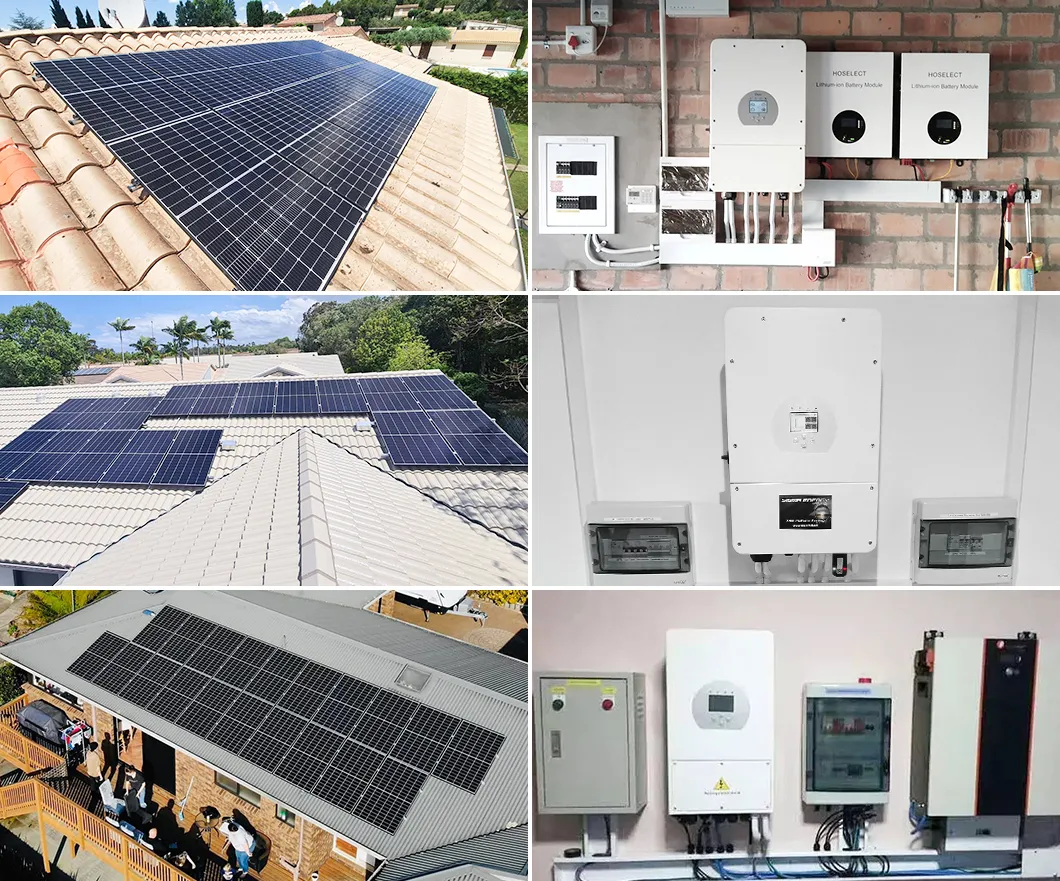

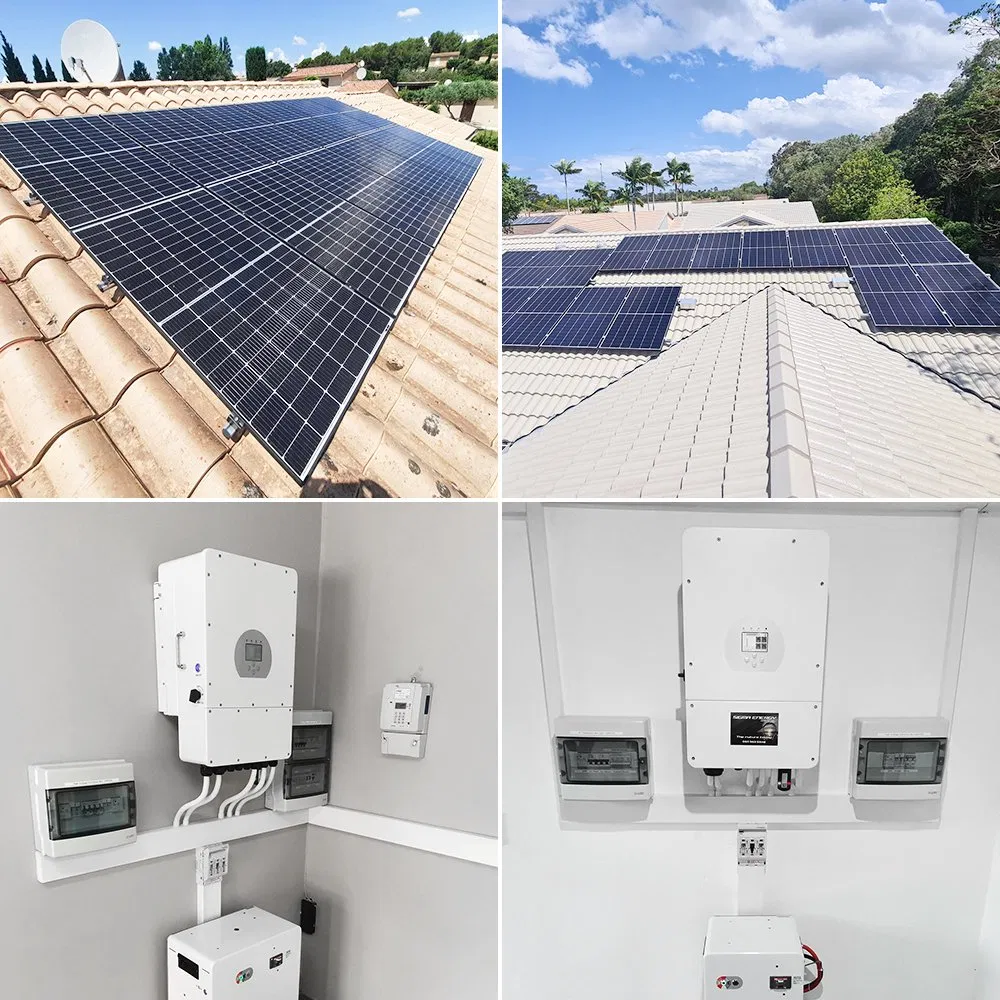

Packaging & Projects

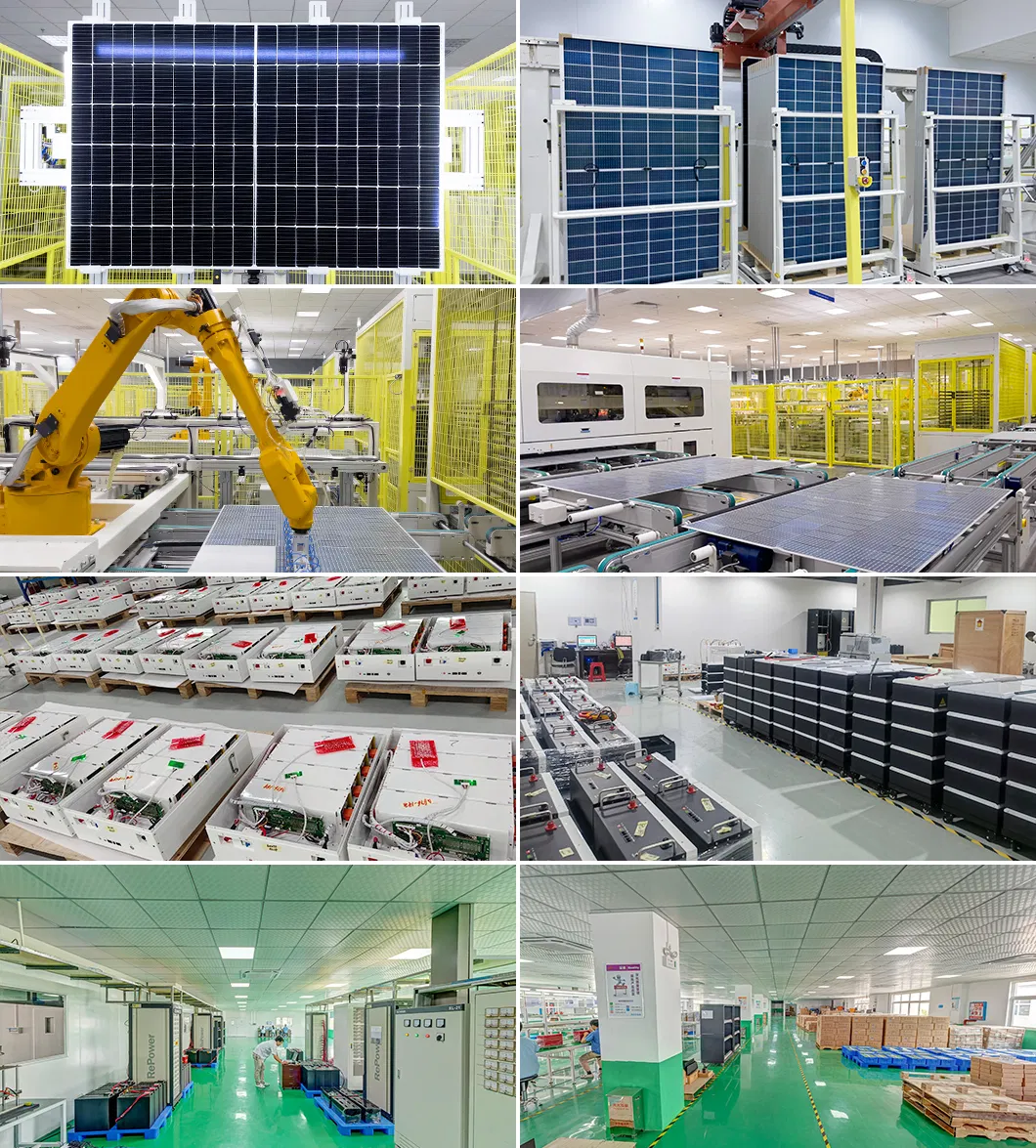

Facility Overview

Frequently Asked Questions

1. What are the main benefits of a hybrid solar system?

A hybrid system combines solar panels and battery storage, allowing you to use solar energy during the day and stored energy at night or during power outages, maximizing efficiency and energy independence.

2. What type of solar panels are used in this kit?

The system features high-efficiency Half-Cut Mono Crystalline Perc Solar Panels, typically 550W per panel, known for superior performance in various light conditions.

3. How long does the LiFePO4 battery last?

The LiFePO4 (Lithium Iron Phosphate) batteries are designed for a long lifespan of 15-20 years with over 6,000 charge cycles, providing durable and safe energy storage.

4. Can I monitor my solar production remotely?

Yes, the included smart monitoring system supports data tracking and lifecycle storage, allowing you to monitor system health and energy production safely.

5. Is the mounting system compatible with my roof?

The mounting structure is customizable and supports various installation types, including asphalt shingle roofs, hanger bolt options, and ground-based structures.

6. Are installation tools included in the package?

Yes, the system comes with a complete set of PV installation tools, including cable cutters, strippers, and MC4 crimpers to facilitate a professional setup.
