1 MW off Grid Ess All in One Commercial Lithium Battery Bess Container System AC/DC 250kwh, 500kwh, 1mwh, 2mwh Solar Energy Storage Battery Cabinet Outdoor IP54

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Basic Info & Overview

Model NO.:HT-500/2000-EC

Nominal Voltage:208/220/380/400/415/480V 3 Phase

Warranty:5 Years

Nominal Capacity:250kwh, 500kwh, 1mwh, 2mwh

Cycle Life:6000+ Cycles

Battery Type:LiFePO4 / Lithium Battery

Protection:Outdoor Installation IP54

Application:Industrial & Commercial Storage System

Product Description

Key Features of Energy Storage System

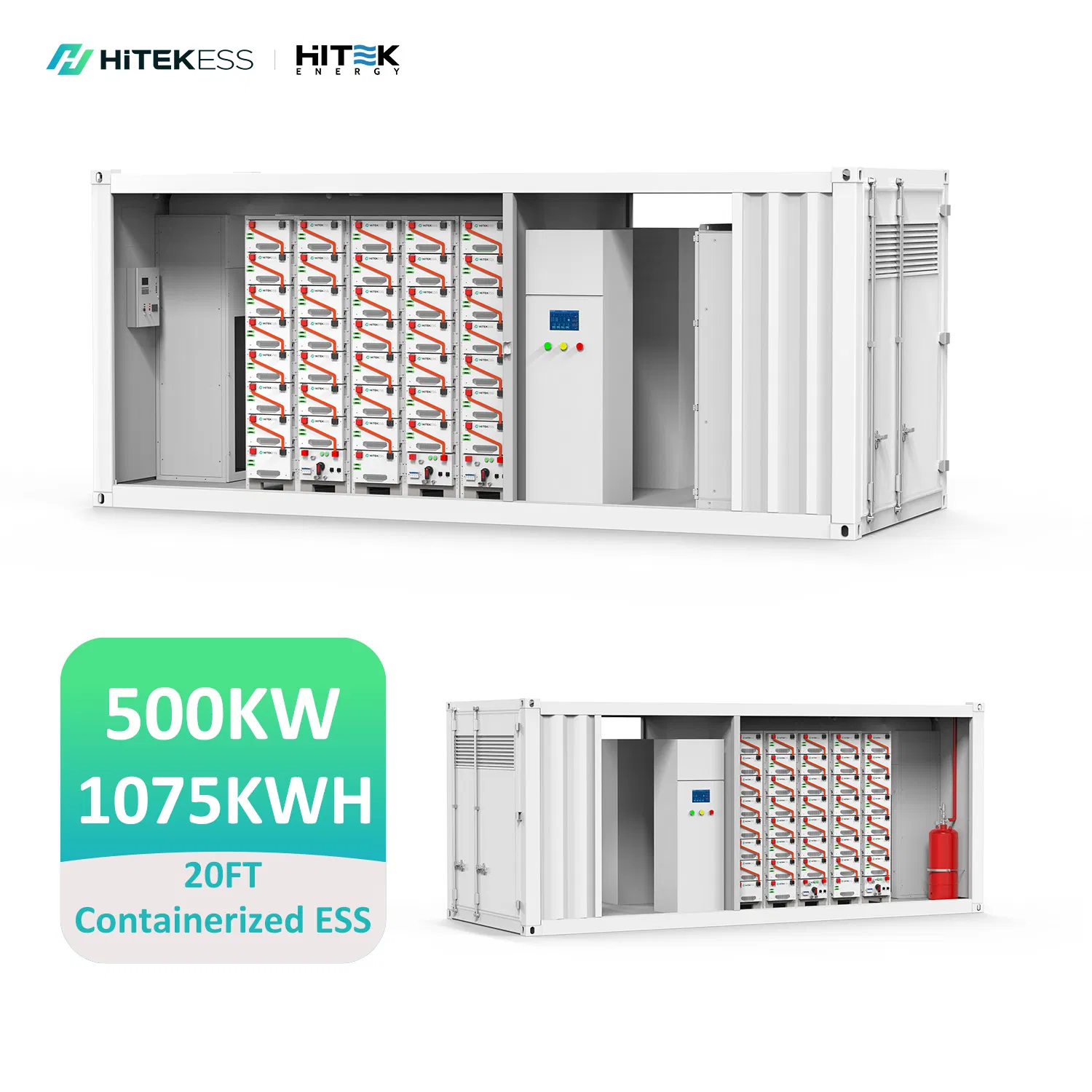

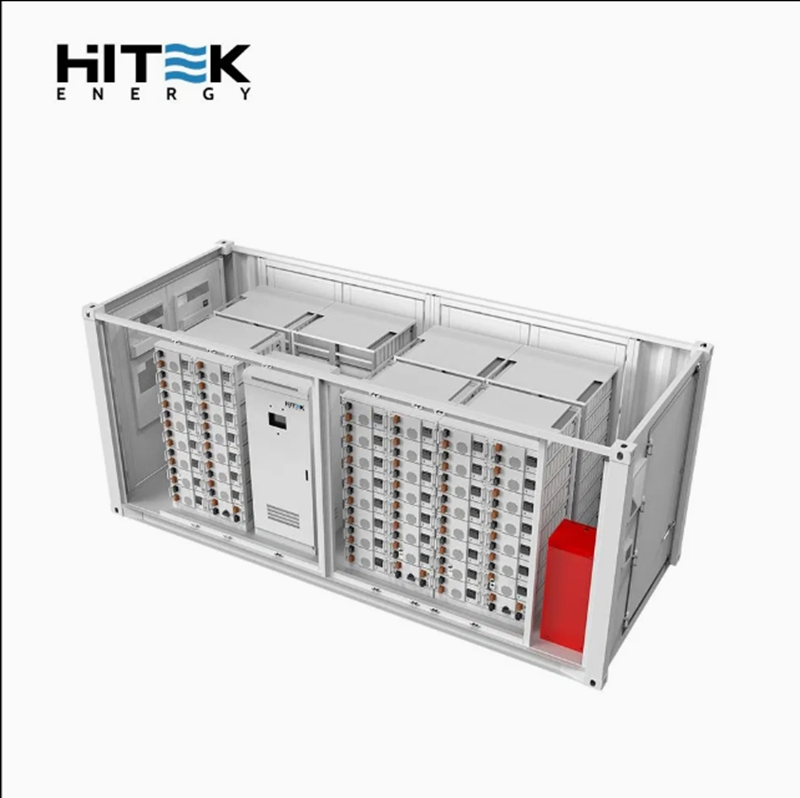

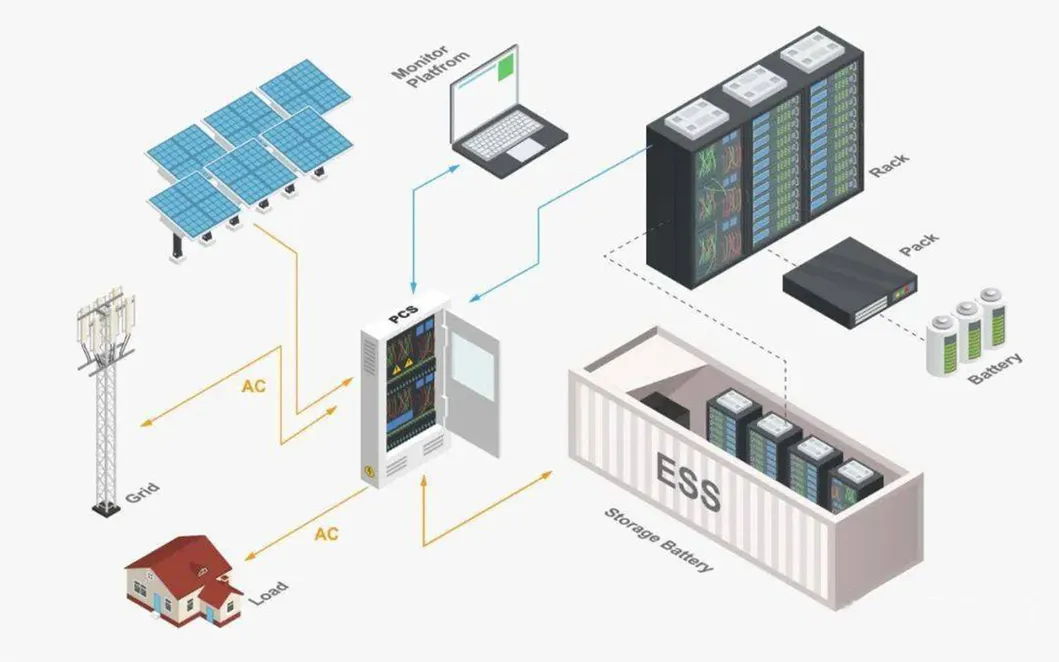

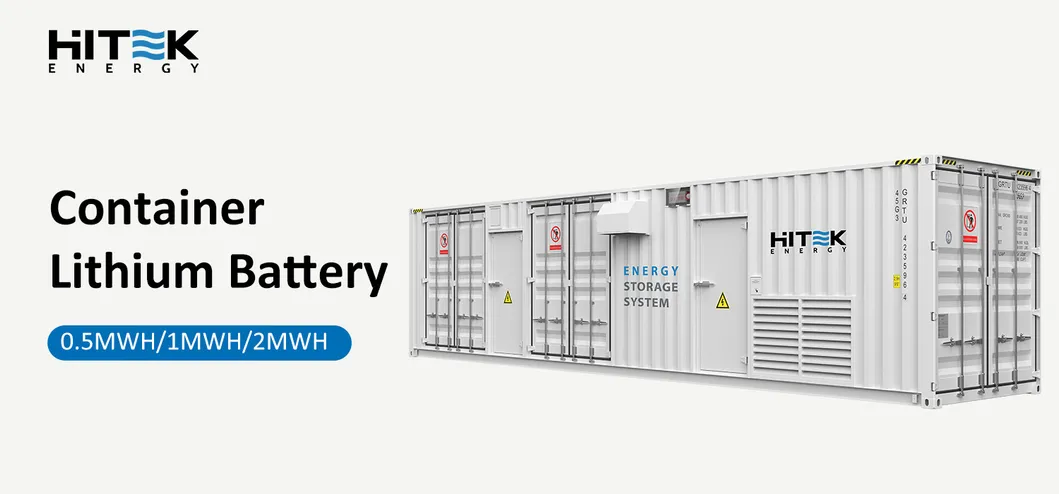

BESS (Battery Energy Storage System) Container is a modular, scalable, and highly integrated energy storage solution designed for efficient power management.

Working Modes: On-grid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving) and Off-grid Mode.
Advanced BMS: Comprehensive monitoring, operation control, insulation detection, and dynamic balancing.
Integrated PCS: Wide DC input voltage range, suitable for indoor/outdoor installation with fast power conversion.
Safety Systems: Integrated Fire Protection System and automated HVAC/Air Conditioning.

System Configuration & Data

Specifications	0.5MW/1MWh System	1MW/2MWh System
Cell Type	Lithium Iron Phosphate (LiFePO4)
Cell Life Cycle	>6,000 Cycles @ 80% DOD, 25°C
Total Rated Energy	1003.52kWh	2007.04kWh
Rated AC Power	500kW	1000kW
Rated AC Voltage	380V/400V/220V/480V
Dimension (LWH)	605825912438mm	1211624382896mm
Degree of Protection	IP54
Fire Extinguisher	HFC Bottle Group System

Core Components

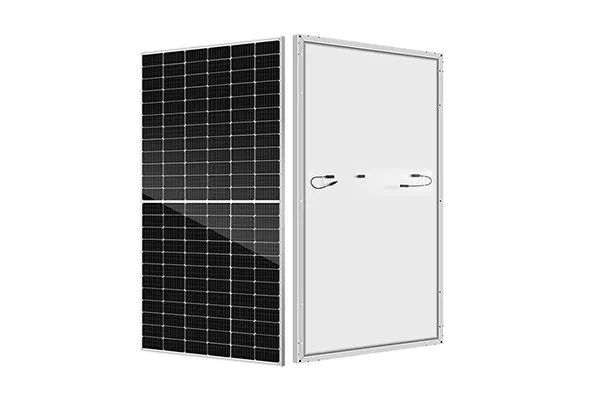

High Efficiency Mono Solar Panels

Model: 600Wp Series
Open Circuit Voltage: 49.94V
Dimensions: 2279*1134*30mm
Weight: 32.5kg

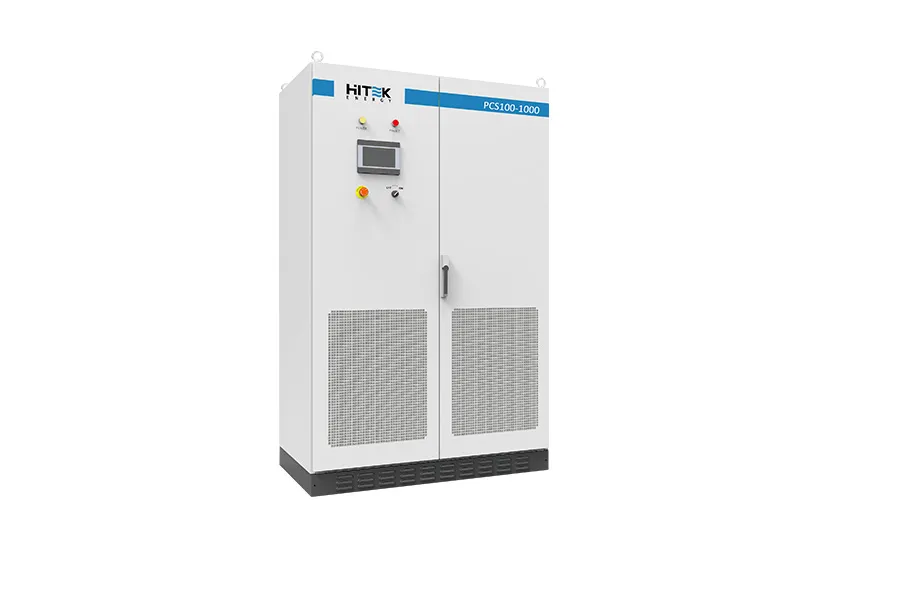

PCS 100-1000KW Inverter

Bidirectional battery inverter suitable for large-scale application. Supports remote control, flexible configuration, and features a touchscreen LCD for local management.

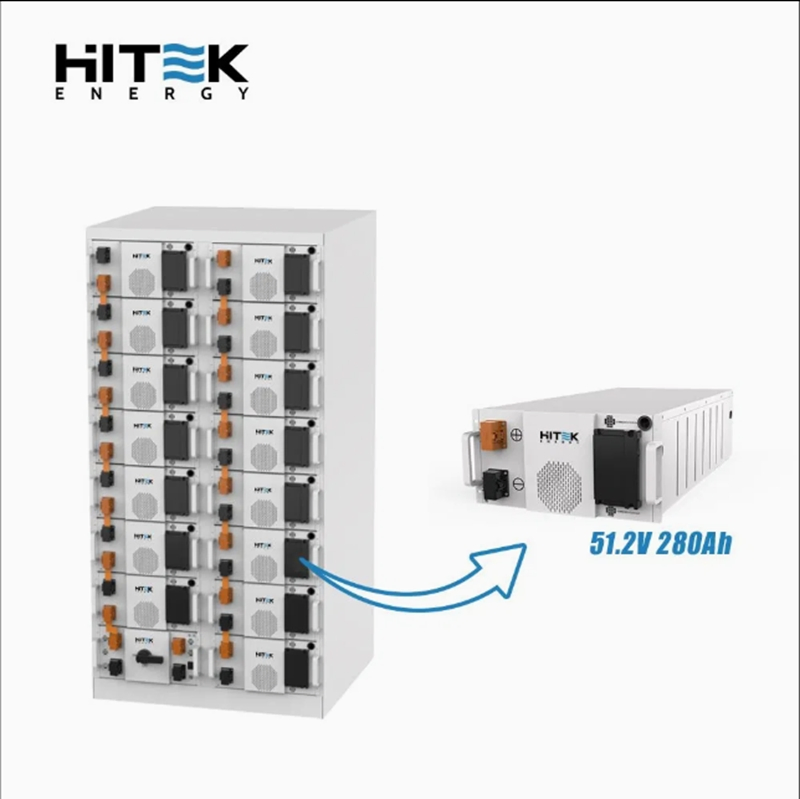

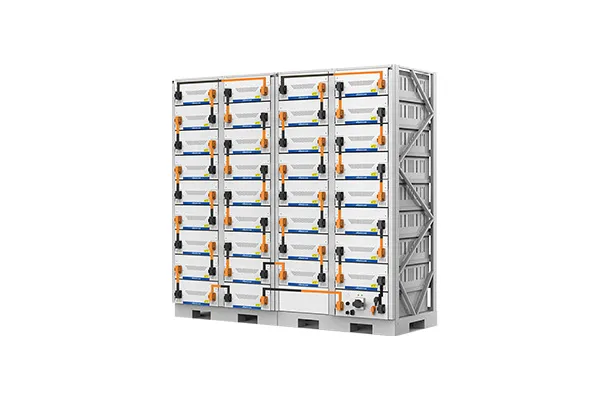

Energy Storage Battery Bank

Modular design with 51.2V nominal voltage units. High stability discharge platform and enhanced safety performance for long-term industrial use.

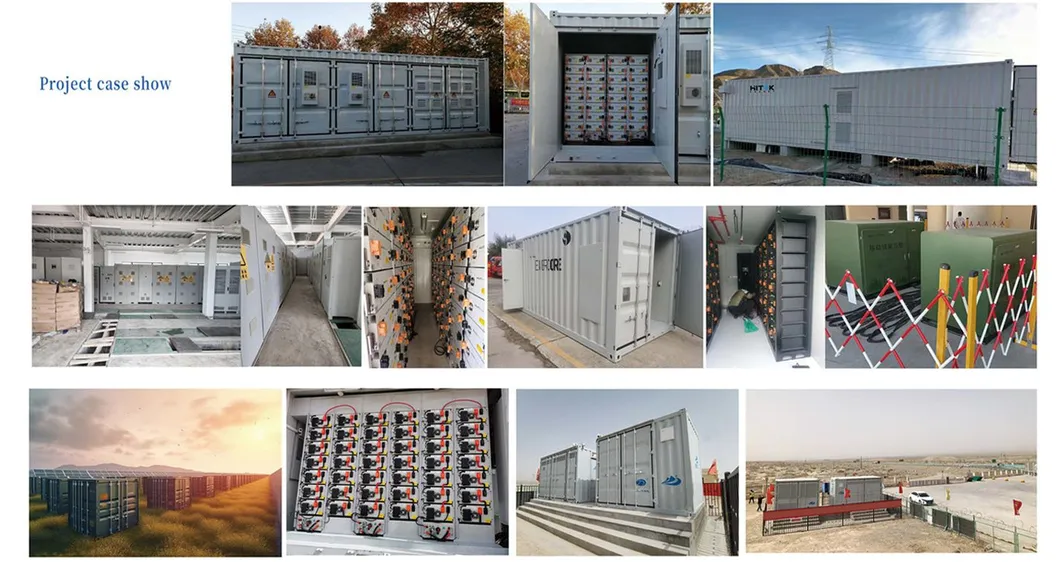

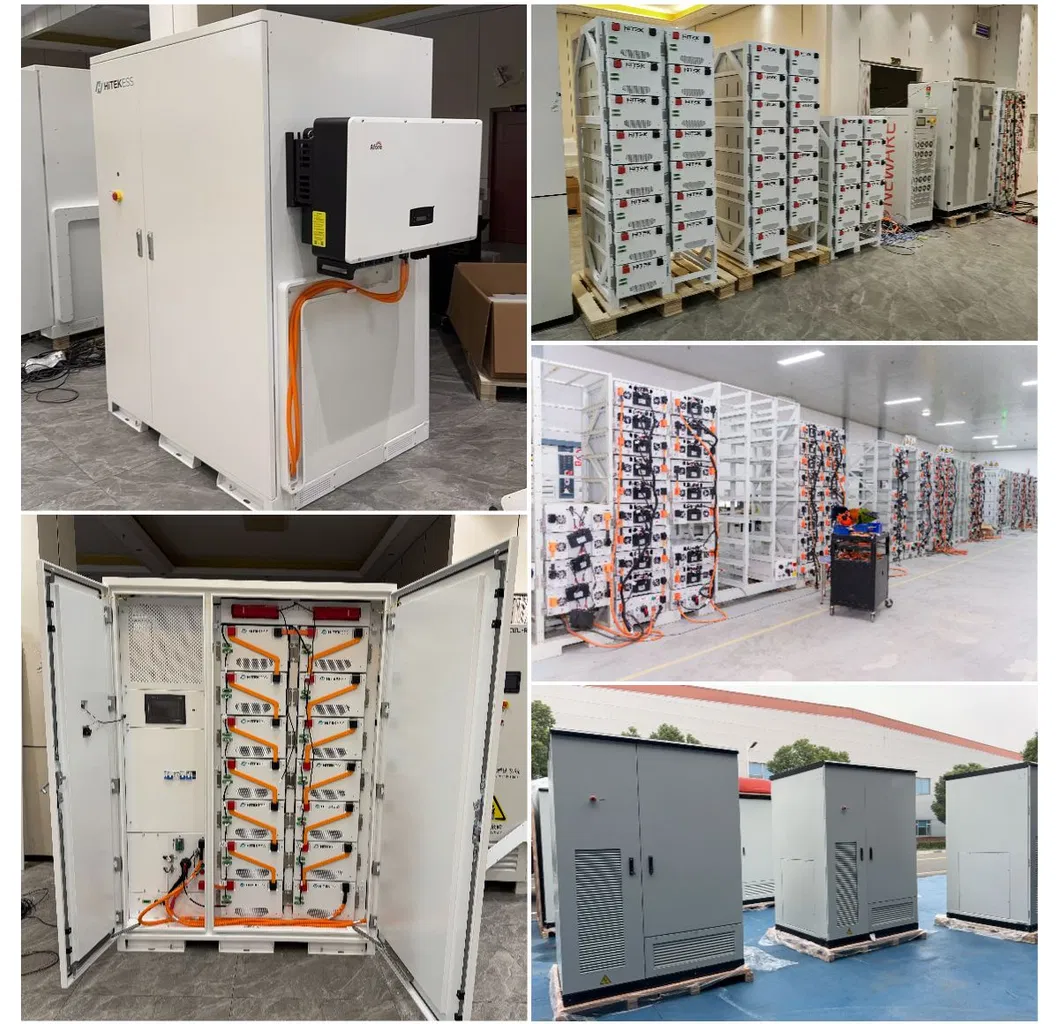

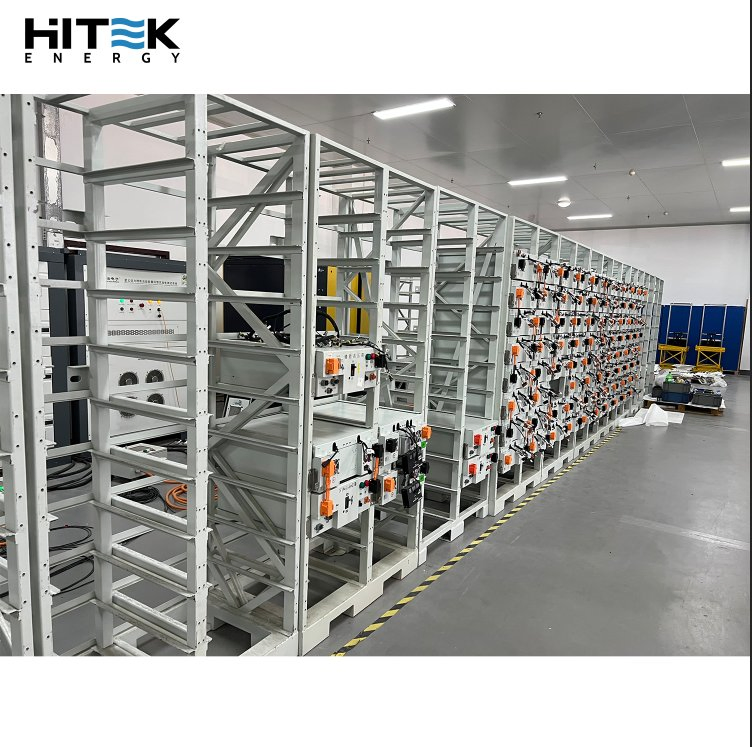

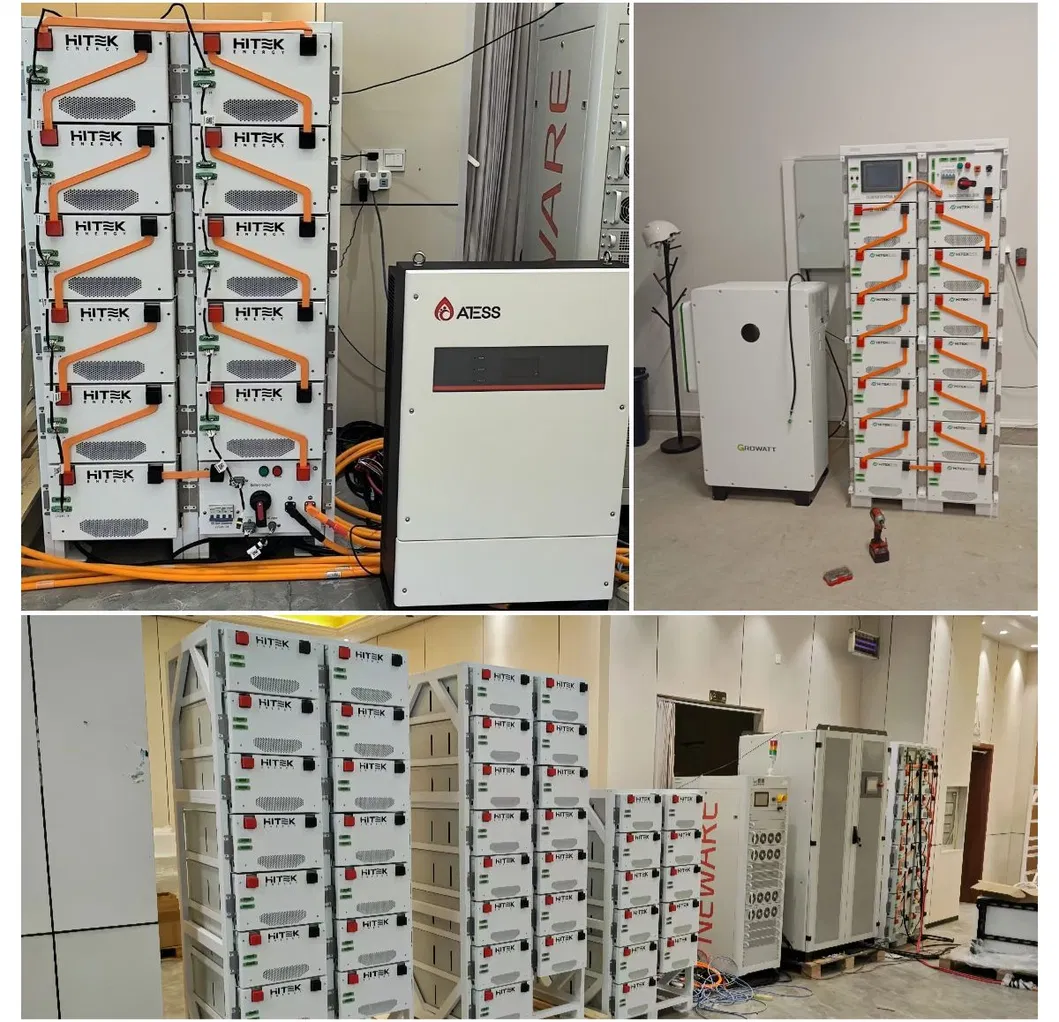

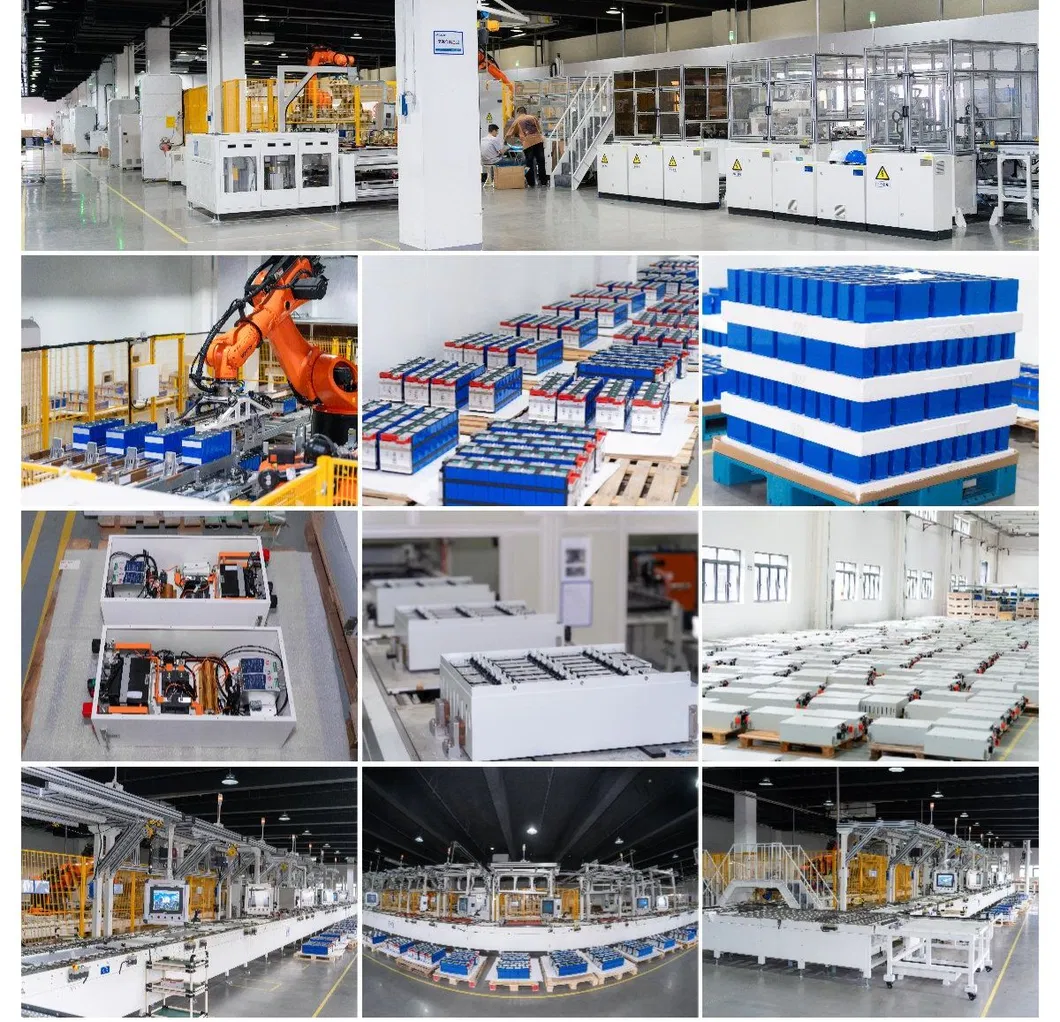

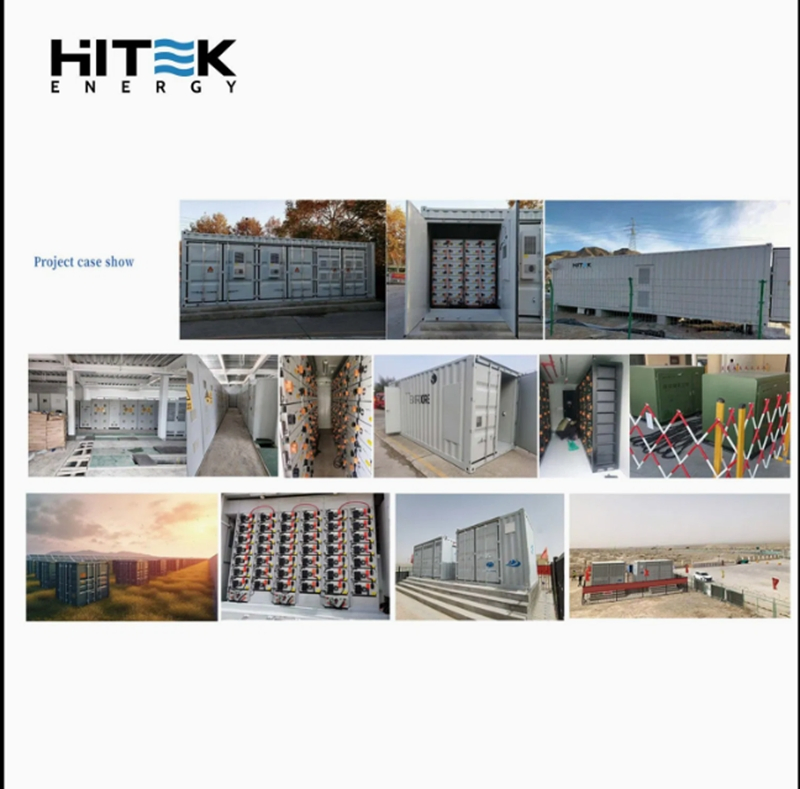

Production & Global Projects

Frequently Asked Questions

Q1: What is the lifespan of the battery energy storage system? The system utilizes high-quality LiFePO4 cells providing over 6,000 cycles at 80% Depth of Discharge (DOD), ensuring a long service life for industrial applications.

Q2: Can this system be installed outdoors? Yes, the container is designed with an IP54 protection rating and includes an integrated HVAC/Air Conditioning system to maintain optimal operating temperatures in various outdoor environments.

Q3: Does the system support both On-Grid and Off-Grid modes? Absolutely. It supports multiple working modes including On-grid (Zero Export, Peak Shaving) and Off-grid modes, with optional seamless transfer via a bypass cabinet.

Q4: What safety features are included in the container? Safety is a priority. The system includes a three-level Battery Management System (BMS) and an integrated fire protection system (HFC bottle group) for comprehensive monitoring and emergency response.

Q5: Is the system scalable for future energy needs? Yes, the modular design allows for elastic expansion. Multiple units can be connected in parallel to meet larger energy storage requirements.

Q6: What kind of technical support is available? We provide complete technical support including pre-sales project design, installation support, and remote system monitoring through local and cloud-based EMS.
