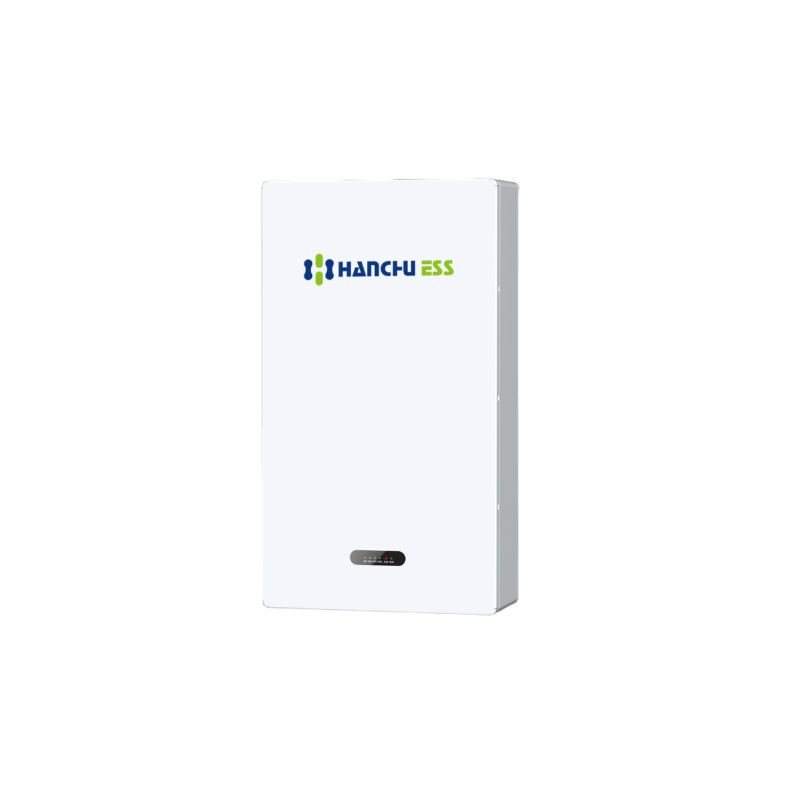

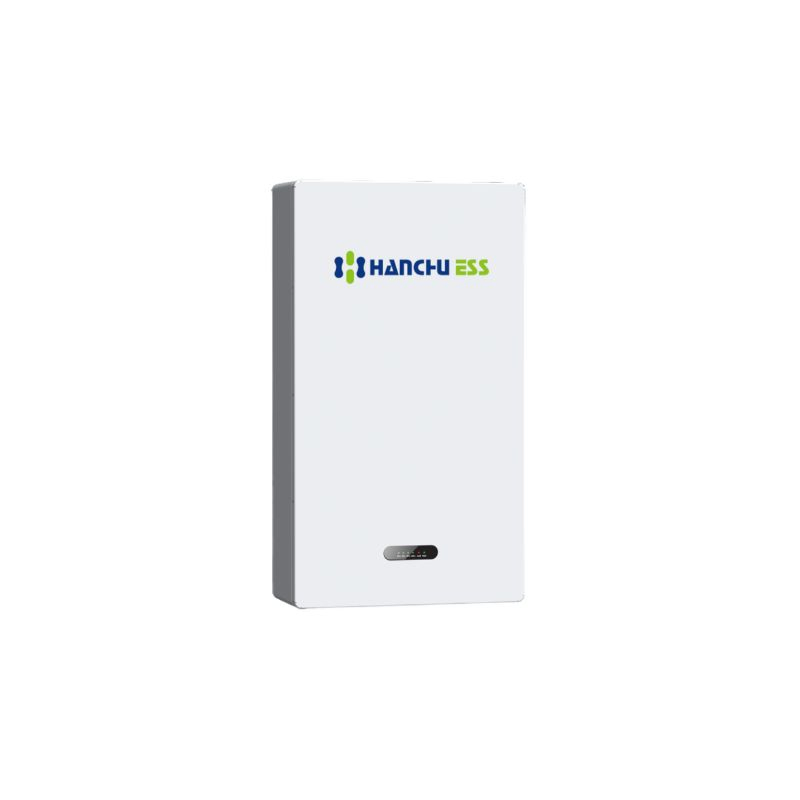

Industrial Energy Storage System for Renewable Energy Projects with 10-Year Warranty and Remote Monitoring

Customization:	Available
Type:	Lithium Metal Battery
Cathode Material:	LFP

Basic Information

Model NO.

HOME-ESS-LV-5.12K

Nominal Voltage

51.2V

Voltage Range

43.2–57.6V

Weight

46.5 Kg

Dimensions

338 × 138.5 × 600 mm

Rechargeable

Yes

HS Code

8507600090

Origin

China

Product Description

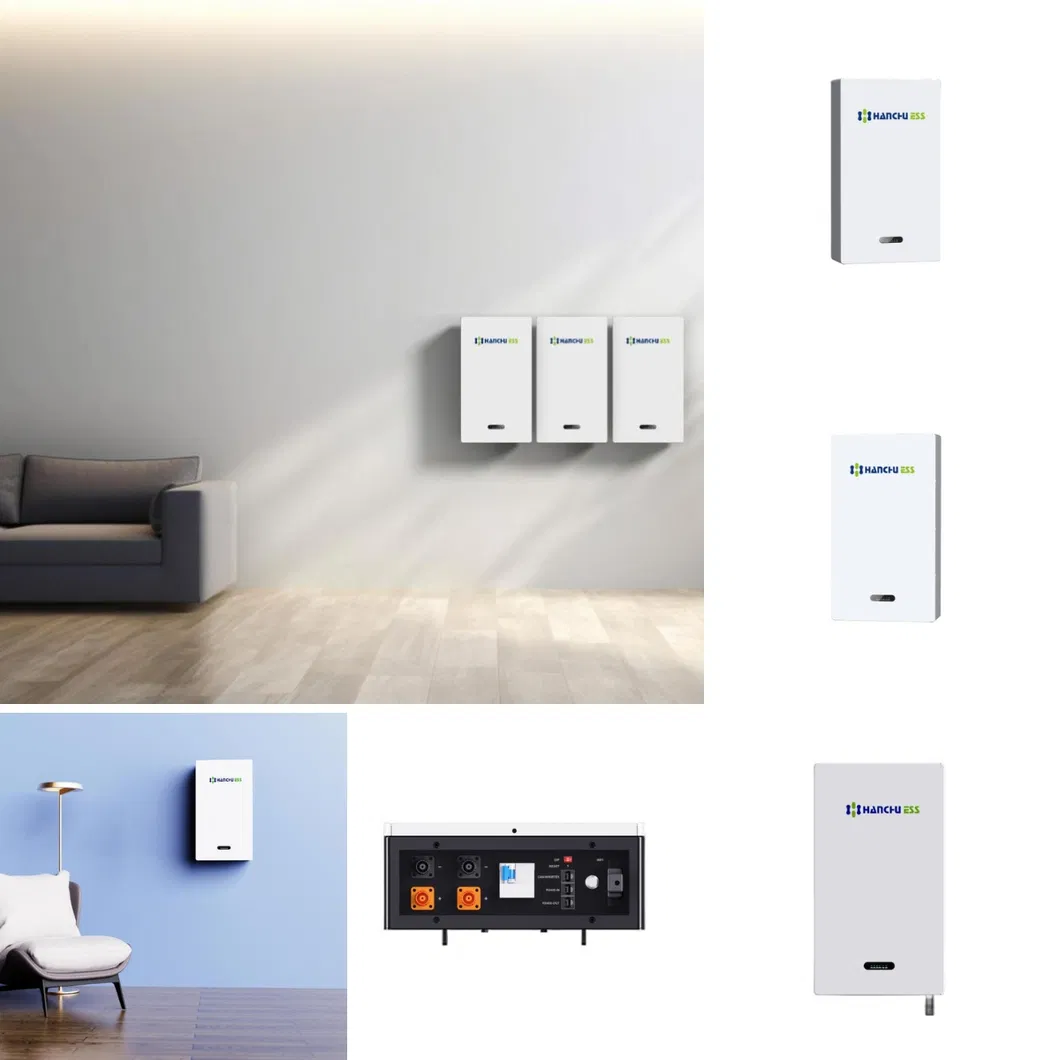

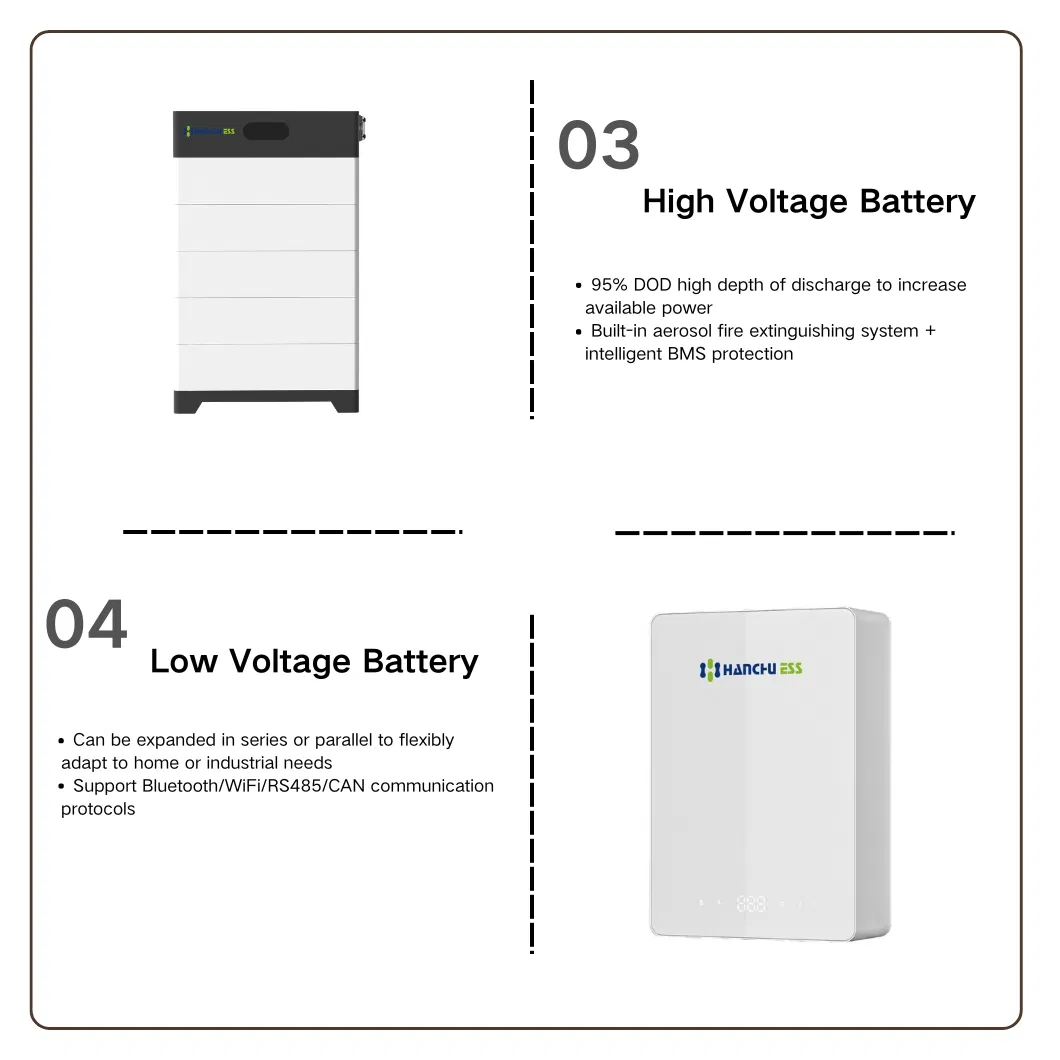

Products Display

Technical Specifications

Model	HOME-ESS-LV-5.12K
Nominal Energy	5.12 kWh
Nominal Voltage	51.2V
Voltage Range	43.2-57.6V
Capacity	100Ah
Rated Charge/Discharge Current	100A / 100A
Peak Current (Parallel)	220A (without combiner box)
Depth of Discharge (DOD)	95%
Cell Type	LFP (Lithium Iron Phosphate)
Max. Parallel Units	Up to 16 units

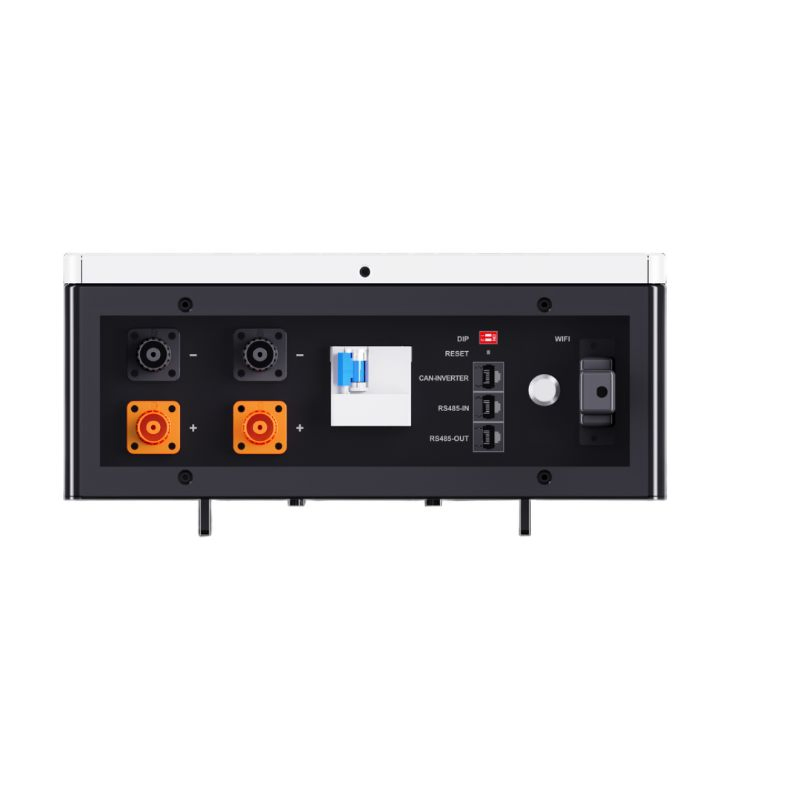

Communication Interface	CAN / RS485 / WiFi / Bluetooth
Ingress Protection	IP54
Cooling Type	Natural convection
Operating Temperature	Charge: 0~50°C \| Discharge: -10~60°C
Safety Certification	IEC 62619 / CE-EMC / UN38.3
Warranty	10 Years

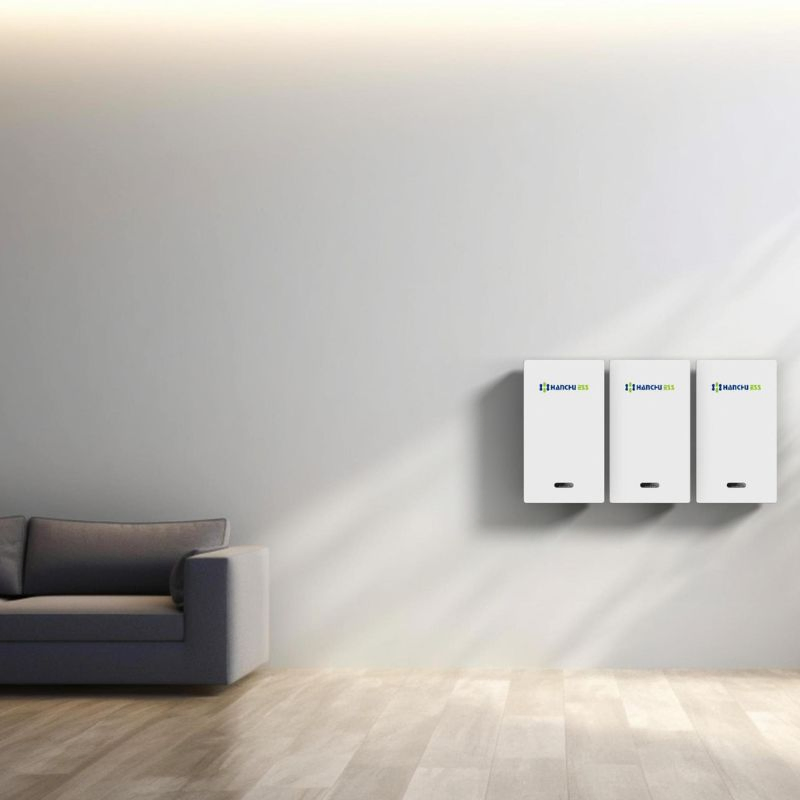

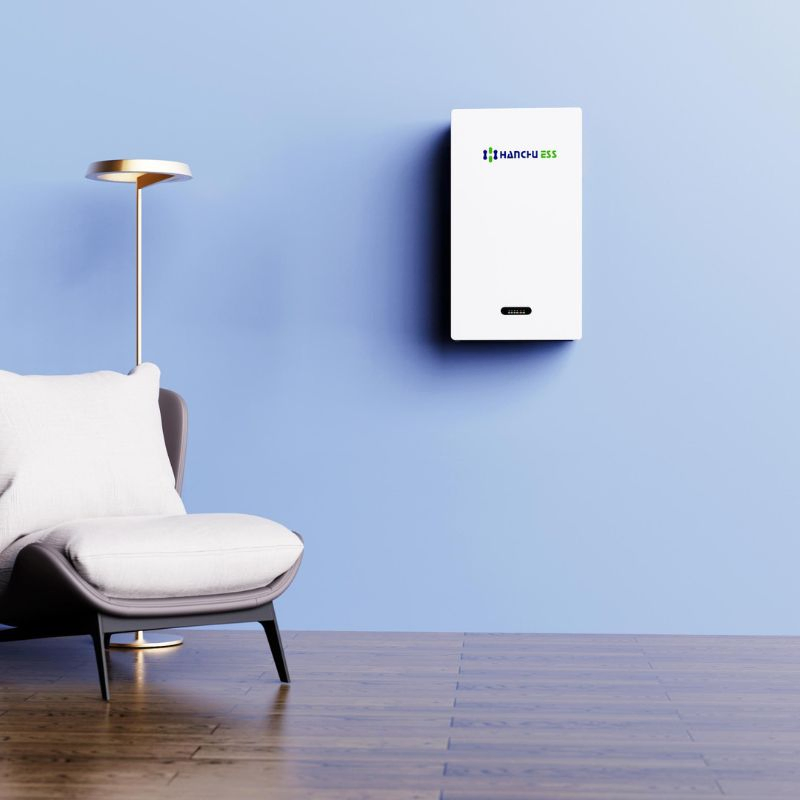

Installation	Wall-mounted, ultra-thin design

100A Fast Charge App Configuration Smart BMS Aerosol Fire Protection Auto Addressing

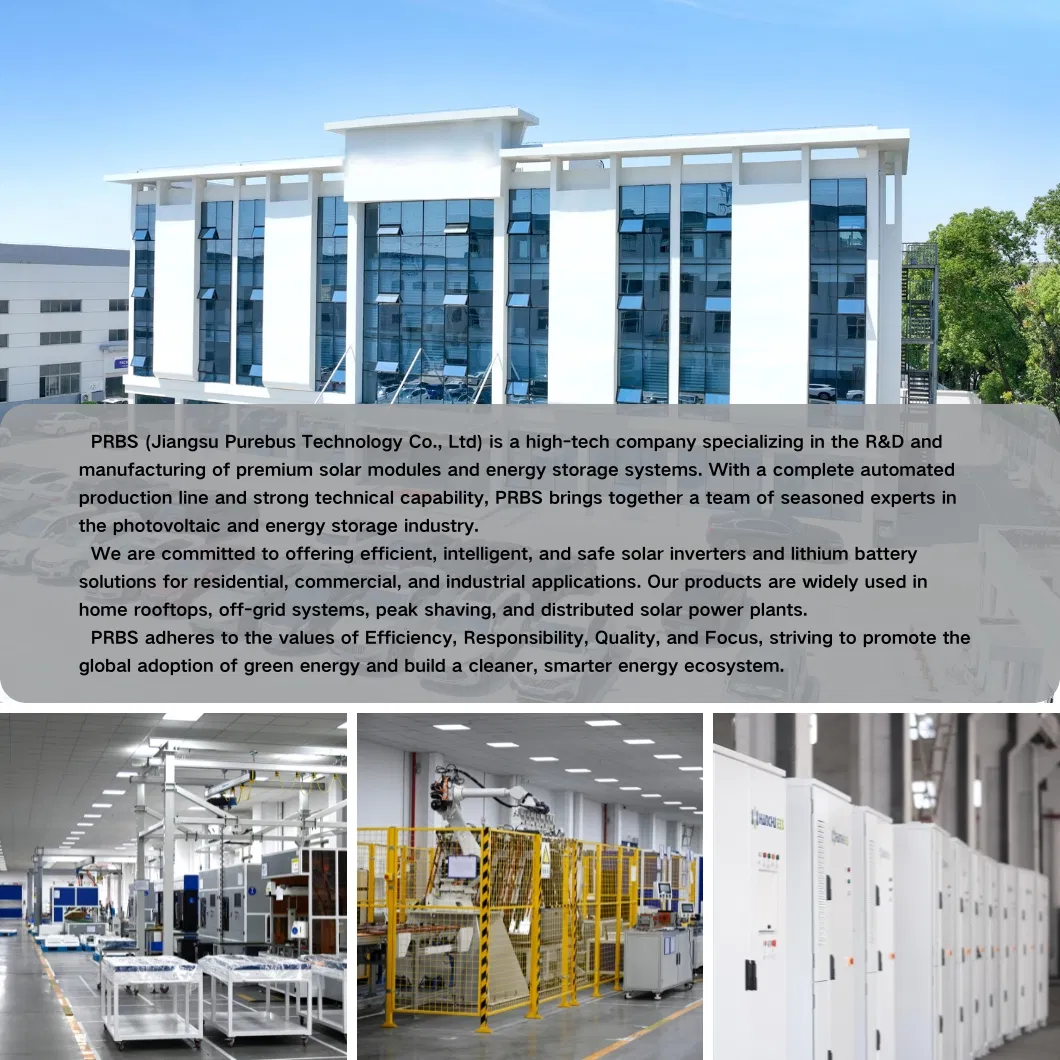

Company & Certifications

Packaging & Shipping

Frequently Asked Questions

Do the energy systems comply with international electrical and safety standards?

Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability (e.g., IP54/IP66 rated enclosures).

Can you provide customized configurations?

Yes. Custom options include battery capacity (up to 280Ah/module), nominal voltage (LV 51.2V or HV 135-750V), and communication protocols (CAN, RS485, Wi-Fi, Ethernet). Both modular and rack-mounted systems are available.

What is the lead time for delivery?

Standard products can be shipped within 7-10 working days. For customized models or large quantities, lead time is typically 20-30 days. Expedited orders and scheduled production are available upon request.

Do you support third-party inspections?

Yes. We welcome third-party inspections from SGS, TUV, or client-assigned agents. Full test reports and compliance certificates are provided before shipment.

Are systems compatible with other inverter brands?

Yes. Our energy storage systems support open protocols (CAN/RS485) and can be integrated with a wide range of inverter brands. Configuration tools and wiring diagrams are provided for seamless setup.

How is the long-term reliability of the LFP cells ensured?

We use Grade A LFP cells with a high cycle life, managed by a smart BMS that monitors voltage, temperature, and SOC in real-time to prevent overcharge and deep discharge, ensuring a 10-year service life.
