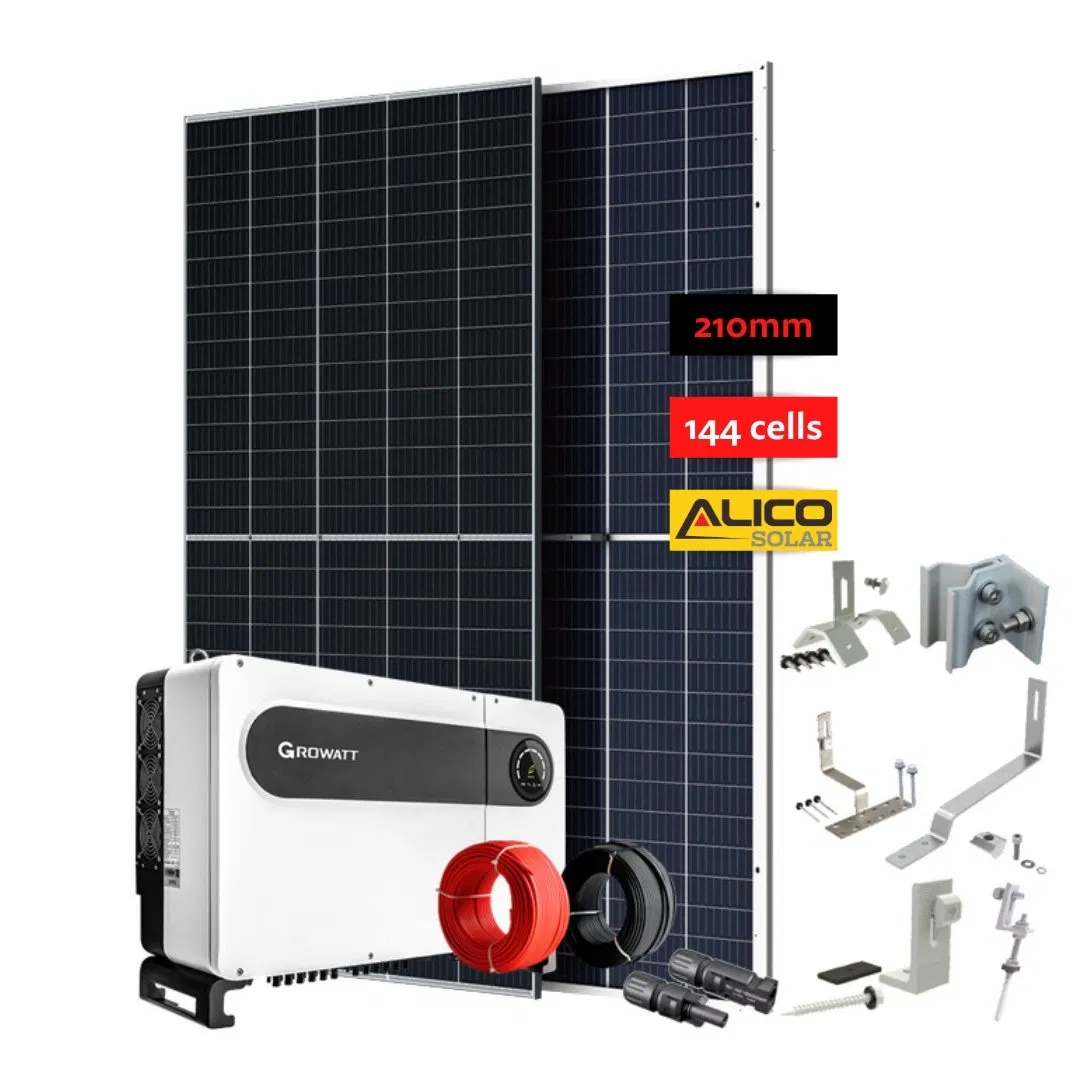

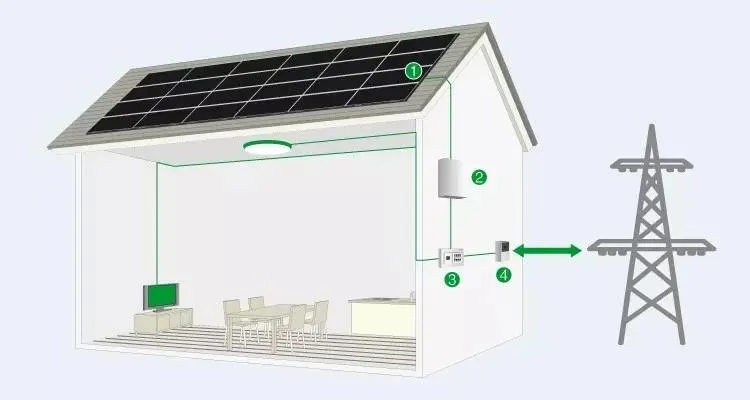

The grid-tied solar system is an electricity generating solar PV power system that is connected to the utility (State) grid. It consists of solar panels, one or several on-grid inverters, Wifi Monitor Device, Mounting Brackets, and grid connection equipment.
| On-Grid Solar Power System Components List (Common Capacities) | |||
|---|---|---|---|
| Item | Component | Description | Quantity Range |
| 1 | Solar Panel | Mono 480W Solar Panel | 6 - 20 pcs (System Dependent) |
| 2 | Grid-tied Inverter | MIN Series TL-X (2.5kW - 6kW) | 1 pc |
| 3 | Monitoring | Wi-Fi / GPRS Stick | 1 pc |
| 4 | Mounting Support | Roof / Ground Bracket System | 1 set |

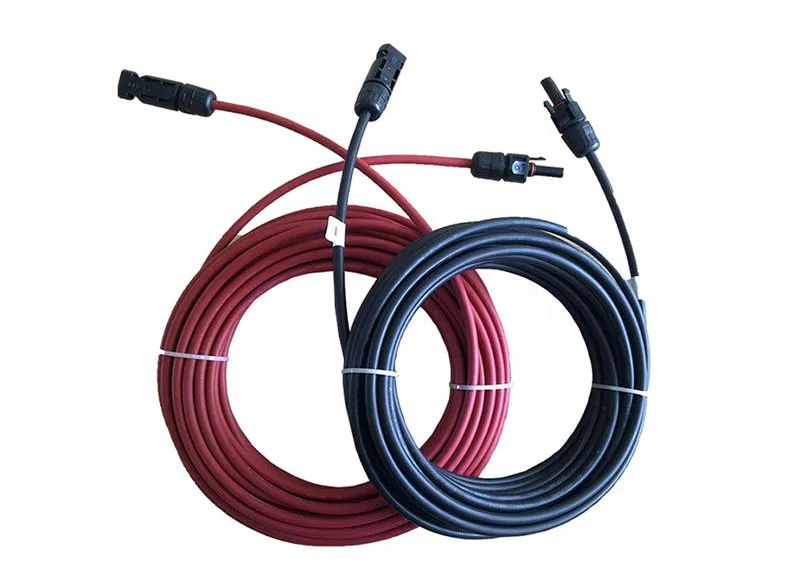

| 5 | Cable | 4mm² PV Cable | 200 m |
| 6 | Connector | MC4 Connector | 10 pairs |

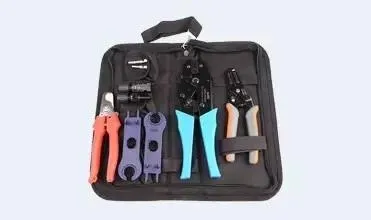

| 7 | Tools Bag | Solar Installation Tools | 1 set |
Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make product changes from time to time without prior notification.

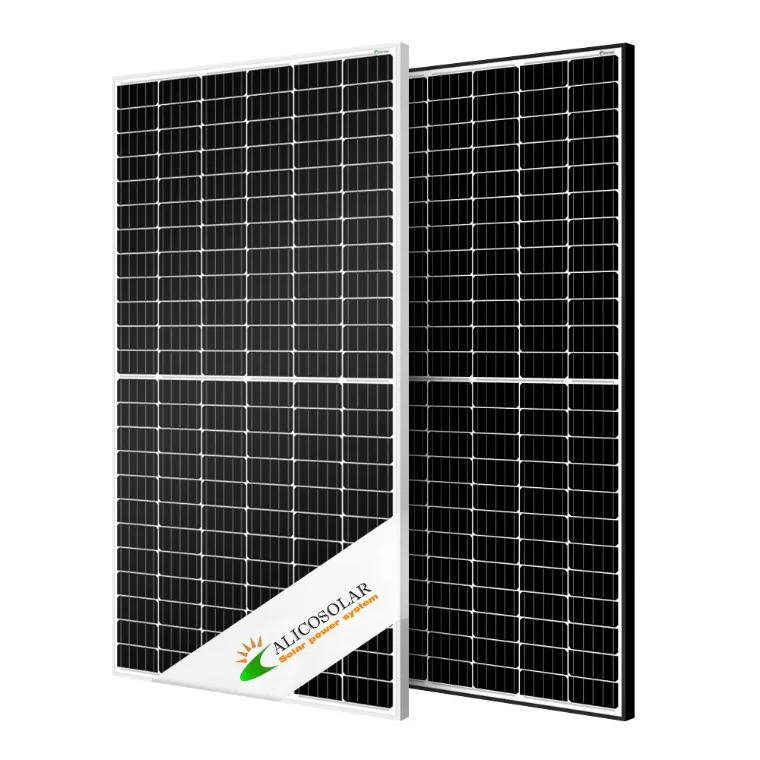

Type: Monocrystalline Silicon PV Module
Max Power: 450W
Size: 2115x1052x40 mm | Weight: 25.5kg
Warranty: 12 years quality, 25 years power warranty.

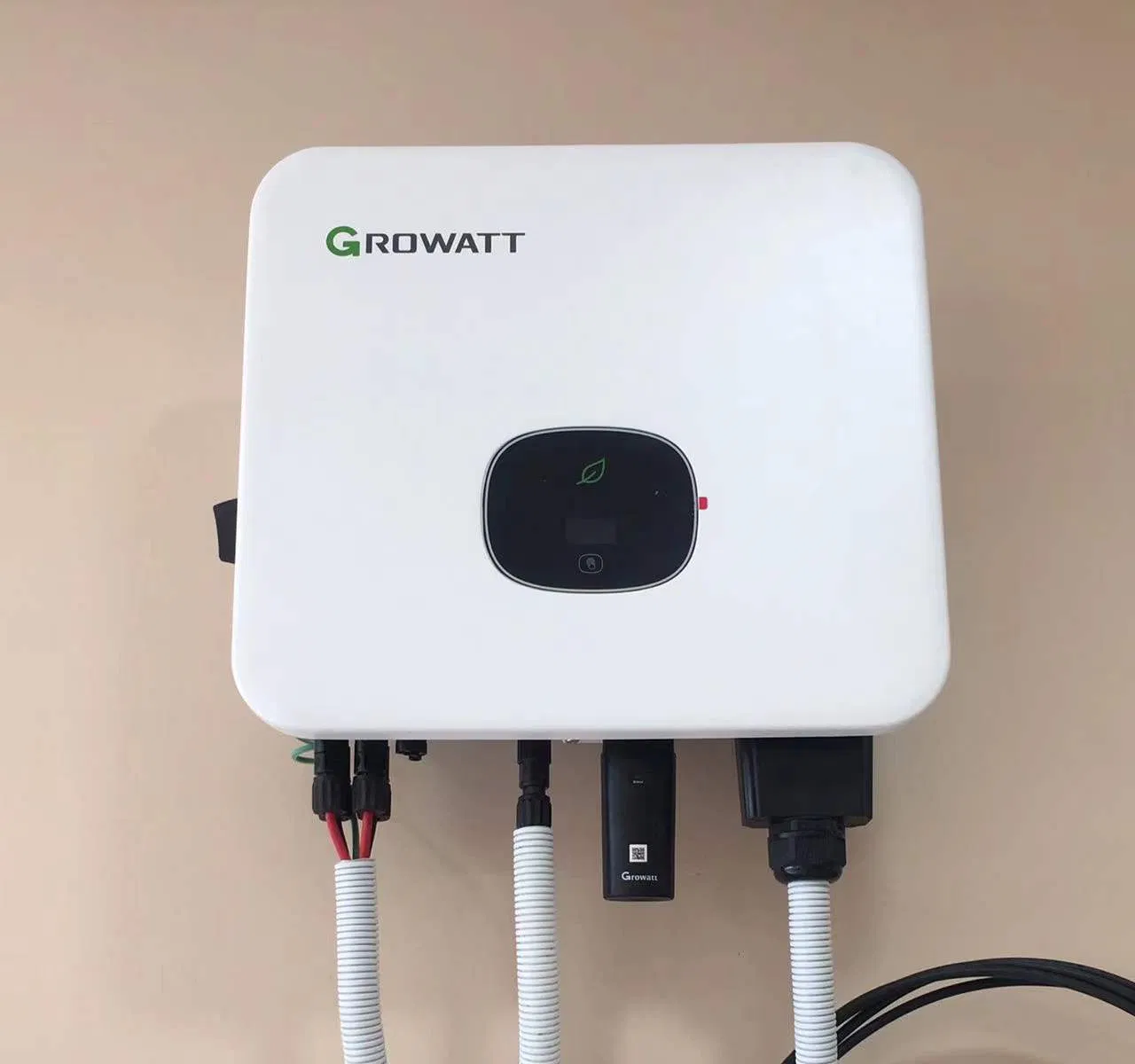

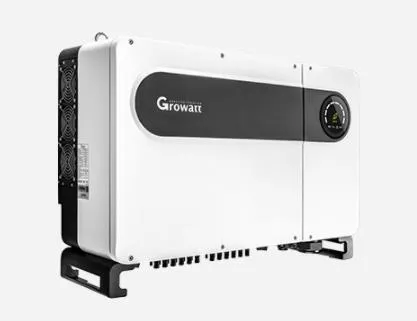

Max DC Voltage: 1100V
MPPT Range: 200-1000V
Rated Grid Voltage: 480V/425V-540VAC

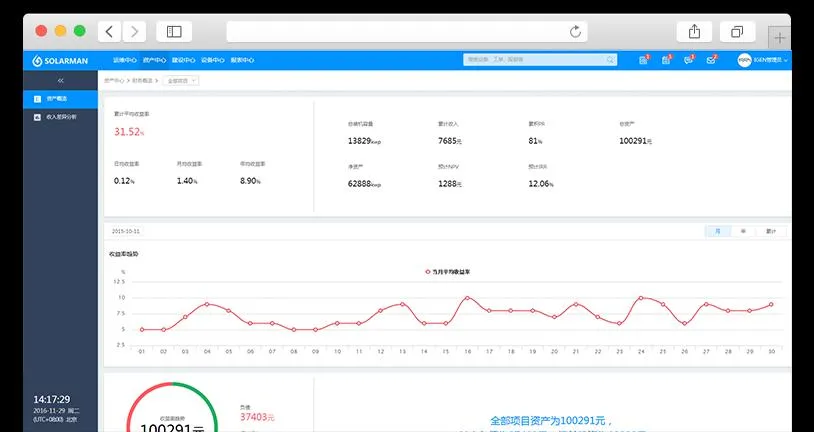

Monitoring: Wifi Stick for STD, Lan & GPRS Optional.
Receive real-time information from your solar power system. Stay informed about PV system performance and atmospheric conditions anytime, anywhere via Wi-Fi, Lan, or GPRS.
App available for PC, IOS & Android.

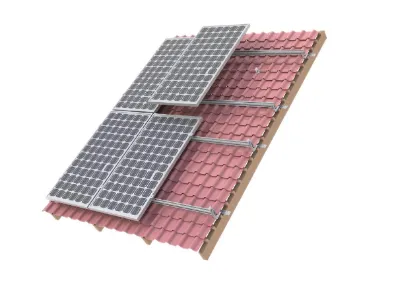

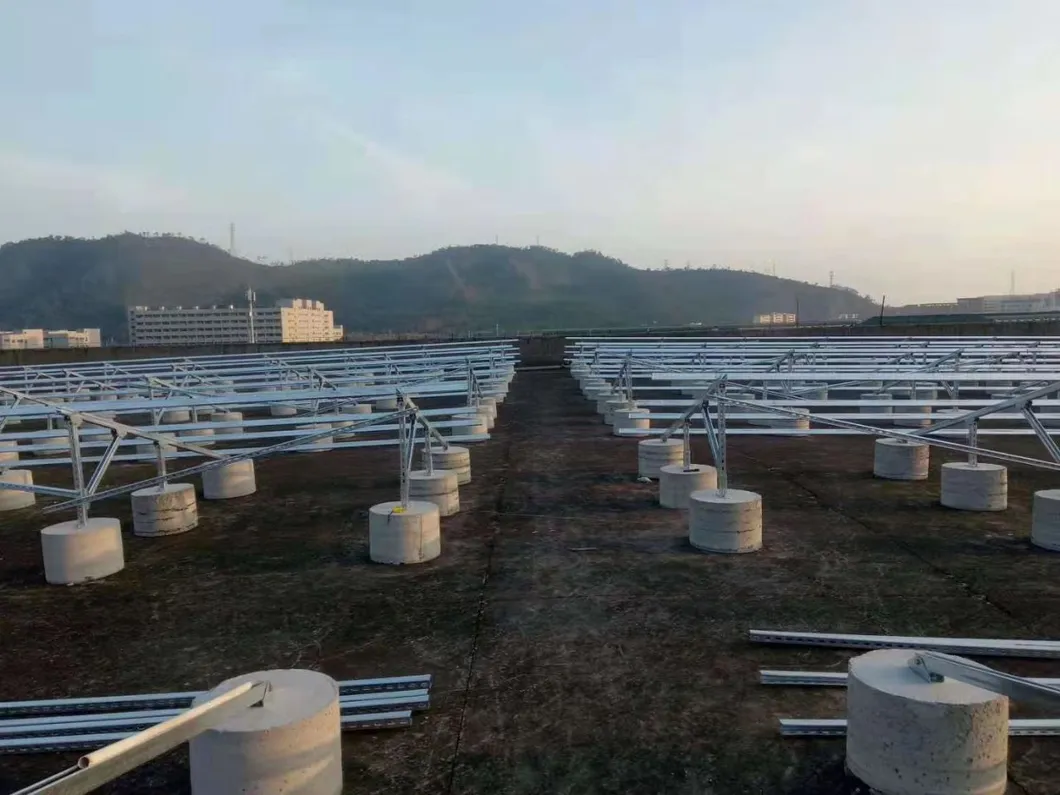

Rails: AI6005 & SUS304 Bolt
Clamps: Mid & End Clamps (35-50mm)
Options: Asphalt Shingle Mount, Hanger Bolts, Cable Clips, and Ground Lugs.
