| Model NO. | HT20FT-500kW/1MWh-EC |
| Nominal Voltage | 400/480V 3phase |
| Nominal Capacity | 250kwh, 500kwh, 1mwh, 2mwh |
| Battery Type | LiFePO4/Lithium Battery/Gel Battery |
| Cycle Life | 6000 cycles |
| Warranty | 5 Years |
| System Application | ESS Solar Storage Container |
| Output Frequency | 50/60Hz |
| BMS | Integrated Management System |

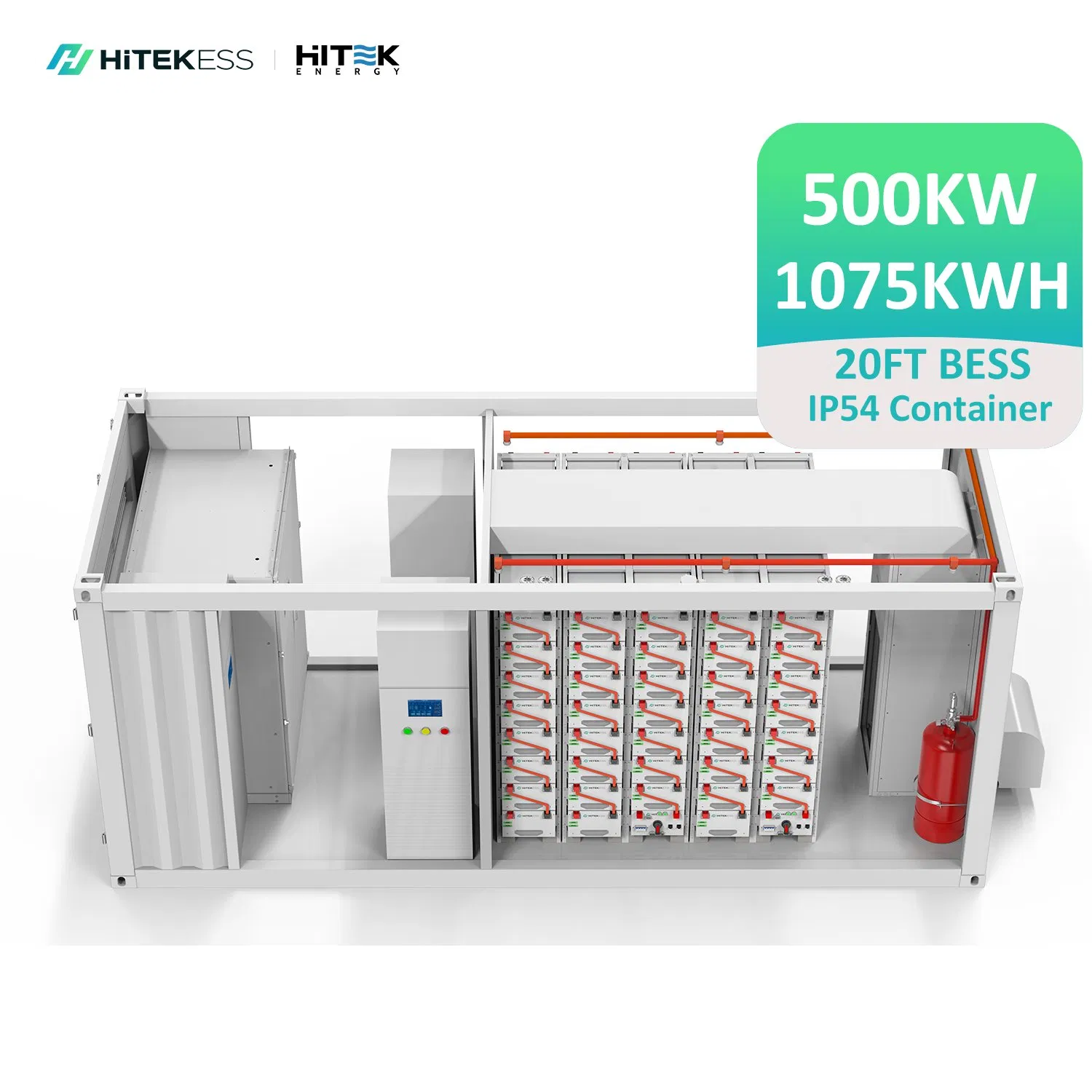

| Container | 20FT Outdoor Installation, IP54 |
| Package Size | 230.00cm * 130.00cm * 120.00cm |
| Gross Weight | 1000.000kg |

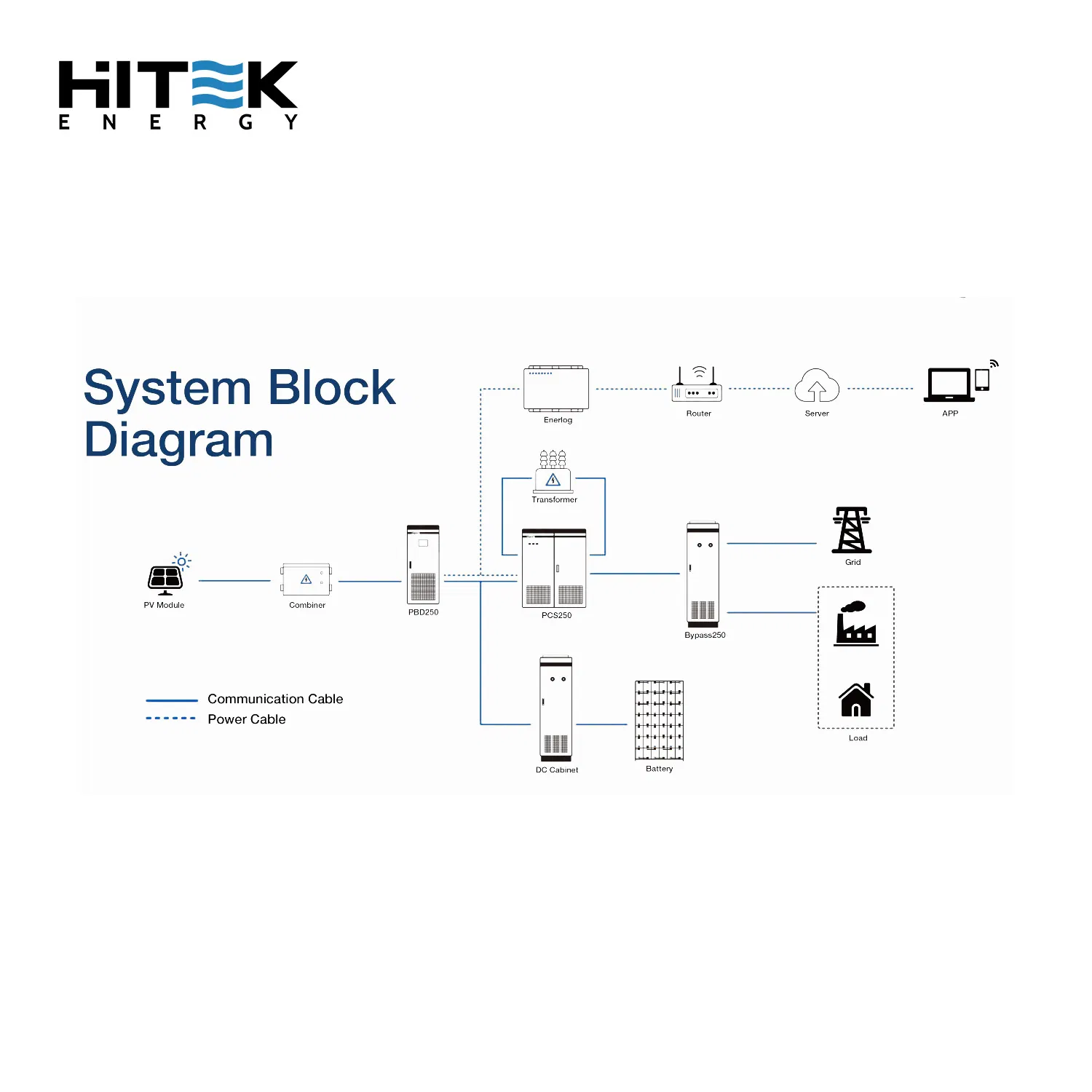

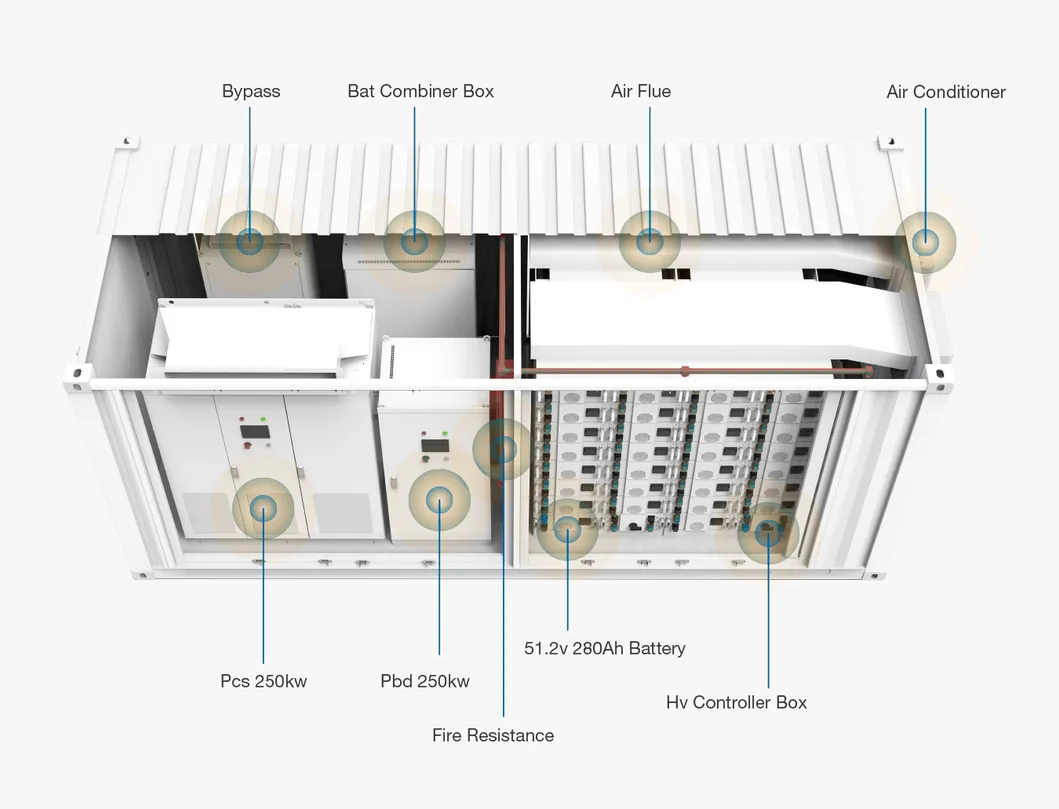

| Item | Description | Quantity | Remarks |
|---|---|---|---|
| PV Solar Panel | HT560M-72H | 480 pcs | A total of 268.8kWp |

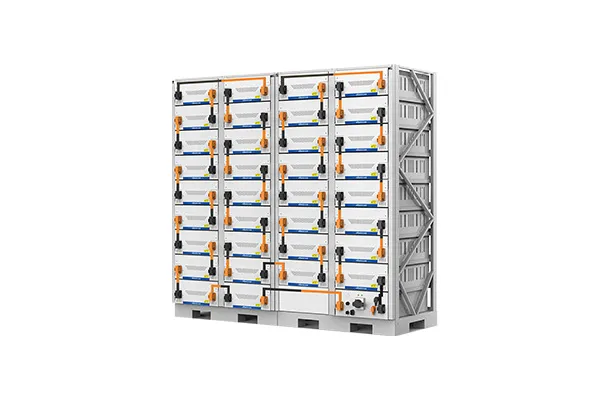

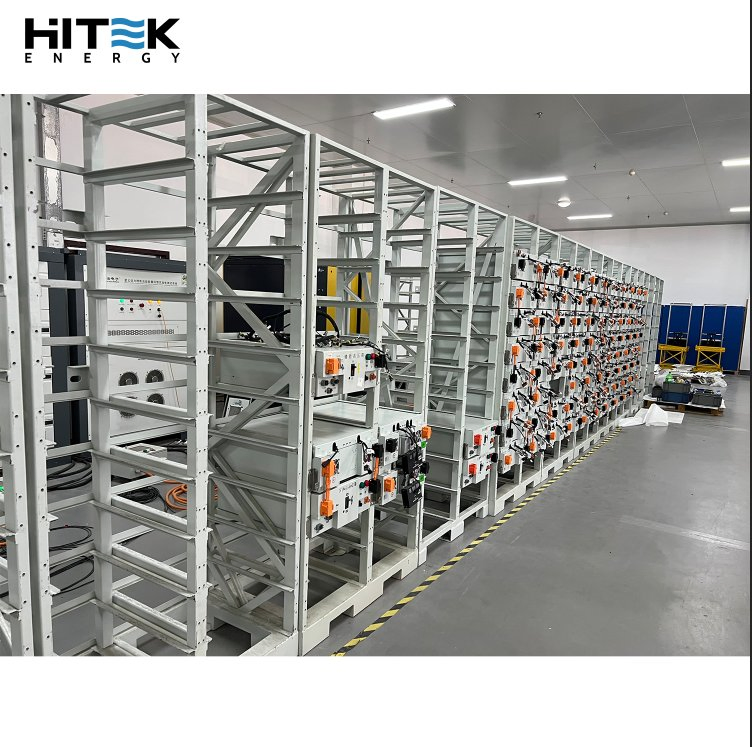

| Battery Backup | 860.16KWH (688.12KWH@80%DOD) | 1 set | High voltage storage rack system |
| Combiner Box | 1500V-1500A | 1 pc | For combination of multiple battery racks |

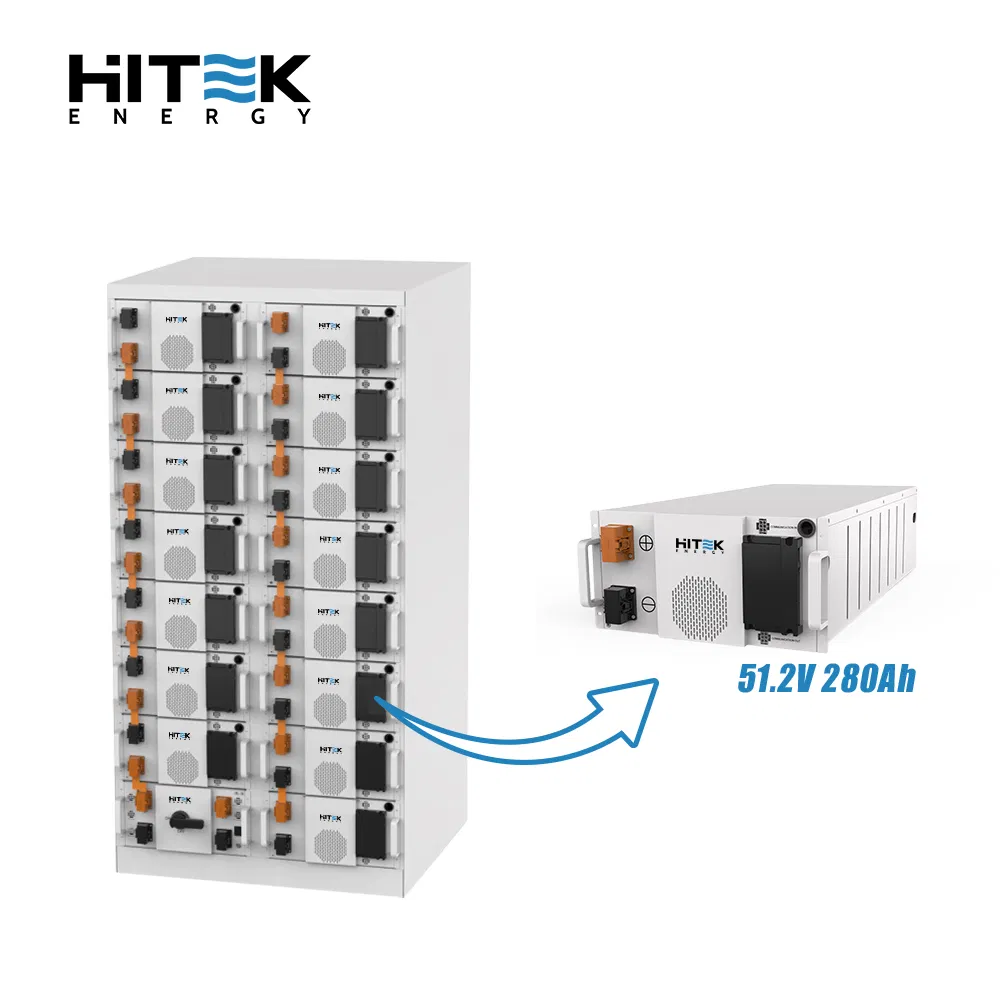

| Lithium Module | 280Ah Module | 60 pcs | 51.2V 280AH (14.3kWh per module) |
| Controller | 1500V 300A | 4 pcs | High Voltage Controller Box |
| PCS Inverter | PCS250 | 1 pc | 250kW battery inverter |

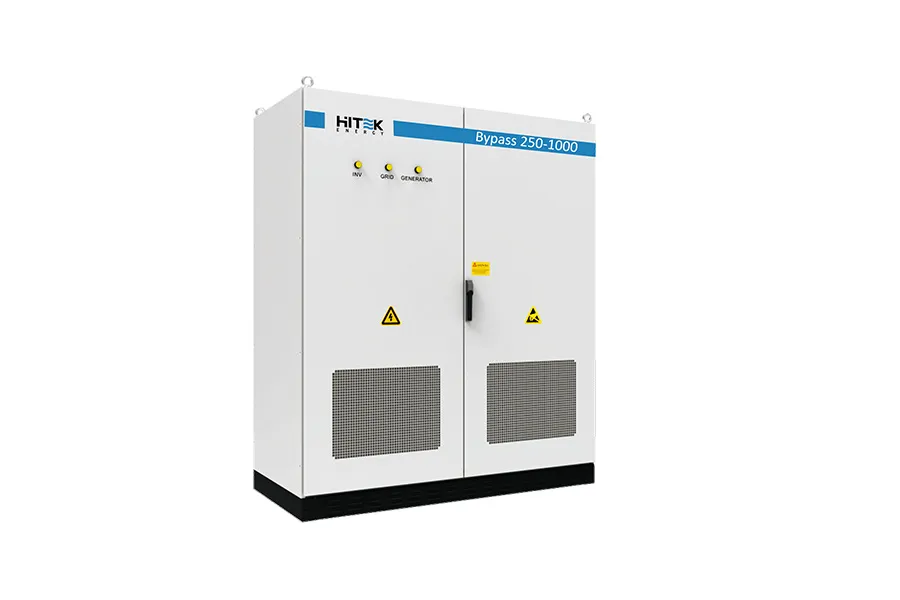

| Bypass Cabinet | Bypass 250 | 1 pc | Switch between on-grid and off-grid |
| 20FT Container | Outdoor IP54 | 1 pc | Includes lighting, fire-resistance, AC |

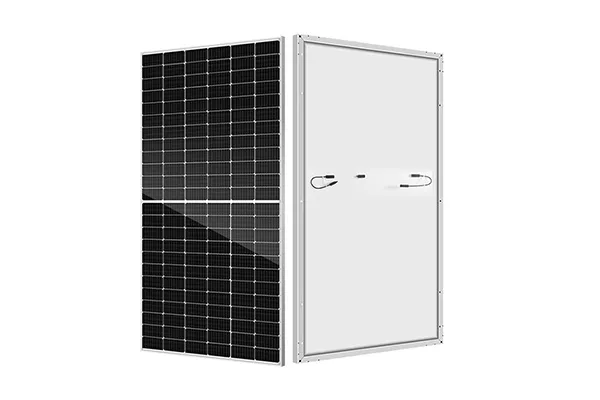

Model: HT560M-72
Peak Power: 560Wp
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

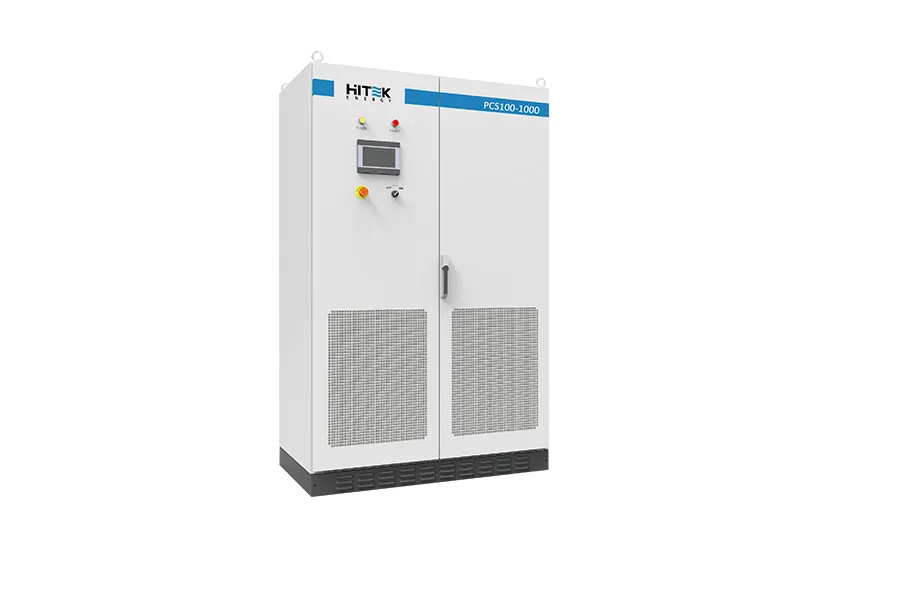

Range: 100-1000KW
Flexible Configuration, Programmable working mode, Supports remote control, Touchscreen LCD.

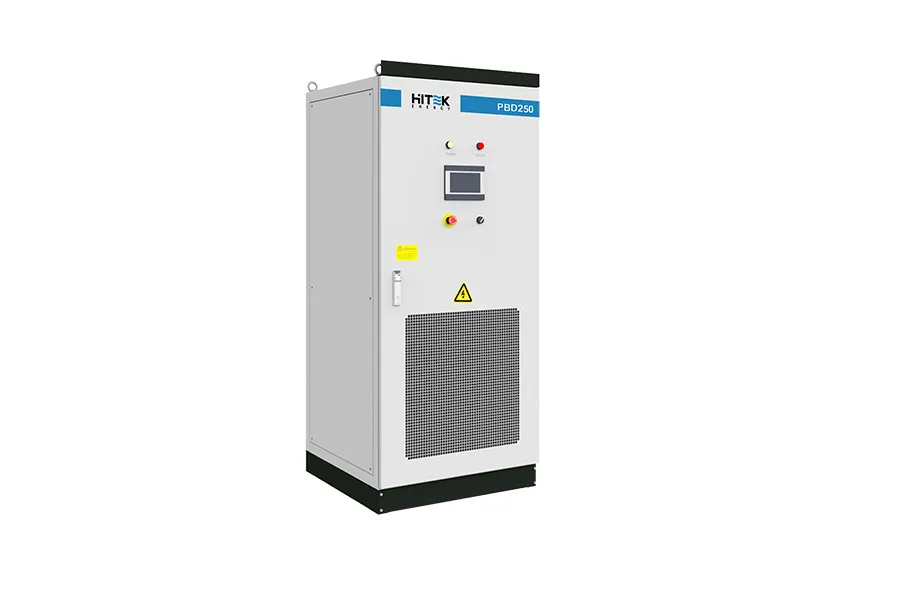

1000V DC to DC charge controller. Up to 5 MPPT, Modular and Transformerless design.
Realize seamless transfer between on and off grid mode automatically.
Standard module: 14.3kWh
Nominal voltage: 51.2V
Total Capacity: 686kWh@80% DOD

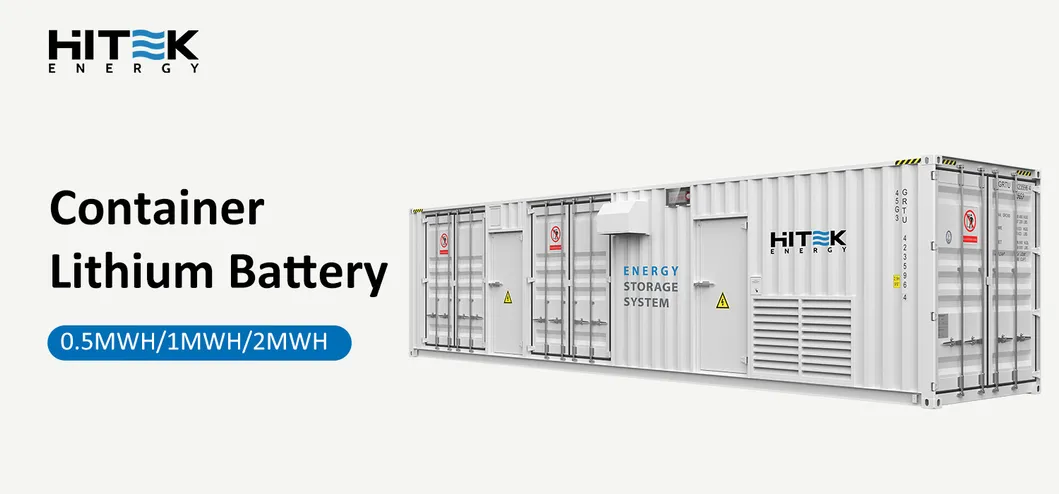

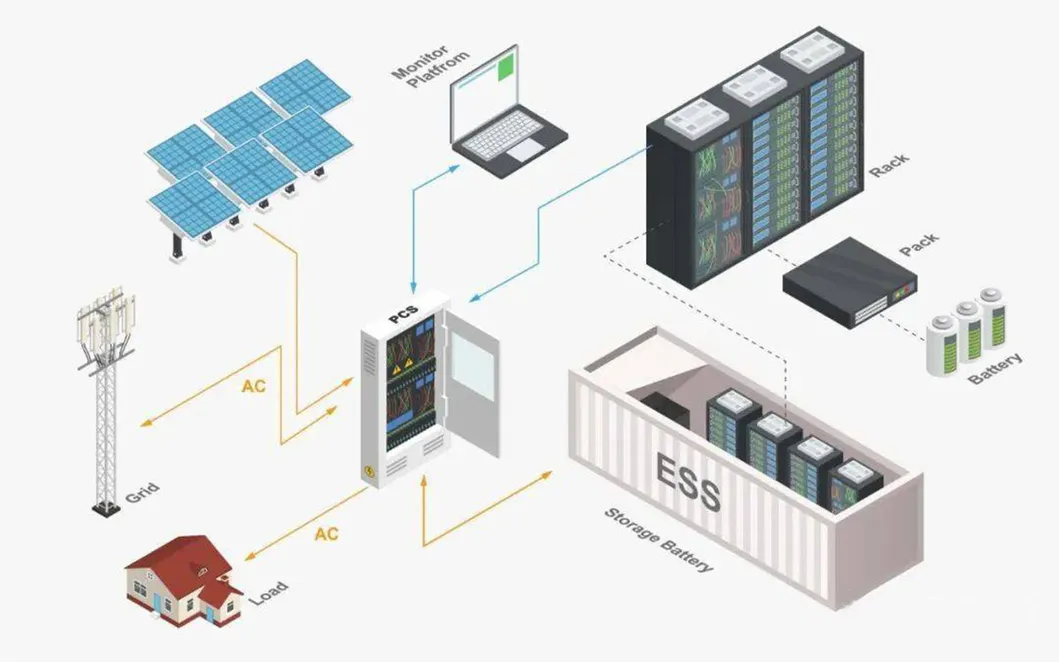

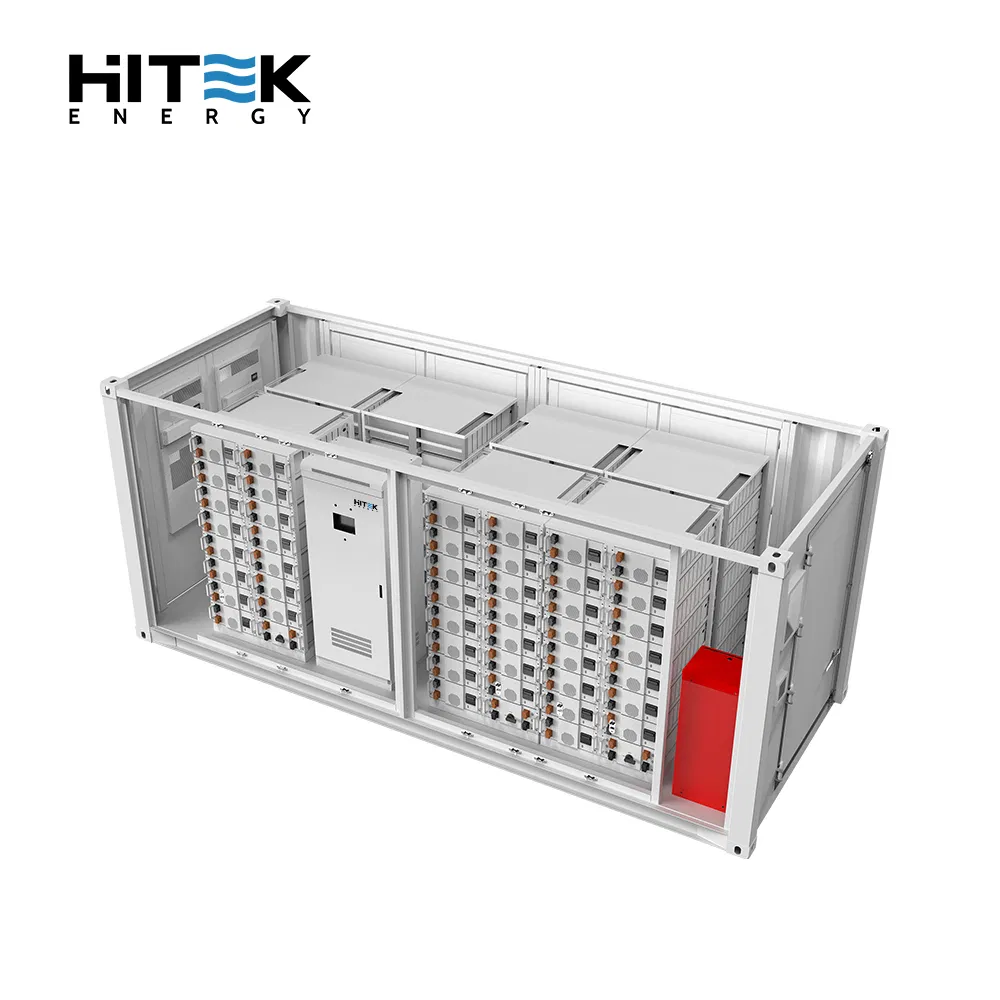

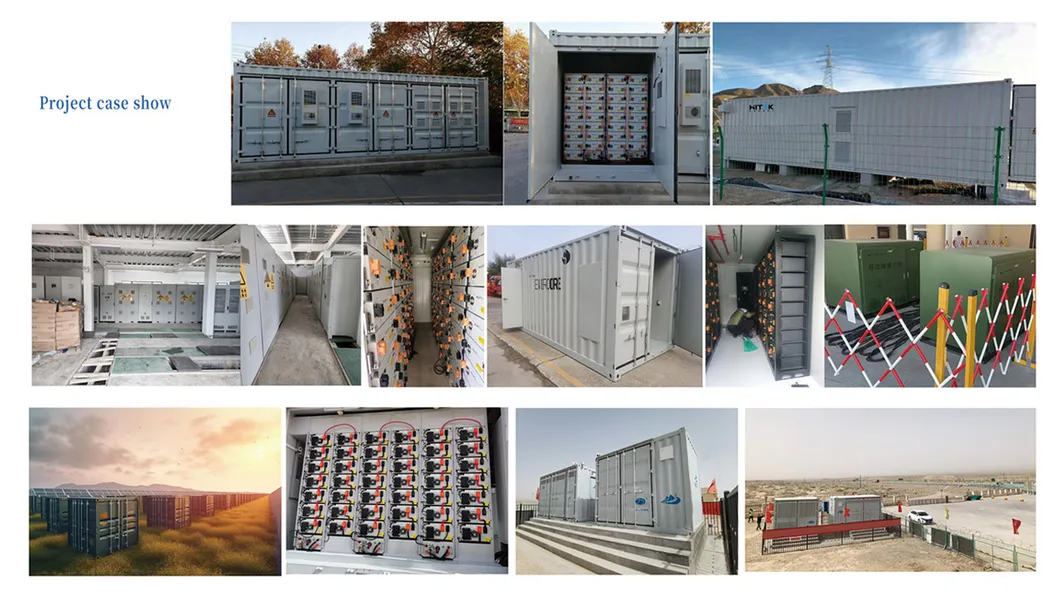

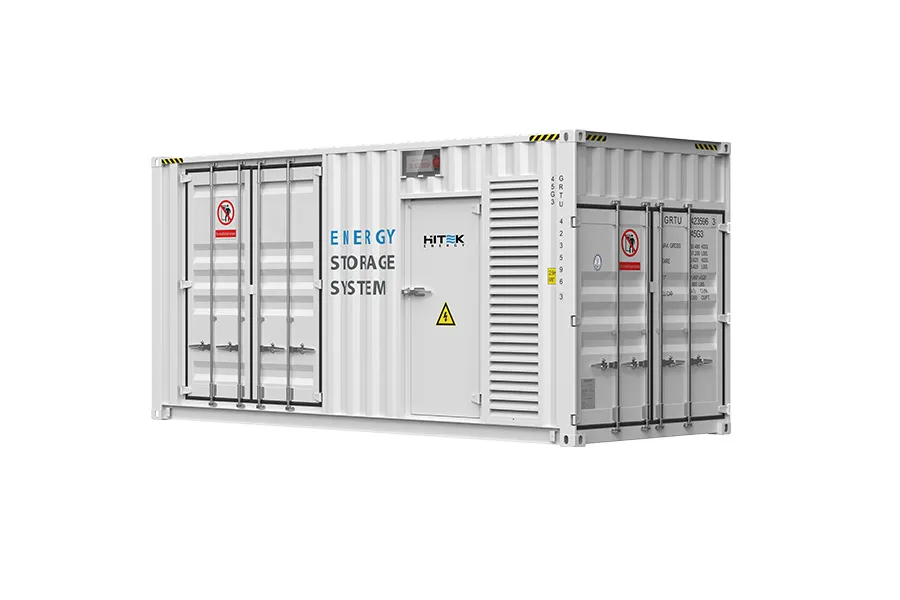

Containerised solution (BESS) for large-scale energy storage projects and grid integration.
