| 20FT/40FT Container Energy Storage System | ||
| Rated output power | 500KW / 1000KW / 2000KW | |
| Rated capacity | 1000KWH / 2000KWH / 4000KWH | |
| AC Phases | Three-phase Four-wire | |
| Grid Mode | Rated voltage | 380V ± 15% |
| Rated frequency | 50Hz (47.5~51.5Hz) | |
| THD | <5% | |
| Output power factor | ≥0.99 | |
| Protection Grade | IP54 | |
| Noise Level | <70dB | |

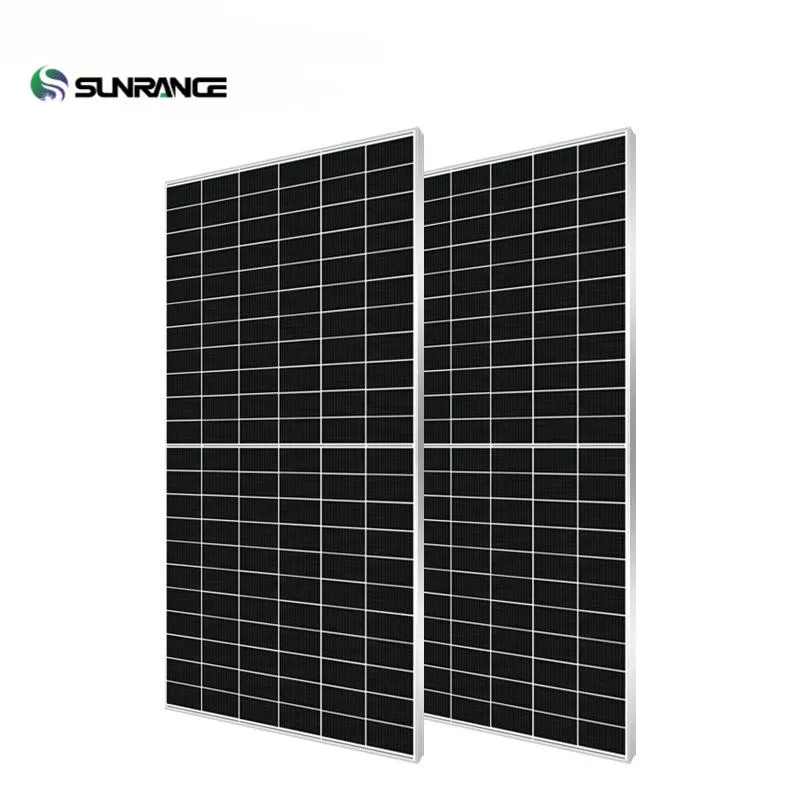

Mono/Poly/Flexible/Black types available. High efficiency power up to 400/500/600/700W Half Cell/Bifacial Solar PV Modules. All certificates listed with more than 30 years life and warranty; PID Resistant, High salt and ammonia resistance.

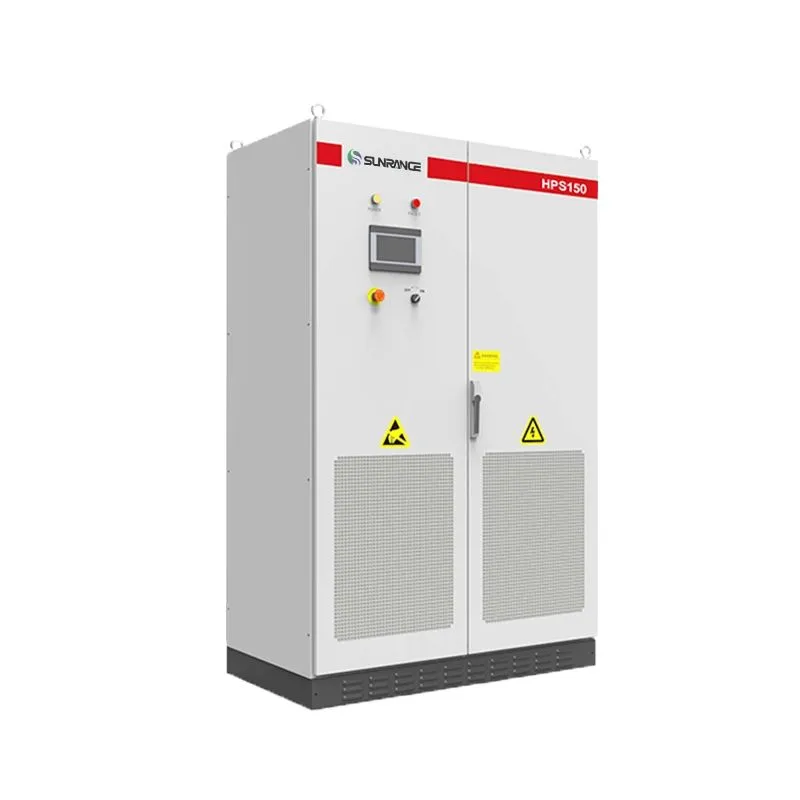

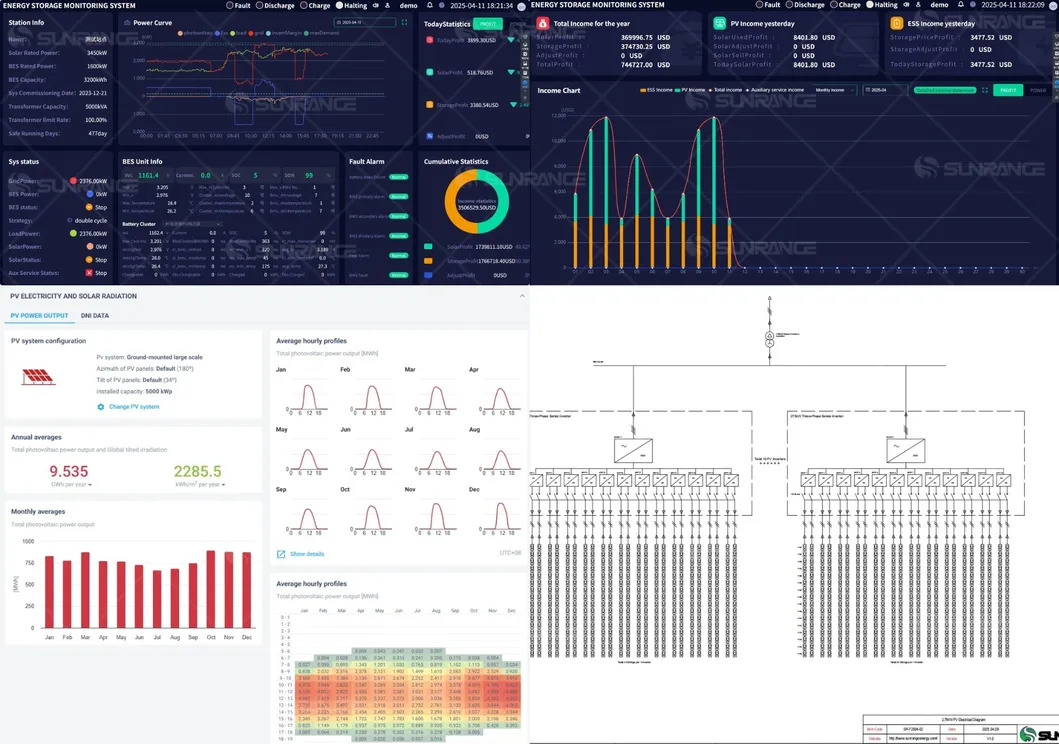

Automatic Switch to charge loads, batteries or from Grid backup with priority setting function. Compatible with almost all types of lithium and GEL batteries. Comprehensive WiFi monitor for production and consumption data.

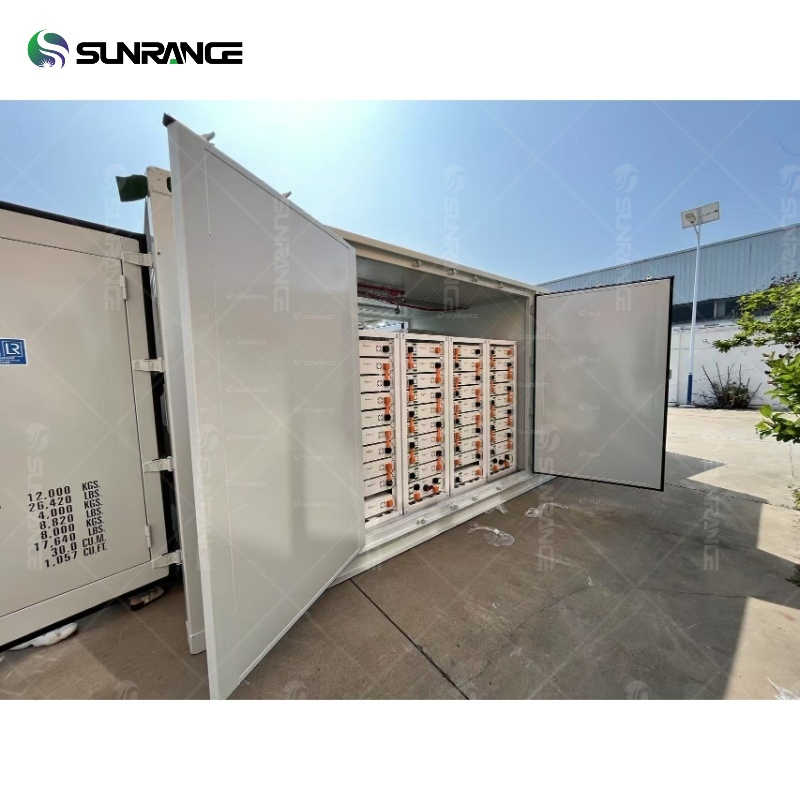

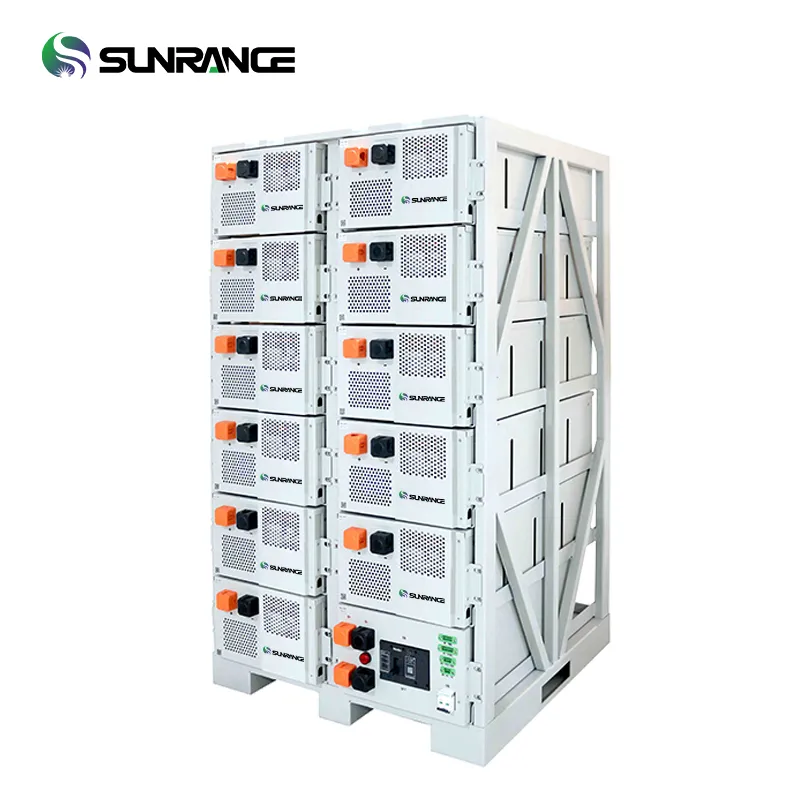

Optional 100Ah to 314Ah cells, supporting capacities from 100kwh to 3mwh. BMS Communication matched with major hybrid inverters. Easy installation with complete accessories included in the package.

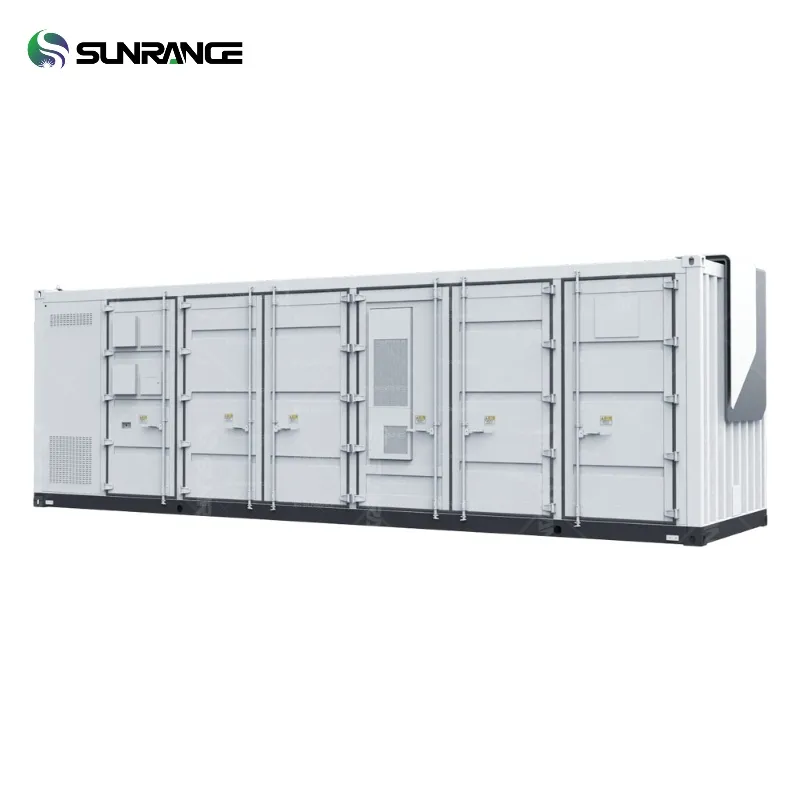

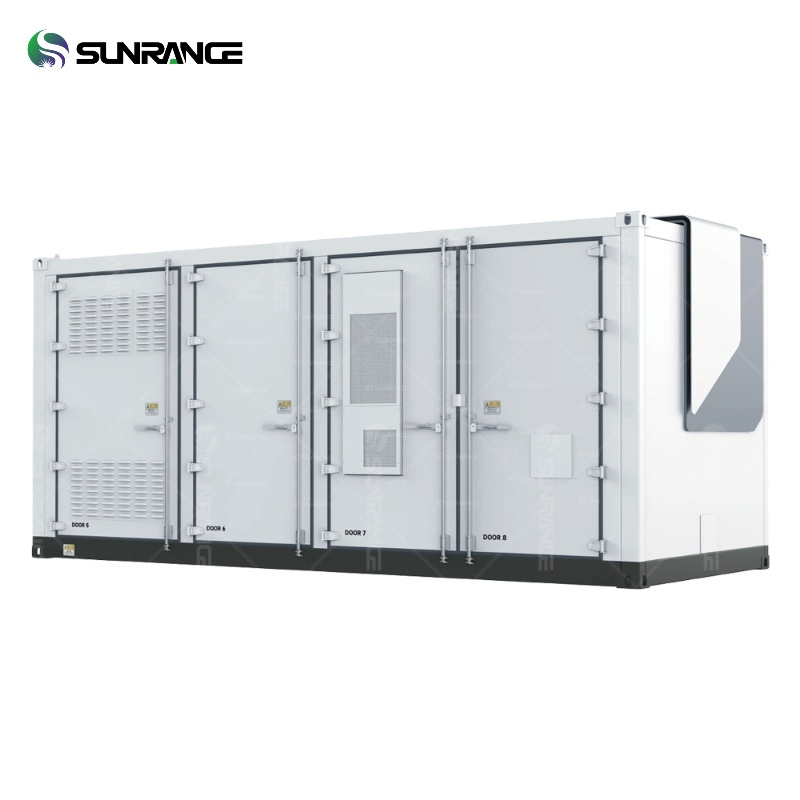

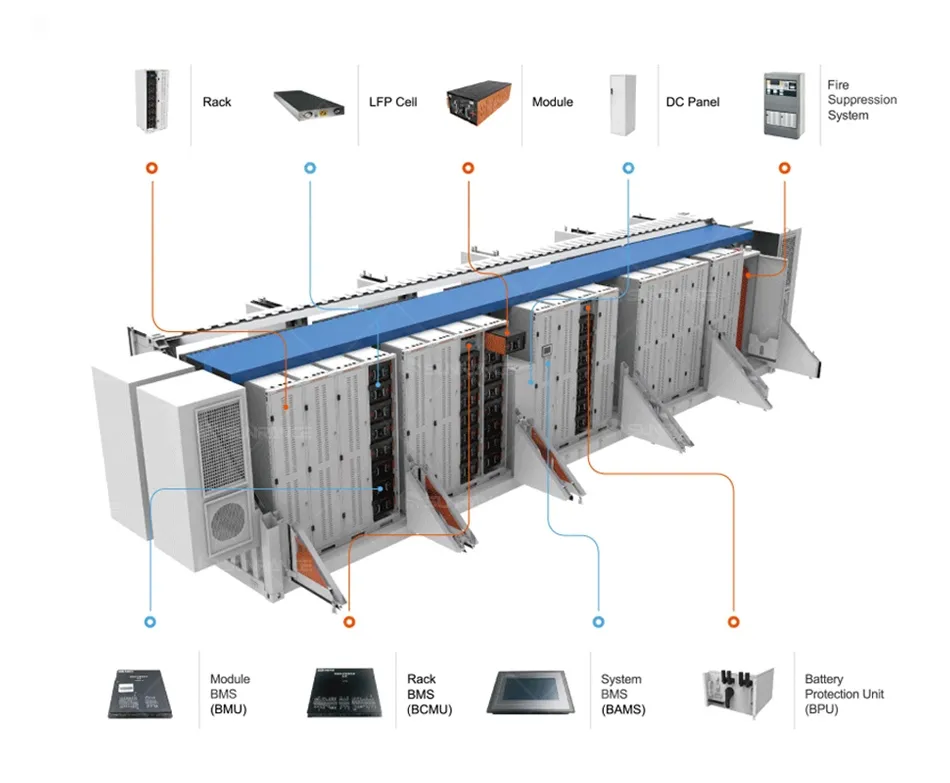

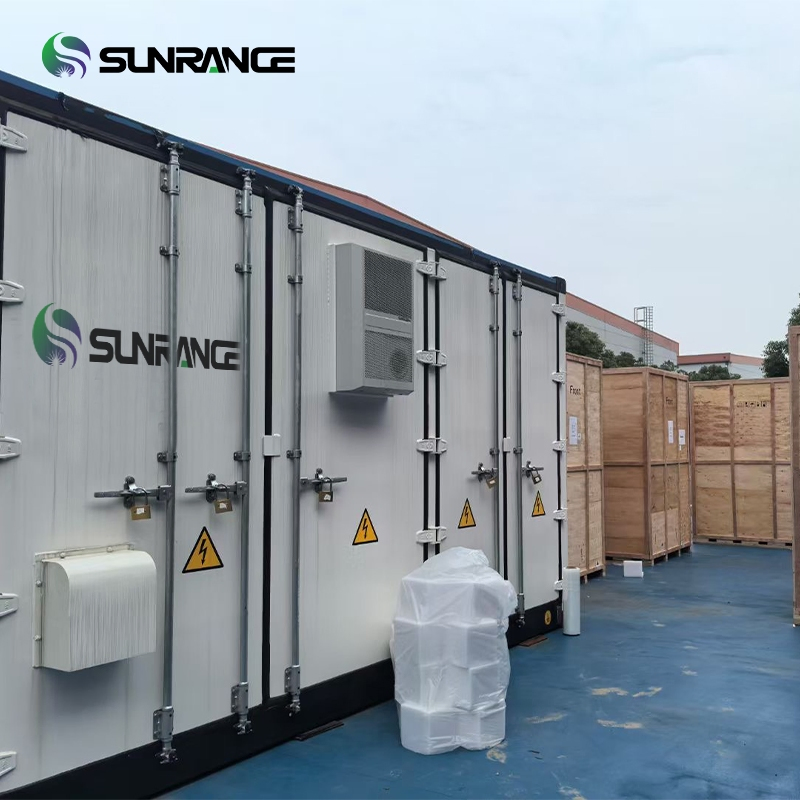

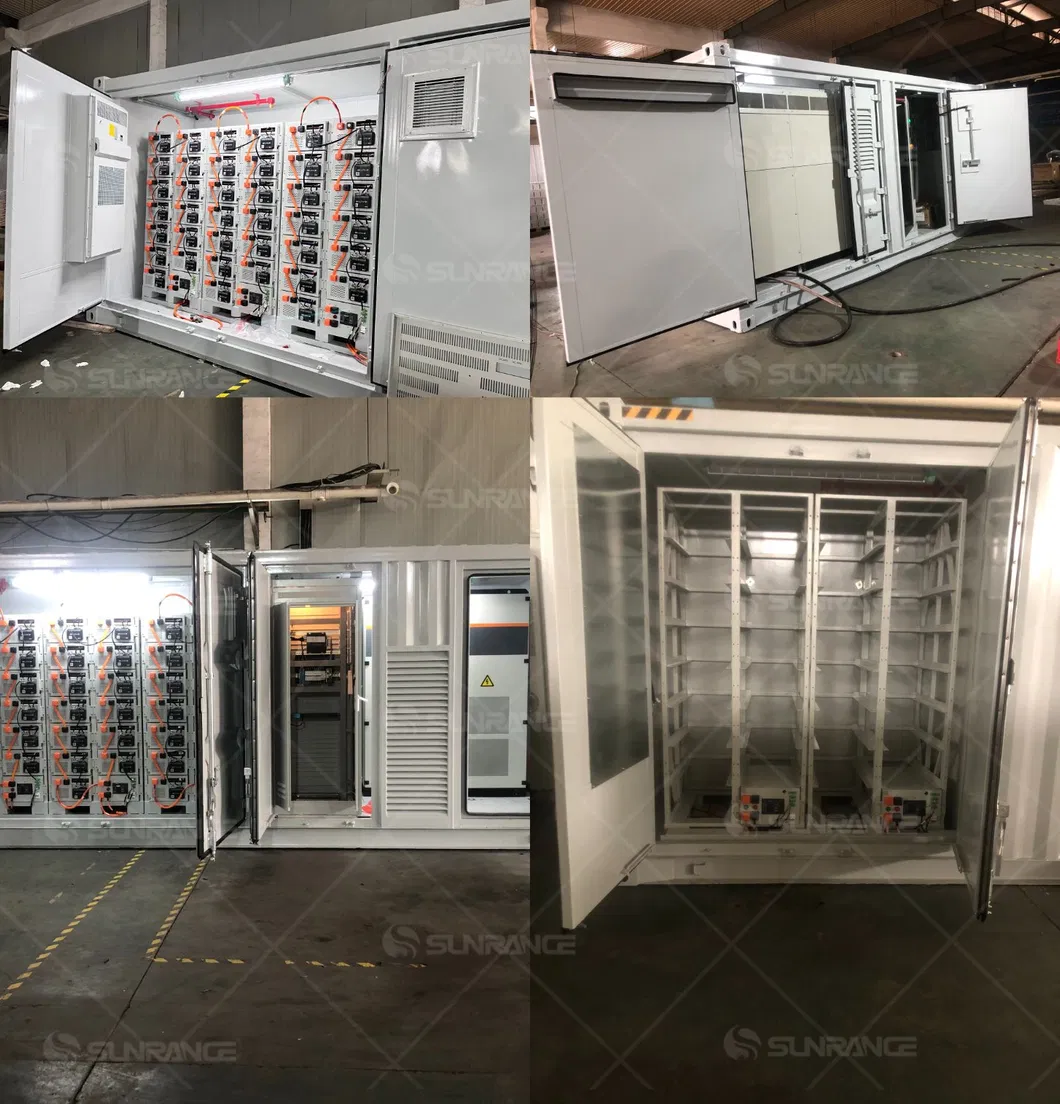

Includes lighting, access control, fire protection, and air conditioning. 20FT container supports ~1000kwh; 40FT container supports 1800kwh~3000kwh. Features advanced heat insulation for indoor or outdoor placement.
We are a professional provider in the photovoltaic industry serving customers across all continents. We deliver high-quality products and professional services, offering tailored design solutions for large, medium, and small-scale projects. Our commitment to technological improvement ensures an optimal experience for users worldwide.
