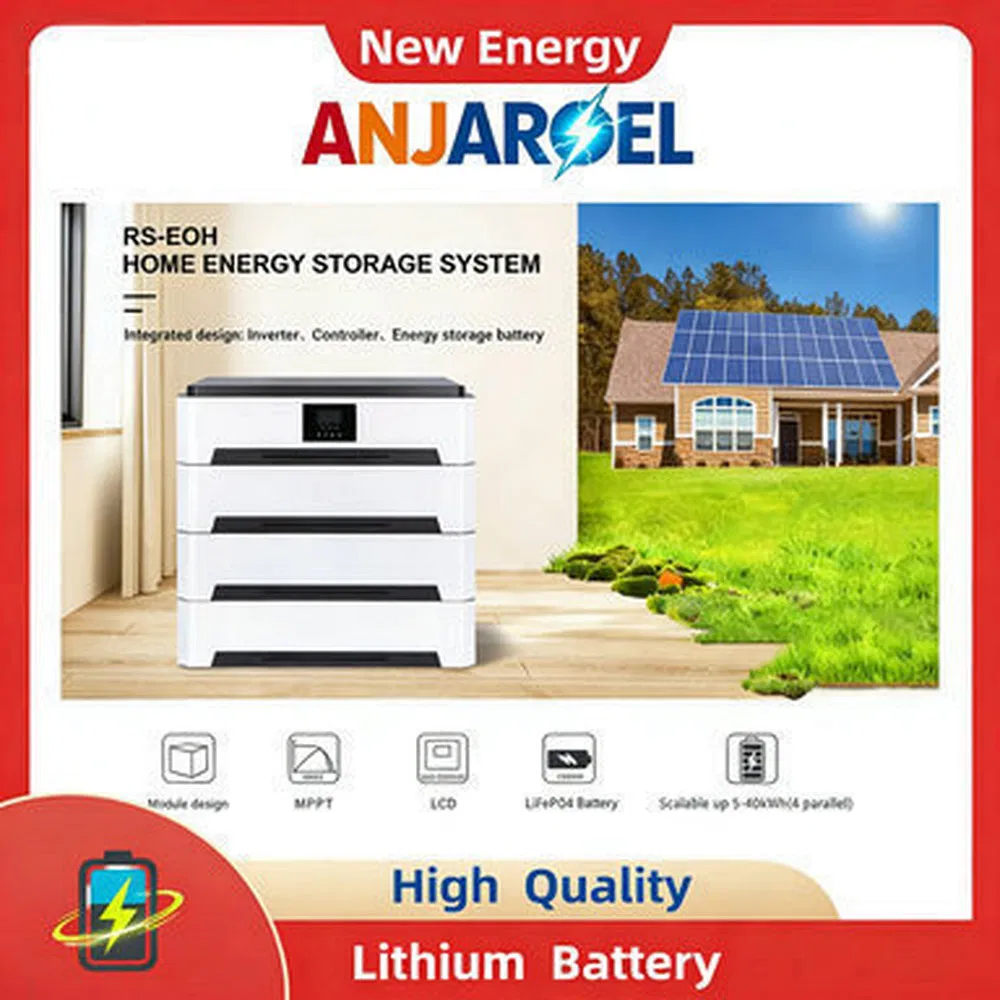

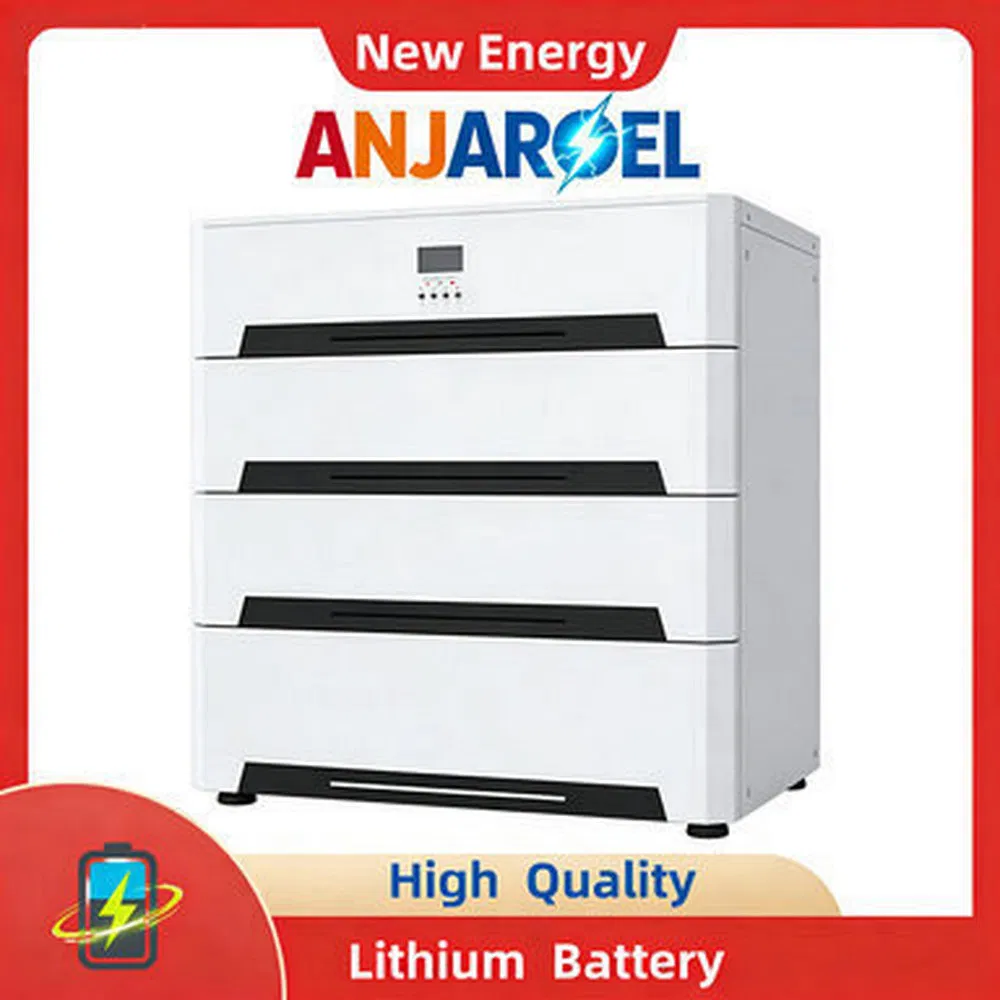

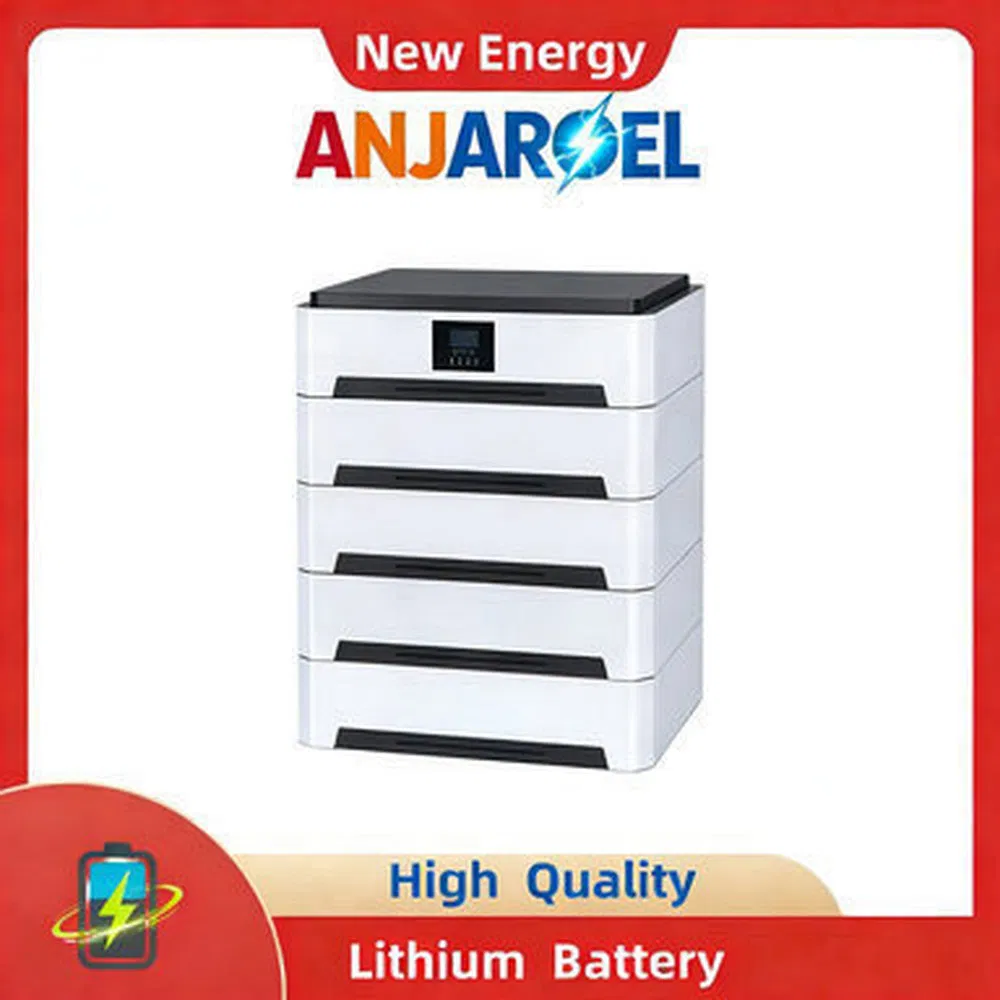

ALL-IN-ONE ENERGY STORAGE SYSTEM
A compact, stackable energy storage solution tailored for residential and light-commercial applications.
Scalable capacity through modular stacking (10.24–51.2 kWh), proven LiFePO4 cells, 100A bidirectional charge/discharge, IP65 protection, and an integrated BMS deliver reliable solar self-consumption, backup power, and microgrid operation with simple installation and remote diagnostics.
LiFePO4 cells engineered for deep cycling and long lifespan, ensuring predictable performance and low lifecycle cost.

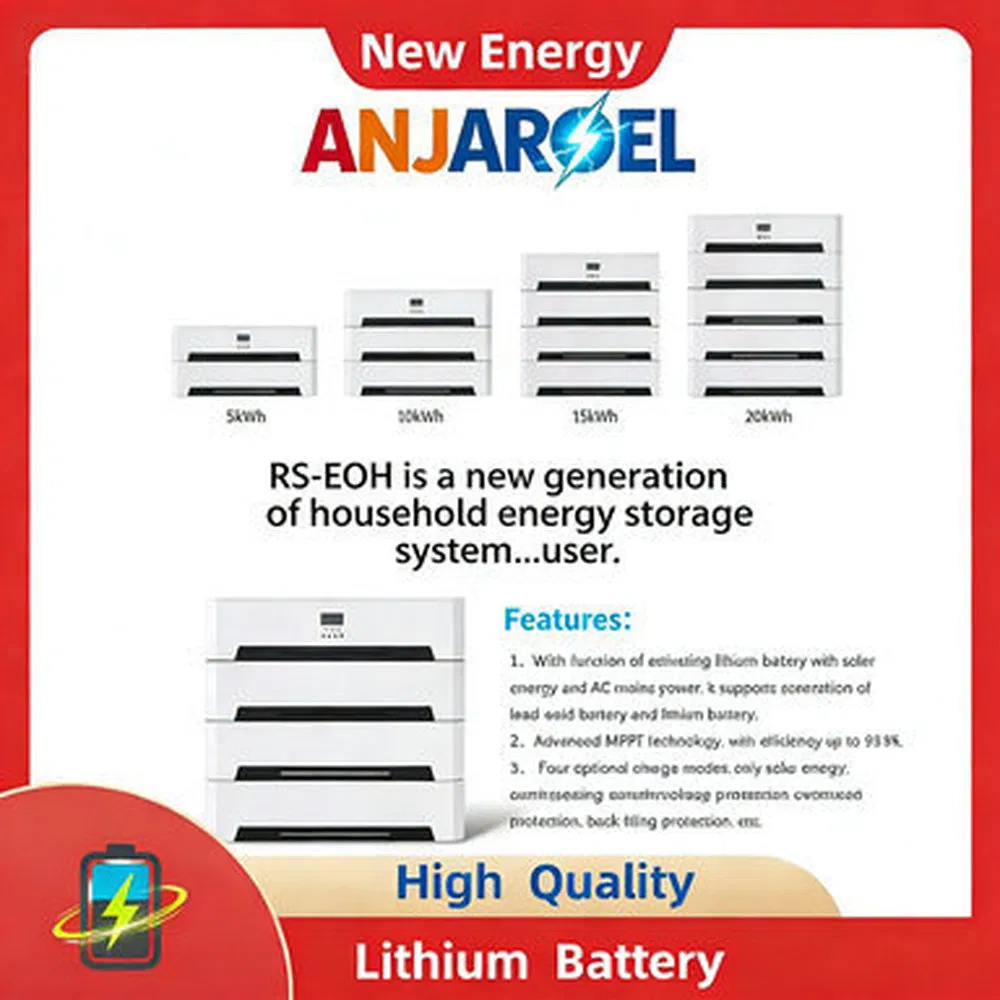

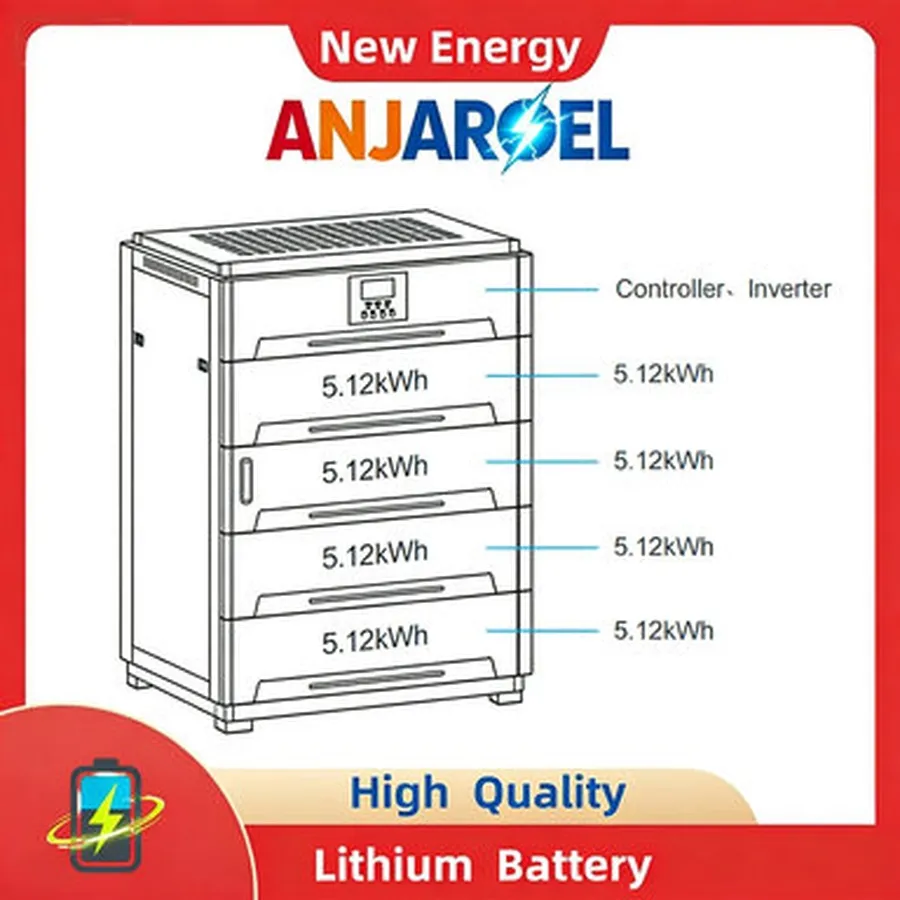

Stackable, hot-swappable modules allow seamless capacity expansion without system downtime or complex reconfiguration.
Robust IP65-rated enclosure supports indoor or sheltered outdoor installation in varied climates.
Integrated BMS with RS485 communication provides real-time monitoring, cell balancing, and layered safety protections.
| Technical Parameters | |
|---|---|
| Module Number (stackable) | 1 – 5 PCS |
| Single Module Capacity | 200 Ah |
| Total Capacity Options | 10.24 kWh / 20.48 kWh / 30.72 kWh / 40.96 kWh / 51.2 kWh |
| Standard Voltage | 51.2 V |
| Working Voltage Range | 43.2 – 57.6 V |
| Standard Charge/Discharge Current | 100 A |
| Suggested DoD | 80% |
| Dimensions (1 Module) | 720 × 660 × 628 mm |
| Dimensions (5 Modules) | 720 × 660 × 1644 mm |
RIGHT-SIZE YOUR INVESTMENT
Modular capacity options let you match storage to actual load profiles, avoiding costly oversizing and protecting capital. Purchase only the capacity you need now, then expand incrementally.
PLUG-AND-STACK SIMPLICITY
Standardized stacking interfaces reduce installation complexity. Hot-swap capability enables fast capacity upgrades without lengthy outages, minimizing labor costs.

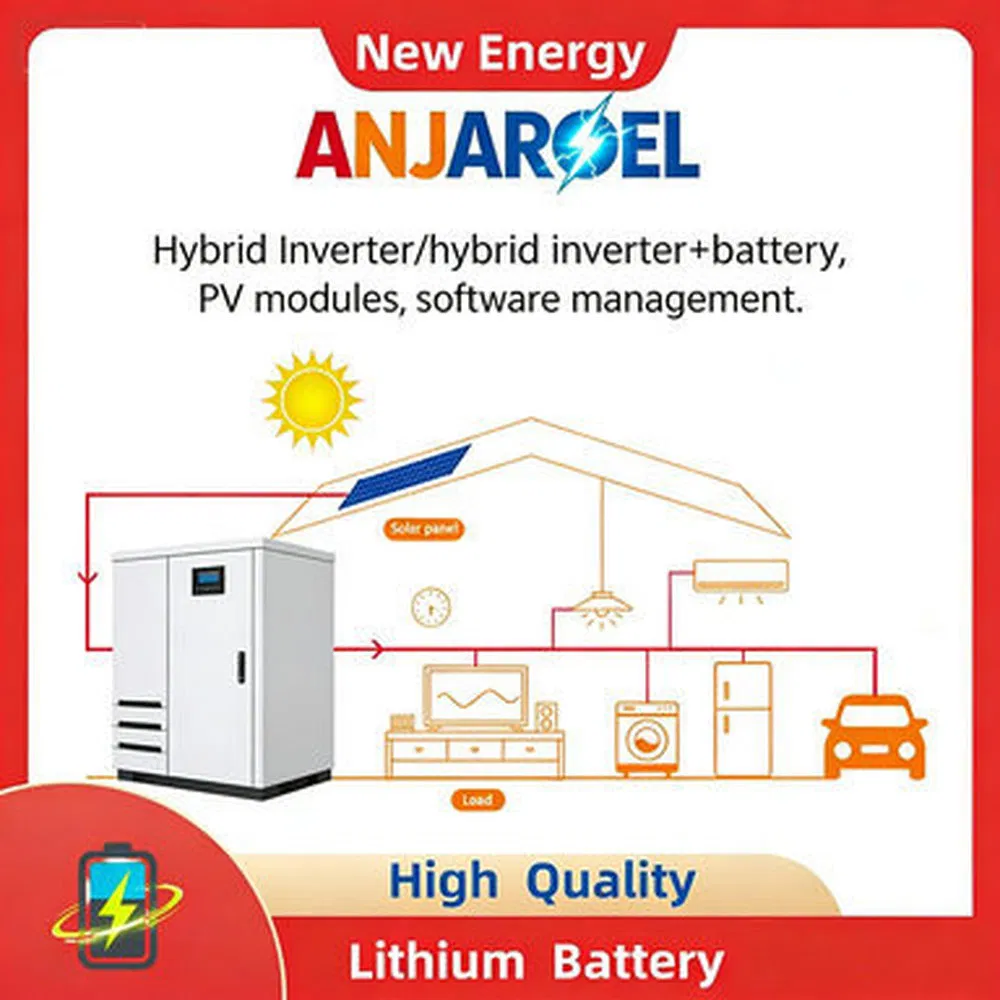

SOLAR OPTIMIZATION
Capture excess PV generation for evening loads to increase self-consumption. Fast 100A response maximizes arbitrage and delivers greater energy autonomy.
