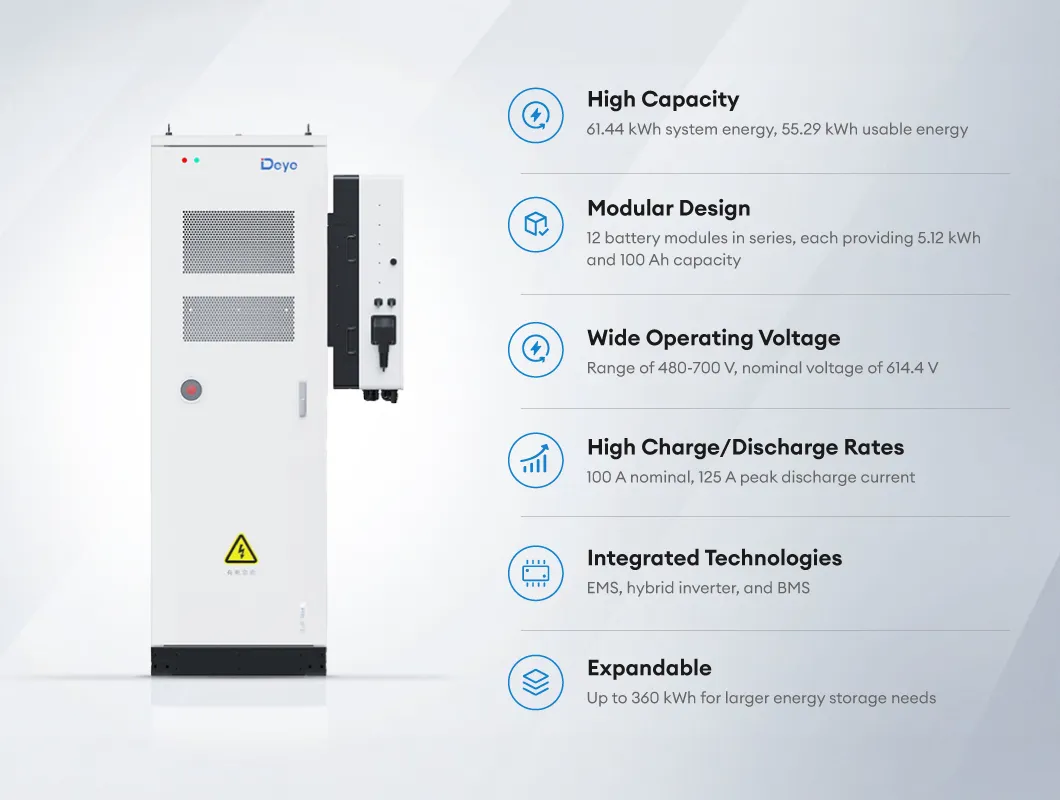

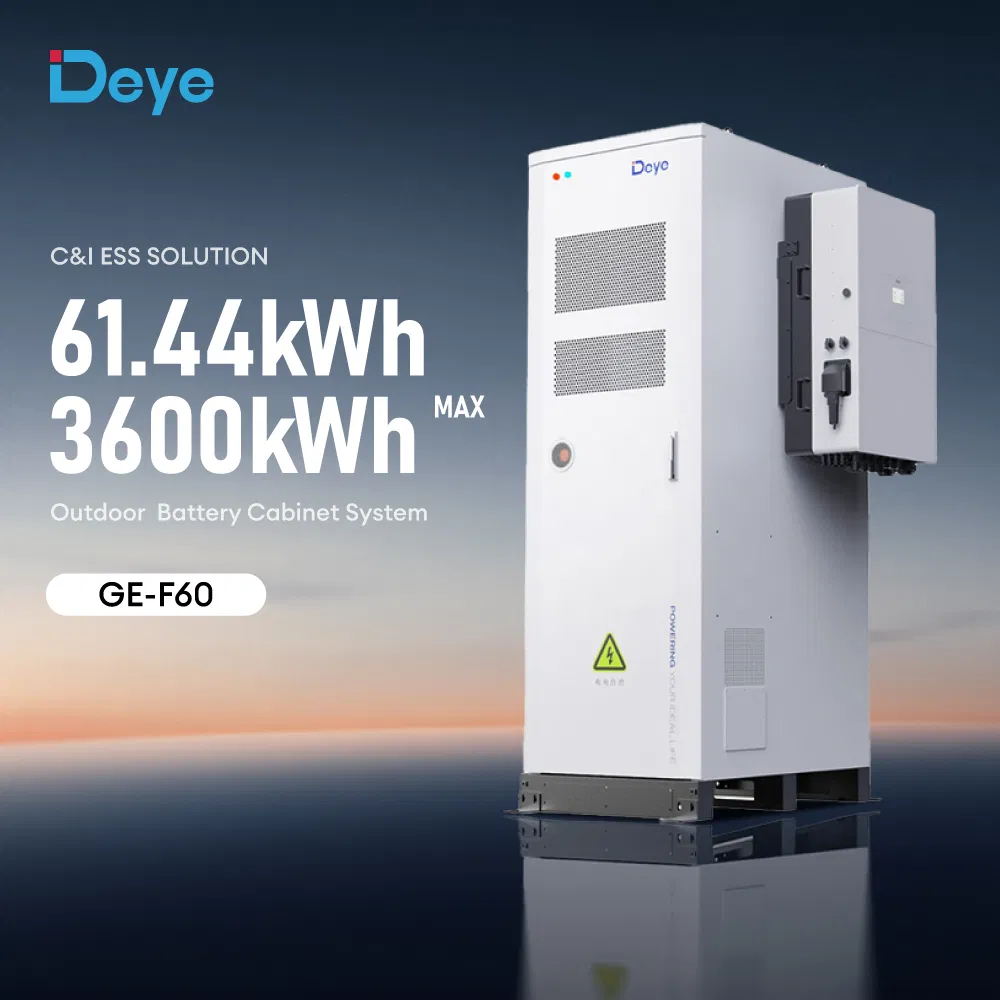

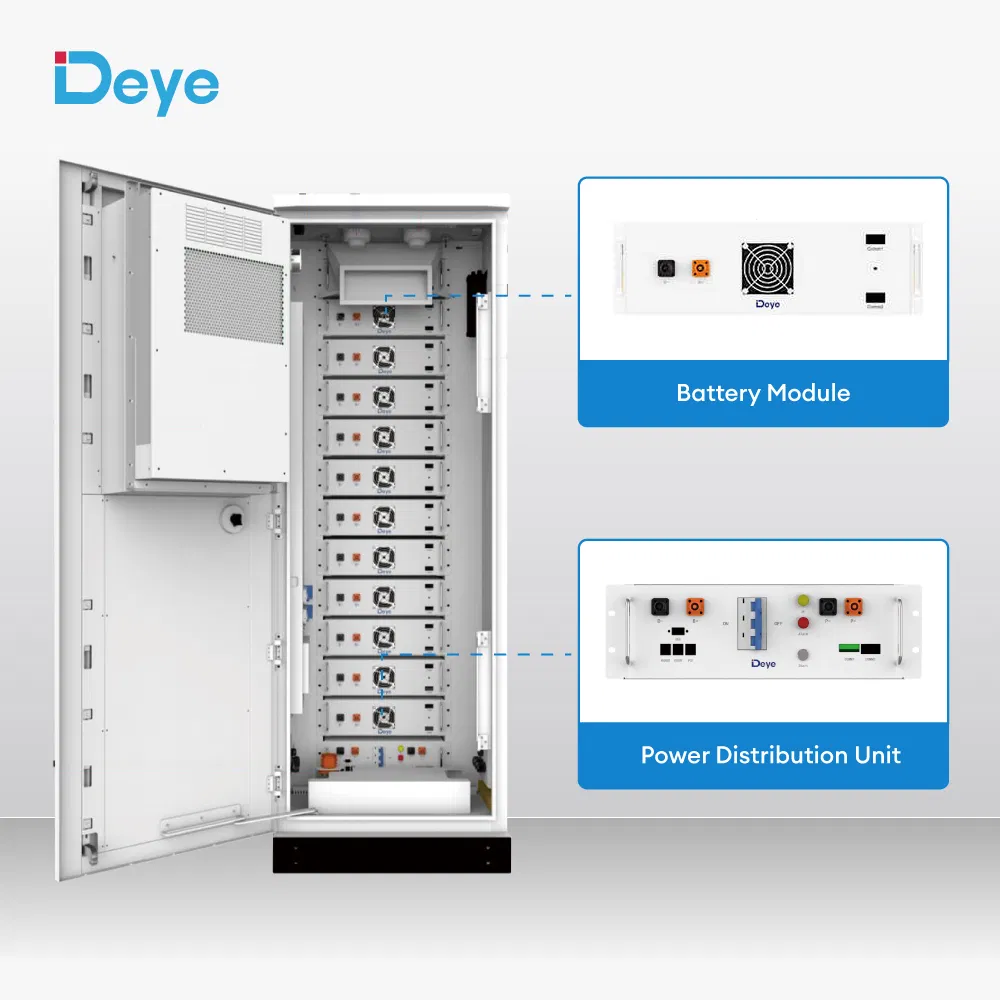

Deye Wholesale Price Ess Outdoor Cabinet 48V 51.2V 100ah Ge-F60 Energy Storage System Extreme Safety Protection

1 / 5

Deye Wholesale Price Ess Outdoor Cabinet 48V 51.2V 100ah Ge-F60 Energy Storage System Extreme Safety Protection

Customization:	Available
Container Size:	78010562235
Weight:	1070kg

Send Inquiry

Product Description

ⓘ Basic Information

Model NO.

GE-F60

Nominal Voltage

614.4V

Warranty

10 Year

Nominal Capacity

100ah

Cell Chemistry

LiFePO4

Module Energy (Kwh)

5.12

System Energy (Kwh)

61.44

Certification

CE, IEC62619, IEC62040, Un38.3

📋 Product Description

Model	GE-F60
Cell Chemistry	LiFePO4
Module Energy (kWh)	5.12
System Nominal Voltage (V)	614.4
System Operating Voltage (V)	480~700
System Usable Energy (kWh)	55.29
Recommend Charge/Discharge Current	50A
Peak Discharge (2 mins, 25ºC)	125A
Working Temperature (°C)	Charge: 0~55 / Discharge: -20~55
Communication Port	CAN2.0 / RS485
IP Rating	IP55
Cycle Life	≥6000 cycles (25±2°C, 0.5C/0.5C, EOL70%)

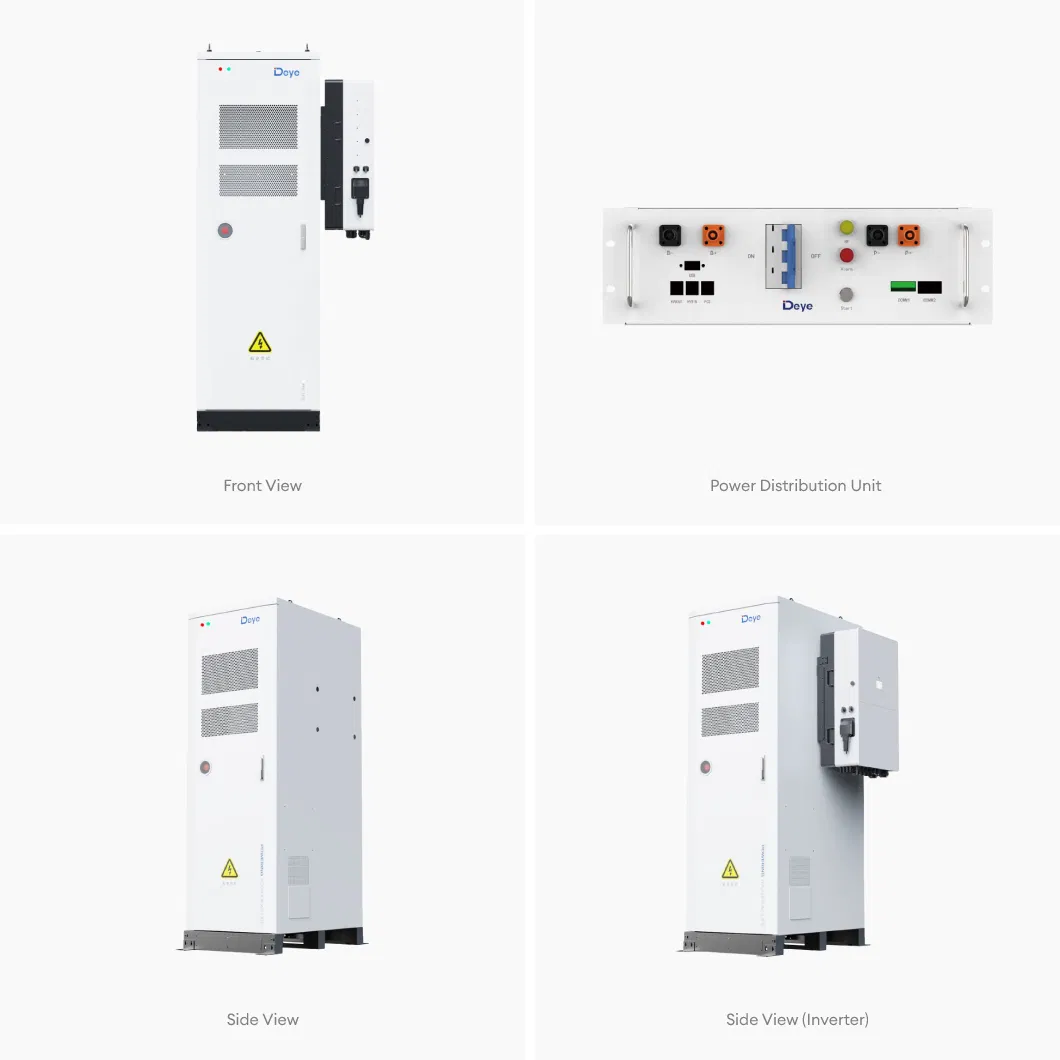

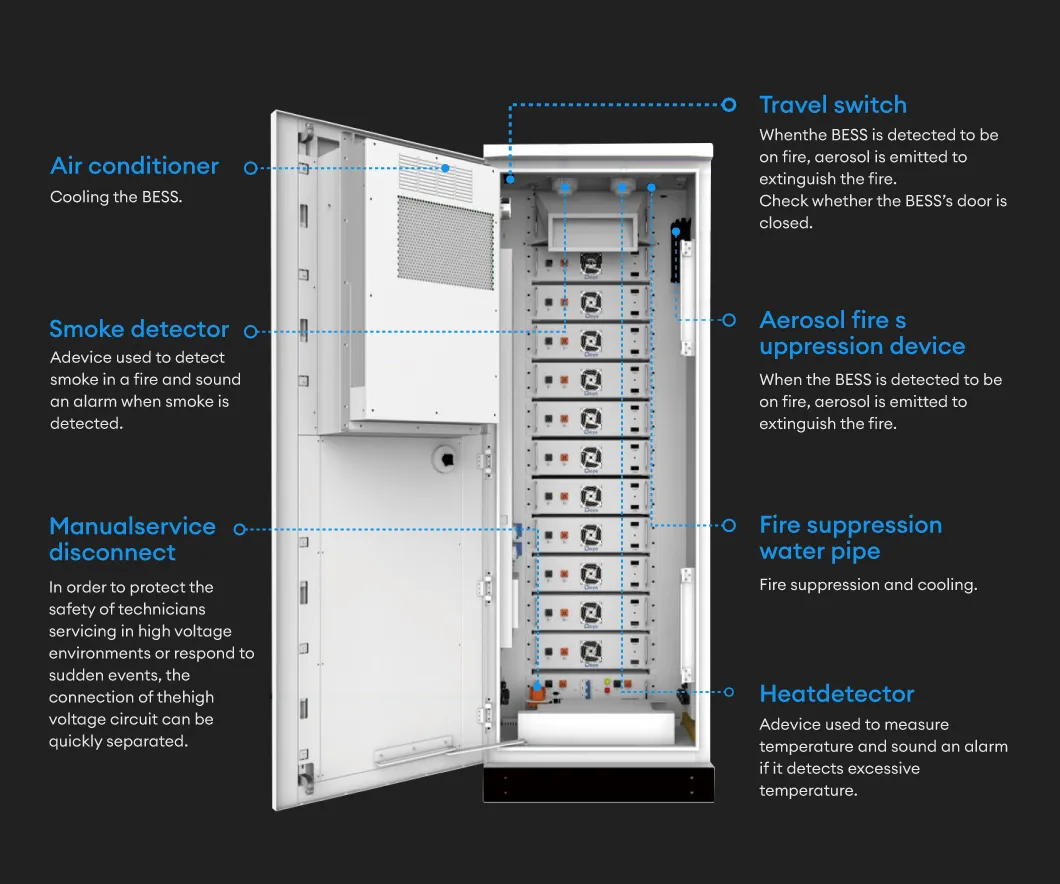

🔍 Product Detail

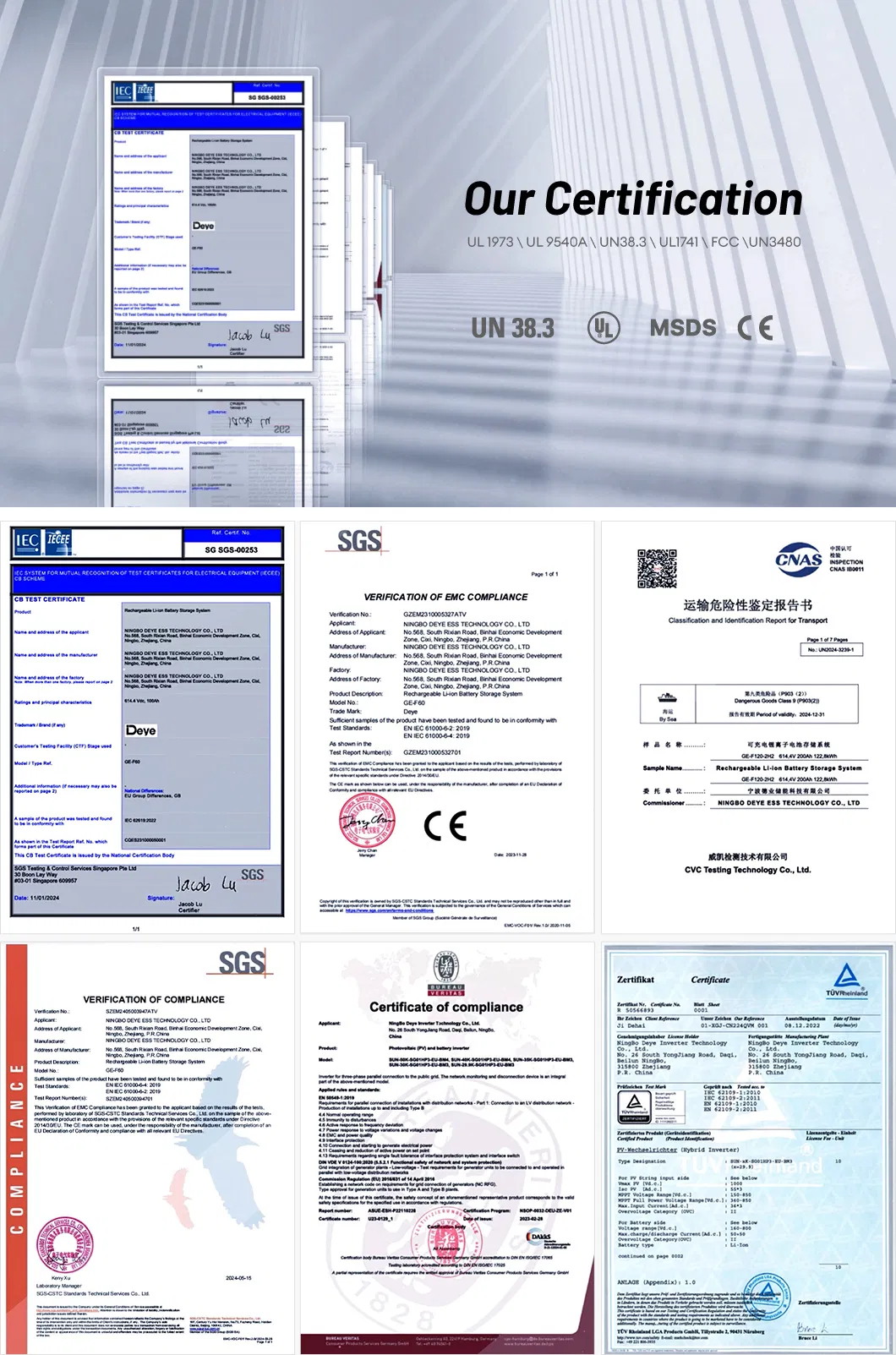

📜 Certifications

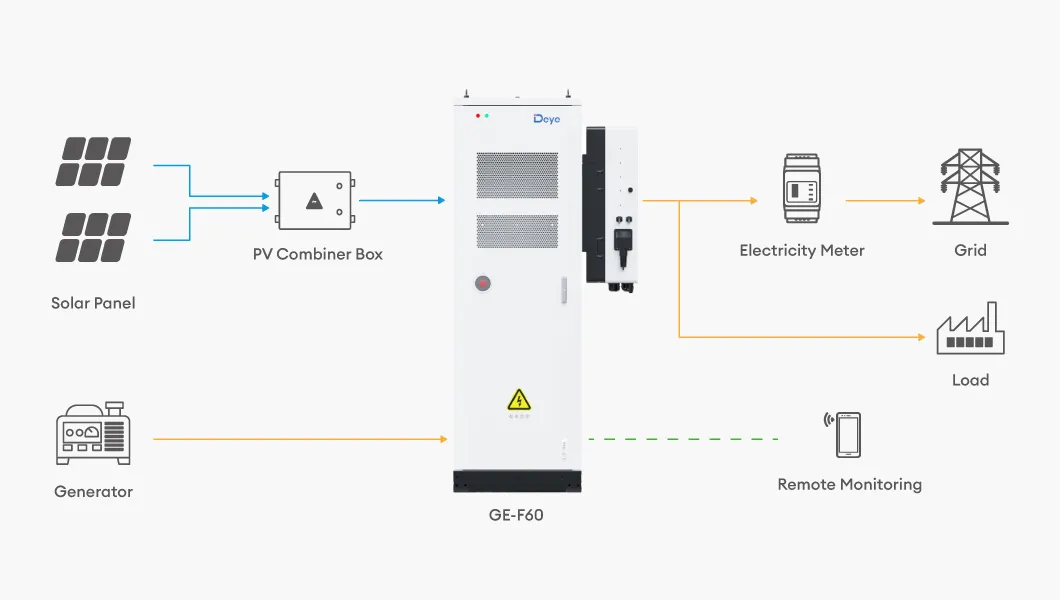

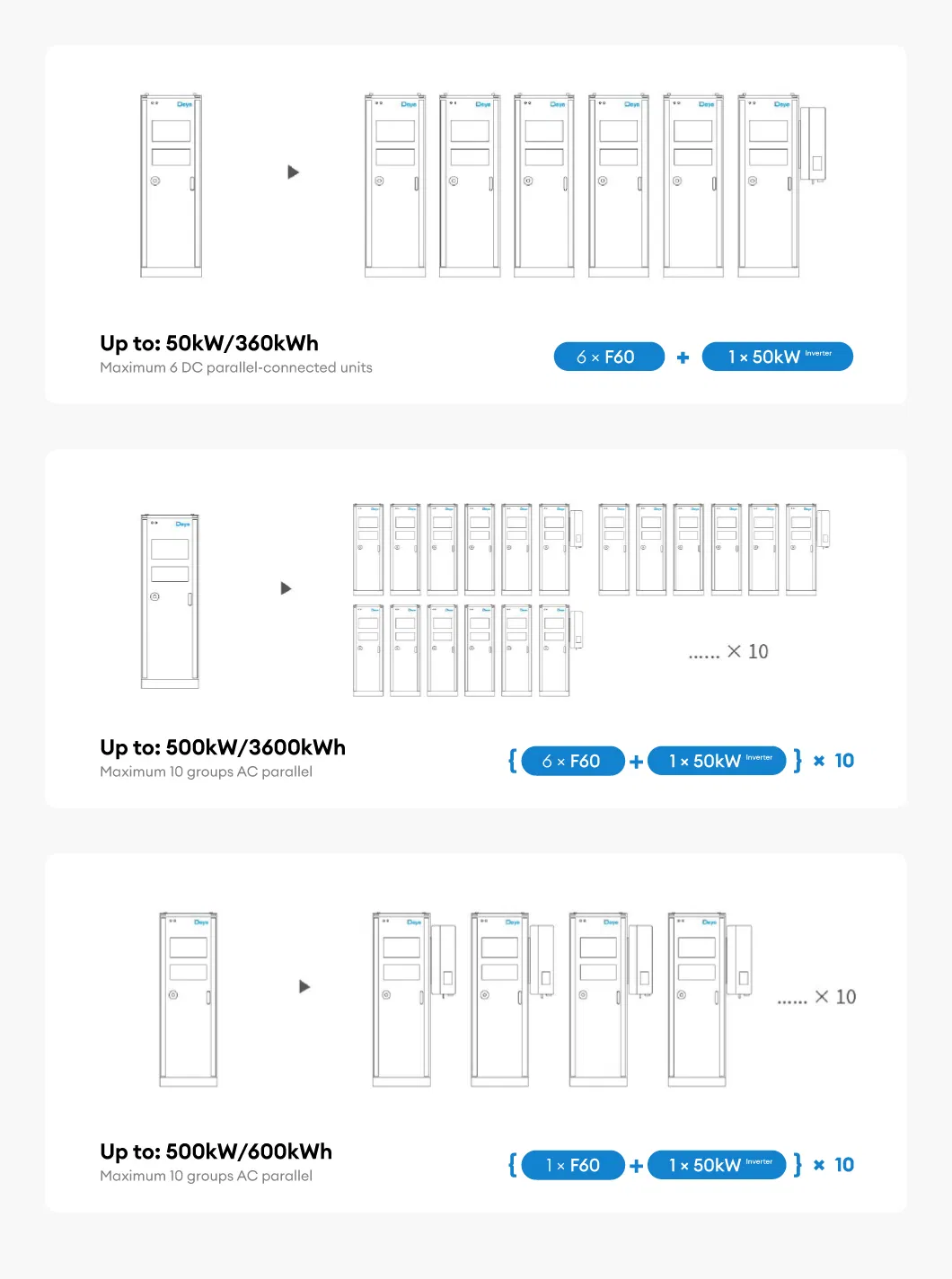

💡 Technical Features

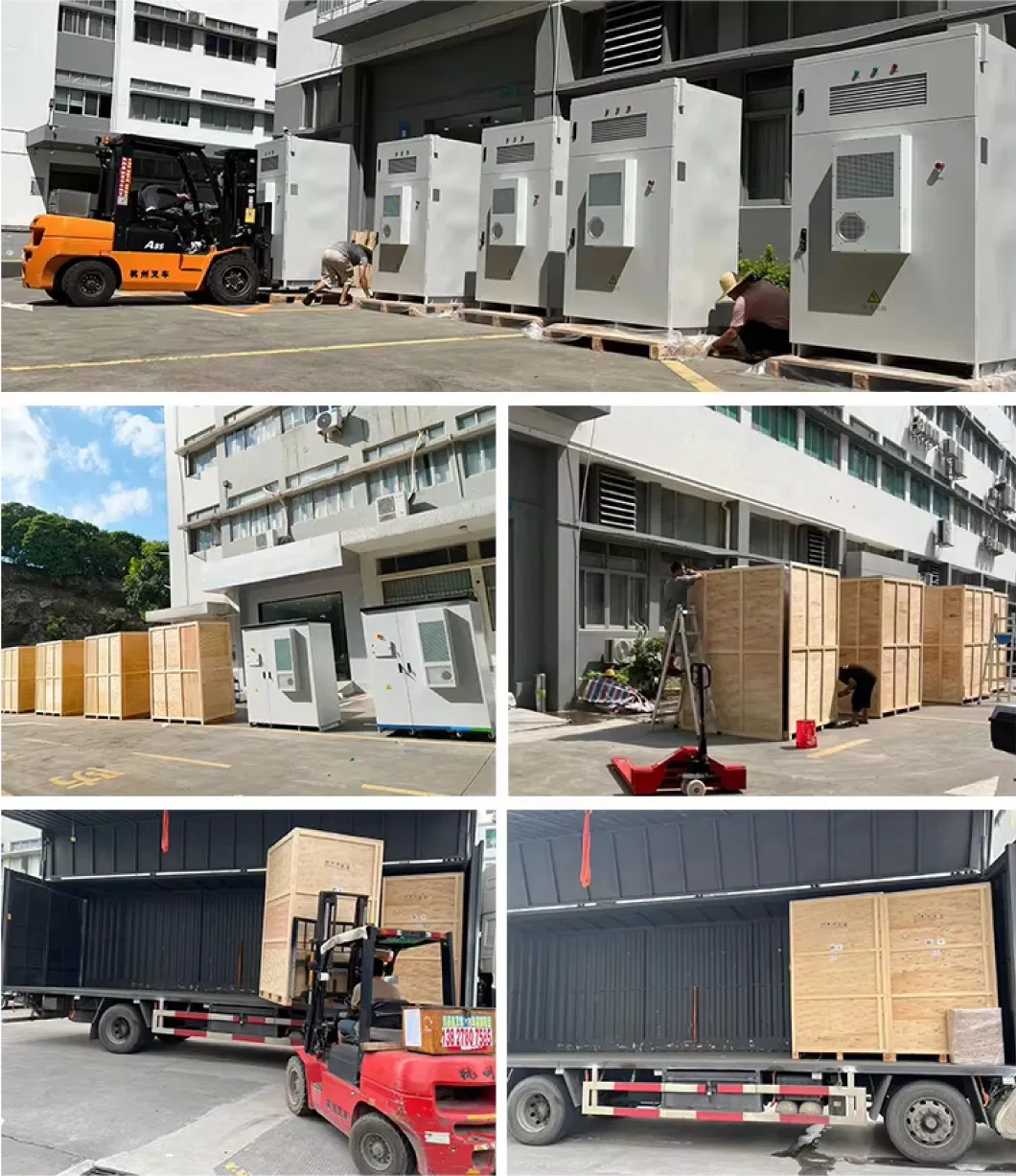

📦 Packaging & Shipping

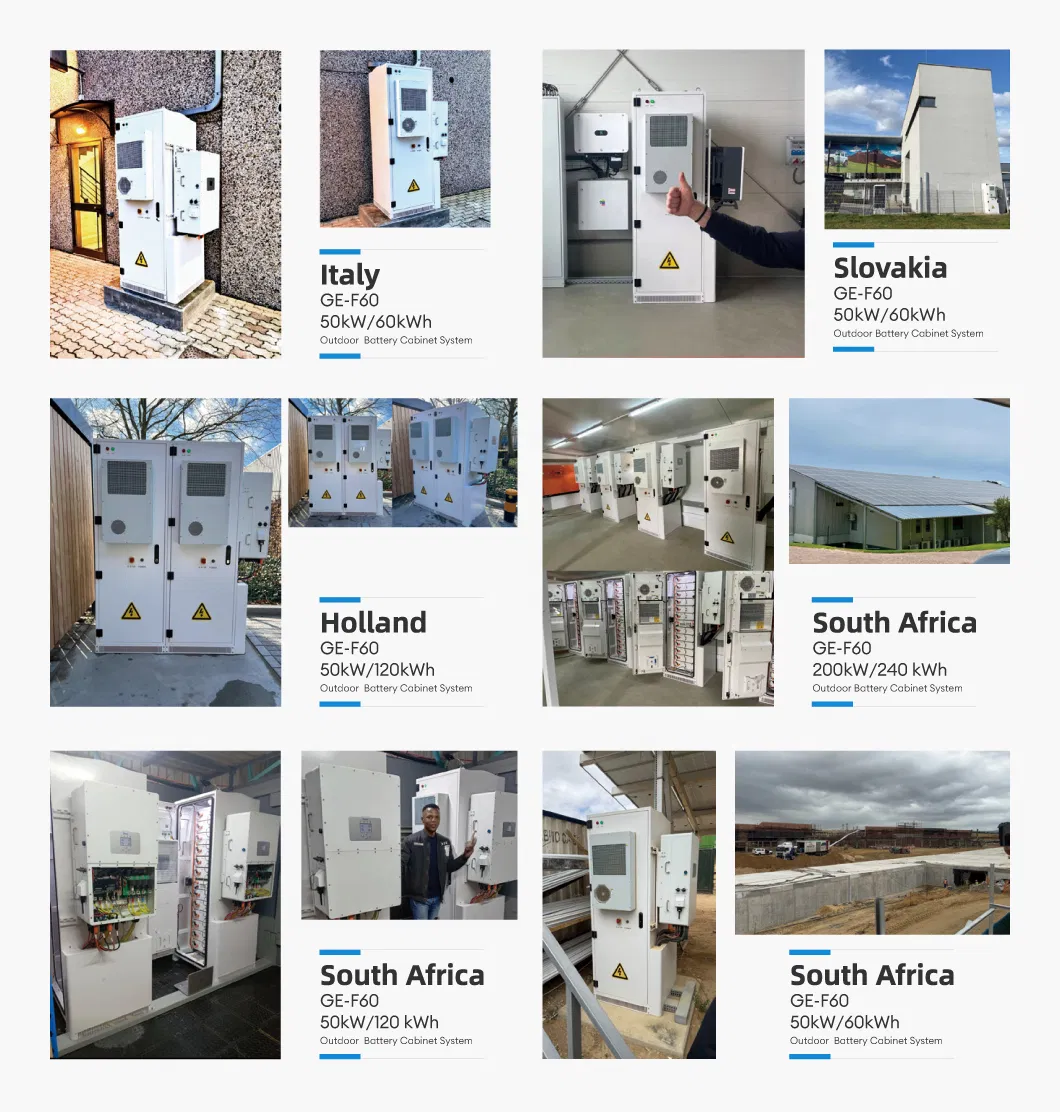

🏗️ Project Case

🏢 Production Capability

✉ Inquiry Support

❓ Frequently Asked Questions

What is the cycle life of the GE-F60 system?

The system features a cycle life of ≥6000 cycles at 25±2°C, with 0.5C/0.5C charge and discharge rates, until 70% End of Life (EOL).

What certifications does this energy storage system hold?

The GE-F60 is certified with CE, IEC62619, IEC62040, and UN38.3 standards, ensuring global safety and transport compliance.

Can this system be installed outdoors?

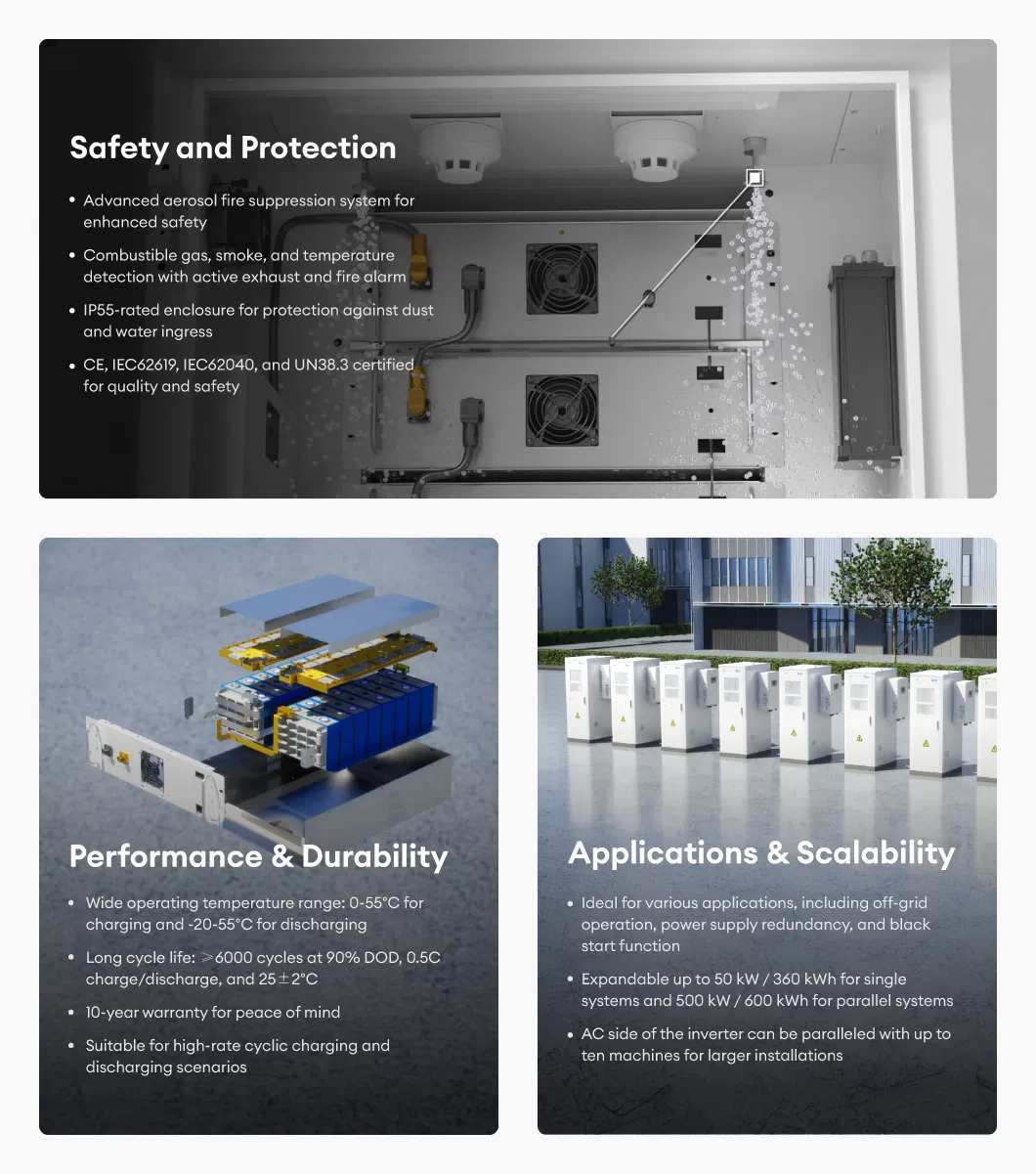

Yes, the enclosure has an IP55 rating, making it suitable for outdoor cabinet installations with protection against dust and water ingress.

What is the warranty period for the battery system?

The product comes with a comprehensive 10-year warranty, reflecting its high-quality LiFePO4 cell chemistry and construction.

What communication protocols are supported for integration?

The system supports CAN2.0 and RS485 communication ports for seamless integration with inverters and monitoring systems.

What is the operating temperature range?

The system supports charging between 0°C to 55°C and discharging between -20°C to 55°C, allowing for versatile environmental applications.
