5015kwh Containerized Battery Energy Storage System with Safety Protection System

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

i

Basic Information

Nominal Voltage:1331.2V

Warranty:3 Years

Nominal Capacity:5015kwh

Cycle Life:10 Years

Rated Power:5mwh

Voltage Range:1164.8V - 1497.6V DC

Cooling System:Liquid Cooling

Origin:China

P

Product Description

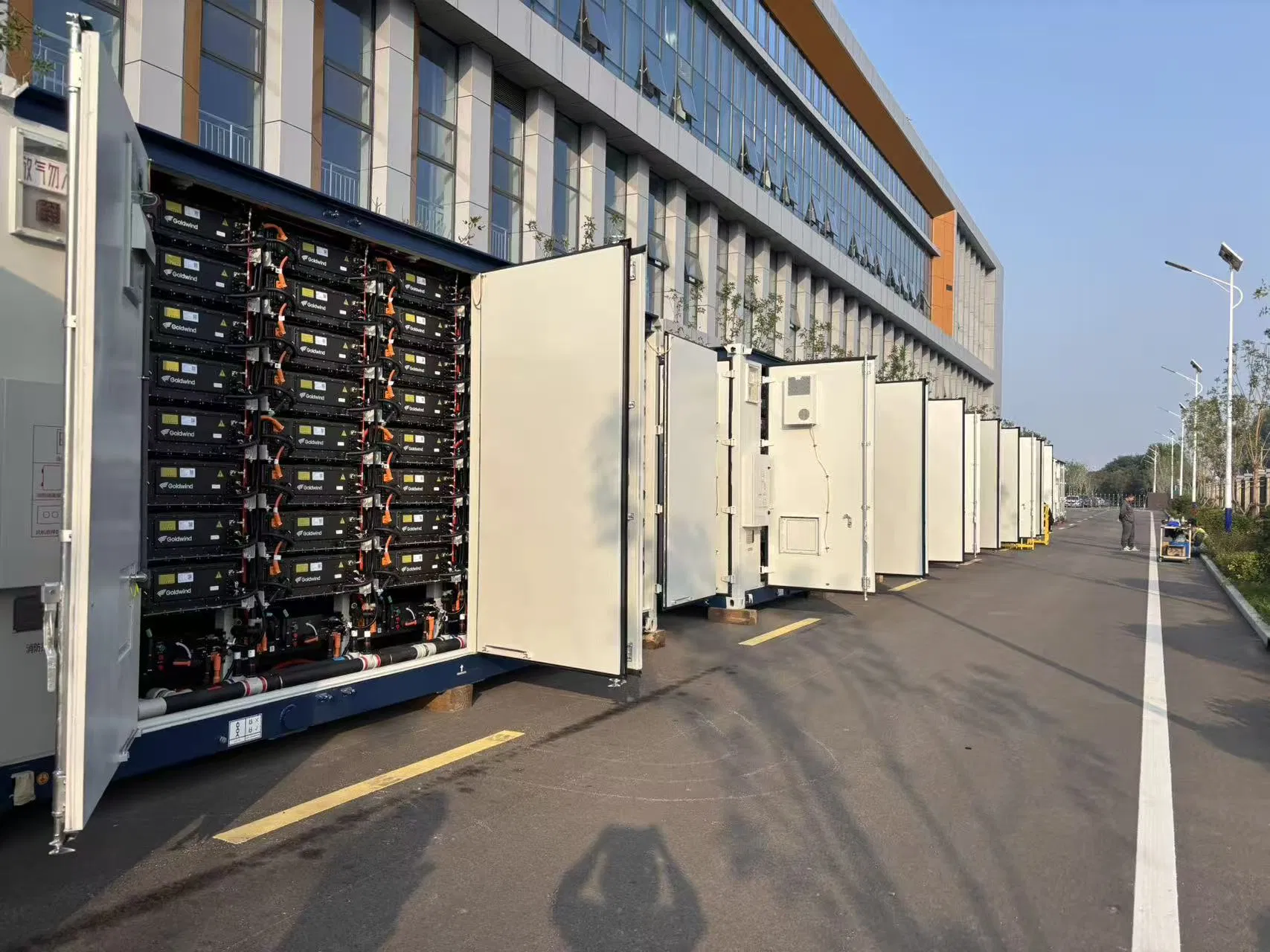

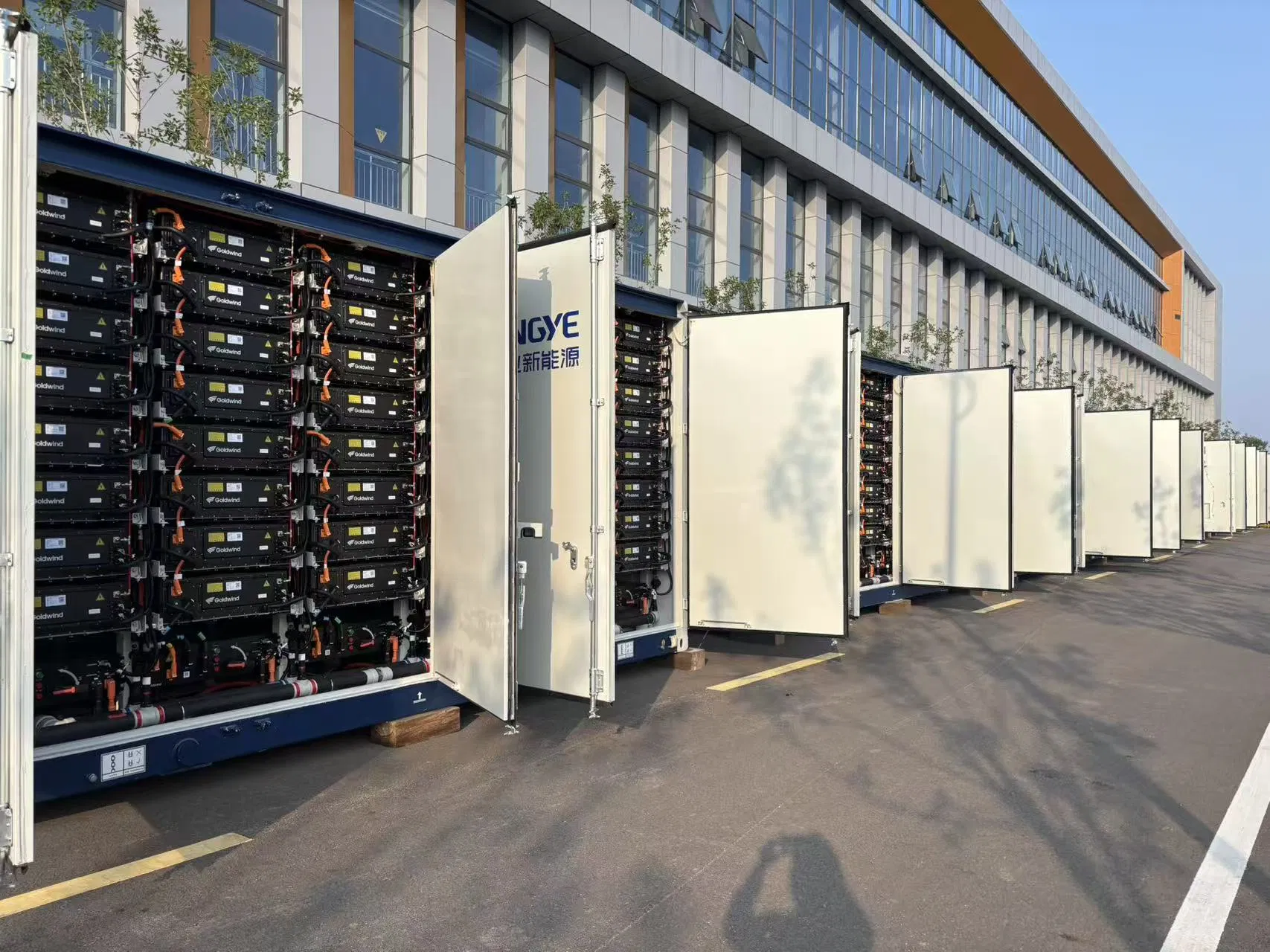

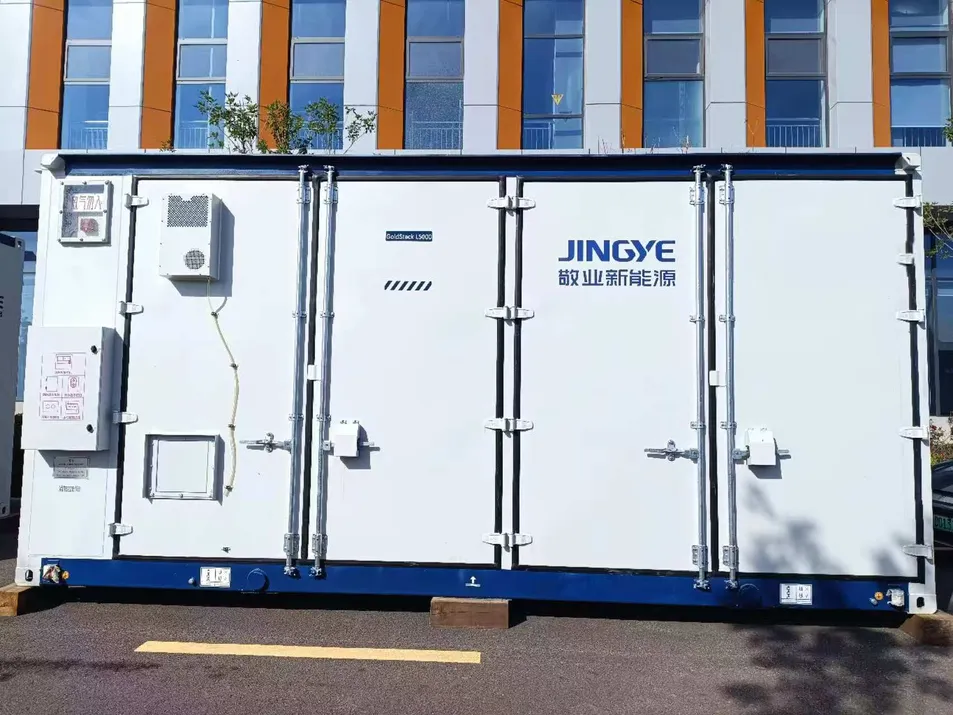

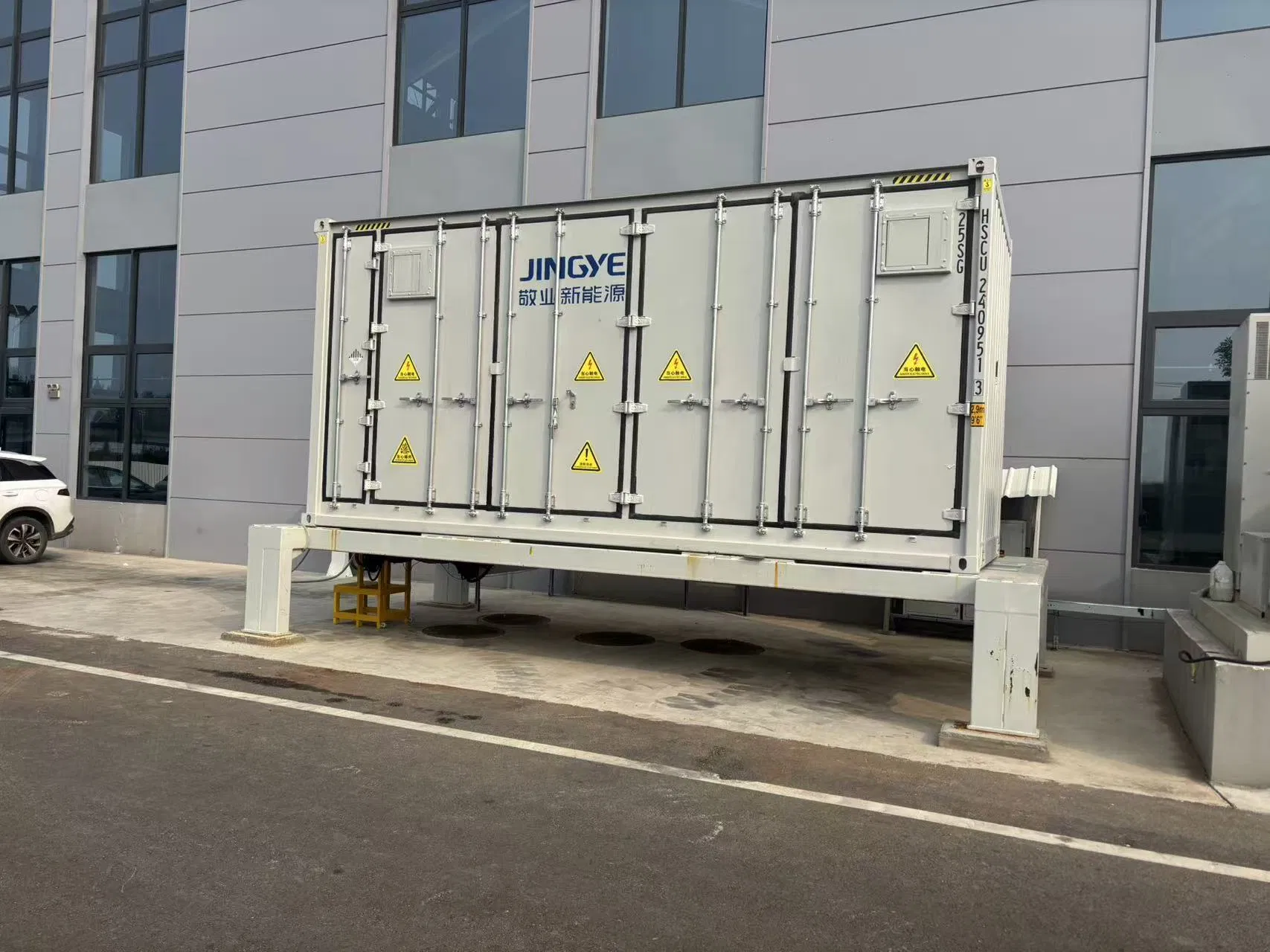

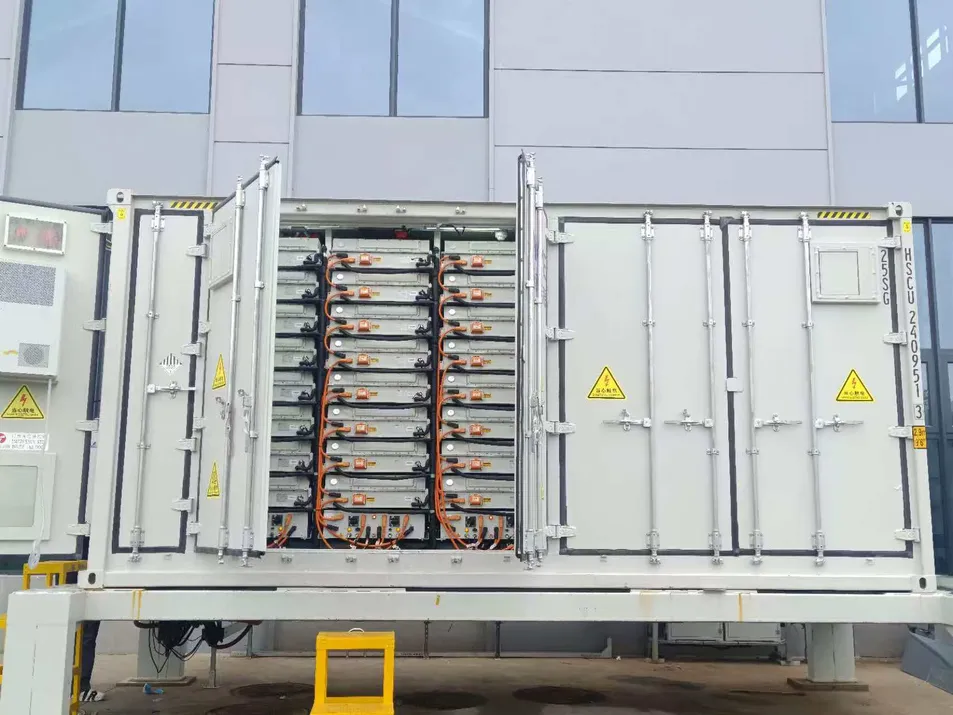

Energy Storage Container

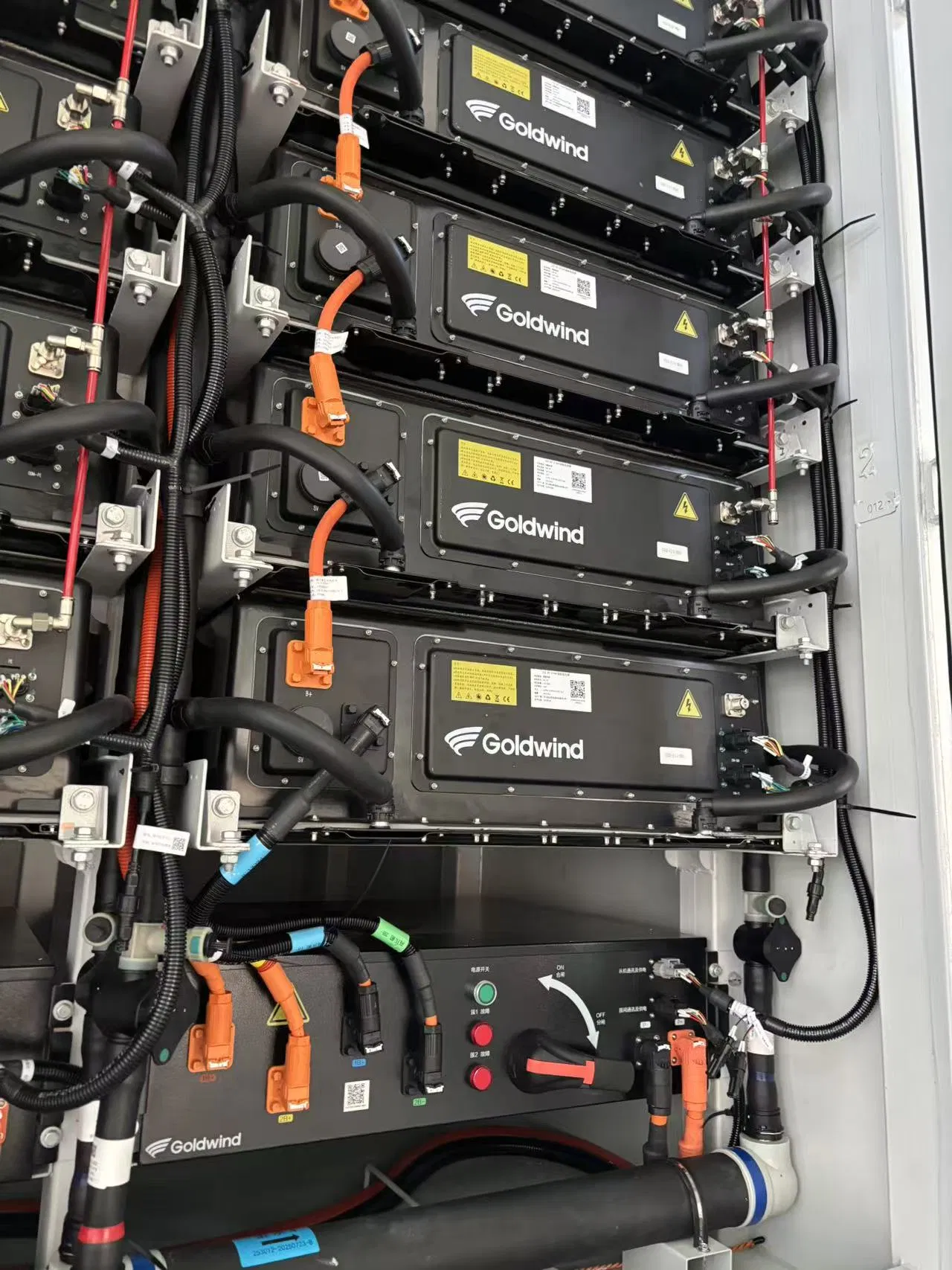

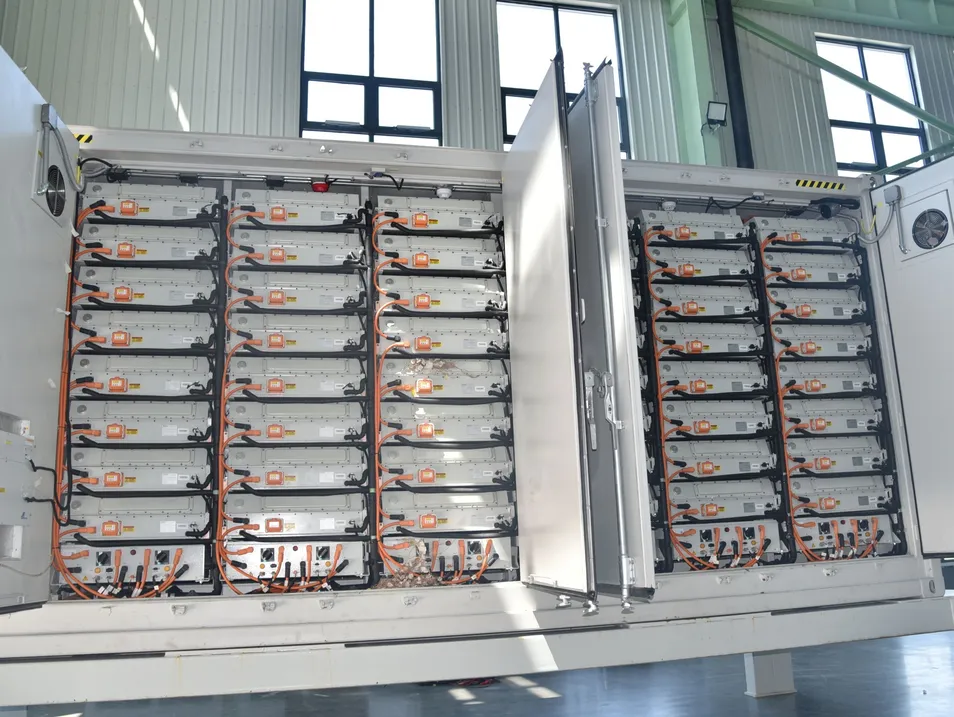

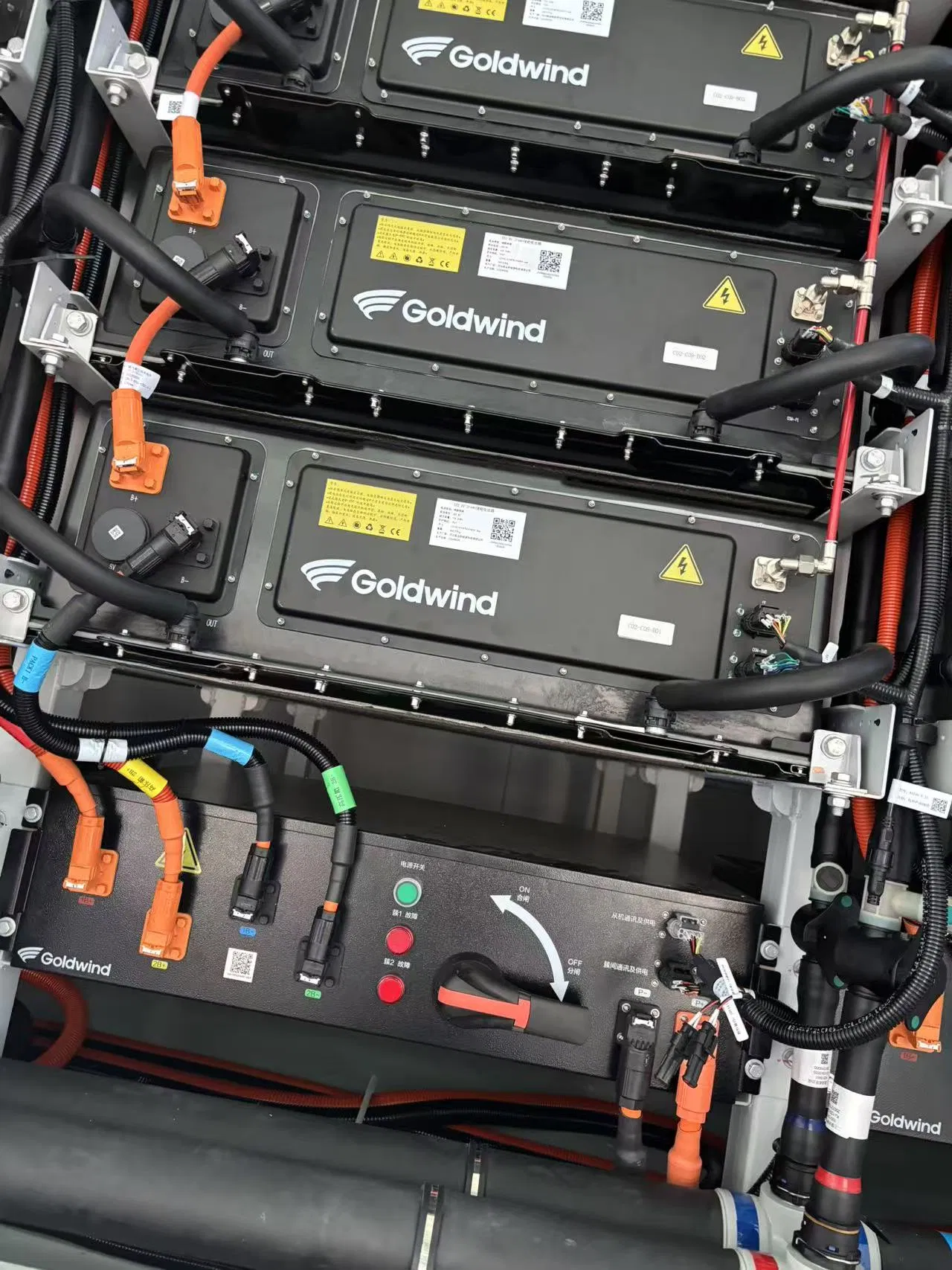

The 5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

The system utilizes simplified integration technology, incorporating the PACK, distribution busbars, liquid cooling units, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm). This design ensures safety control while being suitable for various transportation conditions and site requirements.

★

Product Features

✔

Battery Technology: High-efficiency, long-life large-capacity lithium iron phosphate batteries.

✔

Battery Management: Advanced intelligent BMS ensures overall product safety.

✔

Thermal Management: Industrial-grade air conditioning ensures a temperature difference of only 3℃ inside the PACK.

✔

Safety Protection: Multi-level fire protection system using perfluorohexane or aerosol.

✔

Monitoring: Integrated sensors for temperature, humidity, smoke, and video monitoring.

✔

Modular Design: Simple structure facilitates easy transportation, installation, and maintenance.

T

Technical Specifications

Item	Specification
Configuration	12(1P104S4)
Rated Power	5MWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Rated Charging Power	≤ 2.5MW
Auxiliary Power Supply	400VAC±5% 50Hz / 220VAC
Dimensions	L6058 x W2438 x H2896mm
Weight	Approx. 43t
IP Rating	IP54
Communication	Ethernet, CAN, ModbusRTU

W

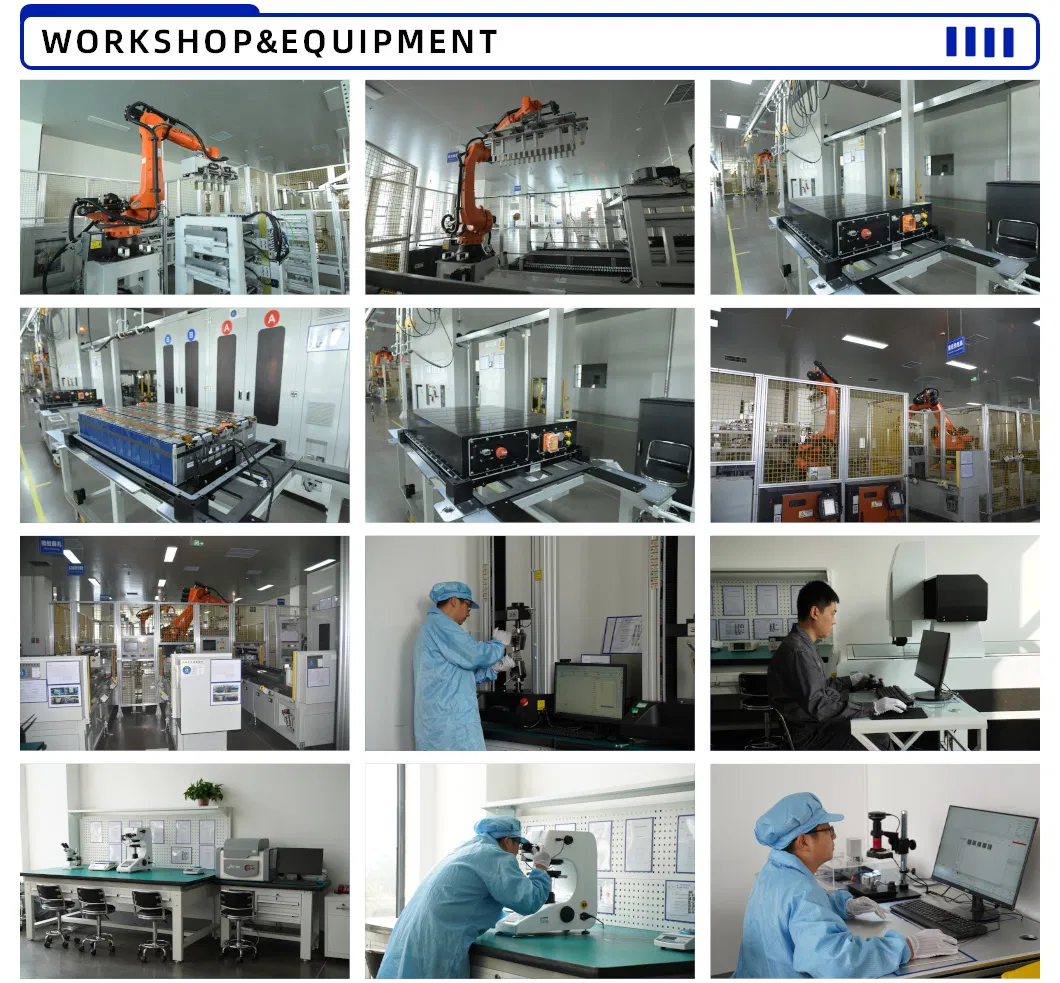

Workshop & Equipment

Equipped with advanced automated production lines, the annual production capacity reaches 5 GWh of energy storage systems and 2.4 million pieces of CCS busbars. These products are widely utilized in smart grids, industrial energy storage, and green transportation.

C

Certifications & Exhibition

?

FAQ

Q1: What are the main products available?

A: Our core offerings include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and Battery Packs.

Q2: Are customization services supported?

A: Yes, we offer flexible customization services for various process types to meet diverse project requirements.

Q3: How are production and delivery timelines ensured?

A: With a comprehensive automated production line and a proficient technical team, we guarantee stable production and on-time delivery.

Q4: Are you a trading company or a source factory?

A: We are a formal source factory with standardized production processes, allowing us to offer competitive prices and high-quality products.

Q5: What battery technology is utilized?

A: We use mature, high-efficiency, and long-life lithium iron phosphate (LiFePO4) batteries.

Q6: How can I get a detailed quotation?

A: Please contact our online staff directly through the website, and they will promptly provide you with a detailed quotation.
