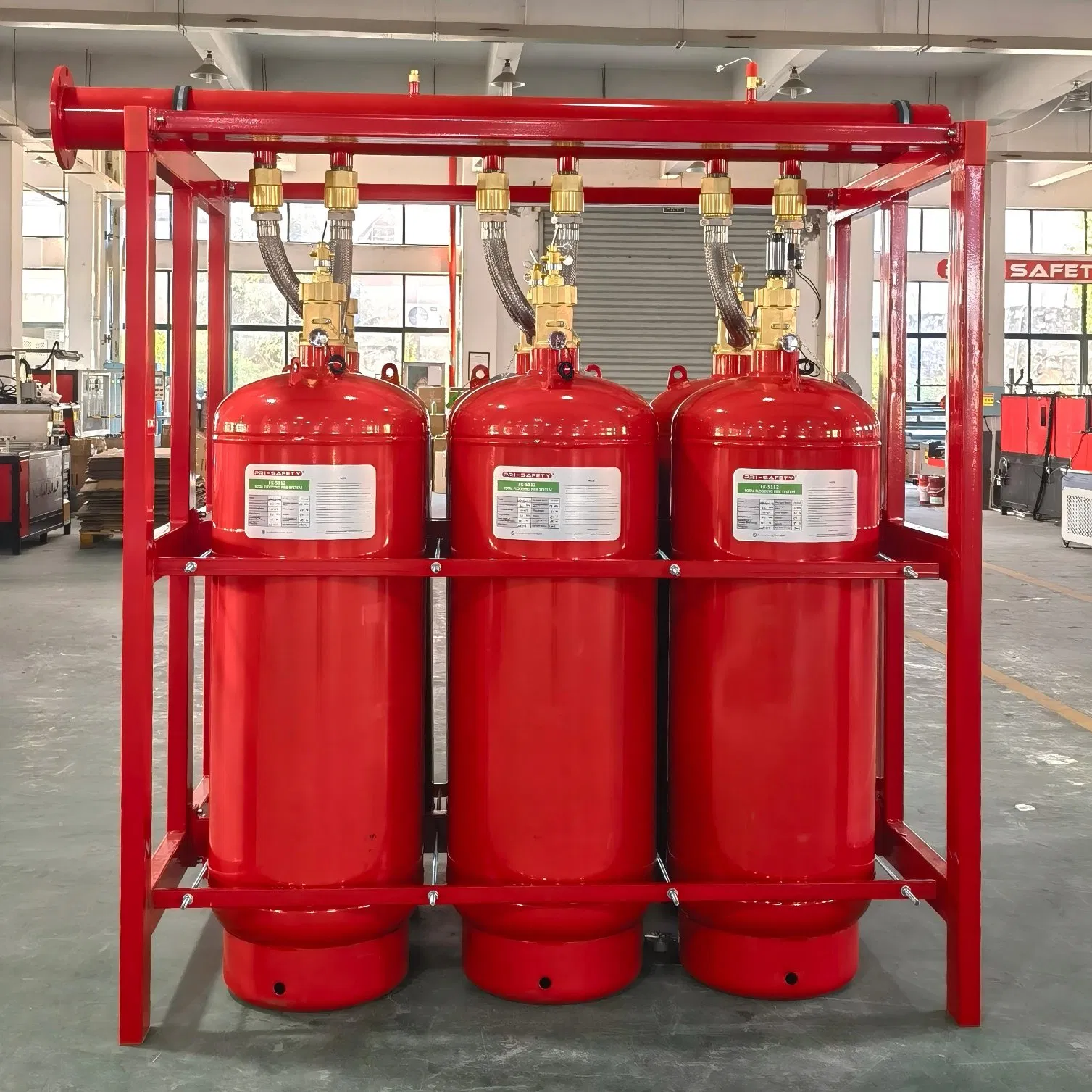

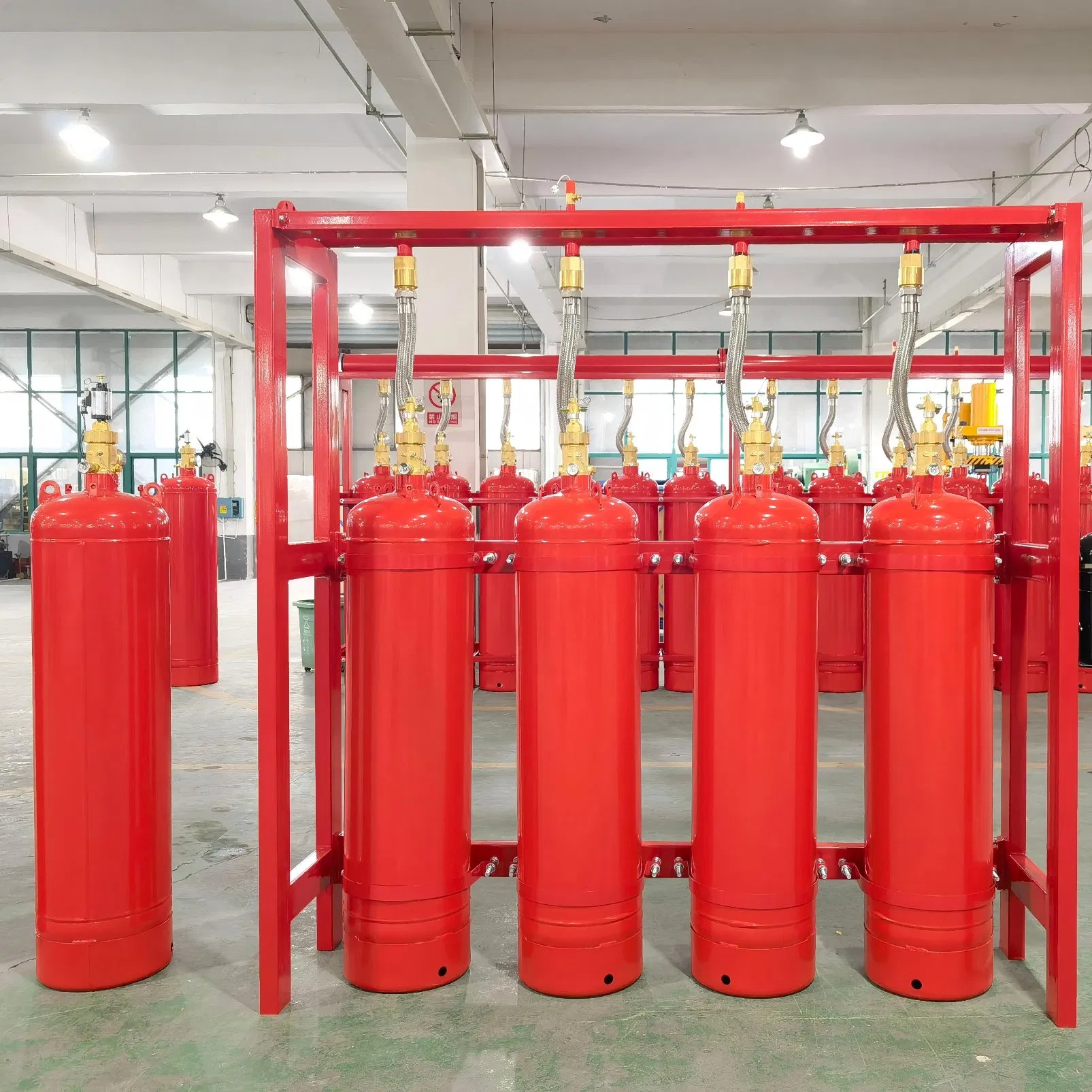

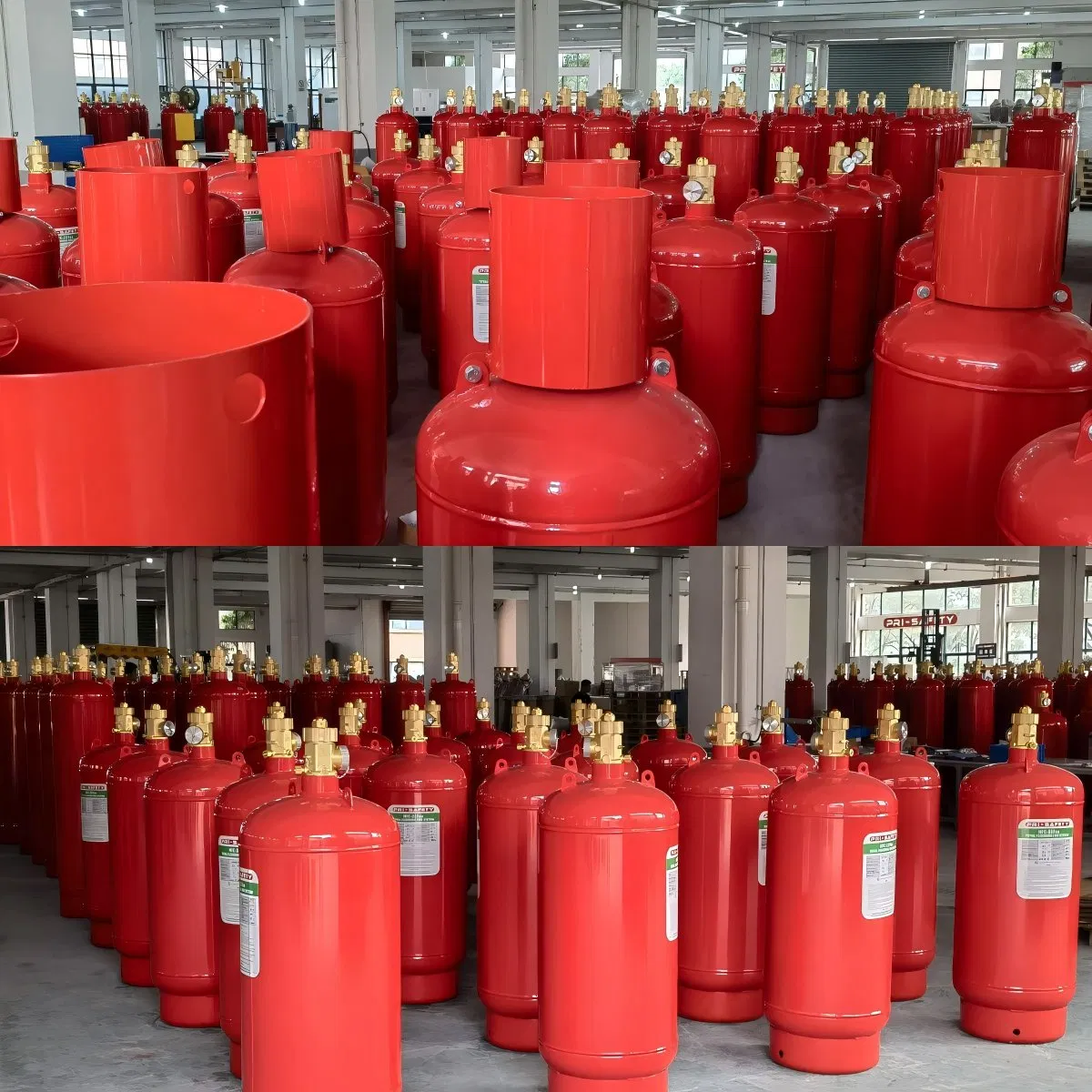

FK-5112 Novec 1230 Clean Agent Total Flooding Fire System

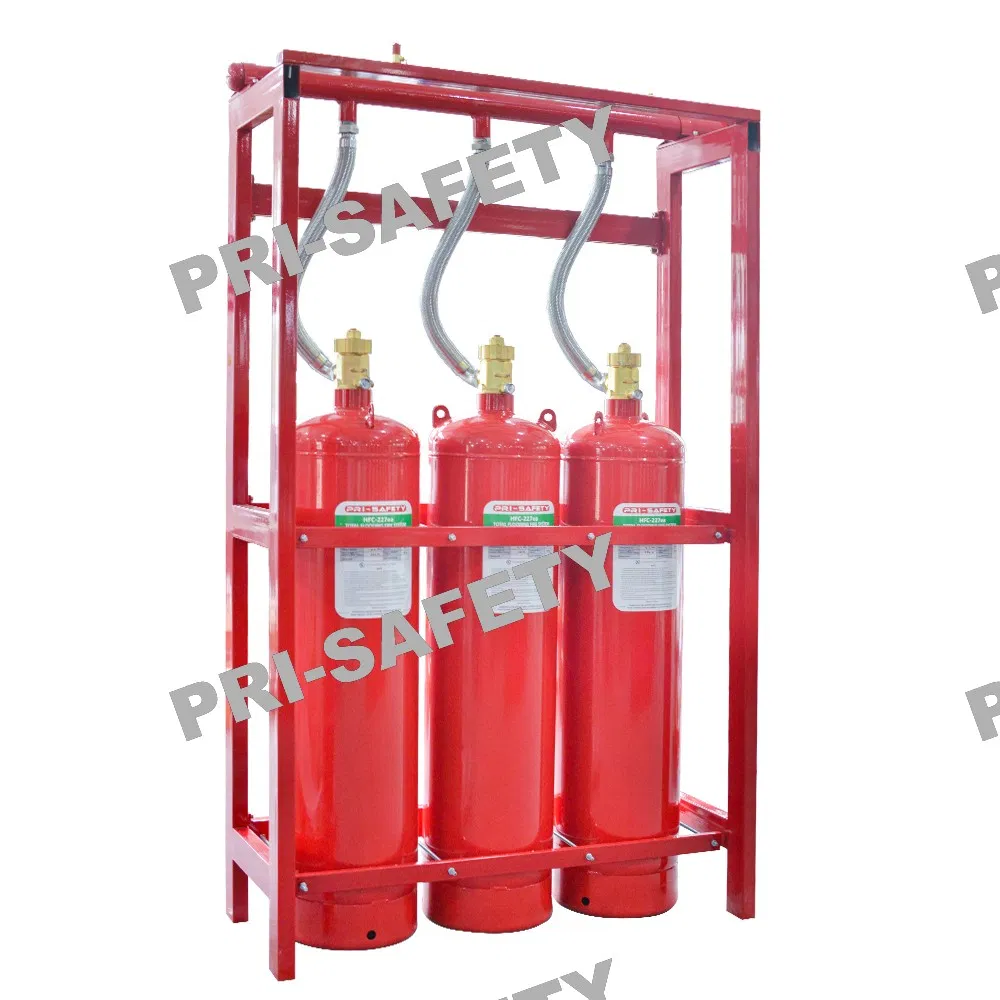

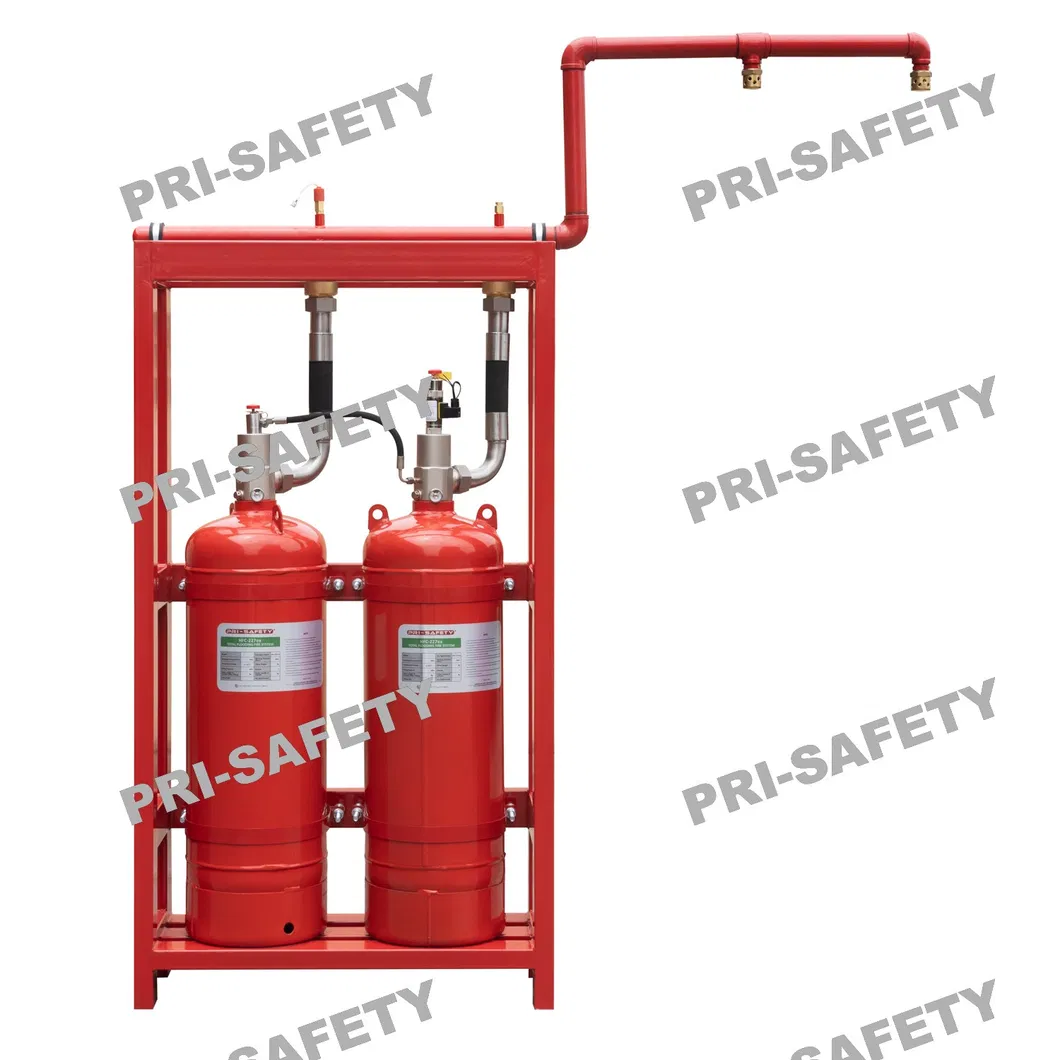

FK-5-1-12 refers to an advanced automatic fire extinguishing equipment control system. Designed in cabinet and pipe network configurations, it can be customized as single-bottle or multi-bottle groups for various applications.
When set to "auto" mode, the system monitors the protected area using temperature and smoke detectors. Upon fire detection, it initiates a logic analysis, triggers sound and light alarms, closes linked devices, and releases the extinguishing agent after a brief delay to suppress the fire rapidly.

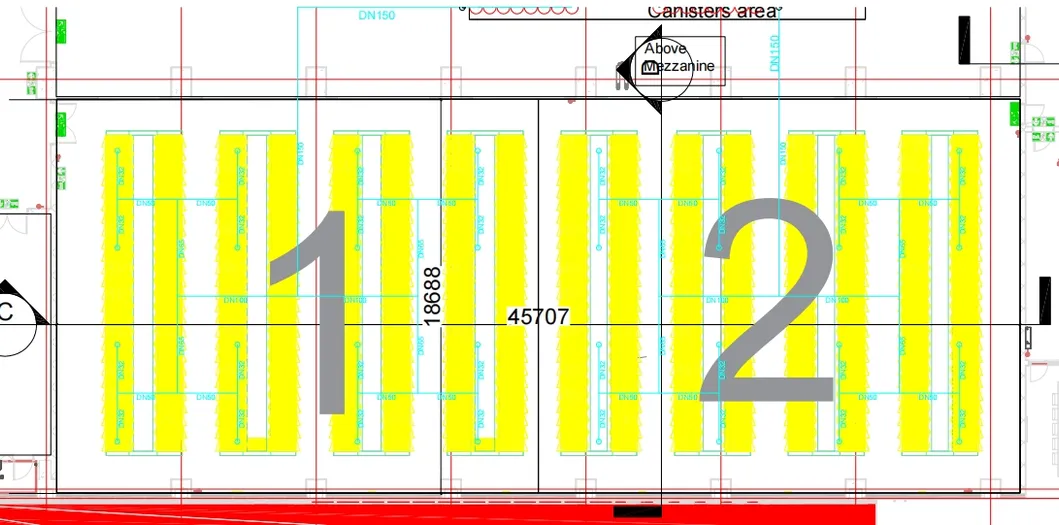

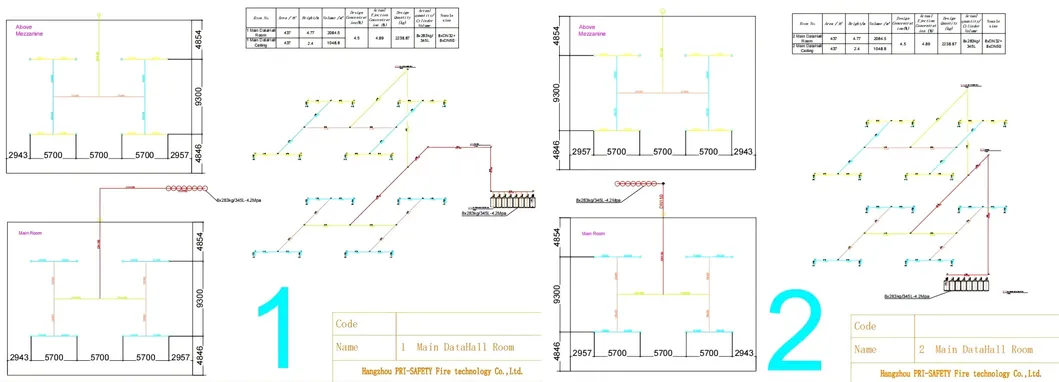

We provide one-stop fire suppression solutions based on NFPA standards. Our engineers provide piping layout, cylinder capacity calculations, and CAD drawings tailored to your project requirements.
| Specification | Technical Parameter | |
|---|---|---|
| Filling Pressure | 4.2Mpa | 5.6Mpa |
| Protective Scale (Single Zone) | Area: max 800m² | Volume: max 3600m³ | |
| Spraying Time | ≤ 10 seconds | |
| Power Source | DC24V / 1.6A | |
| Max Working Pressure | 5.6Mpa | 8.0Mpa |
| Available Capacities (L) | 16 / 32 / 40 / 70 / 90 / 120 / 150 / 250 / 350 / 500 L | |
The FK5112 Total Flooding System is ideal for environments where water-based suppression could damage sensitive equipment. Key applications include:
