FK-5112 Novec 1230 Clean Agent Total Flooding Fire System

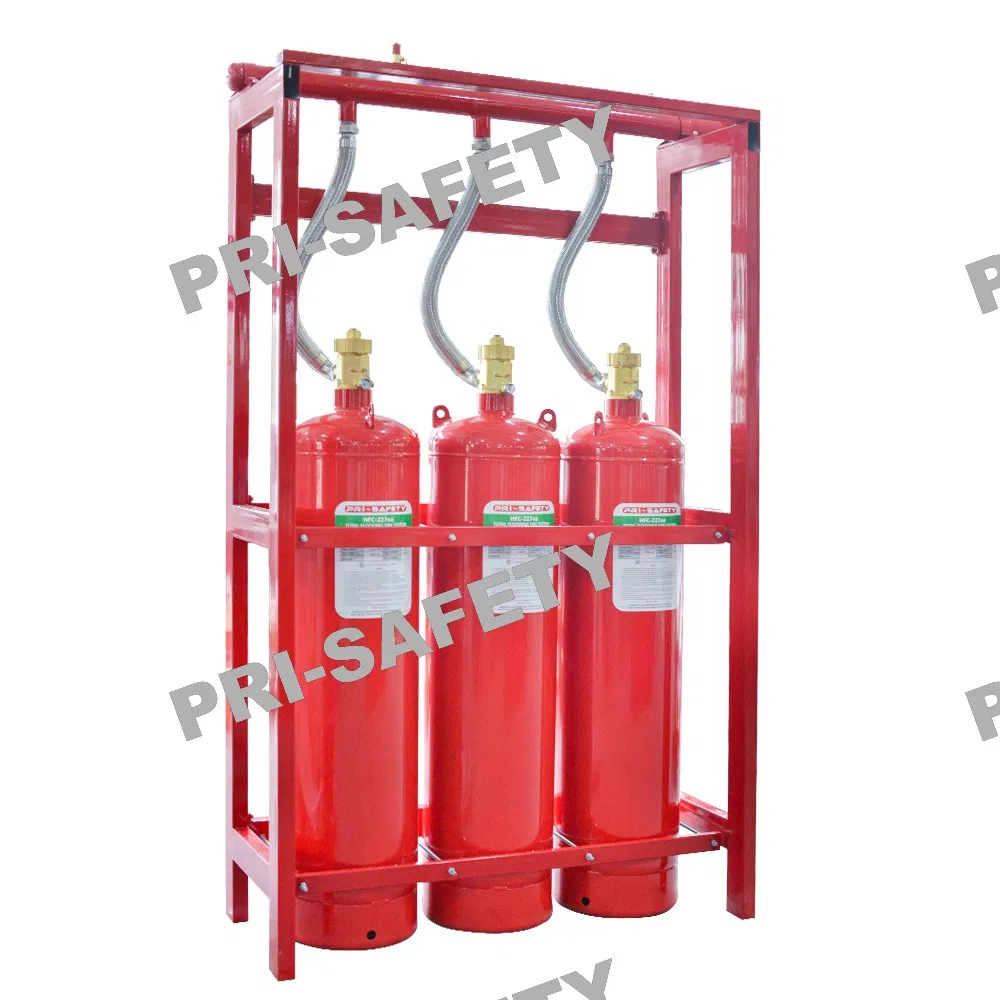

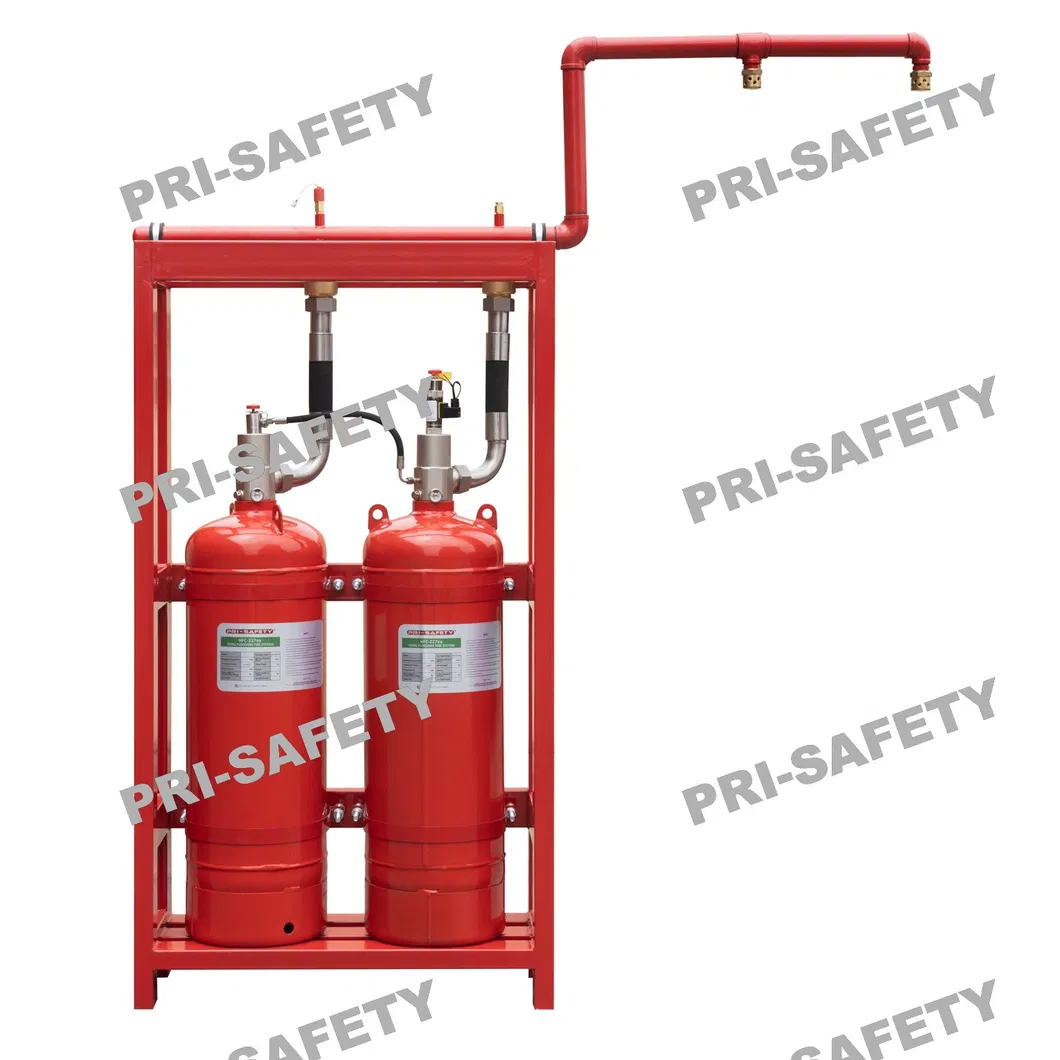

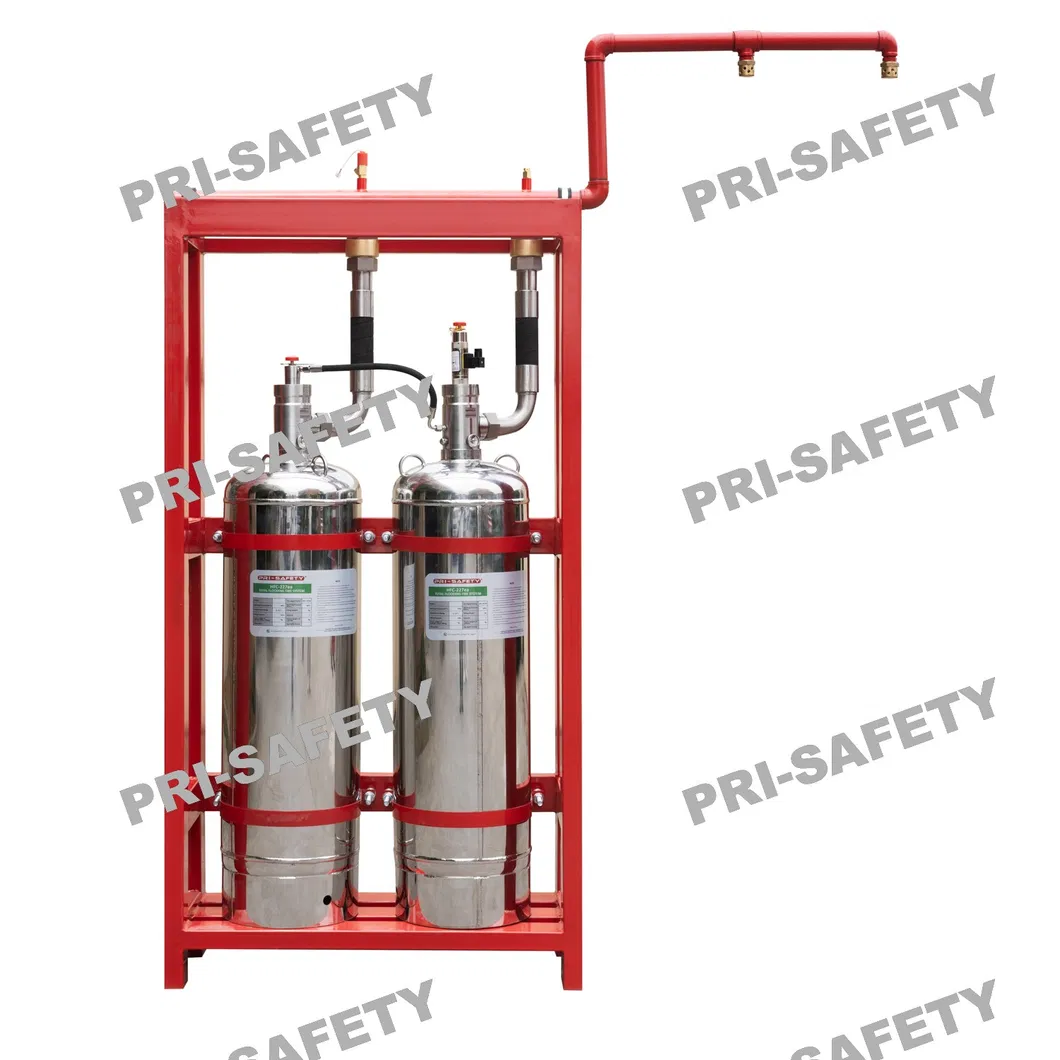

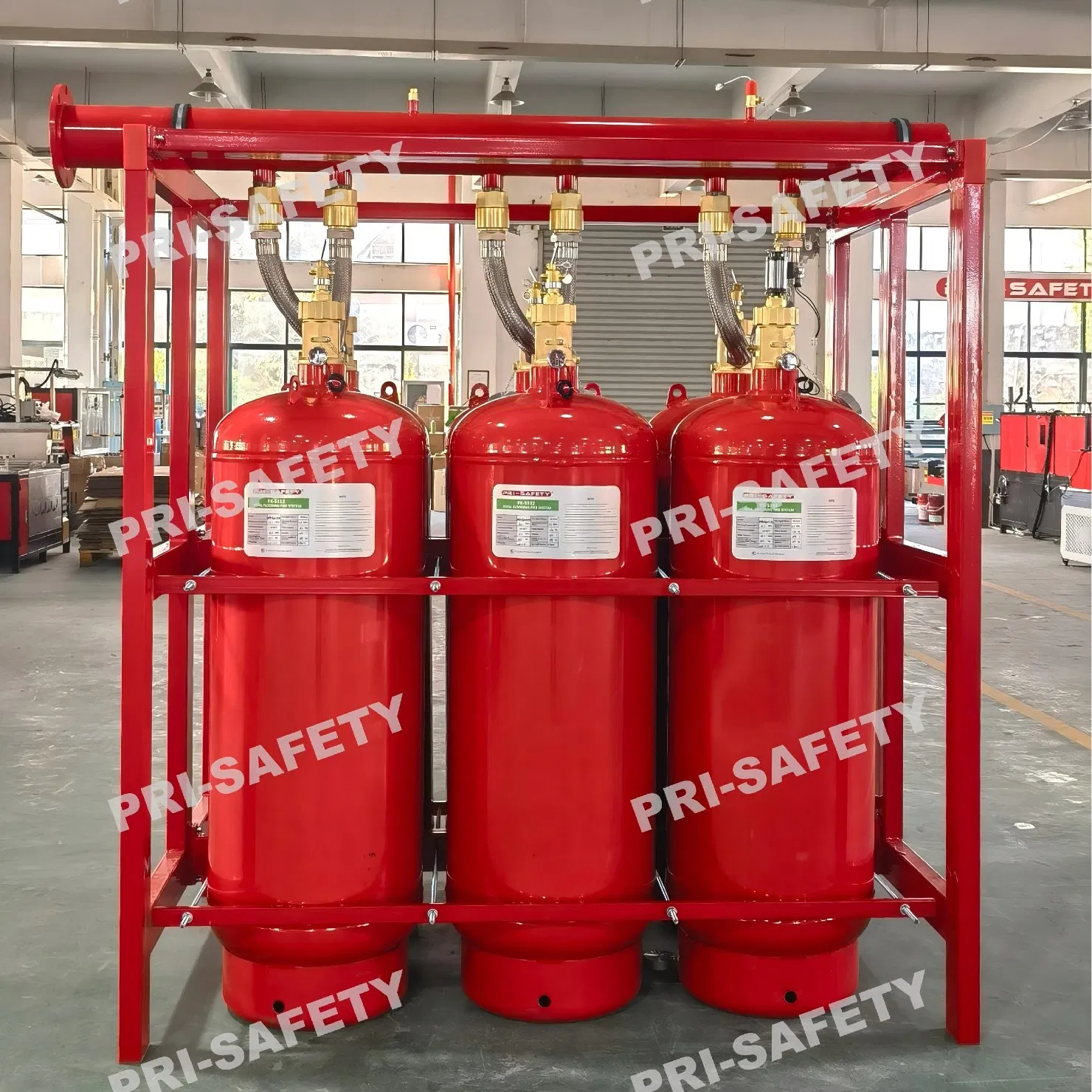

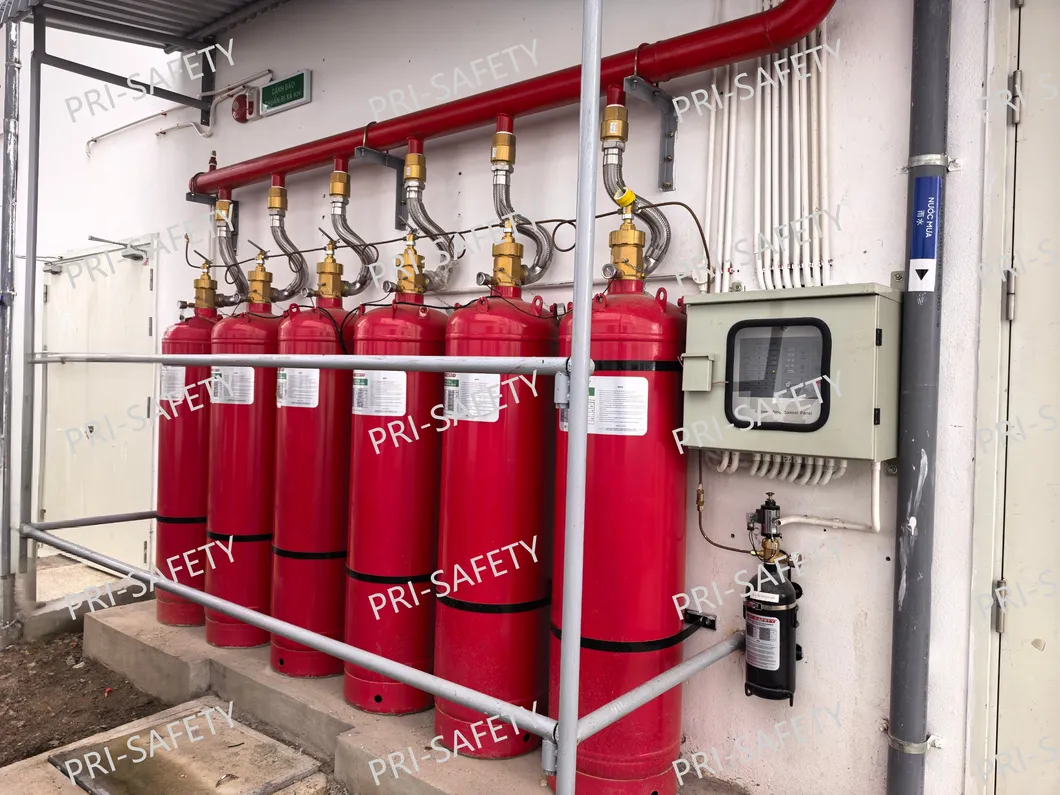

FK-5-1-12 refers to the main extinguishing agent used in our automatic fire suppression equipment. We offer two primary designs: cabinet-style and pipe network configurations. These can be configured as single-bottle or multi-bottle groups of various sizes to suit different installation requirements.

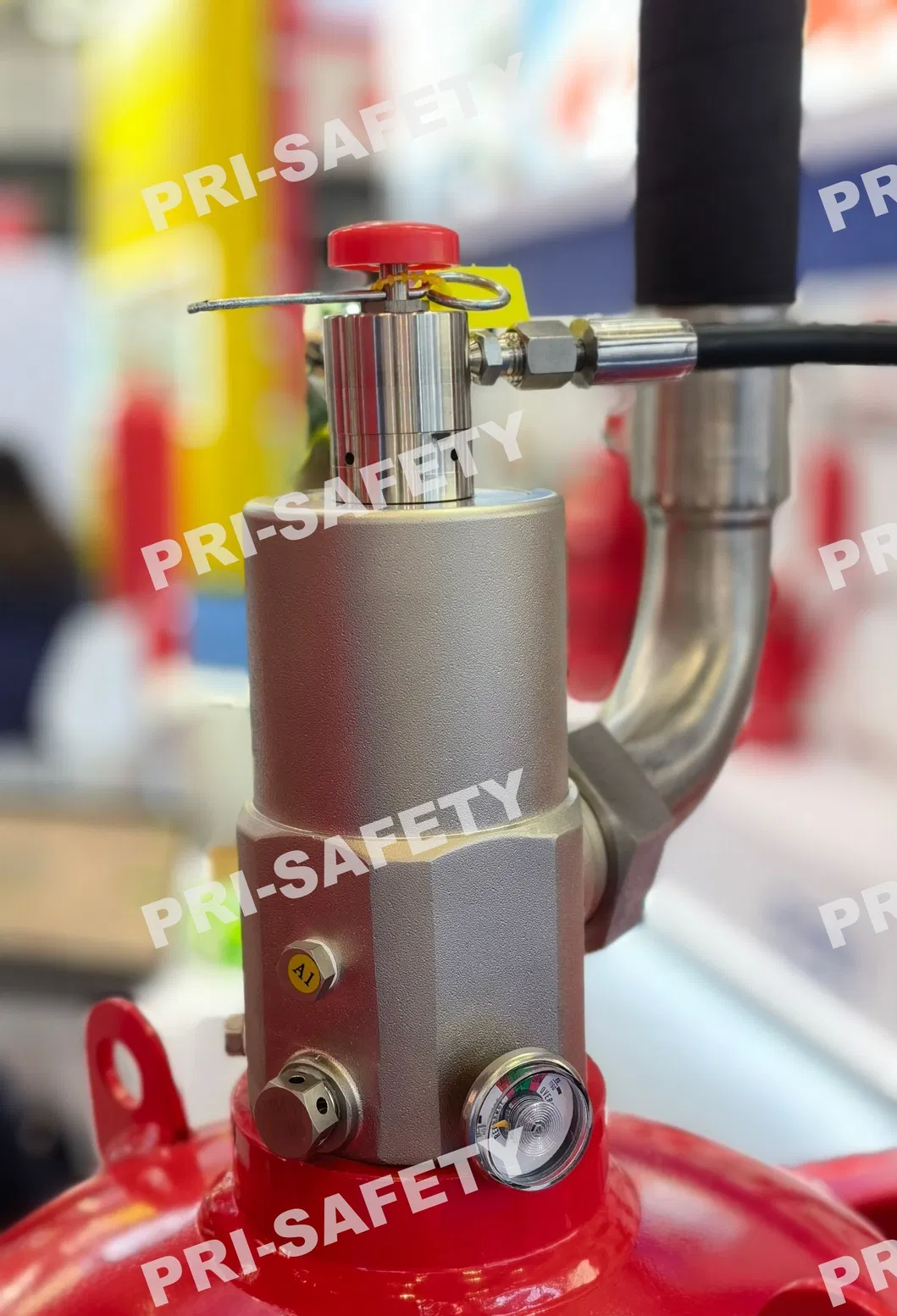

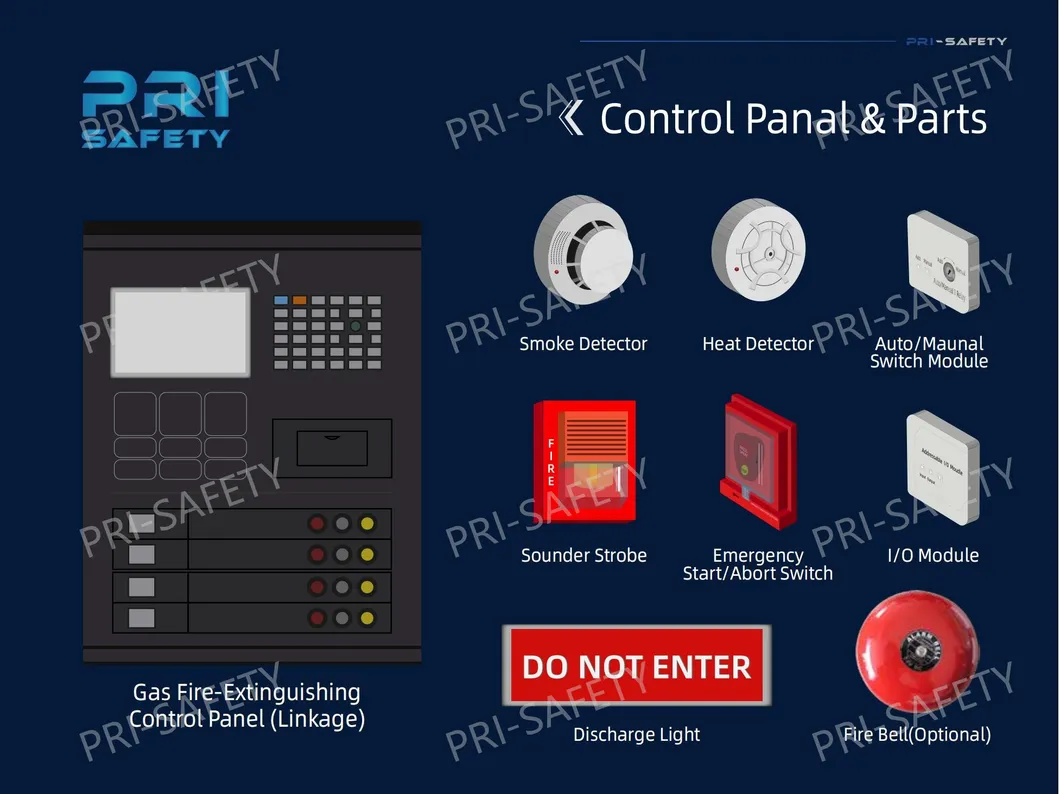

Operation Logic: When set to "auto" mode, the system monitors the protected area using temperature and smoke detectors. Upon fire detection, the controller triggers a sound and light alarm while simultaneously activating linkage devices to seal the area. Following a safety delay, the starting gas is released to open the container valves, discharging the extinguishing agent to suppress the fire quickly.
Specifications are customized one-to-one according to the specific scene, height, and site dimensions.
| No. | Specification | Technical Parameter |
|---|---|---|
| 1 | Filling Pressure | 4.2Mpa / 5.6Mpa |
| 2 | Max Protective Volume | Single-zone up to 3600m³ |
| 3 | Spraying Time | ≤10s |
| 4 | Power Supply | DC24V / 1.6A |
| 5 | Working Temperature | -10°C to 50°C |

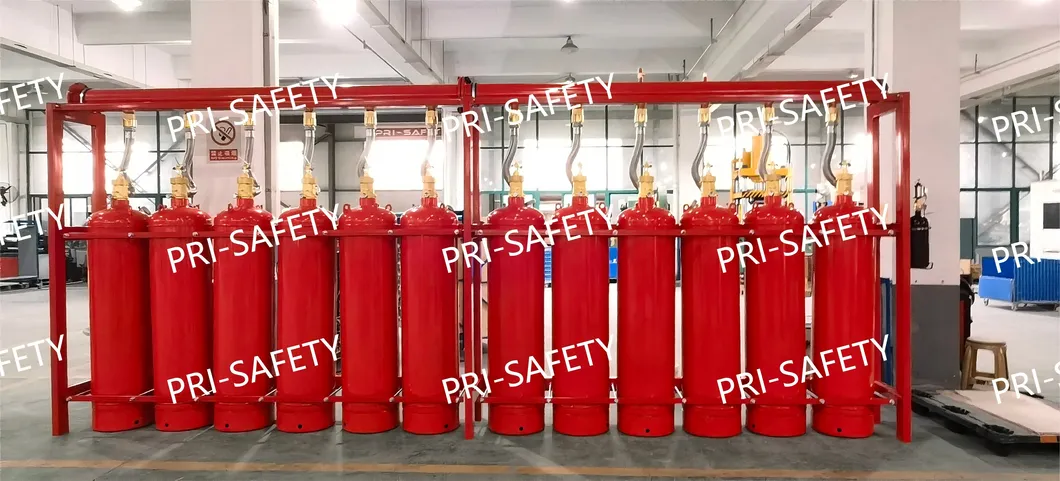

| 6 | Available Capacities | 16/32/40/70/100/120/150/250/500 L |
