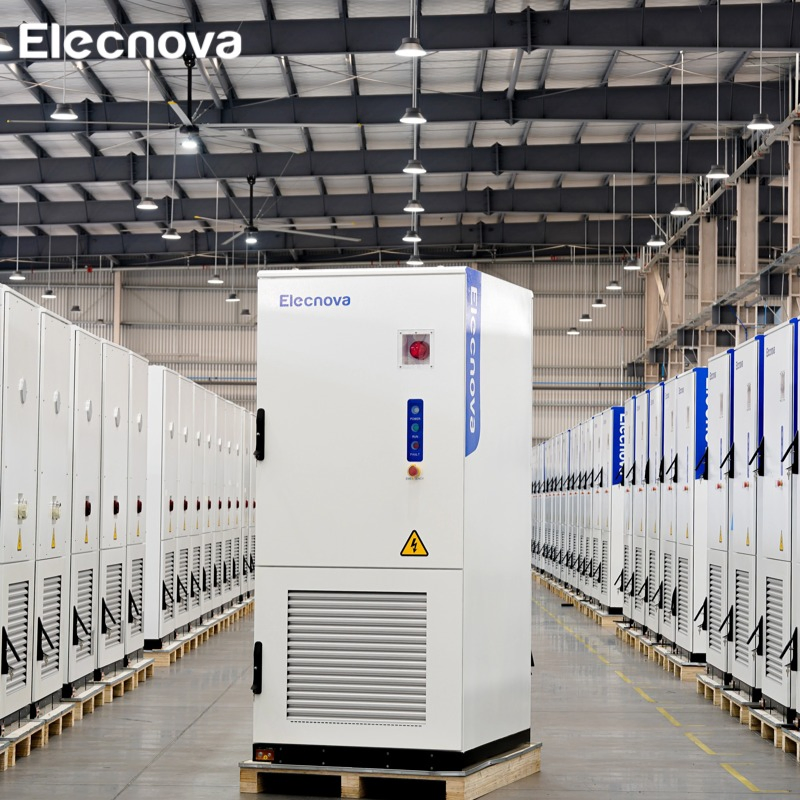

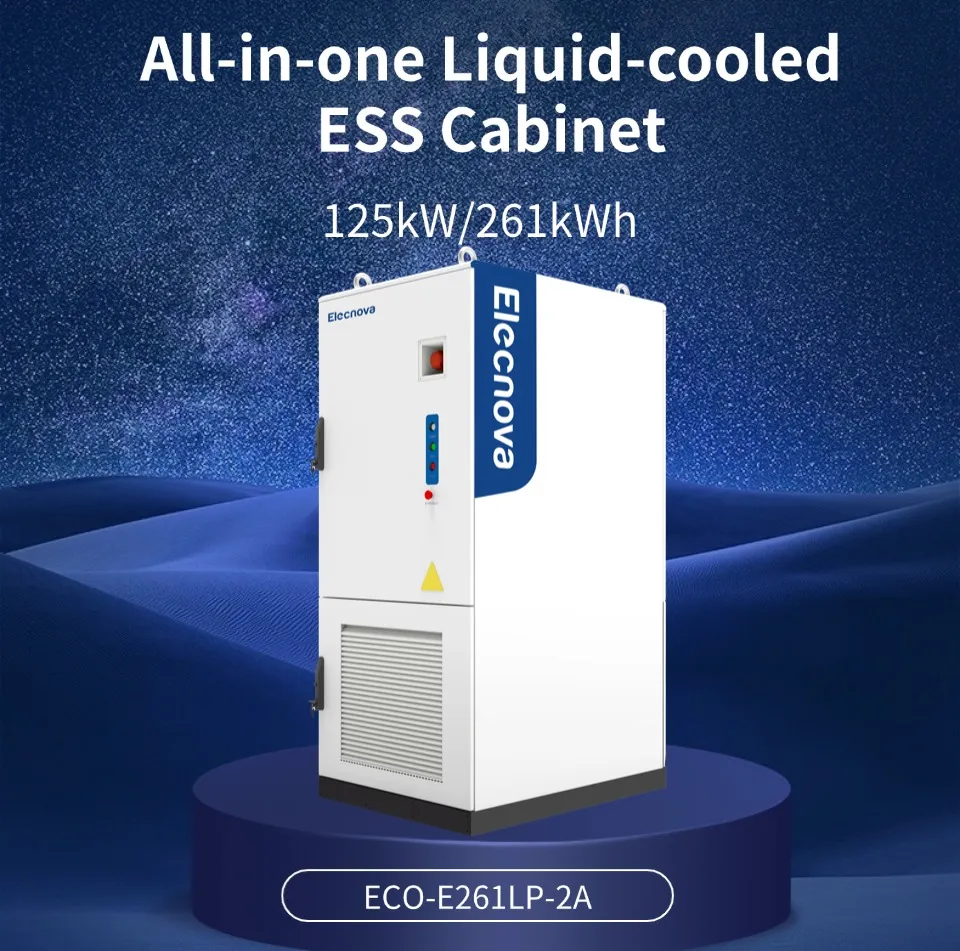

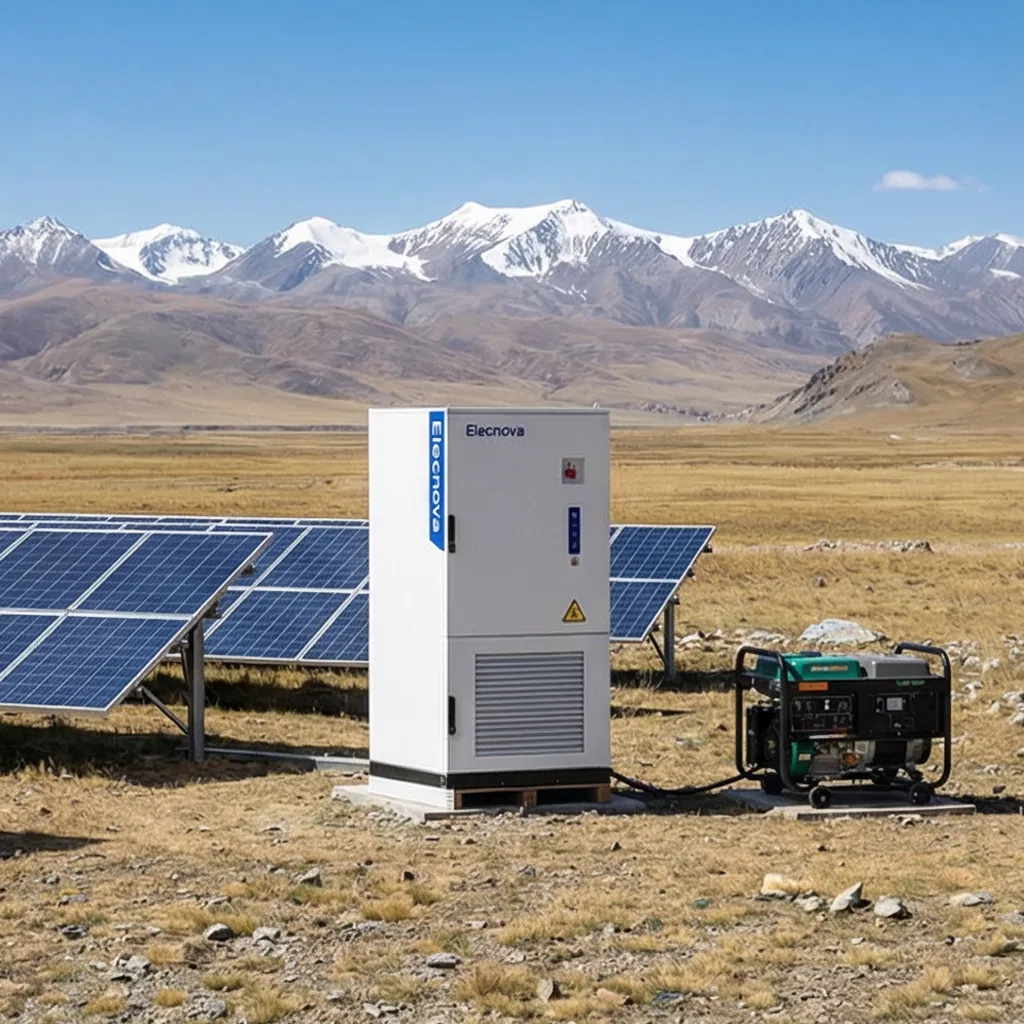

The system features advanced pack-level liquid cooling and temperature balancing, maintaining cell temperature differences within 3℃. This enhances cell temperature consistency and extends battery life. Its modular design enables flexible parallel configurations and higher energy density, significantly improving cost-effectiveness, safety, and installation convenience for industrial and commercial projects.

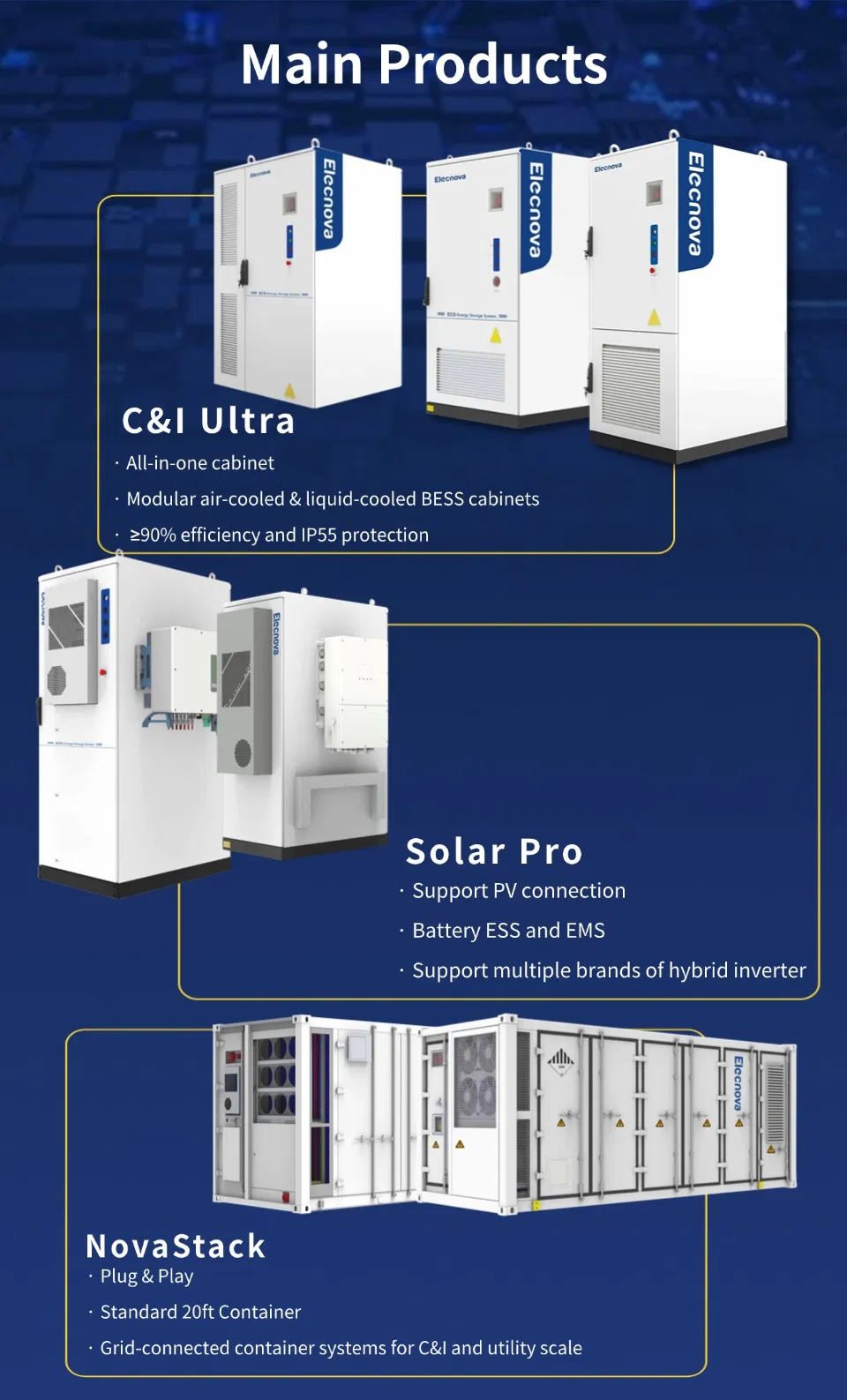

Our solutions cater to diverse energy storage demands with flagship product lines:

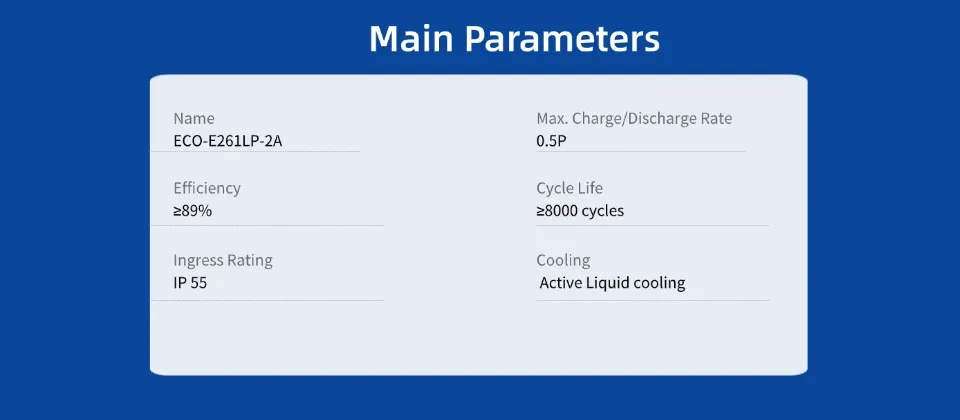

| DC Side Parameters | |
|---|---|
| Cell Type | LFP / 314 Ah |
| System Configuration | 261 kWh / 1P260S |
| Rated DC Voltage | 832 V |
| Max. Charge/Discharge Rate | 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2 ℃) |
| AC Side Parameters | |
| Rated Output Power | 125 kW |
| Rated AC Voltage | 400 V |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| THDi | ≤3% |
| General Data | |
| Cycle Life | ≥ 8,000 cycles |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Ingress Rating | IP55 |
| Dimensions (W*D*H) | 1,050*1,350*2,400 mm |
| Weight | 2,600 kg |

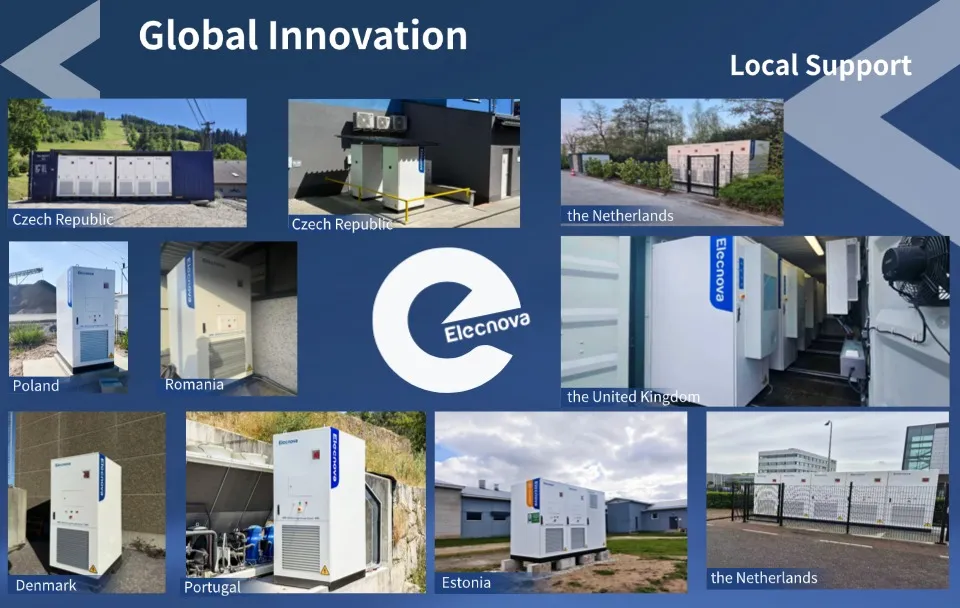

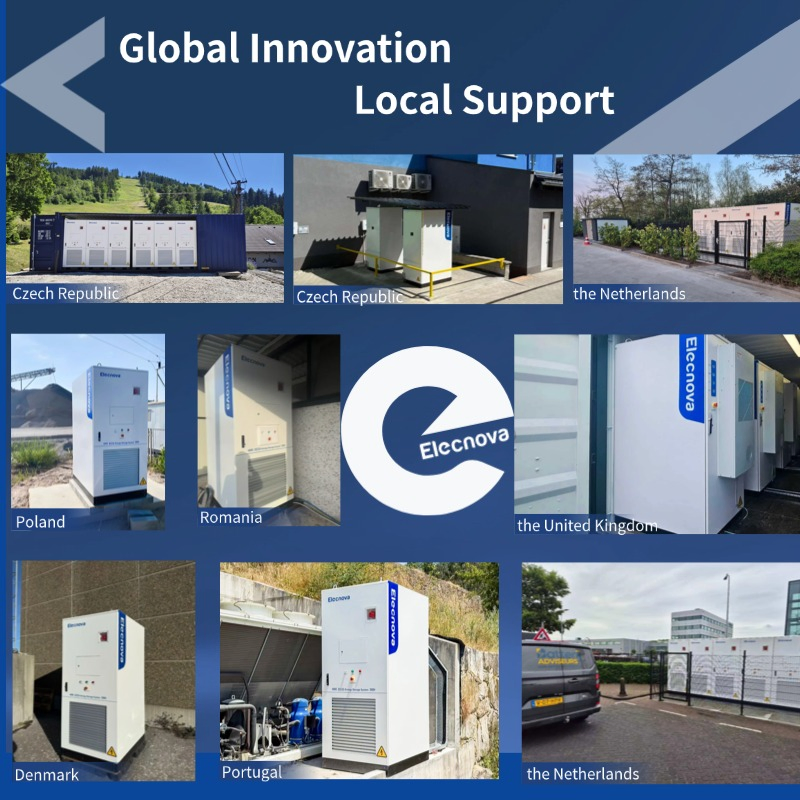

Trusted across continents including Italy, Netherlands, Belgium, Czech Republic, Poland, Ukraine, Southeast Asia, Africa, and the Middle East, our solutions empower energy security worldwide.
