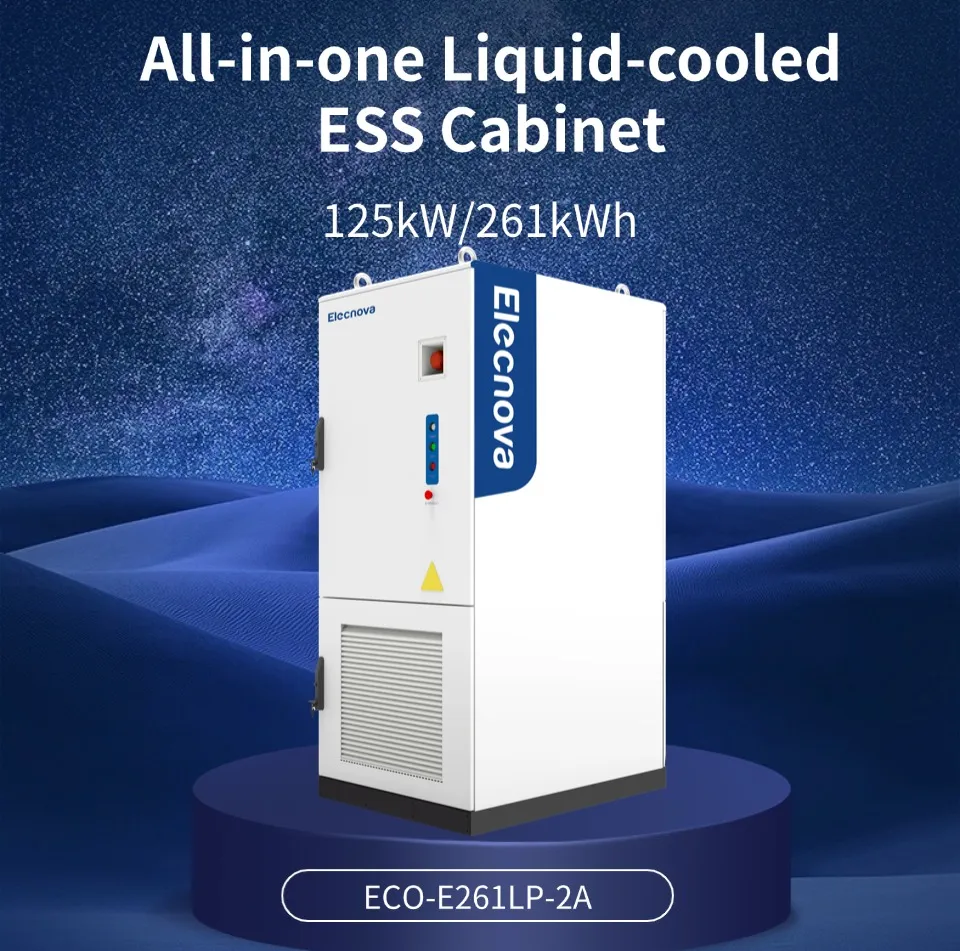

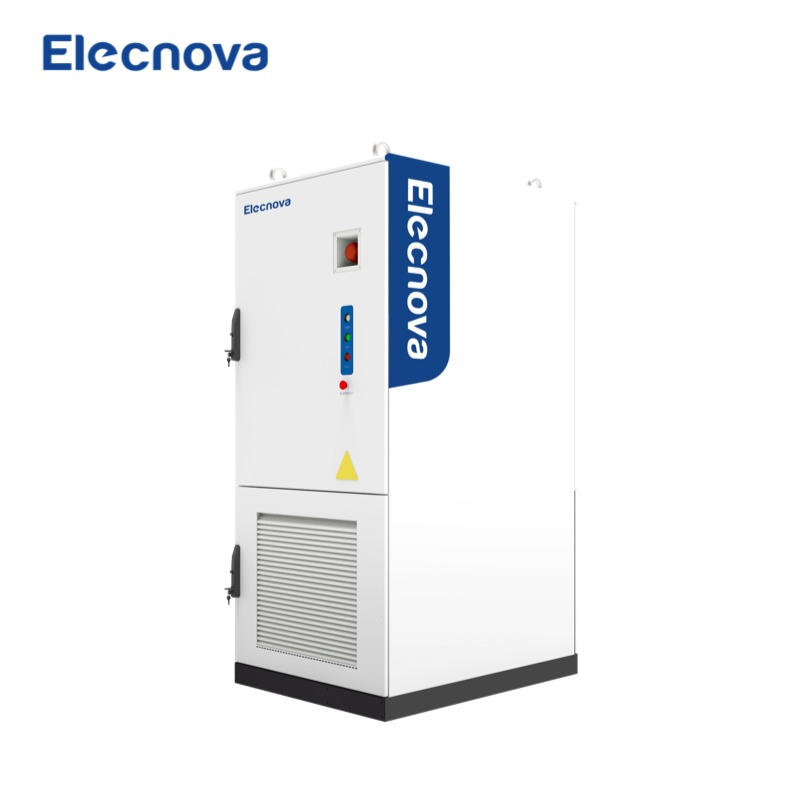

The ECO-E261LP-2A features advanced pack-level liquid cooling and temperature balancing, maintaining cell temperature differences within 3℃. This enhances cell temperature consistency and extends battery life.
| DC Side Parameters | |
|---|---|
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 52.2 kWh / 1P52S |
| System Configuration | 261 kWh / 1P260S |
| Rated DC Voltage | 832 V |
| Max. Charge/Discharge Rate | 0.5 P |
| AC Side Parameters | |
| Rated Output Power | 125 kW |
| Rated AC Voltage | 400 V |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| THDi | ≤3% |
| General Data | |
| Cycle Life | ≥ 8,000 cycles |
| Ingress Rating | IP55 |
| Cooling Method | Liquid cooling + Forced air cooling |
| Operating Temperature | -25℃~55℃ |
| Dimensions (W*D*H) | 1,050 * 1,350 * 2,400 mm |

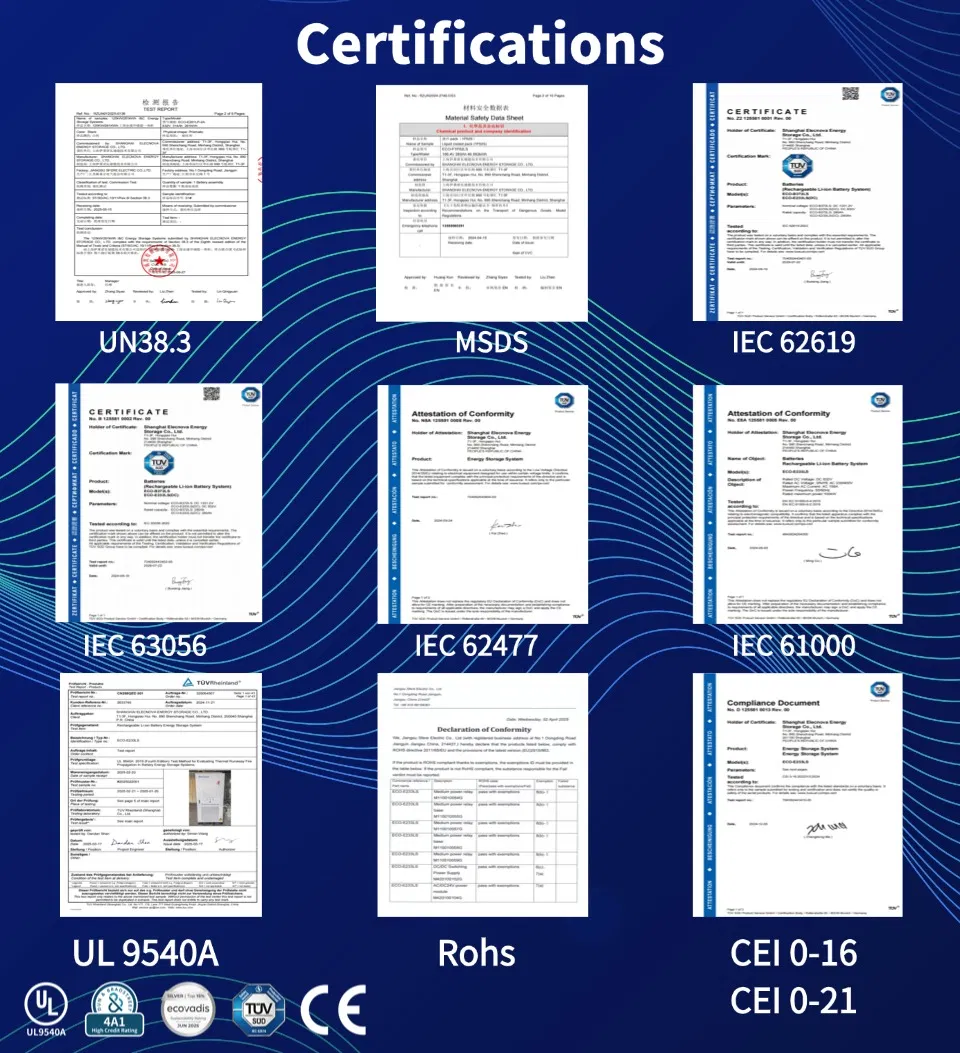

| Compliance | UN38.3, IEC62619, IEC63056, UL9540A |

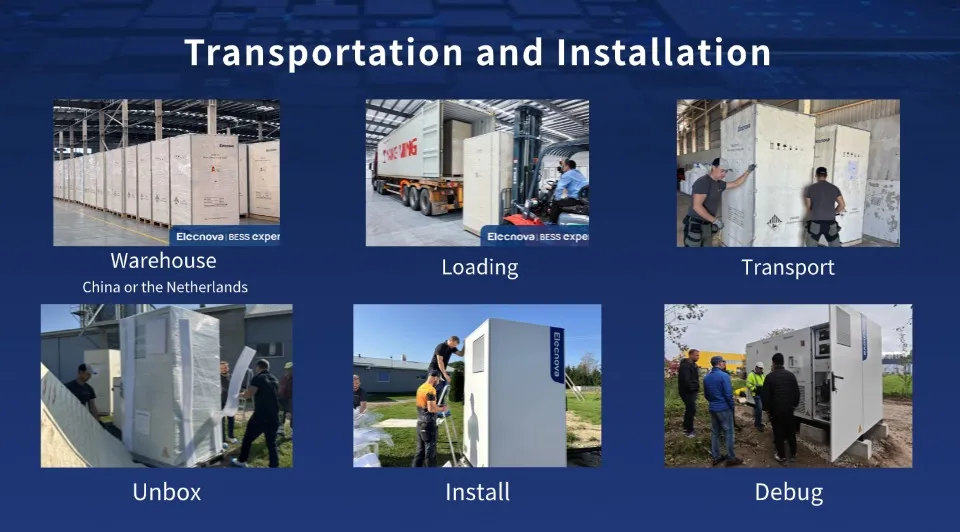

We provide a systematic and professional transportation & installation process:

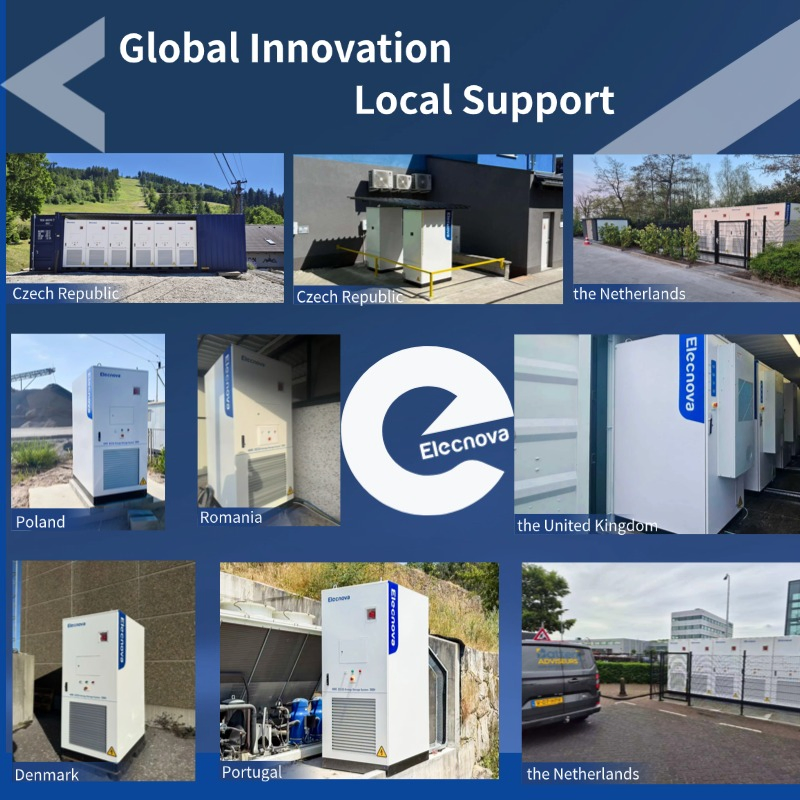

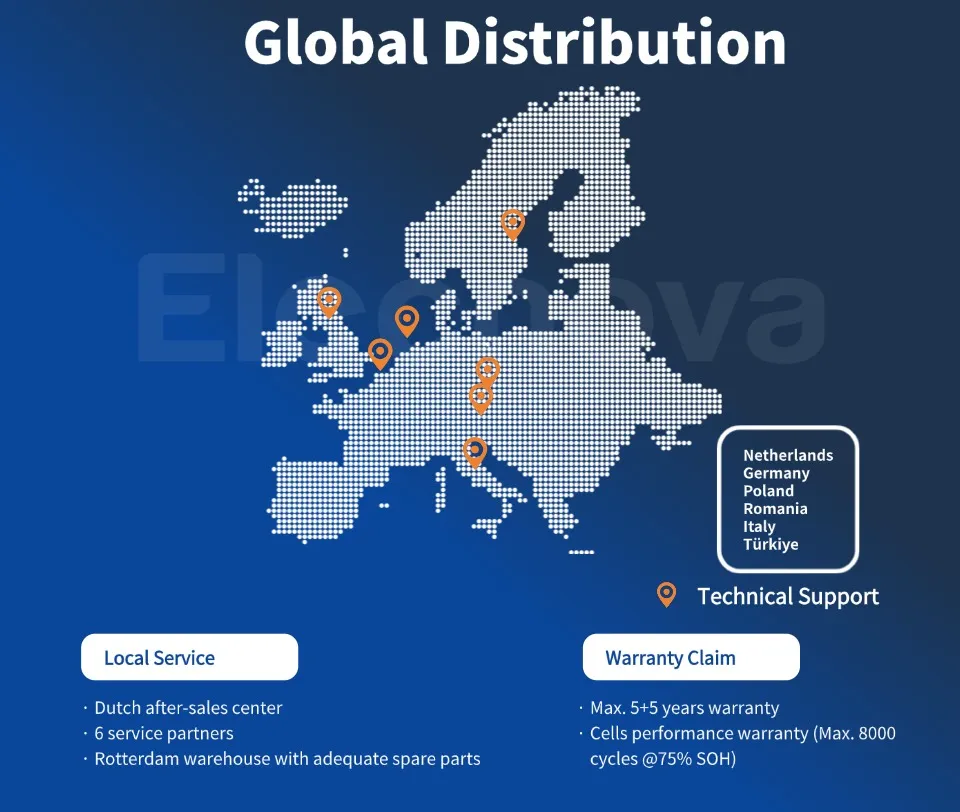

Industry-leading 5+5 years warranty and cells performance warranty of up to 8,000 cycles at 75% SOH. We provide localized support through our European service centers, offering technical guidance, maintenance training, and rapid spare parts dispatch.
▶
With 28 years of industry experience, we are a leading player in the energy storage sector. We dedicate 10% of our revenue to R&D, ensuring continuous technological advancement. Our commitment to ESG standards is reflected in our enterprise ratings and global engagement at major international exhibitions like Intersolar Europe and SNEC Shanghai.
