| Model NO. | HT20FT-500kW/1MWh-EC |
| Nominal Voltage | 220/400/480V 3phase |
| Warranty | 5 years |
| Nominal Capacity | 250kwh, 500kwh, 1mwh, 2mwh |
| Cycle Life | >6000 cycles |

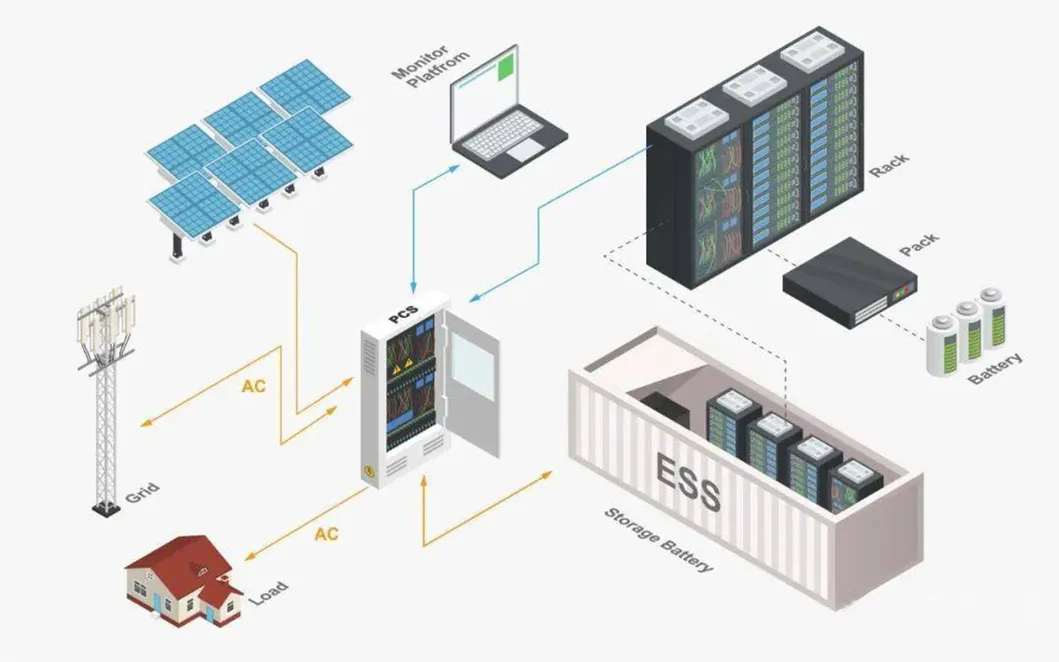

| System Application | Ess Solar Storage Container |
| Battery Type | LiFePO4 / Lithium Battery / Gel Battery |

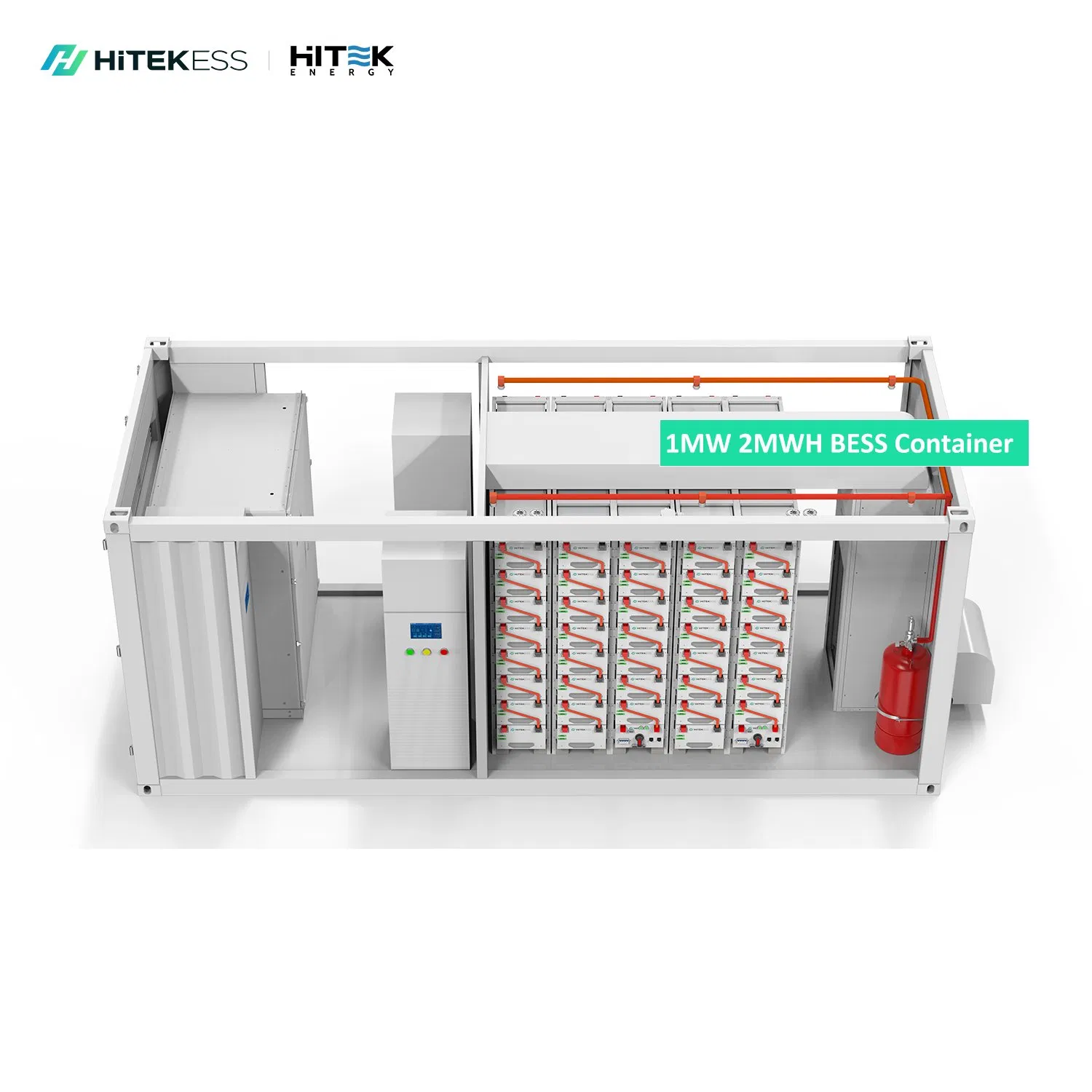

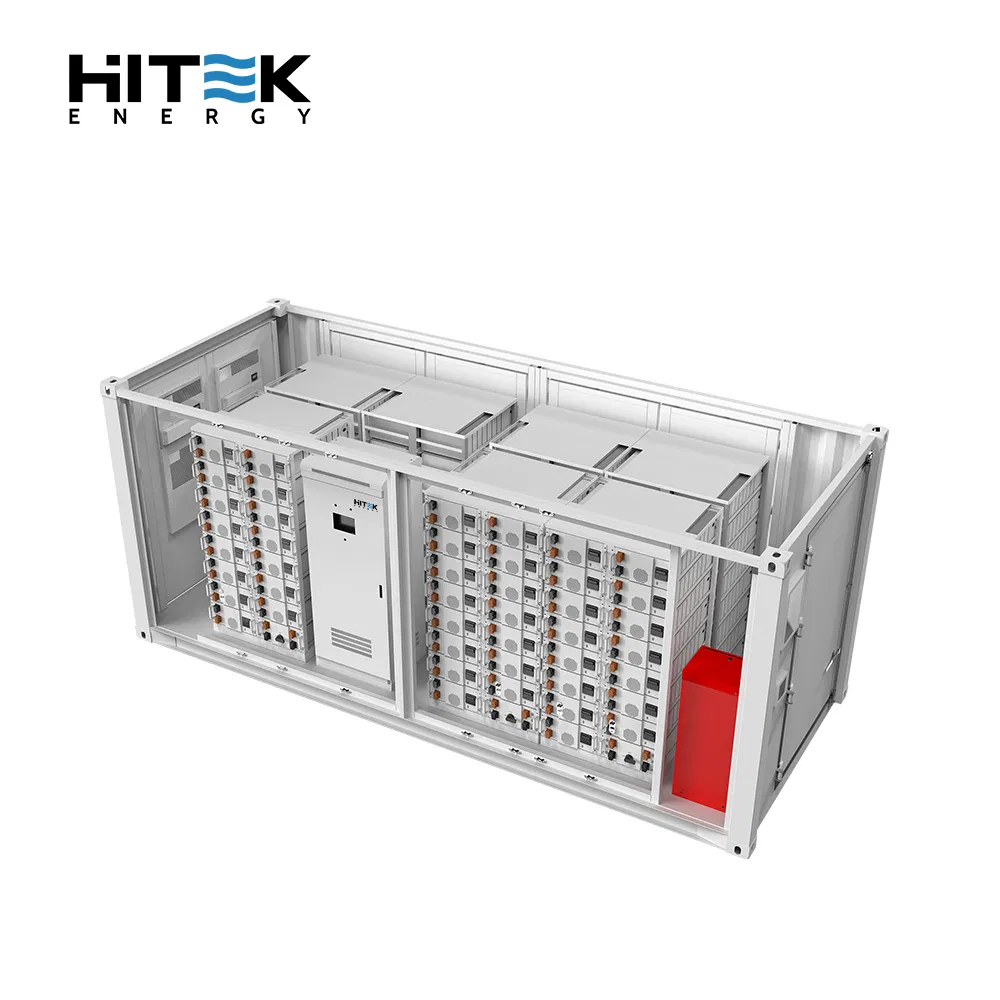

| 20FT Container | Outdoor Installation, IP54 |

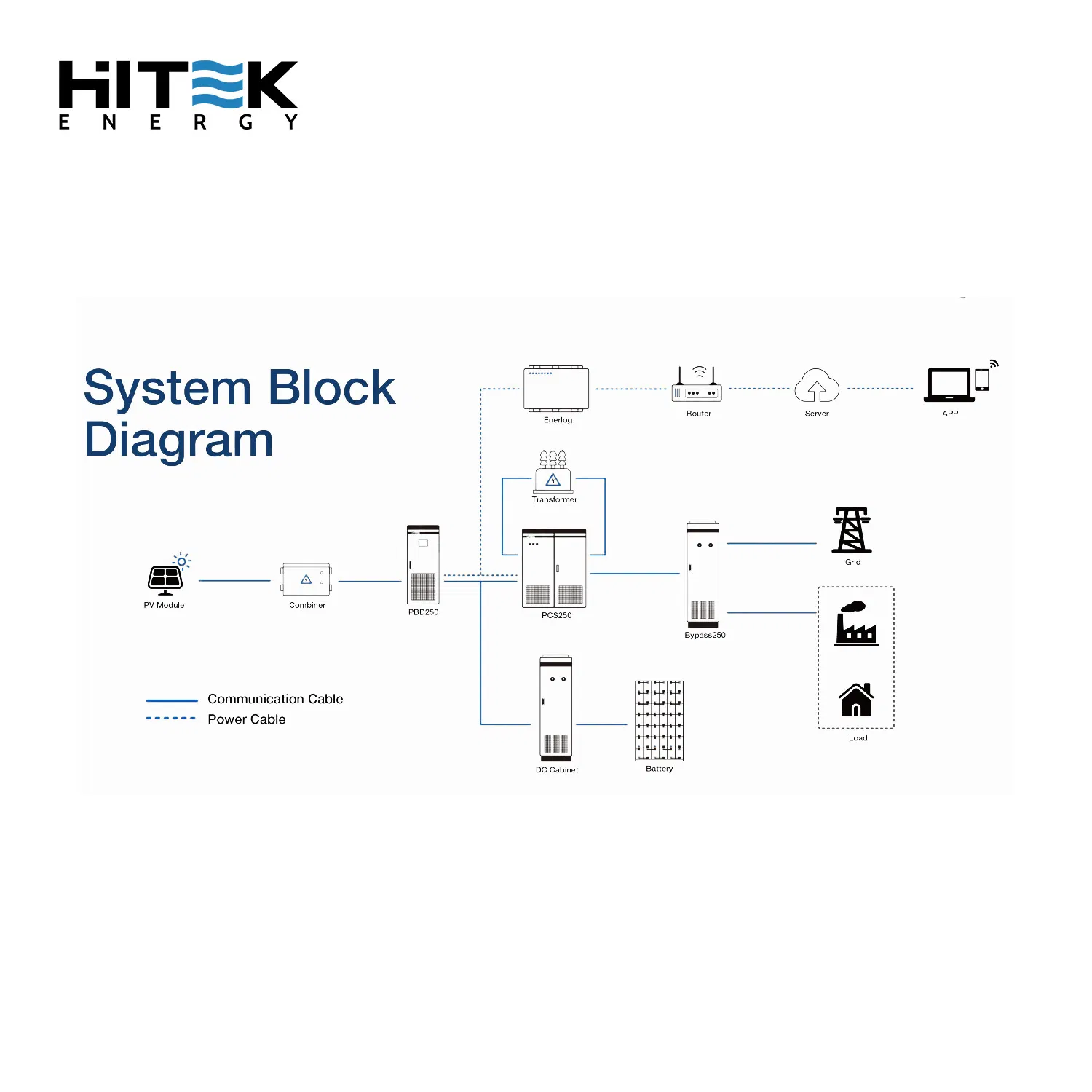

| Item | Description | Quantity (pcs) | Remarks |
|---|---|---|---|
| PV Solar Panel | HT560M-72H | 480 | Total of 268.8kWp |

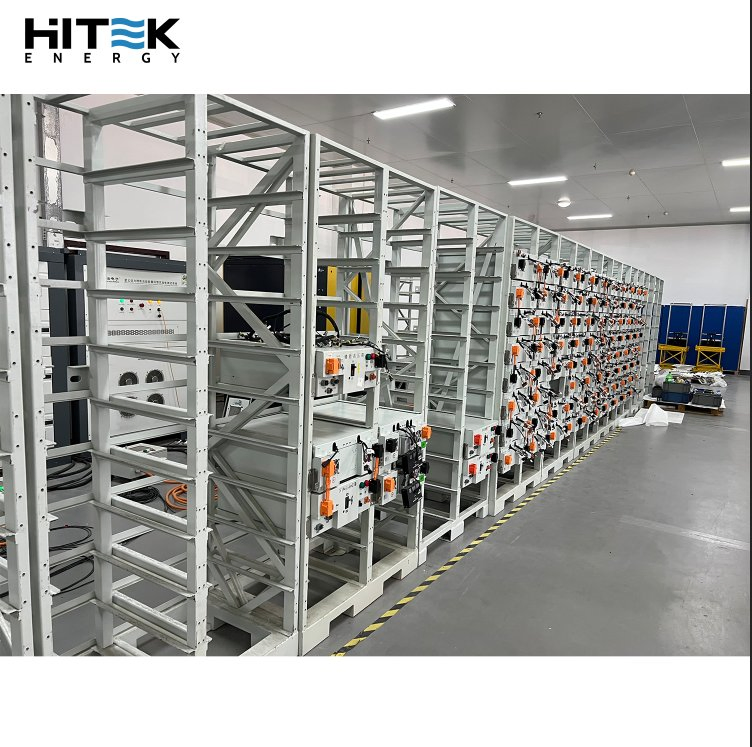

| Battery Rack | 280Ah Lithium Module | 60 | 51.2V 280AH (14.3kWh per unit) |
| Combiner Box | 1500V-1500A | 1 | For multiple battery racks |
| PCS250 | Battery Inverter | 1 | 250kW battery inverter |
| Bypass 250 | Switch Gear | 1 | Switch between on-grid and off-grid |

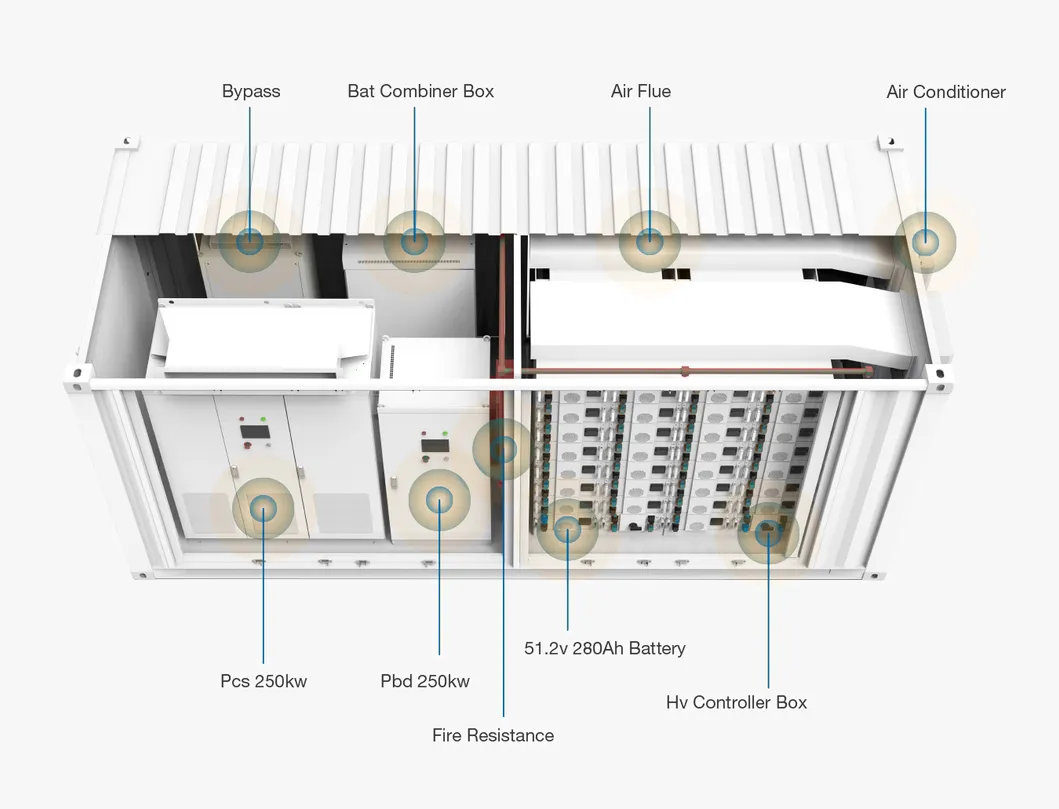

| 20FT Container | Outdoor IP54 | 1 | Includes lighting, fire system, AC |

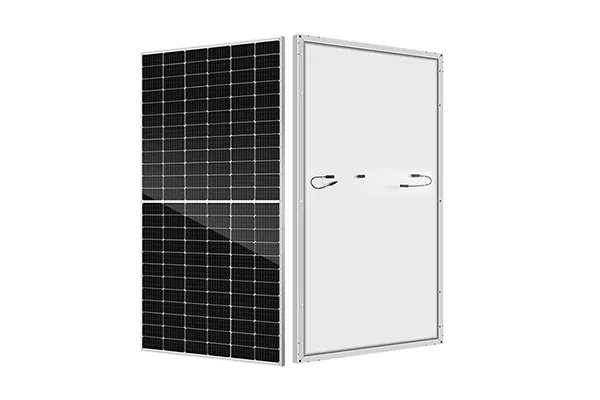

Peak Power: 560Wp
Open Circuit voltage (Voc): 49.84V
Short Circuit Current (Isc): 14.14A
Dimensions: 2279*1134*35mm

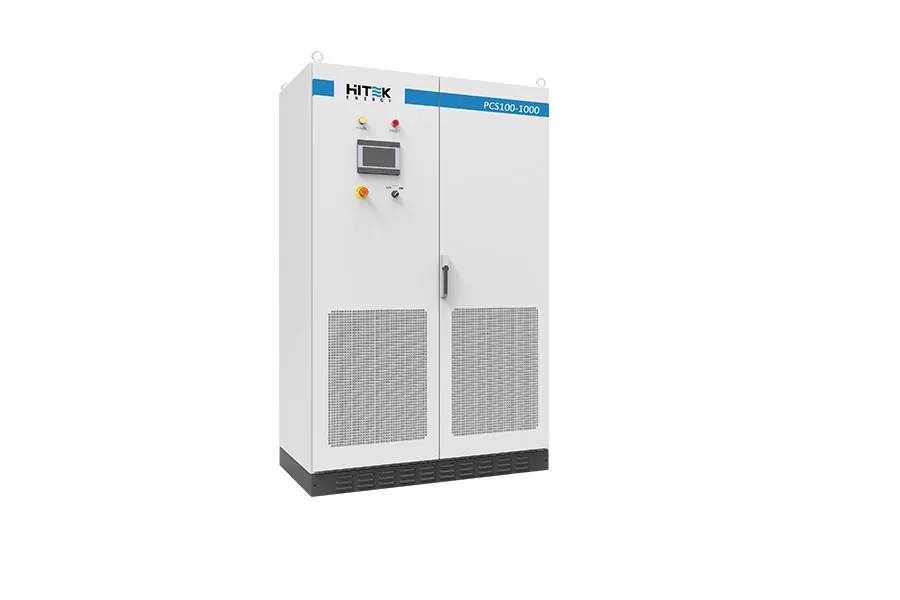

Bidirectional battery inverter, can be used alone or with solar chargers. Features include flexible configuration, programmable working modes, and touchscreen LCD control.

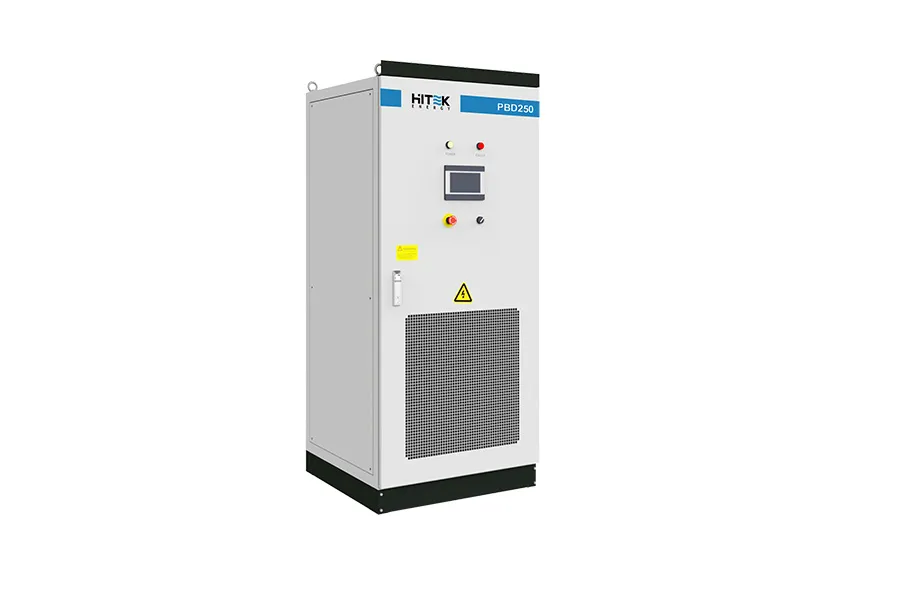

1000V DC to DC controller for large scale projects. Modular and transformerless design with up to 5 MPPT trackers.

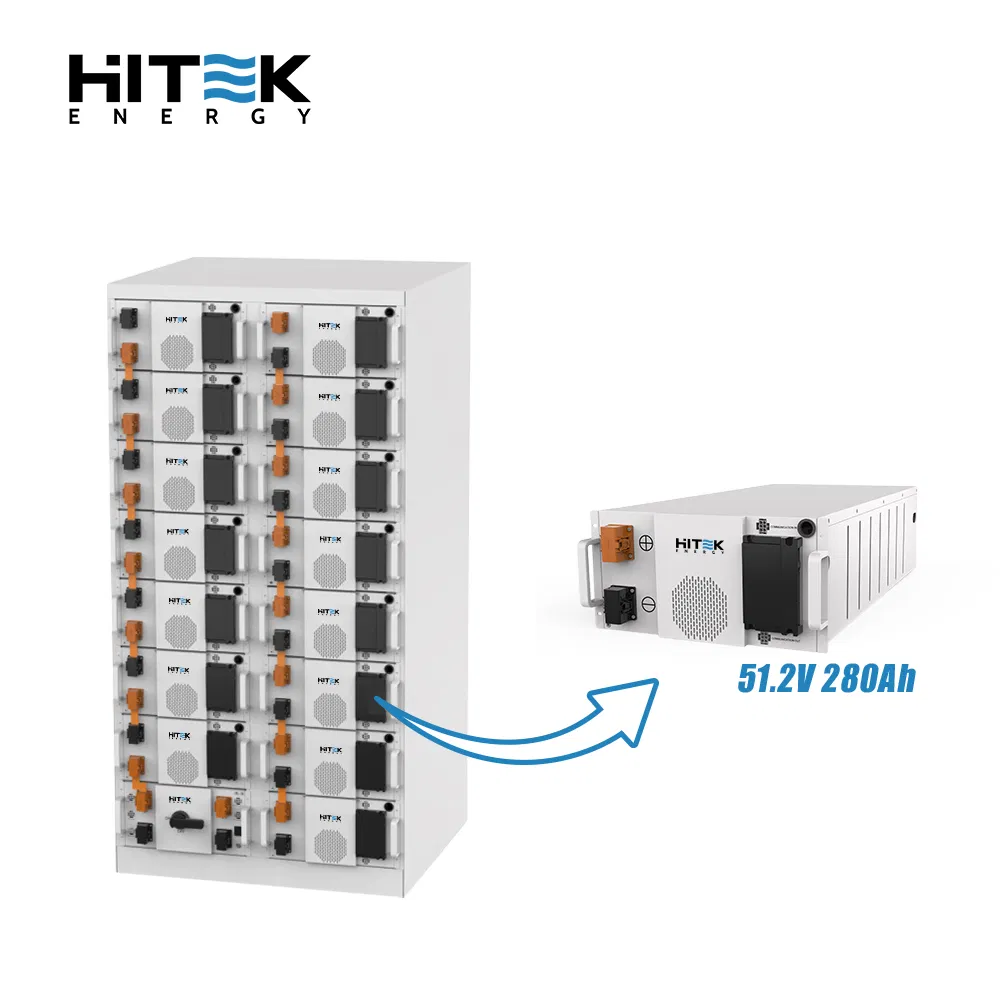

Standard module consisting of 60 single cells. Nominal voltage: 51.2V. High energy density and long cycle life for commercial storage.
Founded in 2018, as a superior photovoltaic manufacturer, the organization is dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to unique power requirements with reliable approved equipment.
Let's work together for a better, brighter and greener future.
