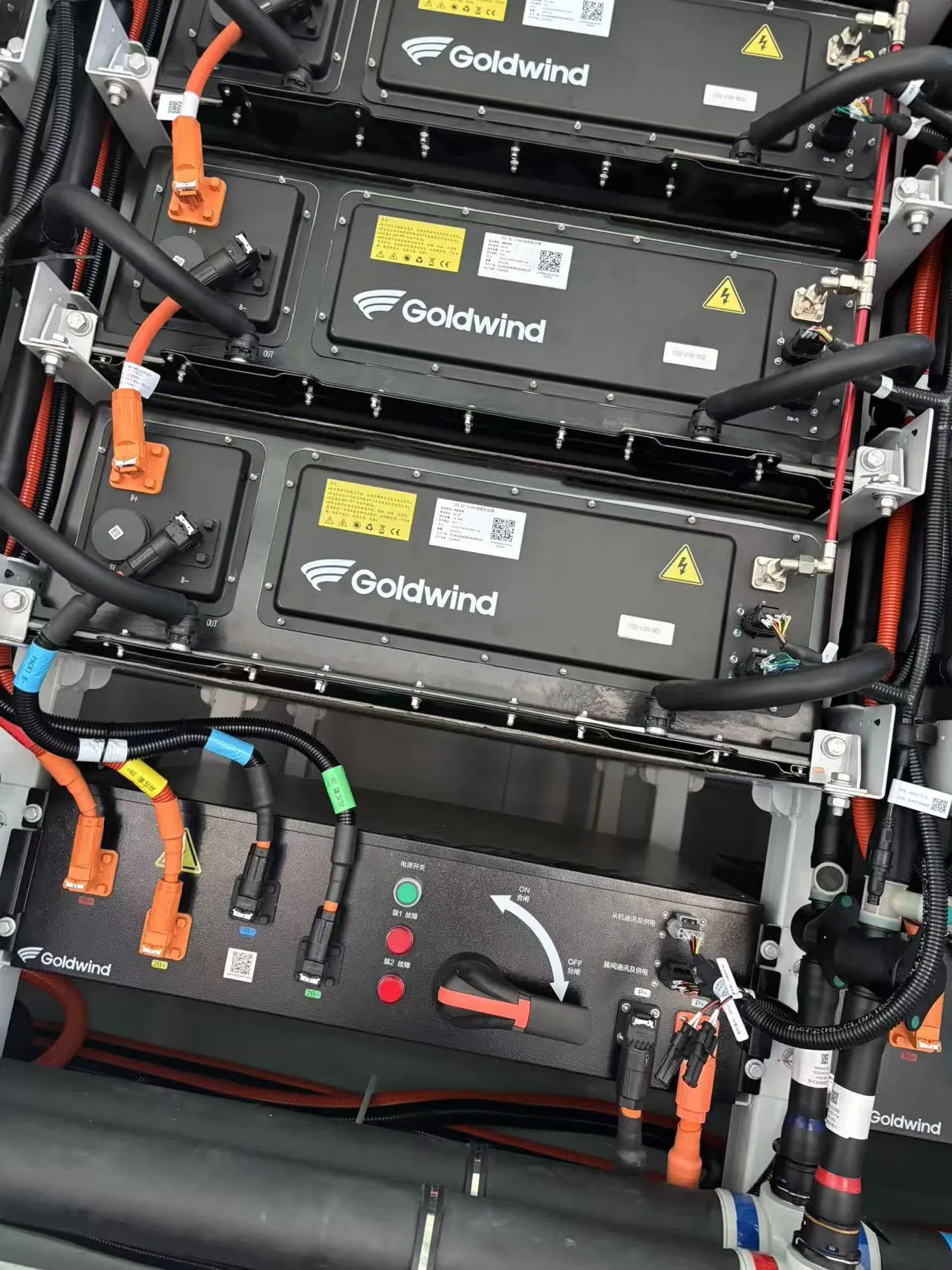

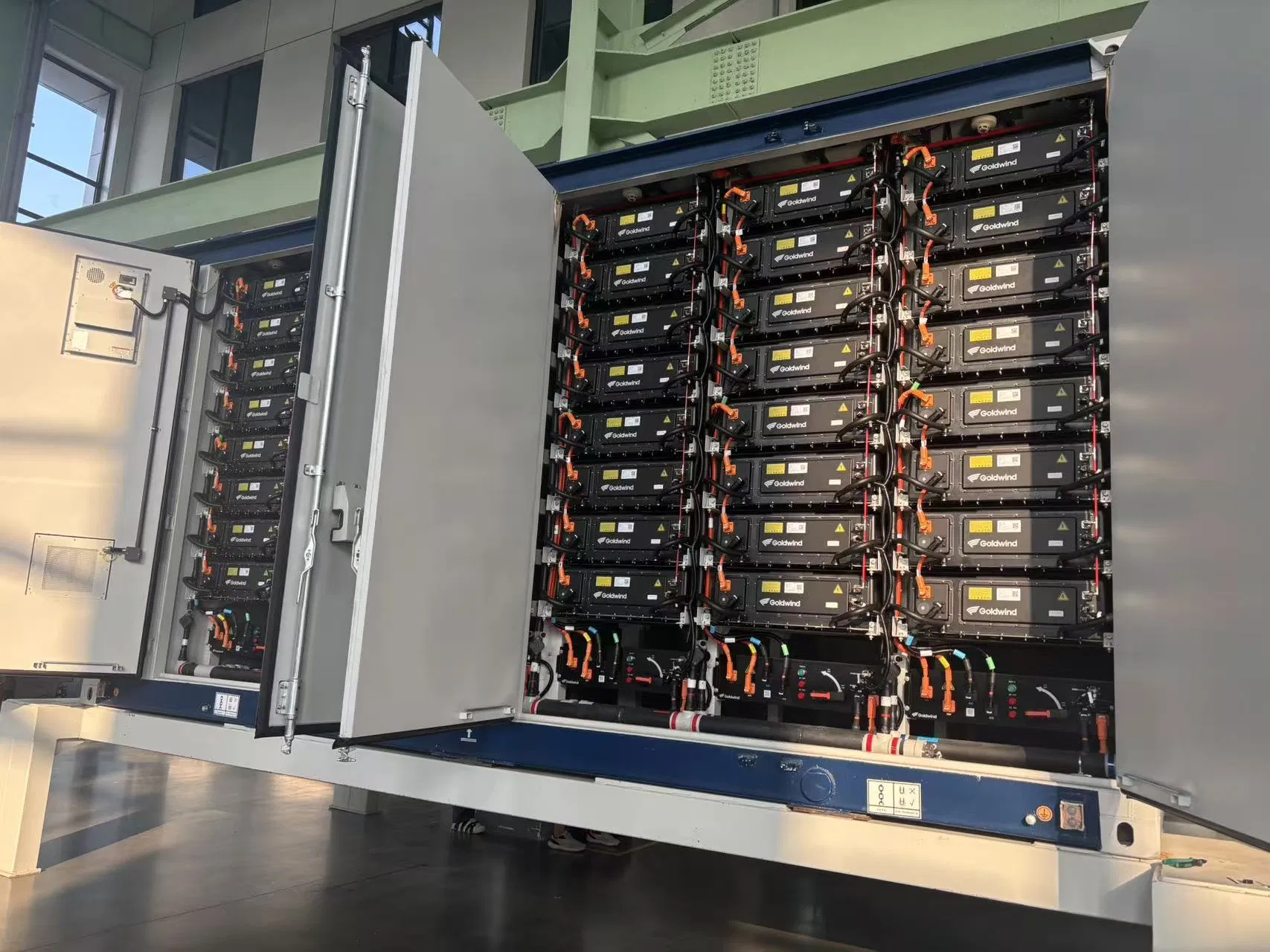

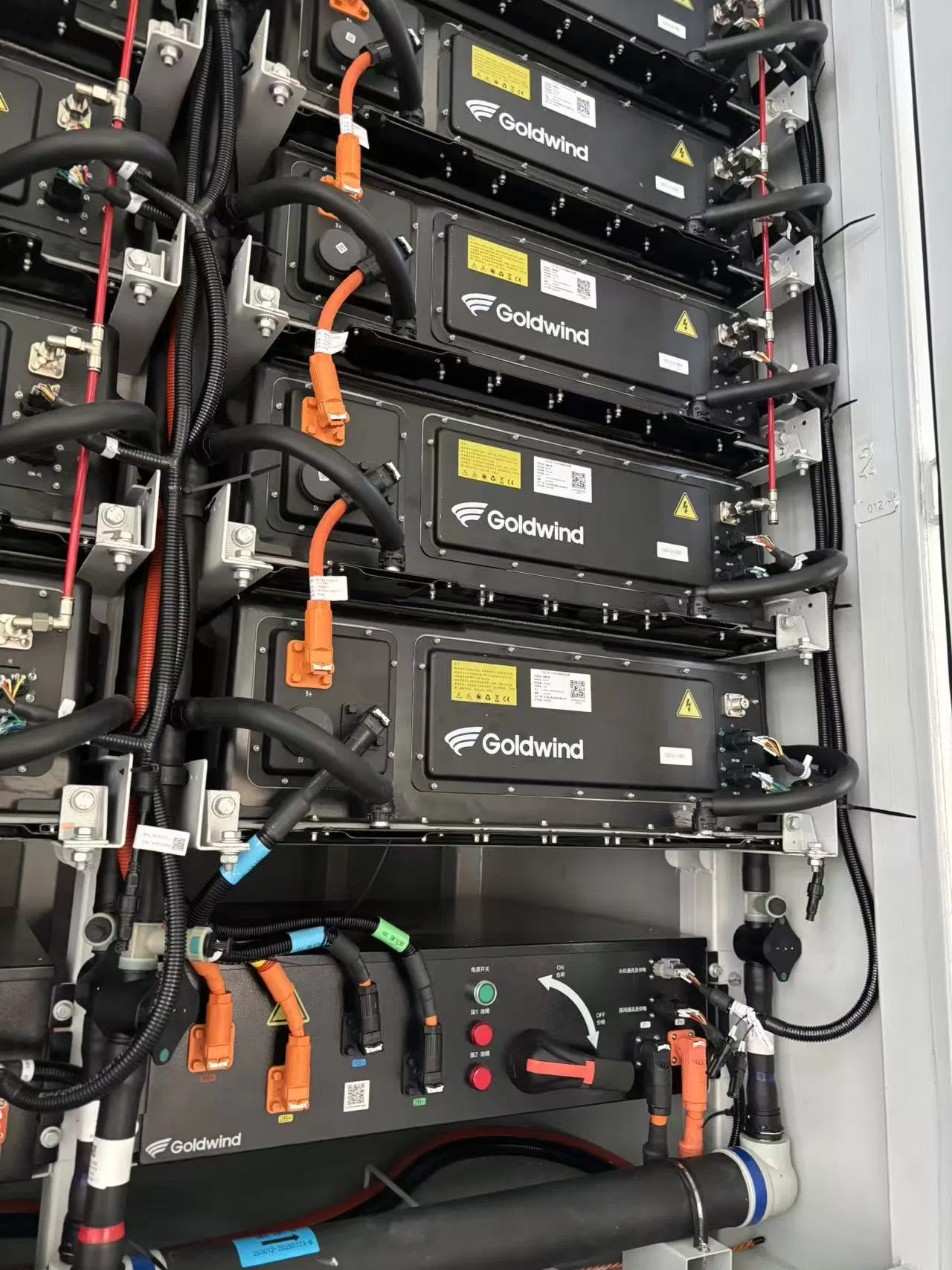

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

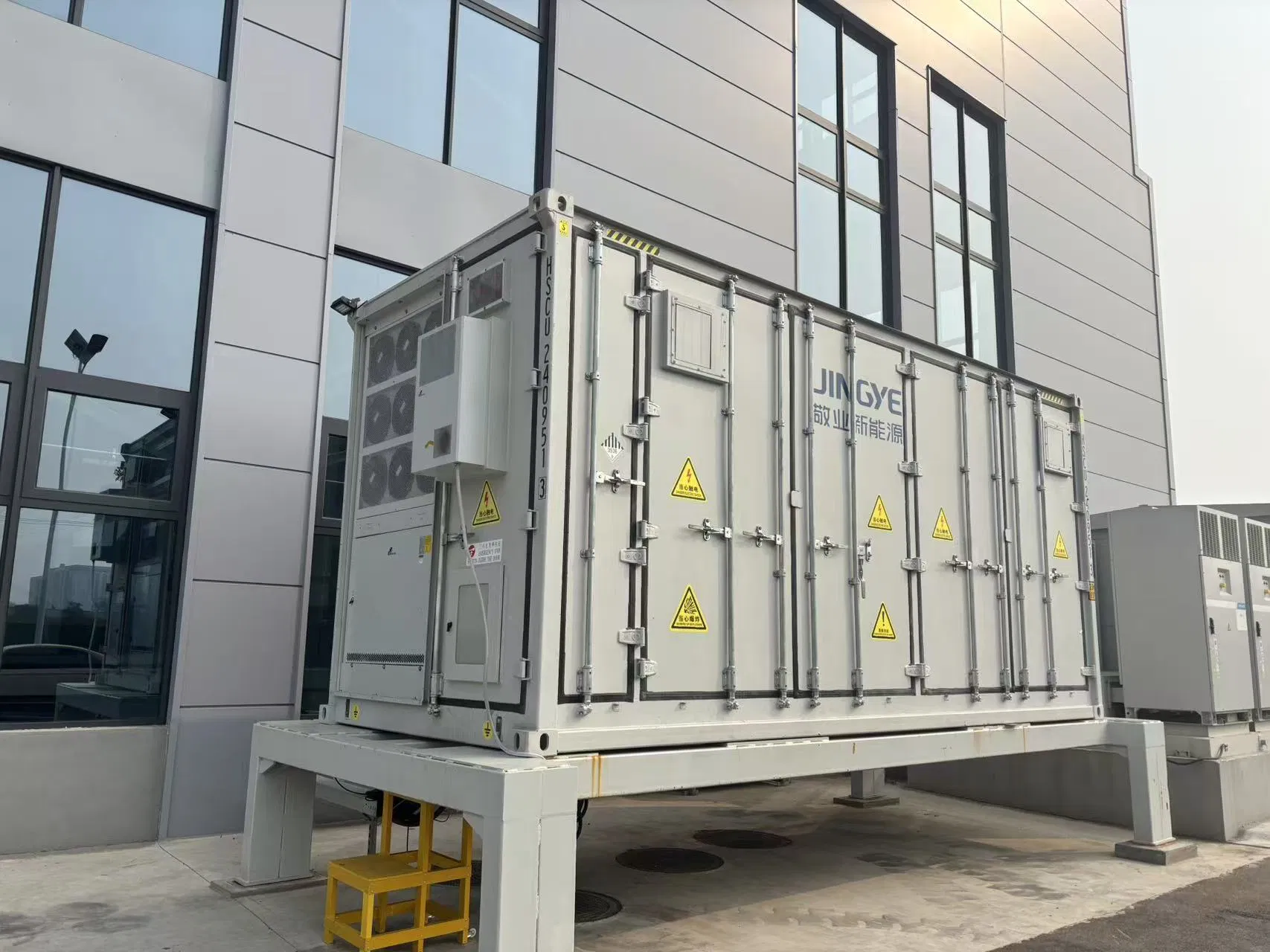

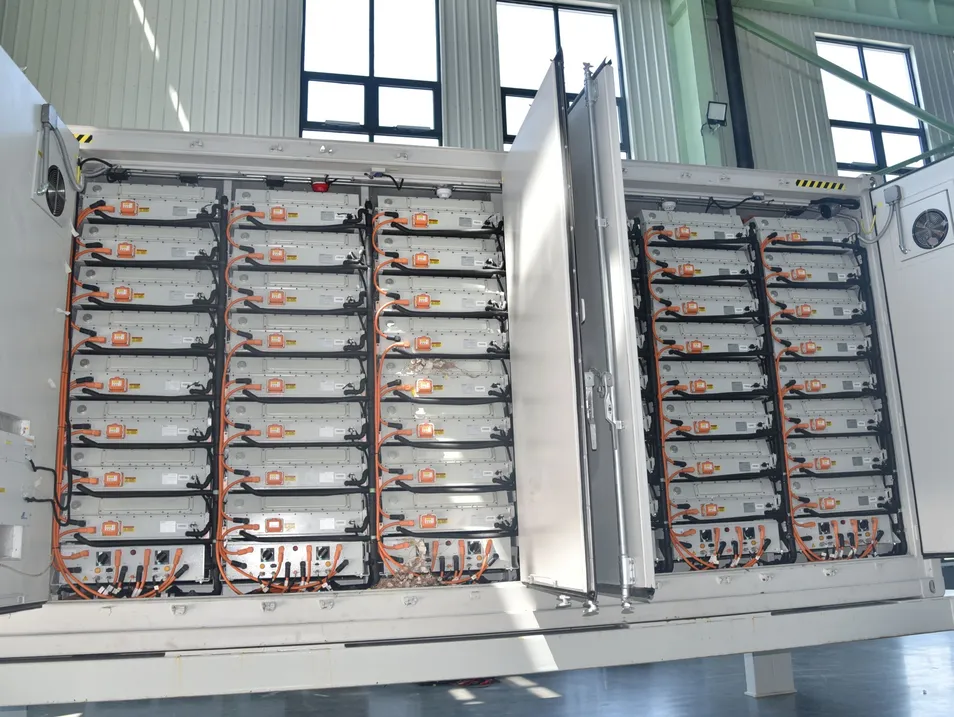

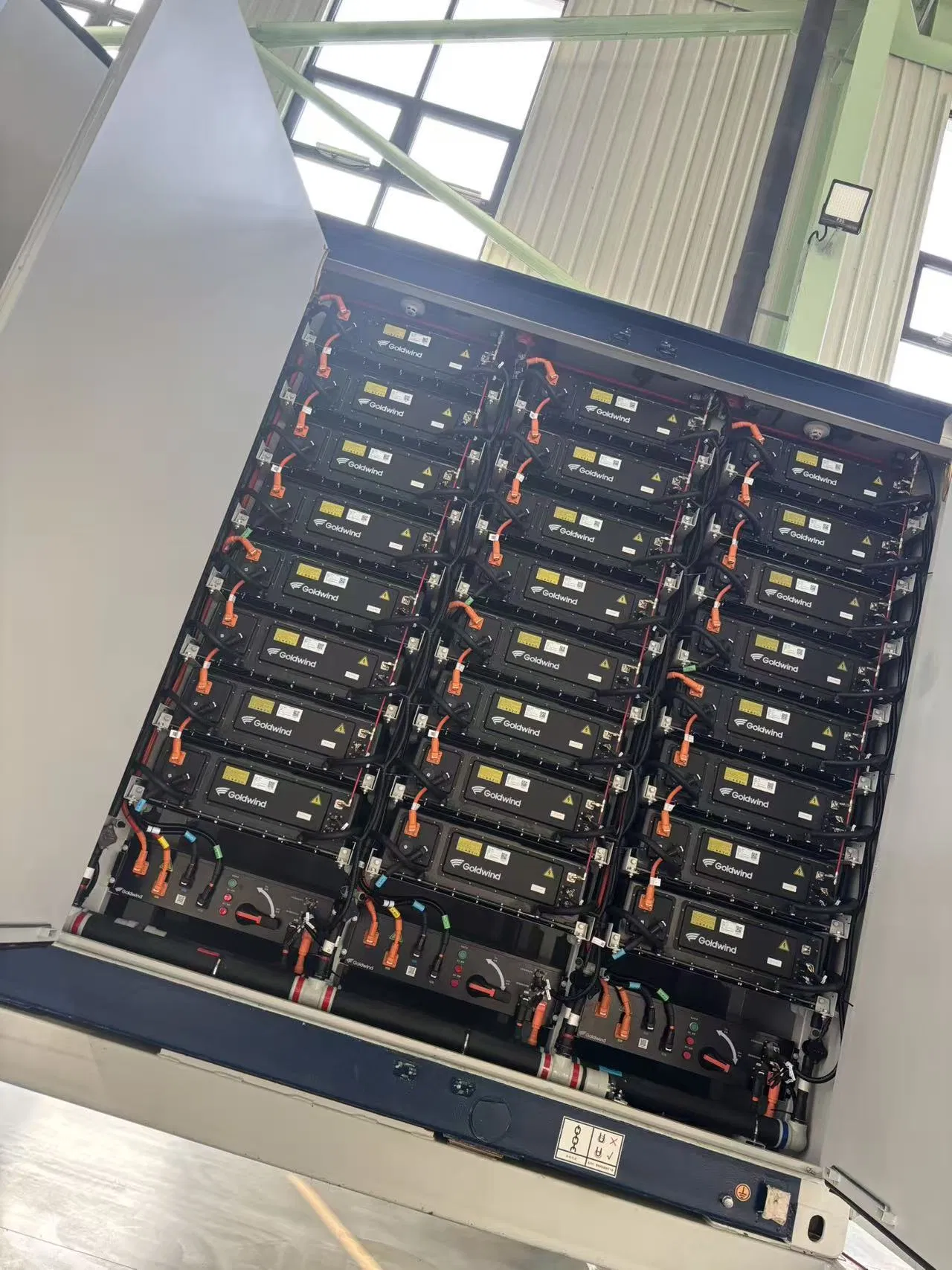

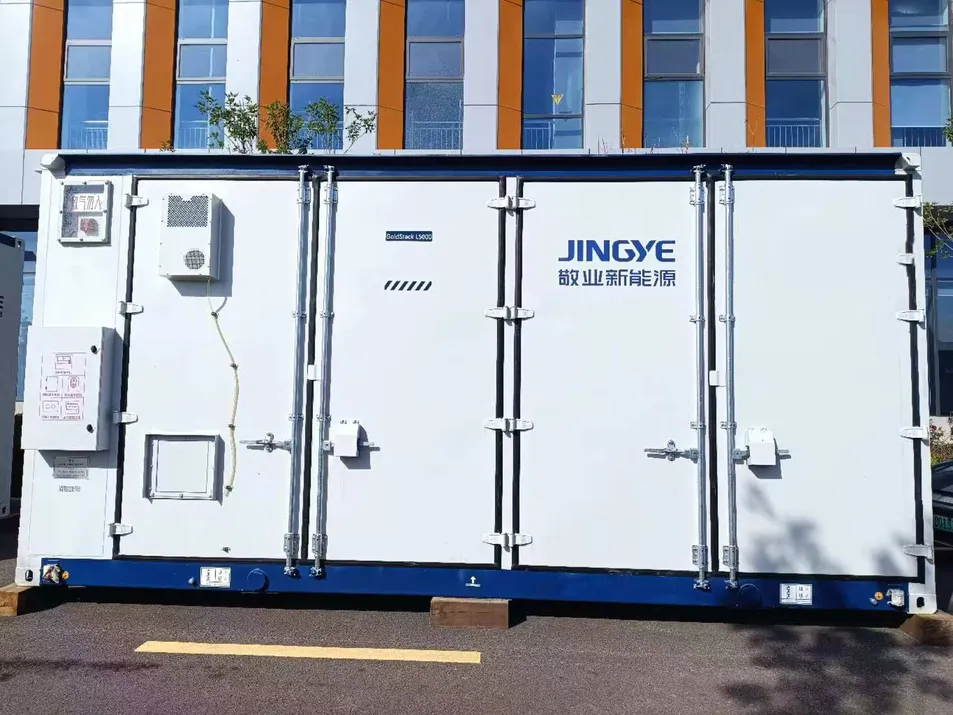

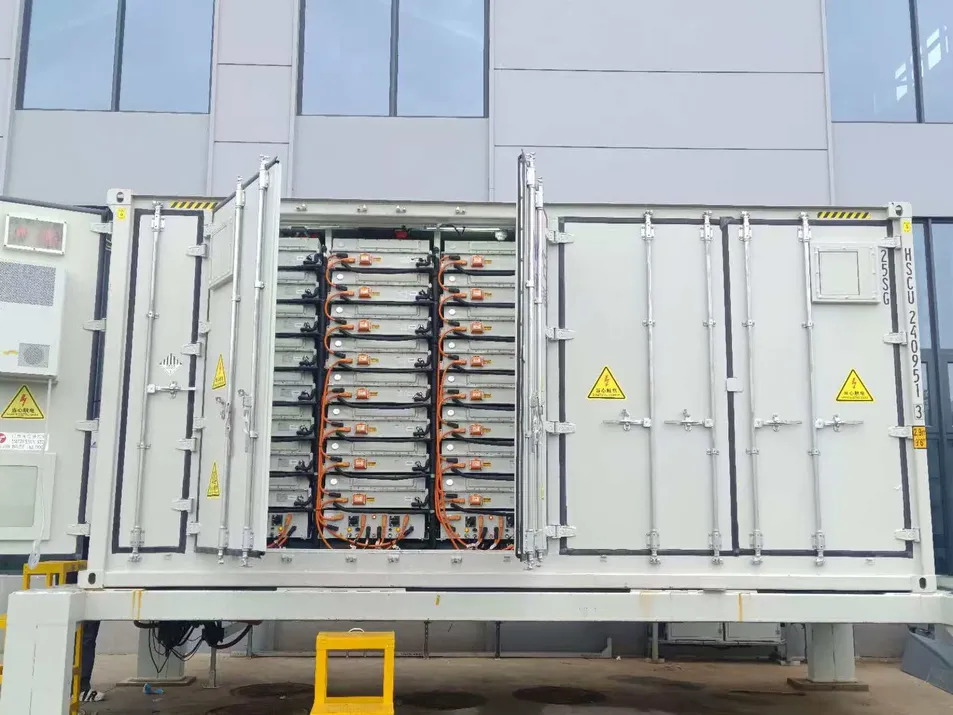

This system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control, and fire protection systems within a standard 20-foot container (L6058mm x W2438mm x H2896mm).
| Item | Specification |
|---|---|
| Configuration | 12*(1P104S*4) |
| Rated Power | 5MWh |
| Rated Voltage | 1331.2VDC |
| Voltage Range | 1164.8V - 1497.6VDC |
| Rated Charging Power | ≤ 2.5MW |
| Rated Discharge Power | ≤ 2.5MW |
| Work Temperature (Charging) | 0℃ < T ≤ 60℃ |
| Work Temperature (Discharging) | -30℃ < T ≤ 60℃ |
| Altitude | ≤ 4000m |
| Dimensions | L6058 x W2438 x H2896mm |
| Weight | Approx. 43t |
| IP Rating | IP54 |
| Communication | Ethernet, CAN, Modbus RTU |

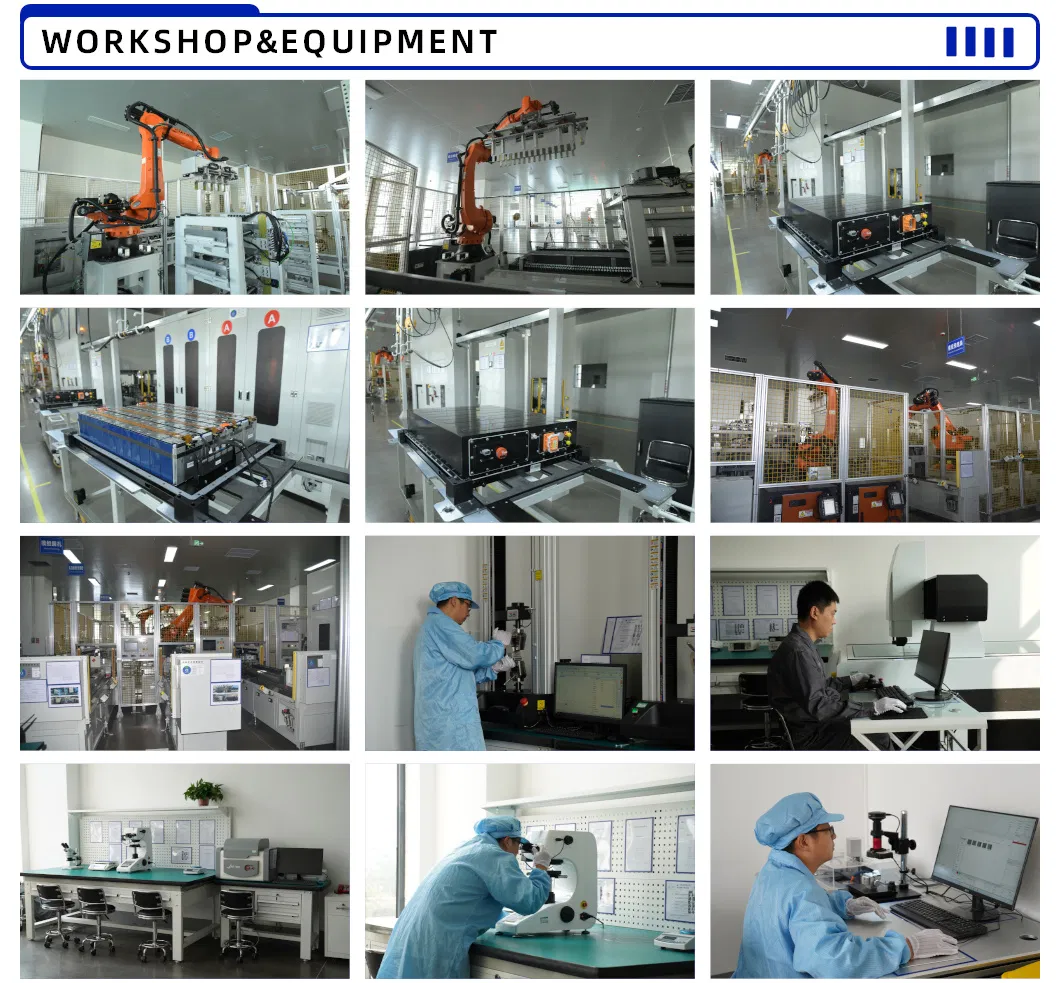

The facility features advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. These products are widely used in smart grids, renewable energy distribution, industrial/commercial storage, and green transportation.
