50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
1 / 5
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS
50kw Hybrid Solar Storage Inverter Power Conversion System PCS

50kw Hybrid Solar Storage Inverter Power Conversion System PCS

Customization: Available
Nature of Source Flow: Passive inverter
Certification: ISO9001, RoHS, CE
Send Inquiry

Product Description

🔵 Basic Information
Model NO.
PCS50K
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Triple
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Specification
2100mm*800mm*1000mm
🔵 Product Description

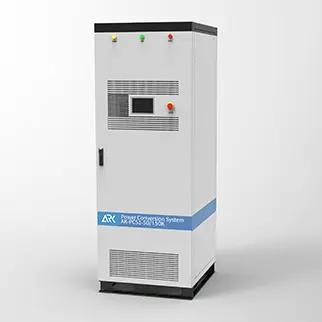

AK-PCS1 series Power Conversion System (PCS) is mainly composed of AC power distribution, transformer, solar inverter DC/AC bi-directional module, energy storage DC/DC module, monitoring system, etc. It adopts modular design with high integration, flexible power configuration and compact size which is appropriate for various application scenarios. It can efficiently use photovoltaic power generation to meet the application requirements of small and medium-sized micro-grid and industrial and commercial buildings.

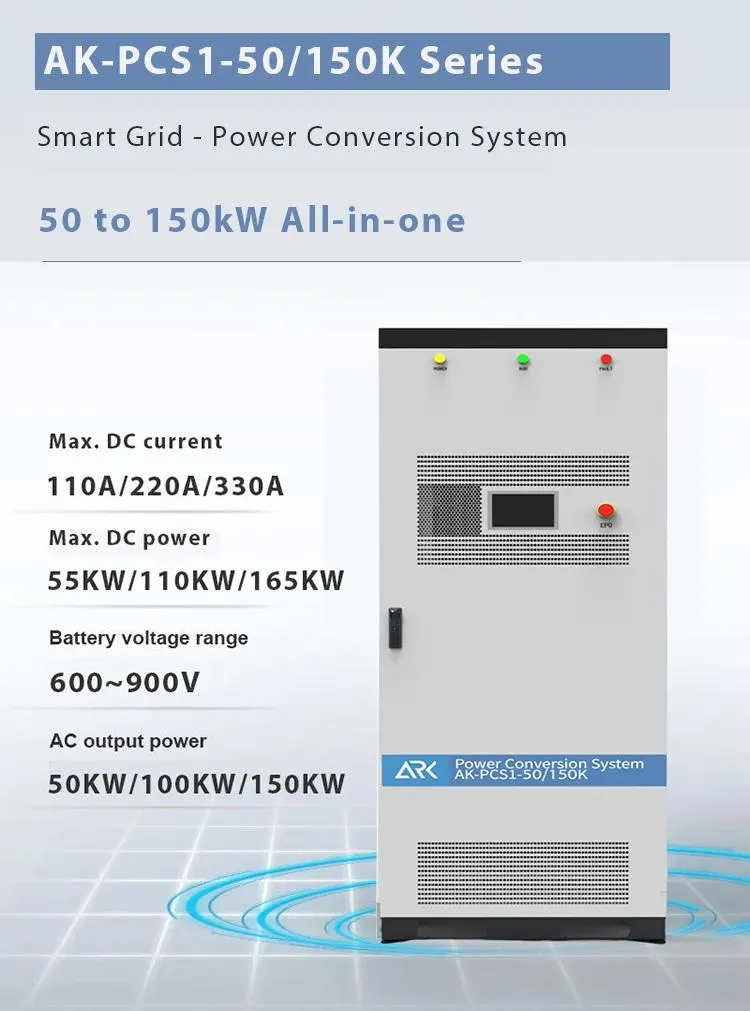

Power Conversion System Overview
PCS Diagram
Key Features
Modular design for flexible power configuration
Bi-directional Power Conversion System including AC/DC, DC/DC
Built-in transformer for direct grid connection
Support self-generation, micro-grid application
Support on / off grid operation
Dual-stage topology, wide DC input voltage range
Multiple communications by RS 485, CAN and Ethernet
Support to add PV interface and achieve hybrid functions

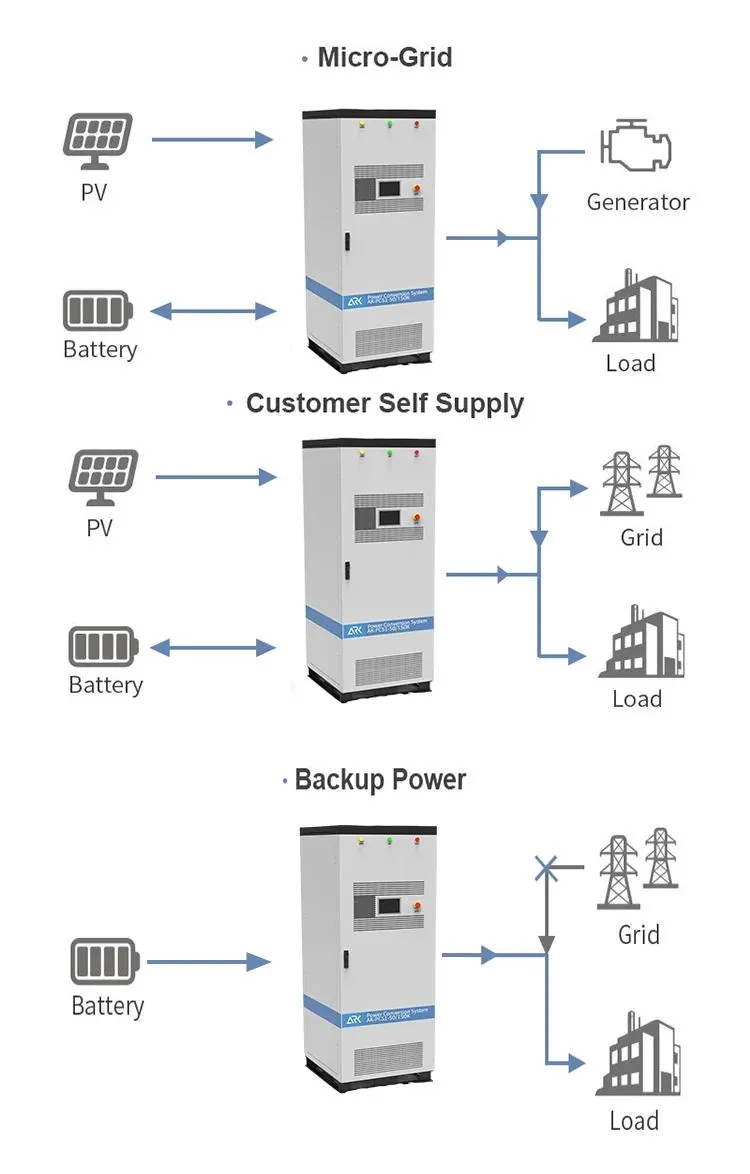

Modular Design Features

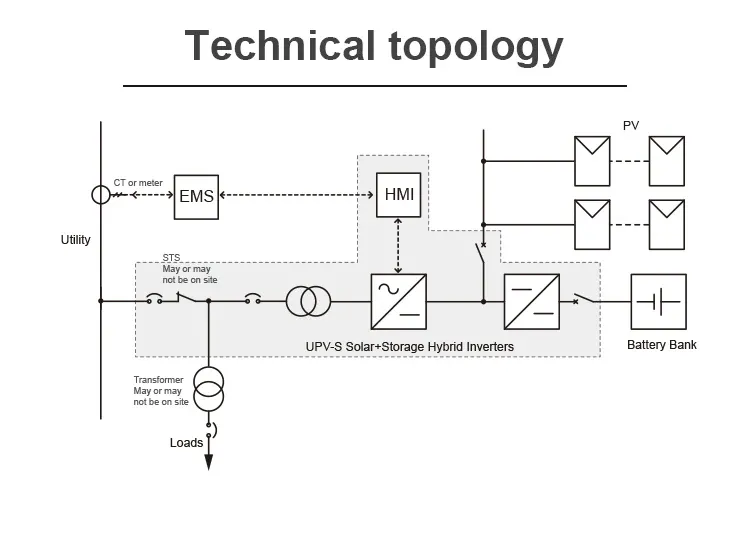

Technical Layout
Interface Modules
🔵 Product Parameters
Model Type AK-PCS1-50K AK-PCS1-100K AK-PCS1-150K
Utility-interactive Mode
Battery Voltage Range600 - 900 V
Max. DC Current110 A220 A330 A
Max. DC Power55 kW110 kW165 kW
AC Voltage400 V +/- 15%
Nominal AC Output Power50 kW100 kW150 kW
AC Frequency50 Hz / 60 Hz +/-2.5 Hz
Output THDi≤ 3%
Stand-alone Mode
Battery Voltage Range600 - 900 V
AC Output Voltage400 V +/- 10%
AC Output Current72 A (Max. 79 A)144 A (Max. 158 A)216 A (Max. 237 A)
Max. AC Power55 kW110 kW165 kW
Overload Capability110%: 10 min | 120%: 1 min
Physical & Environmental
Peak Efficiency≥ 97%
CoolingForced Air Cooling
EnclosureIP20 (IP54 optional)
Operation Temp.-20°C - +50°C (derating over 45°C)
Dimension (H x W x D)2100 mm X 800 mm x 1000 mm
Weight700 KGS1000 KGS1100 KGS
CommunicationRS 485, CAN, Ethernet
🔵 Exhibition & Application Cases
PCS Exhibition
Project Cases
🔵 Manufacturing Process
Production Facility
Frequently Asked Questions
What is the primary function of the AK-PCS1 series?
It is a Power Conversion System (PCS) that handles bi-directional power conversion (AC/DC and DC/DC), making it ideal for solar energy storage and micro-grid applications.
Does the system support both on-grid and off-grid modes?
Yes, the system is designed to support both utility-interactive (on-grid) and stand-alone (off-grid) modes for various industrial and commercial requirements.
What is the maximum efficiency of this system?
The system achieves a peak efficiency of ≥ 97%, ensuring minimal energy loss during power conversion.
What protection features are built into the PCS?
It includes a comprehensive suite of protections: Over Temperature (OTP), AC Over/Under Voltage (OVP/UVP), Frequency protection (OFP/UFP), Phase Reverse, Overload (OLP), GFDI, and Anti-islanding.
How is the system monitored?
The system comes with a 10.1" touch screen and supports multiple communication protocols including RS 485, CAN, and Ethernet for remote monitoring and management.
Is the system modular?
Yes, it features a highly integrated modular design, allowing for flexible power configurations and easier maintenance.
