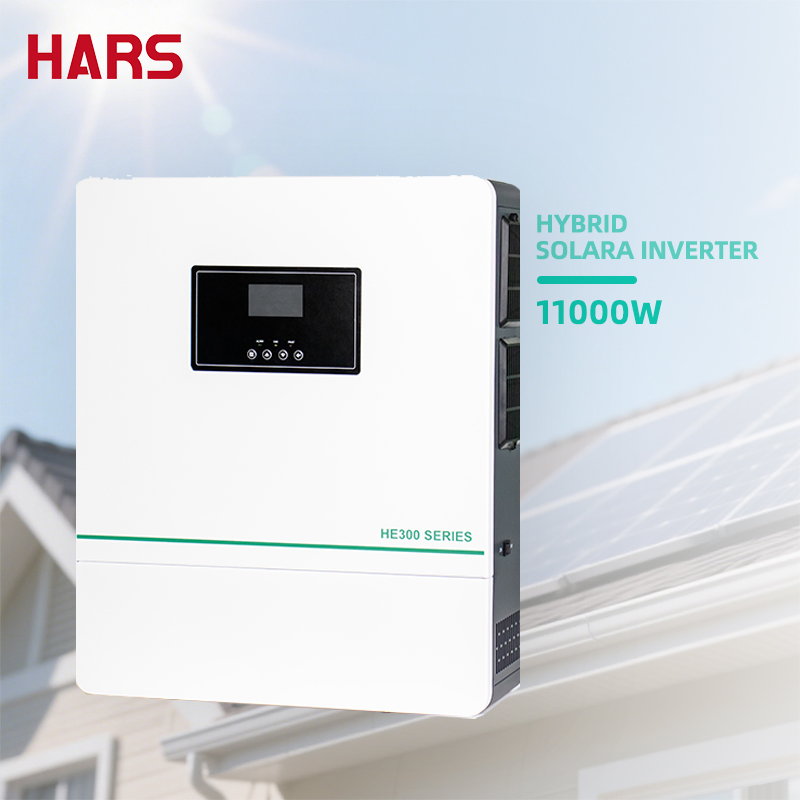

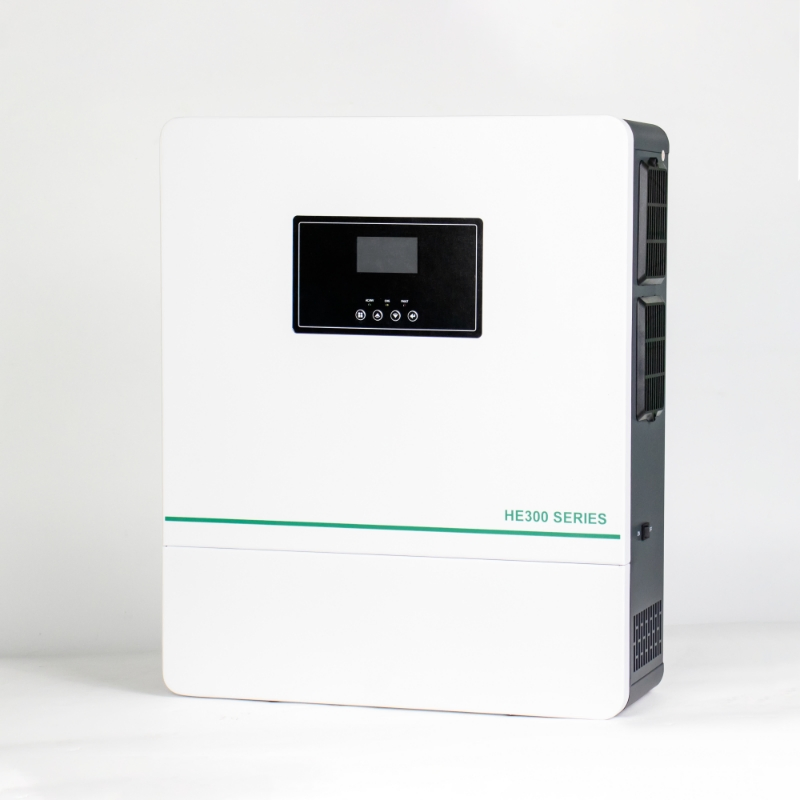

Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy
1 / 5
Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy
Hybrid Power System for Reliable Home Use Solar Energy

Hybrid Power System for Reliable Home Use Solar Energy

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HE300-12000-F
Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Wave String
Sine Wave Inverter
Capacity
50,000 pieces/Year
Packaging & Delivery
Package Size
63.50cm * 55.00cm * 23.50cm
Gross Weight
24.000kg
Product Description

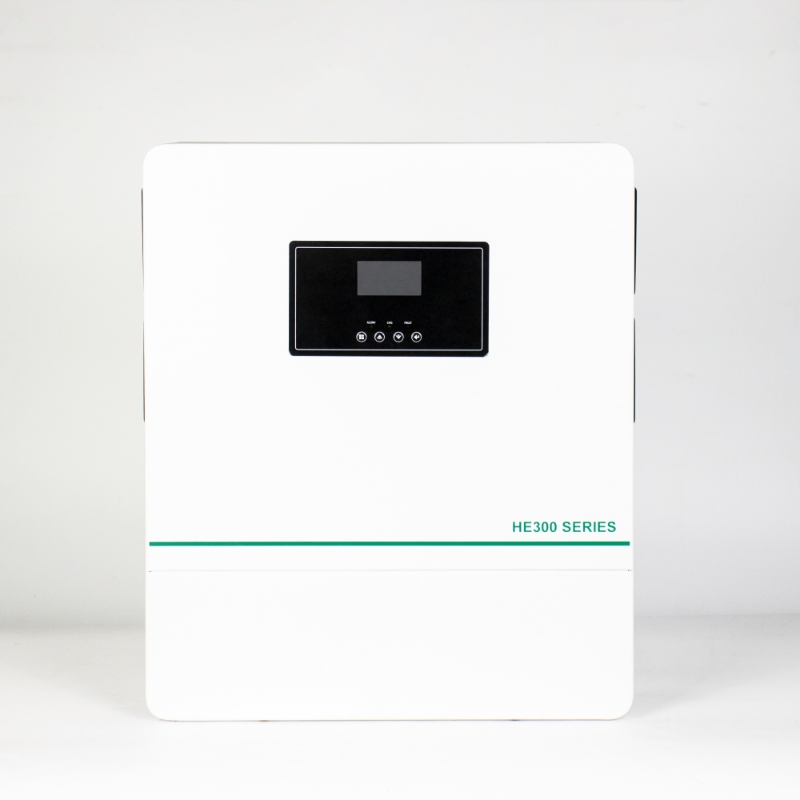

Hybrid Solar Inverter
The HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts a portable size and supports uninterruptible power supply switching. It features functions for setting battery charging voltage and current, multiple power input and output priority settings. The output AC voltage and frequency are adjustable, making it suitable for different power grid environments. It also includes a mobile phone APP for convenient online data monitoring.
Hybrid Power System

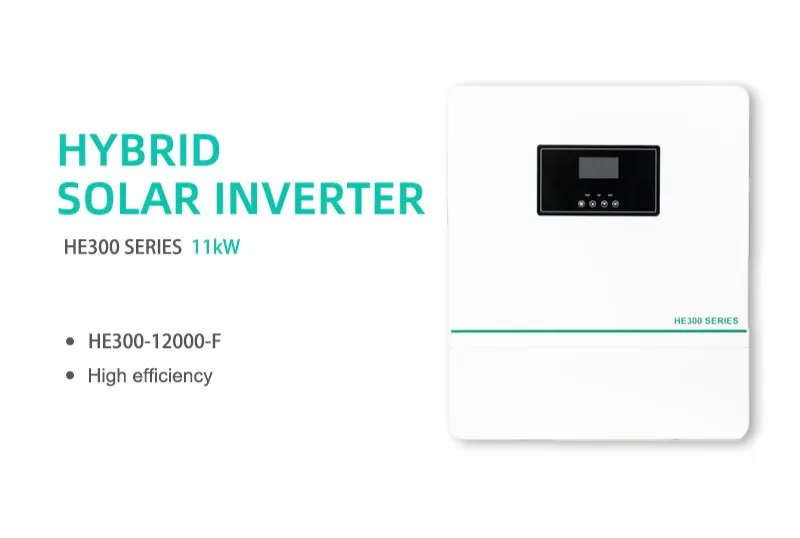

Solar Energy System

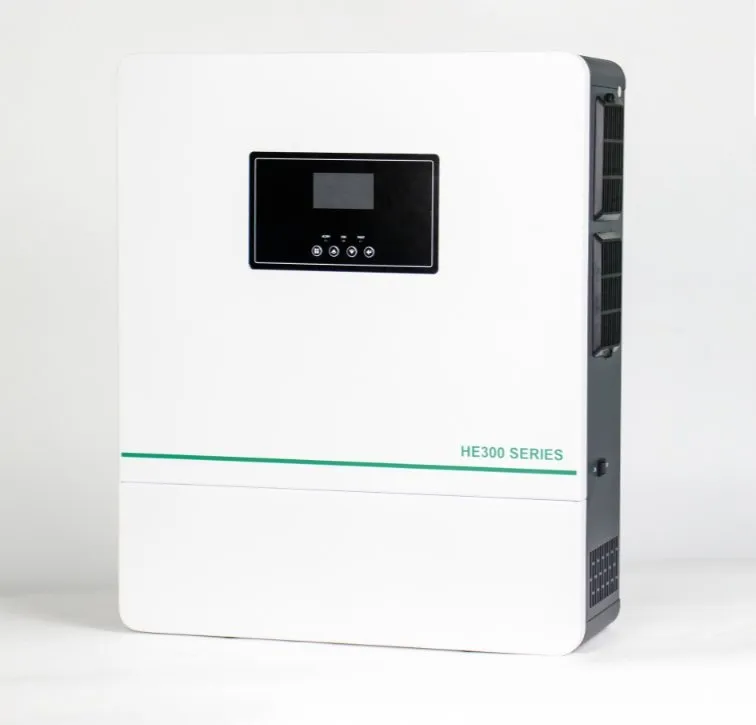

Hybrid Solar Inverter Details
Parameter Information
MODEL HE300-12000-F
Inverter Output
Rated Output PowerBattery: 11000W / PV: 12000W
Rated Output Voltage220/230/240Vac ± 5% (Single Phase)
Rated Output Current47.8A
Rated Output Frequency50/60Hz ± 0.1%
Output WaveformPure Sine Wave
Battery & Charging
Battery TypeLead acid / Gel / Lithium battery
Rated Battery Voltage48V
PV Charging MethodMPPT / Dual MPPT
Max PV Charging Current150A
PV Input
MPPT Number2
Max Input Power2 * 7500W
Max Open Circuit Voltage500Vdc
Input Voltage Range90~450V
General Parameters
Protection LevelIP21
Operating Temperature-10℃ ~ 50℃
Cooling MethodIntelligent Air Cooling
Advanced Manufacturing & Quality
Our high-tech production facility integrates R&D, manufacturing, and technical services. With an automated production rate of up to 80%, we maintain sufficient inventory to ensure reliable delivery times. The factory spans over 30,000 square meters, including dedicated photovoltaic units and three technical centers providing OEM and ODM support.

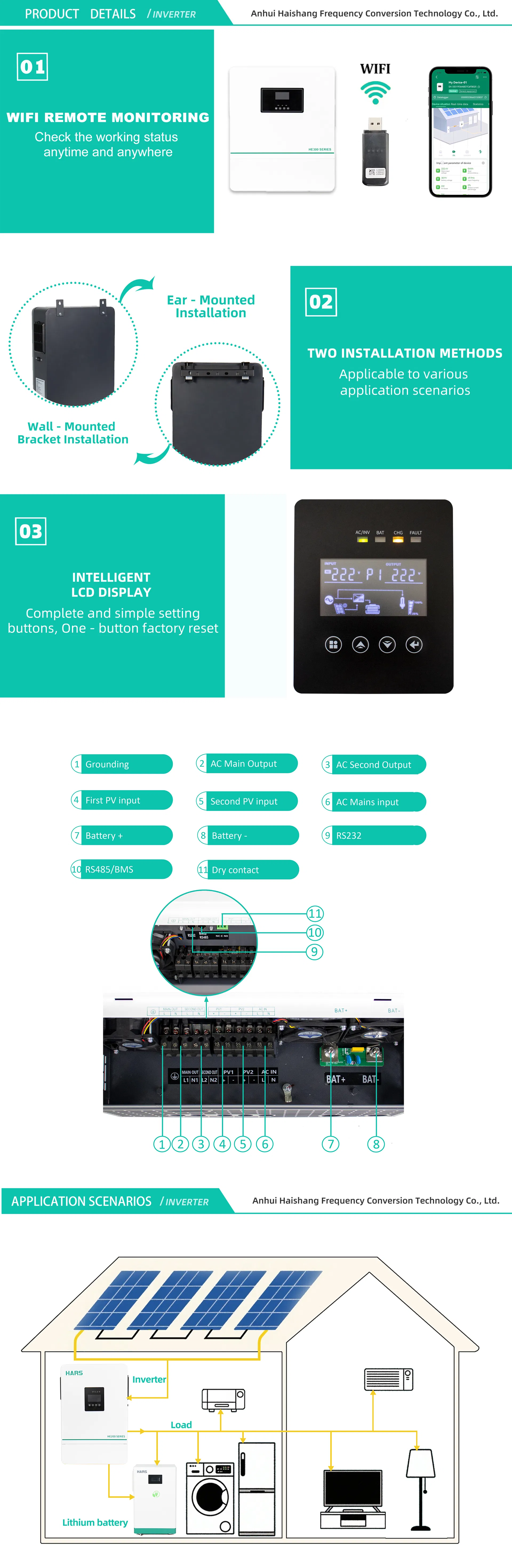

Technical Specifications

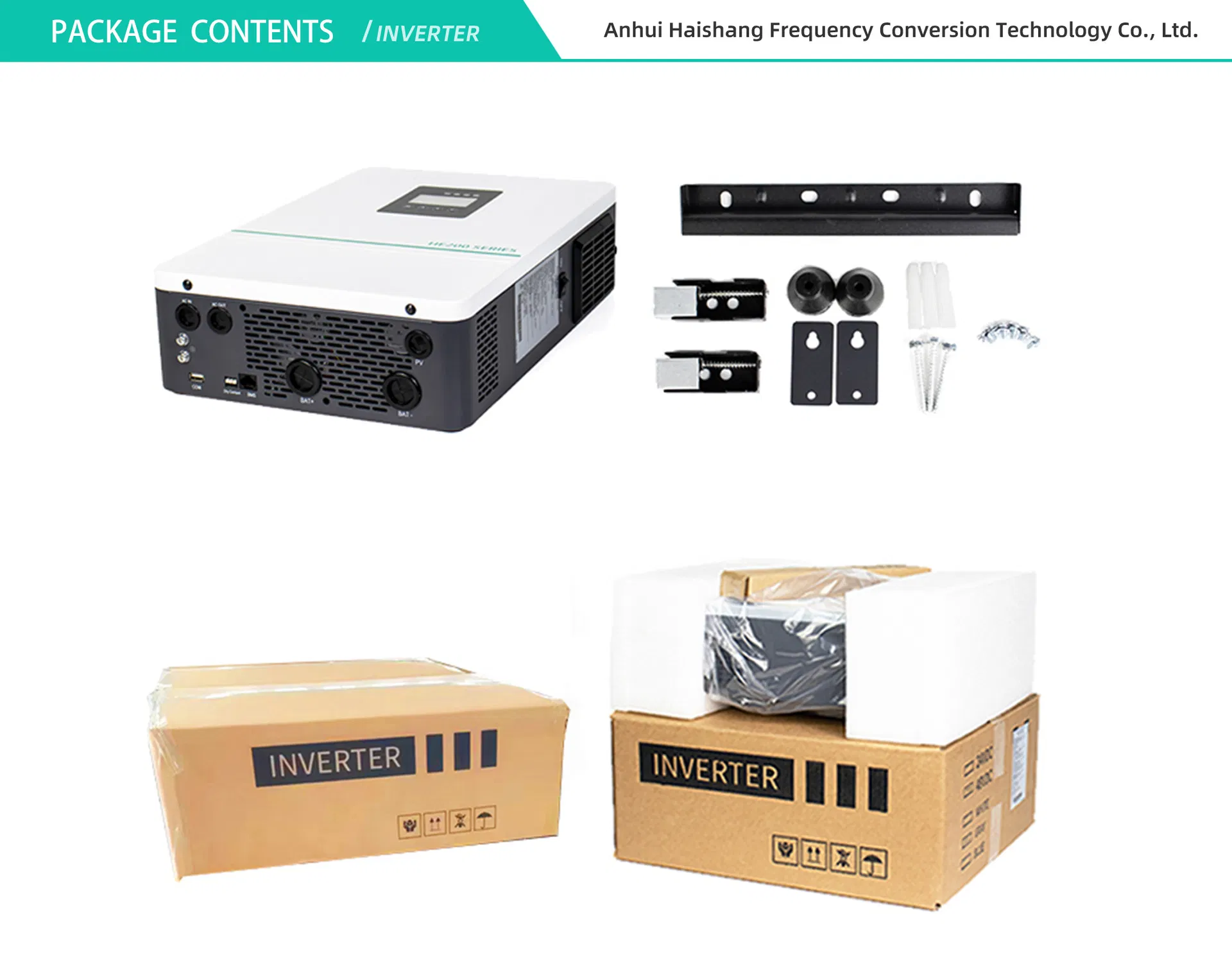

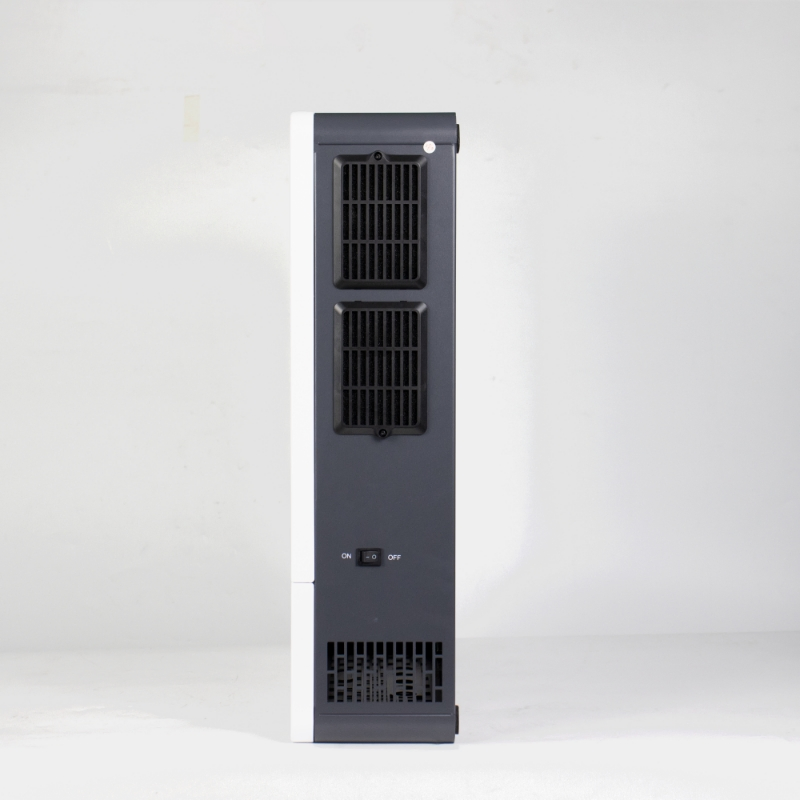

Product Layout

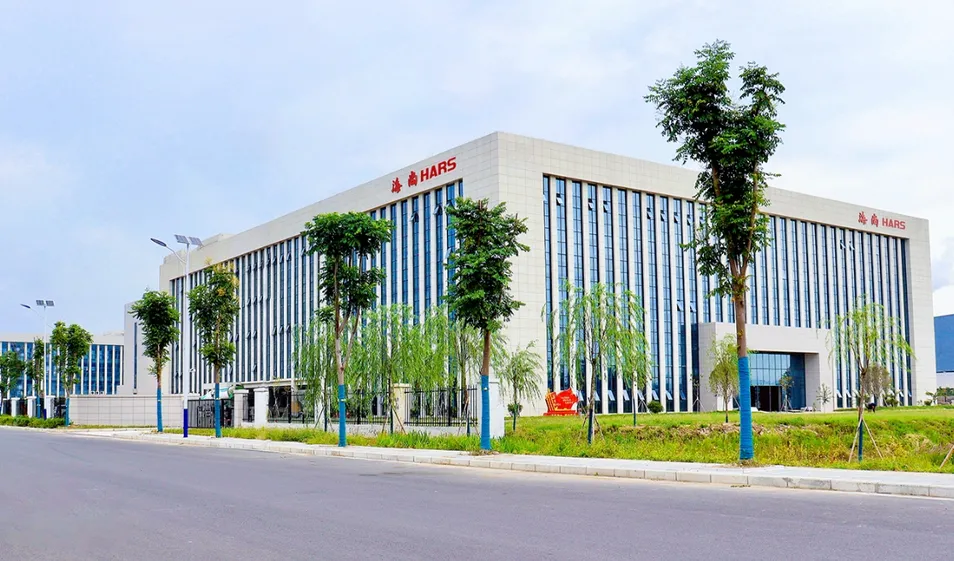

Manufacturing Power

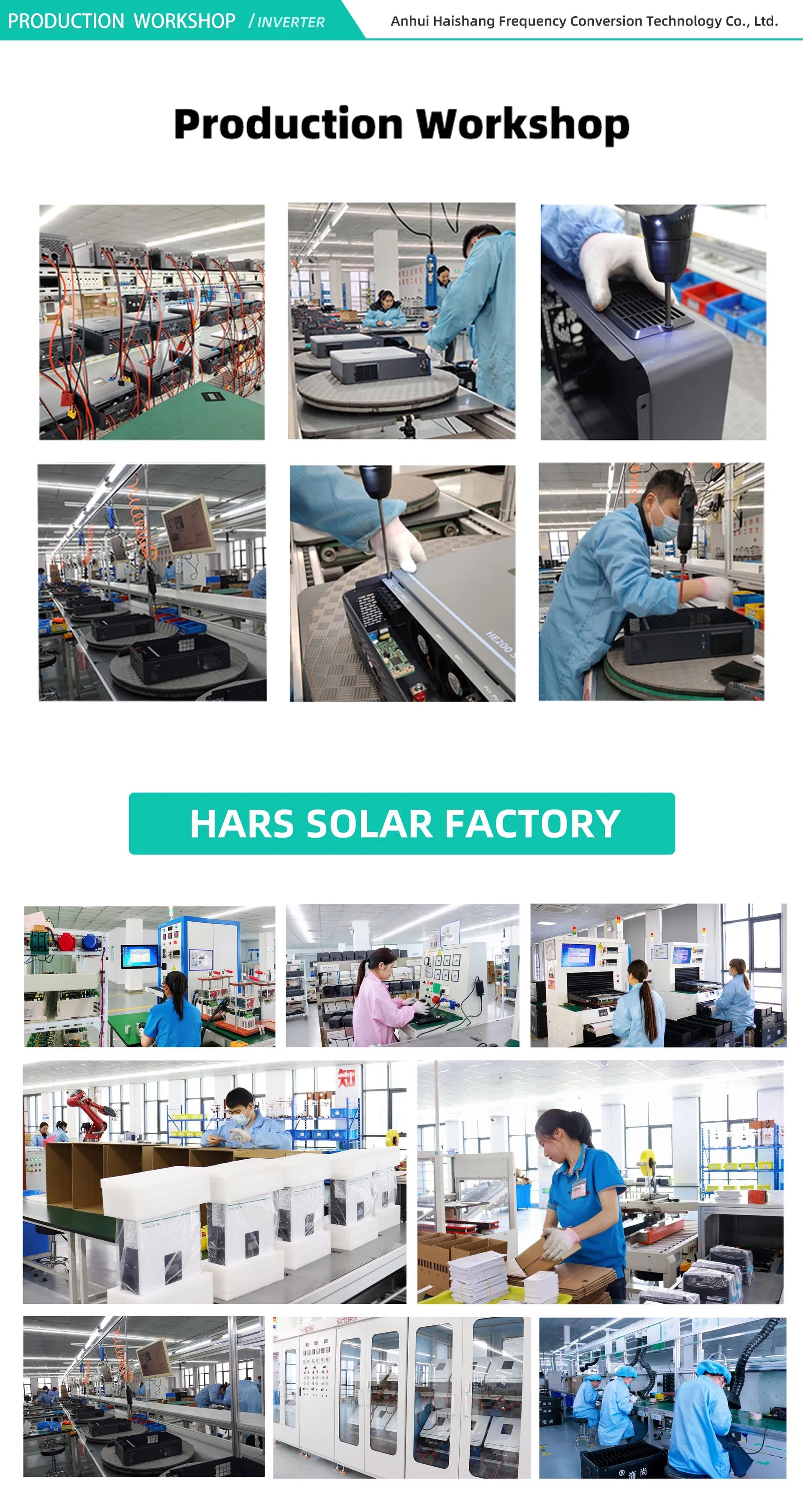

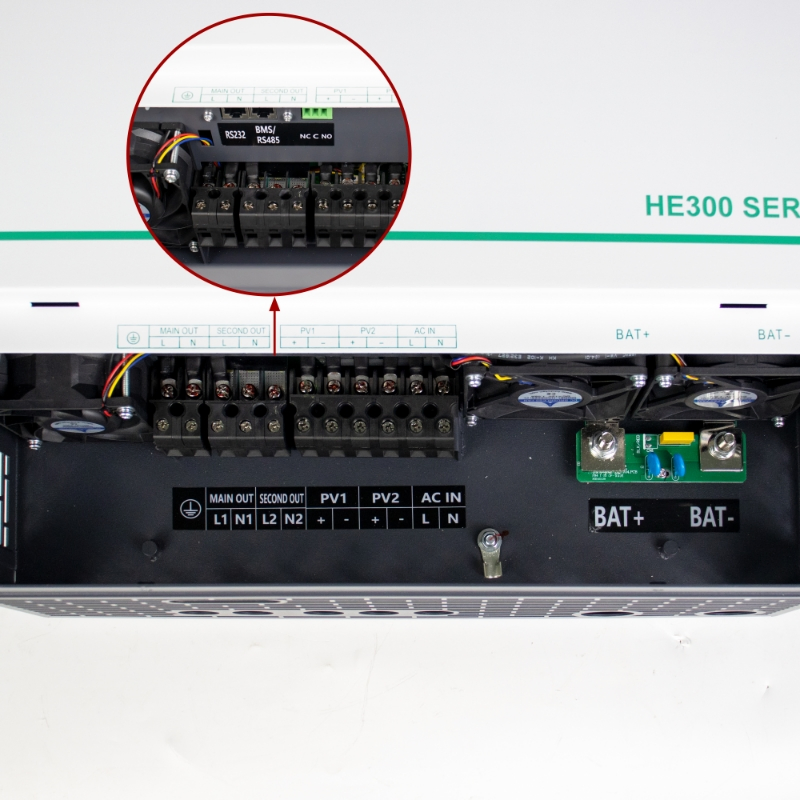

Internal Components
Quality Control
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional frequency inverter and solar inverter manufacturer with integrated R&D and production facilities.
Can you accept the use of our own logo?
Yes, we fully support OEM production and can customize products with your branding.
What are your standard terms of payment?
We accept various payment methods including T/T, L/C, PayPal, and Western Union. Specific details can be discussed based on the order.
How do you ensure product quality?
We have professional QA and QC teams. A 100% quality inspection is performed on all units before they leave the factory.
Do you test all goods before loading and delivery?
Yes, every single product undergoes a 100% functional and safety test before loading.
What is the production capacity and lead time?
With an annual capacity of 50,000 pieces and 80% automated production, we ensure stable supply and efficient delivery times.
