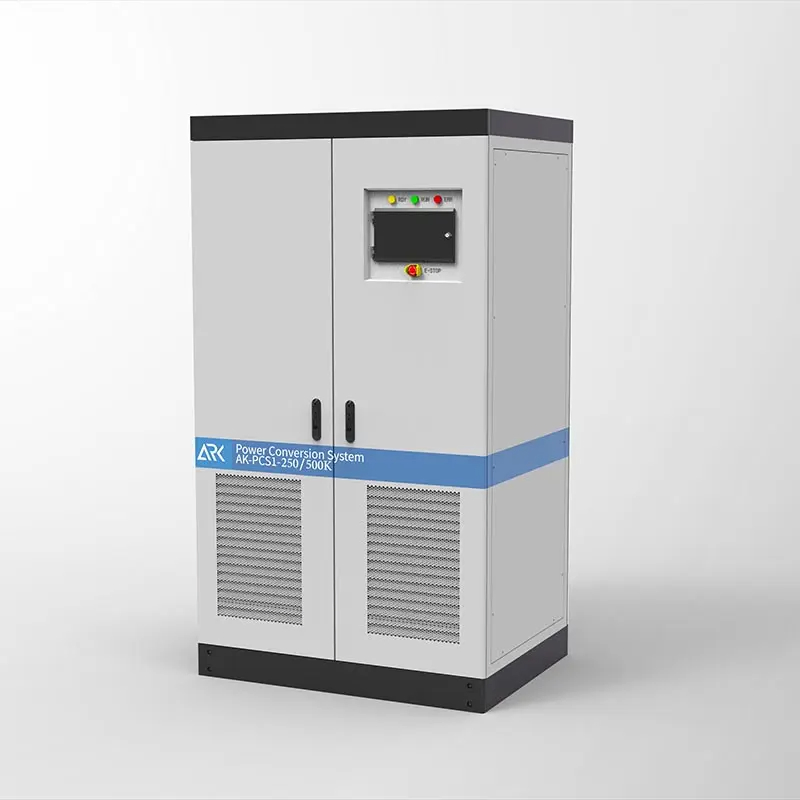

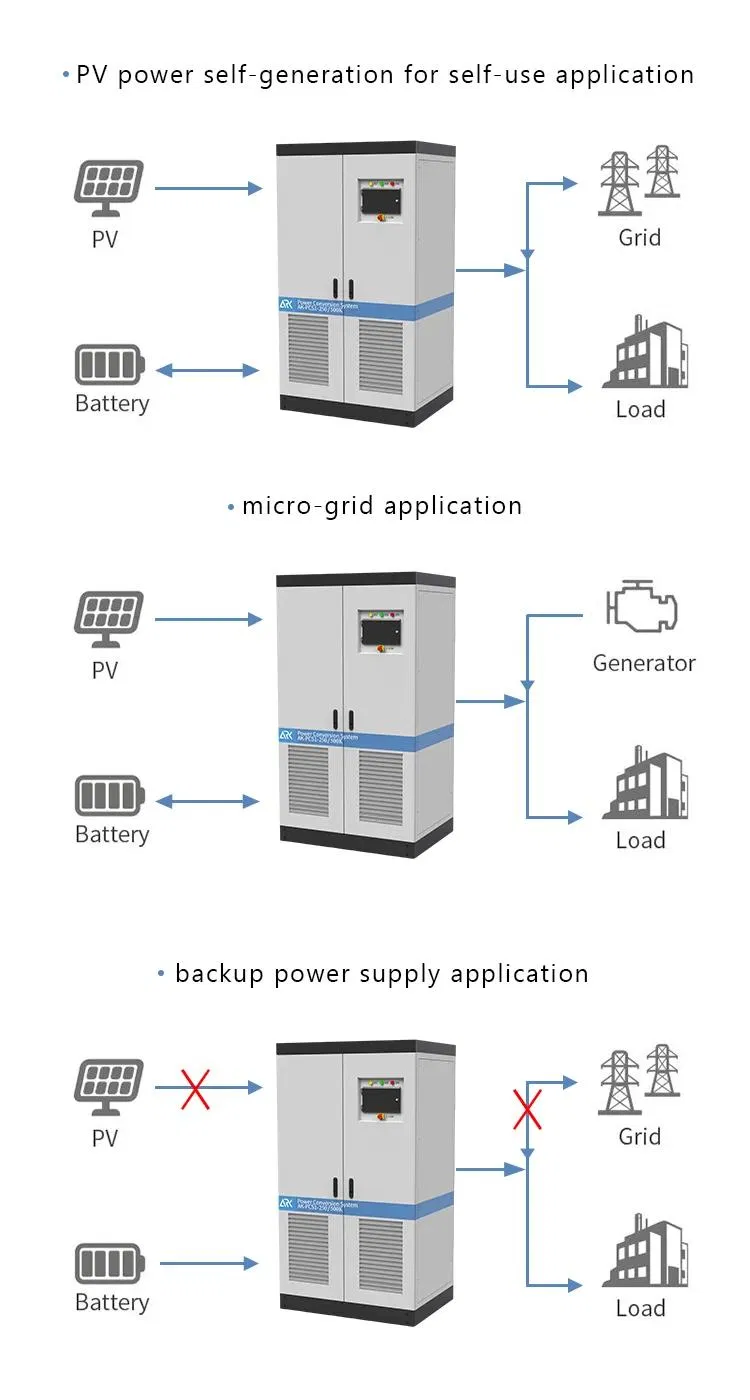

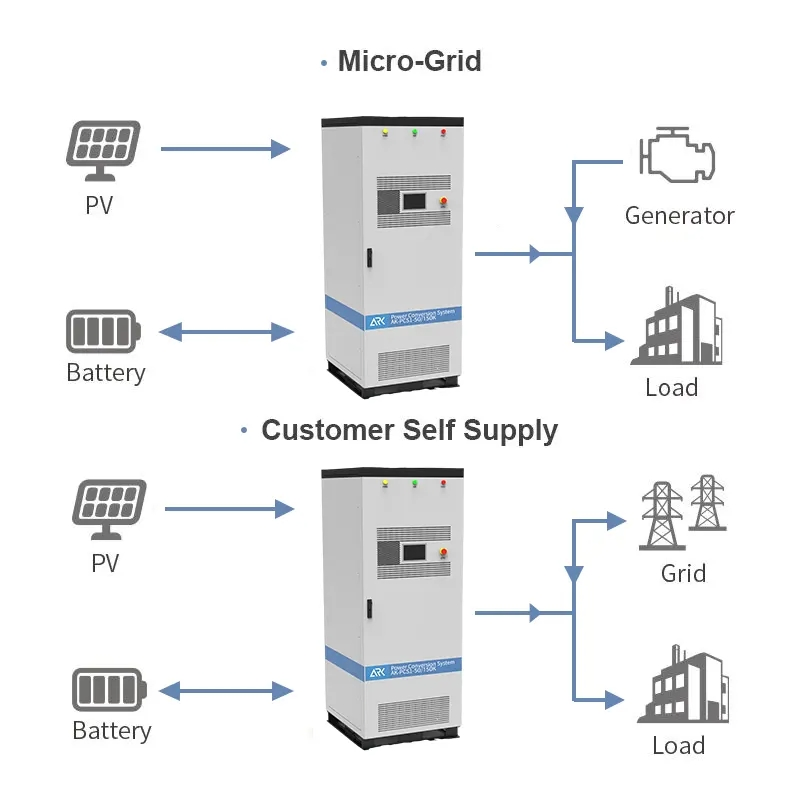

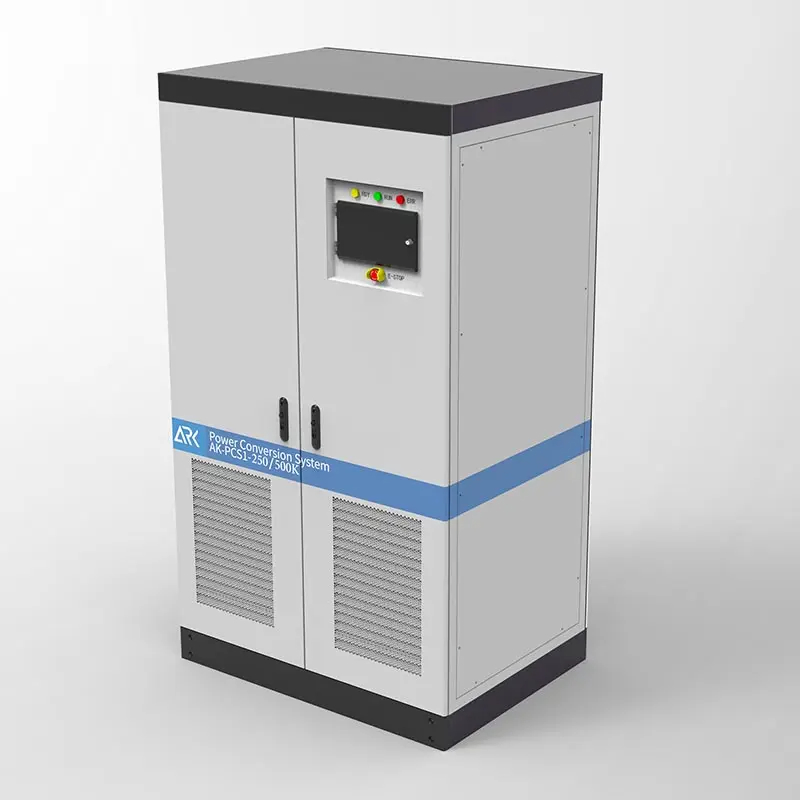

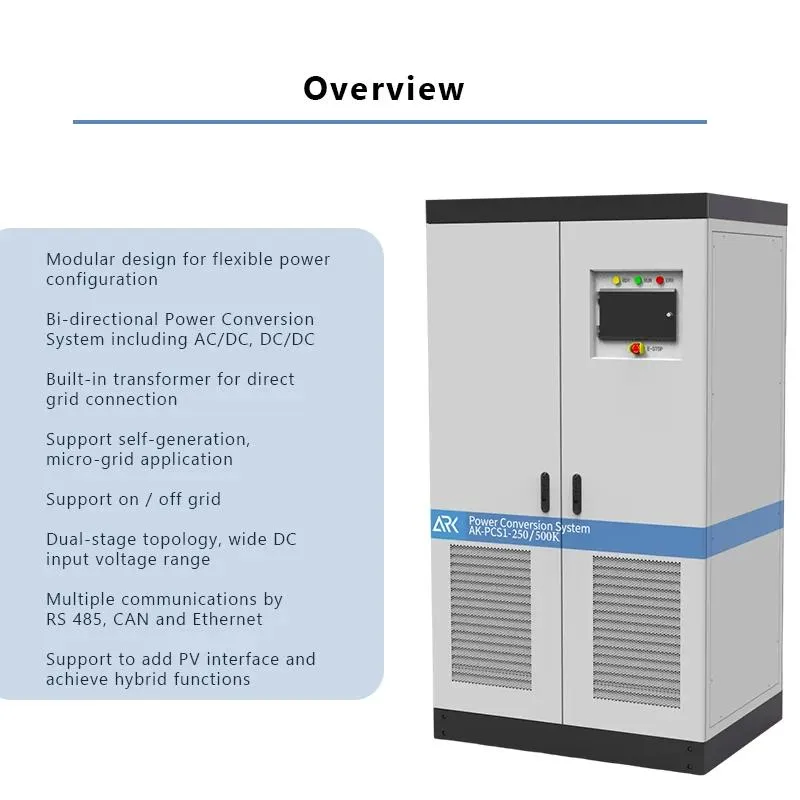

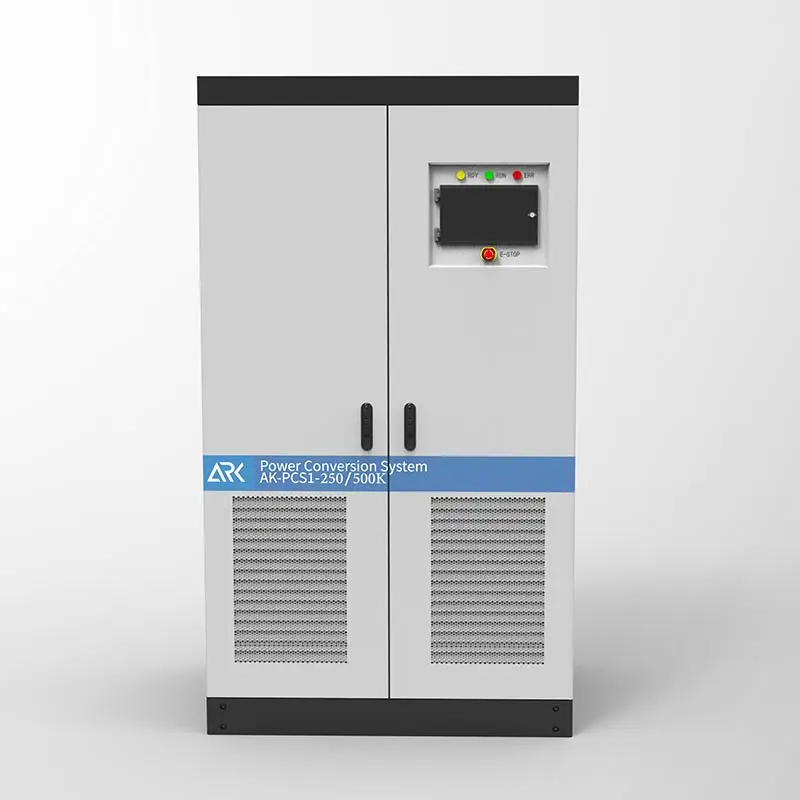

AK-PCS1 series Power Conversion System (PCS) is mainly composed of AC power distribution, transformer, solar inverter DC/AC bi-directional module, energy storage DC/DC module, monitoring system, etc. It adopts modular design with high integration, flexible power configuration and compact size which is appropriate for various application scenarios. It can efficiently use photovoltaic power generation to meet the application requirements of small and medium-sized micro-grid and industrial and commercial buildings.
| Parameter Item | AK-PCS1-250K | AK-PCS1-500K |
|---|---|---|
| Utility-interactive Mode | ||
| Battery Voltage Range | 600 - 900 V | 600 - 900 V |
| Max. DC Current | 550 A | 1100 A |
| Nominal AC Output Power | 250 kW | 500 kW |
| AC Voltage | 400 V +/- 15% | |
| Output THDi | ≤ 3% | |
| Stand-alone Mode | ||
| AC Output Voltage | 400 V +/- 10% | |
| Overload Capability | 110%: 10 min / 120%: 1 min | |
| Physical & Others | ||
| Peak Efficiency | ≥ 97% | |
| Protection | OTP, AC OVP/UVP, Phase Reverse, Anti-islanding, etc. | |
| Dimension (H x W x D) | 2100 mm X 1000 mm x 1300 mm | |
| Weight | 1600 KGS | 2700 KGS |
