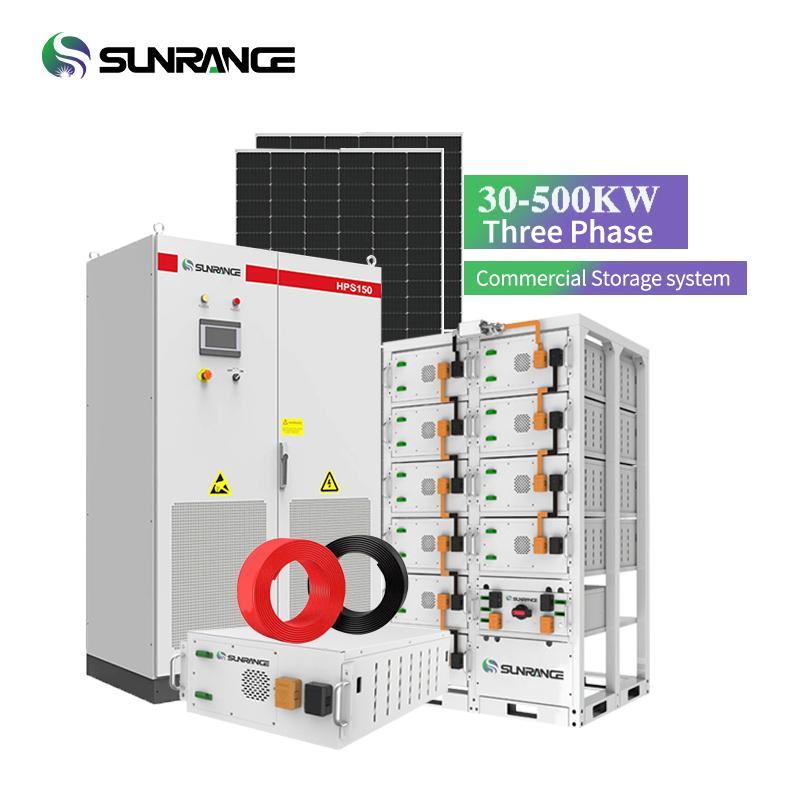

Sunrange Large C&I Hybrid Inverter Solar System 100kw-630kw Power Conversion System 50Hz 60Hz with Solar Battery 200kwh 1000kwh Solar Energy Storage System

1 / 5

Sunrange Large C&I Hybrid Inverter Solar System 100kw-630kw Power Conversion System 50Hz 60Hz with Solar Battery 200kwh 1000kwh Solar Energy Storage System

Customization:	Available
After-sales Service:	Technical Guidance
Warranty:	5-30 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SR-30/50/100/150/250/500KW-HY

Condition

New

Certification

ISO, CB, CE

Application

Commercial

Type

Commercial Solar Energy Storage System

Battery

Gel/ LiFePO4 Battery

System Type

Hybrid Solar PV System

Solar Panel

Monocrystalline 400-700W

Grid Type

3W+N+PE

Controller

MPPT Types

OEM/ODM

Acceptable

Capacity

230kwh / Customized

💡 Product Description

Model No.	SR-30KW-HY	SR-50KW-HY	SR-100KW-HY	SR-150KW-HY	SR-250KW-HY	SR-500KW-HY
AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
Grid Voltage	380/400VAC
Rated Frequency	50/60Hz
Solar Panel Qty	60PCS	90PCS	180PCS	270PCS	450PCS	900PCS
Total PV Power	34.8KW	52.2KW	104.4KW	156.6KW	261KW	522KW
Battery Bank	40.96KWH	100.352KWH	202.752KWH	304.128KWH	473.088KWH	946.176KWH

⚙ Technical Highlights

☀

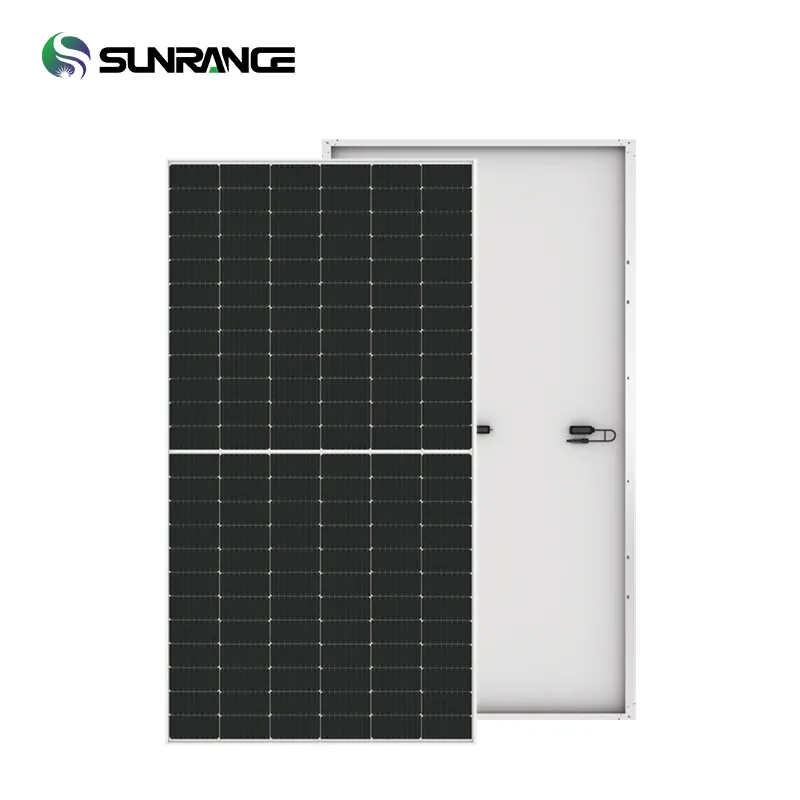

N-Type Topcon Solar Panel

Model: SR72P-580W | Efficiency: 22.44% | Max Power: 580W
High-efficiency conversion for maximum energy harvest.

🔌

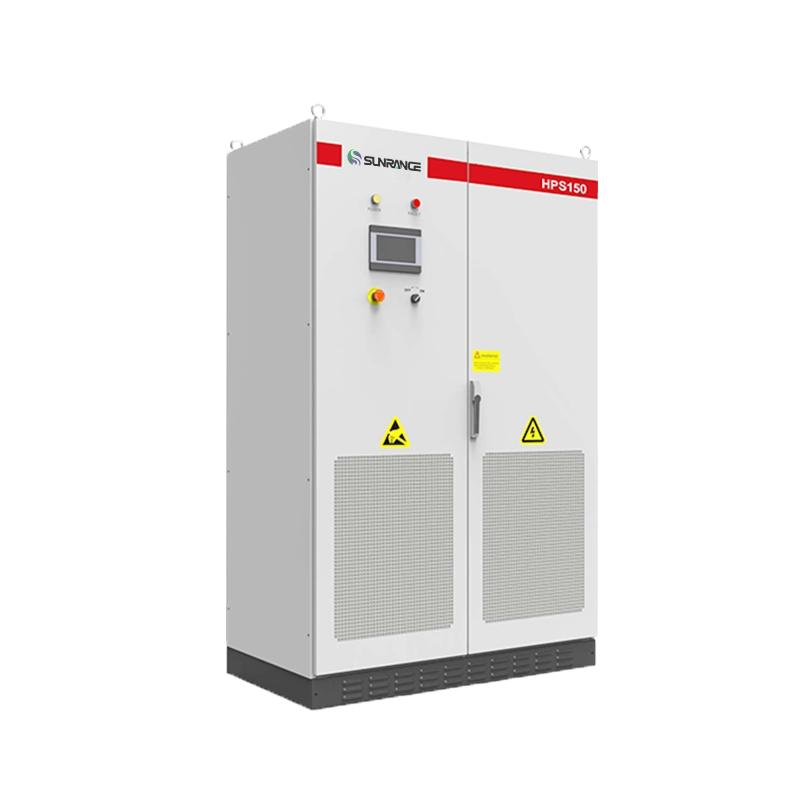

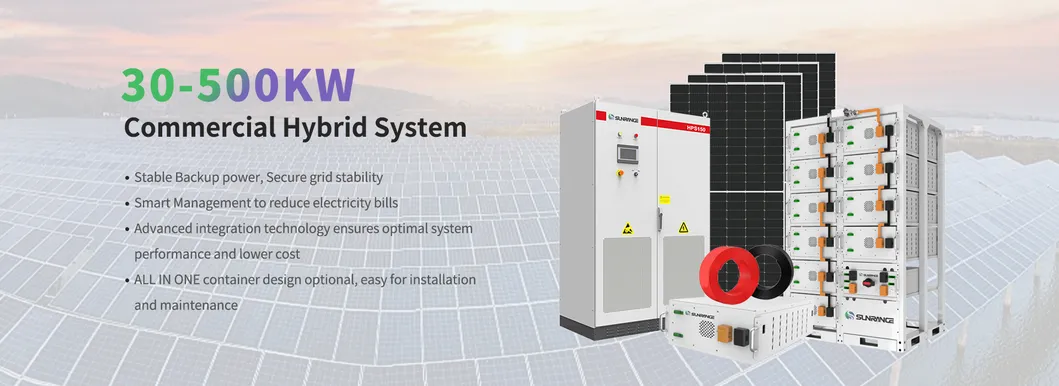

All-in-One Hybrid Inverter

Supports PV, battery, DG, grid, and load connections. Seamless switch within 6ms. Dynamic power distribution to fulfill demand.

🔋

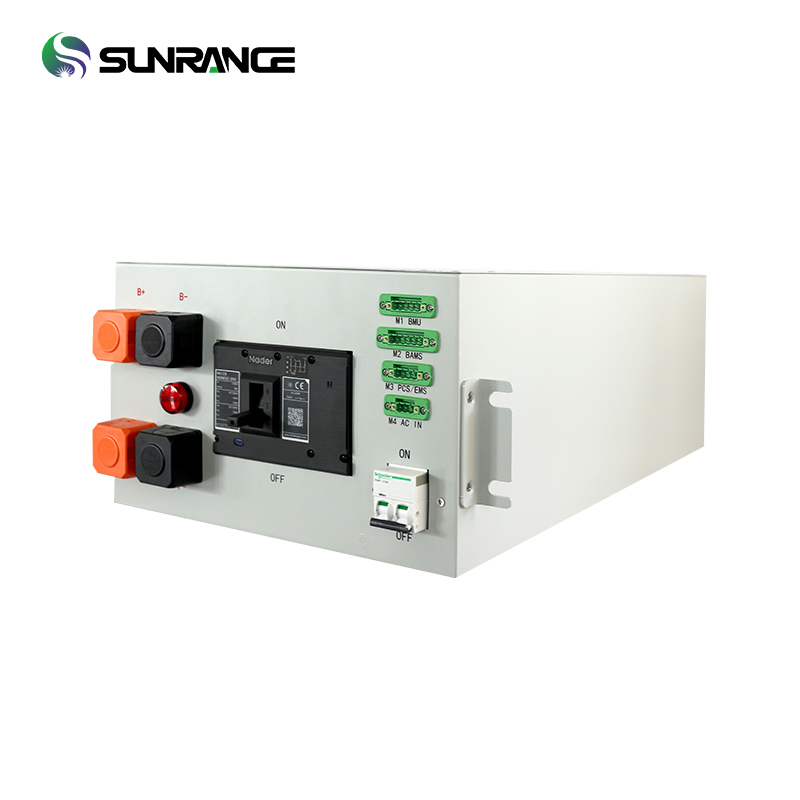

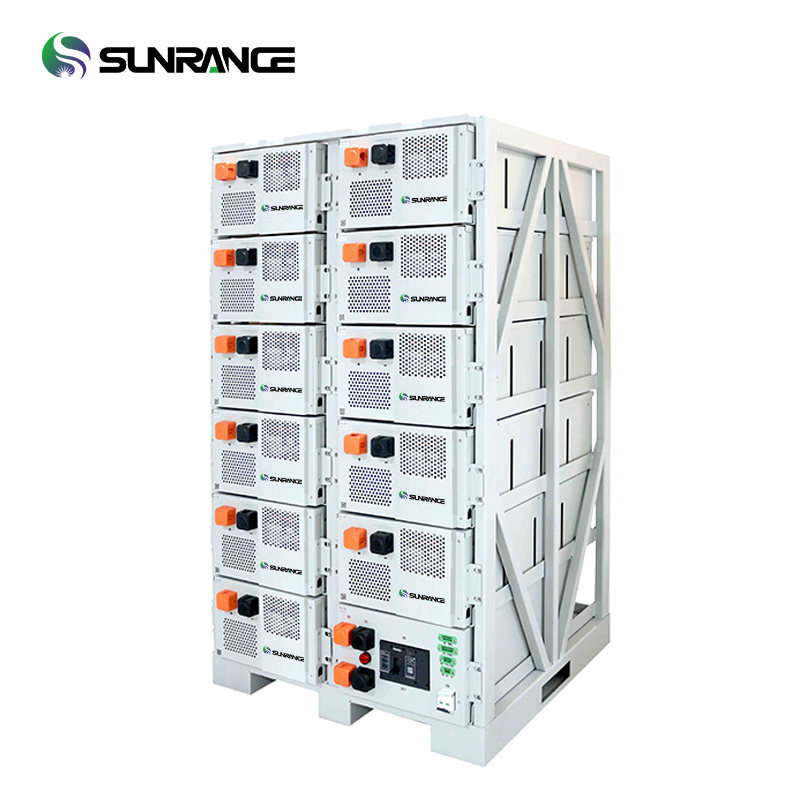

Solar Battery Packs

LiFePO4 Lithium Ion | Rack Mounted | 6000+ Cycles | 90% DOD. Easy installation and maintenance-free design.

💻

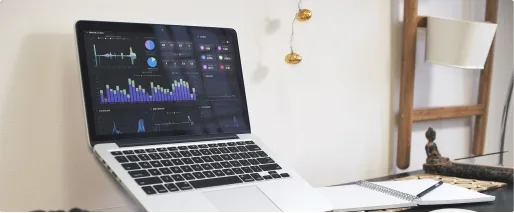

Online Monitoring System

Real-time data tracking, safe operation logs, and full lifecycle data storage for reliability.

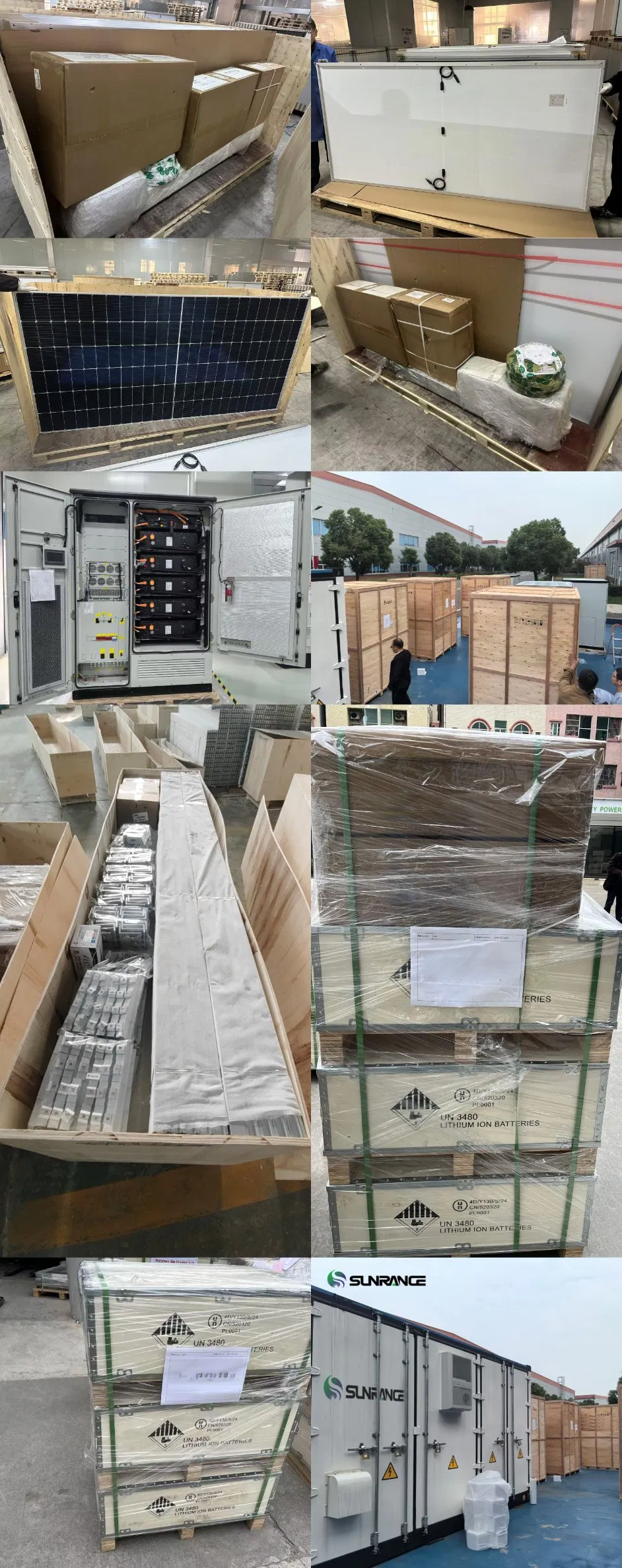

🚚 Support & Packaging

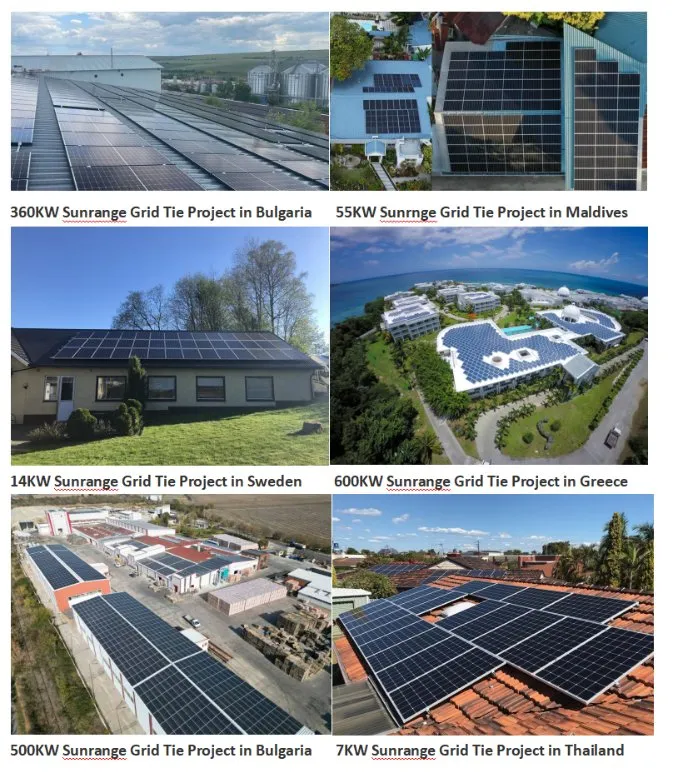

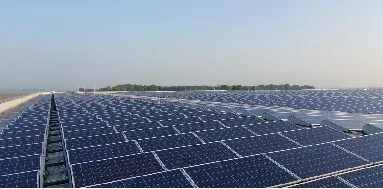

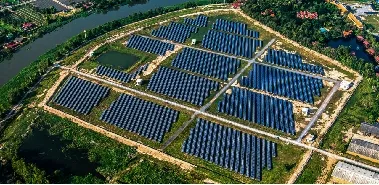

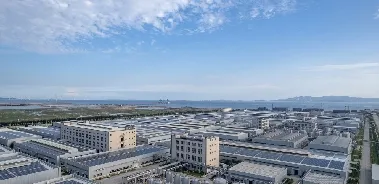

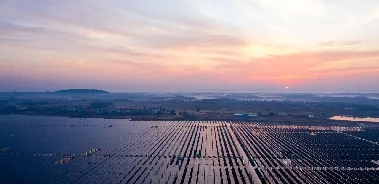

🏗 Global Project Cases

🎖 Certifications

❓ Frequently Asked Questions

What are the main advantages of this hybrid solar system?

The system combines solar energy, battery storage, and grid connection, allowing for seamless energy management, reduced electricity bills, and backup power during grid failures.

How long do the LiFePO4 batteries last?

Our LiFePO4 battery packs are designed for long lifespans, typically offering over 6,000 deep cycles at 90% Depth of Discharge (DOD).

Can the system capacity be expanded in the future?

Yes, the modular design of both the hybrid inverters and the battery packs allows for easy expansion to meet increasing energy demands.

What is the switching time during a power outage?

The system features an SCR switch that enables a seamless transition to battery power within 6ms, ensuring no interruption to sensitive commercial loads.

What kind of maintenance is required?

The system is designed to be virtually maintenance-free. The monitoring system provides real-time health checks, and the solid-state components require no regular manual servicing.

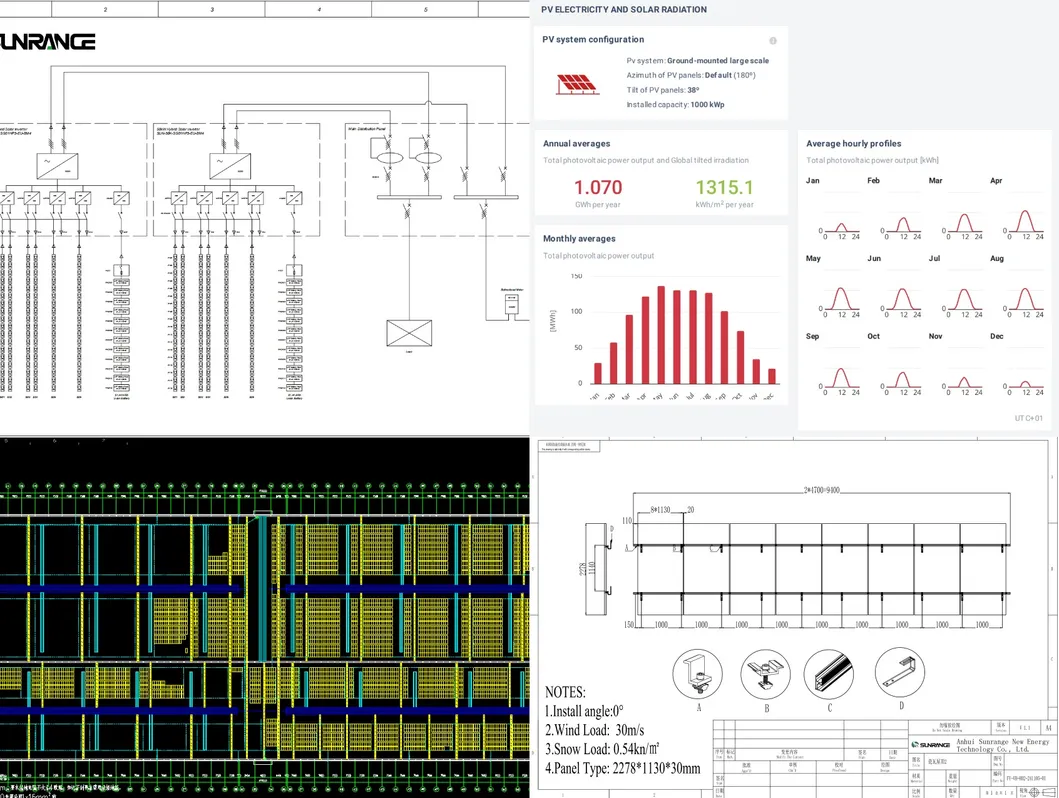

Is technical support provided for installation?

Yes, we provide complete technical support including system design, installation guidance, and online monitoring setup to ensure optimal performance.
