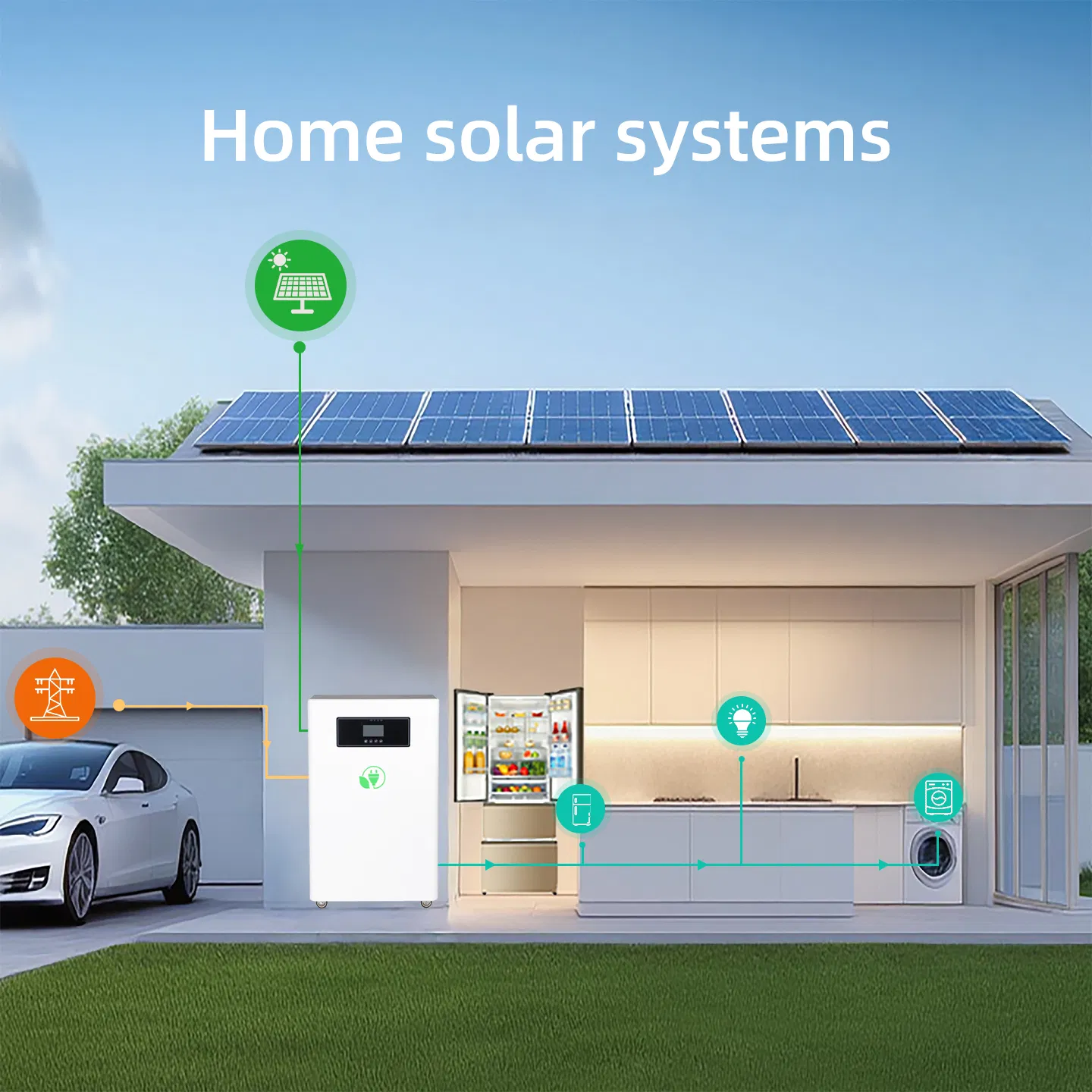

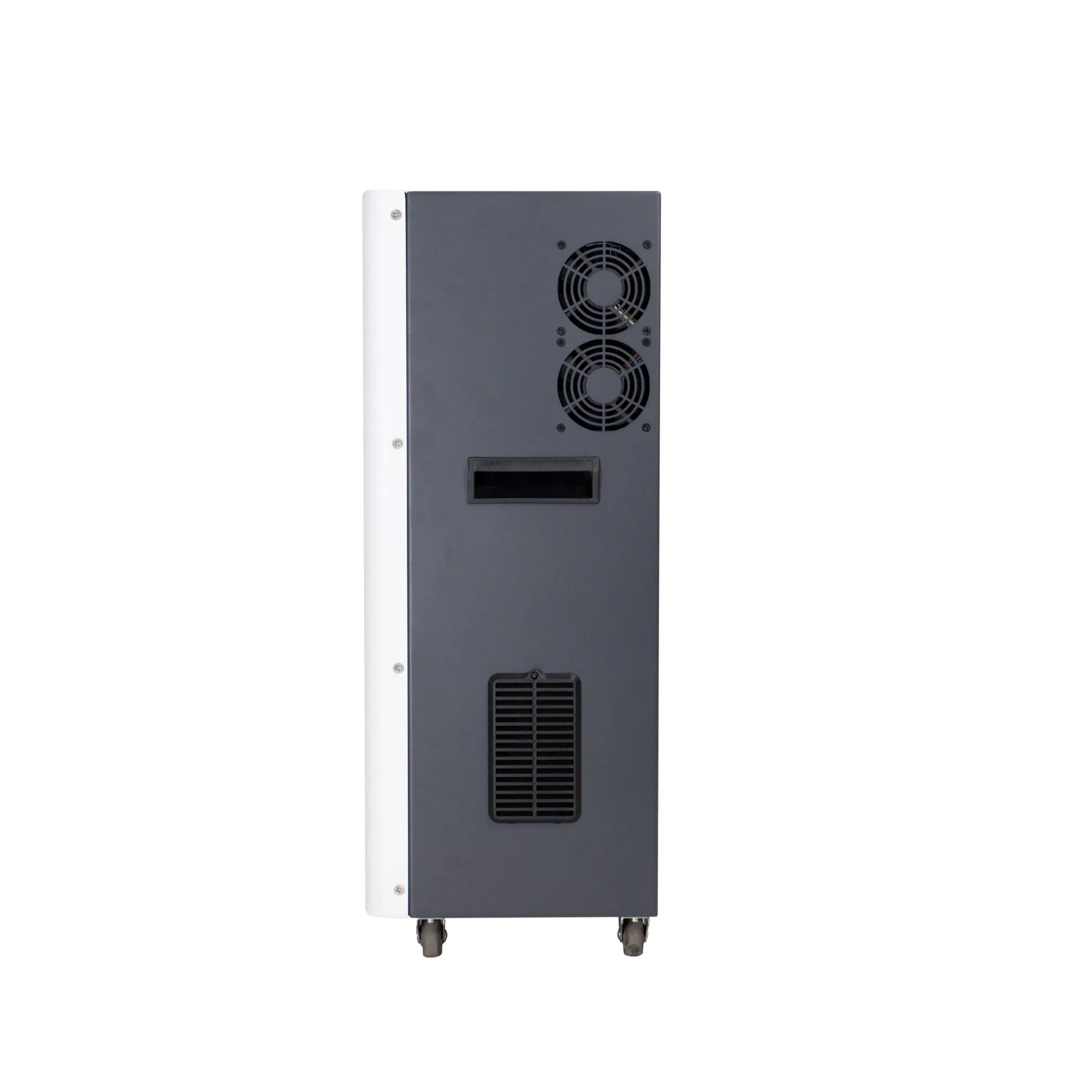

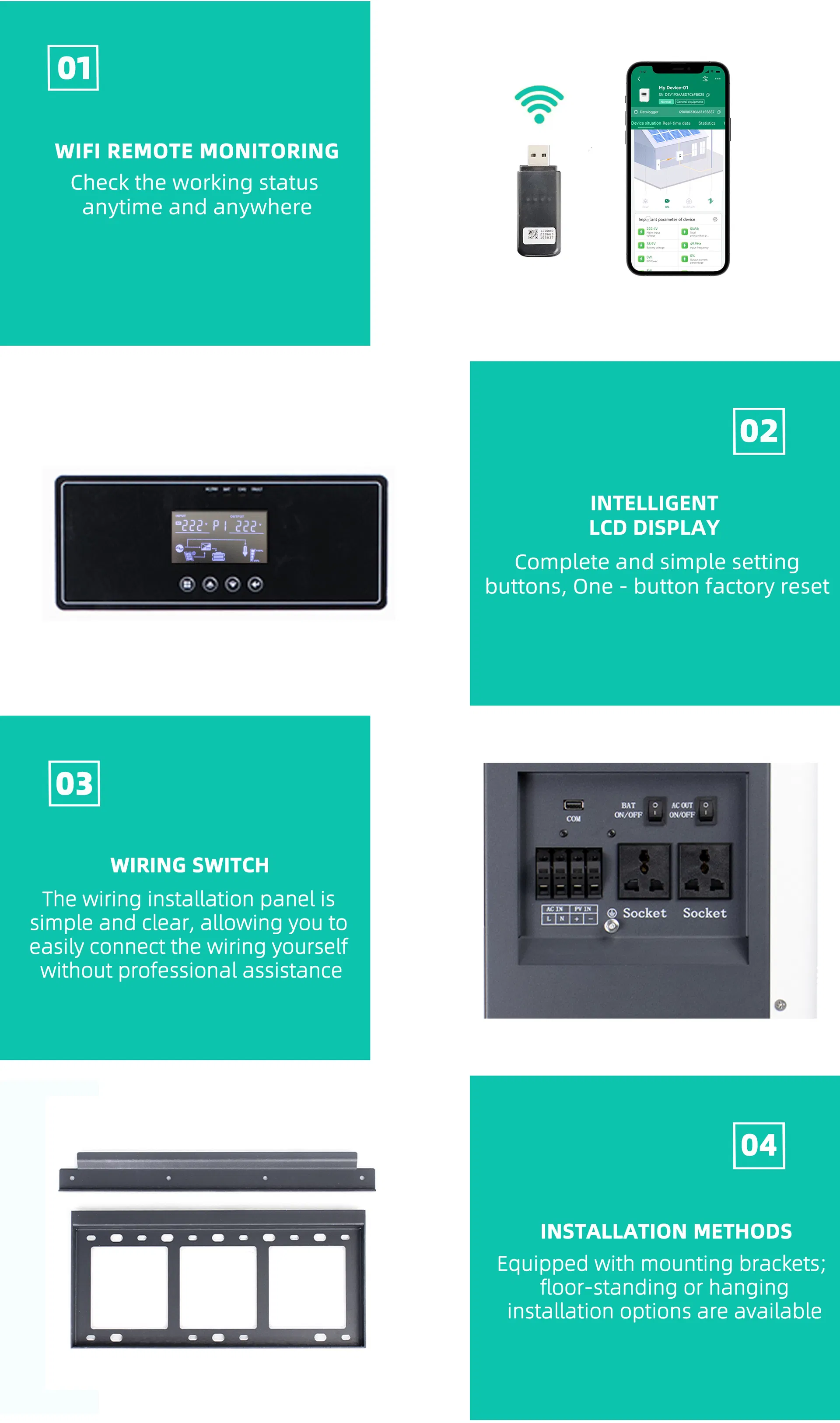

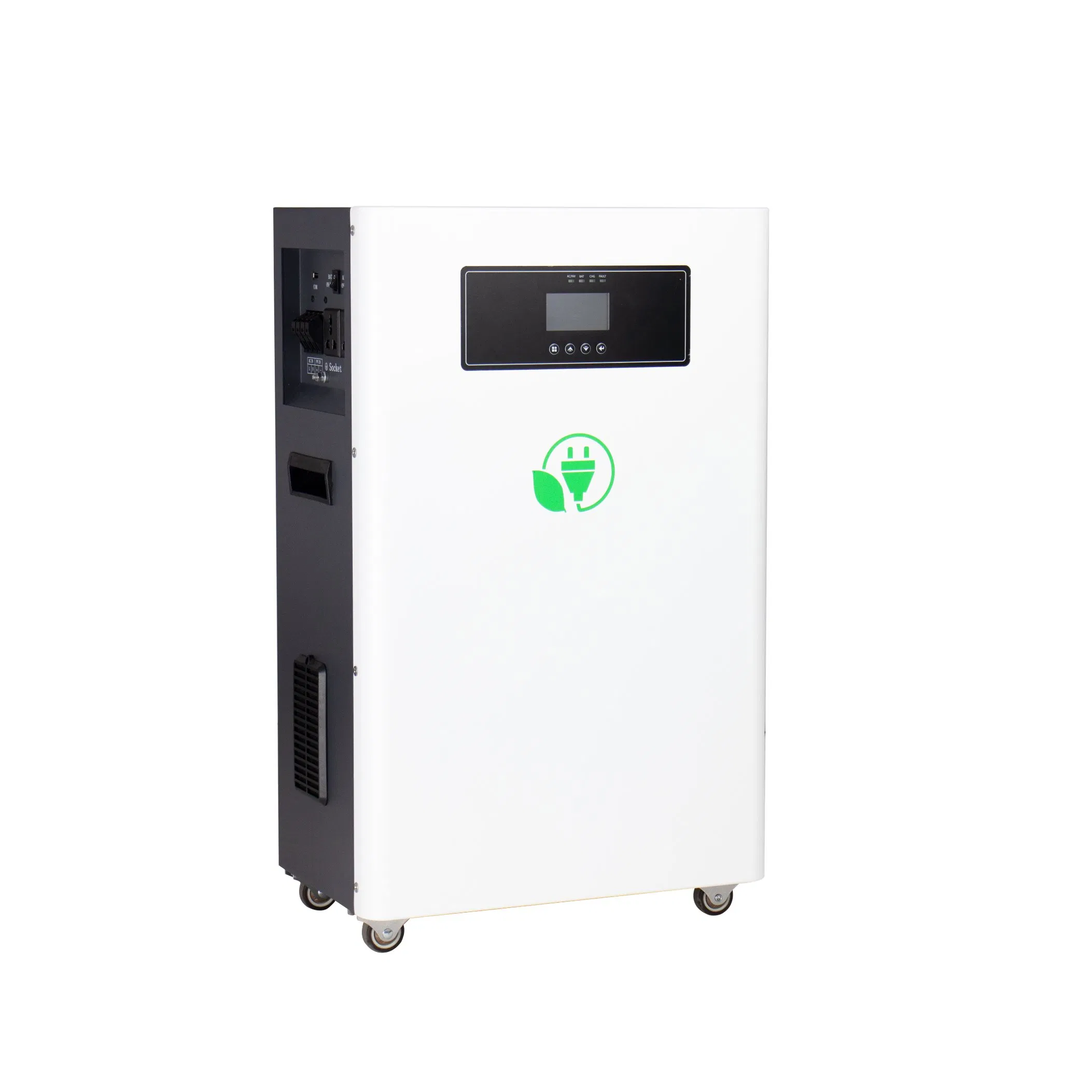

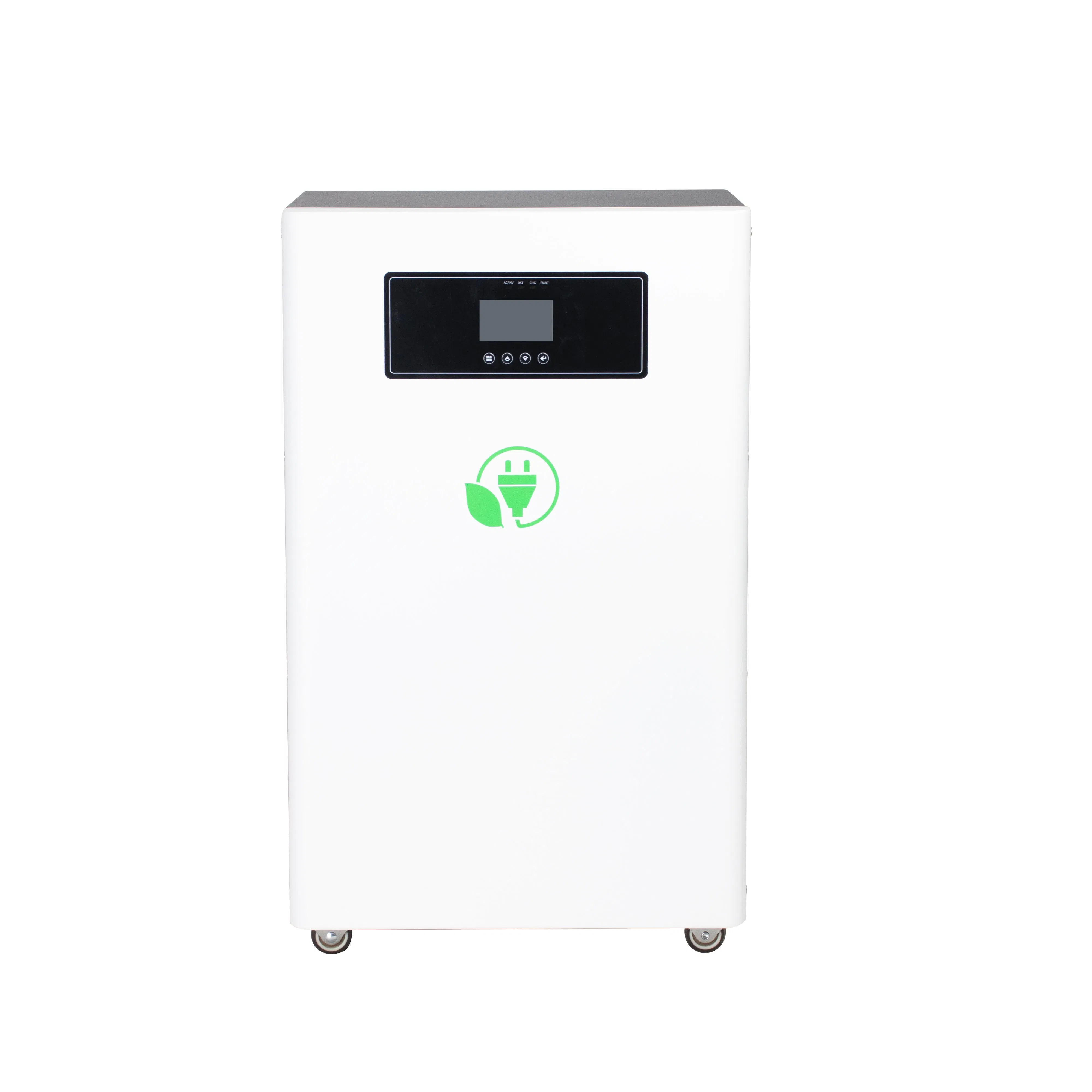

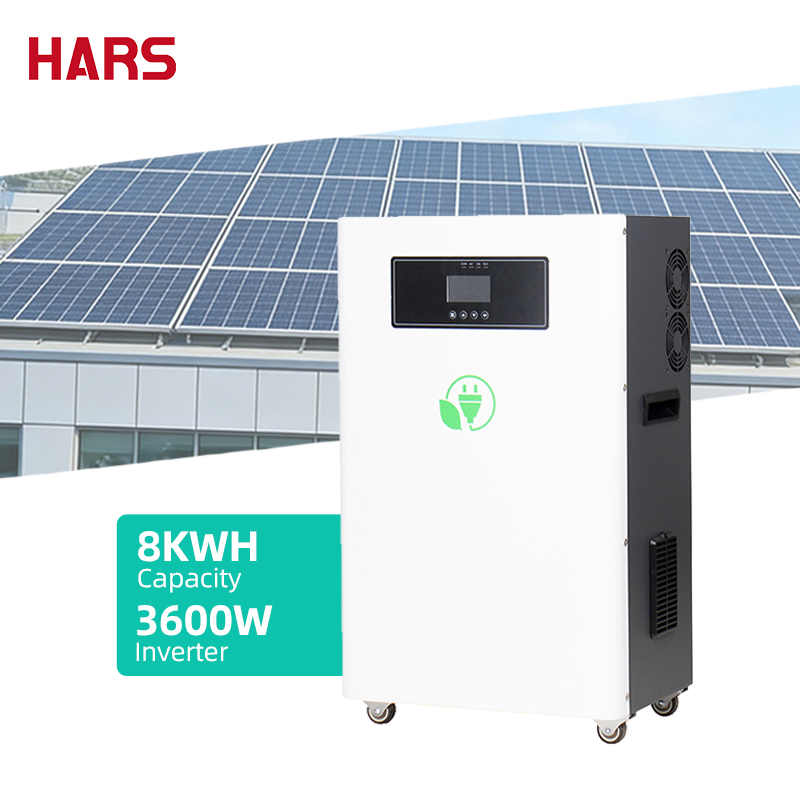

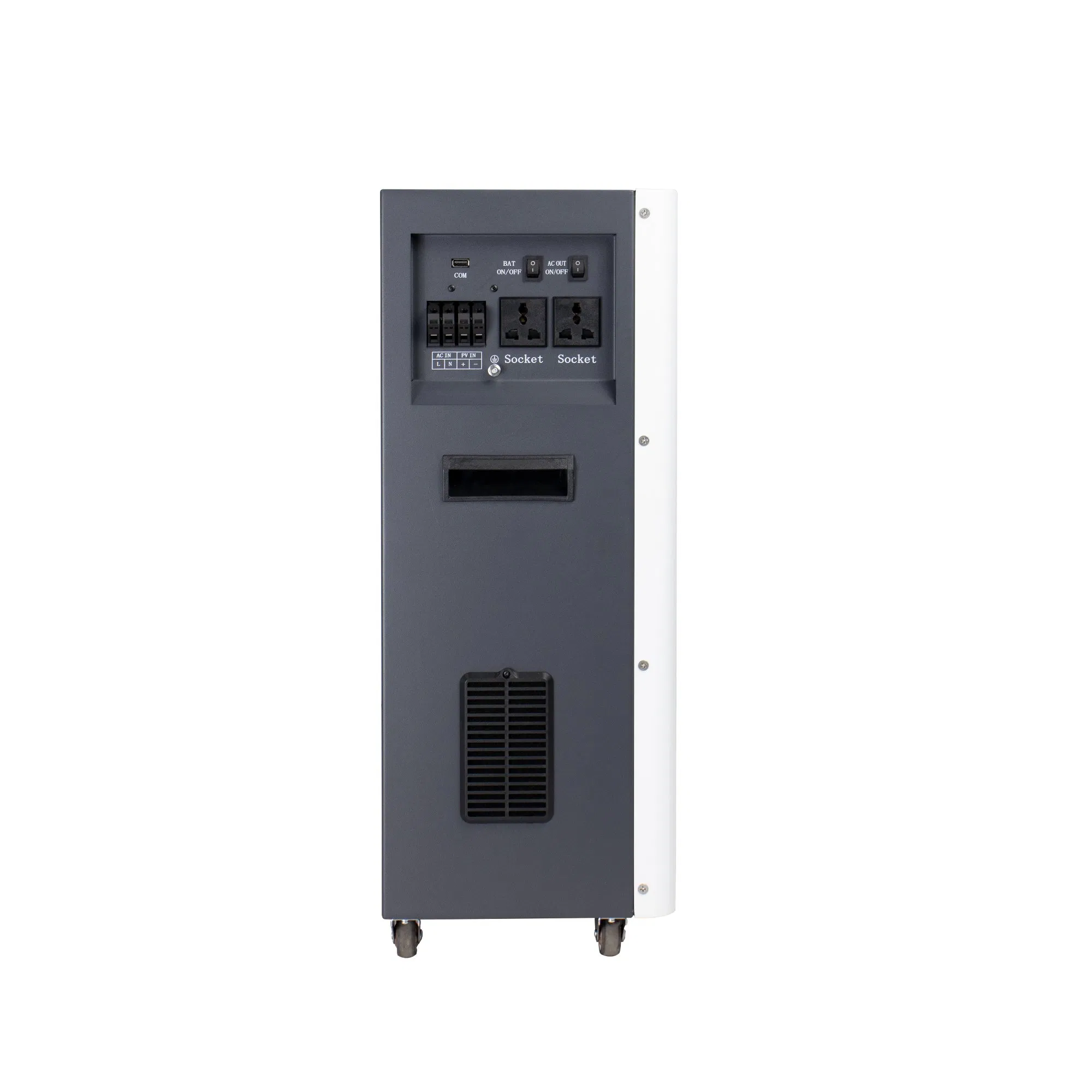

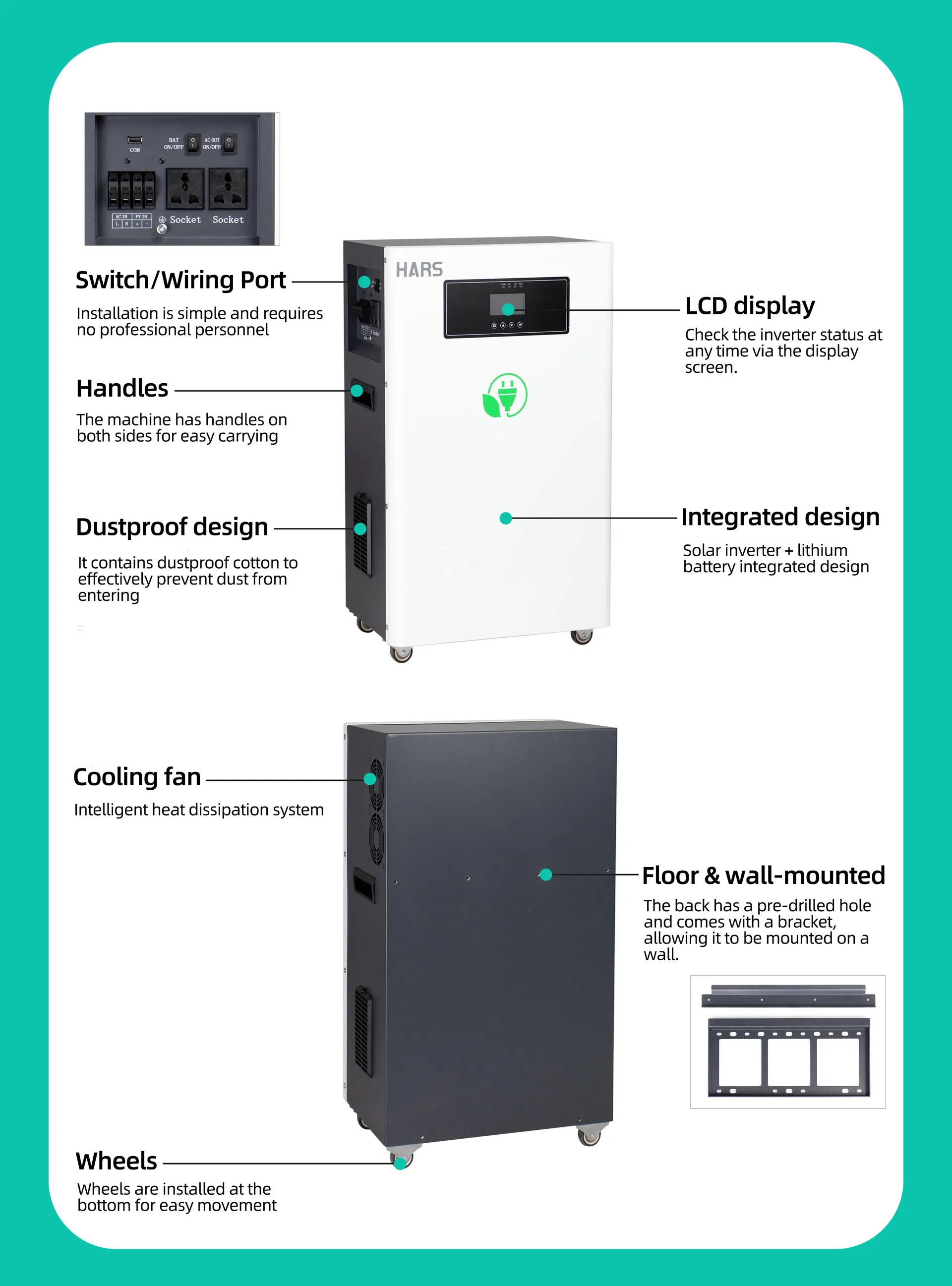

The H4 series integrated solar energy storage system combines photovoltaic inverters and energy storage lithium batteries, reducing user wiring and facilitating maintenance. It provides uninterrupted outdoor power supply for 24 hours, ideal for areas lacking electricity.
| Category | Specifications |
|---|---|
| Model | H4-N8-4200 (8kWh) |
| Single module | 3.2V 314Ah |
| Number of modules | 8pcs |
| Nominal voltage | 25.6V |
| Operating voltage | 22V-29.2V |
| Communication mode | RS485/CAN |
| Installation method | Indoor Integrated, IP21 |
| Battery Input | |
| Battery type | LiFePO4 |
| PV Input | |
| Max PV Open-circuit Voltage | 500Voc |
| Max PV Input Current | 18A |
| MPPT voltage range | 40-450Vdc |
| Max PV Input Power | 5000W |
| AC Output | |
| Output voltage waveform | Pure sine wave |
| Nominal voltage | 230Vac(±5%) |
| Rated output power | 3600W |
| Transfer time | 20ms |

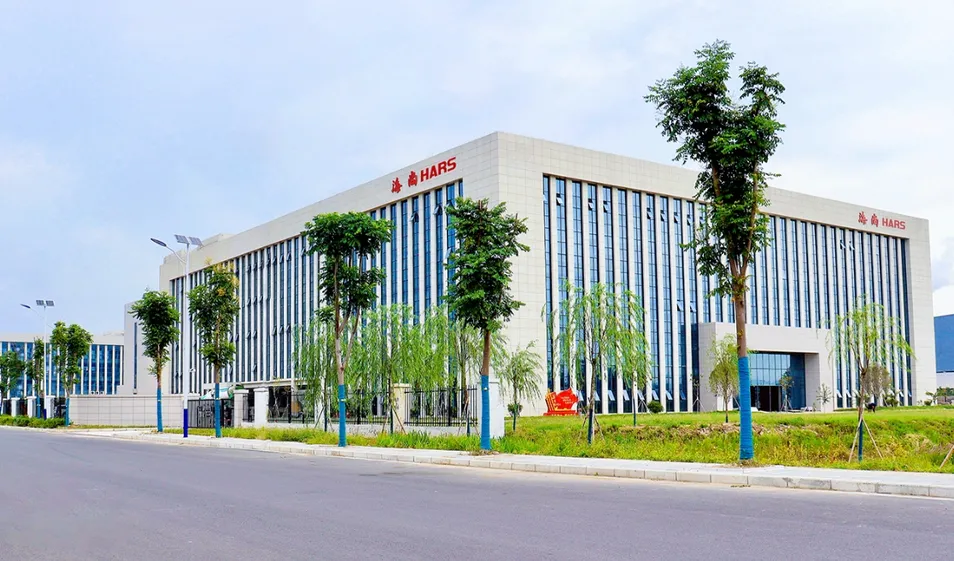

We are a high-tech enterprise integrating R&D, production, sales and technical services. The proportion of automated production is as high as 80%, and the product inventory is sufficient, ensuring reliable delivery times. Our facility includes a construction area of 30,000 square meters and a dedicated photovoltaic factory of 20,000 square meters.
