Product Description

Product Overview

Model NO.
HE300-12000-F
Nature of Source
Active Inverter
Phase
Single Phase
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Wave String
Sine Wave Inverter

Packaging & Delivery

Package Size
63.50cm * 55.00cm * 23.50cm
Gross Weight
24.000kg

Product Description

Hybrid Solar Inverter
⚡

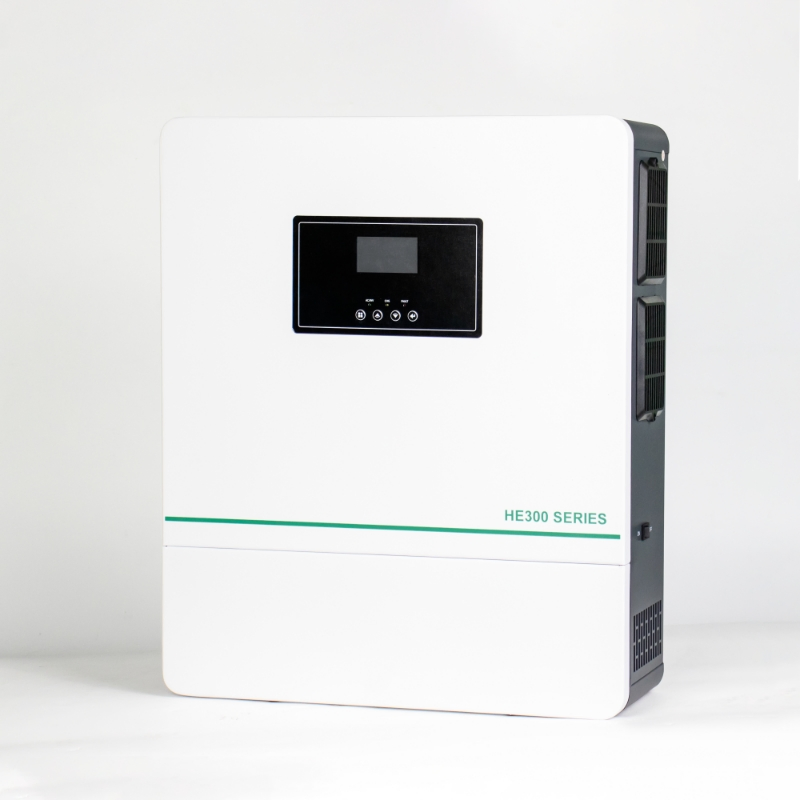

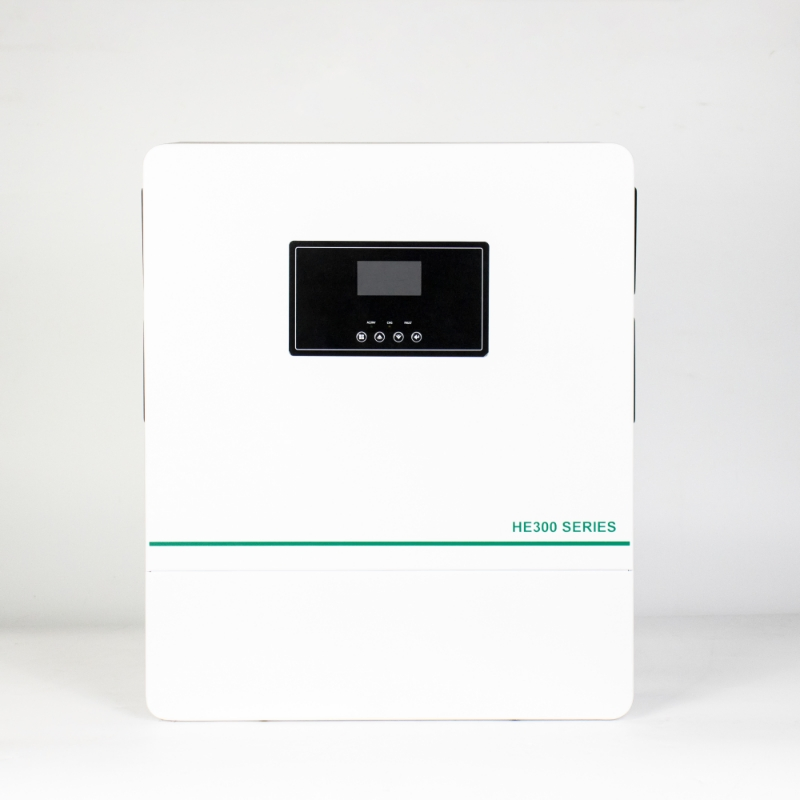

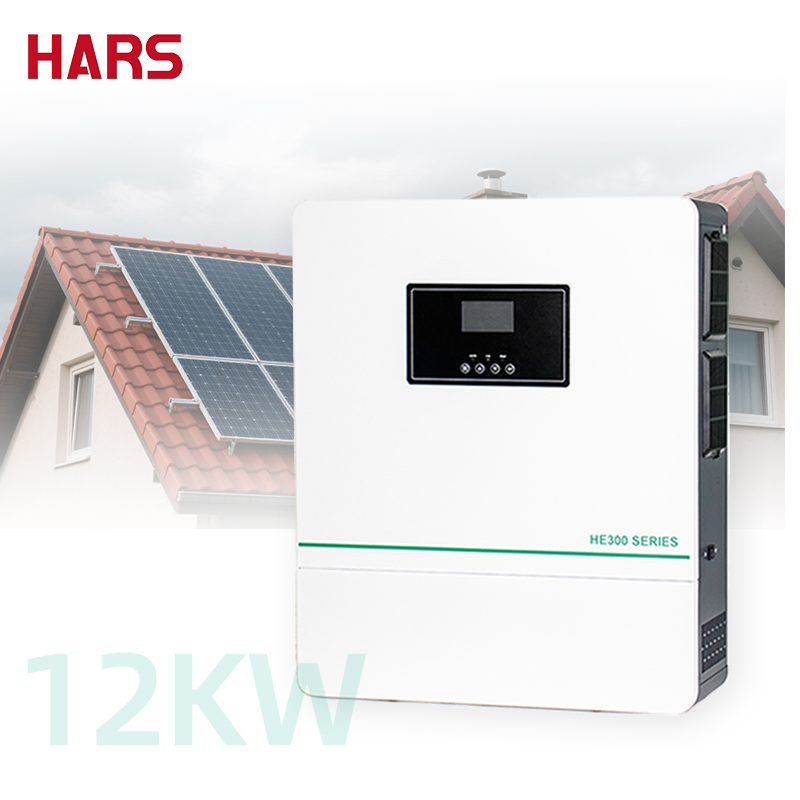

Hybrid Solar Inverter - HE300 Series
The HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts a portable size and supports uninterruptible power supply (UPS) switching.
This advanced system features setting functions for battery charging voltage and current, multiple power input and output priority settings. The output AC voltage and frequency can be adjusted, making it suitable for different power grid environments. Additionally, it features a mobile phone APP for real-time online data monitoring.

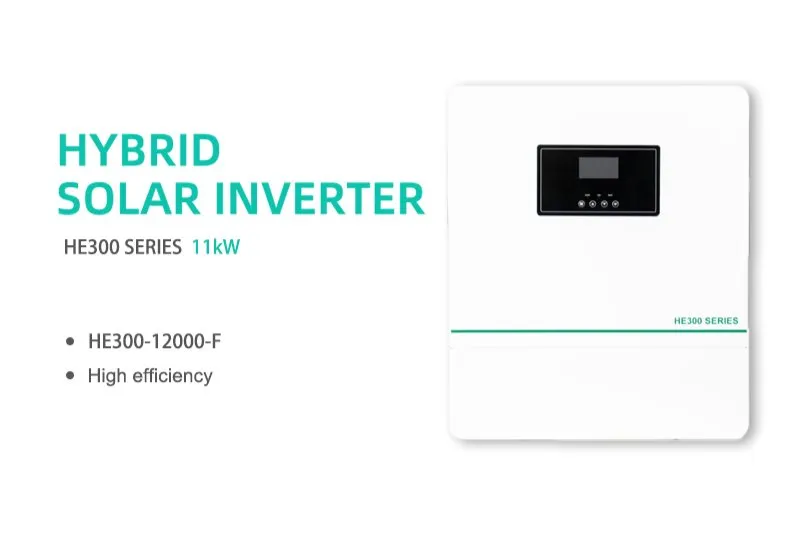

Advanced Home Power System
Hybrid Solar Inverter Details

Technical Parameters

MODEL: HE300-12000-F
Inverter Output
Rated Output PowerBattery inverter: 11000W / PV inverter: 12000W
Rated Output Voltage220/230/240Vac ± 5% (Single Phase)
Rated Output Current47.8A
Output WaveformPure Sine Wave
Battery System
Battery TypeLead acid / Gel / Lithium battery
Rated Battery Voltage48V
Max PV Charging Current150A
PV Input
MPPT Number2
Max Input Power2 * 7500W
Max Open Circuit Voltage500Vdc
Input Voltage Range90 ~ 450V
AC / Generator Input
Input Voltage Range90-280VAC (APL mode) / 170-280VAC (UPS mode)
Input Frequency50/60Hz
General Parameters
Protection LevelIP21
Operating Temperature-10℃ ~ 50℃
Cooling MethodIntelligent Air Cooling

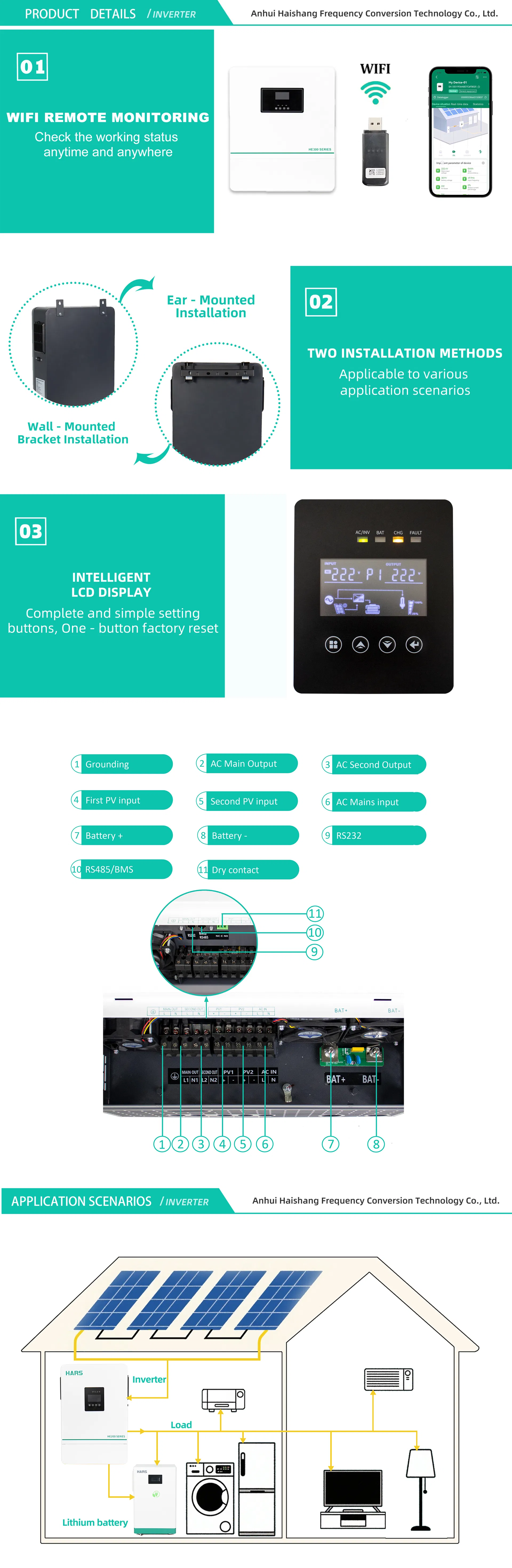

Inverter Technical View
Inverter Display

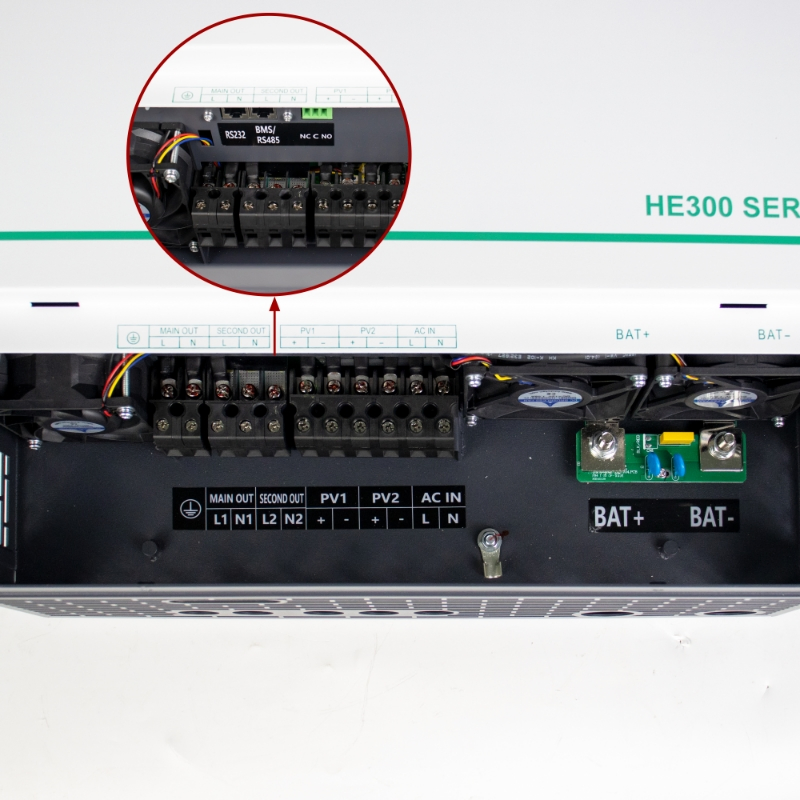

Inverter Interface

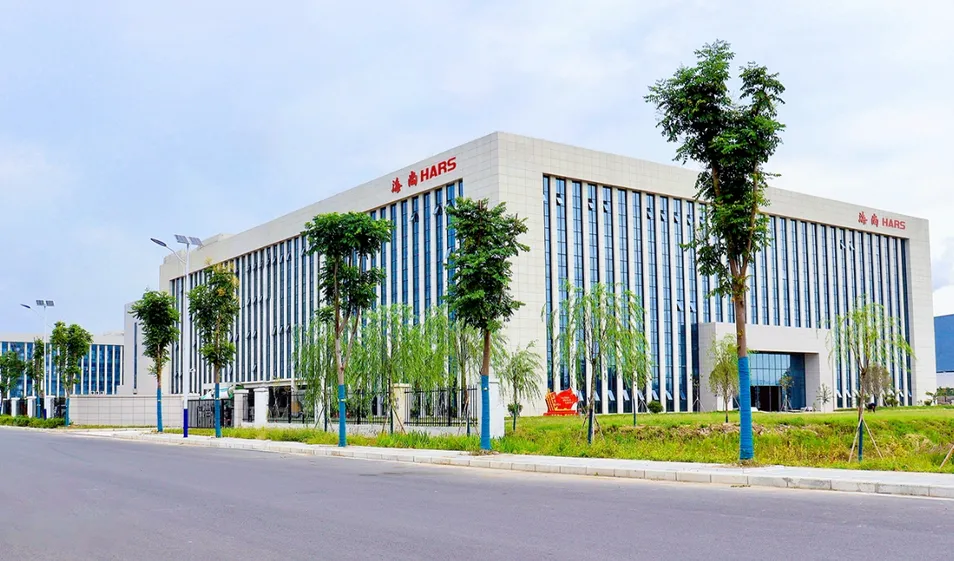

Production Facility
Factory Overview
Quality Control
Certifications

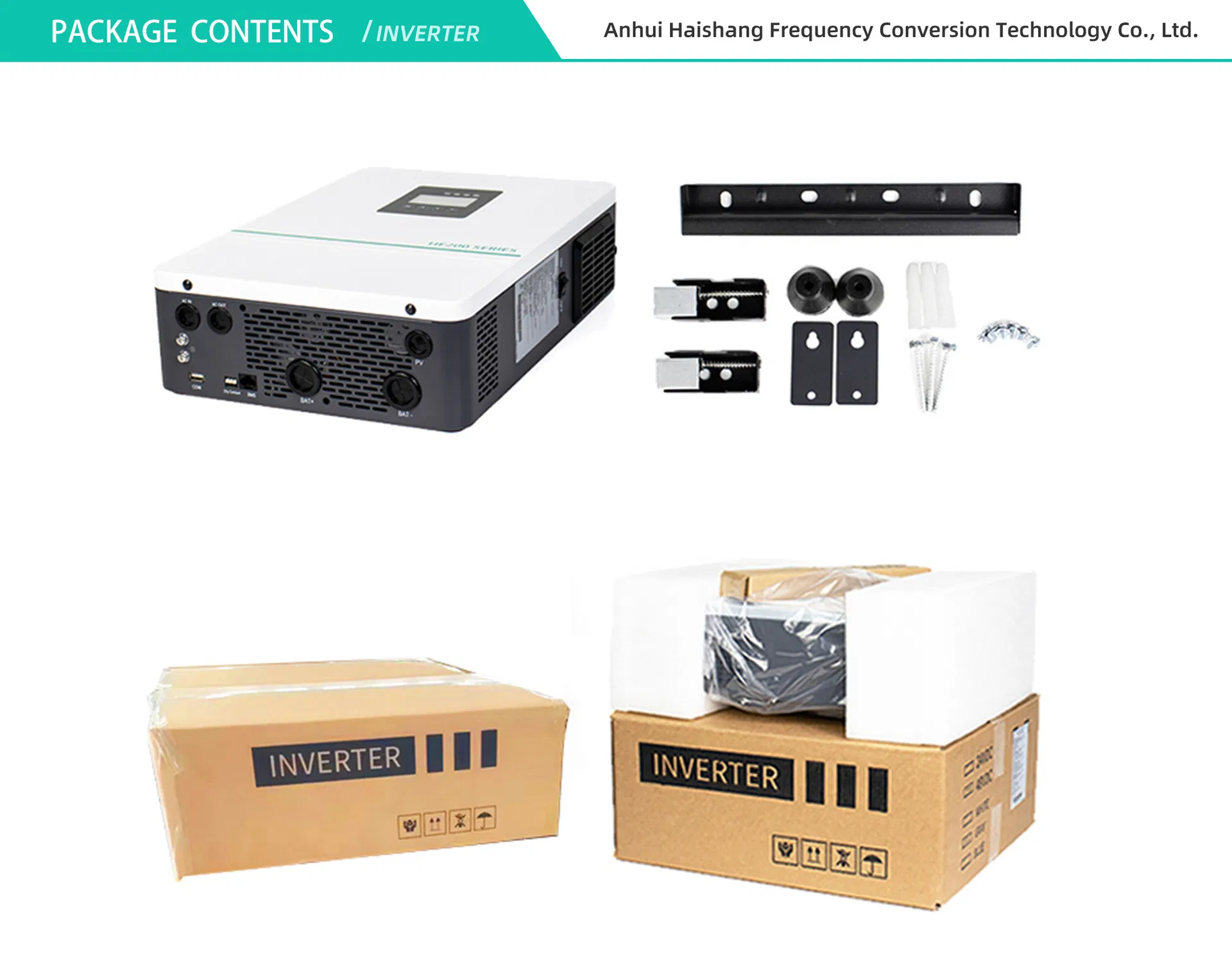

Shipping Packaging

Frequently Asked Questions

Are you a manufacturer or trading company?
We are a professional frequency inverter and solar inverter manufacturer with dedicated production lines.
Can you accept to use of our logo?
Yes, we accept OEM production and can customize products with your branding.
What are your terms of payment?
We accept T/T, L/C, Paypal, Western Union, and other standard payment methods.
How about your product's quality inspection?
We have professional QA and QC teams. A 100% quality inspection is performed before any goods leave the factory.
Do you test all your goods before loading?
Yes, we conduct a 100% functional and safety test on all units before shipping.
Is the inverter suitable for different grid environments?
Yes, the HE300 series allows for adjustable output voltage and frequency to match various regional power grid requirements.
