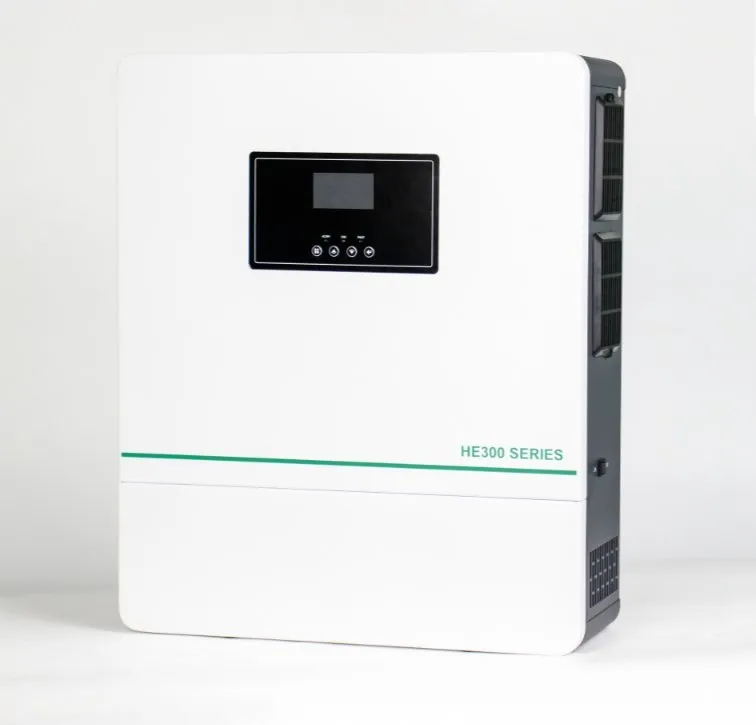

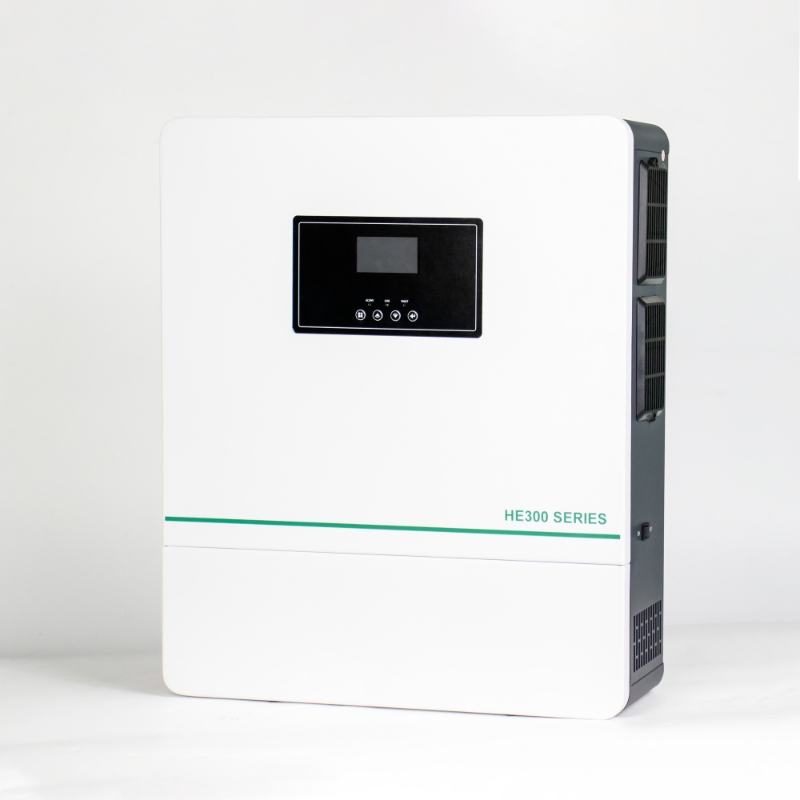

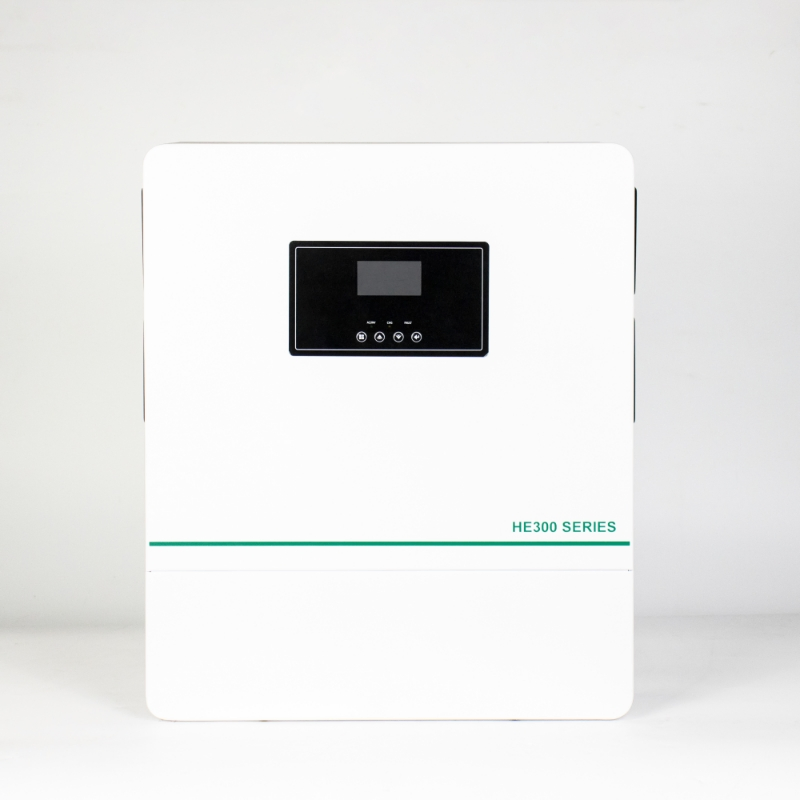

The HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. Designed for versatility, it supports uninterruptible power supply (UPS) switching and features customizable battery charging voltage and current settings.

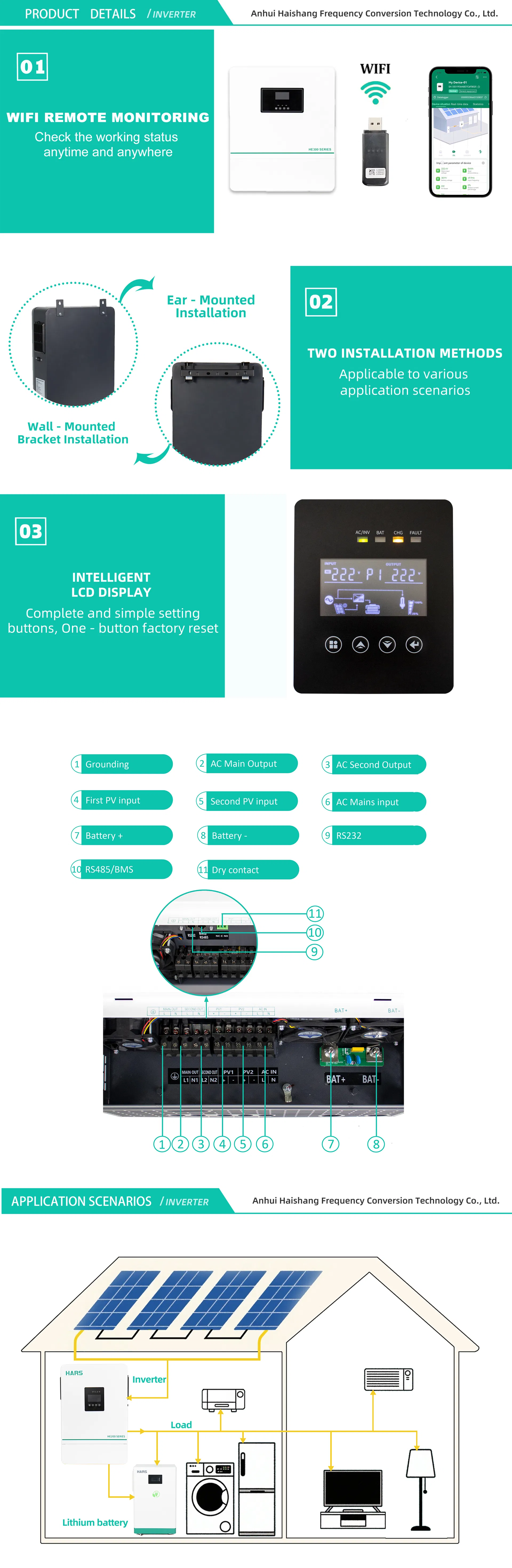

Suitable for various power grid environments, this system allows for multiple power input and output priority settings. Users can monitor online data via a dedicated mobile phone APP, ensuring maximum efficiency and control.
Technical Specifications
Inverter Output Performance
Rated Output Power
Battery: 11000W / PV: 12000W
Rated Output Voltage
220/230/240Vac ± 5% (Single Phase)
Rated Output Current
47.8A
Output Frequency
50/60Hz ± 0.1%
Output Waveform
Pure Sine Wave
Battery & PV Input
Battery Type
Lead acid / Gel / Lithium battery
Rated Battery Voltage
48V
Max PV Charging Current
150A
MPPT Number
2
Max Input Power
2 * 7500W
Max Open Circuit Voltage
500Vdc
Input Voltage Range
90 ~ 450V
Core Advantages

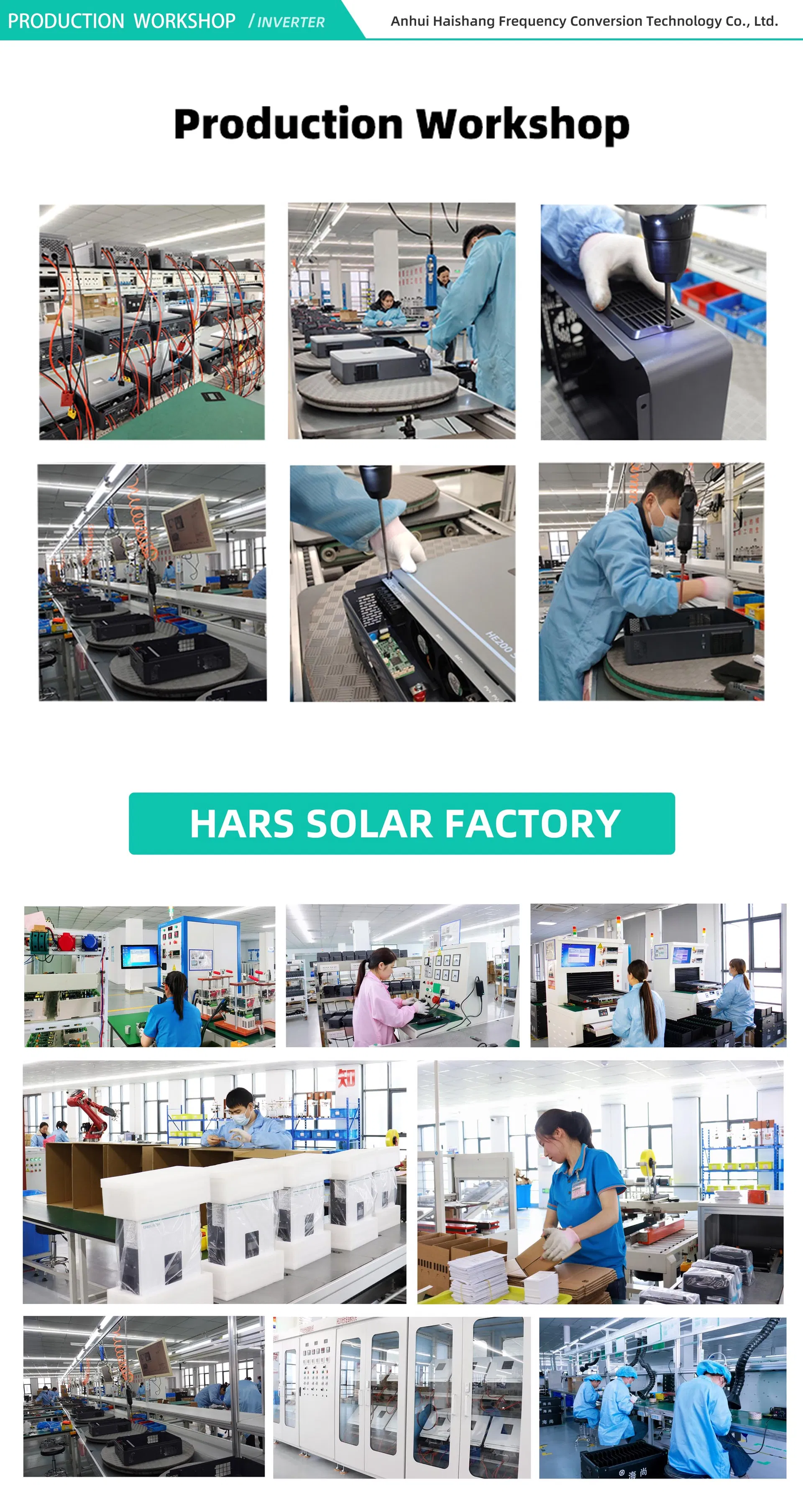

High Automation: Production line features 80% automated processes for consistent quality.
R&D Excellence: Integrated R&D and technical services with multiple technical centers.
Strong Support: Providing ODM and OEM services with robust technical backing.

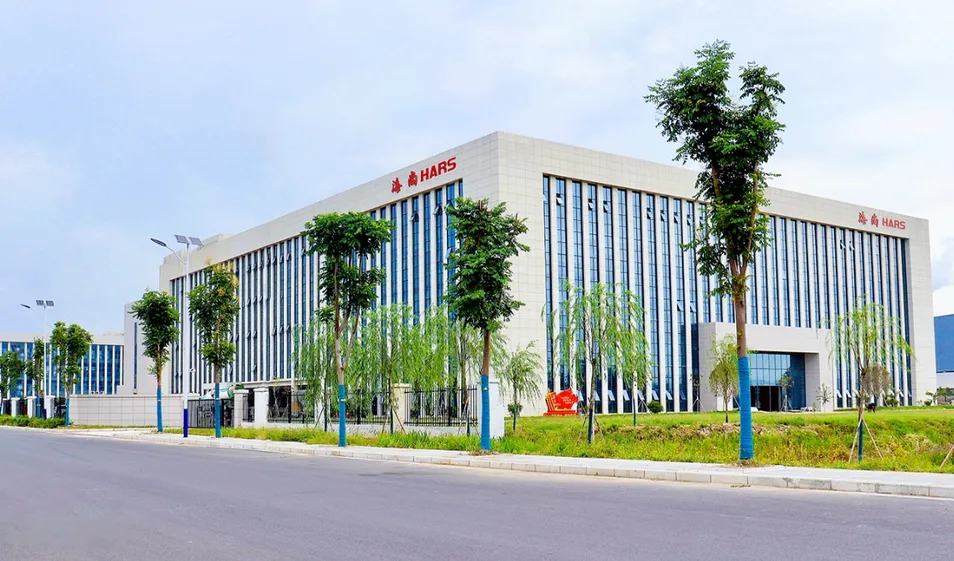

Scalability: Construction area over 30,000 square meters with dedicated photovoltaic facilities.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
We are a professional frequency inverter manufacturer with integrated R&D and production facilities.
Q2: Can you accept the use of our own logo?
Yes, we accept OEM production and can customize products with your branding.
Q3: What are your terms of payment?
We accept various payment methods including T/T, L/C, PayPal, and Western Union.
Q4: How do you handle quality inspection?
We have professional QA and QC teams. A 100% quality inspection is performed on all goods before they leave the factory.
Q5: Do you test all goods before loading?
Yes, we conduct a full 100% functional test on all units prior to shipping.
Q6: What battery types are compatible with your inverters?
Our hybrid inverters are compatible with Lead-acid, Gel, and Lithium battery systems.
