Battery Energy Storage System with UL1973 and IEC63056 Safety Compliance

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Product Information

Model

ECO-E101WX

Nominal Capacity

101kWh

Cycle Life

6000 Cycles

Application

Industrial & Commercial

Cooling

Air-Cooled

Protection

IP55 Rating

Grid Type

On-Grid / Off-Grid

Dimensions

1250*1200*2150mm

Product Description

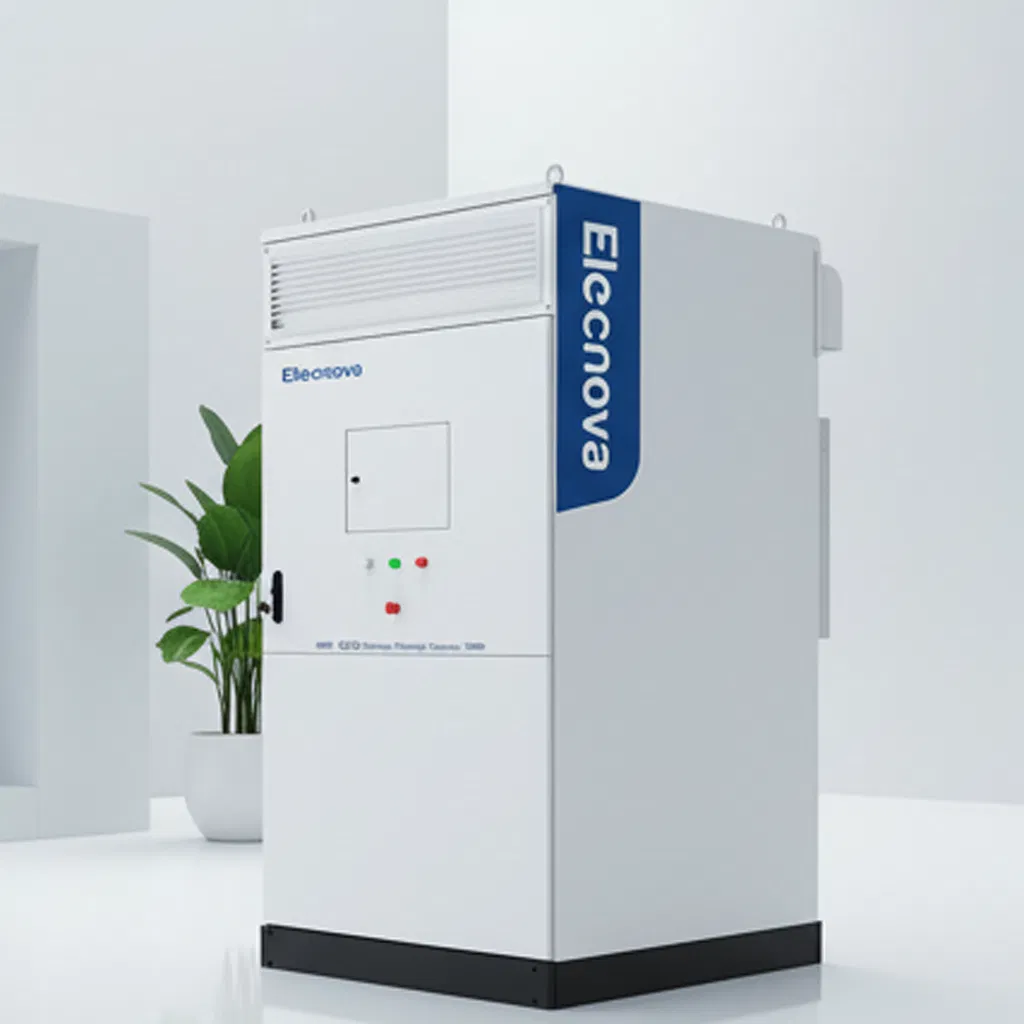

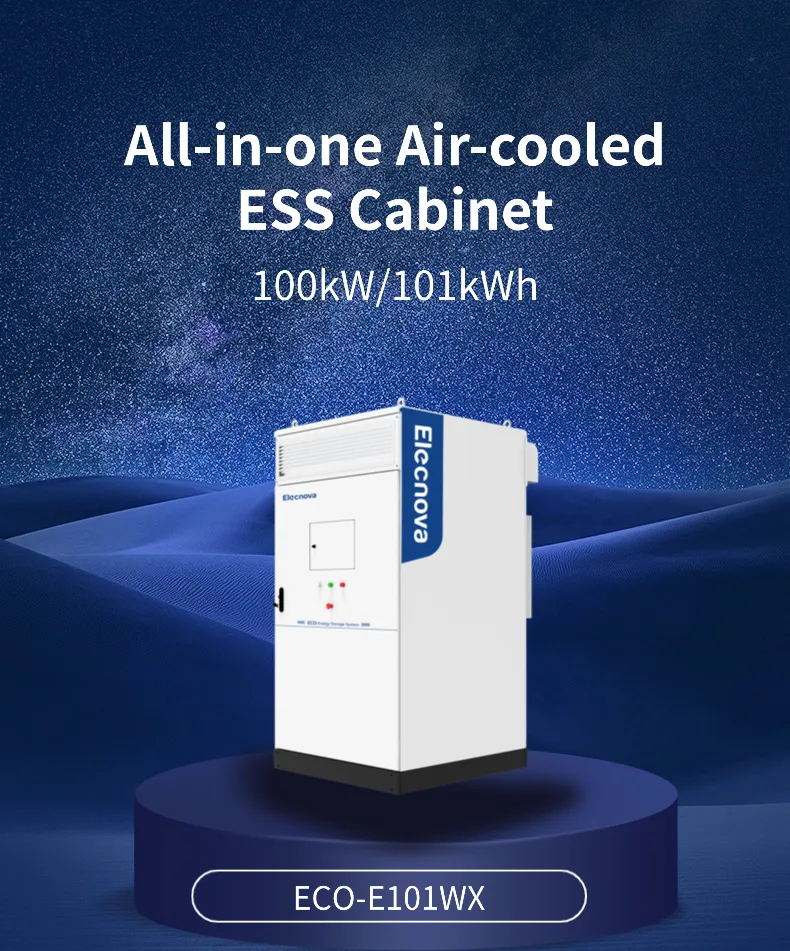

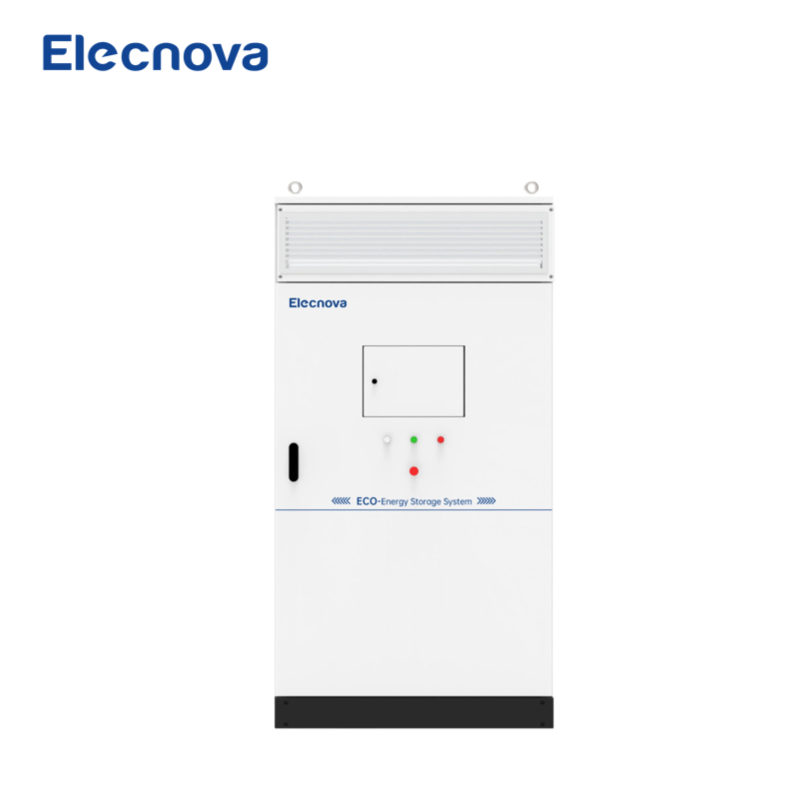

The all-in-one air-cooled Energy Storage System (ESS) cabinet integrates long-life battery technology, efficient balancing BMS, high-performance PCS, active safety systems, smart distribution, and HVAC into a single unit. This design enables long-term operation with safety, stability, and reliability. Through AC side parallel connection, it achieves agile deployment for ESS power stations with flexible capacity expansion.

We offer three flagship product lines to meet diverse energy storage demands:

C&I Ultra All-in-one modular BESS cabinets (air/liquid cooled) with ≥90% efficiency, ideal for industrial scenarios.

Solar Pro Seamless integration with PV systems, featuring battery ESS, EMS, and multi-brand hybrid inverter compatibility.

NovaStack Plug-and-play 20ft container systems designed for utility-scale energy storage projects.

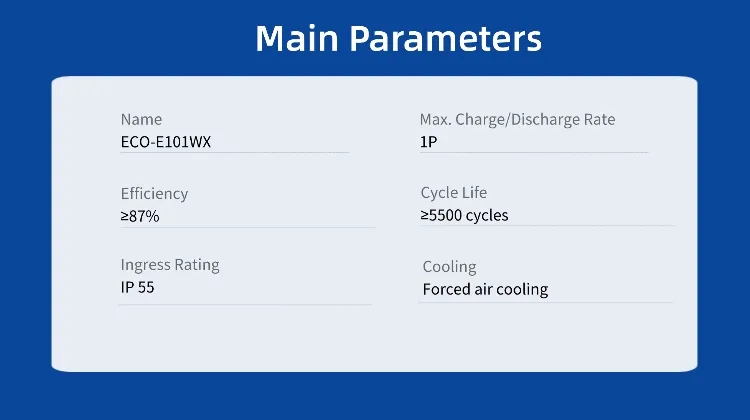

Technical Parameters

DC Side Specifications
Cell Type	LFP / 120 Ah
System Configuration	101 kWh / 1P264S
Rated DC Voltage	844.8 V
Max. Charge/Discharge Rate	1 P
AC Side Specifications
Rated Output Power	100kW
Rated AC Voltage	230 / 400 V
Grid Type	3W+PE / 3W+N+PE
Rated Frequency	50 Hz / 60 Hz
General Data
Round Trip Efficiency	≥ 87%
Fire Suppression	Aerosol
Operating Temperature	-25ºC to 55ºC
Weight	2,000 kg

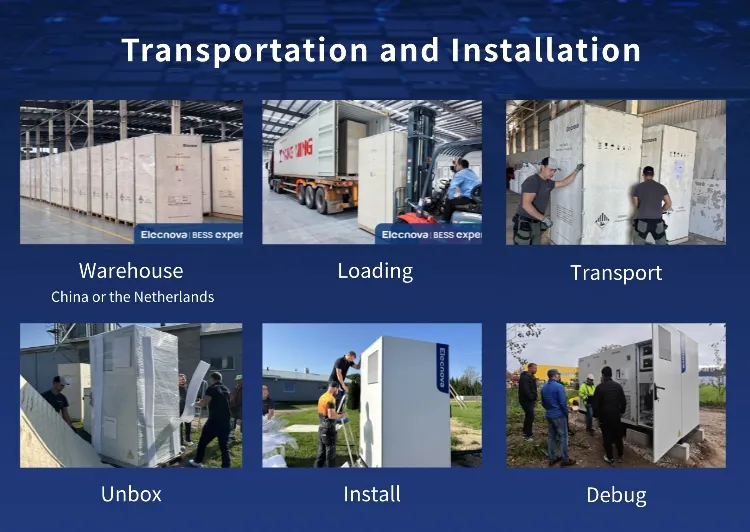

Packaging & Delivery

Our professional delivery process ensures your BESS operates reliably from day one. We provide a full-cycle service:

Storage: Strategic warehouses in China and Europe for timely dispatch.
Loading: Specialized equipment and strict protocols to prevent damage.
Transport: Trusted global logistics network with full visibility.
Installation: Precision setup following rigorous safety guidelines.
Commissioning: Thorough debugging by technical experts for peak performance.

After-Sales & Certifications

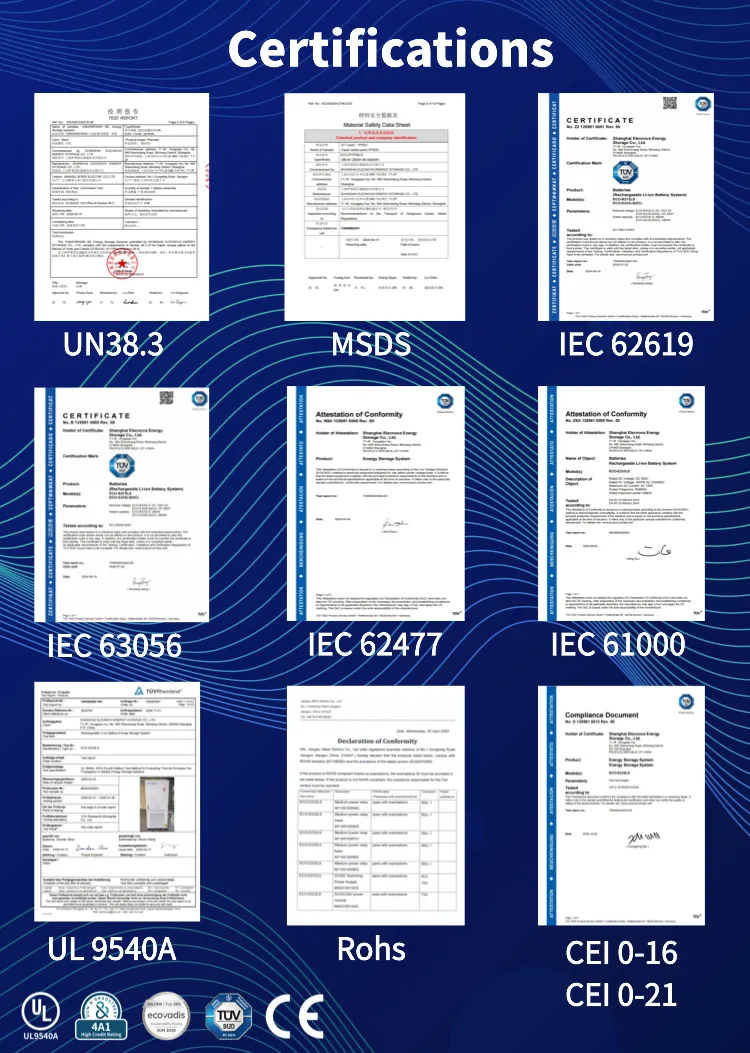

We offer an industry-leading 5+5 years warranty, coupled with cell performance coverage up to 8000 cycles. Our systems are compliant with global standards including UN38.3, IEC 62619, IEC 63056, and UL 9540A.

Manufacturing Excellence

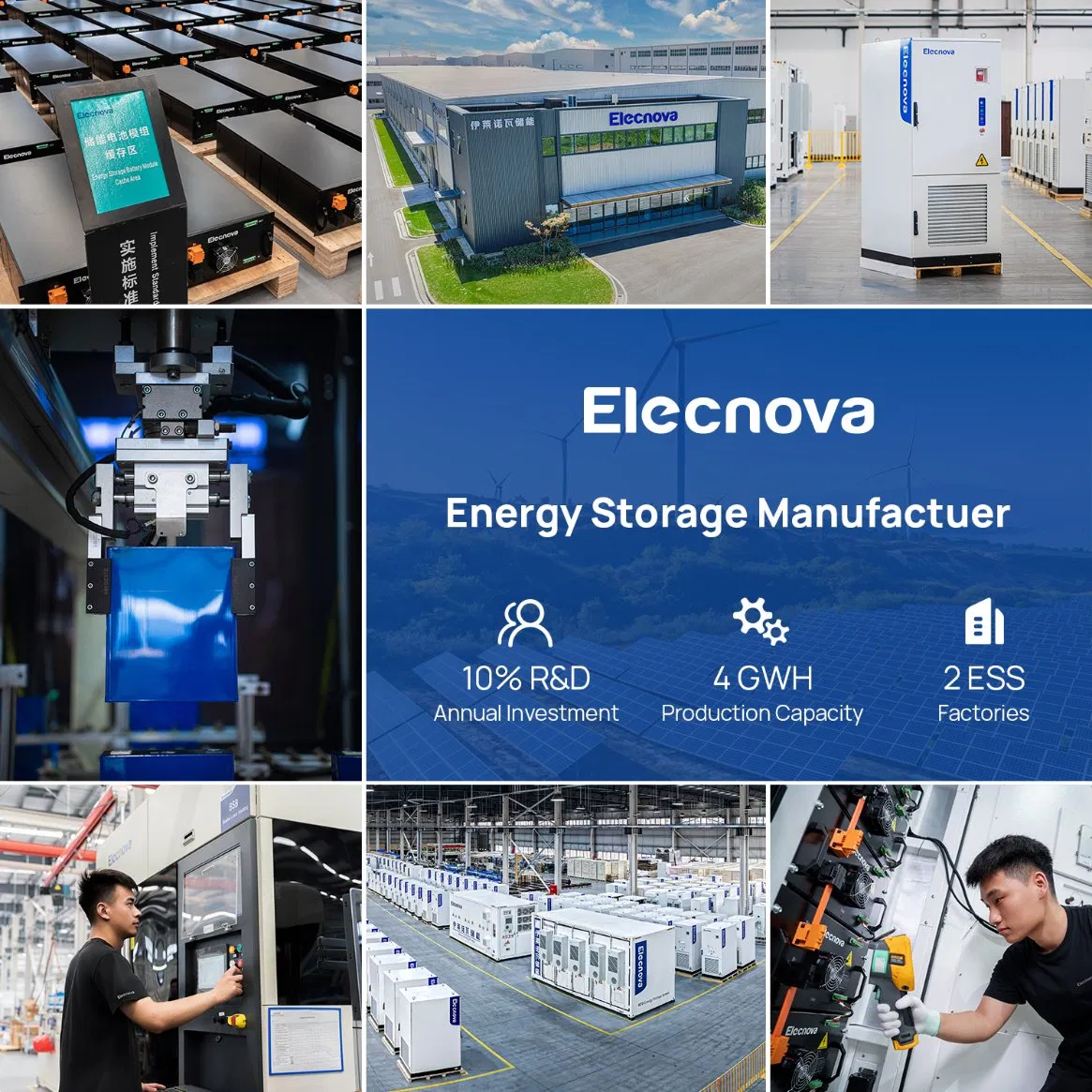

With decades of experience and a production capacity of 2GWh, we operate automated module and PACK production lines. Our facility holds CNAS laboratory certification, ensuring rigorous quality control and advanced R&D.

Frequently Asked Questions

What is the storage capacity of the ECO-E101WX system?

The system features a nominal capacity of 101kWh, making it ideal for commercial and industrial energy storage needs.

What is the expected lifespan of the battery cells?

The system is designed for longevity, offering a cycle life of ≥5,500 to 6,000 cycles at standard operating conditions.

Is this system suitable for outdoor installation?

Yes, the cabinet features an IP55 ingress rating and a C4 anticorrosion rating (C5 optional), providing robust protection against weather and dust.

What kind of fire safety features are included?

The unit is equipped with a built-in Aerosol fire suppression system and active safety monitoring via the BMS.

Does the system support both on-grid and off-grid modes?

Yes, it is versatile and can be configured for both on-grid and off-grid applications to ensure energy security.

What are the main communication protocols used?

The system primarily utilizes Modbus TCP/IP for seamless integration with external EMS and monitoring platforms.
