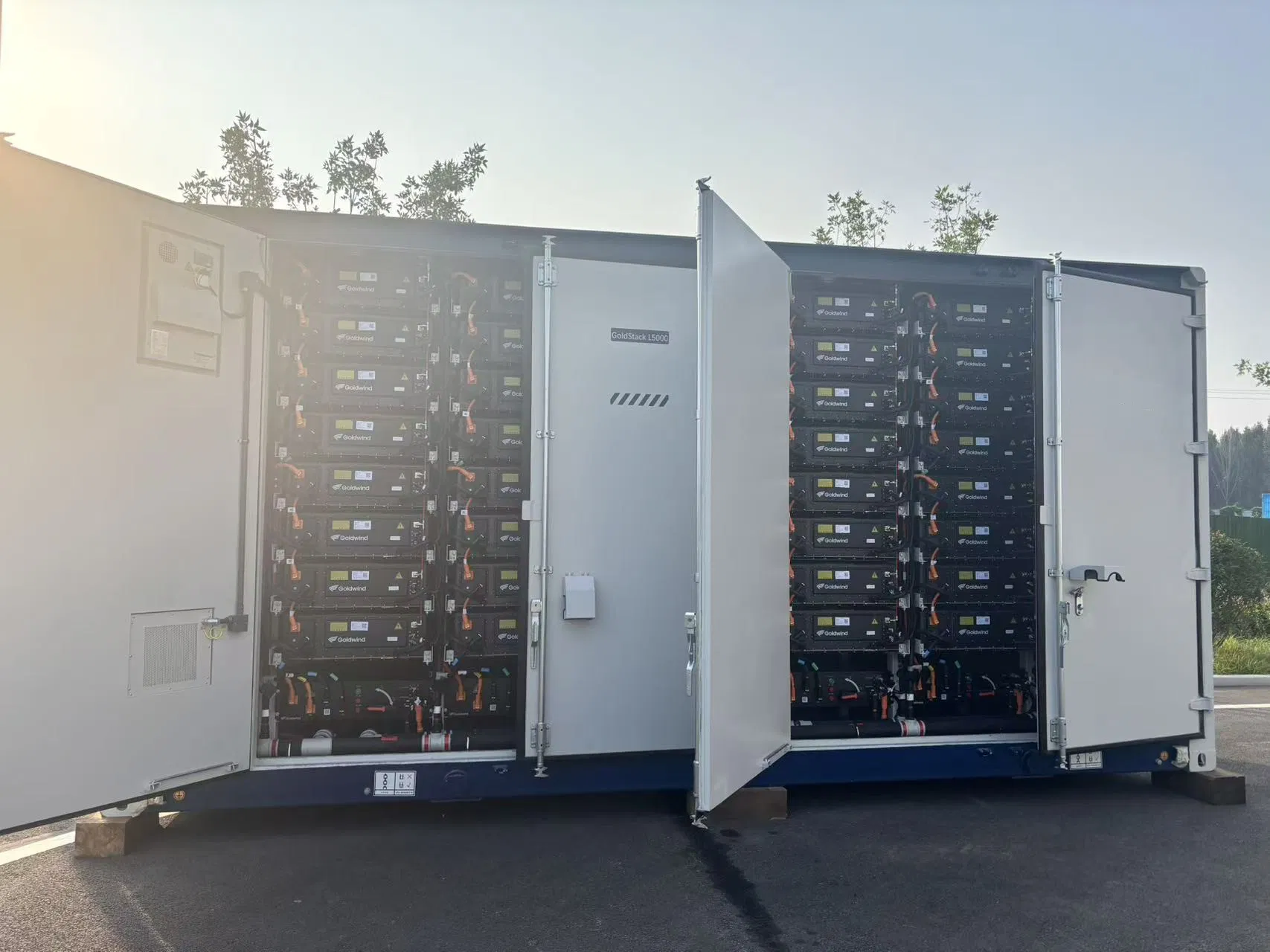

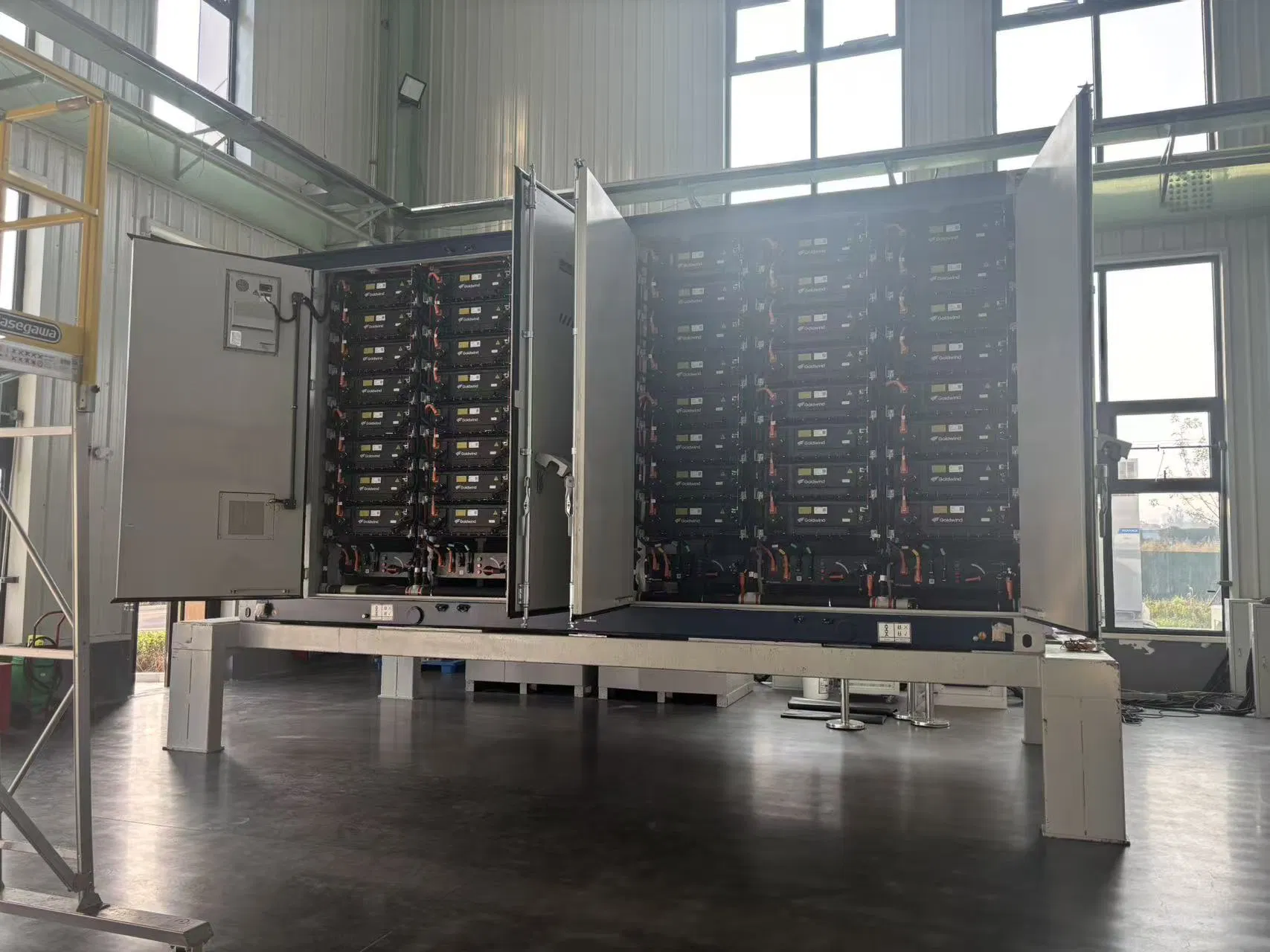

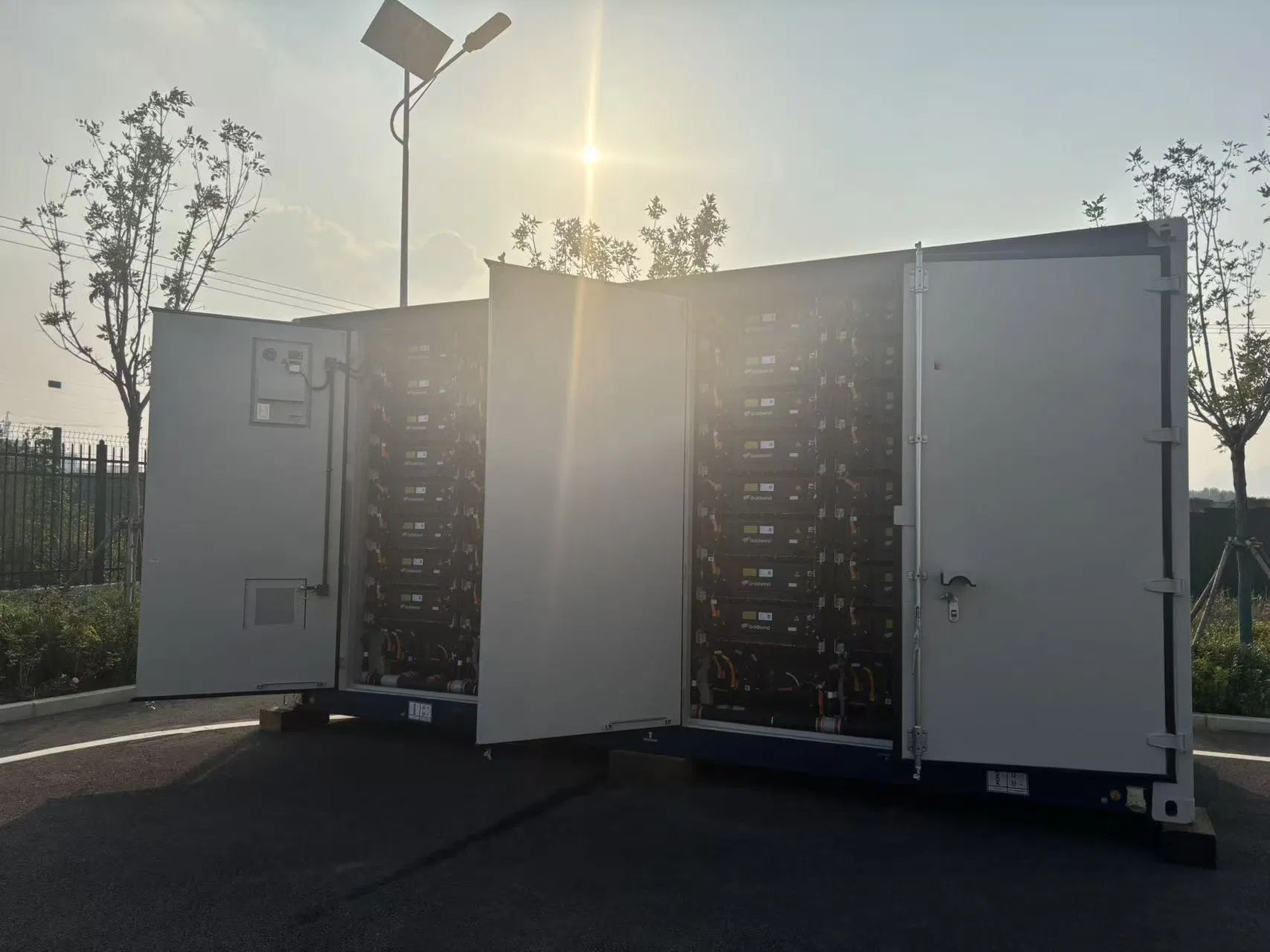

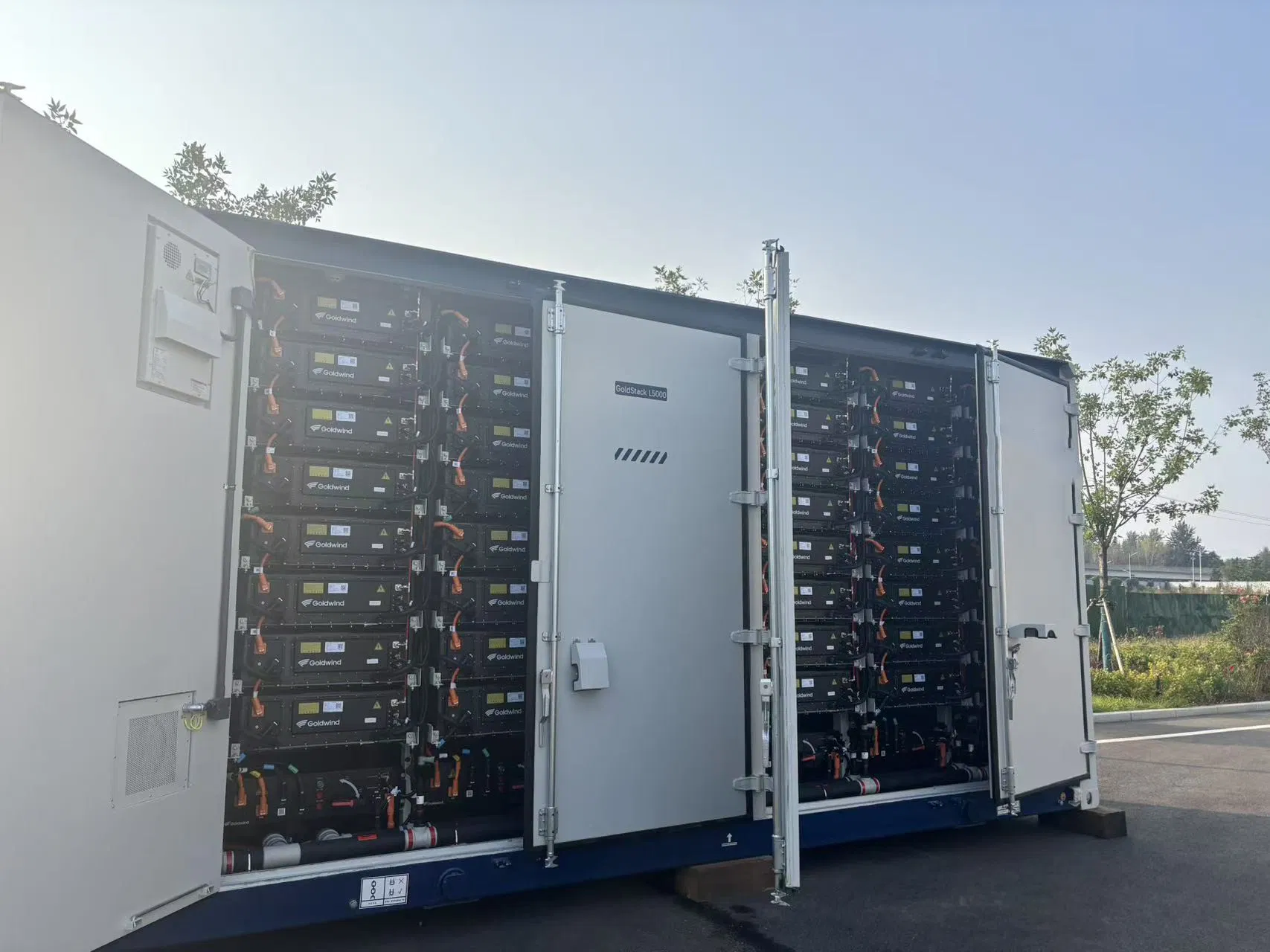

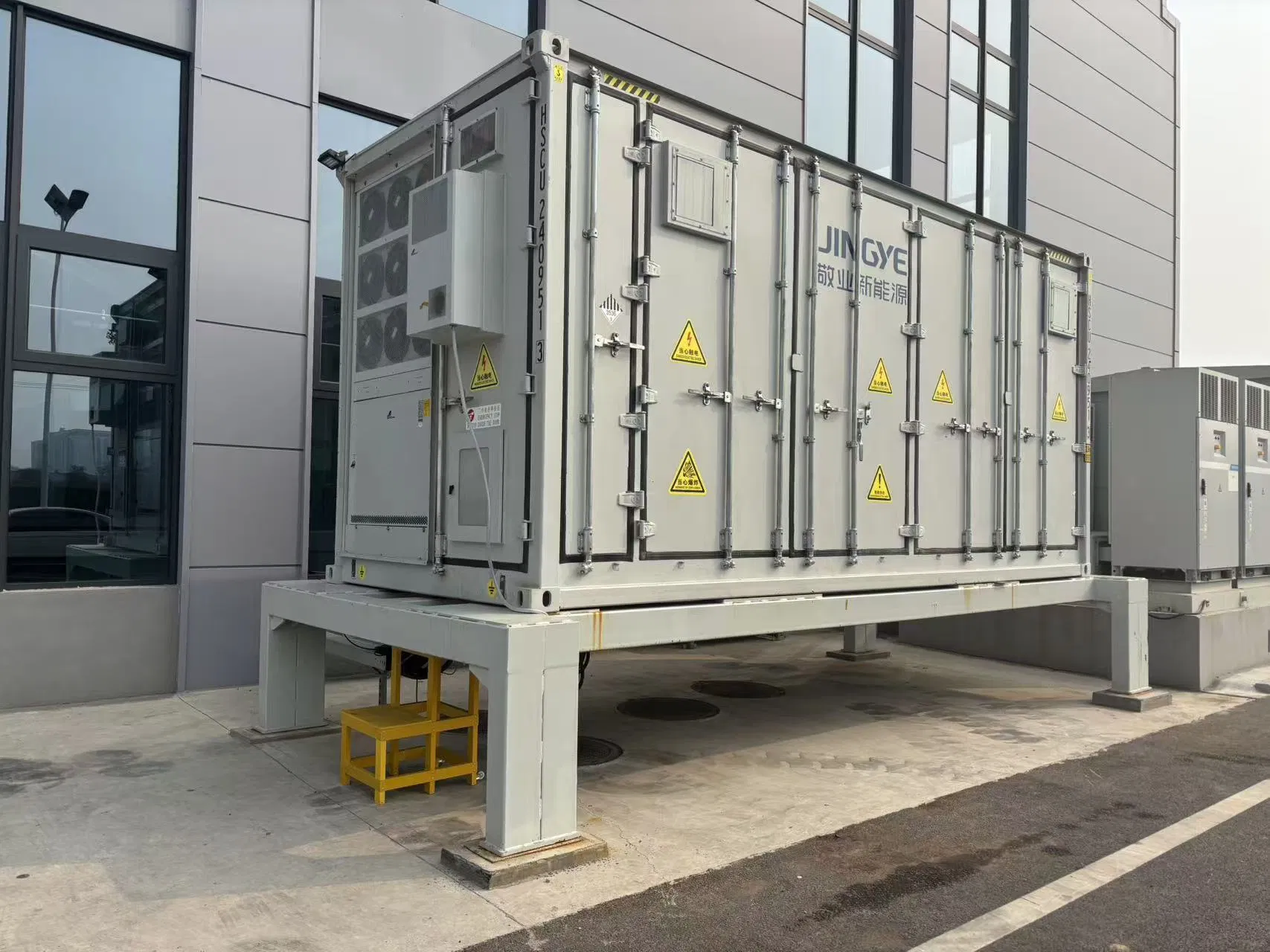

5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System
1 / 5
5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System
5014kwh Container Energy Storage System with Safety Protection System

5014kwh Container Energy Storage System with Safety Protection System

Customization: Available
Container Size: 2438mm-2896mm-6058mm
Weight: 43t
Send Inquiry

Product Description

Basic Specifications
Nominal Voltage
1331.2V
Warranty
3 Years
Nominal Capacity
5015kwh
Cycle Life
10 Years
Configuration
12*(1p104s*4)
Rated Power
5mwh
Voltage Range
1164.8V - 1497.6V DC
Charging Power
≤ 2.5MW
Cooling System
Liquid Cooling
Package Size
2483cm * 2896cm * 6058cm
Product Description

Energy Storage Container

5015KWh Liquid Cooling energy storage system based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems. Using simplified integration technology, it installs components within a standard 20-foot container, ensuring safety while being suitable for various transportation conditions and site designs.

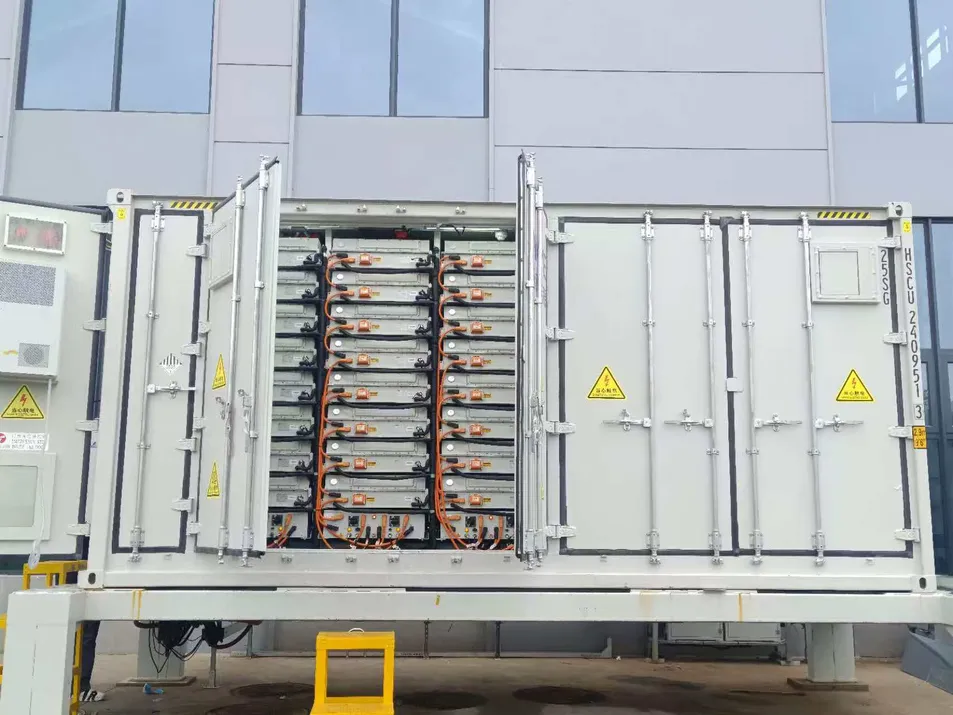

Energy Storage System
Product Features
  • ⚡
    Battery Technology: Utilizes mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.
  • 🛡️
    Battery Management: Equipped with advanced intelligent battery management products to ensure product safety.
  • ❄️
    Thermal Management: High-precision intelligent environment control, ensuring a temperature difference of 3℃ inside the PACK and 5℃ in the cabinet.
  • 🔥
    Safety Protection: Fire protection system using perfluorohexane or aerosol with three-level automatic alarm systems.
  • 📊
    Monitoring System: Includes temperature, humidity, smoke, video, and access monitoring inside the container.
  • 🔧
    Modular Design: Simple structure for easy transportation, installation, and maintenance.

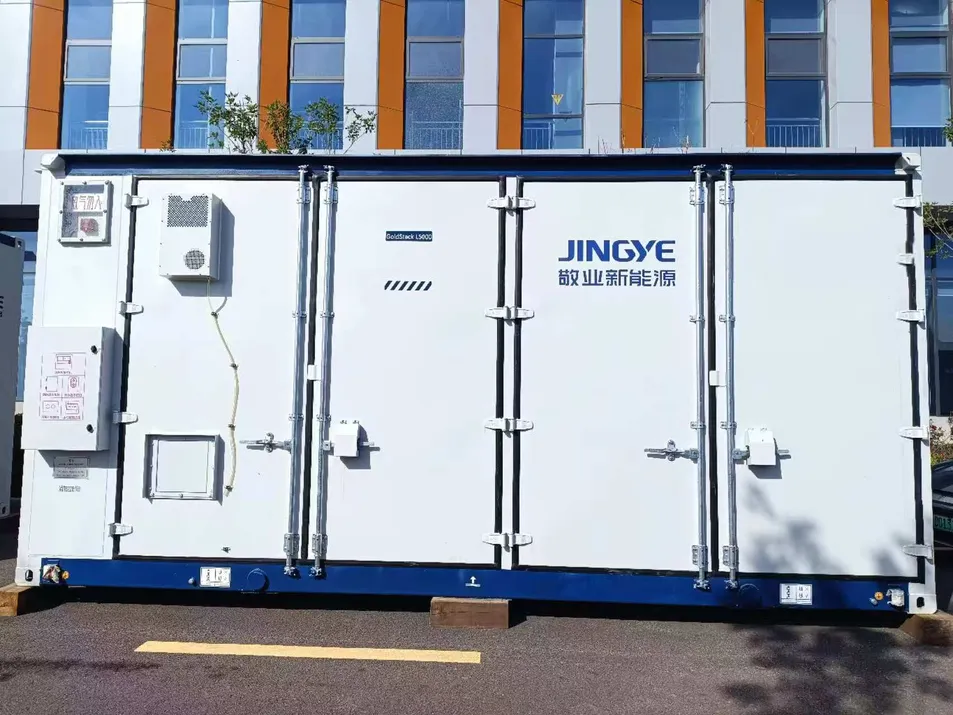

Battery Container Detail

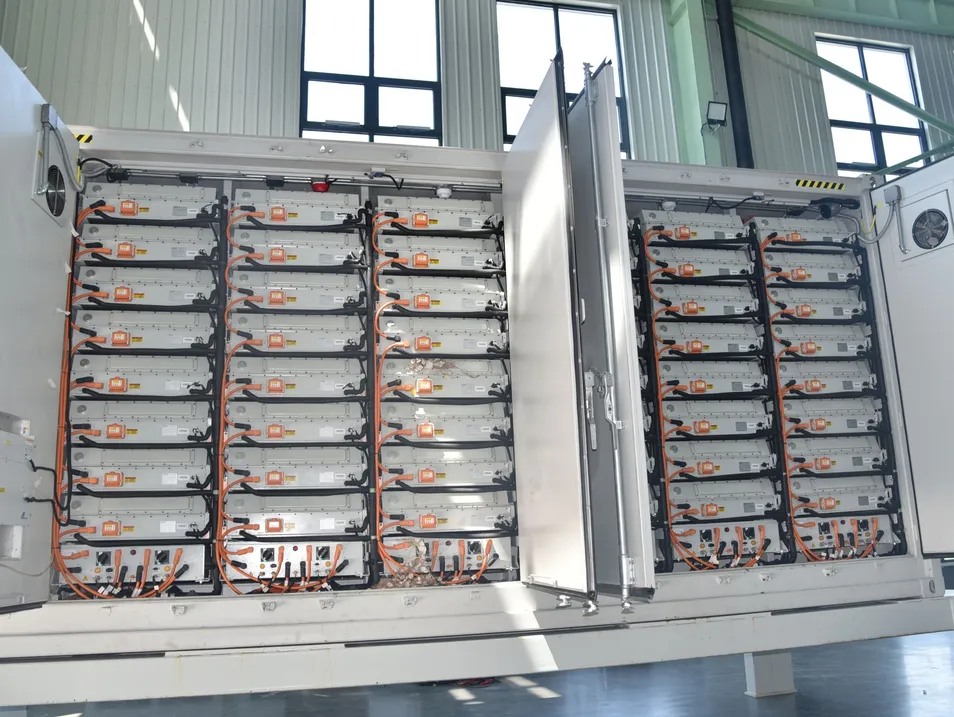

Internal Layout
Technical Specifications
Item Specification
Configuration12*(1P104S*4)
Rated Power5MWh
Rated Voltage1331.2VDC
Voltage Range1164.8V -1497.6VDC
Auxiliary Power Supply400VAC±5% 50Hz/ 220VAC
EnvironmentStorage5℃ < T ≤ 35℃
Work0℃ to 60℃ (Charge) / -30℃ to 60℃ (Discharge)
Altitude≤ 4000m
DimensionsL6058 x W2438 x H2896mm
IP RatingIP54
CommunicationEthernet, CAN, ModbusRTU
Workshop & Main Products

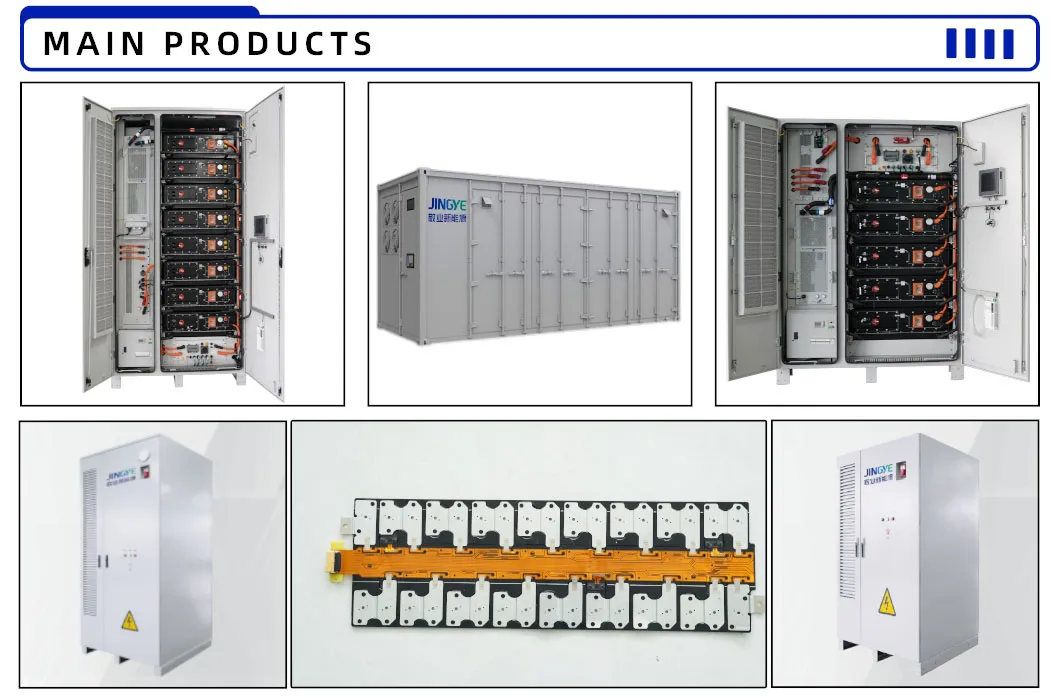

Product Range
Production Line
Equipped with advanced automated production lines, the facility maintains an annual production capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products serve smart grids, wind/solar power storage, industrial/commercial storage, and green transportation sectors.
Company Overview
Certifications
Exhibition
Frequently Asked Questions
What are the main products available?
Main products include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and Battery Packs.
Do you support customization services?
Yes, flexible customization services are offered for products across diverse process types to meet specific client requirements.
How is production and delivery timeline ensured?
With a comprehensive production line and proficient technical personnel, stable production and on-time delivery of products are guaranteed.
How can I obtain a detailed quotation?
Simply contact the staff online directly via the website, and they will promptly provide a detailed quotation for your project.
Are you a source factory or a sales company?
As a formal source factory with standardized production processes, we offer competitive prices and top-quality products directly.
What cooling methods are used in the storage containers?
The systems primarily utilize high-precision liquid cooling technology to ensure optimal temperature control and battery longevity.
