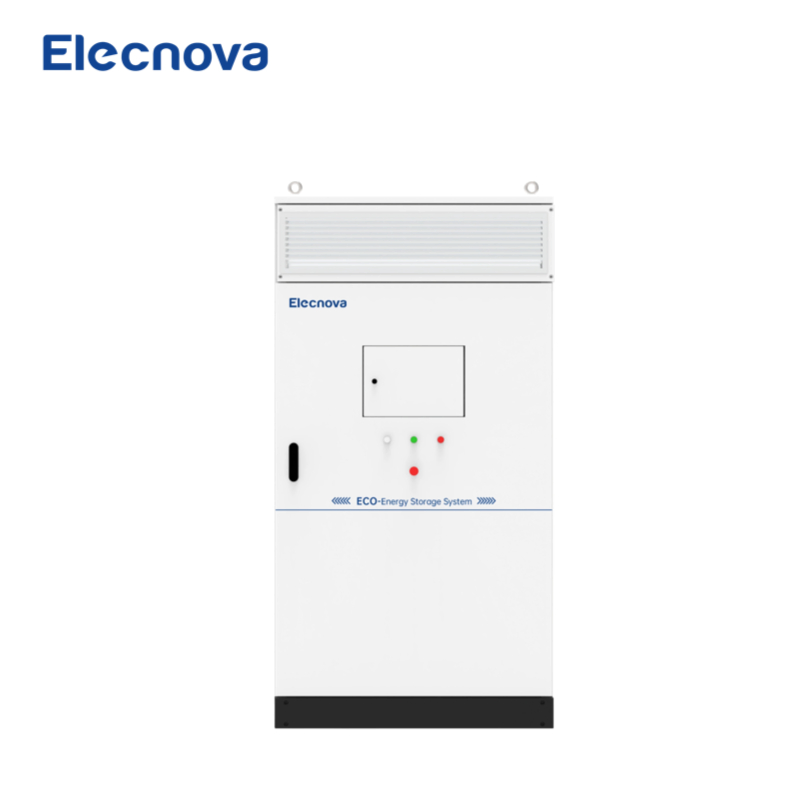

ECO-E101WX

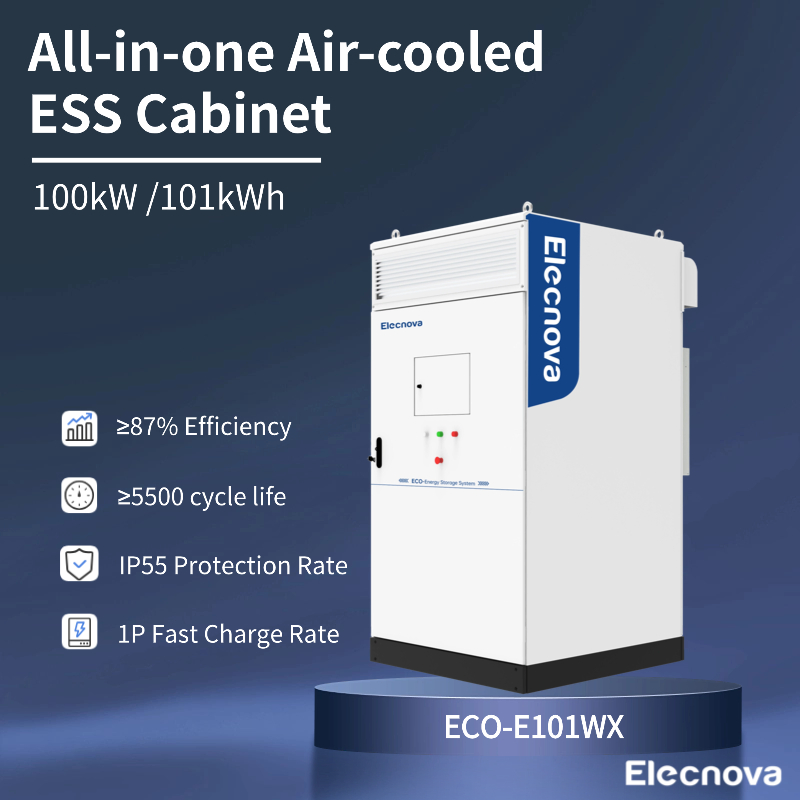

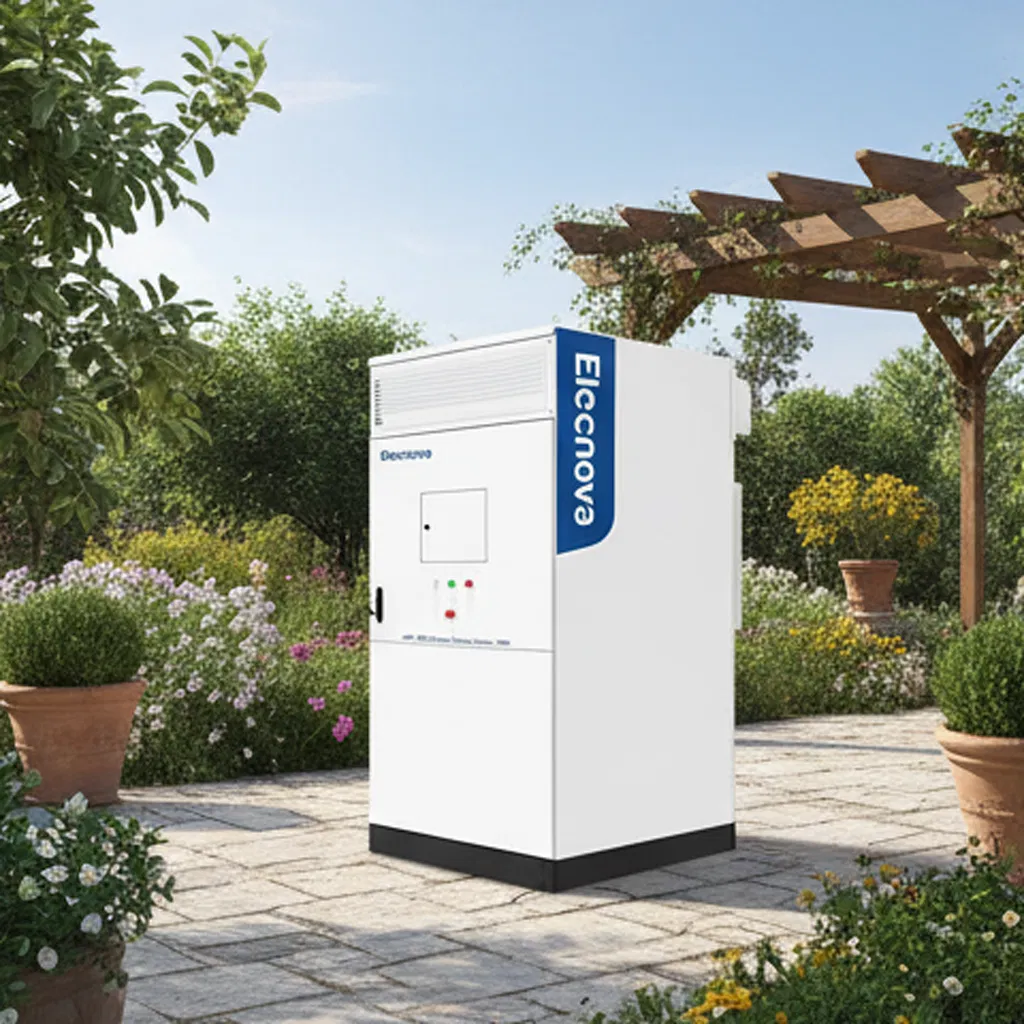

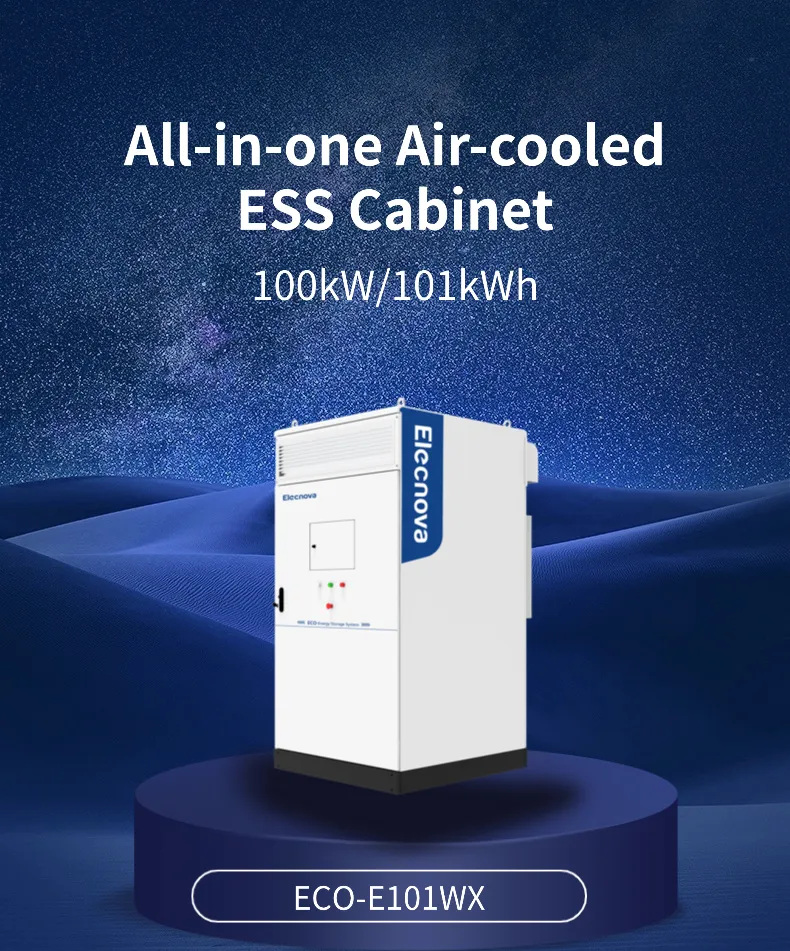

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.
| Model NO. | ECO-E101WX |
| Nominal Capacity | 101kwh |
| Cycle Life | 6000 Cycles |
| Application | Industrial Commercial Factory |
| Cooling | Air-Cooled |
| Grid Type | on Grid/ off Grid |
| Communication Port | Modbus TCP/IP |
We offer three flagship product lines to meet diverse energy storage demands:

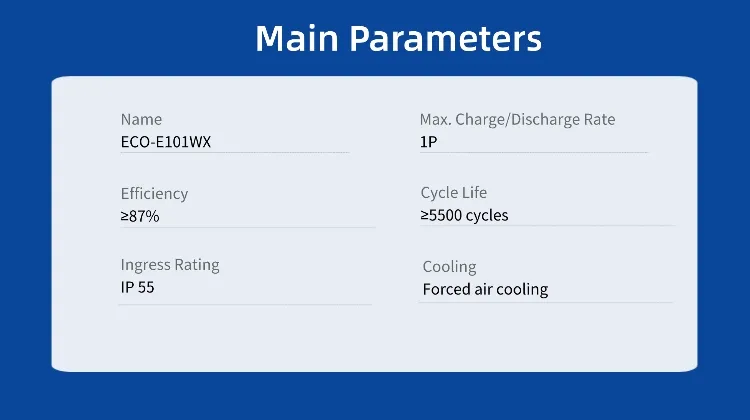

Introducing the ECO-E101WX, a high-performance energy storage solution ideal for EV charging stations and similar applications. With a max charge/discharge rate of 1P, ≥87% efficiency, and a robust cycle life of ≥5500 cycles, it delivers consistent power.
| DC Side | |
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC Side | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| General | |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |

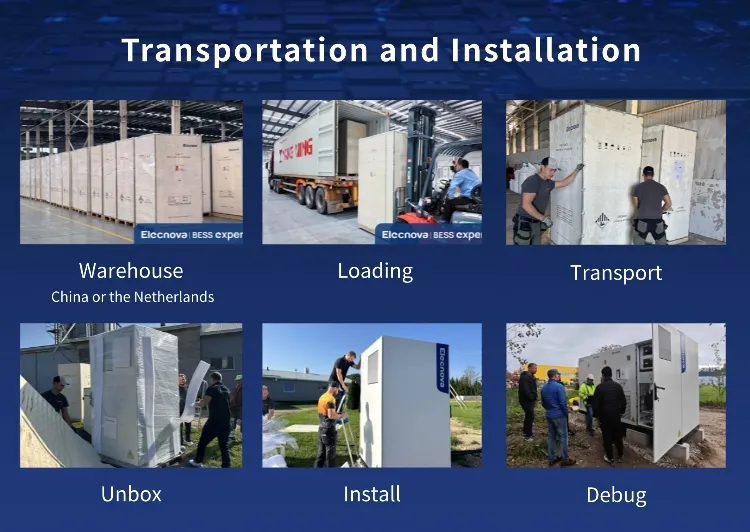

We deliver a full-cycle service from warehouse to commissioning:
Our solutions are backed by international certifications including UN38.3, IEC 62619, IEC 63056, and CE. We provide an industry-leading warranty of up to 5+5 years, with cell performance guaranteed for up to 8000 cycles.
As a professional OEM & ODM manufacturer, we possess a production capacity of 2GWh. Our facility is equipped with automated Module and PACK production lines and holds CNAS laboratory certification for rigorous quality control.
