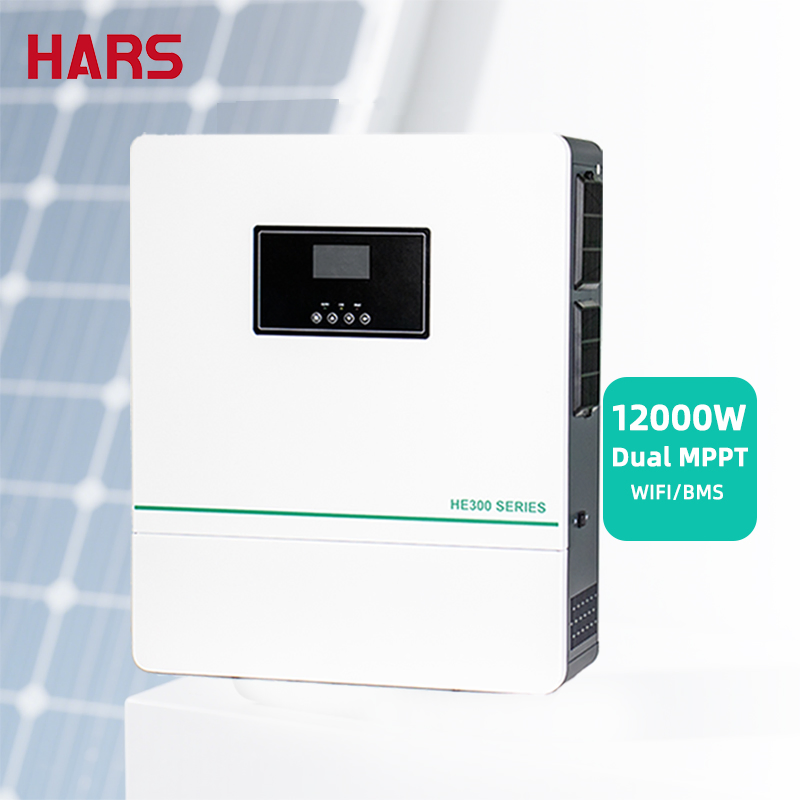

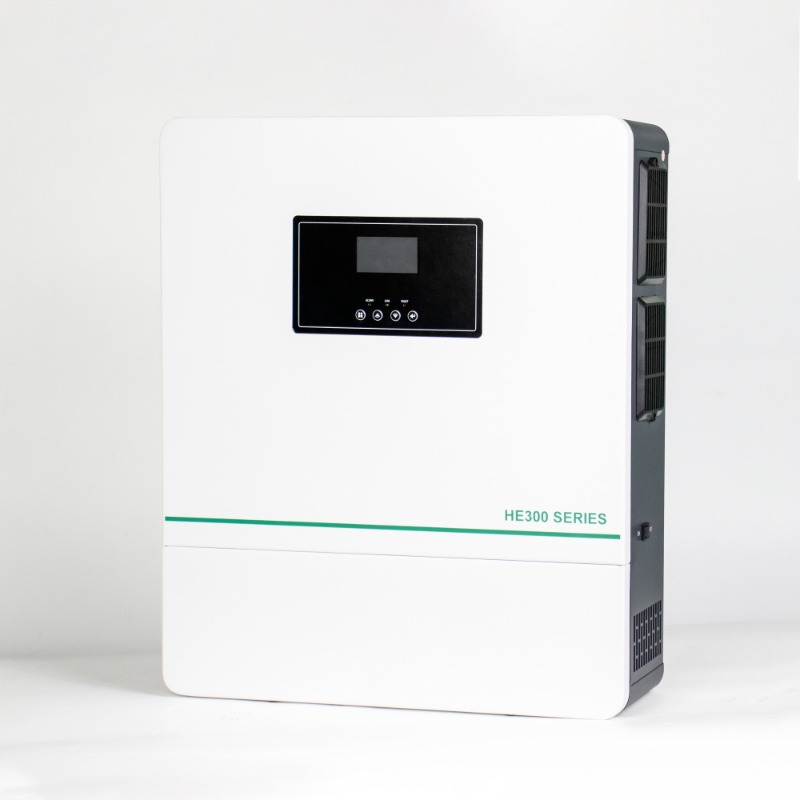

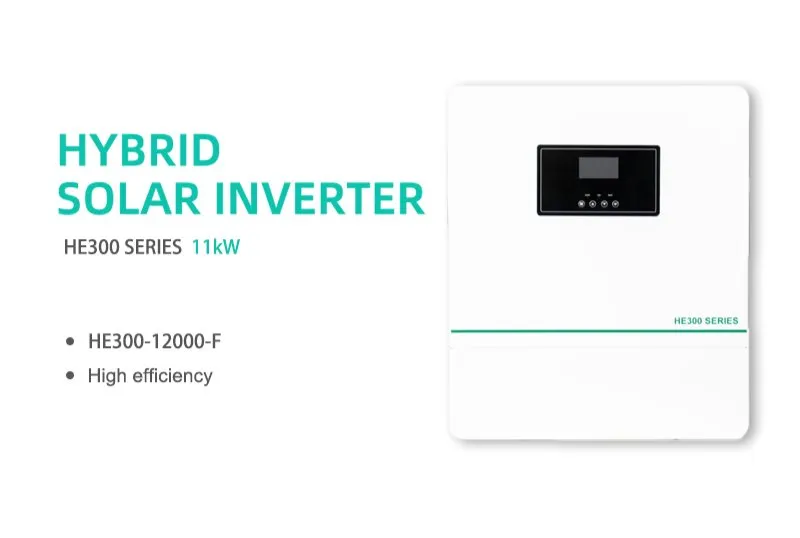

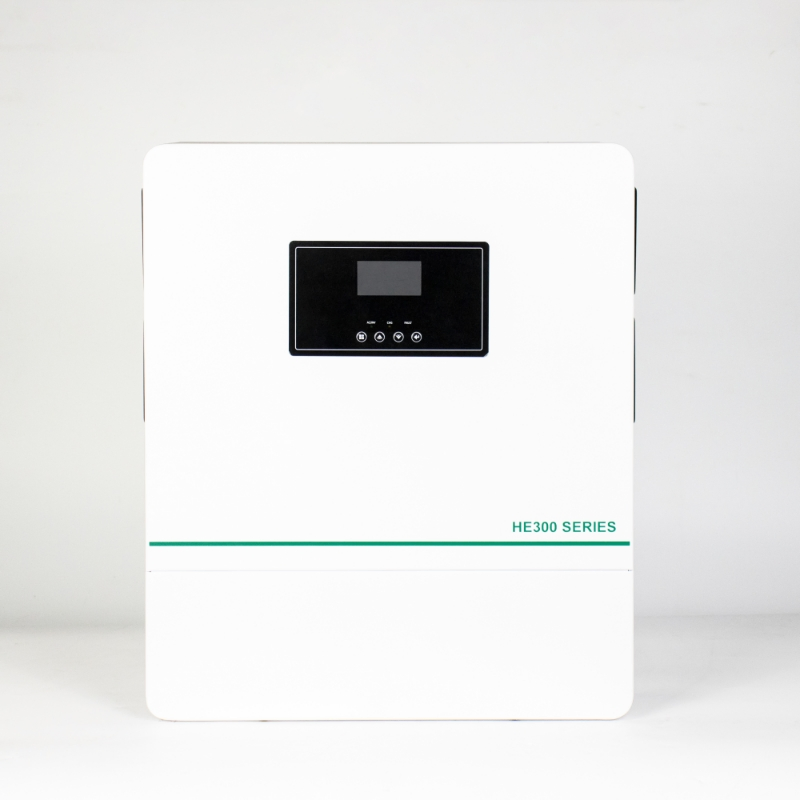

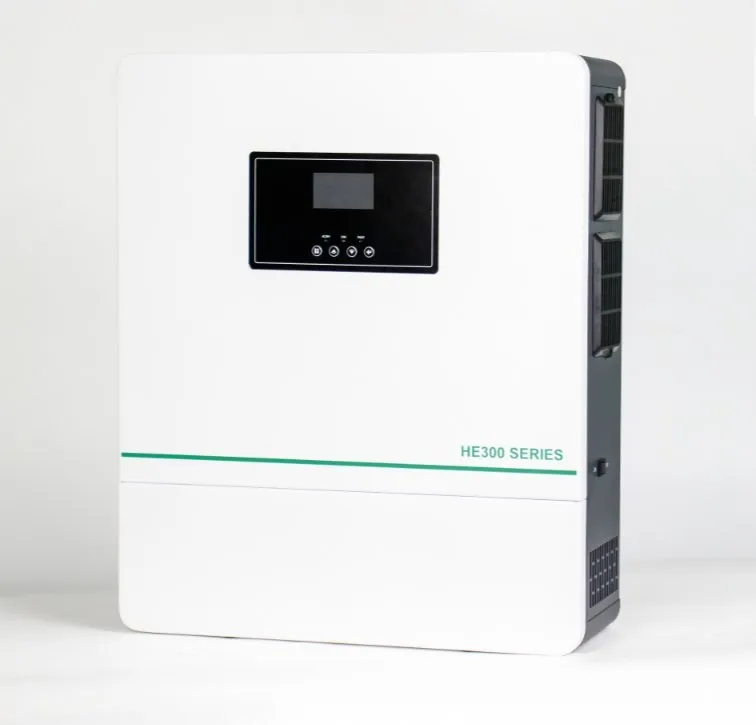

HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts portable size, supports uninterruptible power supply switching, and features setting for battery charging voltage and current. With multiple power input and output priority settings, the AC voltage and frequency are adjustable to suit different power grid environments. Includes a mobile phone APP for online data monitoring.
Clean and stable power output for sensitive electronics.
Online data tracking via mobile application.
Uninterruptible power switching for continuous supply.
| Inverter Output Specifications | |
|---|---|
| Rated Output Power | Battery: 11000W / PV: 12000W |
| Rated Output Voltage | 220/230/240Vac ± 5% |
| Rated Output Current | 47.8A |
| Rated Output Frequency | 50/60Hz |
| Output Waveform | Pure Sine Wave |
| PV Input & Battery | |
|---|---|
| MPPT Number | 2 |
| Max PV Input Power | 2 * 7500W |
| Max Open Circuit Voltage | 500Vdc |
| Battery Type | Lead acid / Gel / Lithium |
| Rated Battery Voltage | 48V |
| Max PV Charging Current | 150A |

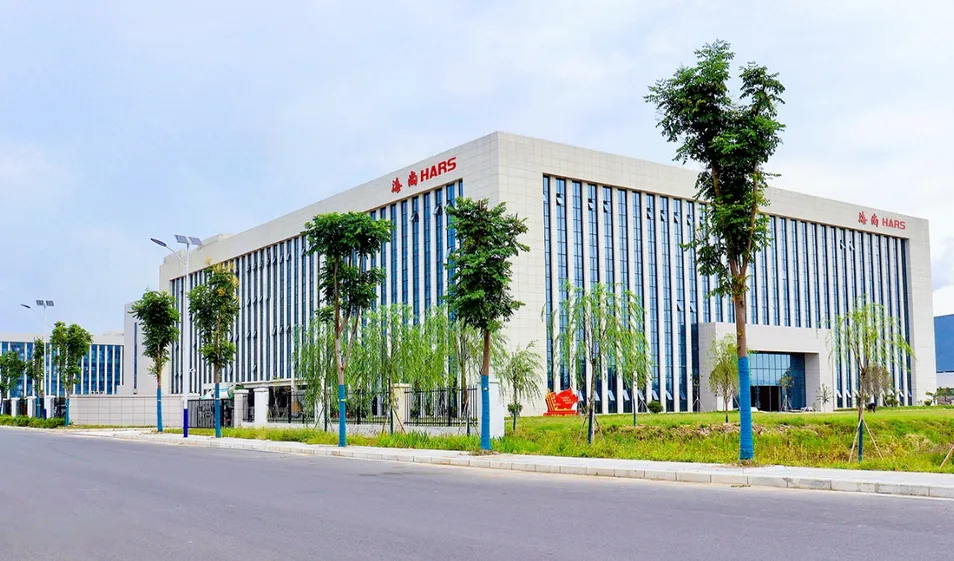

We are a high-tech enterprise integrating R&D, production, and technical services. Our automated production ratio reaches 80%, ensuring high efficiency and sufficient inventory for prompt delivery. With a construction area of 30,000 square meters and dedicated photovoltaic facilities, we provide strong technical support and flexible ODM/OEM services.
