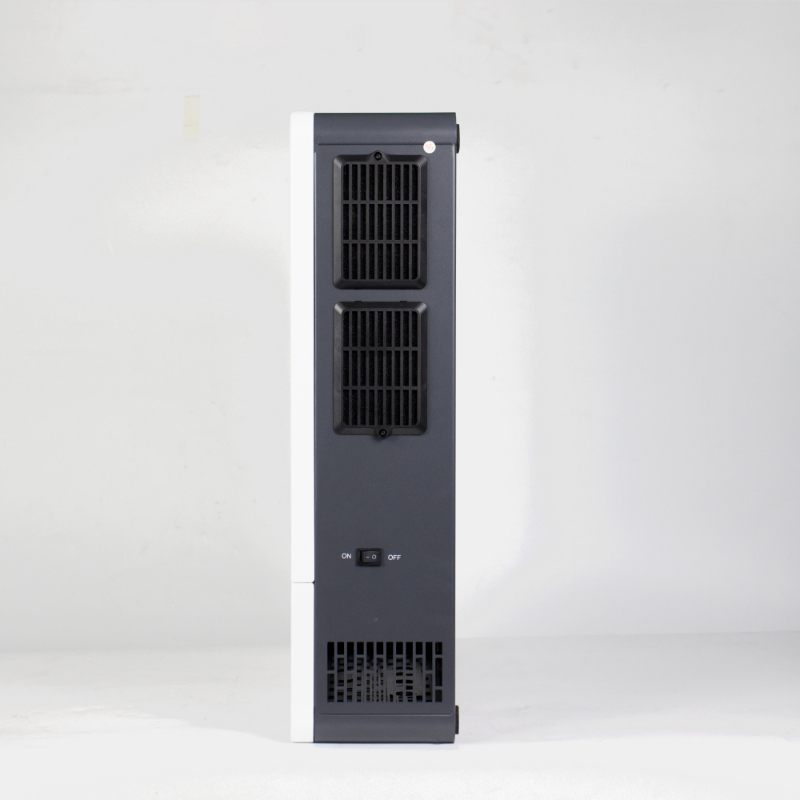

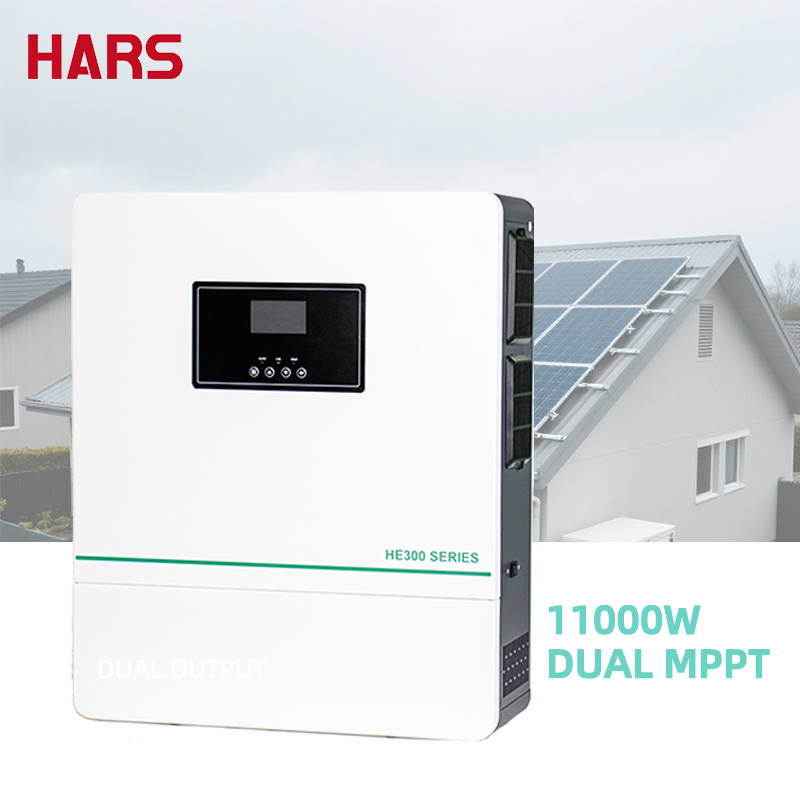

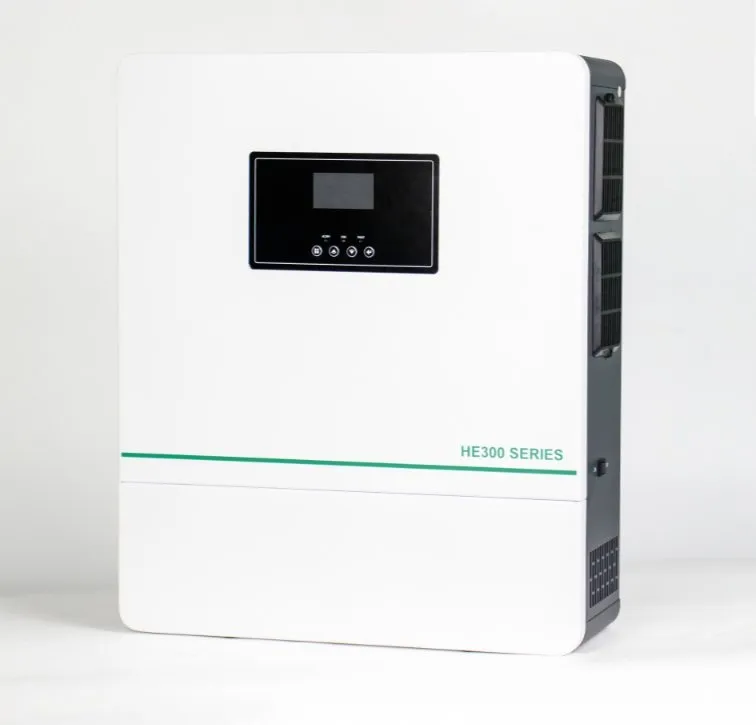

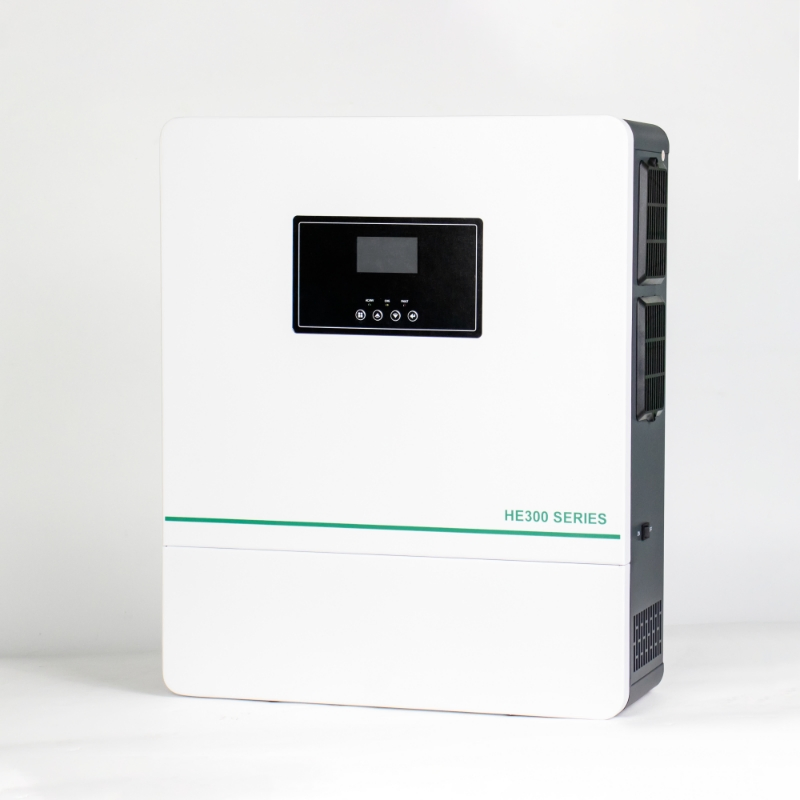

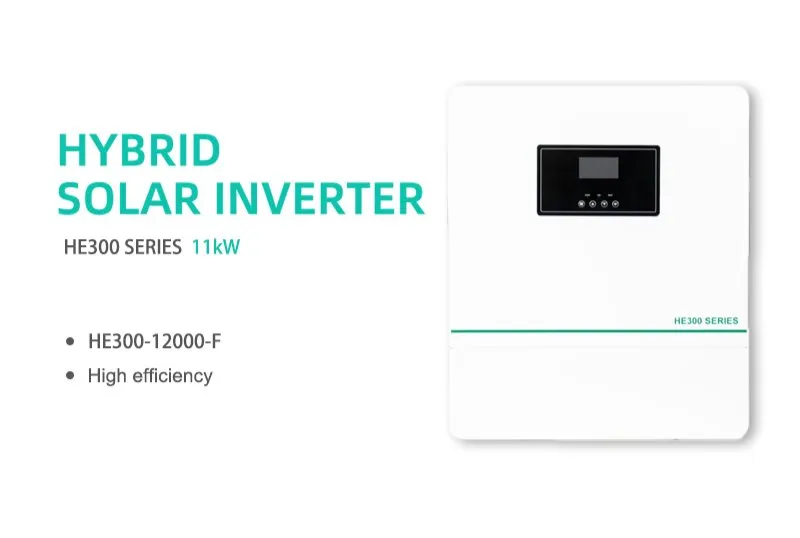

The HE300 series is a multifunctional hybrid solar inverter designed to output high-quality single-phase pure sine wave power. It features a portable design and supports uninterruptible power supply (UPS) switching, ensuring your devices stay powered even during grid fluctuations.
Key Capabilities: Setting battery charging voltage/current, multiple power input/output priority settings, and mobile APP integration for real-time online data monitoring.
| Inverter Output Performance | |
|---|---|
| Rated Output Power | Battery: 11000W / PV: 12000W |
| Rated Output Voltage | 220/230/240Vac ± 5% |
| Rated Output Current | 47.8A |
| Output Waveform | Pure Sine Wave |
| Battery & Charging | |
| Battery Type | Lead acid / Gel / Lithium battery |
| Rated Voltage | 48V |
| PV Charging Method | MPPT / Dual MPPT |
| Max Charging Current | 150A |

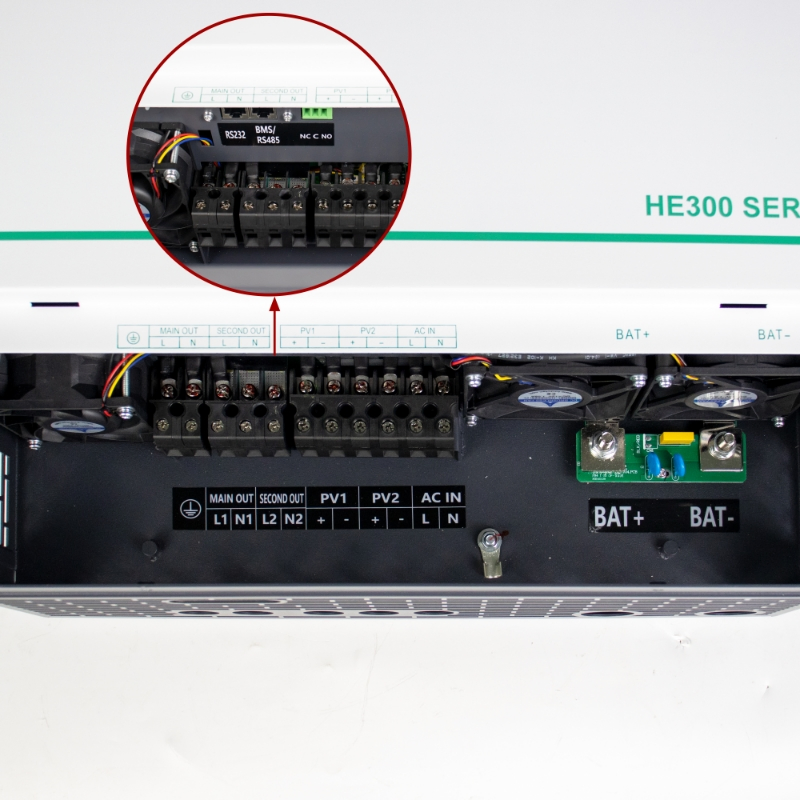

| PV & AC Input Data | |
|---|---|
| MPPT Number | 2 |
| Max Input Power | 2 * 7500W |
| Max Open Circuit Voltage | 500Vdc |
| Input Voltage Range | 90 ~ 450V |
| AC Input Range | 90-280VAC (APL) / 170-280VAC (UPS) |

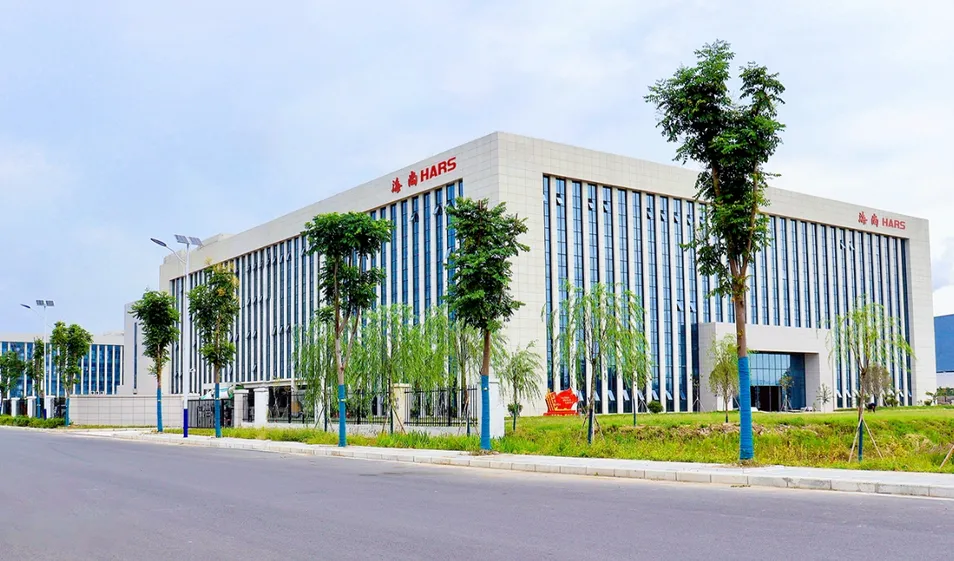

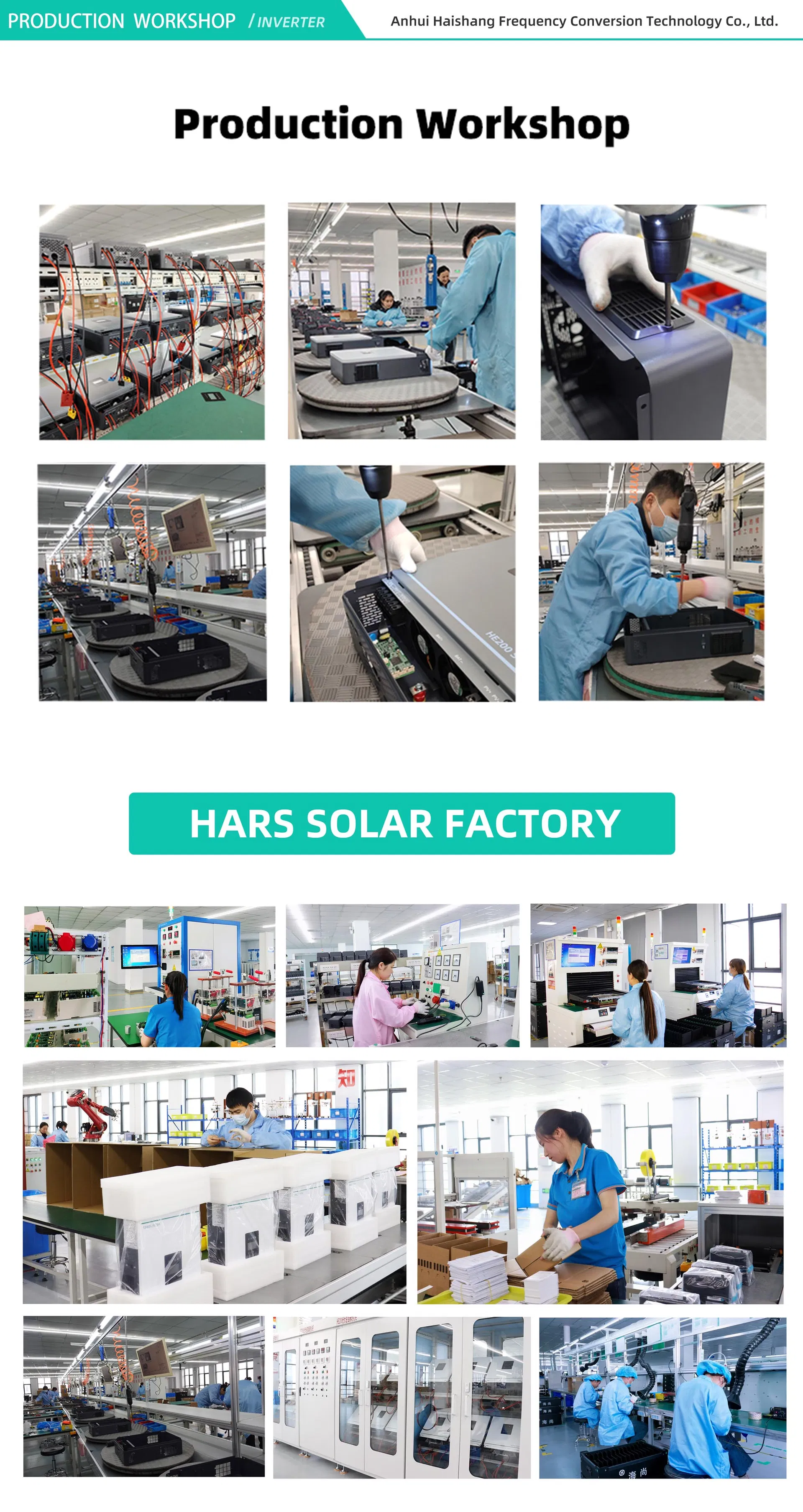

Our high-tech manufacturing facility integrates advanced R&D and automated production lines, reaching up to 80% automation. With significant construction areas for both headquarters and specialized photovoltaic factories, we ensure sufficient inventory and robust technical support for ODM and OEM requirements.
