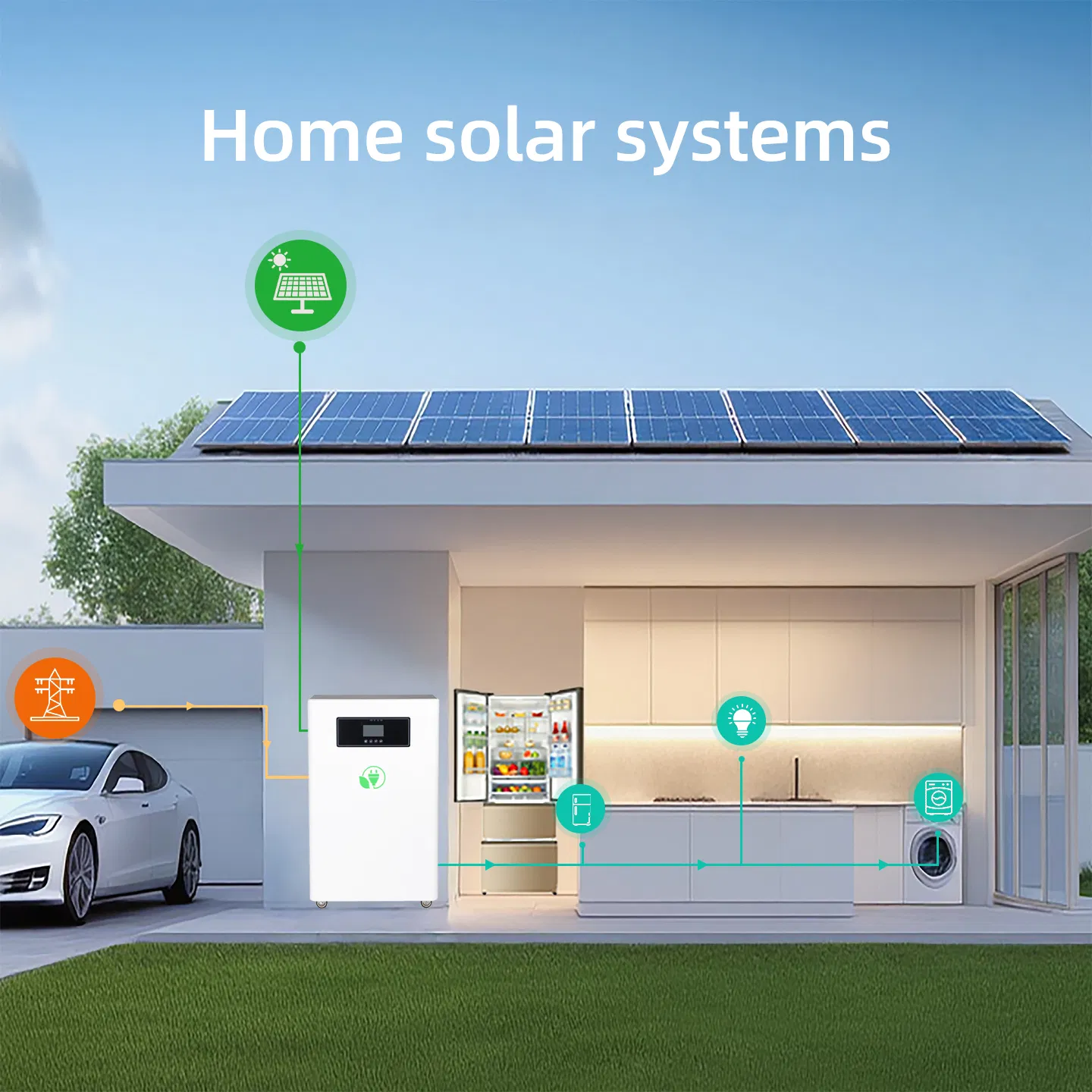

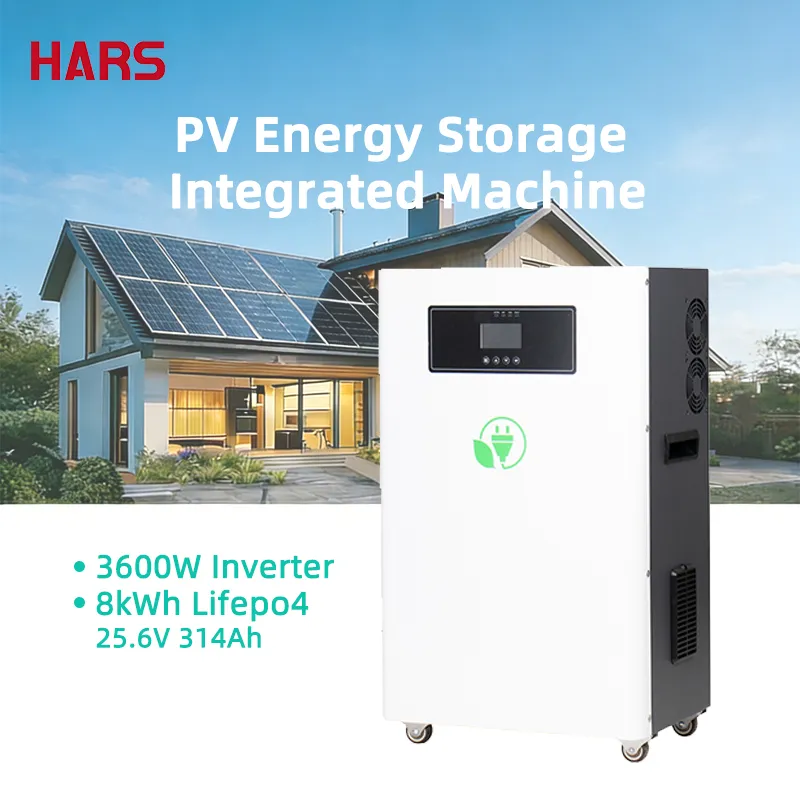

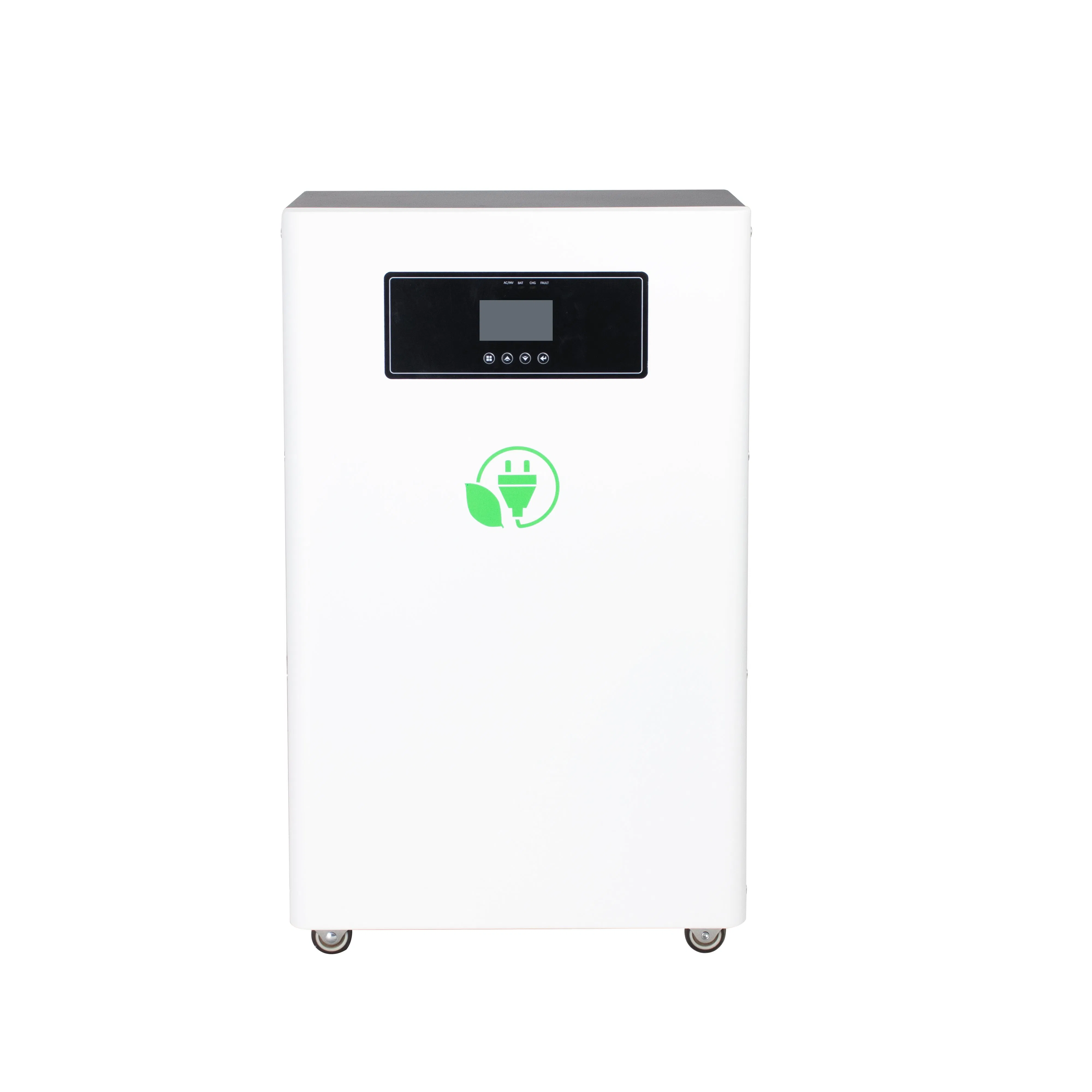

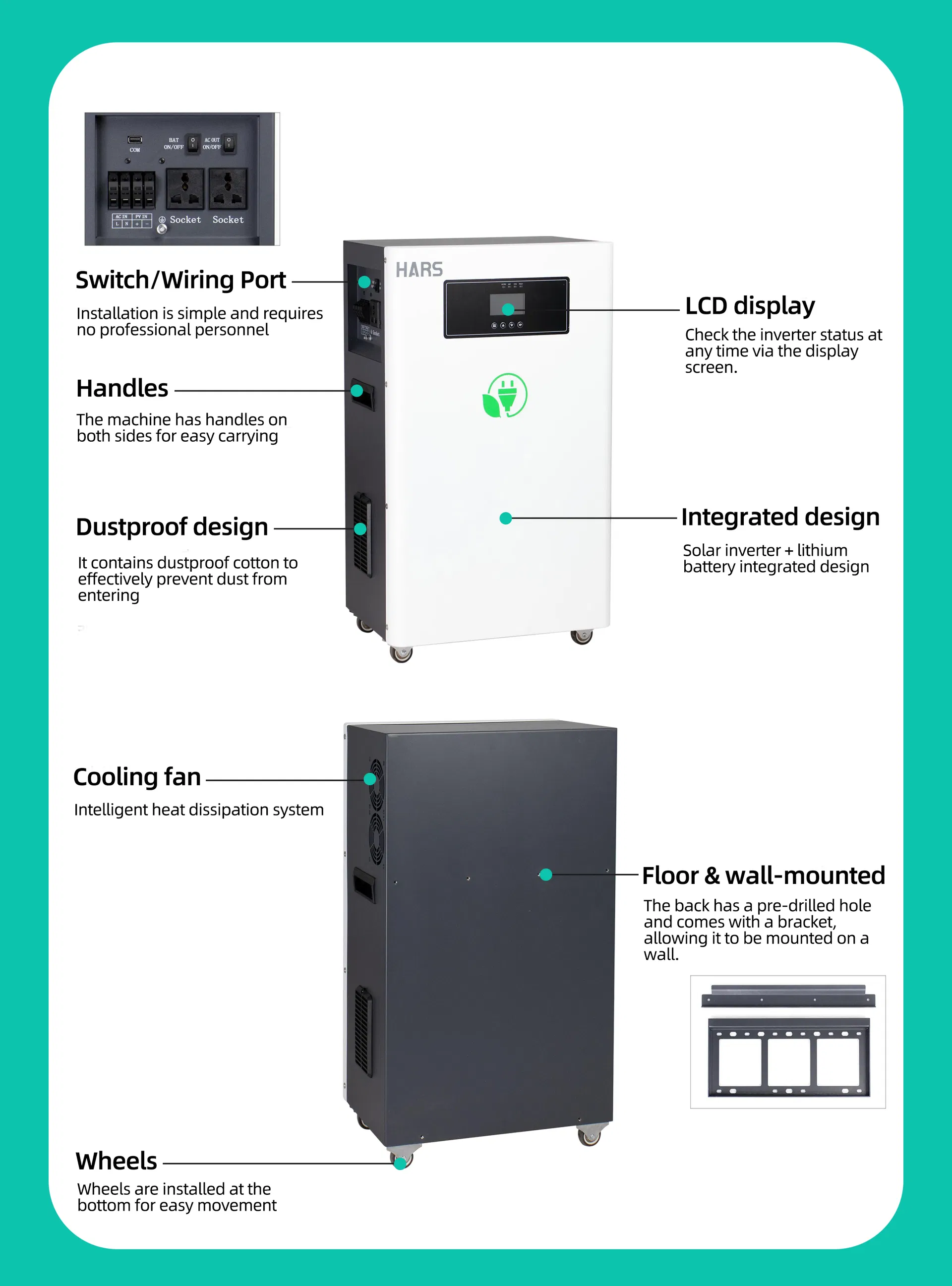

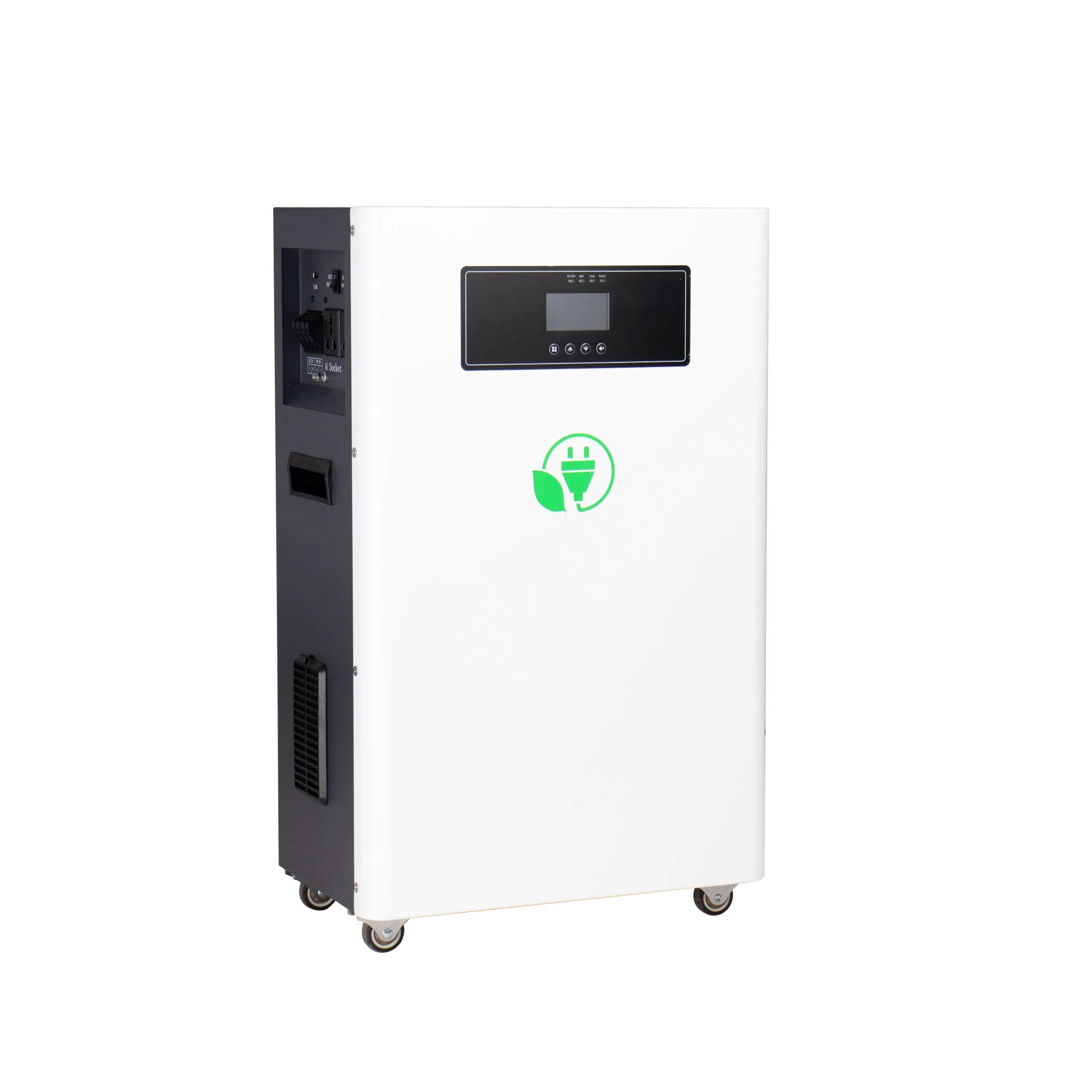

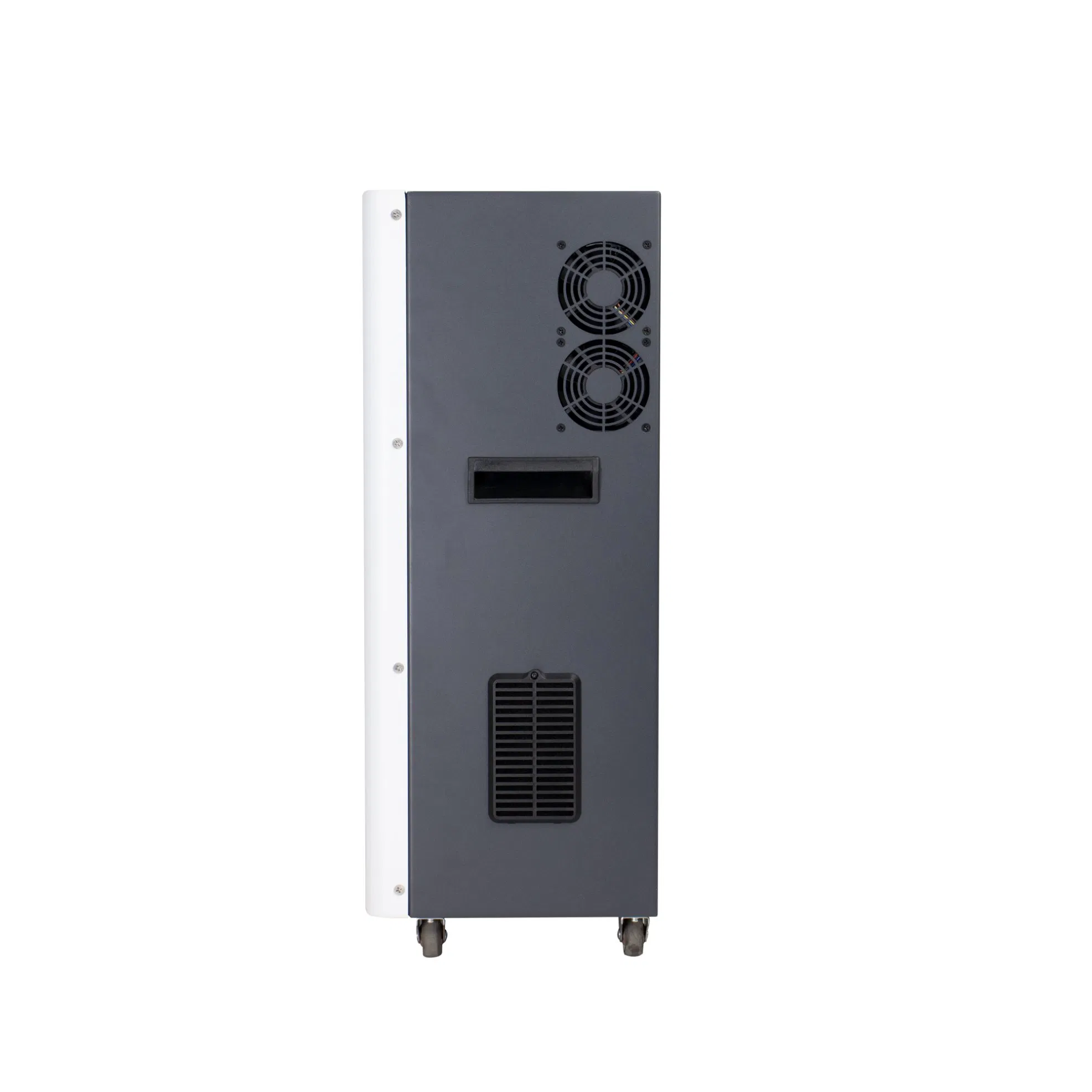

The H4 series integrated solar energy storage system combines photovoltaic inverters and energy storage lithium batteries, reducing user wiring and facilitating maintenance. It provides uninterrupted outdoor power supply for 24 hours, ideal for areas lacking electricity.
| System Specification | |
|---|---|
| Model | H4-N8-4200 (8kWh) |
| Single module | 3.2V 314Ah |
| Number of modules | 8pcs |
| Nominal voltage | 25.6V |
| Operating voltage | 22V-29.2V |
| Standard charge and discharge | 0.5CP |

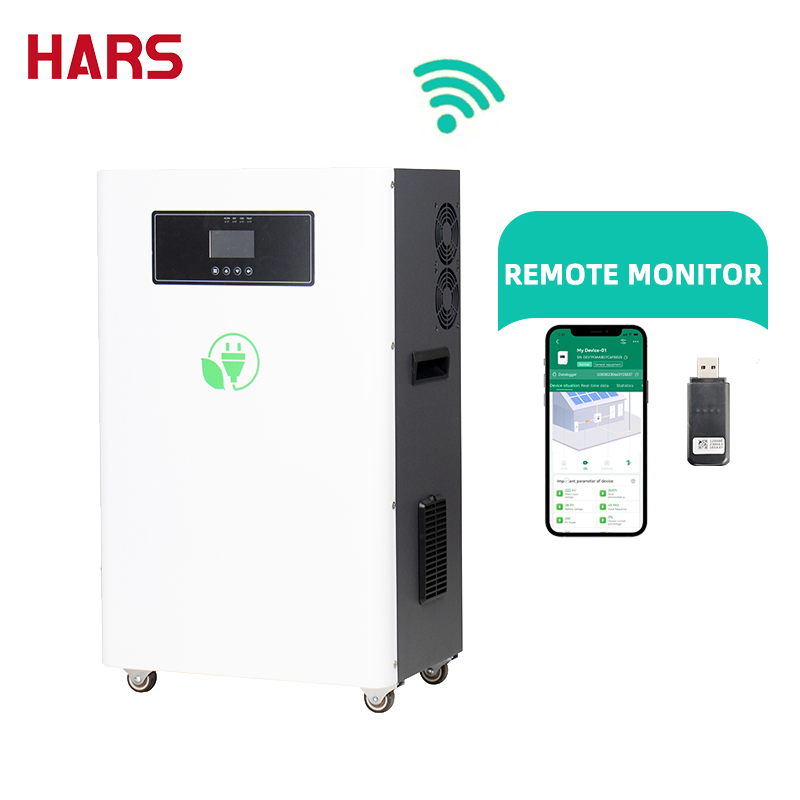

| Communication mode | RS485/CAN |
| Installation method | Indoor Integrated, IP21 |
| PV Input | |
| Max PV open-circuit voltage | 500Voc |
| Max PV Input Current | 18A |
| MPPT voltage range | 40-450Vdc |
| Max PV input power | 5000W |
| Operating efficiency | 98% |
| AC Output | |
| Output voltage waveform | Pure sine wave |
| Rated output power | 3600W |
| Transfer time | 20ms |

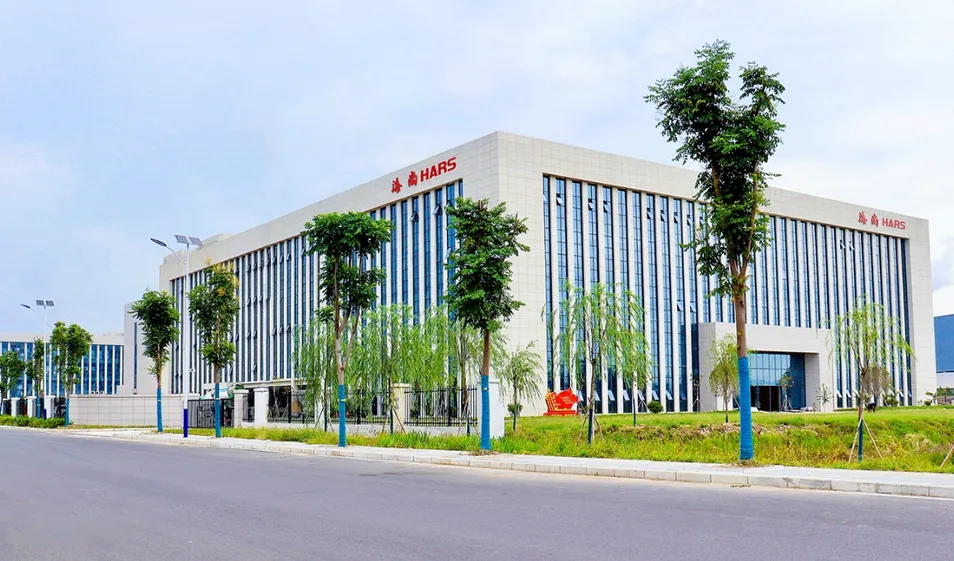

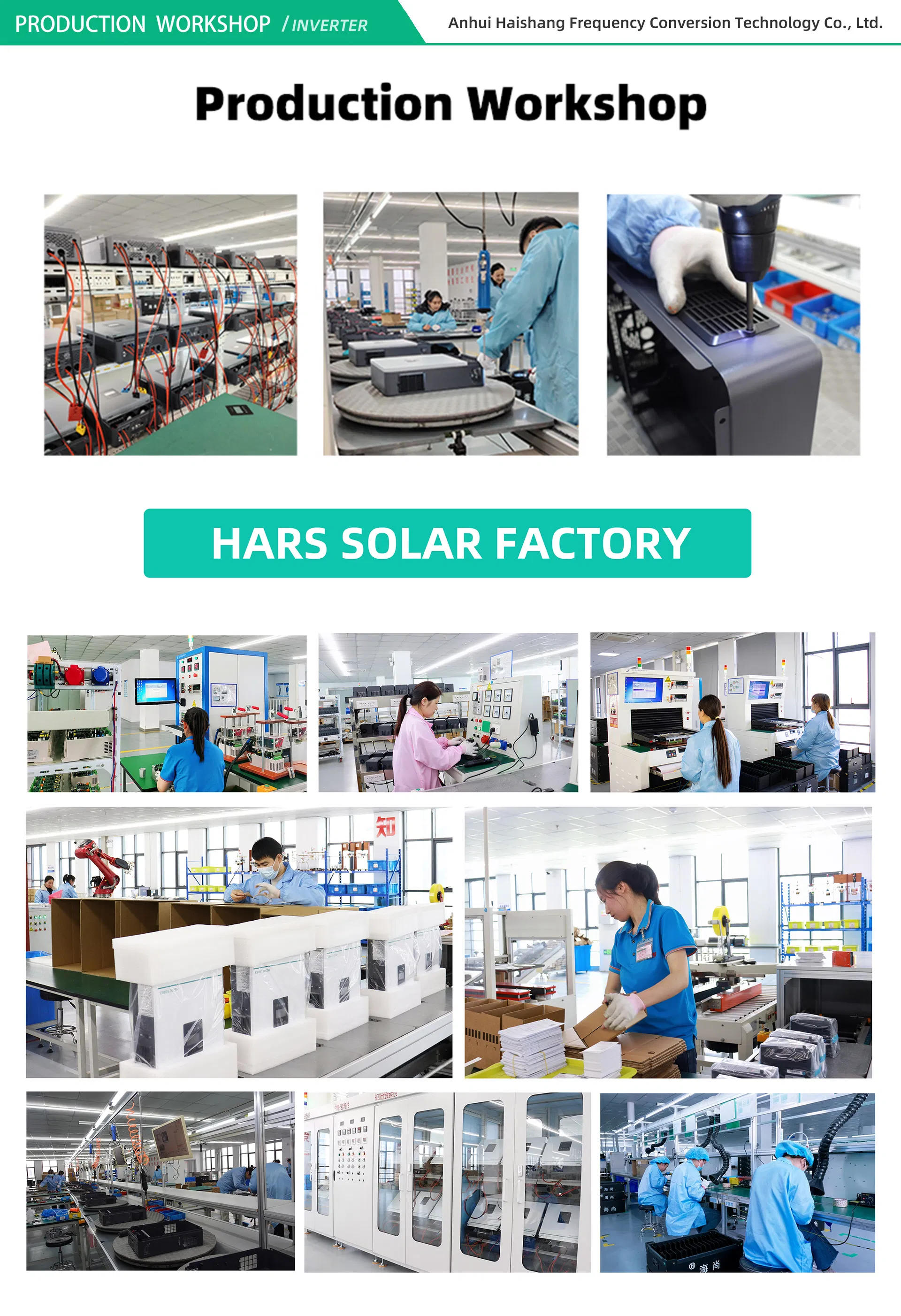

We are a high-tech enterprise integrating R&D, production, sales and technical services. The proportion of automated production is as high as 80%, and the product inventory is sufficient to ensure reliable delivery times. Our facilities include a construction area of 30,000 square meters and a specialized photovoltaic factory of 20,000 square meters. With three technical centers, we provide professional ODM and OEM services backed by strong technical support.
