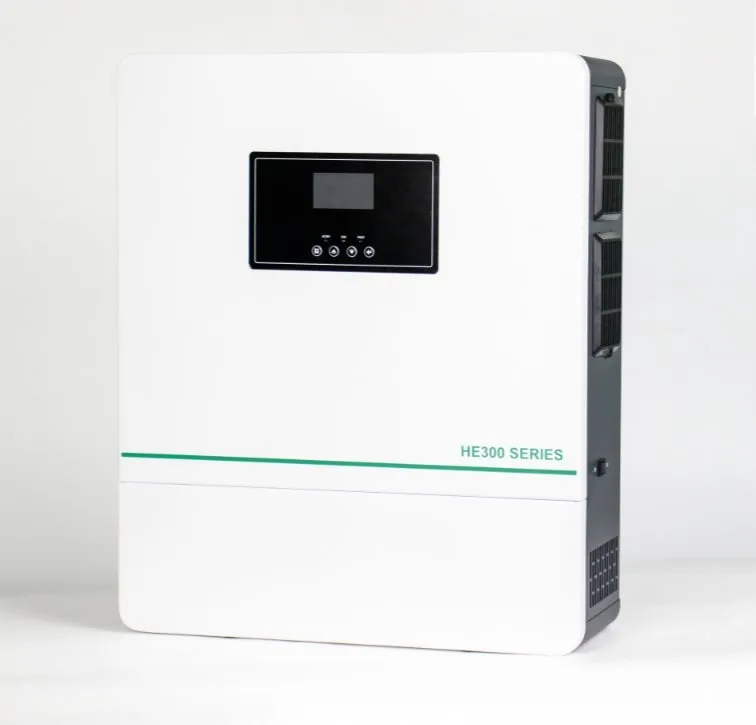

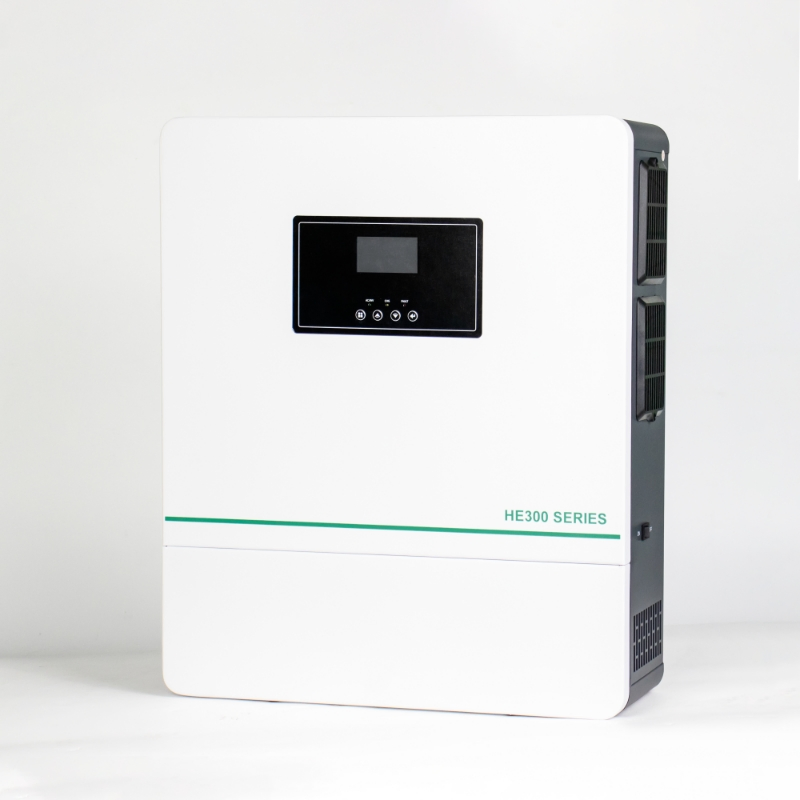

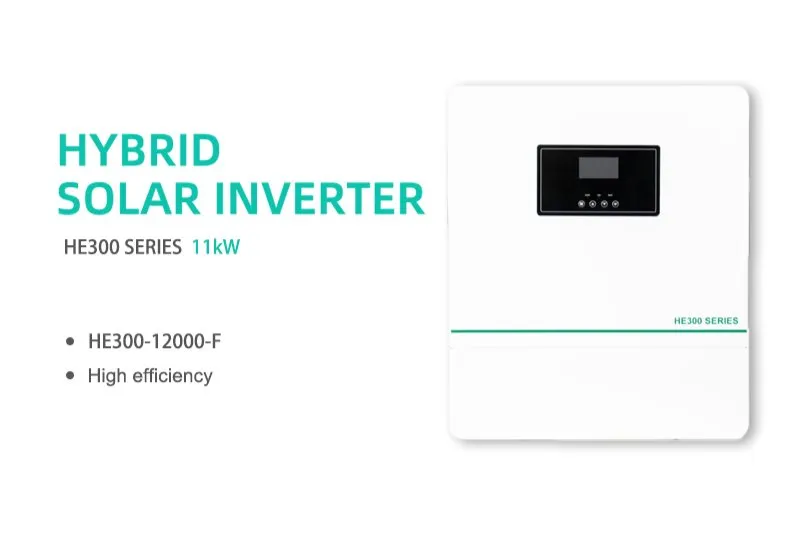

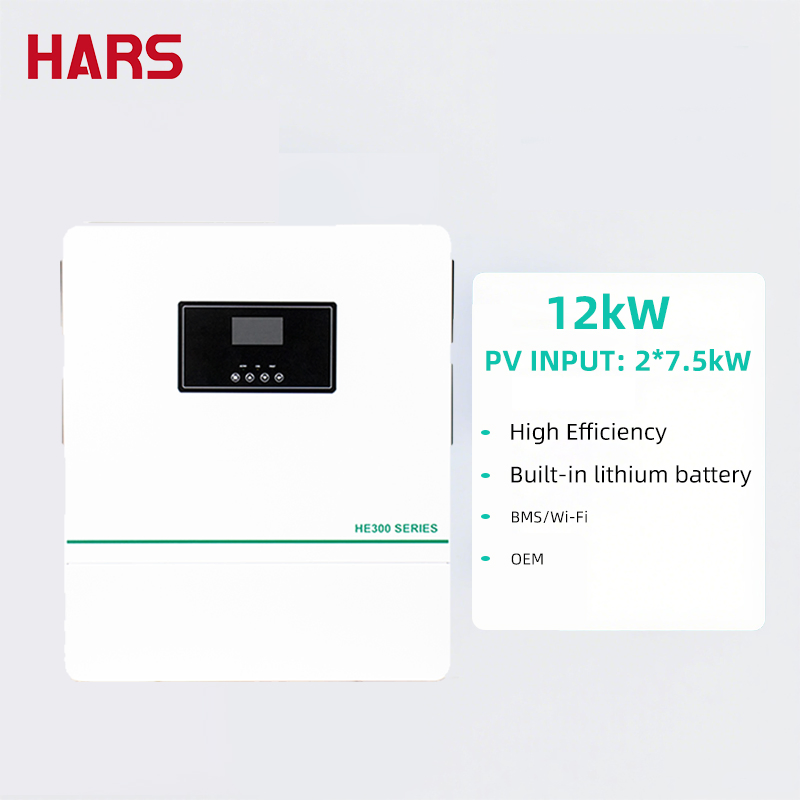

HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts portable size, supports uninterruptible power supply switching, has the function of setting battery charging voltage and current, multiple power input and output priority settings, output AC voltage and frequency can be set, suitable for different power grid environments, and has a mobile phone APP for online data monitoring.
| Inverter Output Specifications | |
|---|---|
| Rated Output Power | Battery: 11000W / PV: 12000W |
| Rated Output Voltage | 220/230/240Vac ±5% (Single Phase) |
| Rated Output Current | 47.8A |
| Rated Output Frequency | 50/60Hz ±0.1% |
| Output Waveform | Pure Sine Wave |

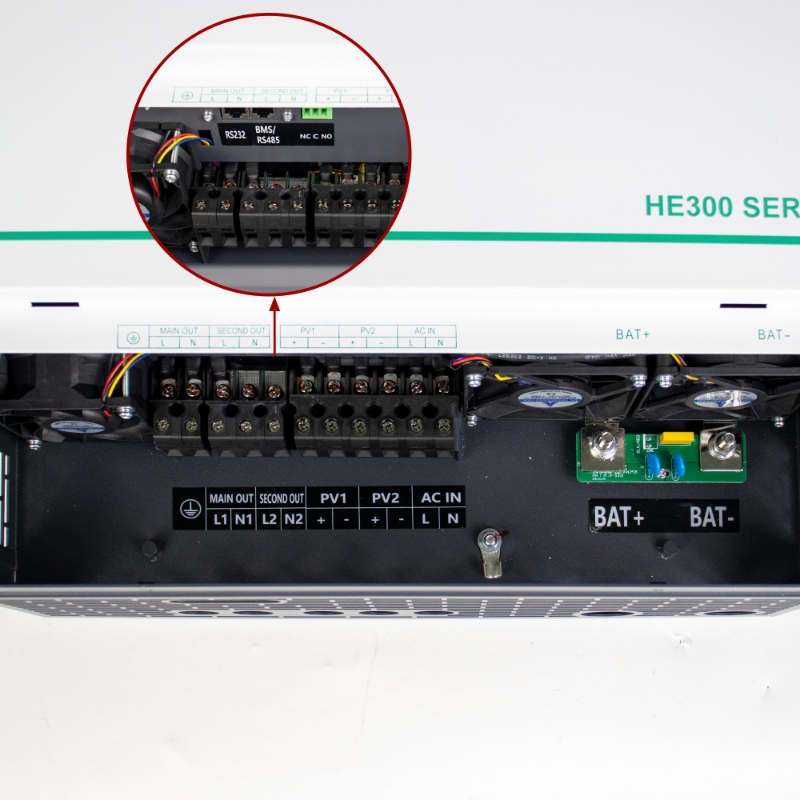

| Output Topology | L1+N1+L2+N2+PE |
| Battery & PV Input | |
|---|---|
| Battery Type | Lead acid / Gel / Lithium battery |
| Rated Battery Voltage | 48V |
| MPPT Number | 2 |
| Max PV Input Power | 2 * 7500W |
| Max Open Circuit Voltage | 500Vdc |
| Max Input Current | 2 * 27A |
| Input Voltage Range | 90~450V |
| General Parameters | |
|---|---|
| Protection Level | IP21 |
| Operating Temperature | -10℃ ~ 50℃ |

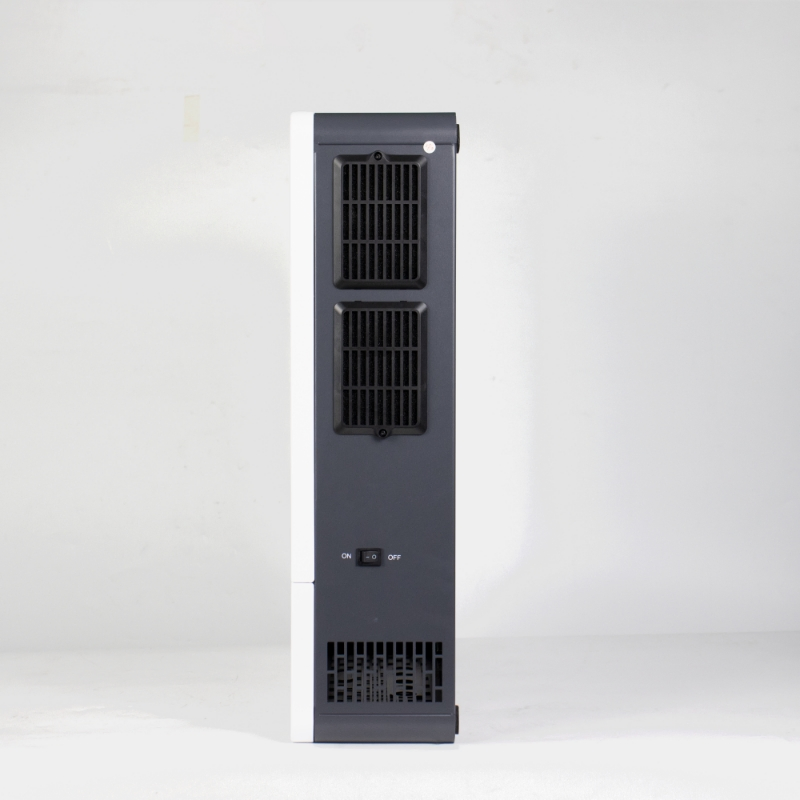

| Cooling Method | Intelligent air cooling |
| Humidity | 5% ~ 95% |

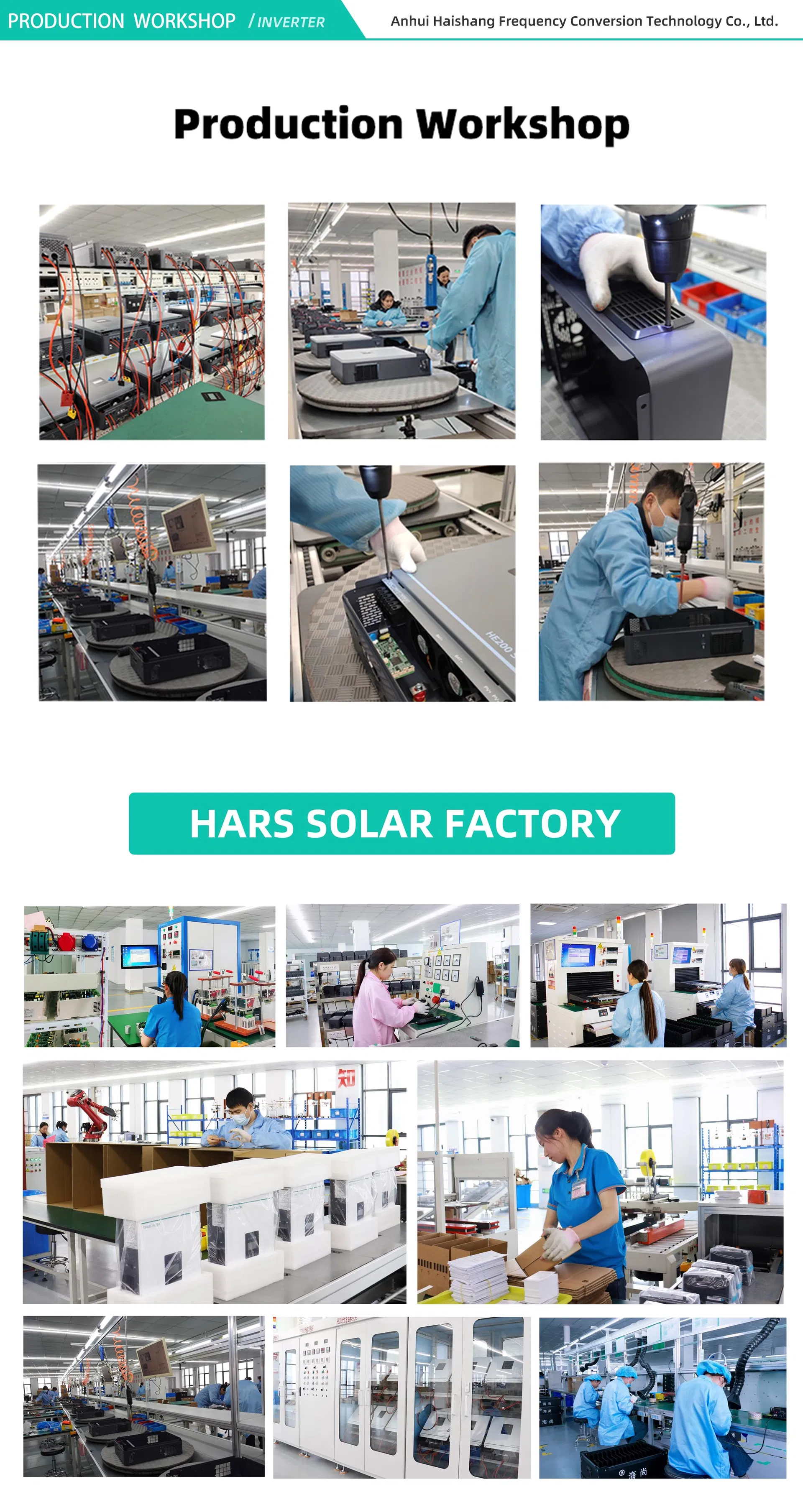

We are a high-tech enterprise integrating R&D, production, sales, and technical services. The proportion of automated production is as high as 80%, ensuring sufficient product inventory and reliable delivery times. Our facility includes specialized photovoltaic factories and multiple technical centers, providing robust technical support, ODM, and OEM services.
We are a professional frequency inverter manufacturer with extensive R&D and production capabilities.
Yes, we accept OEM production and can customize products with your specific branding requirements.
We accept various payment methods including T/T, L/C, Paypal, and Western Union.
We have professional QA and QC teams. A 100% quality inspection is performed on all units before they leave the factory.
Our hybrid inverters are compatible with Lead-acid, Gel, and Lithium batteries, specifically designed for 48V systems.
Yes, every single unit undergoes a 100% functional and performance test before shipment.
