| Model NO. | HE300-12000-F | Nature of Source Flow | Active Inverter |
| Phase | Single | Output Power | >1000W |
| Certification | CE, ISO9001 | Type | DC/AC Inverters |
| Power Source | Solar Power | Circuit Topologies | Half-Bridge Type |
| Wave String | Sine Wave Inverter | Capacity | 50,000 pieces/Year |
| Package Size | 63.50cm * 55.00cm * 23.50cm |
| Package Gross Weight | 24.000kg |

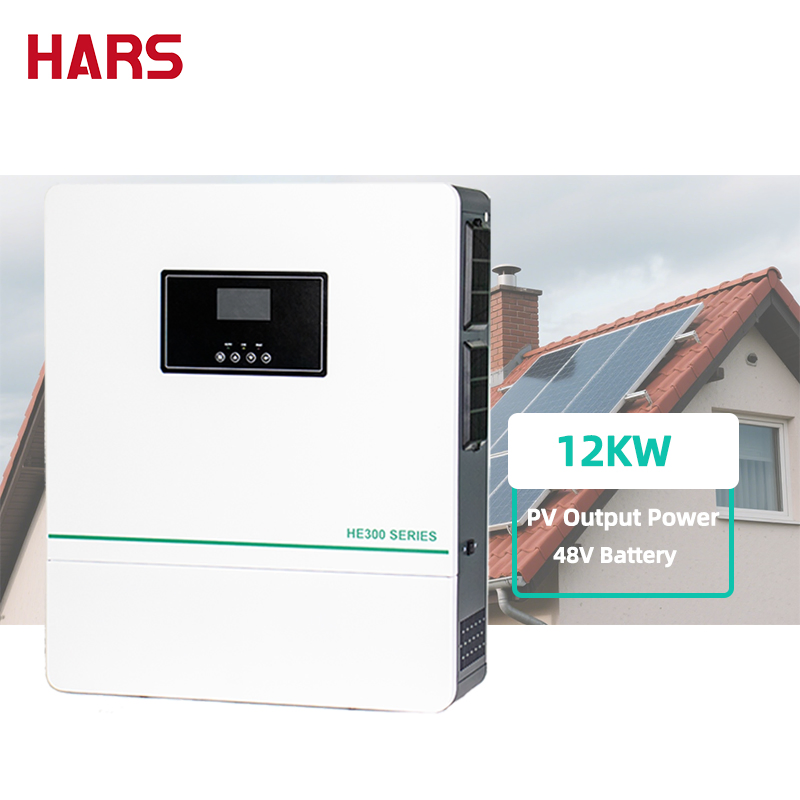

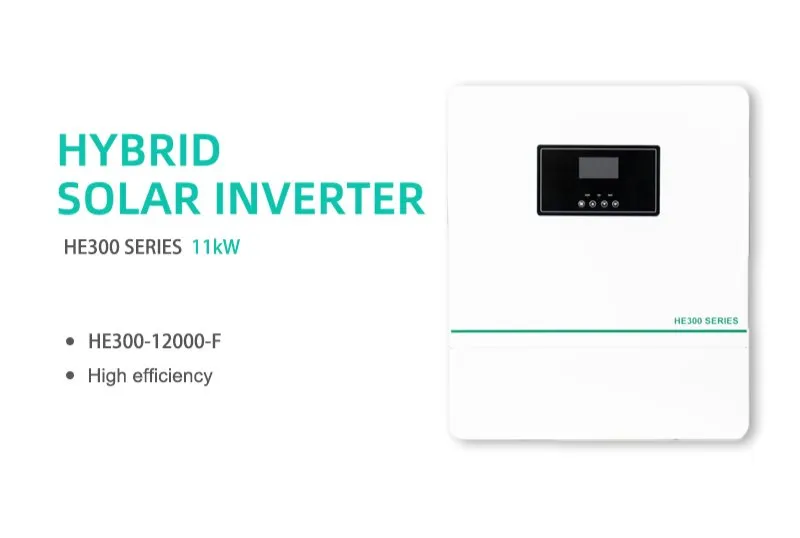

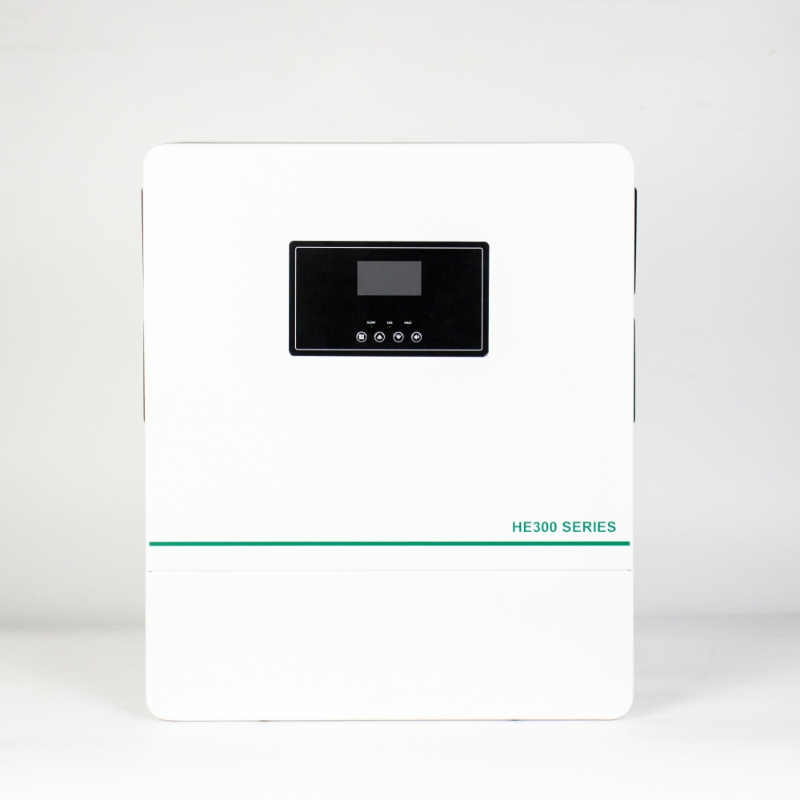

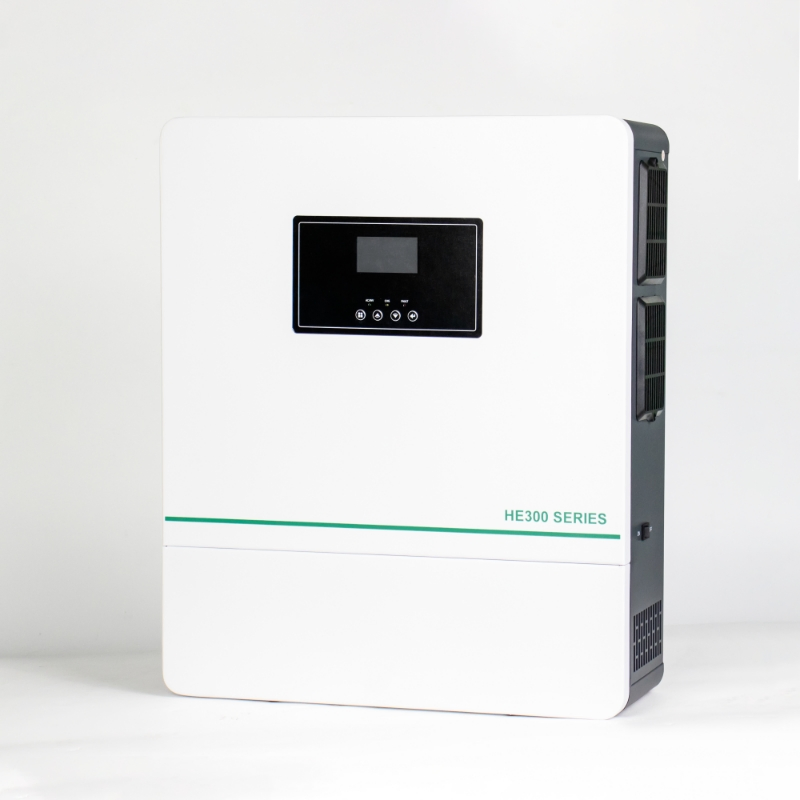

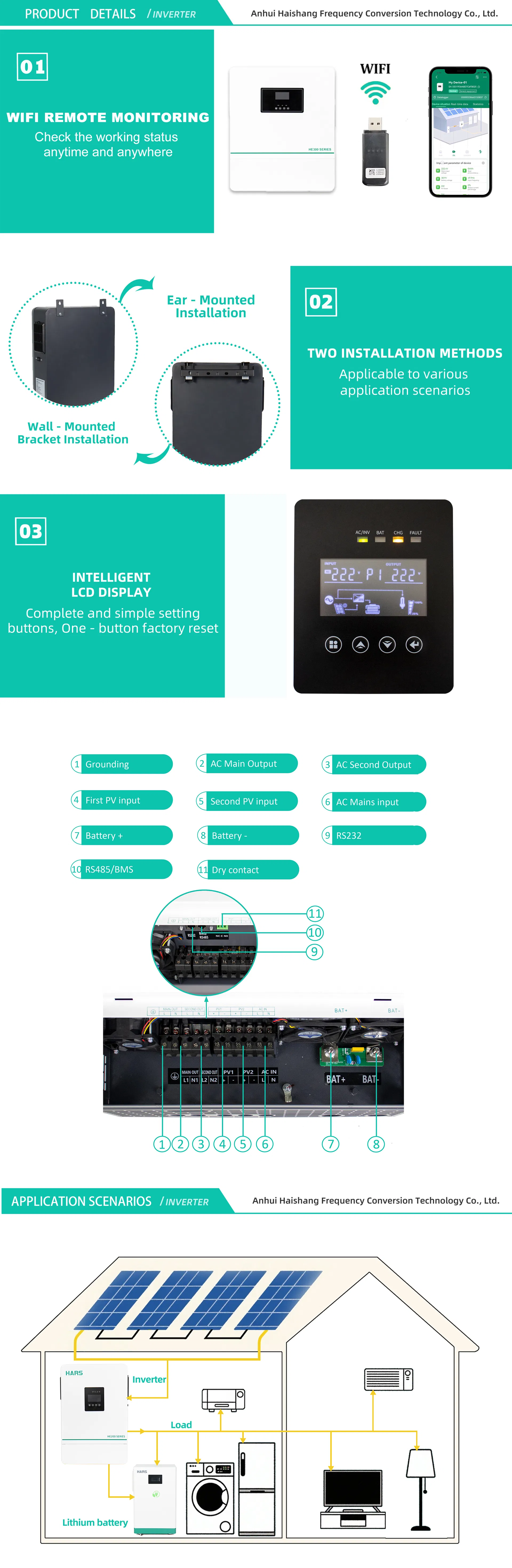

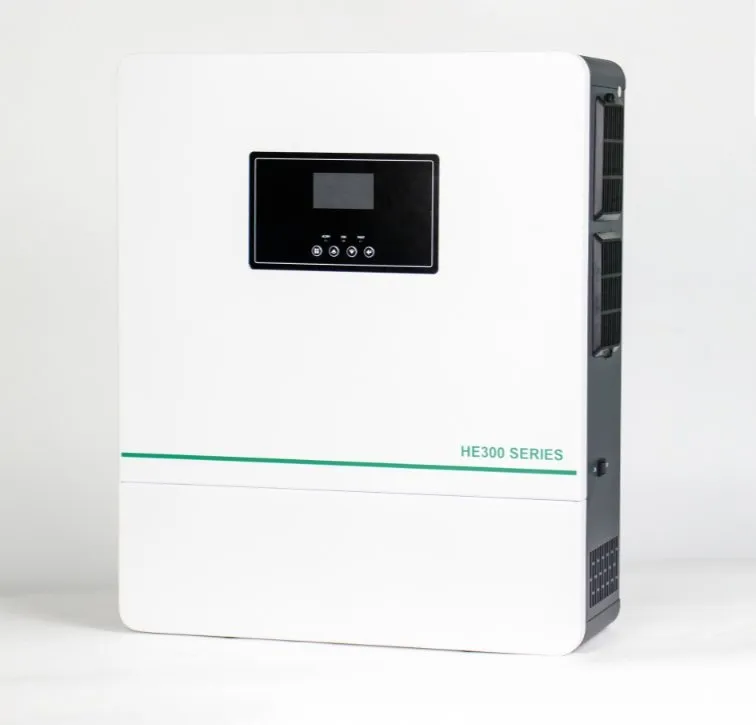

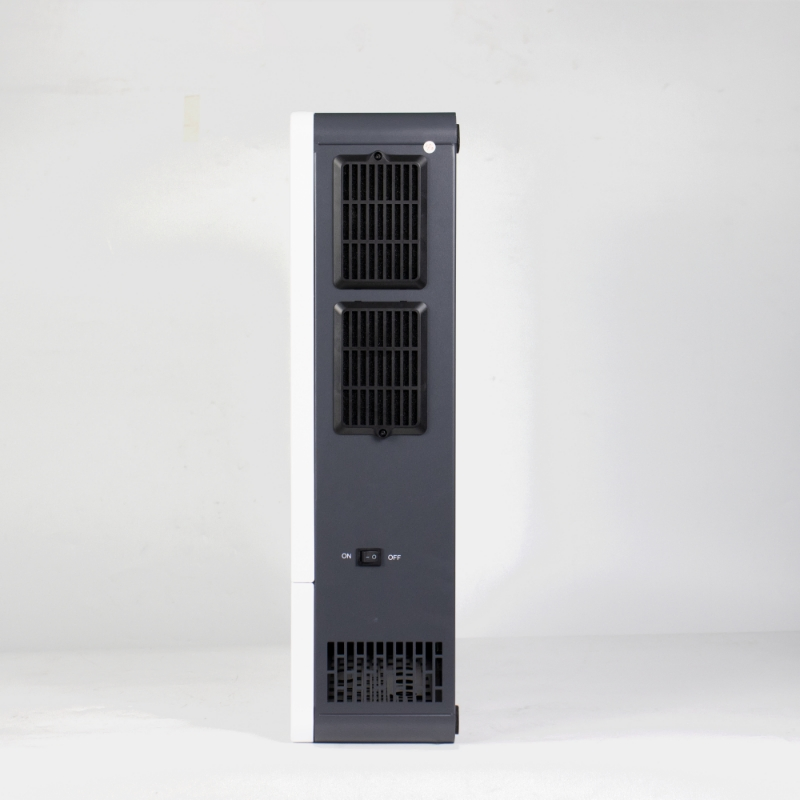

The HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It features a portable design and supports uninterruptible power supply (UPS) switching. It includes functions for setting battery charging voltage and current, as well as multiple power input and output priority settings. Output AC voltage and frequency are adjustable to suit different power grid environments. Real-time data monitoring is available via a dedicated mobile application.
| Inverter Output Parameters | |
|---|---|
| Rated Output Power | Battery inverter: 11000W / PV inverter: 12000W |
| Rated Output Voltage | 220/230/240Vac ± 5% (Single Phase) |
| Rated Output Current | 47.8A |
| Rated Output Frequency | 50/60Hz ± 0.1% |
| Output Waveform | Pure Sine Wave |
| Battery & Charging | |
|---|---|
| Battery Type | Lead acid / Gel / Lithium battery |
| Rated Battery Voltage | 48V |
| PV Charging Method | MPPT / Dual MPPT |
| Max PV Charging Current | 150A |
| PV & AC Input | |
|---|---|
| MPPT Number | 2 |
| Max Input Power | 2 * 7500W |
| Max Open Circuit Voltage | 500Vdc |
| Input Voltage Range (PV) | 90 ~ 450V |
| Input Voltage Range (AC) | 90-280VAC (APL mode) / 170-280VAC (UPS mode) |

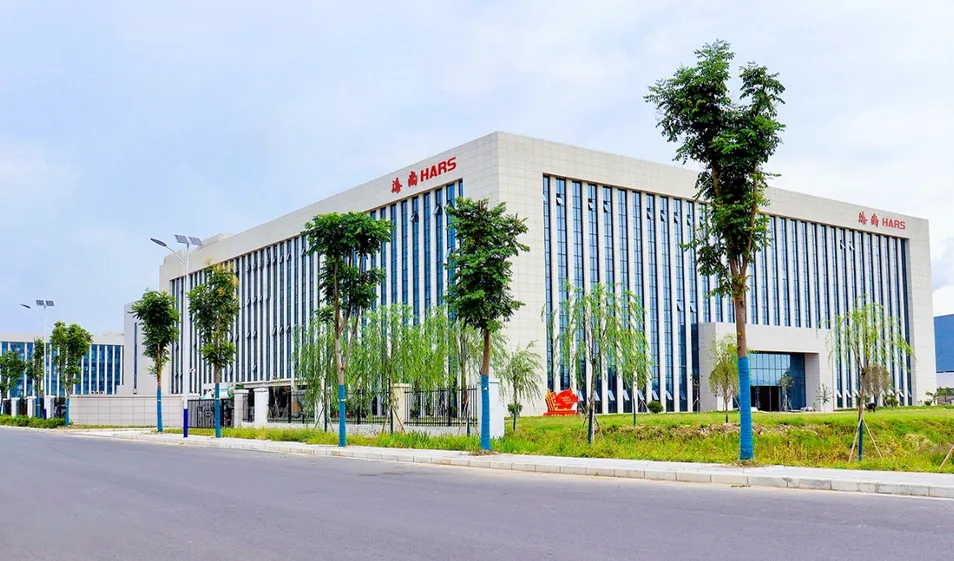

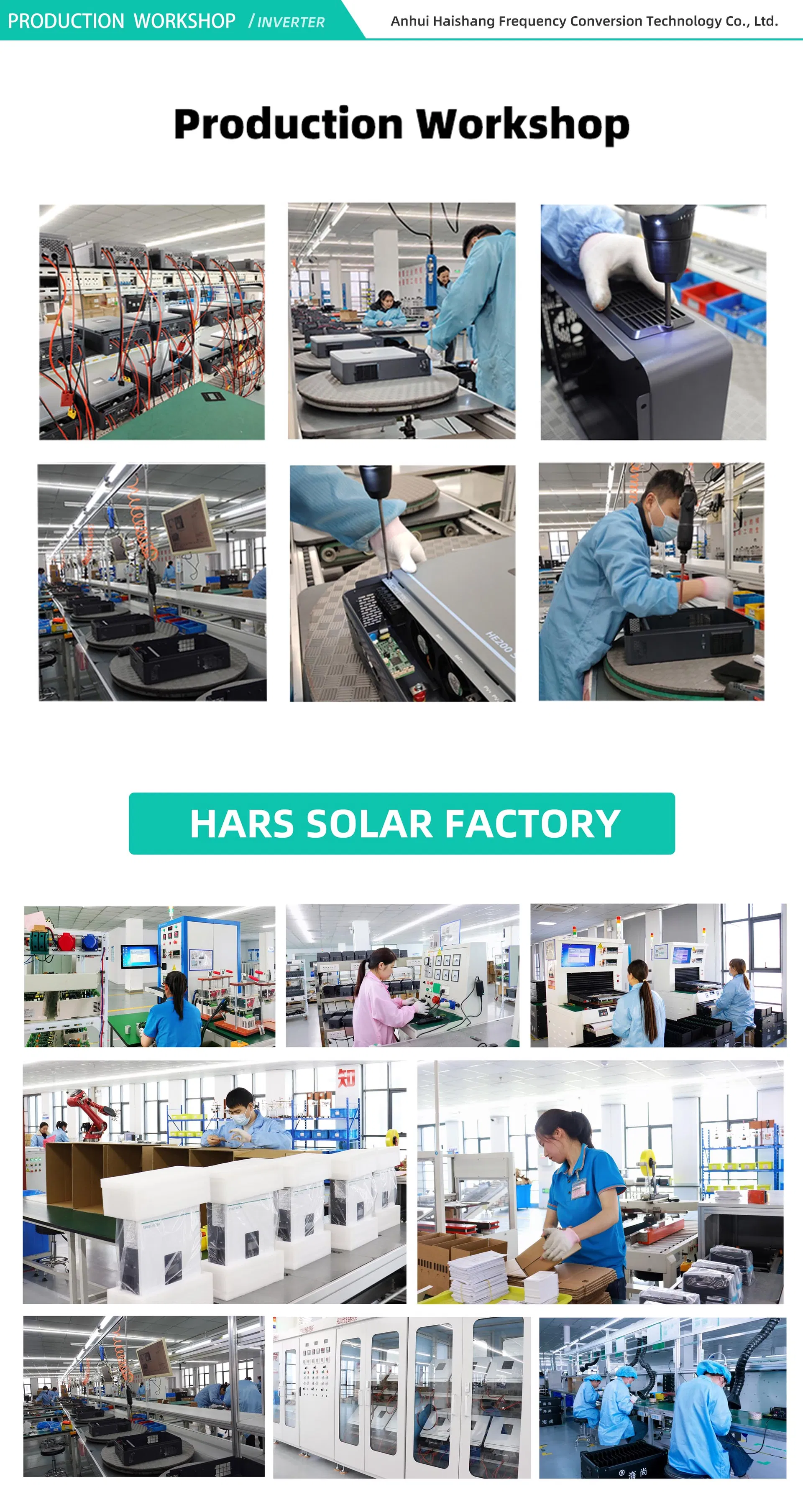

Our production facilities utilize a high level of automation, reaching up to 80%. With a construction area of over 30,000 square meters and dedicated photovoltaic production sites, we ensure sufficient inventory and stable delivery times. We provide comprehensive ODM and OEM services backed by three technical research centers and strong technical support.
