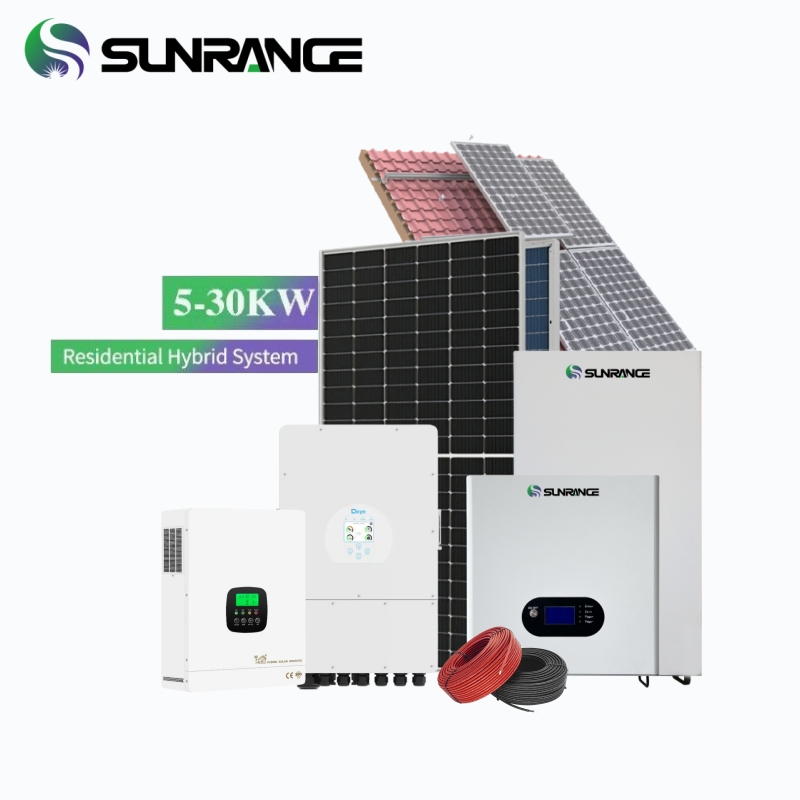

Hybrid Solar System 5-30kw Hybrid with Smart APP Monitoring for Commercial Use

1 / 5

Hybrid Solar System 5-30kw Hybrid with Smart APP Monitoring for Commercial Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SR-5/10/15/20/30KW-HY

Nominal Capacity

Customize

Keyword

Complete Set Solar System

Solar Panel

Monocrystalline 400-700W

Battery Type

Gel / LiFePO4 Lithium Battery

OEM

Load Power (W)

2.5kw - 30kw

Controller

MPPT Intelligent Controller

Inverter Type

Hybrid Storage Solar Inverter

Design

Yes

Mounting Type

Ground / Roof Mounting

Production Capacity

50000 Sets/Year

Product Description

Model. No.		SR-5KW-HY	SR-10KW-HY	SR-15KW-3HY	SR-20KW-3HY	SR-30KW-3HY
System Parameter	AC Rated Power	5KW	10KW	15KW	20KW	30KW
	Grid Voltage	220/230VAC		380/400VAC
	Rated frequency	50/60HZ
	Max. Output (KVA)	5.5	11	16.5	22	33
Solar Panel	Quantity	12PCS	21PCS	30PCS	42PCS	56PCS
	Model	SR72P-580N
	Power in total	6.96KW	12.18KW	17.4KW	24.36KW	32.48KW
Hybrid Inverter	Model	SUN-5K-SG03LP1-EU	SUN-10K-SG02LP1-EU	SUN-15K-SG01HP3-EU	SUN-20K-SG01HP3-EU	SUN-30K-SG01HP3-EU
Hybrid Inverter	MPPT Voltage	150-425VDC		250-850VDC
Lithium Battery	Model	SR48200	SR48280	SR48100	SR48200	SR48280
Lithium Battery	Bank Capacity	10.24KWH	14.336KWH	30.72KWH	40.96KWH	57.344KWH

Product Parameters

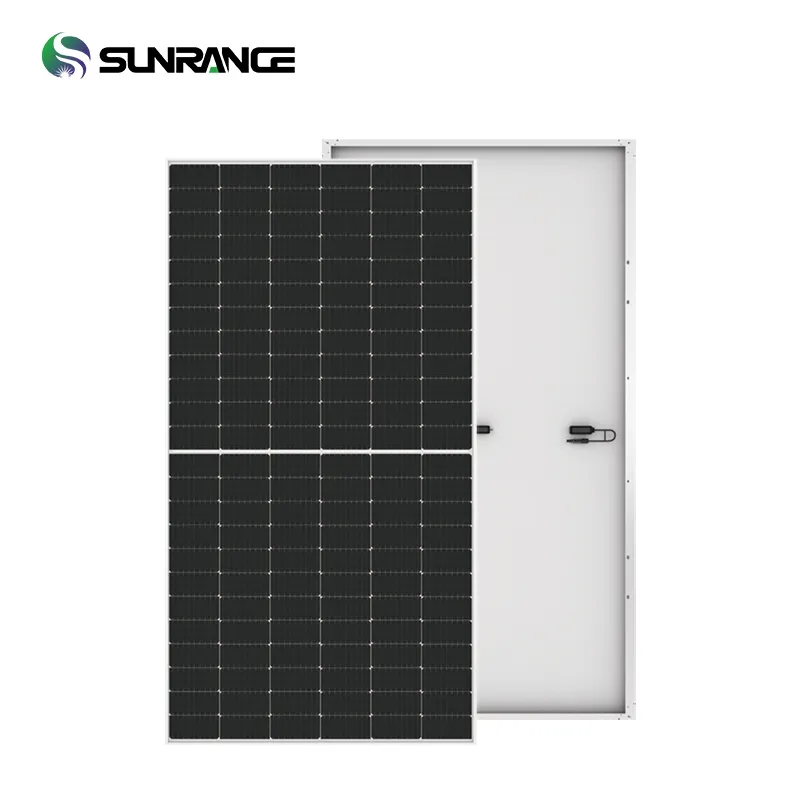

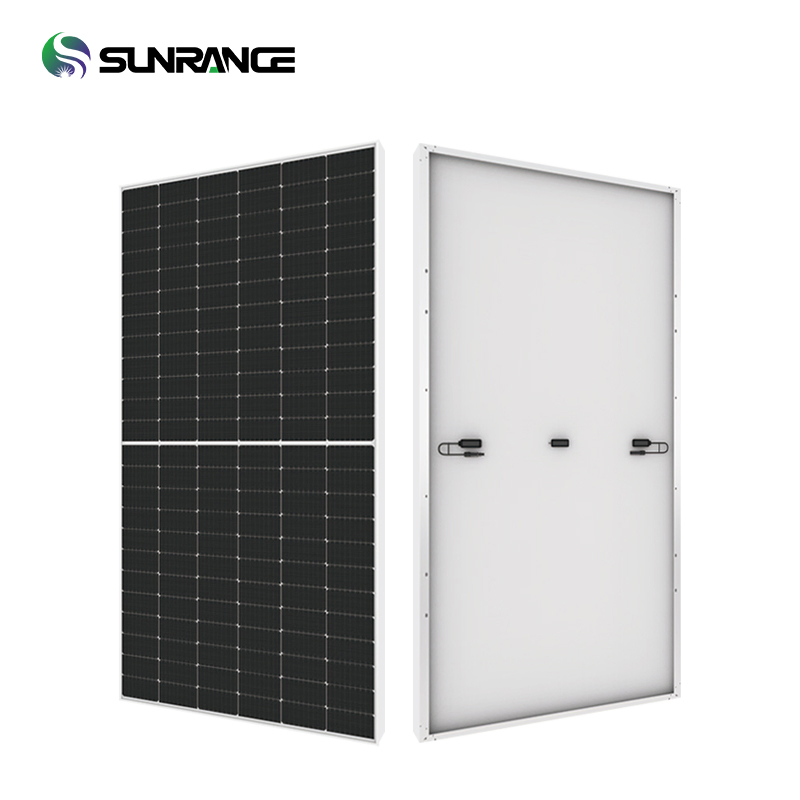

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum power (Pmax): 580W
Open Circuit Voltage (Voc): 51.57V
Short Circuit Current (lsc): 14.33A
Voltage at Maximum power (Vmpp): 43.09V
MODULE EFFICIENCY: 22.44%

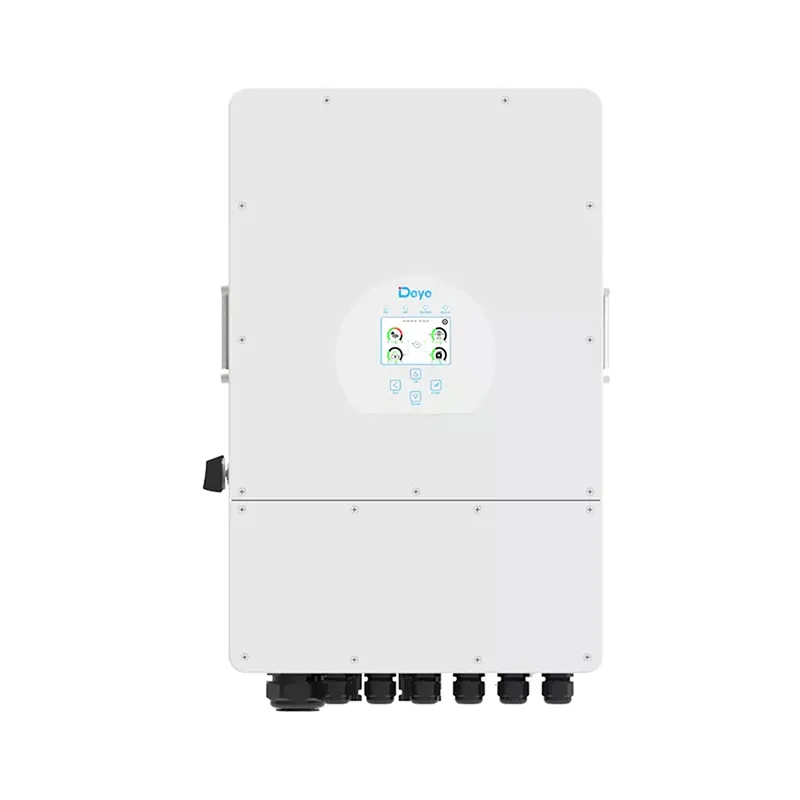

All in One Hybrid Inverter

Support PV, battery, DG, grid, and load connections
System capacity easily expanded
Dynamic power distribution to fulfill demand
Smart APP Monitoring available

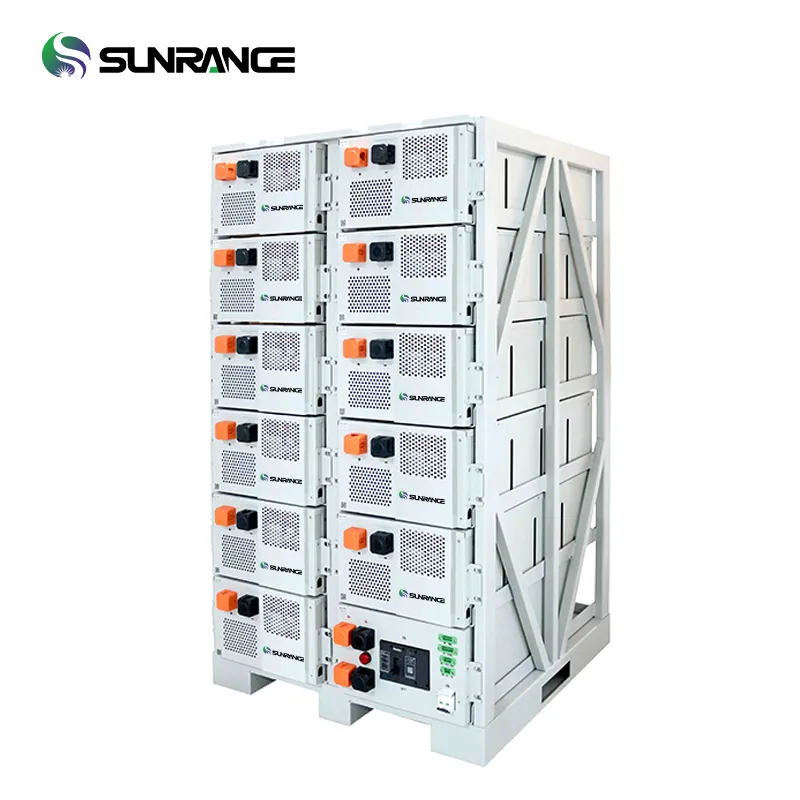

Solar Battery Packs

Rack mounted deep cycle lifespan
GEL/LiFePO4 Lithium Ion options
More than 6000 times cycle, up to 90% DOD
High Voltage options: 48V to 153.6V

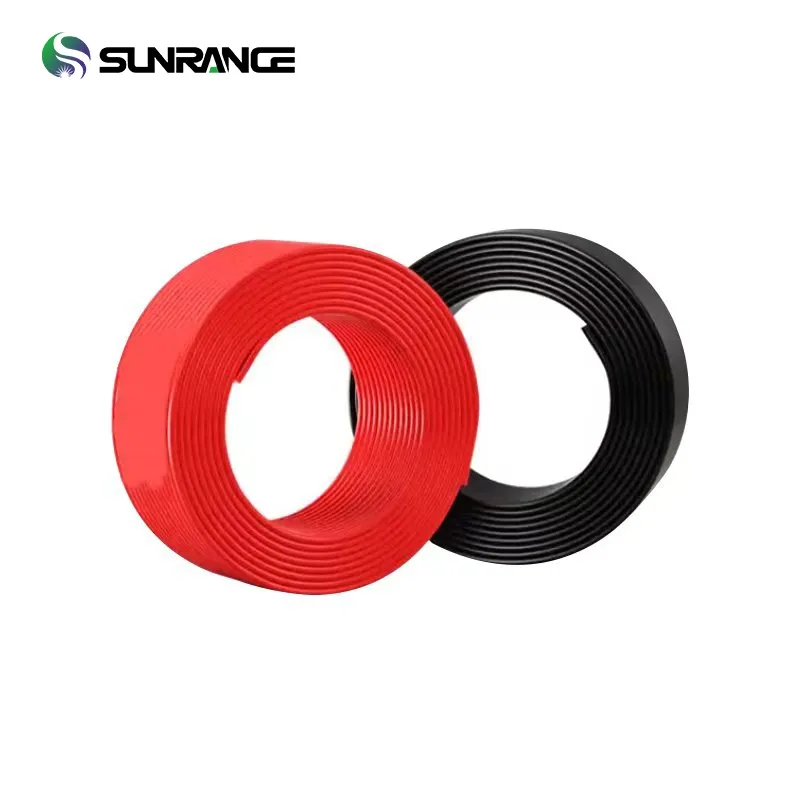

DC Cable & MC4 Connector

Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600vDC/1000VDC (TUV)
Rated Current: 55A, 70A
Service Life: ≤25 Years

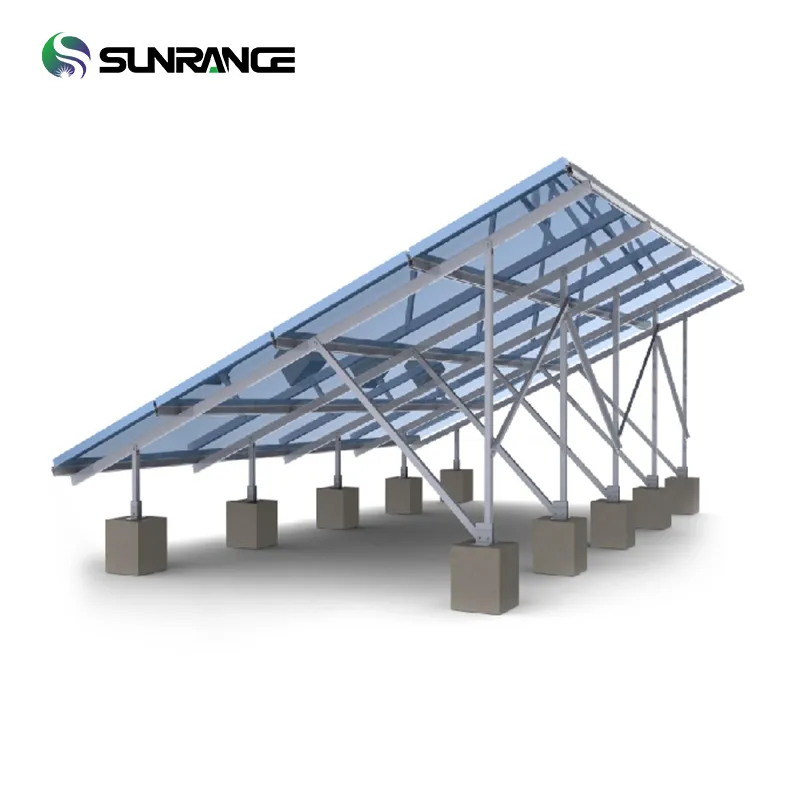

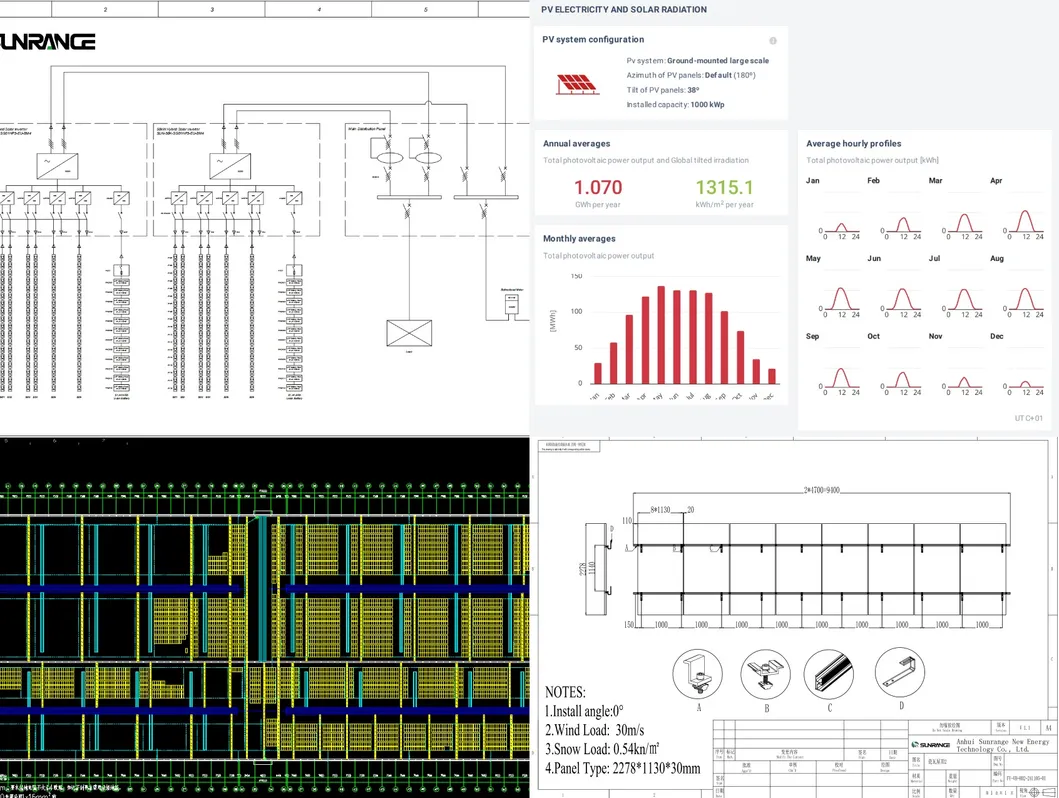

Mounting System & Technical Support

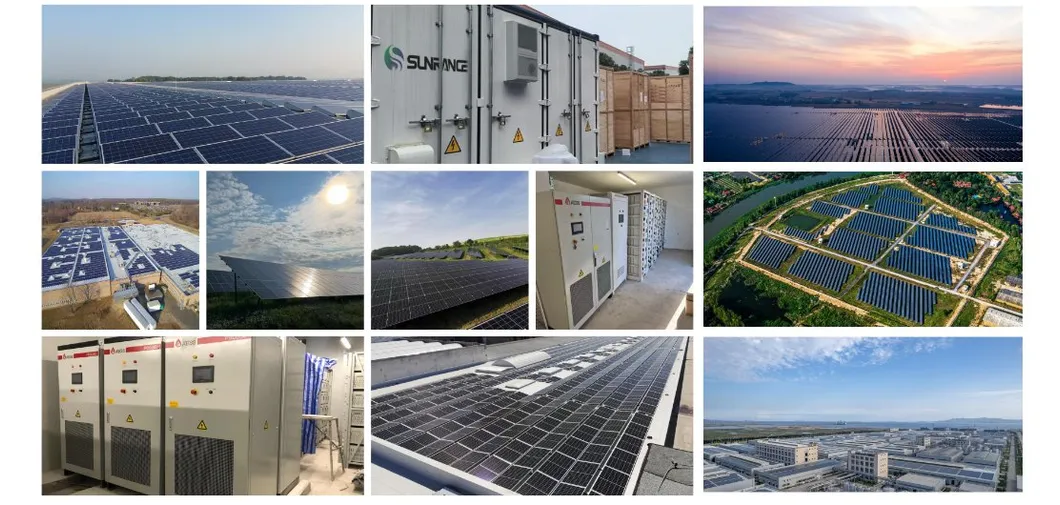

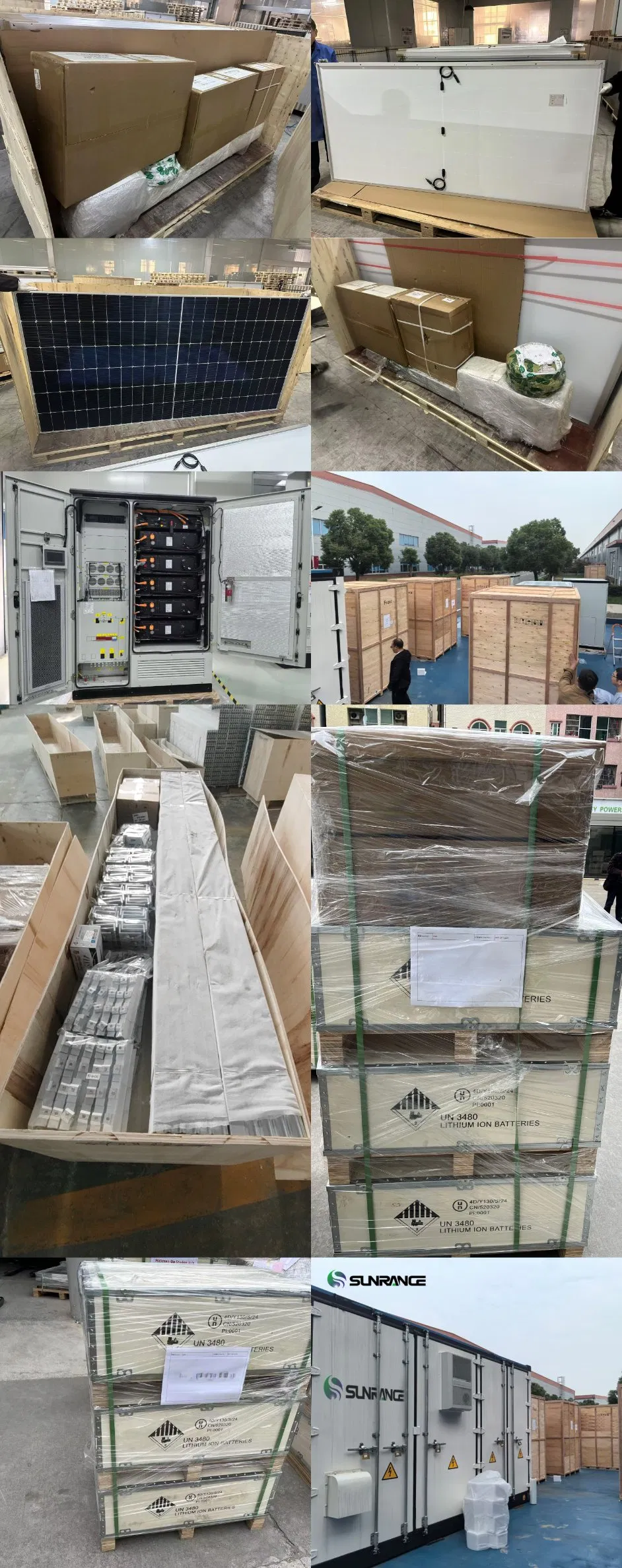

Packaging & Project Case

Company Profile

An emerging brand in the photovoltaic industry with customers located on all continents. We provide the highest quality products and professional services, offering different design solutions for large, medium, and small customers. We continue to develop and improve technology to bring a better experience to our users.

Frequently Asked Questions

What is included in the complete hybrid solar system set?

The system includes high-efficiency N-Type Topcon solar panels, a hybrid storage inverter, LiFePO4 or GEL battery packs, mounting structures, DC cables, and MC4 connectors.

Can the system capacity be expanded in the future?

Yes, our hybrid inverter supports easy expansion. You can increase both PV capacity and battery storage to fulfill growing load demands.

What is the lifespan of the solar panels?

The solar panels and DC cables are designed for long-term use, with a service lifetime of up to 25 years under standard operating conditions.

Does the system support remote monitoring?

Yes, the hybrid system comes with Smart APP monitoring, allowing you to track energy production and consumption in real-time from your smartphone.

What type of maintenance is required for the batteries?

Our LiFePO4 and GEL battery options are maintenance-free, featuring high discharge performance and a deep cycle lifespan of over 6000 cycles.

Is the mounting system suitable for all roof types?

We offer versatile mounting solutions, including L-feet for asphalt shingles, hanger bolts, and kits for both ground and various roof mounting types.
