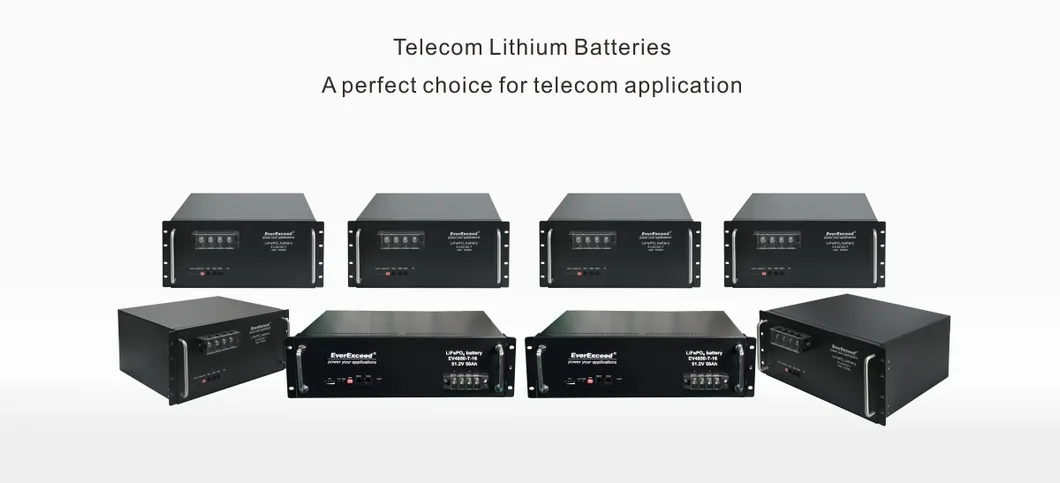

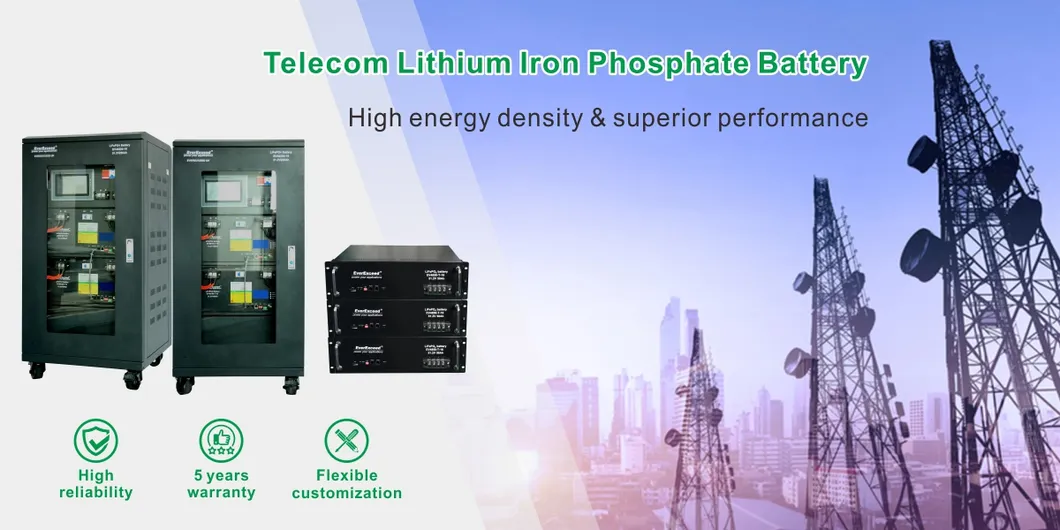

The communication facilities of telecom operators tend to be integrated, smaller and lighter. Based on its own technical features as high capacity, high voltage and free of pollution, the lithium iron battery is widely concerned. It is the first choice for high requirement backup battery solutions, satisfying the new requirements of the telecom sector for backup power.

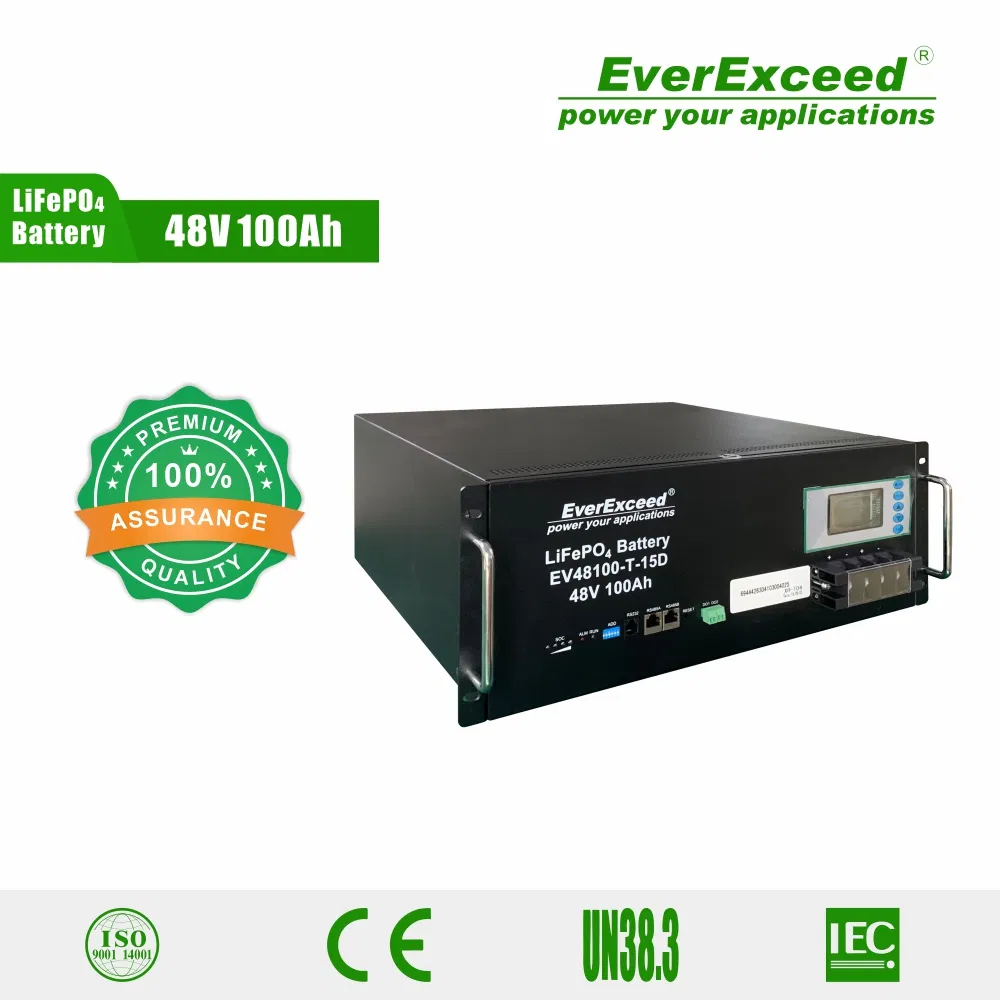

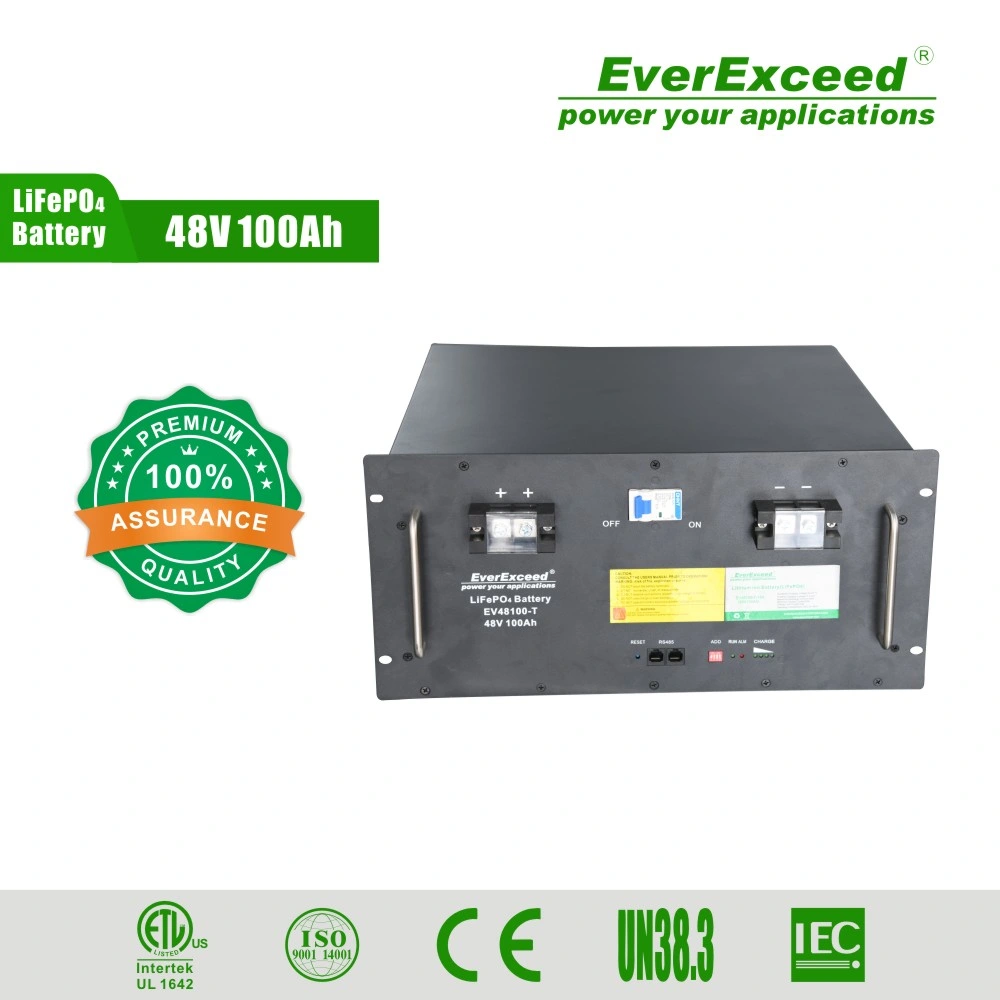

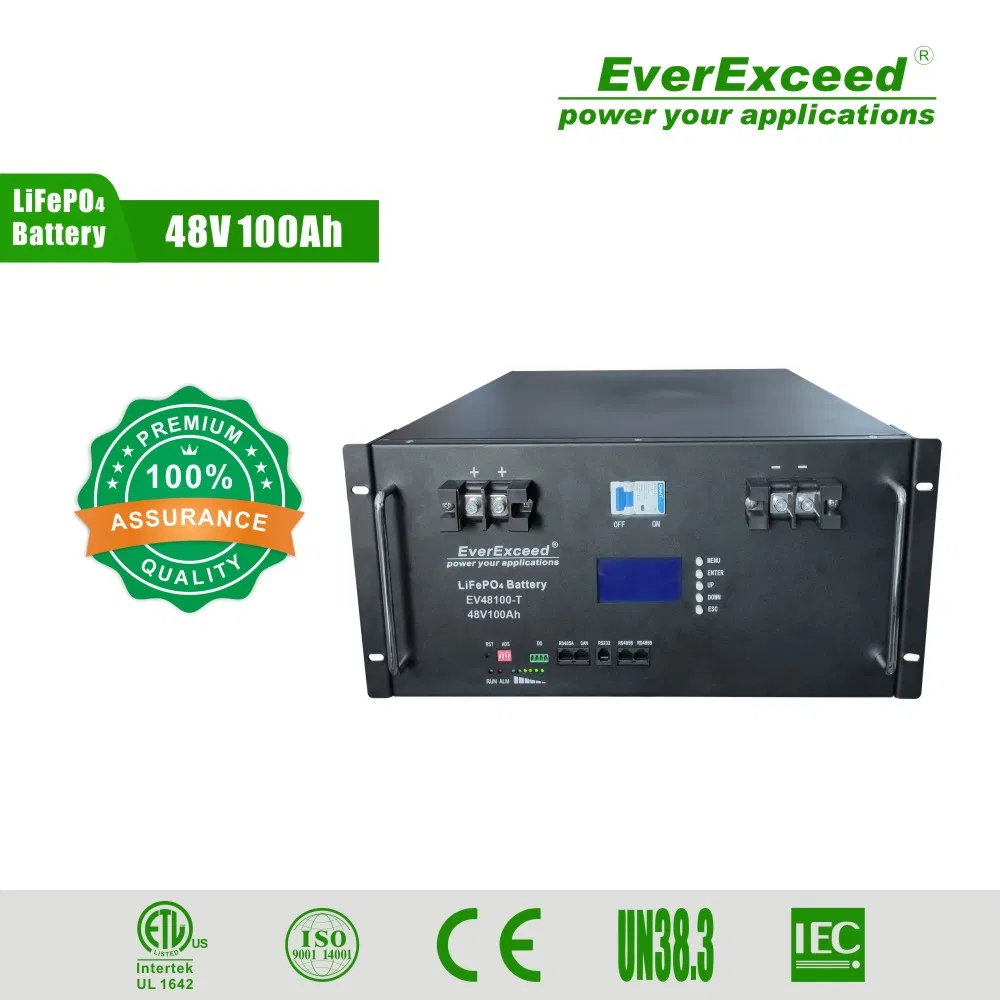

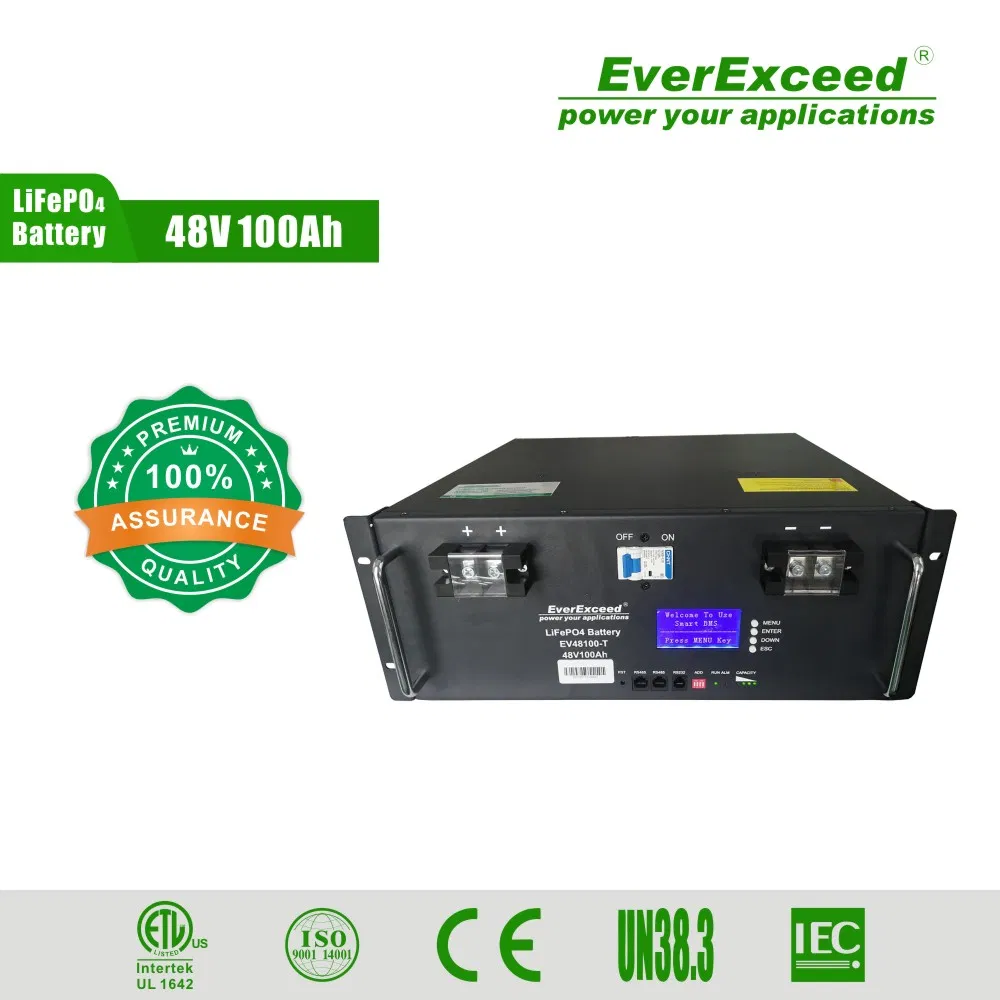

| Characteristic | EV48100-T (15S) | EV48100-T (16S) |
|---|---|---|
| Nominal Voltage | 48 V | 51.2 V |
| Nominal Capacity | 100 Ah | 100 Ah |
| Nominal Energy | 4800 Wh | 5120 Wh |
| Rec. Charge Voltage | 54-54.7 V | 57.6-58.4 V |
| Rec. Charge Current | 50 A | 50 A |
| Max. Discharge Current | 100 A | 100 A |
| Cycle Life (100% DOD) | ≥3000 Cycles | ≥3000 Cycles |
| Dimensions (LxWxH) | 483 x 480 x 177 mm | 483 x 480 x 177 mm |
| Weight | 45 Kg | 48 Kg |
| Service | RMA (24/7 support), OEM, ODM |
| Quality | German technology and European raw materials |
| Warranty | Standard 2 years, 5+ years upon request |
| Price | Competitive factory direct pricing |

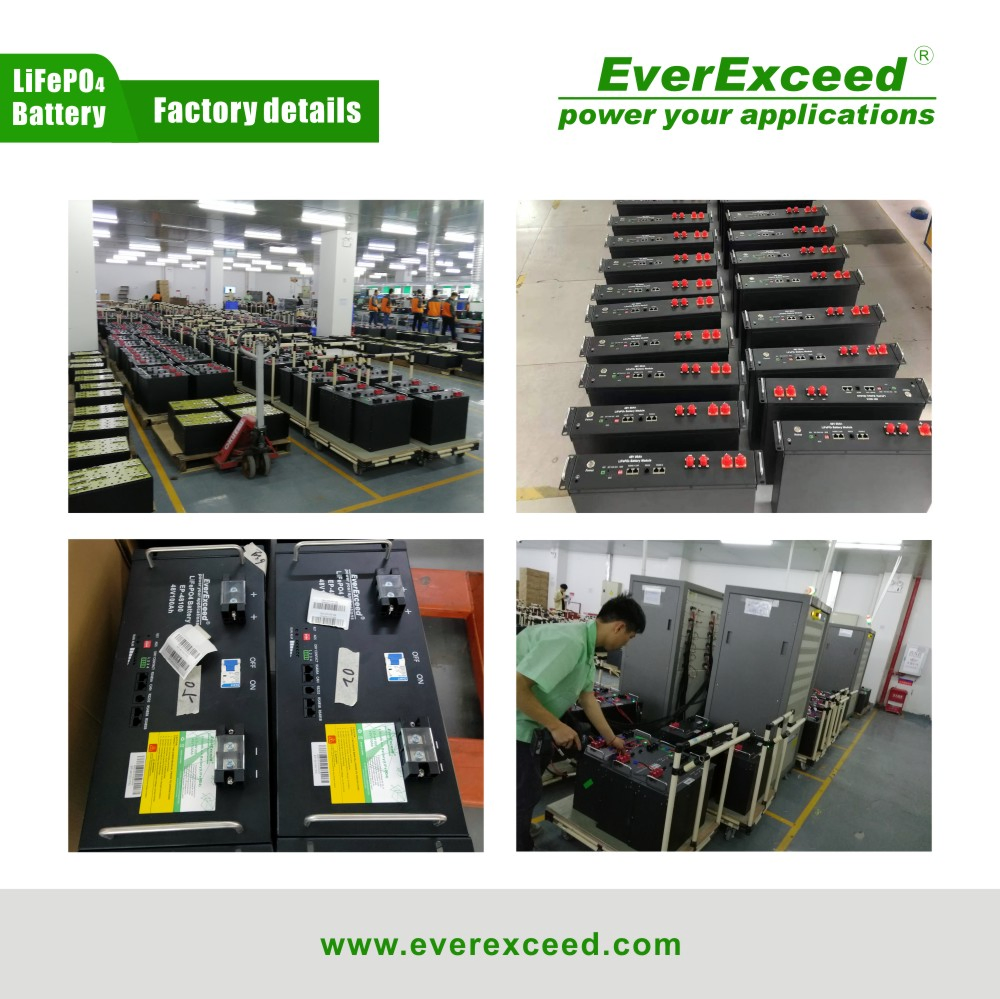

| Professional | 30+ years of battery manufacturing experience |
