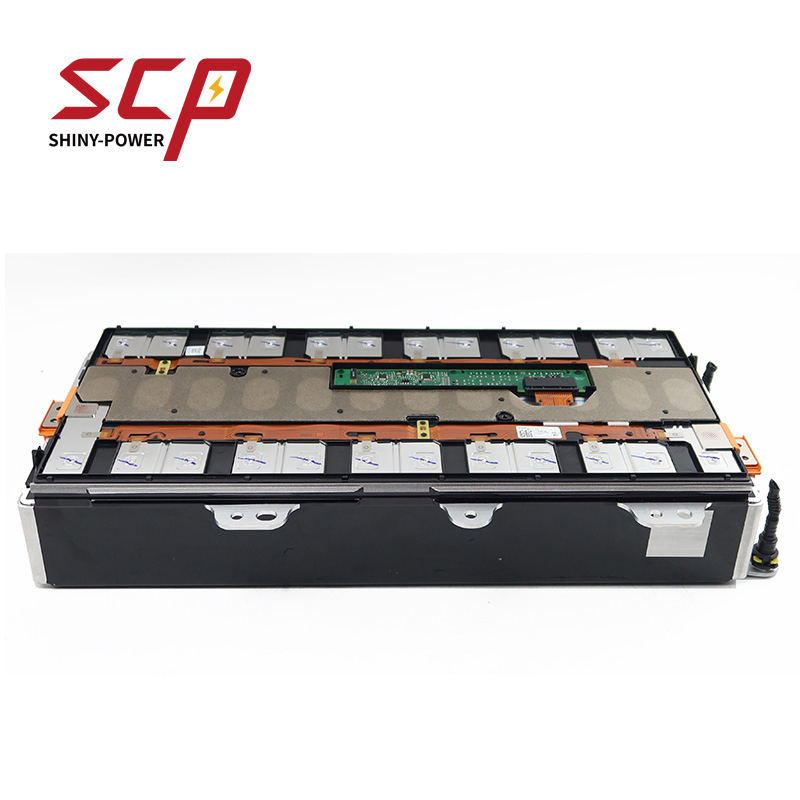

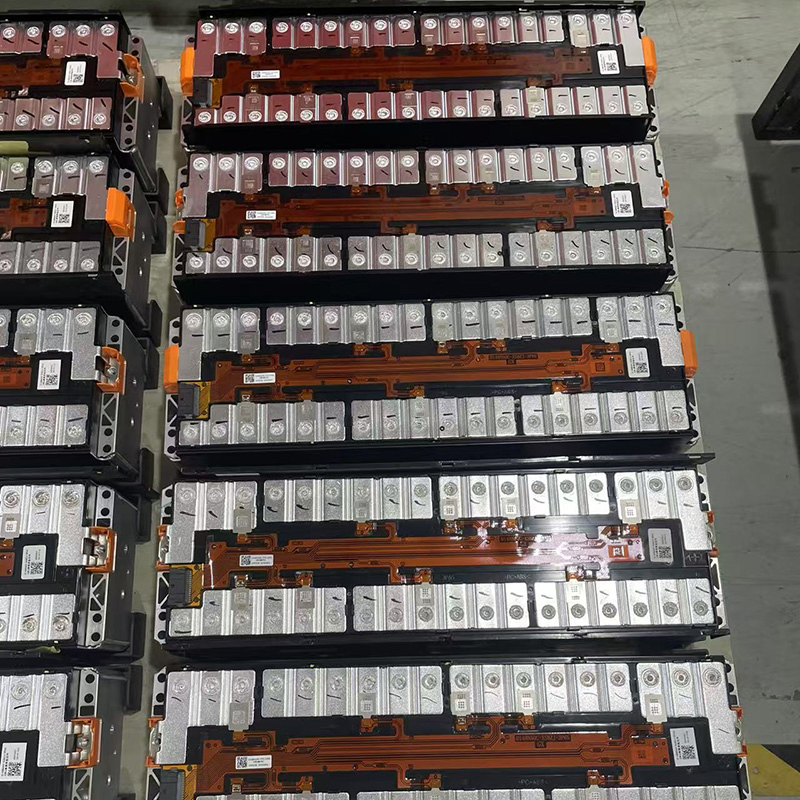

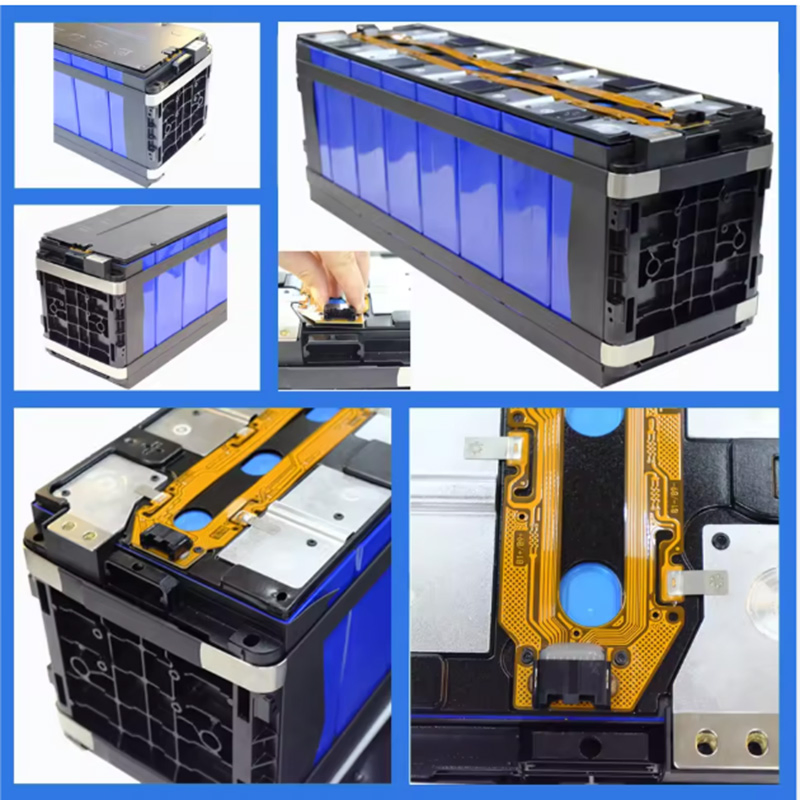

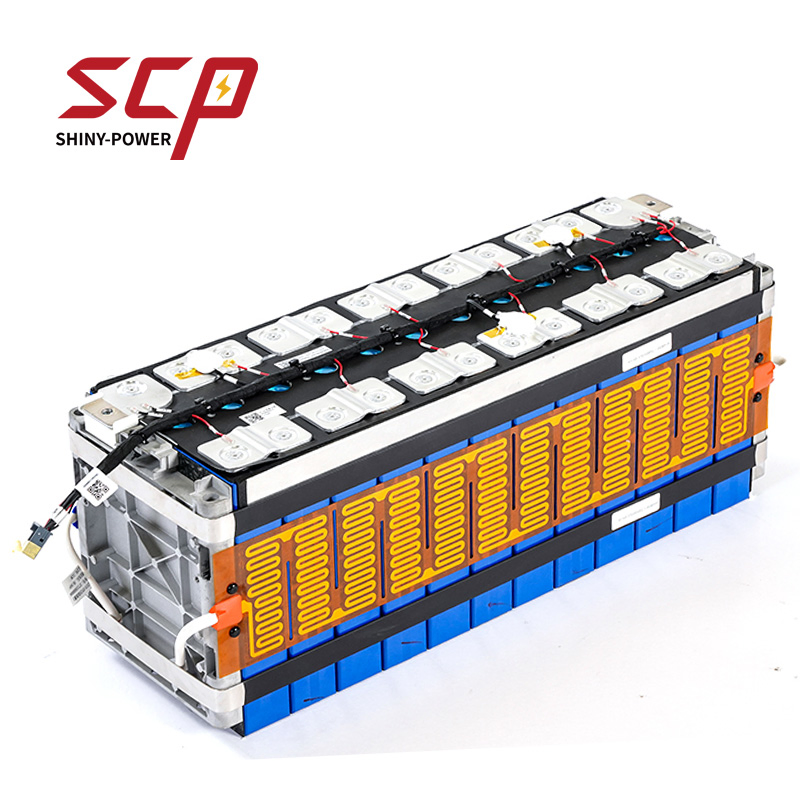

OEM/ODM Customizable 2p4s Prismatic-Aluminum LiFePO4-Lithium Battery Module for Car, Energy Storage System

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP

Product Description

Technical Specifications

Model NO.
DD01
Rechargeable
Yes
Size
Medium
Shelf Life
3 Years
Cycle Life
4000 Cycles
Rated Voltage
12.8V
Rated Capacity
412Ah
Module Power
5273.6Wh
Module Weight
34.5±0.5kg
Module Size
482*175*212 mm
Voltage Range
10-14.6V
Temp Range
Charge: 0-55°C, Discharge: -20~60°C
Specification
2P4S
Origin
China
HS Code
8507600090
Capacity
50,000 pieces/Year

Packaging & Logistics

Package Size
49.00cm * 18.00cm * 22.00cm
Gross Weight
35.000kg
Package Type
Plastic Lining, Carton Packaging

Product Overview

Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, extreme safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.

🛡️ Extreme Safety

LFP chemistry + innovative thermal management. Passes nail penetration, extrusion, short-circuit tests—no thermal runaway. Stable operation at -30°C~55°C.

🔋 Ultra-Long Cycle Life

Low lithium loss tech + patented electrode materials. Up to 4000 cycles, supporting over 20 years of stable use, cutting lifecycle costs.

High-Efficiency Output

Max power density 6000W/kg, excellent high-current pulse performance. 96.5% energy conversion efficiency for fast charging and long endurance.

🌍 Global Certifications

UN38.3, EUCAR certified, meeting global export standards with traceable quality.

⚙️ Customization & Supply

Supports OEM/ODM: customize capacity, size, protection functions with mature technical solutions. Large-scale production bases ensure stable capacity and fast bulk order delivery.

Visual Display

Frequently Asked Questions

What is the cycle life of this LiFePO4 battery module?
This module offers an ultra-long cycle life of up to 4000 cycles, ensuring over 20 years of stable use under normal conditions.
Does this product support customization?
Yes, we fully support OEM/ODM services. We can customize the capacity, dimensions, and protection functions according to your specific requirements.
What safety certifications does the battery hold?
The battery cells have passed UN38.3 and EUCAR certifications, and are tested against nail penetration, extrusion, and short-circuits to ensure zero thermal runaway.
What are the primary application scenarios?
It is widely used in new energy vehicles, hybrid buses, power tools, UPS systems, and large-scale container energy storage projects.
What is the operating temperature range?
The battery operates stably between -20°C and 60°C for discharging, and between 0°C and 55°C for charging.
What is the energy conversion efficiency of this module?
This module features a high energy conversion efficiency of 96.5%, supporting fast charging and providing long endurance.
