| Items | Specification | 5kWh (100Ah) | 10kWh (200Ah) | 15kWh (300Ah) | 20kWh (400Ah) |
|---|---|---|---|---|---|
| Battery Type | LiFePO4 | LFP Battery Cells | |||
| Nominal Voltage | 51.2V | Stable Power Delivery | |||
| Charge Cut-off | 57.6V | Automatic Protection | |||
| Cycle Life | ≥6000 Cycles | At 80% Depth of Discharge | |||

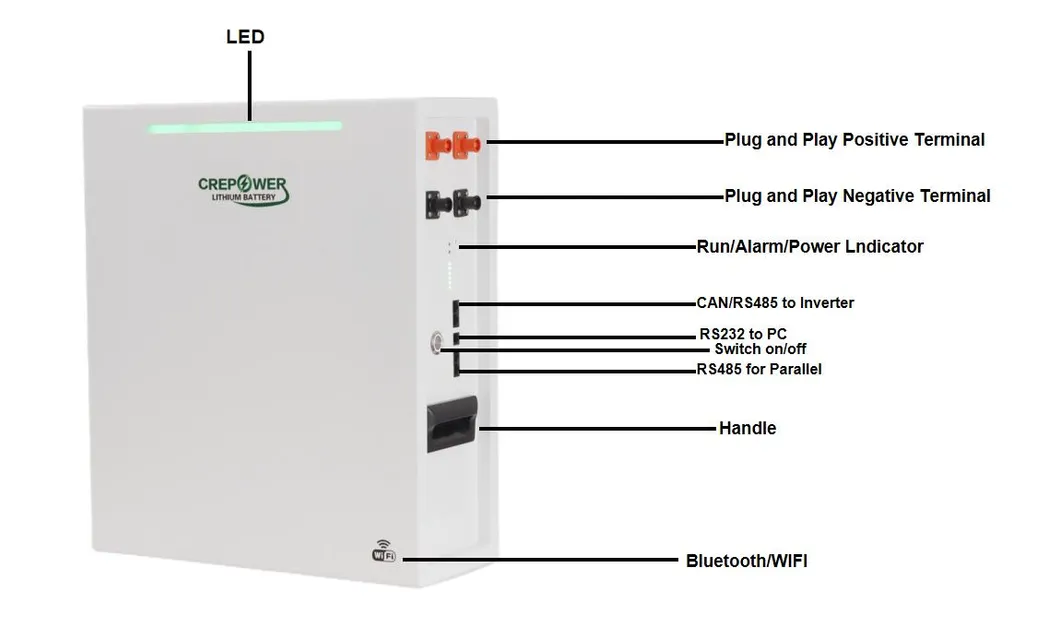

| Communication | Interface | RS485 / CAN / RS232 | |||
| Dimensions (mm) | Size (L×W×H) | 570×440×172.5 | 570×440×345 | 570×440×517.5 | 570×440×690 |
| Weight | Approx. | 57KG | 114KG | 171KG | 228KG |

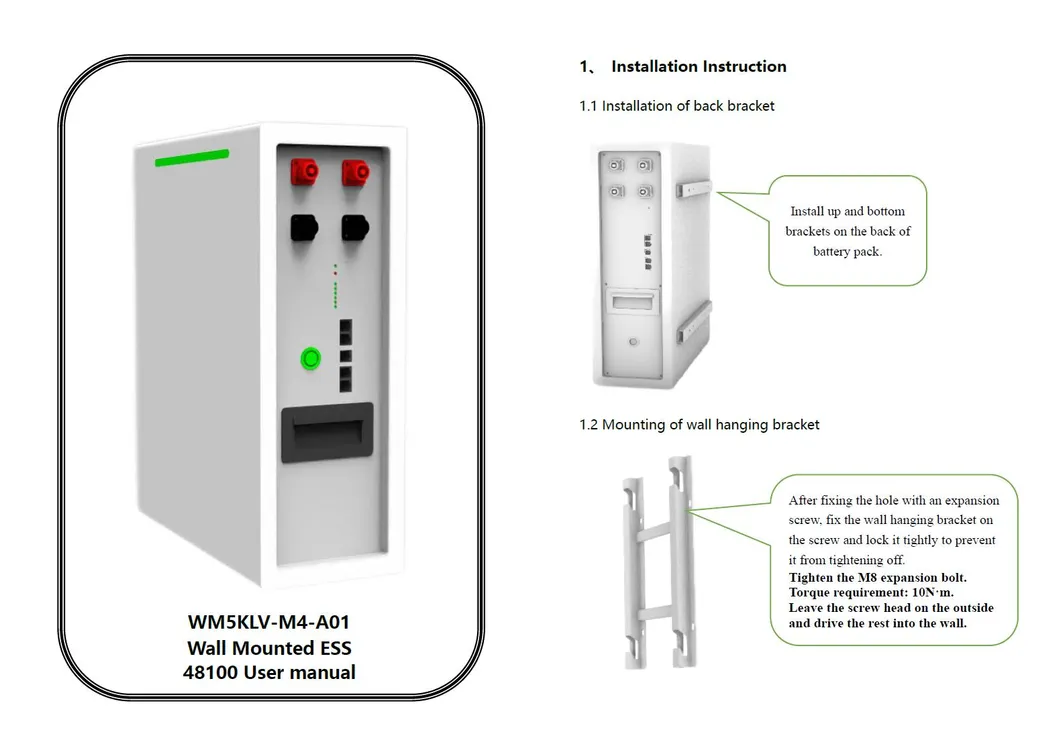

Versatile design suitable for low voltage and high voltage hybrid inverters, with all necessary cables and accessories included for immediate installation.
Perfect for commercial, industrial, and residential solar projects. Supports over 6000 deep cycles and 80% DOD for reliable long-term performance.

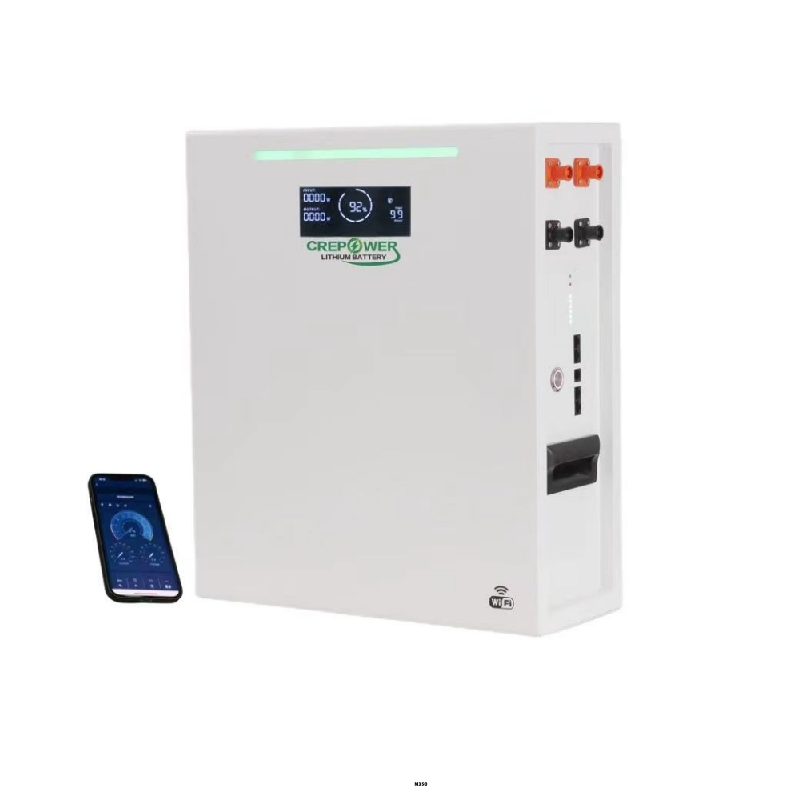

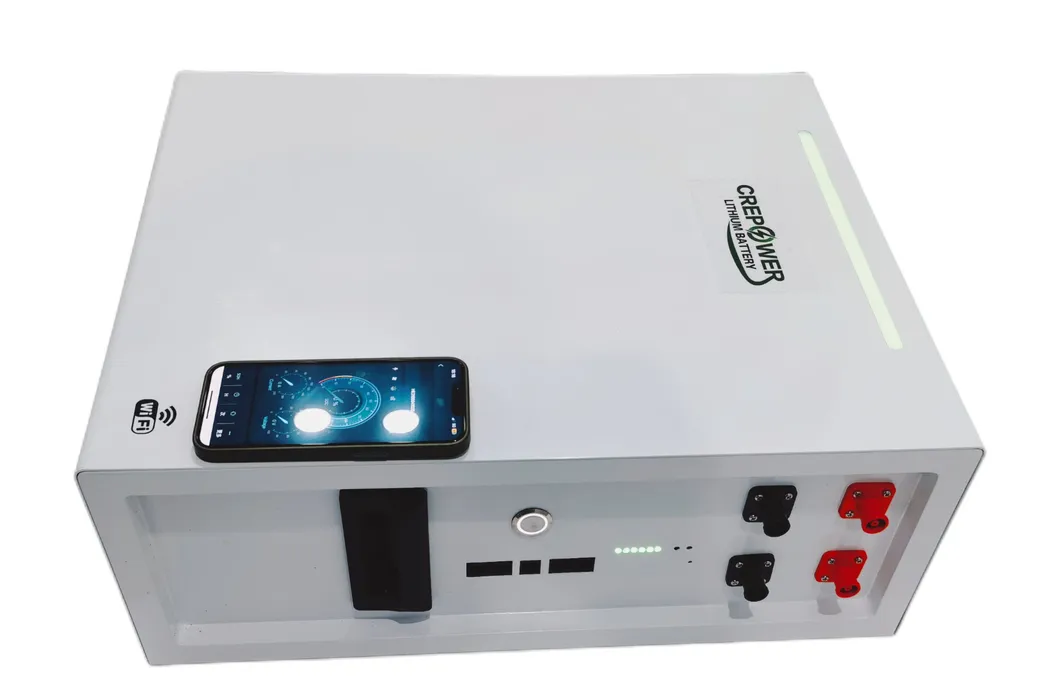

24/7 WIFI and Bluetooth connectivity allows you to manage energy, receive instant alerts, and customize settings via a dedicated app.
