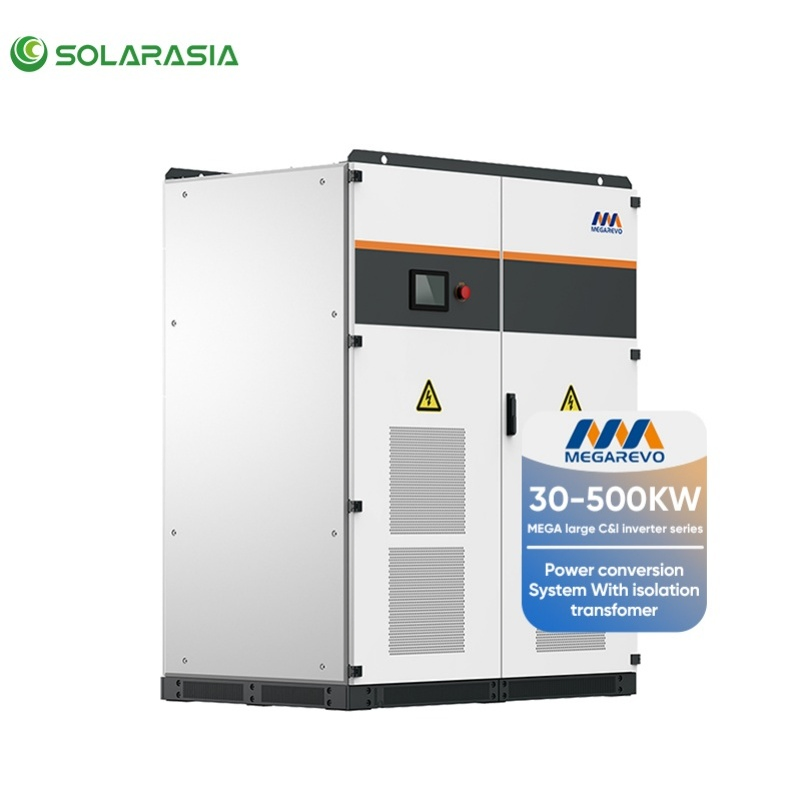

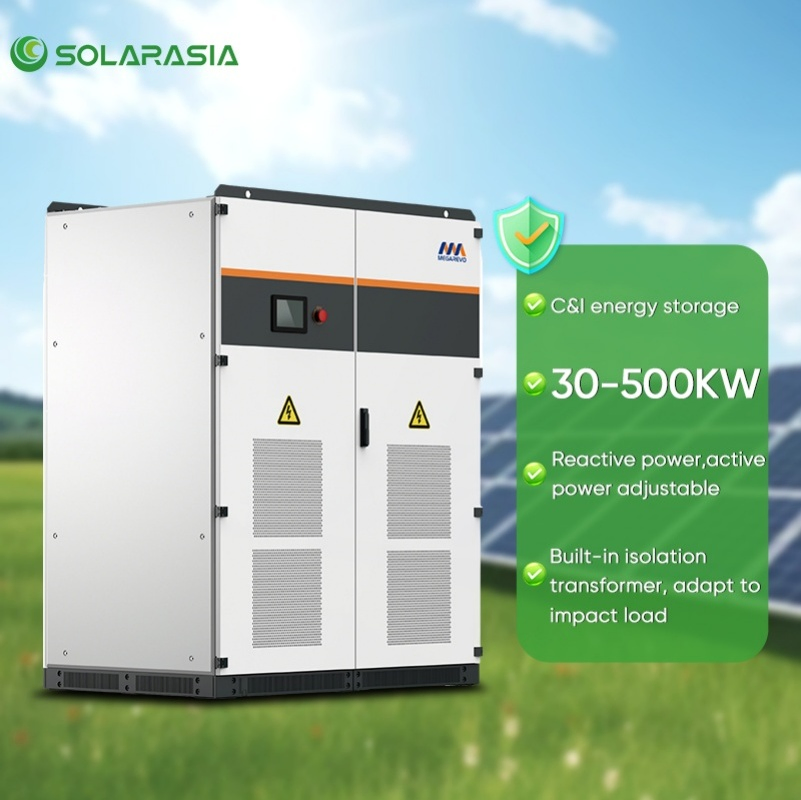

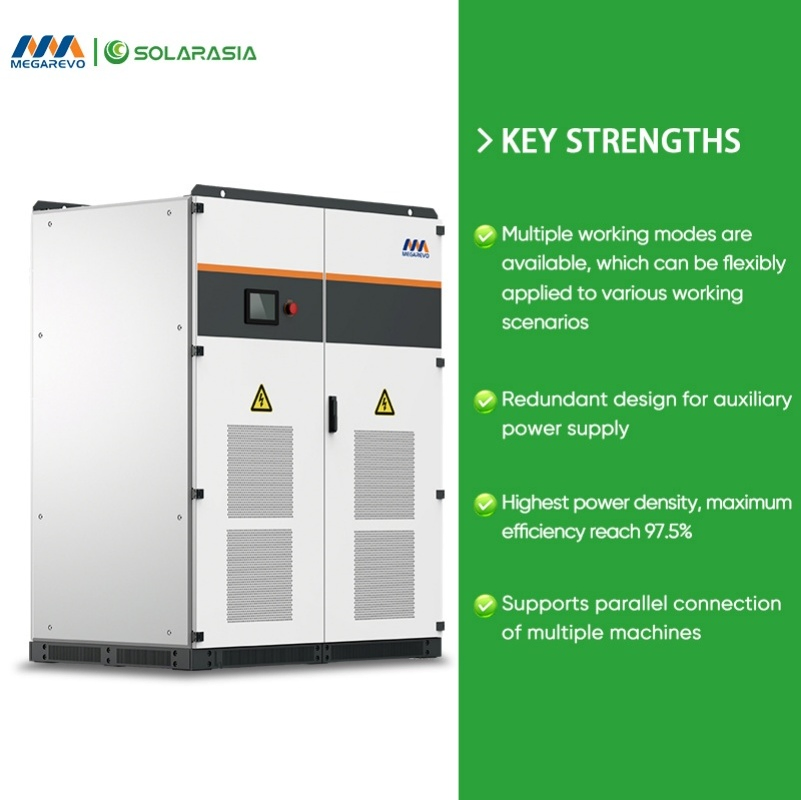

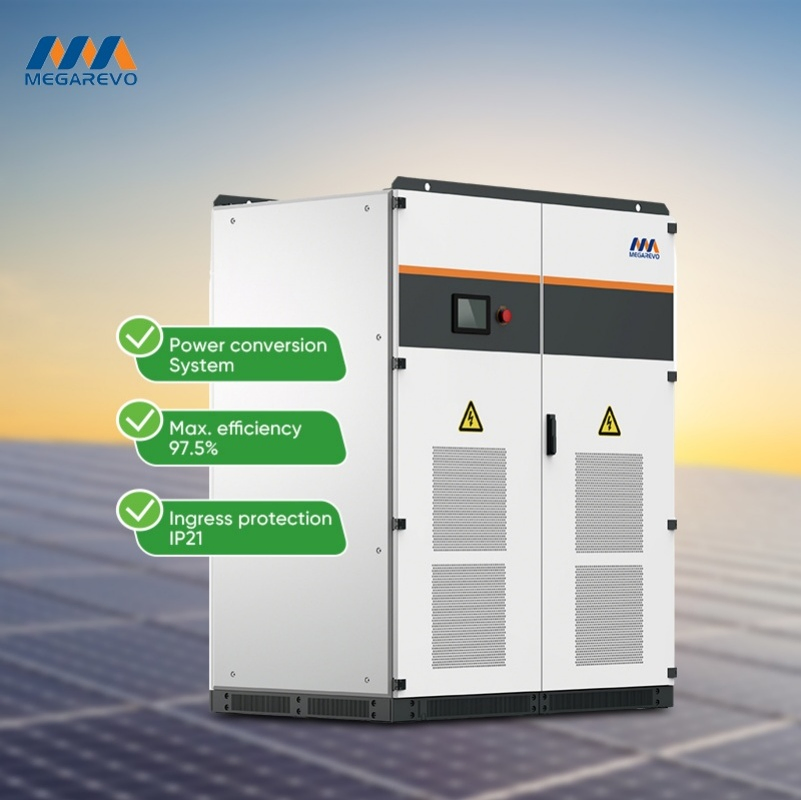

Megarevo PCS Power Conversion System 30kw 50kw 150kw 250kw 300kw 400kw 500kw 1MW 100kw Battery Inverter Power Conversion System

Customization:	Available
Weight:	621kg
Warranty:	10 Years

📋 Basic Information

Model NO.

MEGA-N-TS

Communication

RS485, CAN

Protection Class

IP21

Grid Type

3W+N+PE

Application

Commercial Solar Power System

Production Capacity

2000PCS/Week

Specification

800X800X1900mm

Origin

China

📦 Packaging & Delivery

Package Size

81.00cm * 81.00cm * 191.00cm

Package Gross Weight

621.000kg

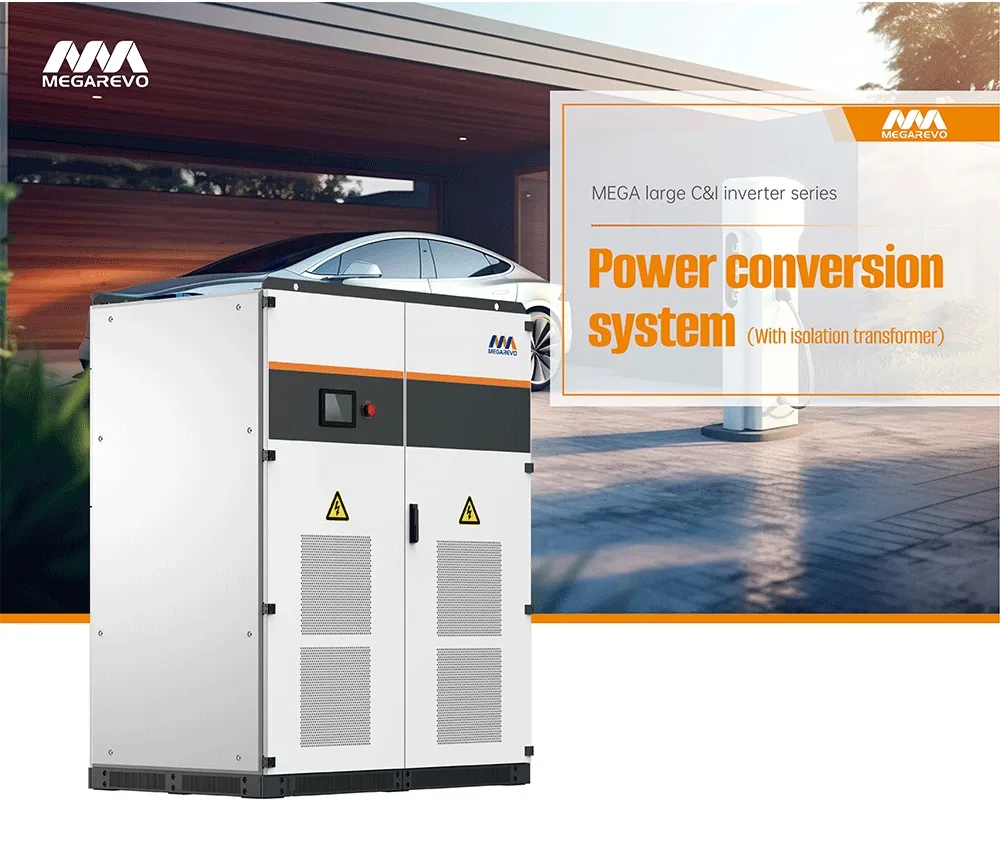

💡 Product Description

📊 Product Parameters

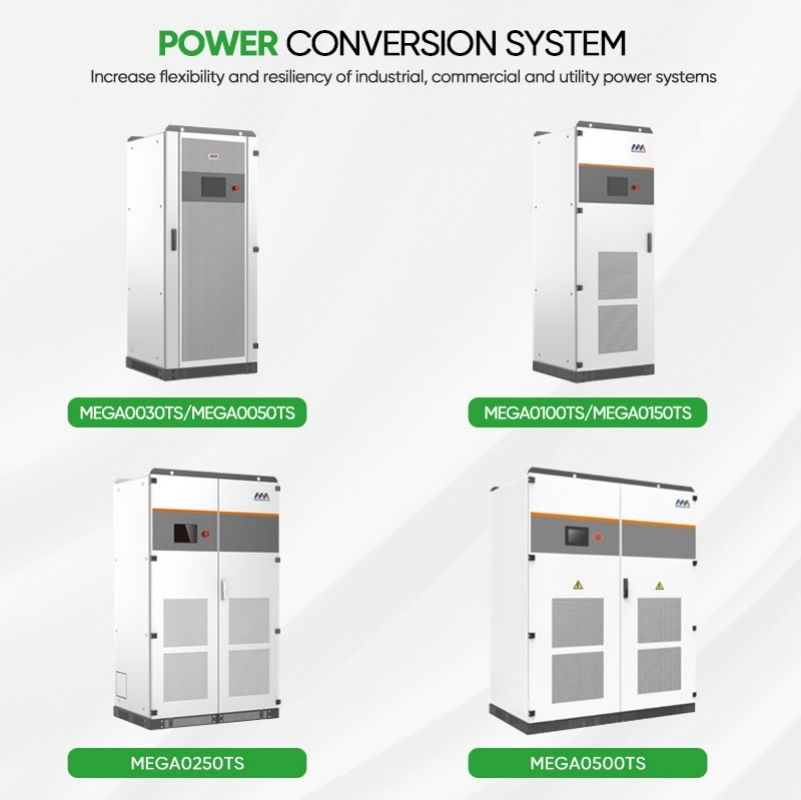

Model	0030TS	0050TS	0100TS	0150TS	0250TS	0500TS
DC (Battery)
Voltage range (V)	250~850	320~850	420~850	420~850	420~850	500~850
Max. Current (A)	137	178	270	405	673	1,128
AC (On-grid)
Rate output power(kW)	30	50	100	150	250	500
Rated voltage(V)	400
Rated frequency (Hz)	50/60
General Data
Max.efficiency	96.3%	96.5%	97.1%	97.1%	97.3%	97.5%
Net Weight(kg)	621	712	936	1,057	1,582	2,665

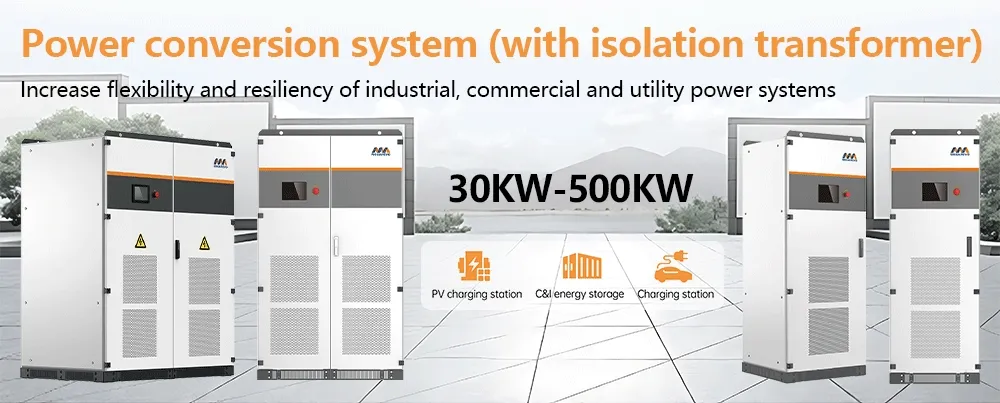

✨ Features

📜 Certifications

🏭 Company Profile

❓ FAQ

How to choose the right system?

Please tell us what kind of energy storage system and the capacity of the PV project installation, the scenario of the project installation, and the arrangement of the components.

How about the delivery time?

Delivery time is generally 7~20 days for bulk orders depending on specific requirements.

What is the warranty for the solar system?

Generally, the warranty covers the main products: Solar panels for 25 years, on-grid and hybrid inverters for 5 years, and off-grid inverters for 2 years.

How can I get better service?

We have a professional engineer team providing support based on your requirements. We offer 24-hour online service to solve problems within 1 hour.

Does the system support remote monitoring?

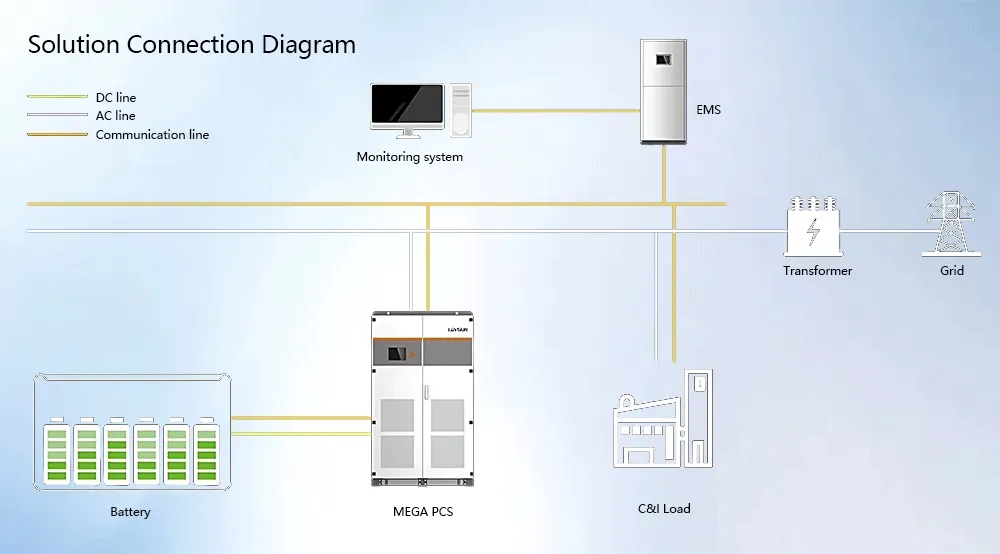

Yes, the system supports BMS and EMS communication via RS485, CAN, and TCP/IP for integrated management and monitoring.

What certifications do the inverters hold?

The products are certified under IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, and CGC.
