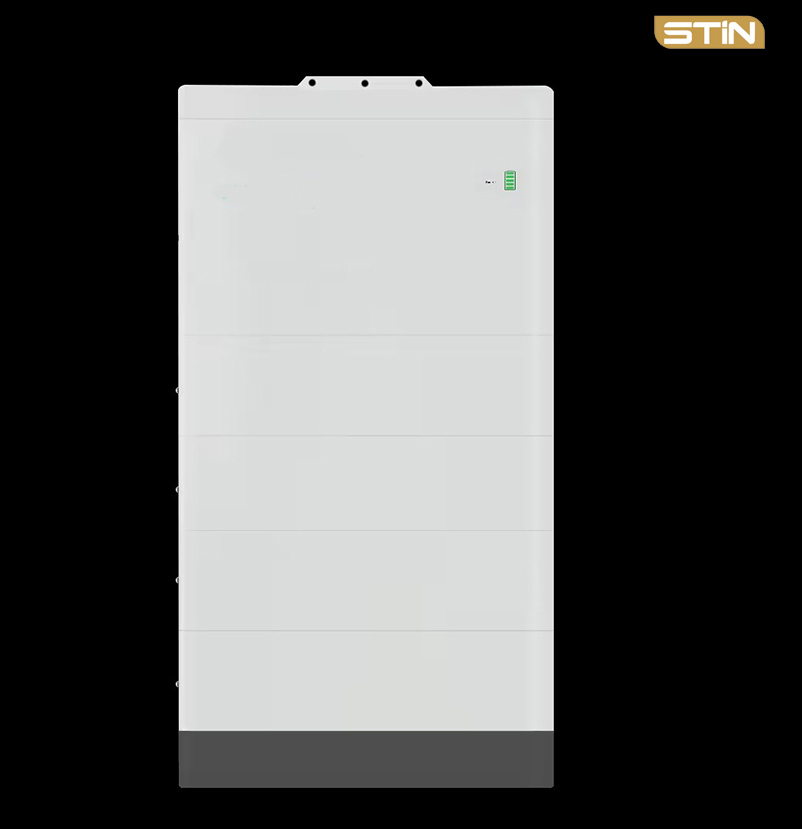

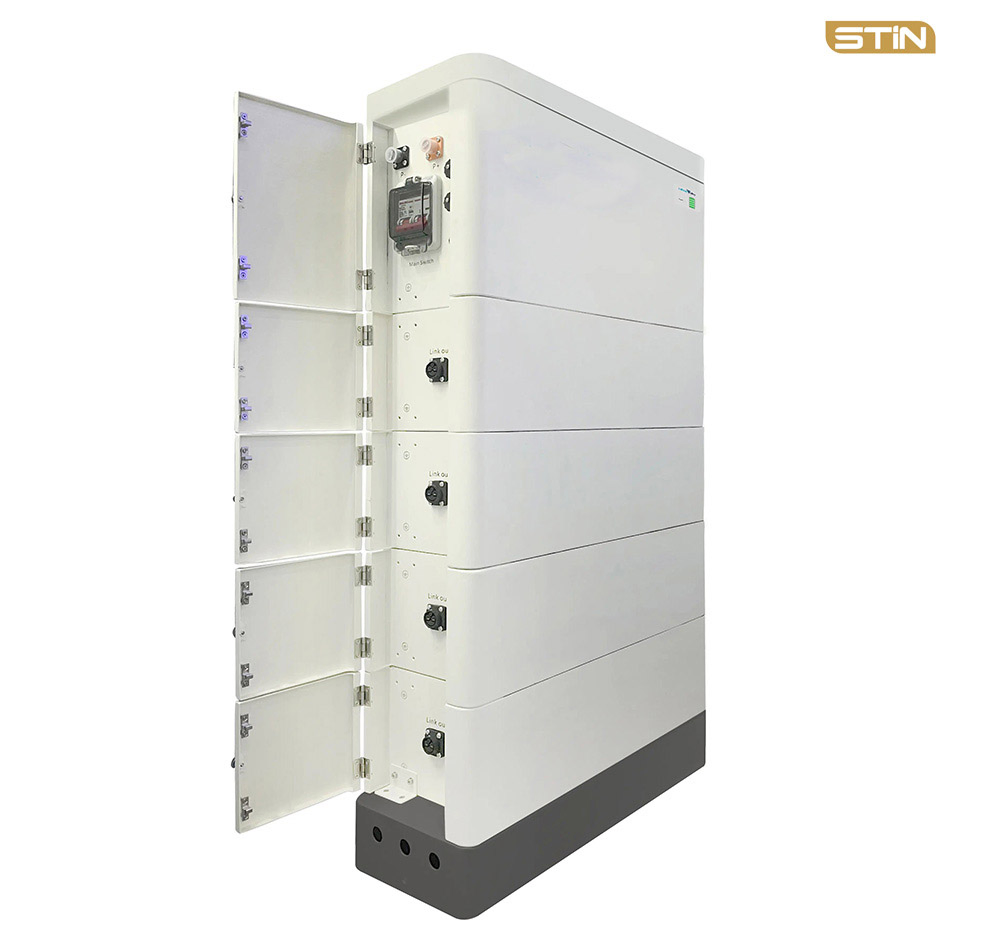

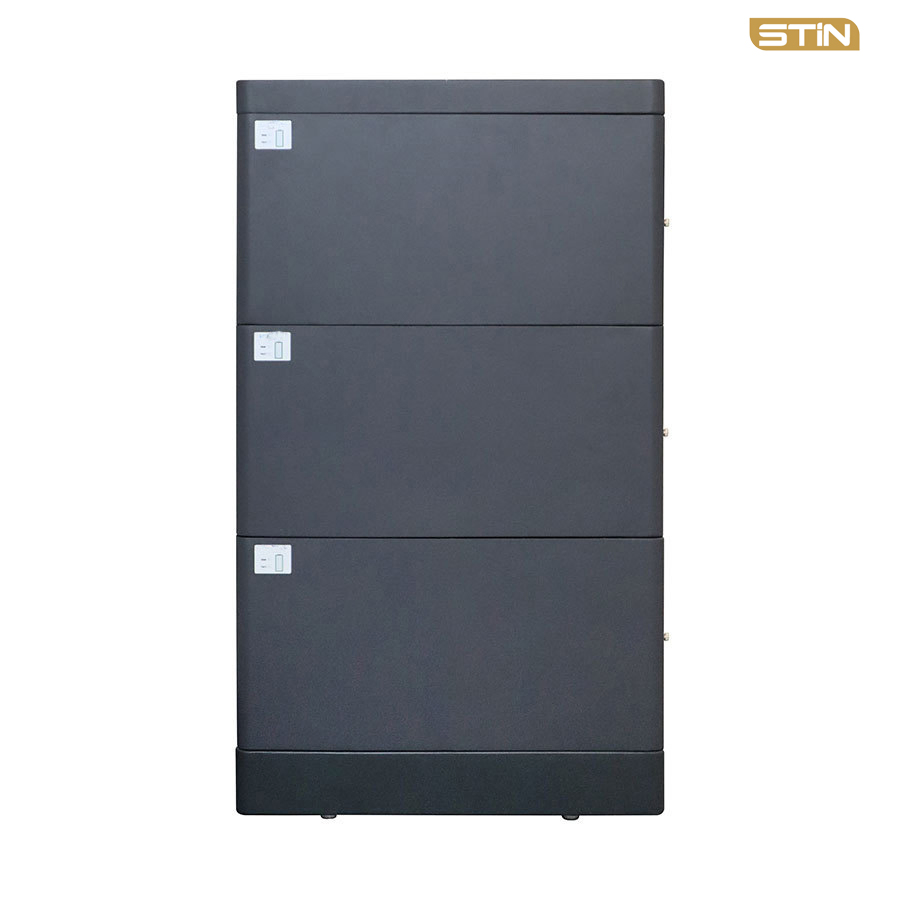

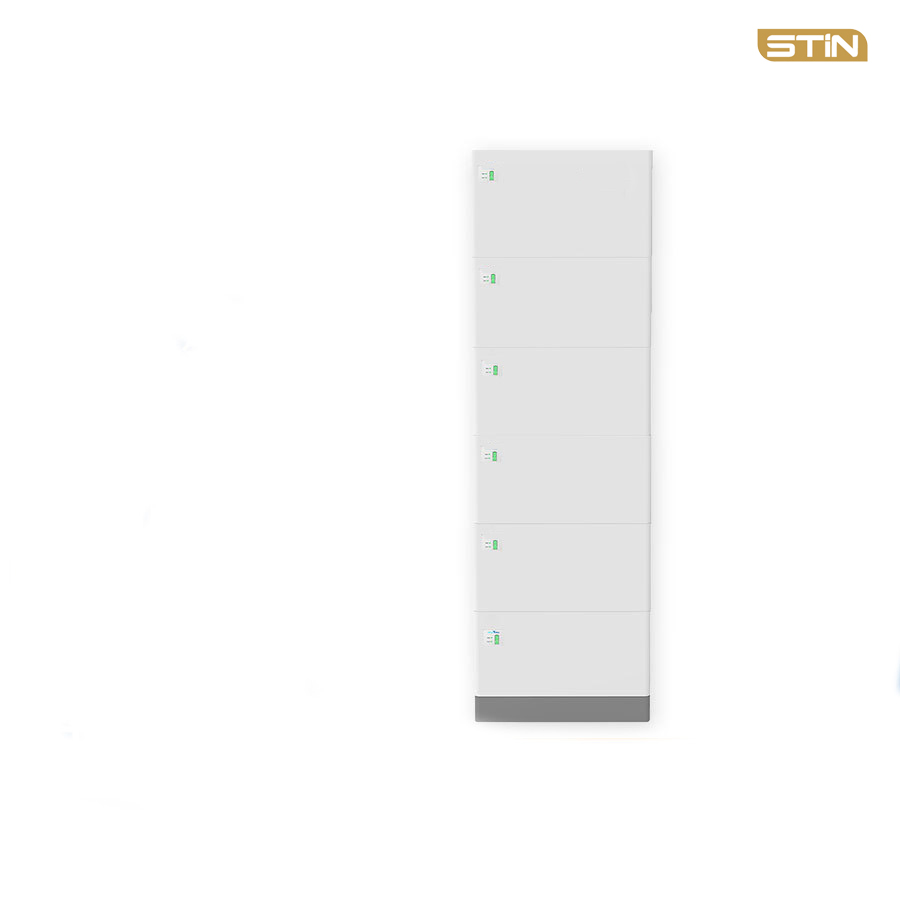

The LV-BST-H2.56Aa is a high-voltage lithium-iron phosphate (LFP) battery energy storage system. This system is designed for high efficiency and reliability in energy storage applications. Please follow the instructions carefully during the installation process to ensure optimal performance.

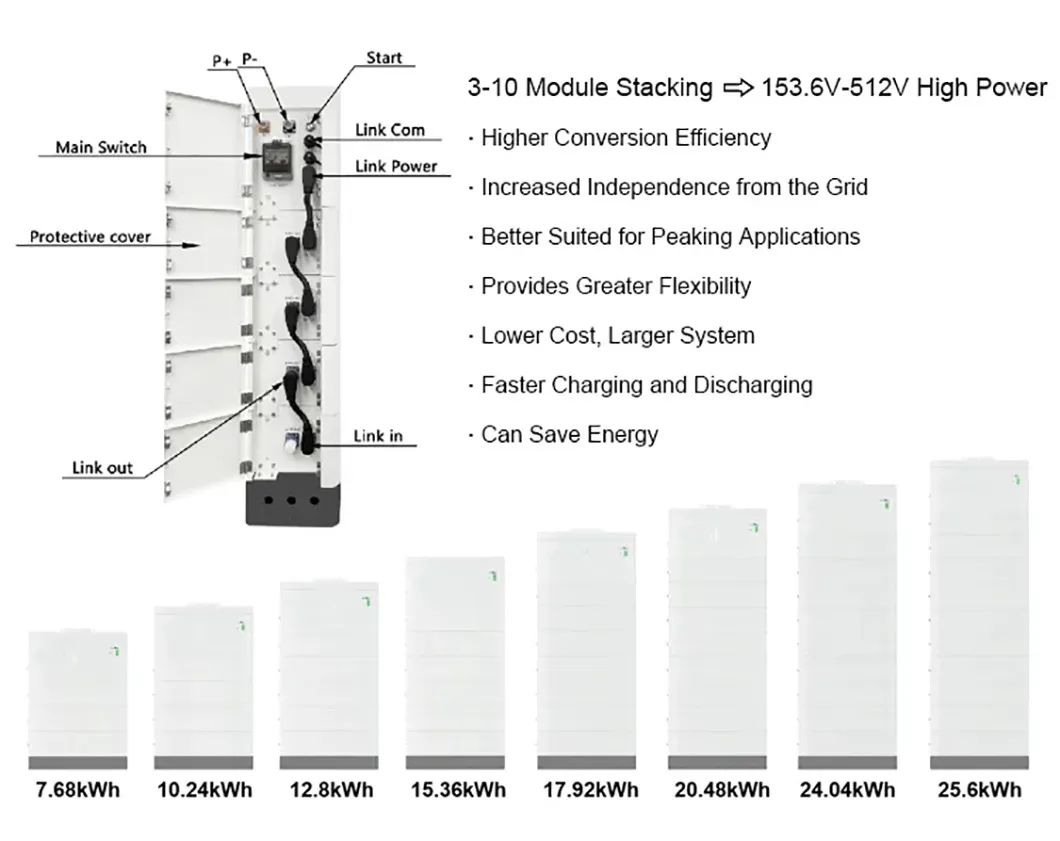

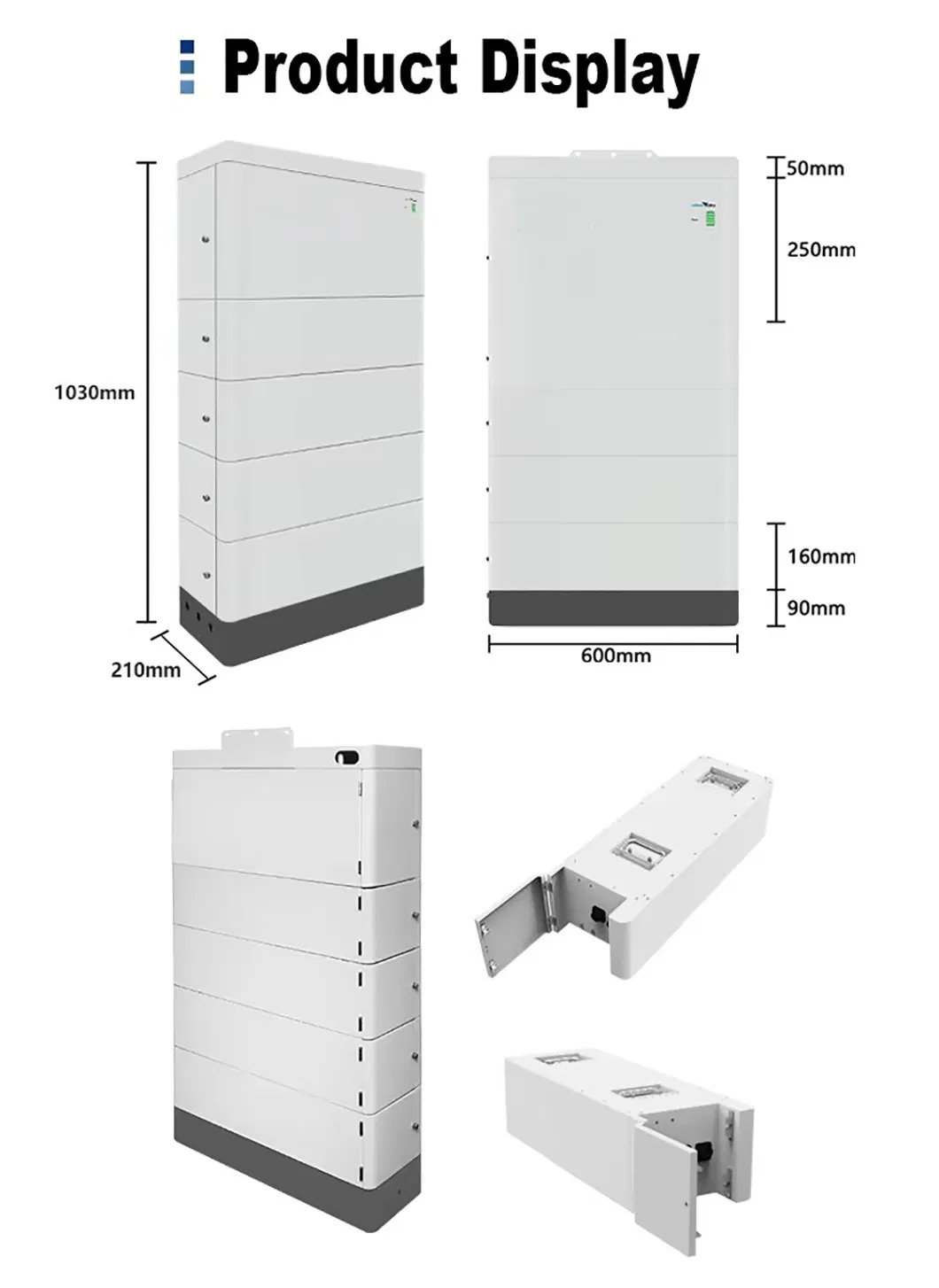

| Power Module Mode | Modules (Qty) | Battery Modules | System Capacity | Cell Technology | System Voltage | Voltage Range | Dimension (W*D*H) | Net Weight |
|---|---|---|---|---|---|---|---|---|
| LV-BST-H2.56Aa | 1 | 3 | 7.68KWh | Li-ion(LFP) | 153.6V | 134.4~168.48V | 600*210*870 mm | 103.5kg |
| 4 | 10.24kWh | Li-ion(LFP) | 204.8V | 179.2-224.64V | 600*210*1030 mm | 130kg | ||
| 5 | 12.8kWh | Li-ion(LFP) | 256V | 224~280.8V | 600*210*1190 mm | 156.5kg | ||
| 6 | 15.36kWh | Li-ion(LFP) | 307.2V | 268.8~336.96V | 600*210*1350 mm | 183kg |
| Scalability | Installation | DOD | Charge Current (Rec) | Charge Current (Max) | Protection Class | Operating Altitude | Warranty |
|---|---|---|---|---|---|---|---|
| Up to 10 systems | Floor stand | 90% | 25A | 50A | IP65 | 2,000m | 10 years |

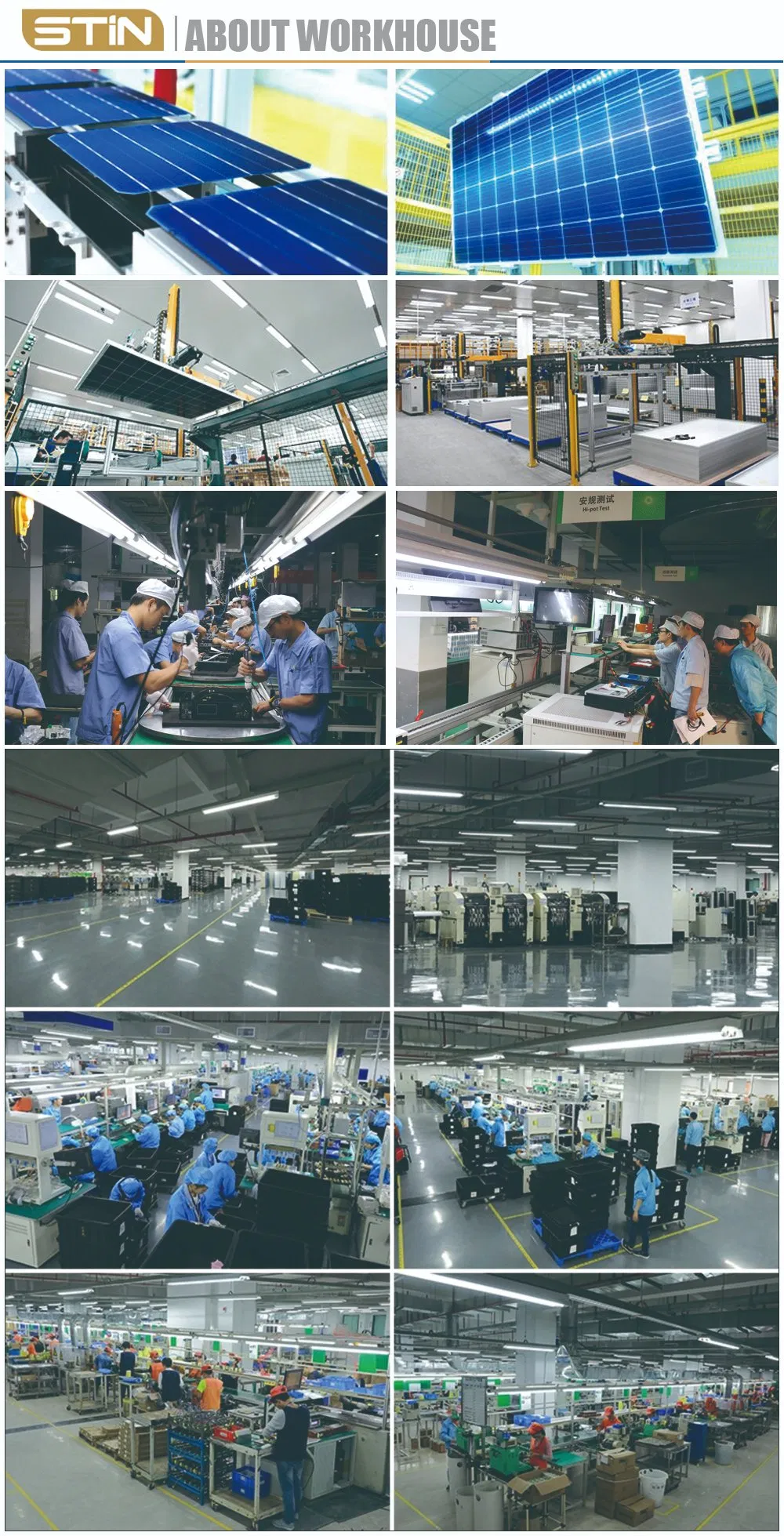

Nowadays, the world is faced with instability of nuclear power generation and environmental problems. We are established and targeted on being a Total Solution Company which is based on clean sustainable solar energy. Including polysilicon, ingot, wafer, cell and module which are the base of the solar industry, our team also deals with PV Equipment, EPC and O&M.
Beyond Eastern Asia, we are making an effort for the whole world's green energy independence. Starting with the supply of high-quality raw materials from the leading PV markets, making PV plants and providing residential solutions, we continue to solve global environmental problems. We know the importance of green energy and endeavor to protect this precious value.
