Prismatic LFP Lithium-Cell & 25.6V 206ah Stackable Energy Storage Module - OEM Custom Accepted

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP

Product Description

Basic Specifications
Model NO.
DD01
Rechargeable
Yes
Size
Small
Rated Voltage
25.6V
Rated Capacity
206ah
Module Power
5273.6wh
Module Weight
33.5kg
Voltage Range
20-29.2V
Specification
1P8S
Origin
China
Packaging & Delivery
Package Size
54.00cm * 18.00cm * 22.00cm
Gross Weight
35.000kg
Transport Package
Plastic Lining, Carton Packaging
Production Capacity
50,000 pieces/Year
Product Description

Our lithium iron phosphate (LFP) battery cells combine advanced core technology and strict production standards, featuring high energy density, extreme safety, and ultra-long service life—your reliable choice for multi-scenario power supply. Covering 2.5Ah-684Ah capacities, they fit needs from portable devices to large-scale energy storage projects.

🛡️
Extreme Safety

LFP chemistry + innovative thermal management. Passes nail penetration, extrusion, short-circuit tests—no thermal runaway. Stable operation at -30°C~55°C.

♻️
Ultra-Long Cycle Life

Low lithium loss tech + patented electrode materials. Up to 2500 cycles, supporting over 20 years of stable use, cutting lifecycle costs.

High-Efficiency Output

Max power density 6000W/kg, excellent high-current pulse performance. 96.5% energy conversion efficiency for fast charging and long endurance.

🌍
Global Certifications

UN38.3, EUCAR certified, meeting global export standards with traceable quality.

Application Scenarios

Widely used in power tools, jump starters, new energy vehicles, hybrid buses, UPS, container energy storage, etc. Series/parallel combinations available for different voltage and power needs.

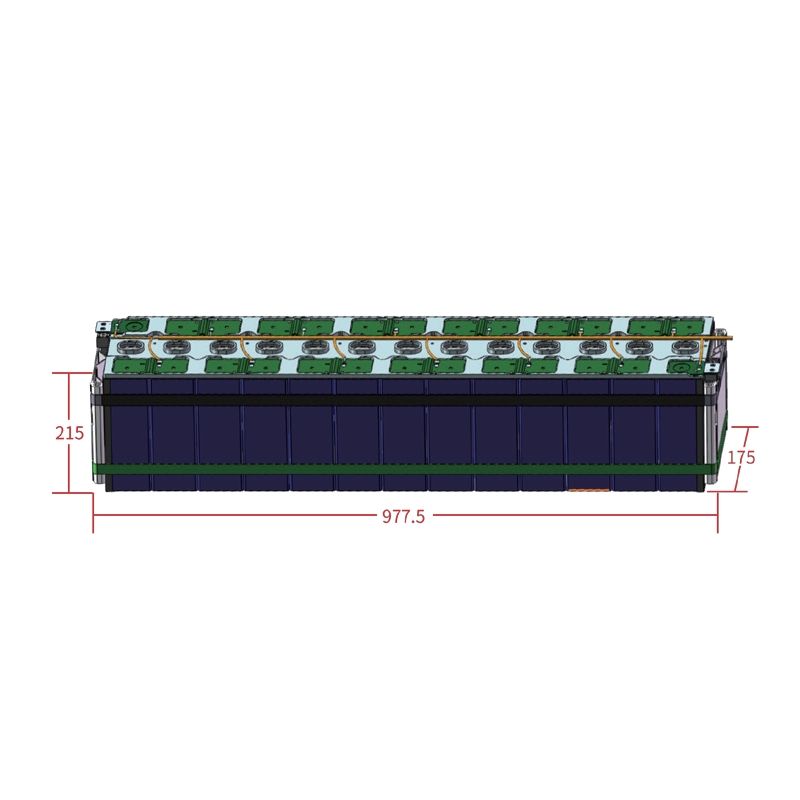

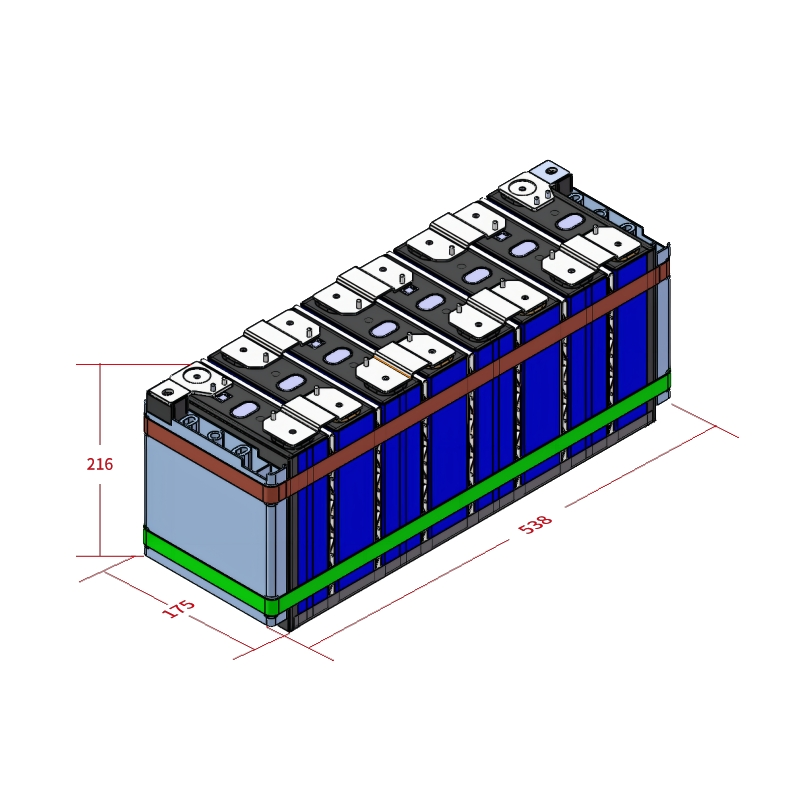

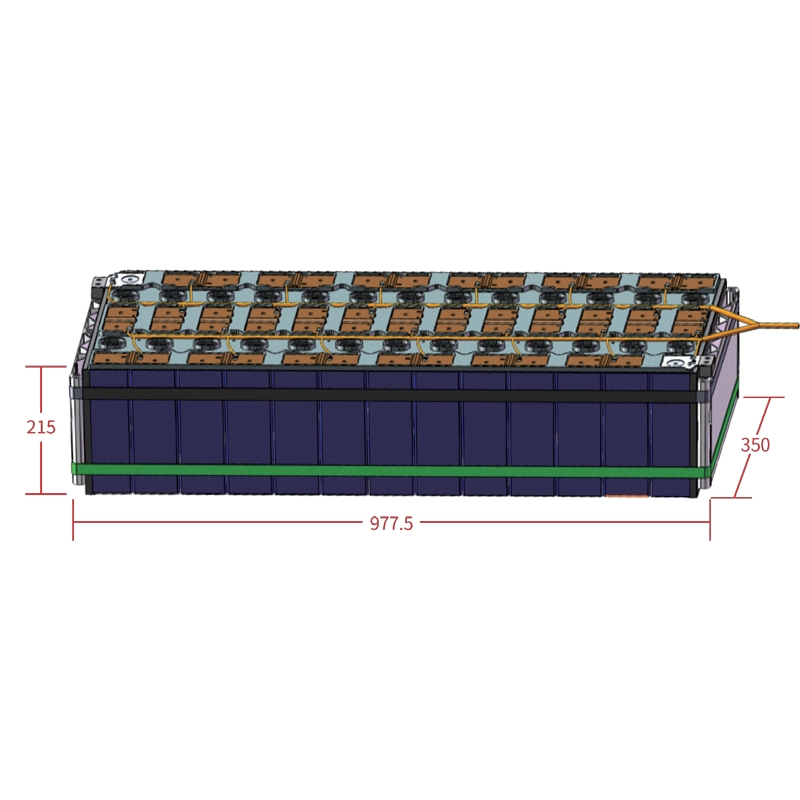

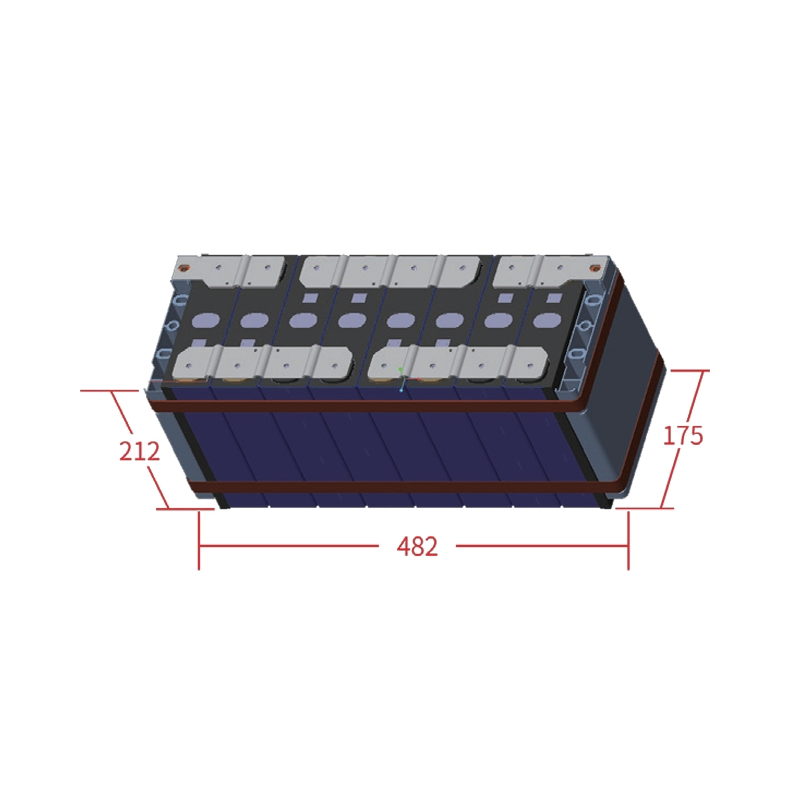

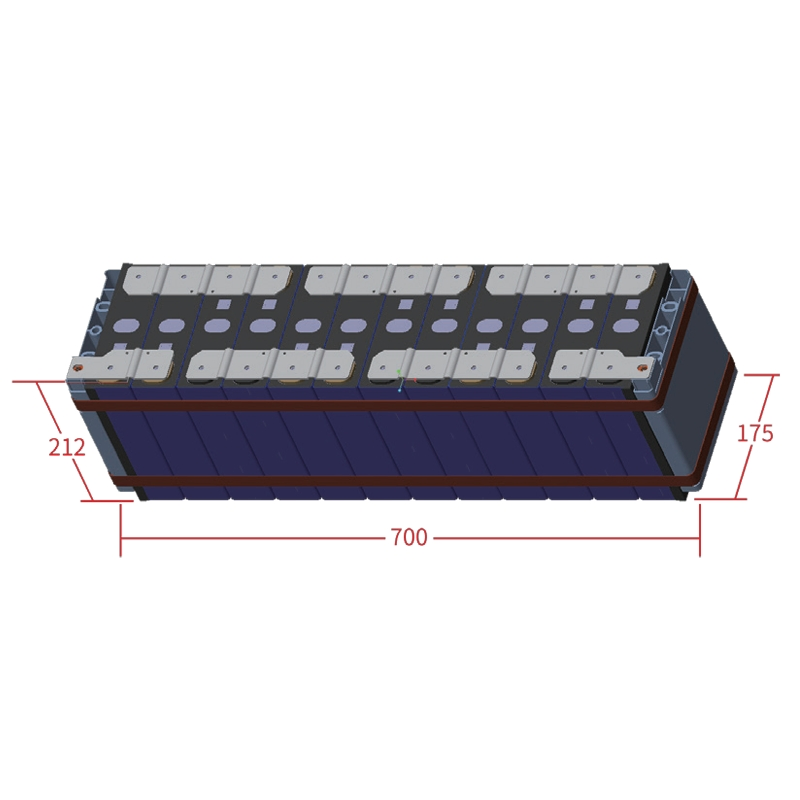

Product Gallery
Customization & Supply Chain

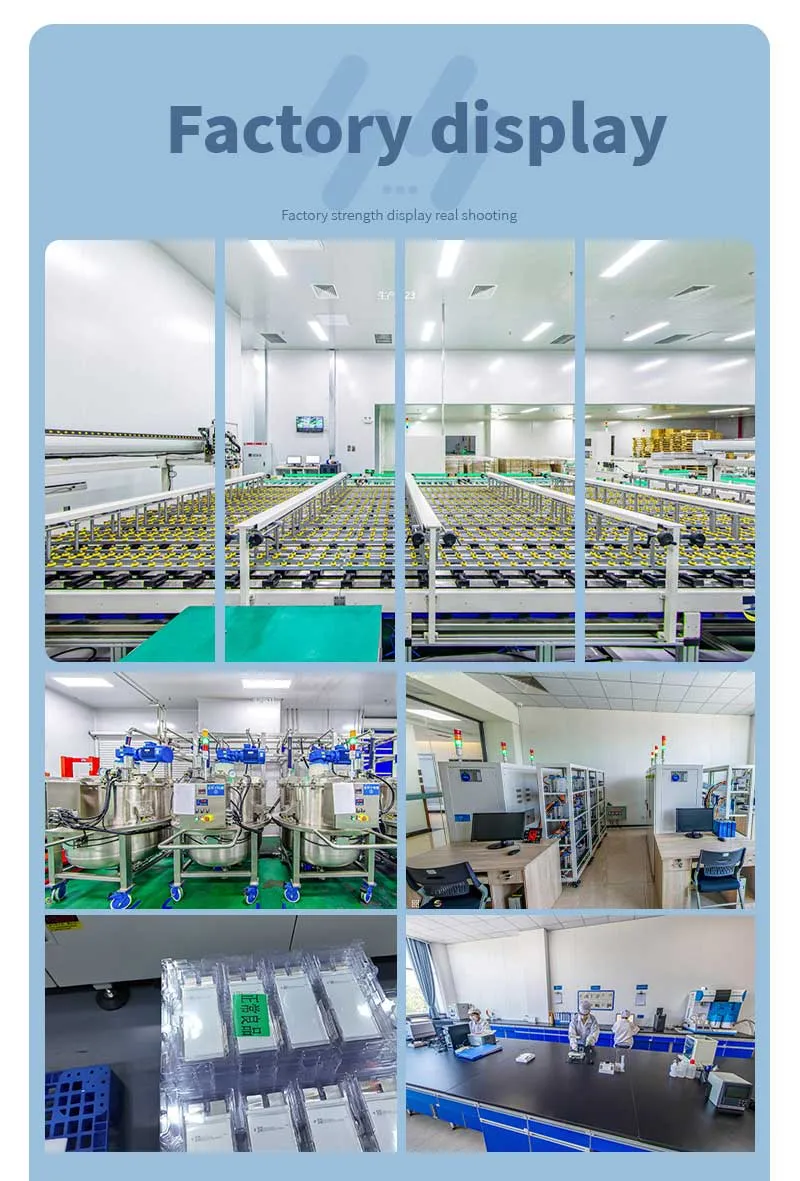

Supports OEM/ODM: customize capacity, size, protection functions with mature technical solutions. Large-scale production bases ensure stable capacity, fast bulk order delivery, and full-cycle technical support.

Frequently Asked Questions
What is the cycle life of the DD01 LFP module?
The module supports up to 2500 cycles, providing over 20 years of stable use under normal operating conditions.
What safety tests has this battery passed?
Our LFP cells pass rigorous testing including nail penetration, extrusion, and short-circuit tests to ensure no thermal runaway occurs.
Can I customize the capacity or size for my project?
Yes, we support full OEM/ODM services, allowing for customization of capacity, dimensions, and specific protection functions.
What is the operating temperature range for this module?
The battery is designed for stable operation in environments ranging from -30°C to 55°C.
What certifications do these products hold for export?
The products are UN38.3 and EUCAR certified, meeting global standards for safe transport and international quality compliance.
What are the primary applications for the 25.6V 206ah module?
It is ideal for UPS systems, new energy vehicles, hybrid buses, and large-scale container energy storage projects.
