Product Overview
Search for Your Energy Battery Solution.
- NPFC51.2V150 Base Station Backup Power
- NPFC51.2V100 Base Station Backup Power
- 1.5Kwh-50Kwh Format Modular Battery
- NPFC48150 Base Station Backup Power
- NPFC48100 Base Station Backup Power
- NPFC4830 Base Station Backup Power
- NPFC4850 Base Station Backup Power

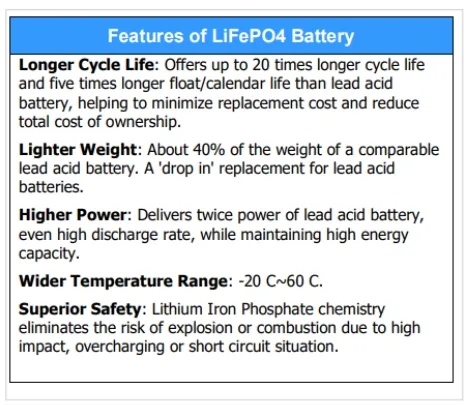

Core Advantages
✚
Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost.
✚
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A "drop in" replacement for lead acid batteries.
✚
Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
✚
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
| Battery Type |
Nominal V |
Capacity (Ah) |
Power (W) |
Charging (V) |
Charge Max (A) |
Dimensions (LxWxH mm) |
Weight (kg) |
| 48V10Ah | 48 | 10 | 480 | 54±0.5 | 10 | 450x245x44 | 7.3 |
| 48V20Ah | 48 | 20 | 960 | 54±0.5 | 20 | 450x245x88 | 13.4 |
| 48V50Ah | 48 | 50 | 2400 | 54±0.5 | 50 | 450x400x133 | 23.5 |
| 51.2V100Ah | 51.2 | 100 | 5120 | 57.6±0.5 | 100 | 450x400x150 | 44.0 |
| 48V150Ah | 48 | 150 | 7200 | 54±0.5 | 100 | 450x560x185 | 56.5 |
| 48V200Ah | 48 | 200 | 9600 | 54±0.5 | 100 | 450x400x300 | 73.5 |
The Back Up Battery is the perfect solution for reliable, long-lasting energy storage. The Advanced Battery Management System (BMS) monitors health and performance, ensuring easy installation and maintenance. Suitable for use with solar panels, off-grid systems, and other alternative energy sources.
NPFC Series Features & Benefits
- LiFePO4 (Lithium Iron phosphate) battery technology
- Fast charge capability
- Integrated BMS for safety and reliability

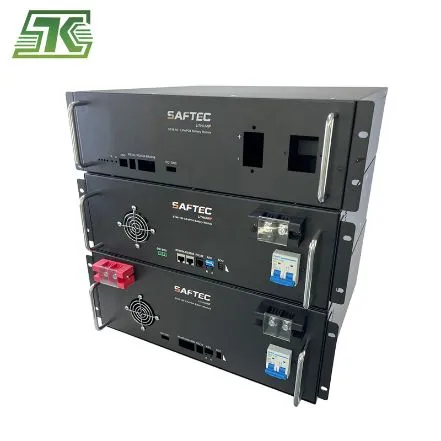

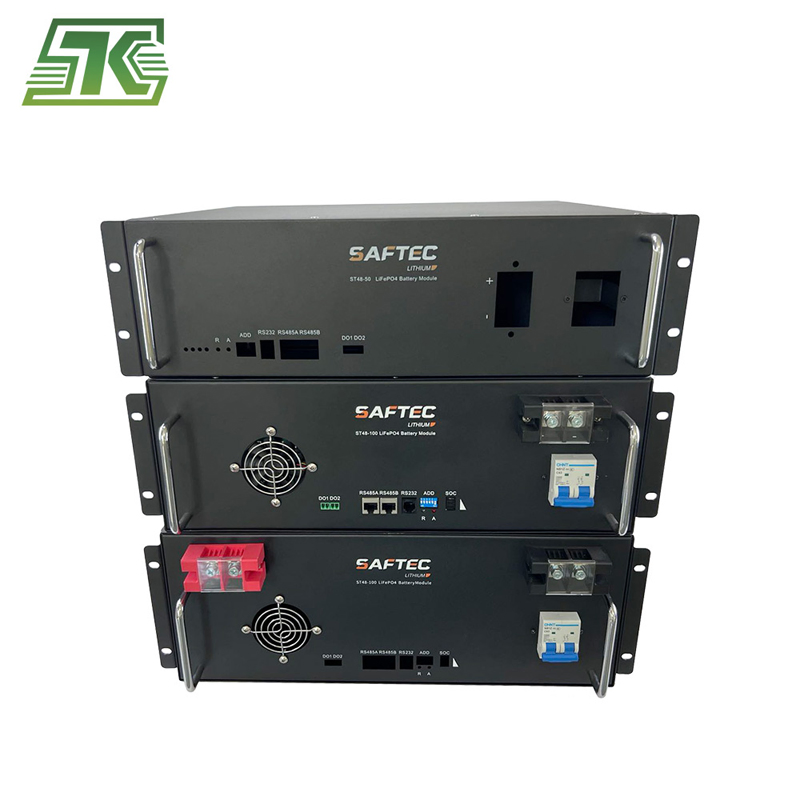

- Support parallel connection to increase capacity
- LED status and alarm indication
- Maintenance free & No memory effect
Frequently Asked Questions
Q1: What are the main advantages of LiFePO4 batteries over lead-acid?
LiFePO4 batteries offer up to 20 times longer cycle life, are 40% lighter, and provide twice the power delivery compared to traditional lead-acid batteries.
Q2: How does the Battery Management System (BMS) protect the unit?
The integrated BMS monitors voltage, current, and temperature of cells to protect against over-charge, over-discharge, over-current, and short circuits.
Q3: Can these battery modules be connected in parallel?
Yes, the NPFC series supports parallel connection (up to 16p) to significantly increase the overall energy storage capacity.
Q4: What is the typical life span of this energy storage system?
The system is designed with a high-quality LFP cell model that provides a life span of approximately 15 years under proper maintenance.
Q5: Is it safe for indoor residential or telecom use?
Absolutely. Lithium Iron Phosphate chemistry is inherently safe and eliminates risks of combustion or explosion even under high impact or electrical stress.

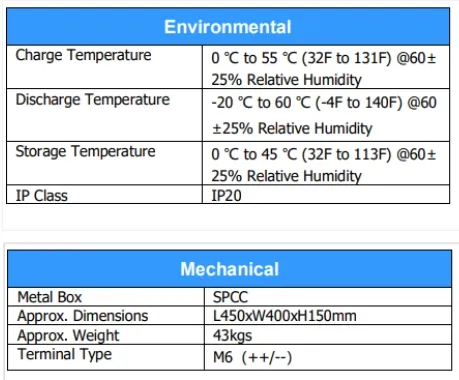

Q6: What is the operating temperature range for these batteries?
These modules are designed to operate efficiently within a wide temperature range from -20°C up to 60°C.
