| Model NO. | JSKJ-ESS-DC5000-A |
| Nominal Voltage | 1331.2V |
| Nominal Capacity | 3768ah |
| Warranty | 5 Years |
| Cycle Life | 8000 Cycles |
| Cell Type | LFP Battery |
| Rated Energy | Expandable to 100mwh+ |

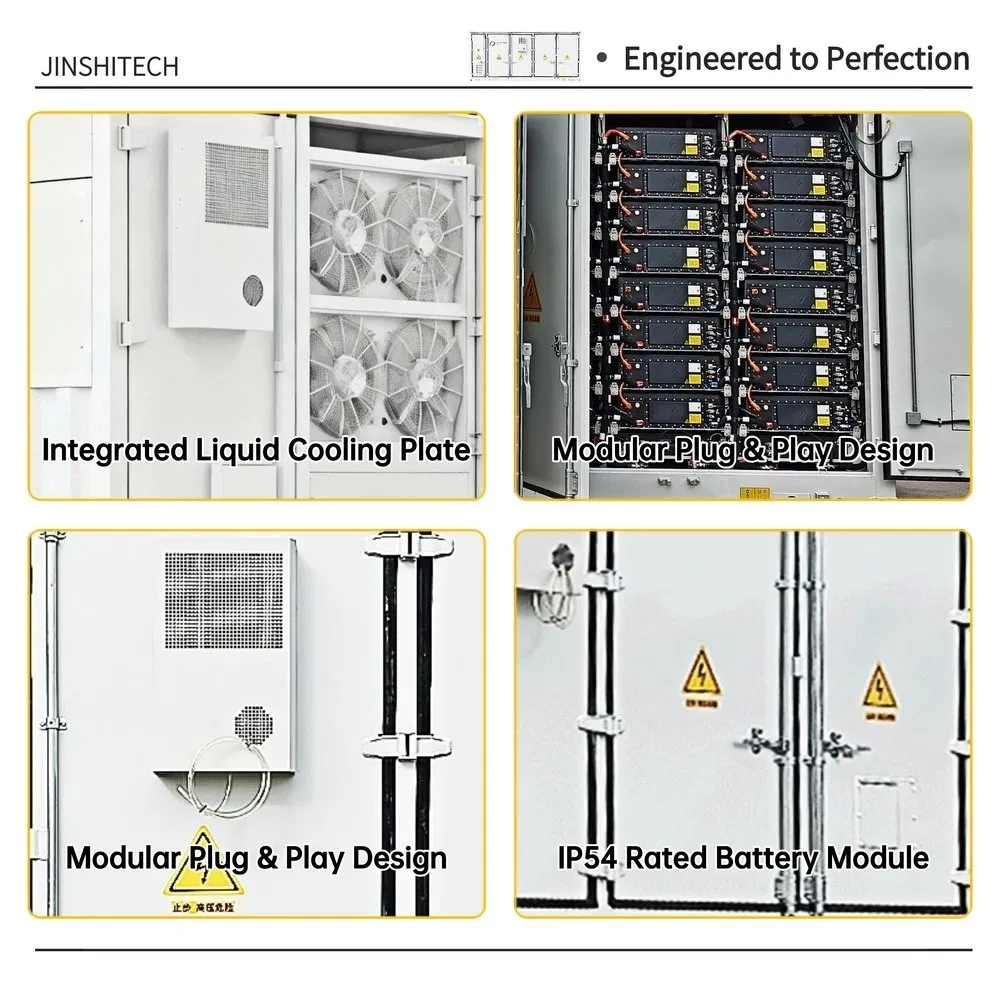

| Cooling Method | Liquid + Air Cooling Dual Thermal Management |
| Waterproof Design | IP54 (Outdoor Durability) |
| Package Gross Weight | 44000.00kg |

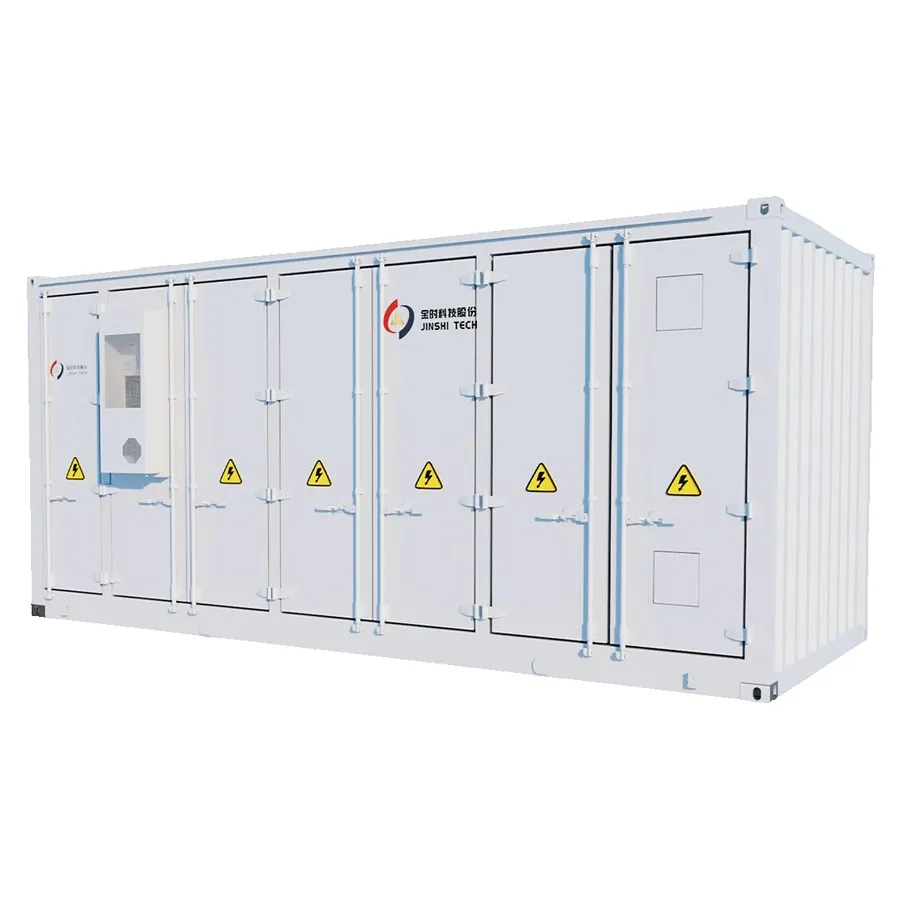

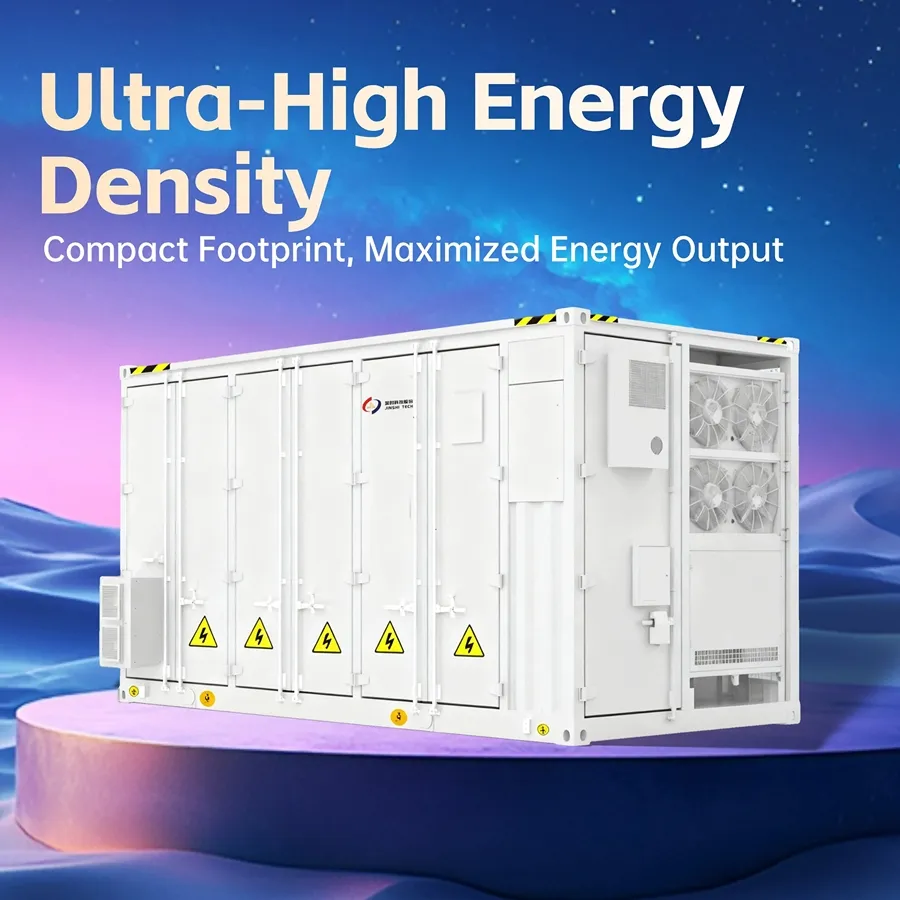

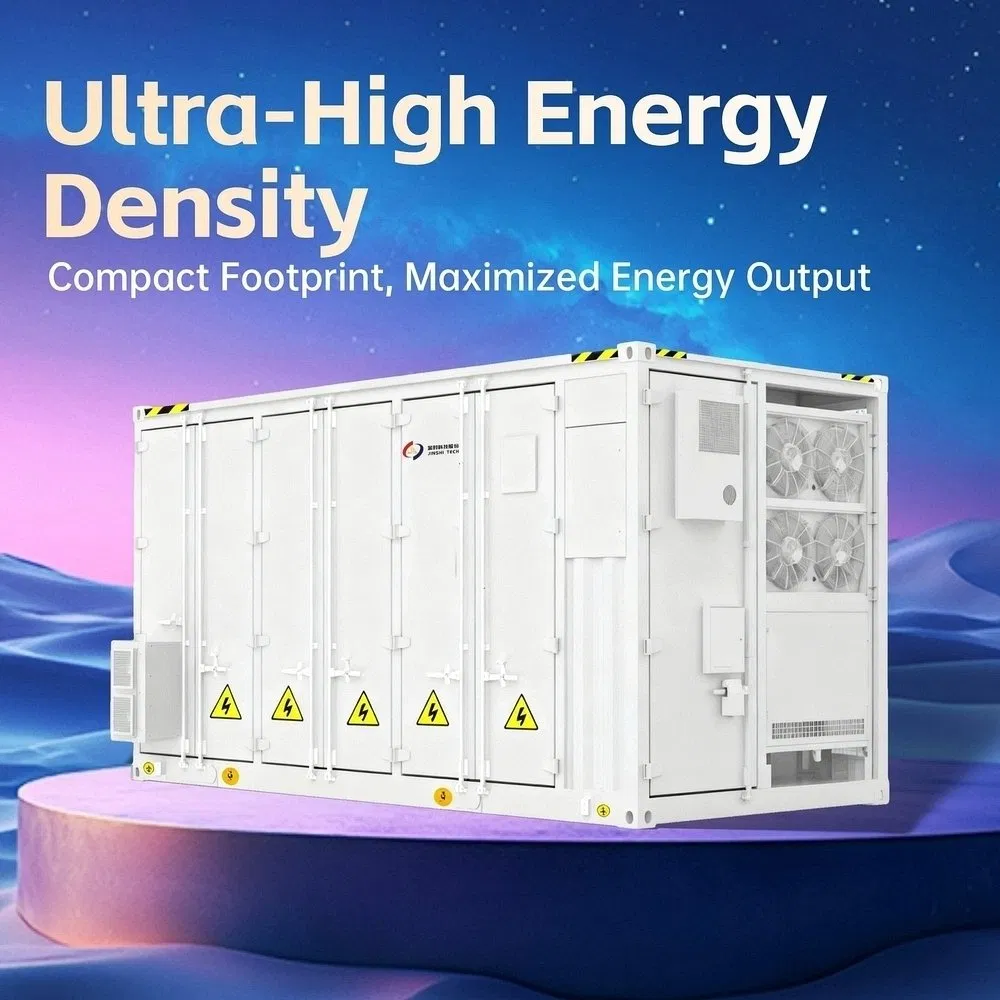

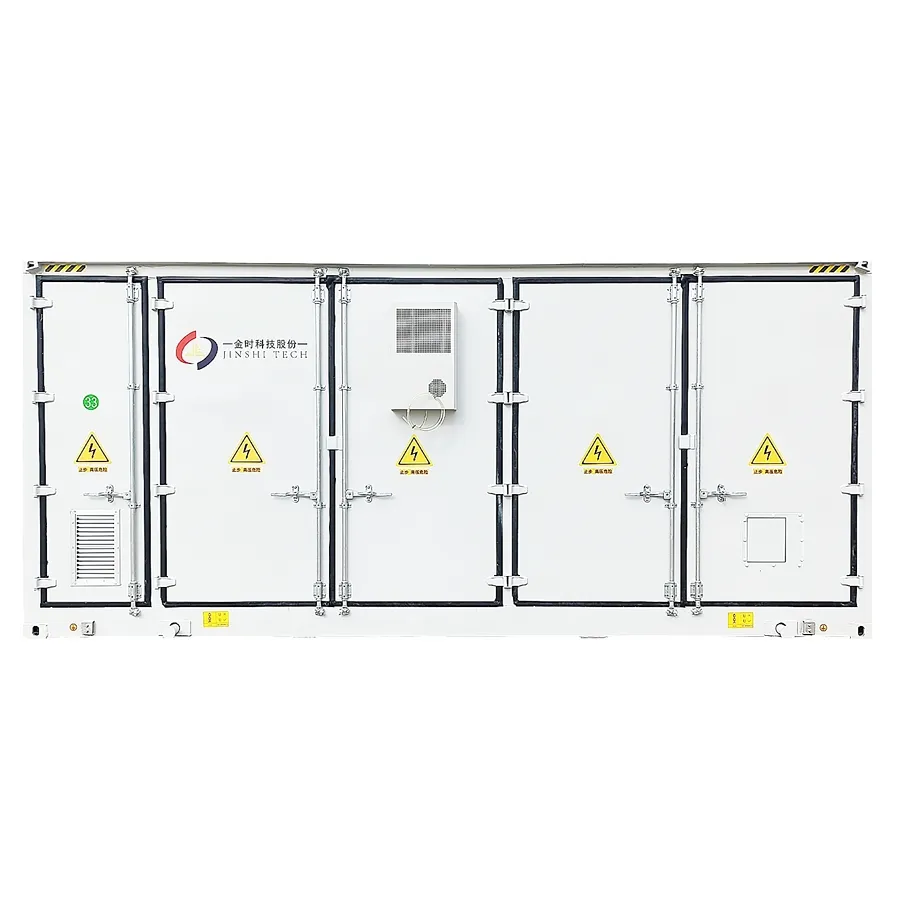

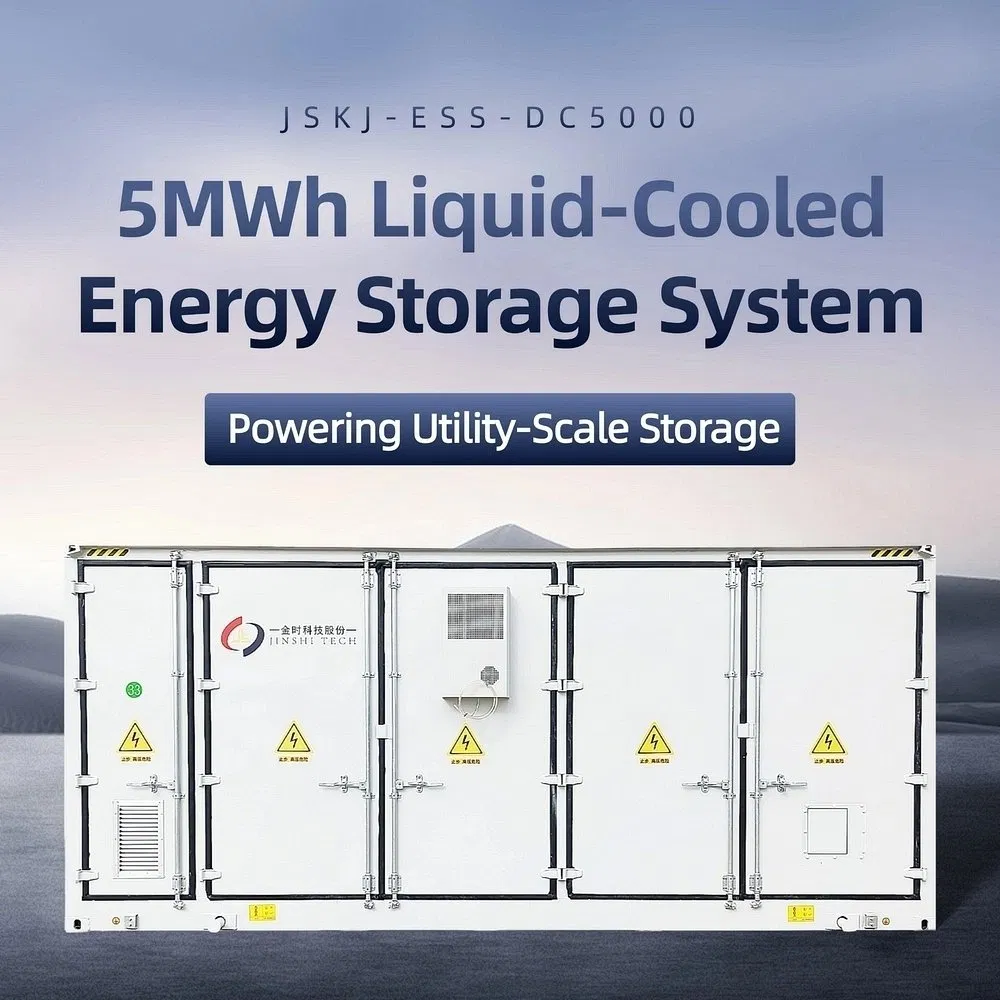

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

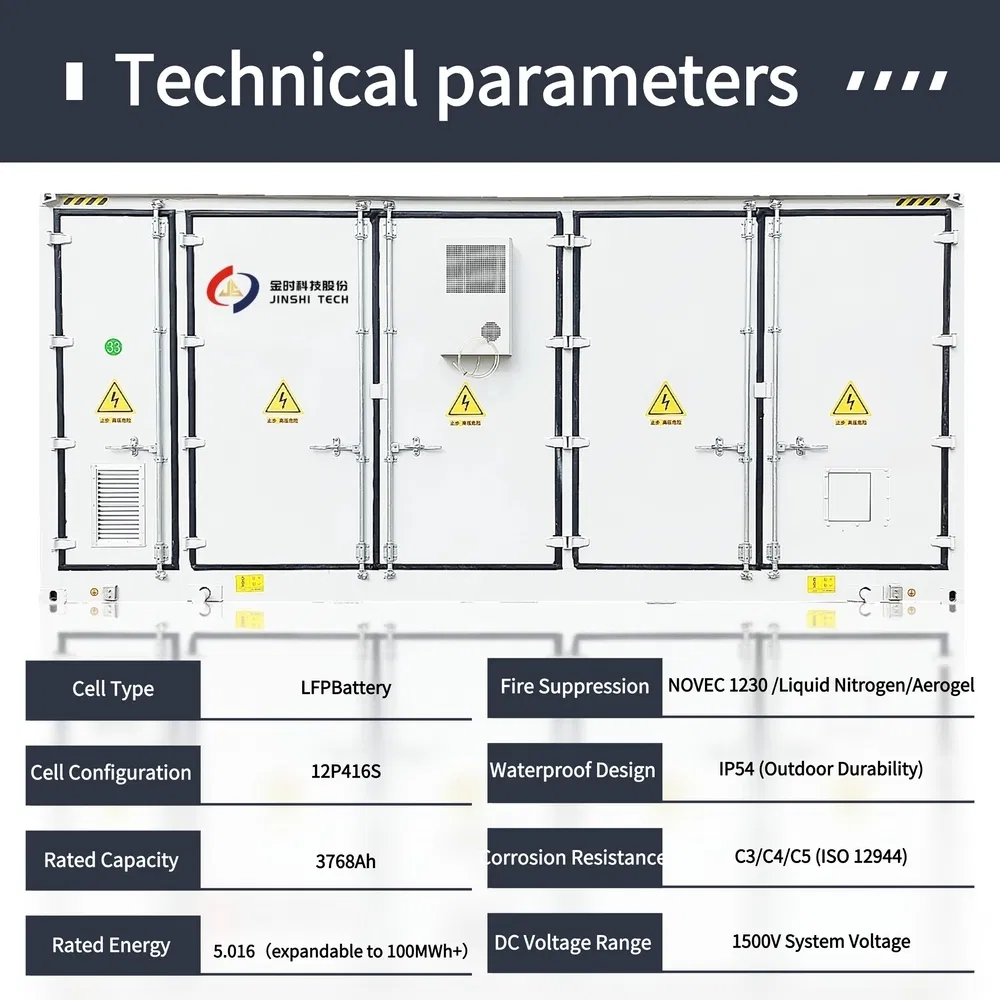

| Cell Configuration | 12P416S |
| Rated Capacity | 3768Ah |
| Rated Voltage | 1331.2V |
| Charge/Discharge Rate | 0.5P |
| Operating Voltage Range | 1164.8-1497.6V |
| Fire Detection | Temp, CO, Smoke Sensors |
| System Architecture | Triple Fire Protection + Triple BMS |
| DC Voltage Range | 1500V System Voltage |
TRIPLE-LAYER FIRE PROTECTION: Three-level fusing system with targeted explosion discharge design; supports perfluorohexanone and liquid nitrogen agents.
ROBUST ENVIRONMENTAL PROTECTION: IP54 waterproof rating for outdoor durability; suitable for inland, plateau, and coastal applications.
