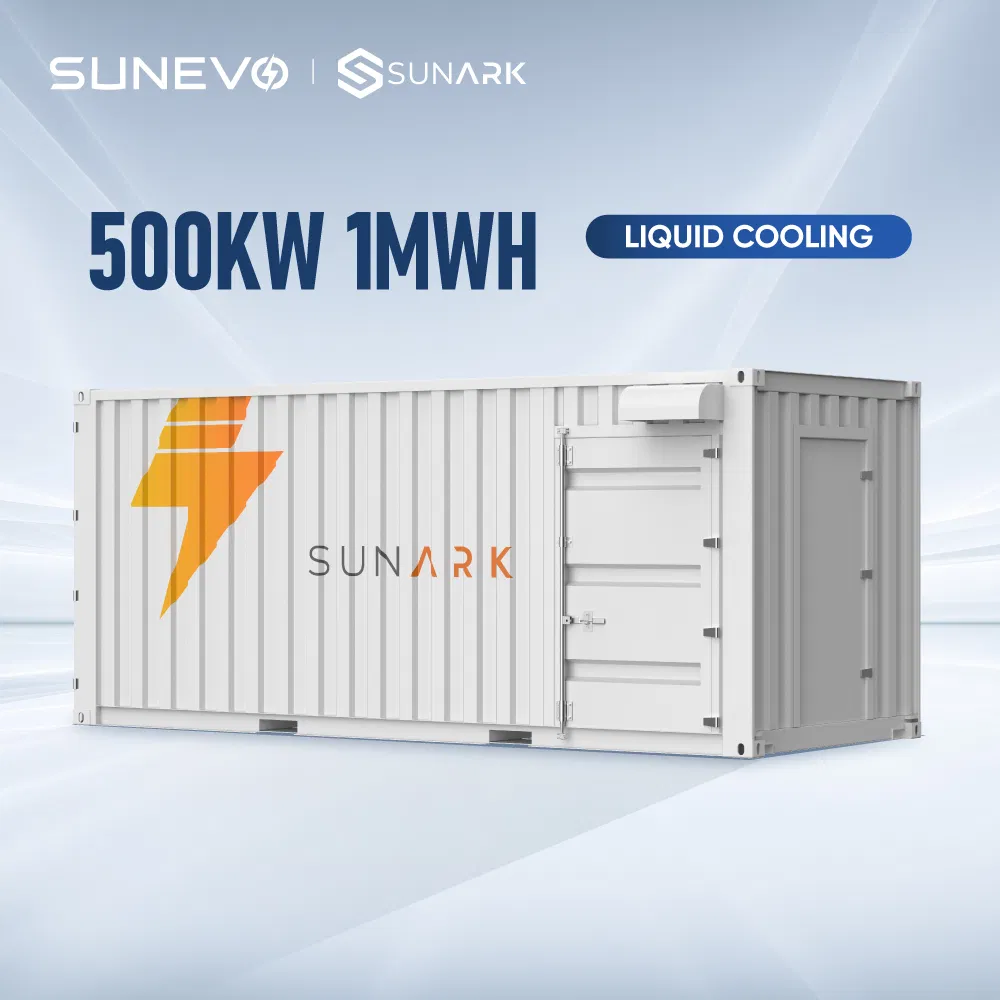

Sunark 500kw 1mwh High Safety LiFePO4 Energy Storage System with Battery Management System for Overcharge Over Discharge Protection

1 / 5

Sunark 500kw 1mwh High Safety LiFePO4 Energy Storage System with Battery Management System for Overcharge Over Discharge Protection

Customization:	Available
Container Size:	605824382591mm
Weight:	<50mt

Send Inquiry

Product Description

Basic Information

Model NO.

500kw-1mwh

Nominal Voltage

628-806V

Warranty

Yes

Nominal Capacity

100kwh

Cycle Life

>8,000 Cycles @0.5c

Application

Liquid Cooling Container Energy Storage

Cell Type

Prismatic Jfp

Ingress Protection

IP65

BMS

Built-in

Communication

RS485, Ethernet, GPRS

★

Product Description

High Safety LiFePO4 Energy Storage System

Technical Specifications
Cell type	Prismatic LFP
Cell life cycle	>8,000 Cycles @0.5C, 25ºC
Cell spec	3.2V 280Ah/314Ah
String configuration	1P240S
DC rated energy capacity	1205kWh
Rated voltage	768V
Voltage range	628V~806V
BMS communication protocol	Modbus RTU, Modbus TCP
Rated AC power	500kW
Maximum AC power	550kW
Rated AC voltage	400V
Output THDi	≤3%
Isolation method	3 Phase 4 line Transformer

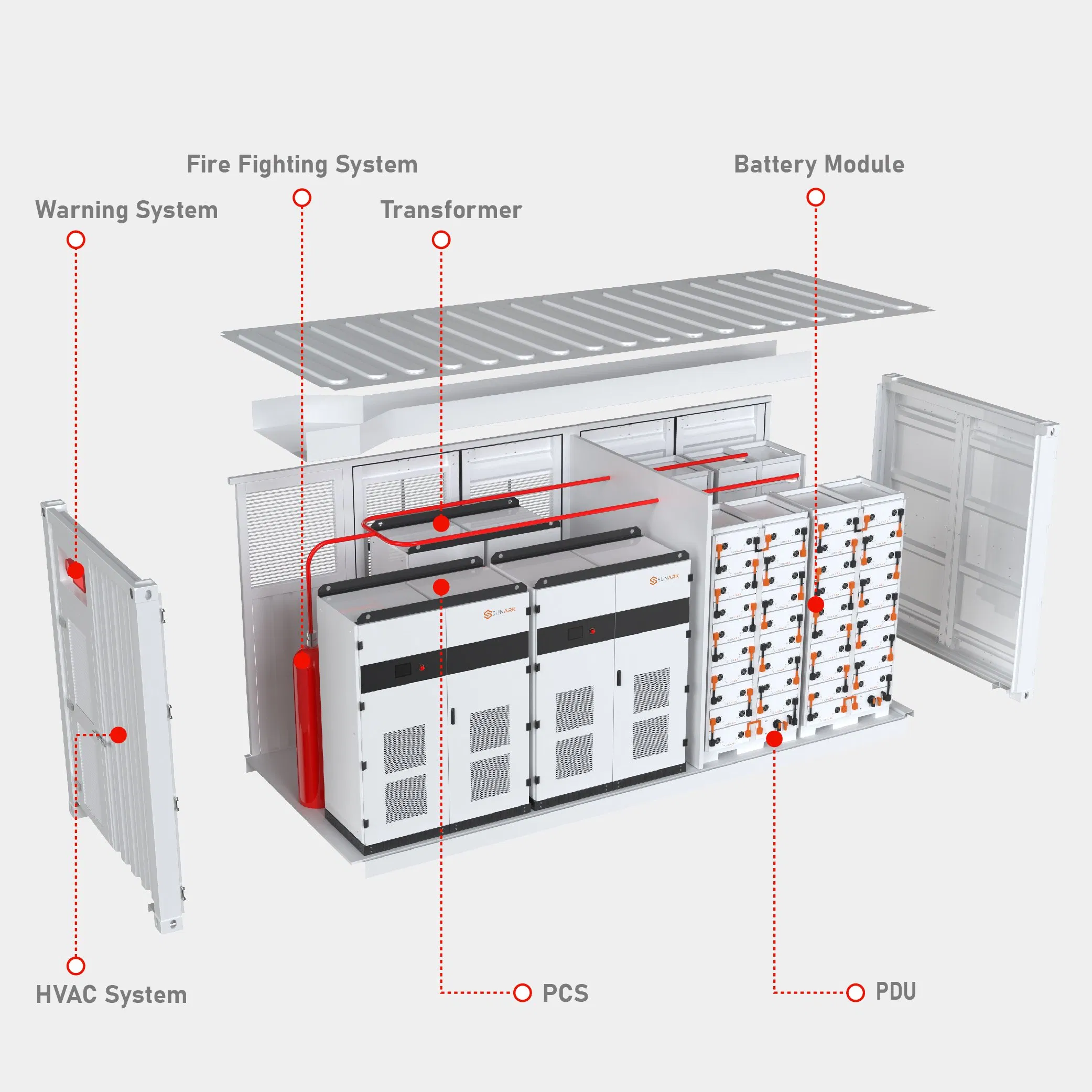

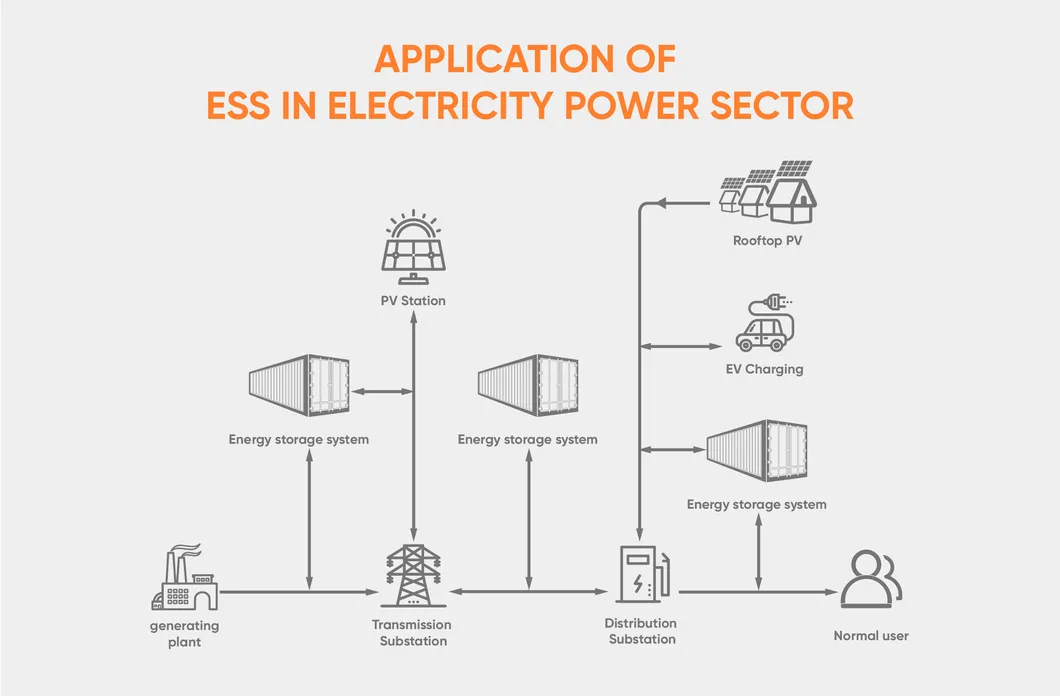

How it Works

⚙

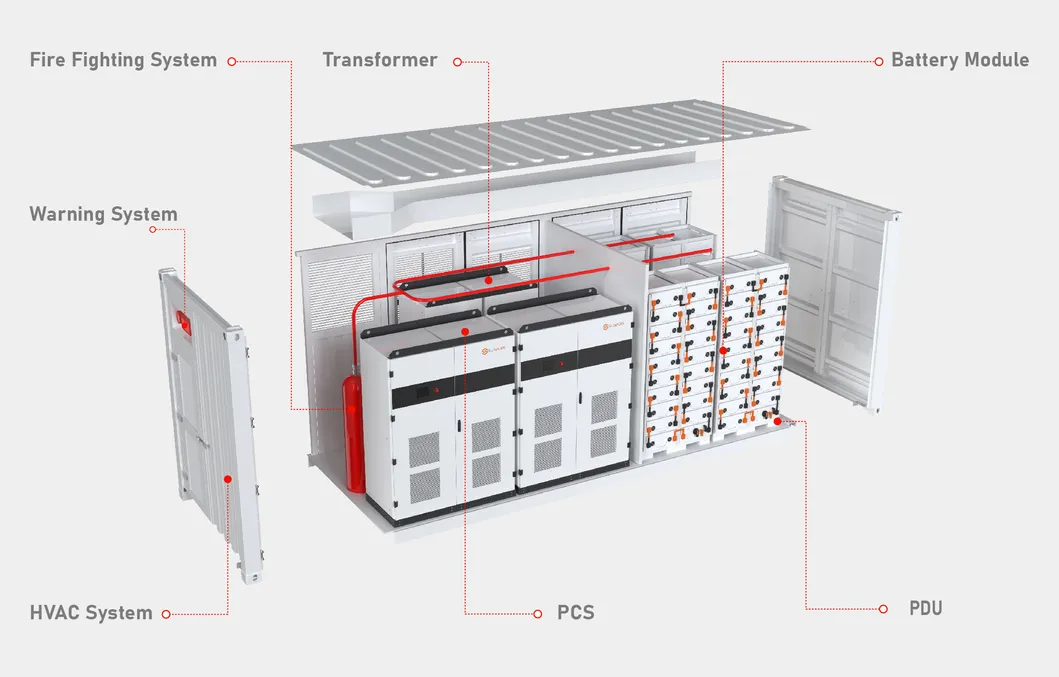

Product Details

📷

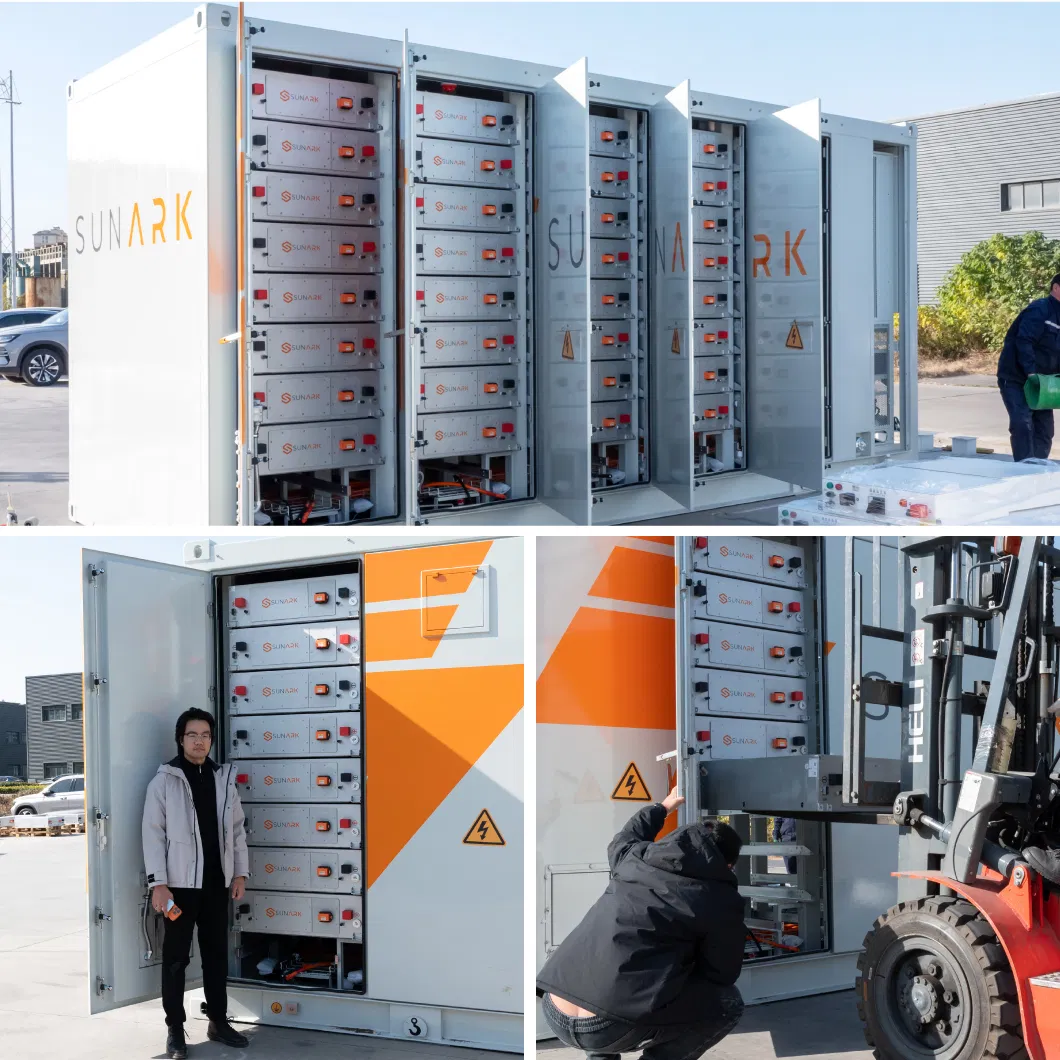

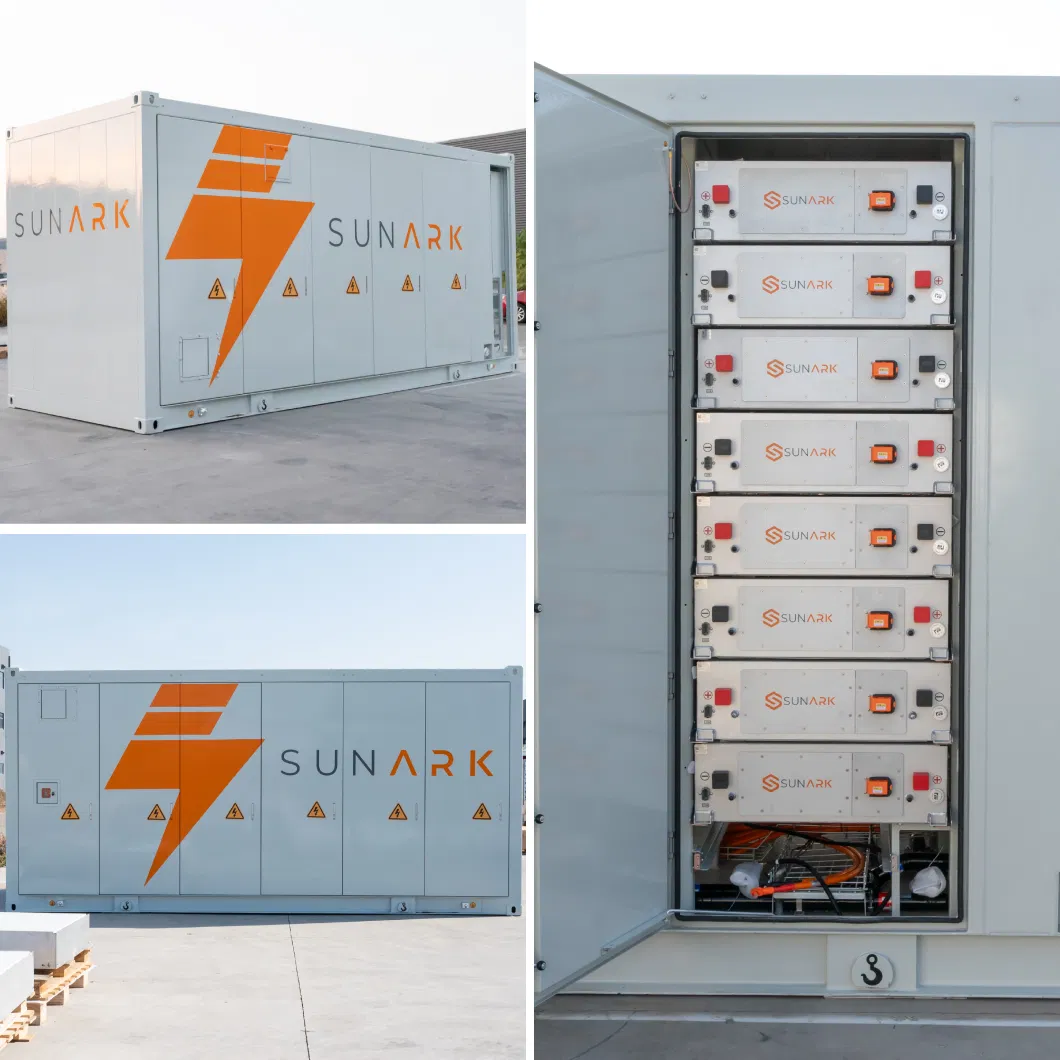

Detailed Photos

📦

Packaging & Shipping

✔

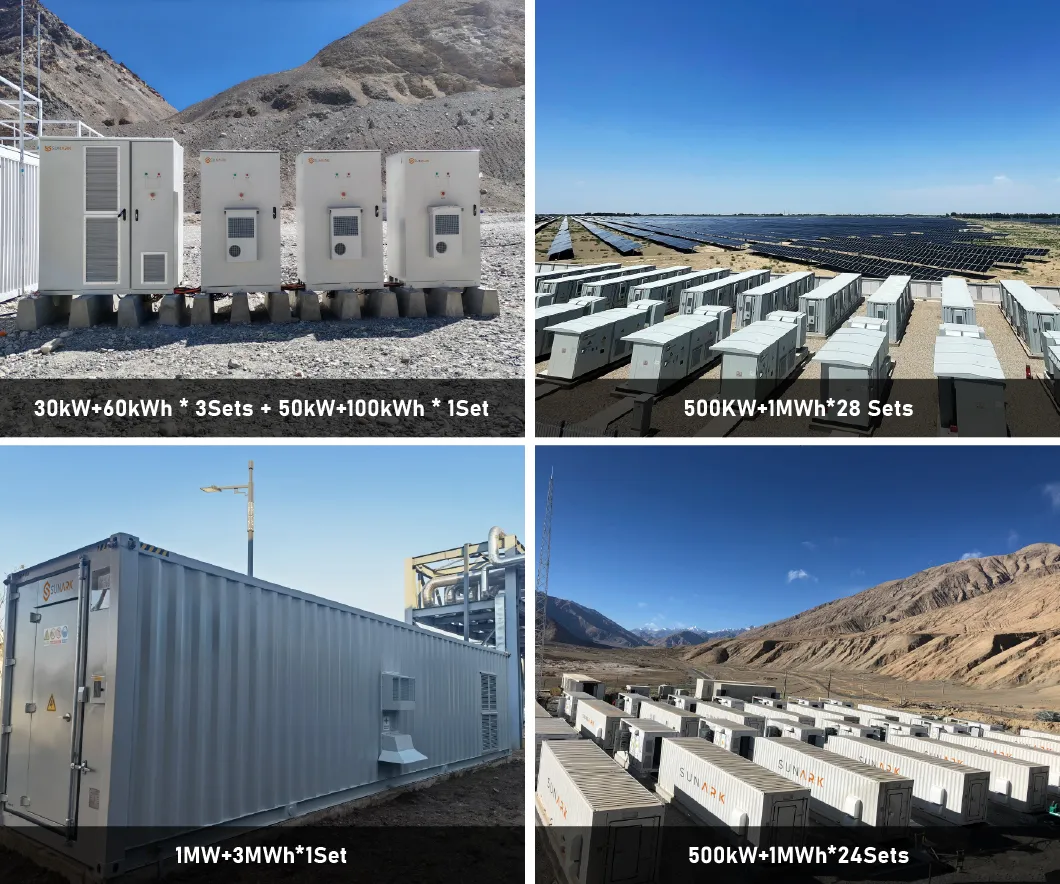

Project Case

🏢

Manufacturing & Global Presence

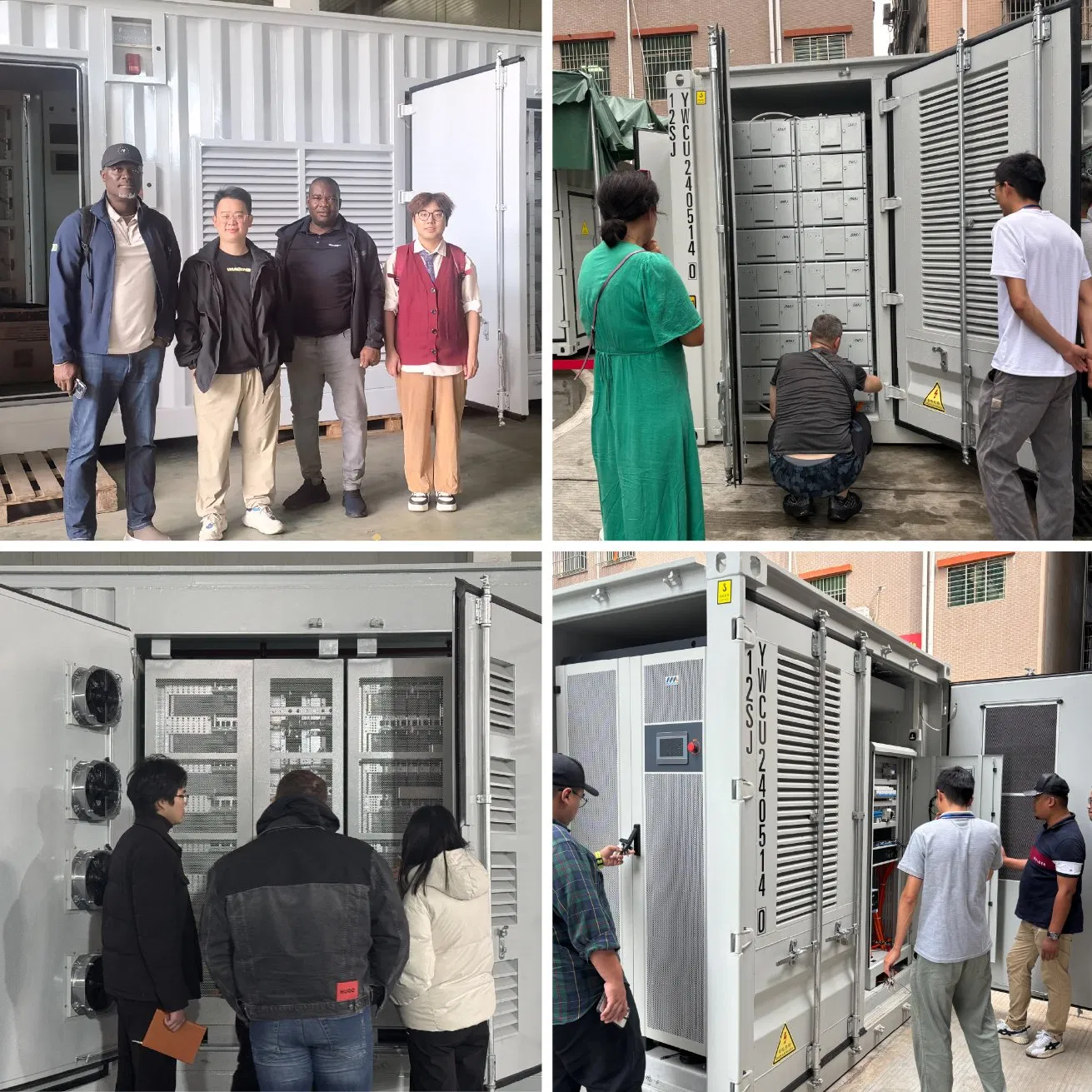

Exhibitions and Customer Visits

✉

Contact Us

Frequently Asked Questions

What is the expected cycle life of the battery system?

The system utilizes high-quality Prismatic LFP cells that offer a long service life of over 8,000 cycles at 0.5C discharge rate and 25ºC.

What safety protections are integrated into the system?

It includes a built-in Battery Management System (BMS) that provides comprehensive protection against overcharge, over-discharge, over-temperature, and short circuits.

Is the system suitable for outdoor installation?

Yes, the system features an IP65 ingress protection rating and a liquid cooling container design, making it highly durable for various environmental conditions.

Which communication protocols are supported?

The system supports multiple communication interfaces including RS485, Ethernet, and GPRS, using standard Modbus RTU and Modbus TCP protocols.

What is the rated AC power and voltage of this container system?

The system has a rated AC power of 500kW (maximum 550kW) with a rated AC voltage of 400V, utilizing a 3-phase 4-line transformer for isolation.

What applications is this liquid cooling storage system designed for?

It is designed for large-scale energy storage applications such as grid stability, renewable energy integration (solar/wind), and industrial peak shaving.
