Sunark Customization A Grade Solar Power System 3kw 10kw 15kw 25kw 30kw Solar Energy System Real Time Monitoring

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Yeras

Send Inquiry

Product Description

Basic Information

Model NO.:SE-HY 3-30Kw

Condition:New

Certification:ISO, CB, CE, TUV

Application:Home

Specification:Normal, 3-30KW

Product Name:Residential Hybrid Solar System

Solar Panel:Monocrystalline 400-700W

Solar Inverter:Hybrid 3-30kw

Battery Type:Gel / LiFePO4 Lithium Battery

Monitoring:Customized

Package:Wooden Box

Origin:China

Product Description

Warranty Information

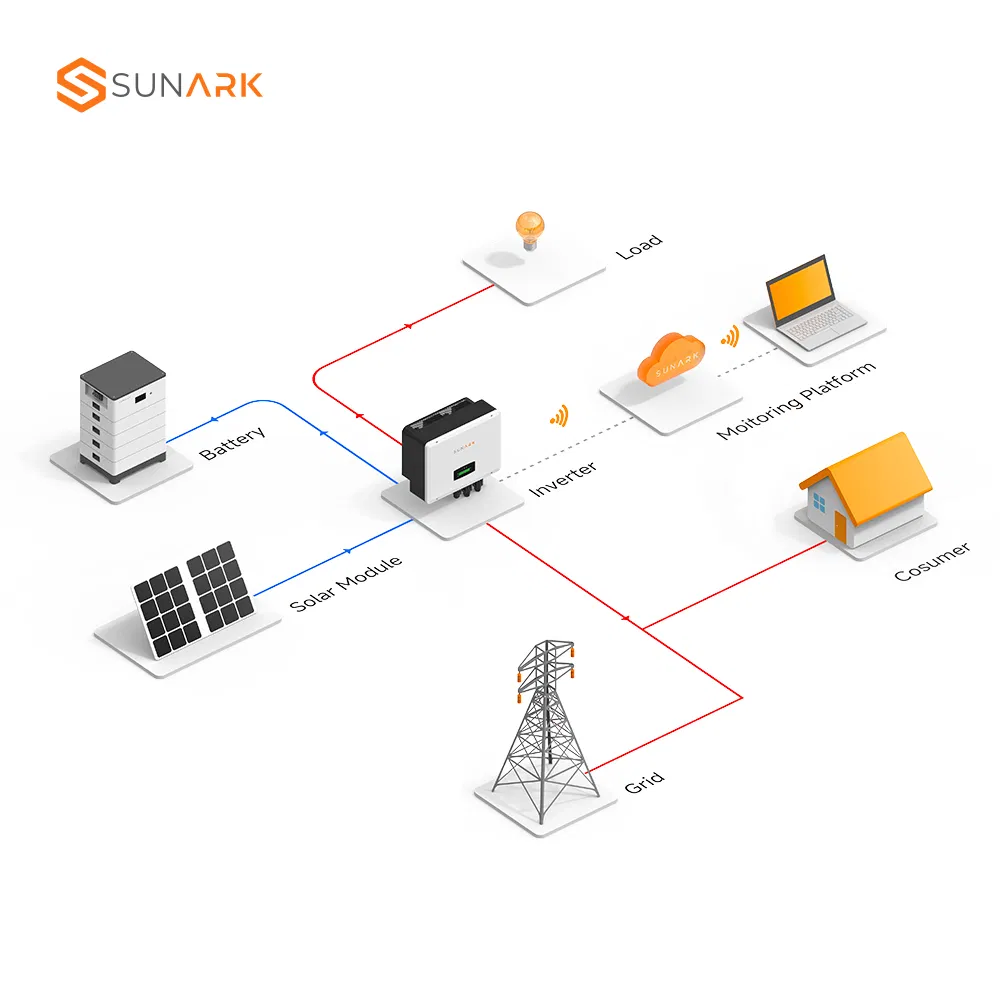

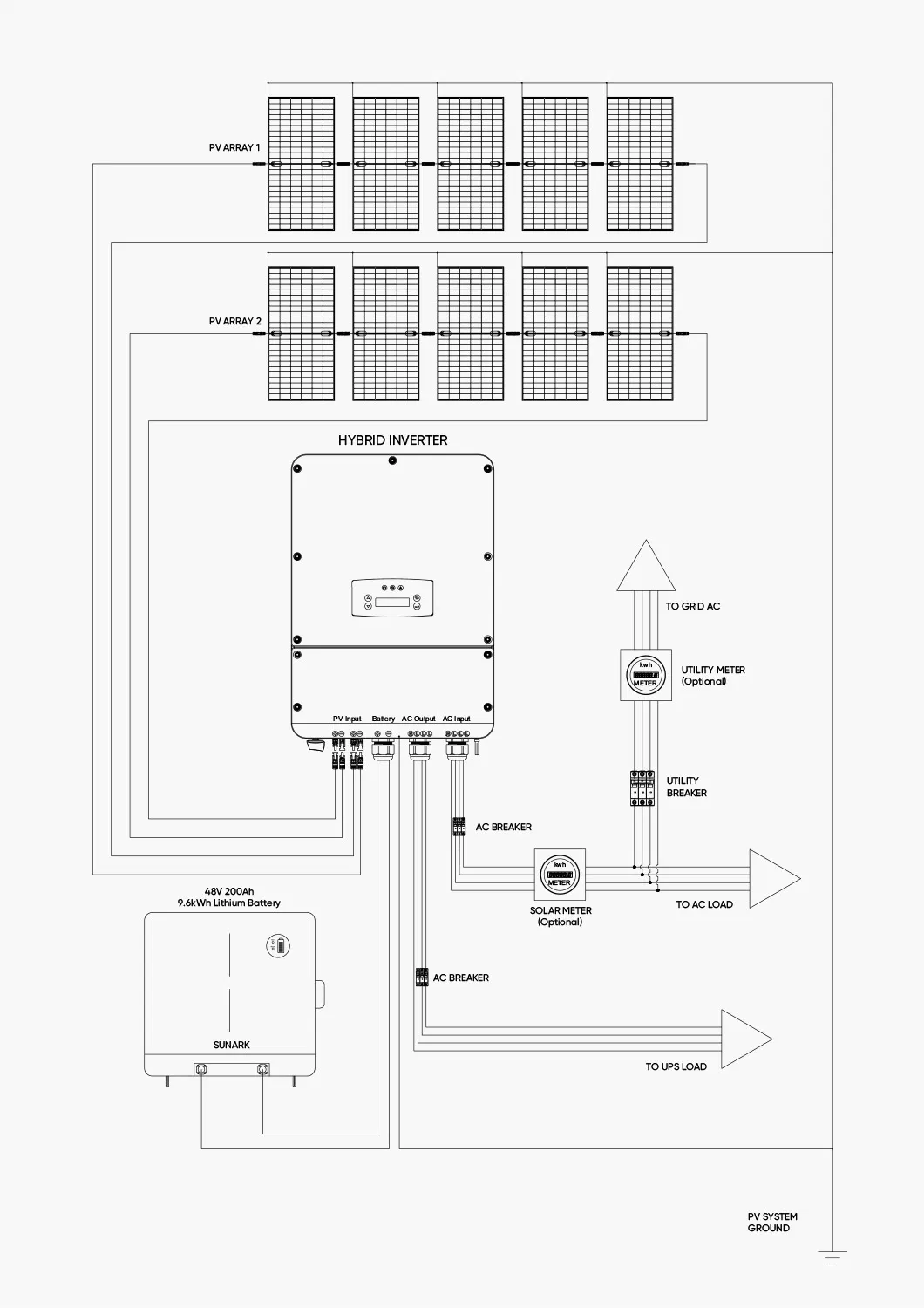

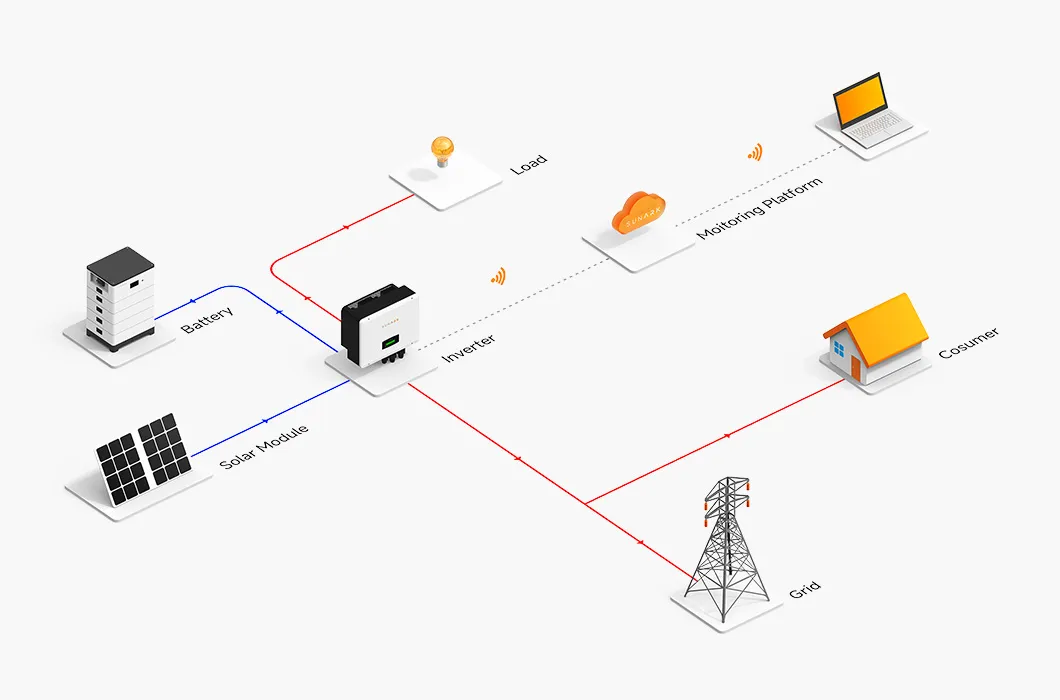

System Workflow

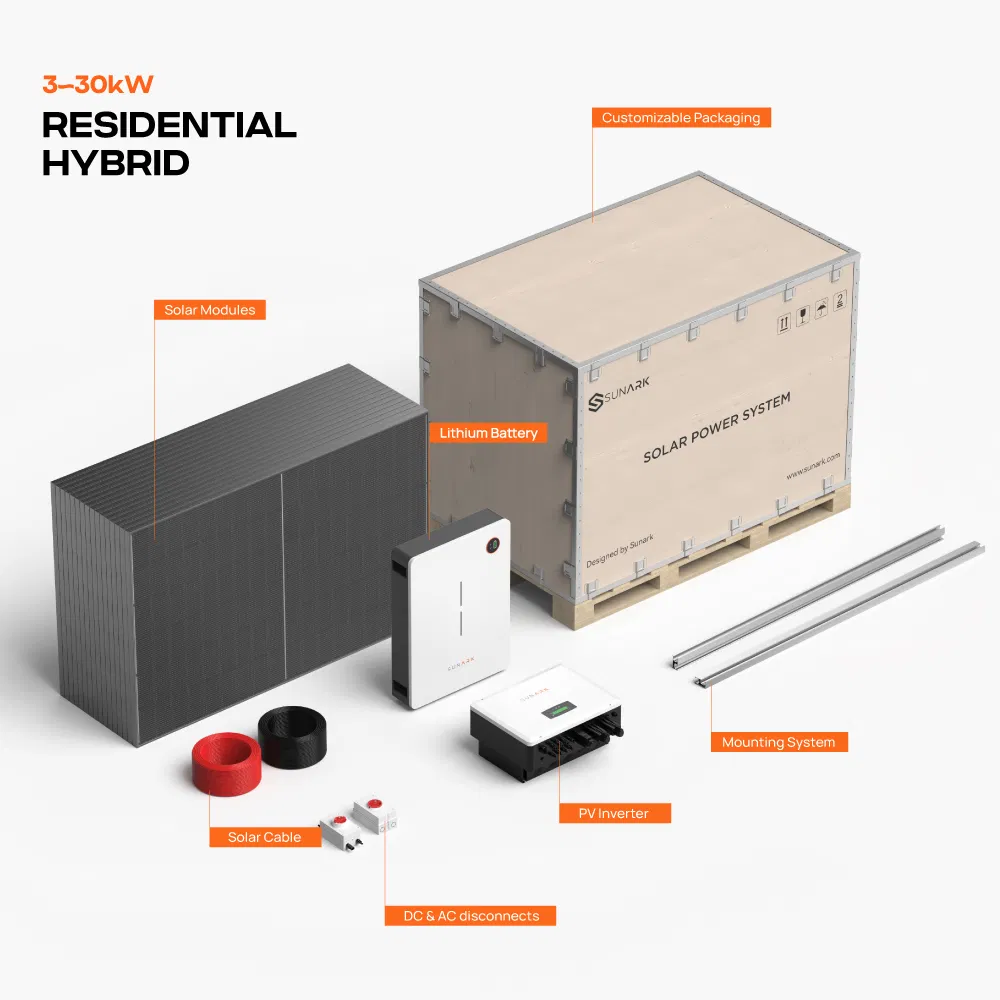

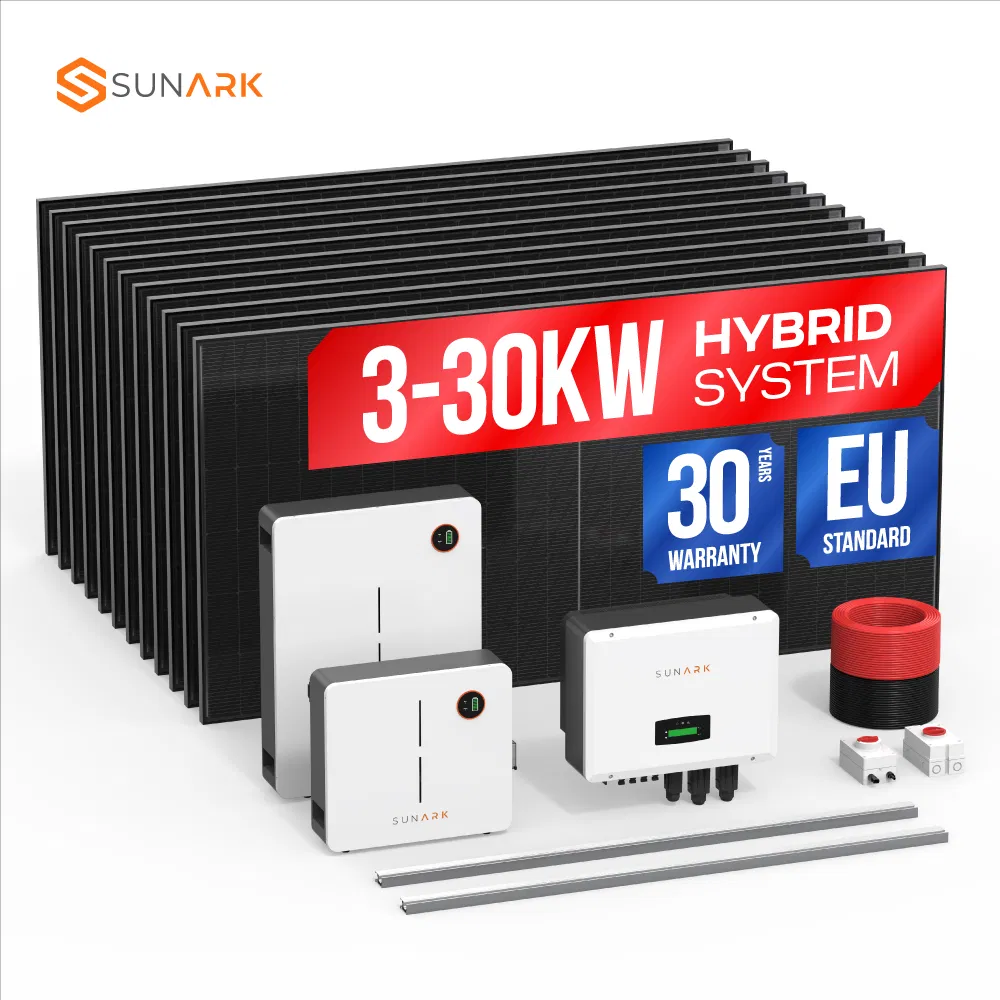

System Components & Configuration

Model	SE-3KW-HY	SE-5KW-HY	SE-10KW3-HY
550W Solar Panels	6 pcs	10 pcs	20 pcs
Hybrid Solar Inverter	1 pc	1 pc	1 pc
Lithium Batteries 48V 200Ah	1 pc	1 pc	1 pc
PV Cable 4mm2	100m	100m	200m
Roof Mounting System	1 set	1 set	1 set

Model	SE-20KW3-HY	SE-30KW3-HY	SE-50KW3-HY
550W Solar Panels	40 pcs	60 pcs	100 pcs
Hybrid Solar Inverter	1 pc	1 pc	1 pc
Lithium Batteries 48V 200Ah	2 pcs	3 pcs	5 pcs
PV Cable 4mm2	300m	500m	1000m

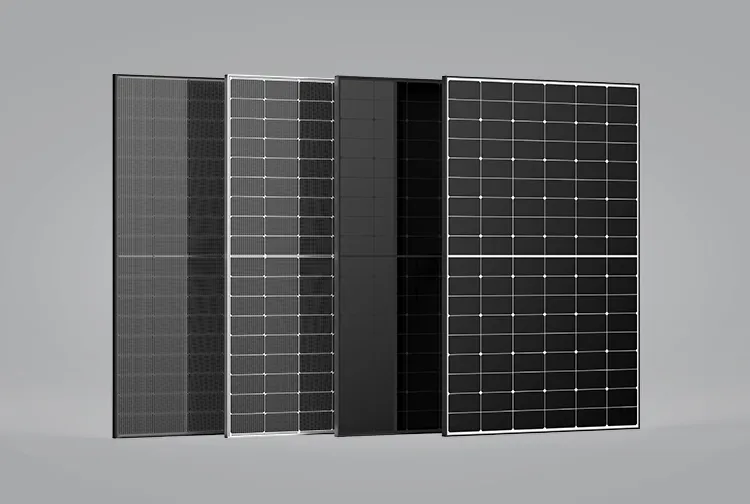

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Dimensions: 2279x1134x35mm

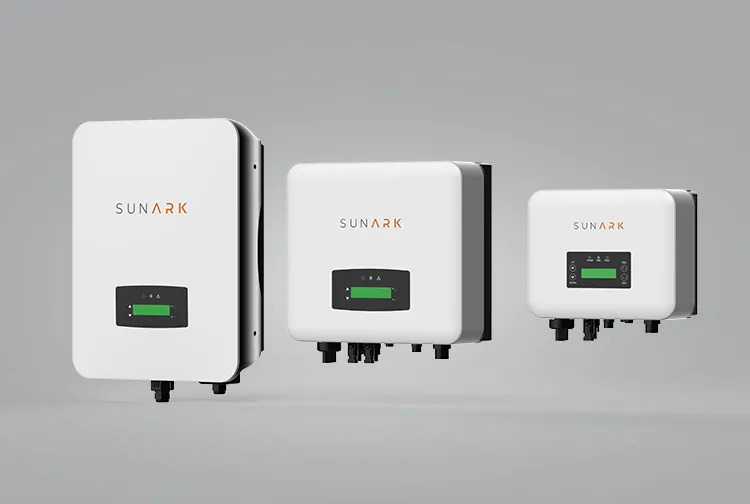

Hybrid Solar Inverter

Support both single phase and three phase, transformer isolation design. Max. charging/discharging current of 240A. Parallel support up to 6pcs. Supports DC and AC coupling.

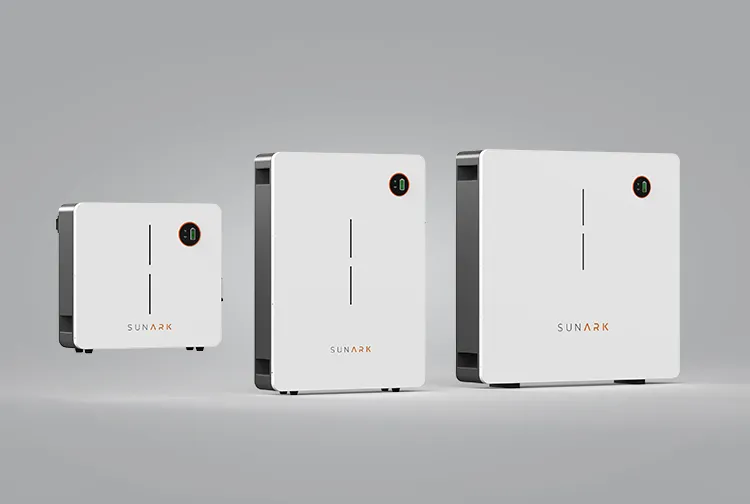

Low Voltage LiFePo4 Battery Bank

15-20 years design life. Up to 6000+ cycles. Wall mount or ground stack. Scalable modular design with high-quality BMS for maximum safety at home.

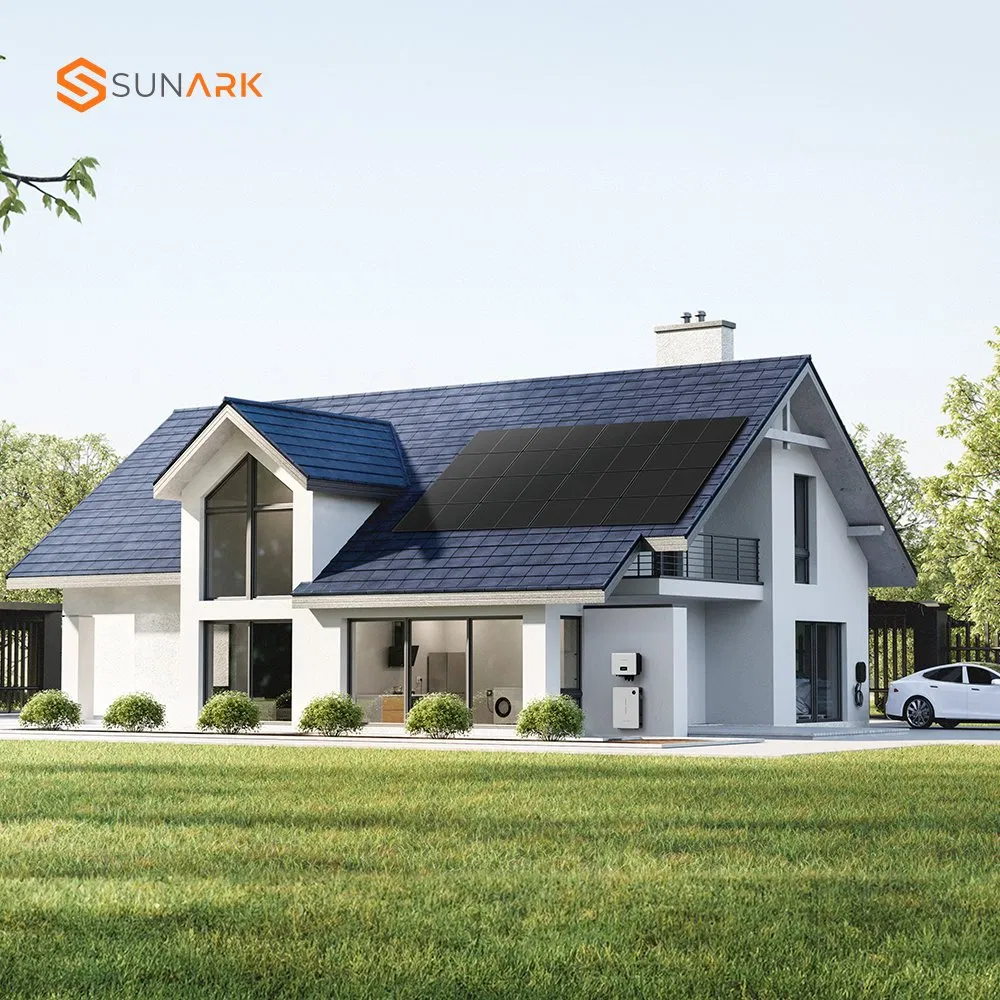

Application & Projects

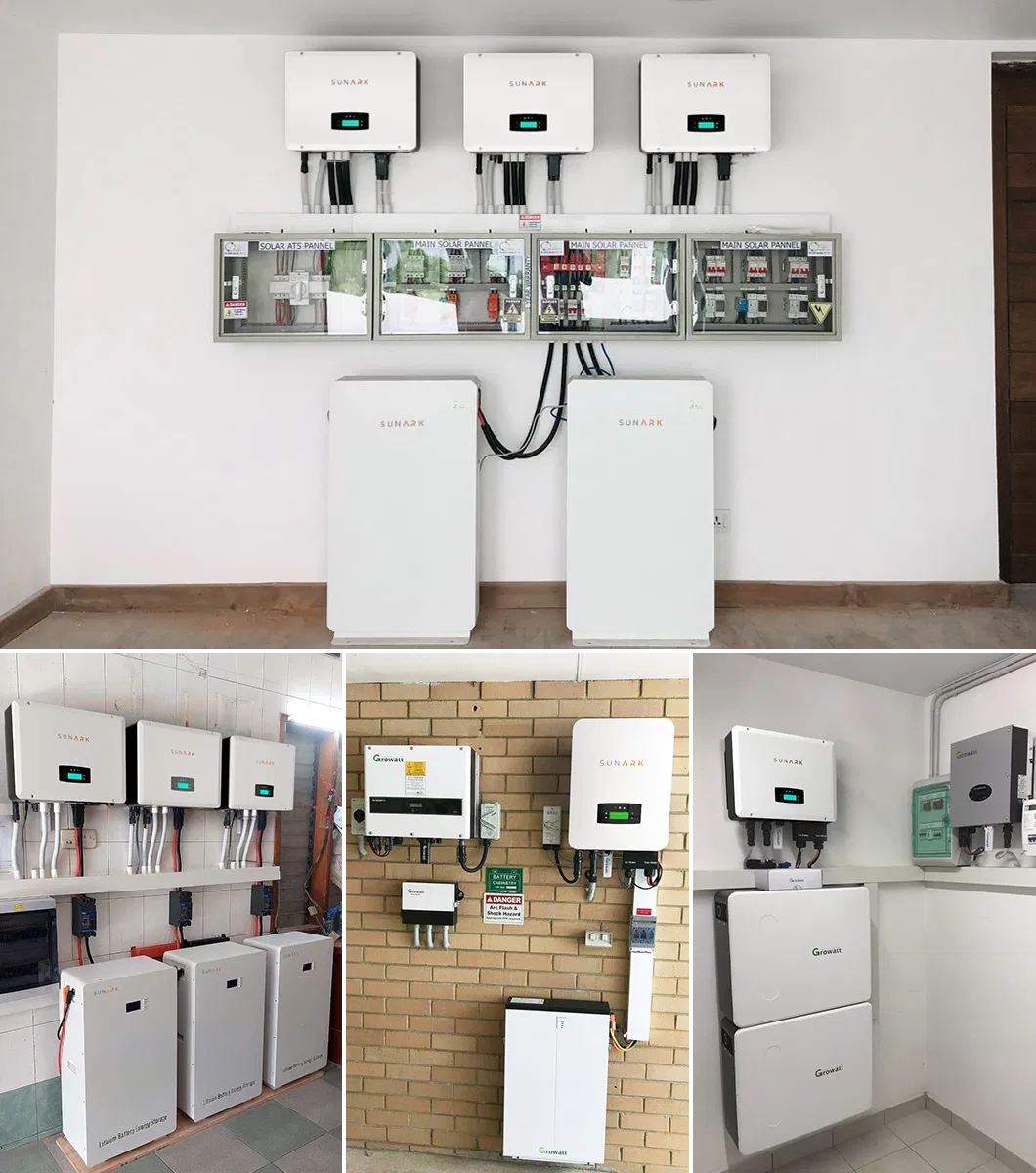

Project Cases

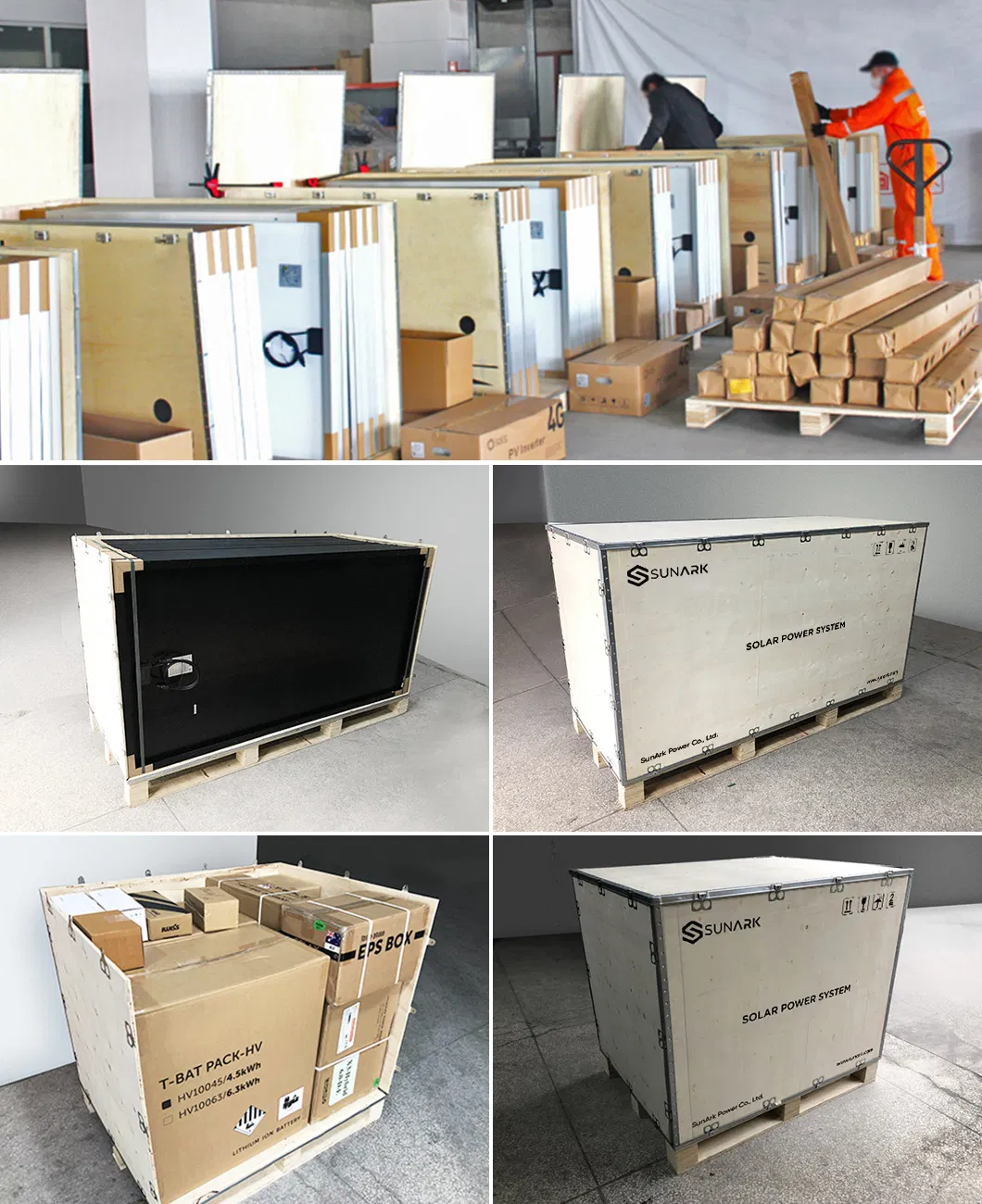

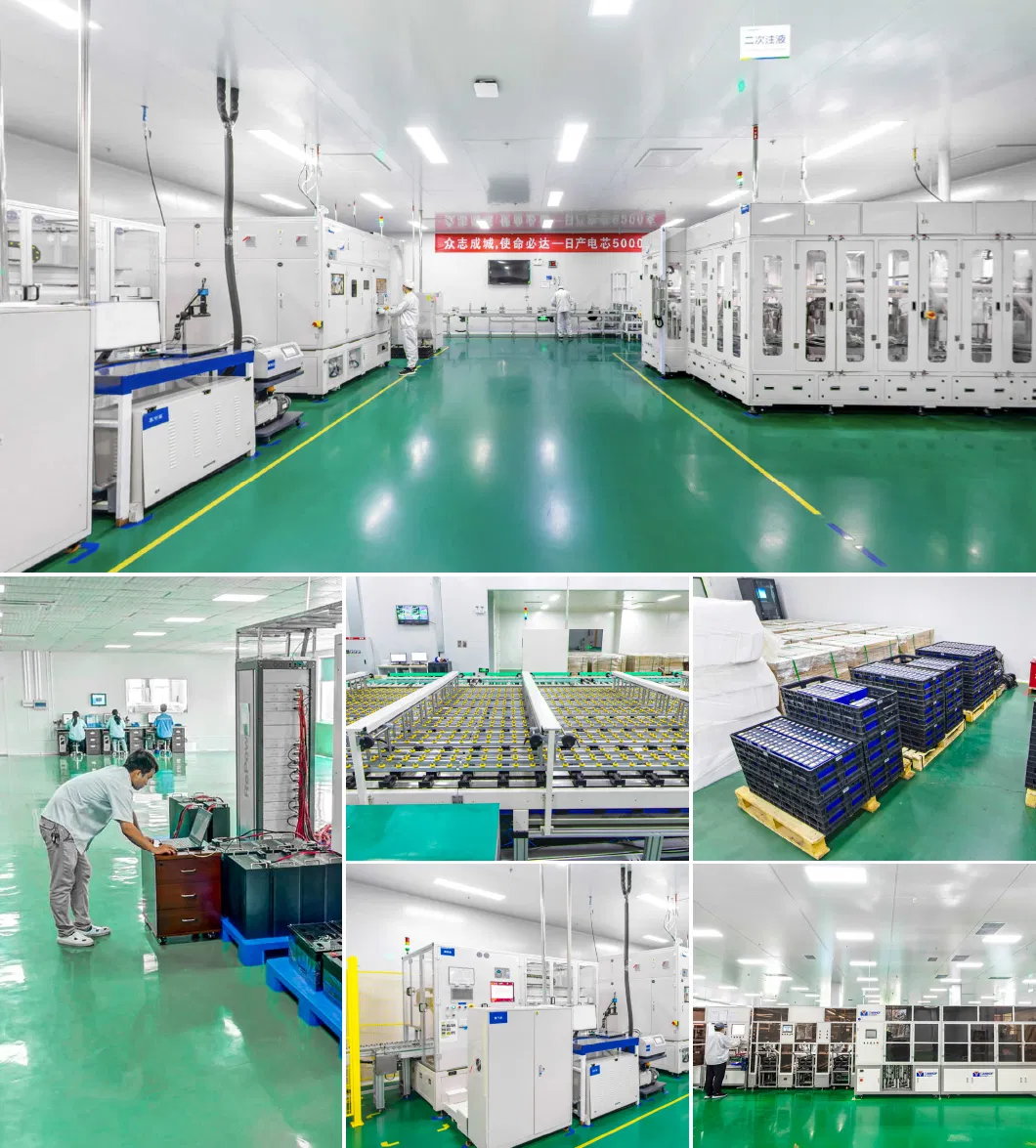

Factory & Packaging

Frequently Asked Questions

What components are included in the residential hybrid solar system?

The standard system includes high-efficiency Mono solar panels, a hybrid solar inverter, LiFePO4 lithium battery bank, PV mounting racks, DC isolators, cables, and monitoring tools.

Can I monitor the system performance remotely?

Yes, the system supports a real-time monitoring platform that allows you to track energy production, battery status, and consumption via a mobile app or web portal.

How long is the lifespan of the lithium battery bank?

The LiFePO4 batteries are designed for a 15-20 year lifespan with up to 6000+ cycles, ensuring long-term reliability for home energy storage.

Is the system compatible with three-phase power?

Yes, our hybrid solar inverters are designed to support both single-phase and three-phase residential electrical setups.

Can I expand the battery capacity in the future?

Absolutely. The battery bank uses a modular design, allowing you to add more battery modules easily as your storage needs grow.

How is the product protected during shipping?

All systems are securely packed in heavy-duty wooden boxes to prevent damage during international transport and ensure they arrive in perfect condition.
